The Fiber Laser Marking Machine adopts international most advanced technology and the laser source is fiber with Germany IPG technology, lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance. The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam. This is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.

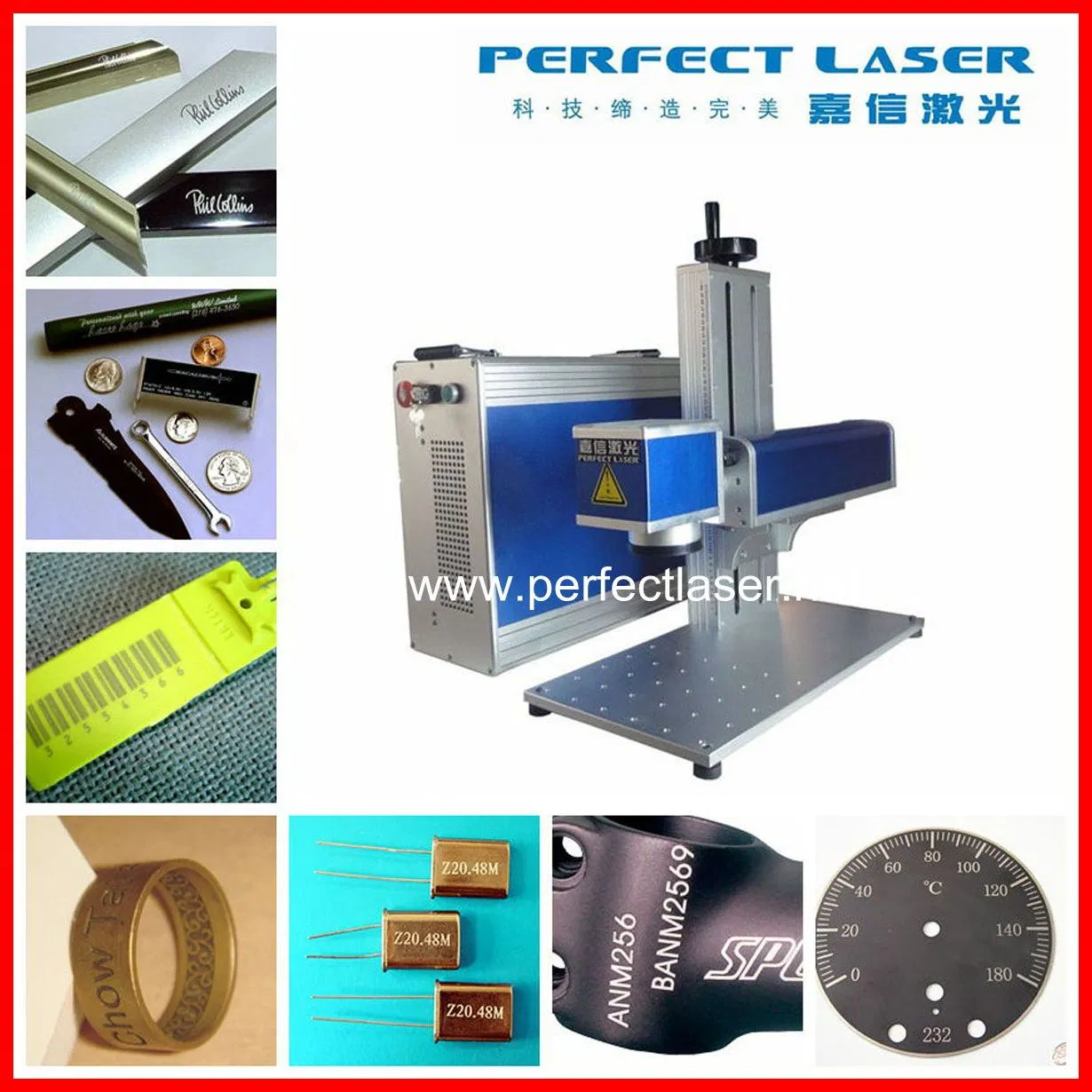

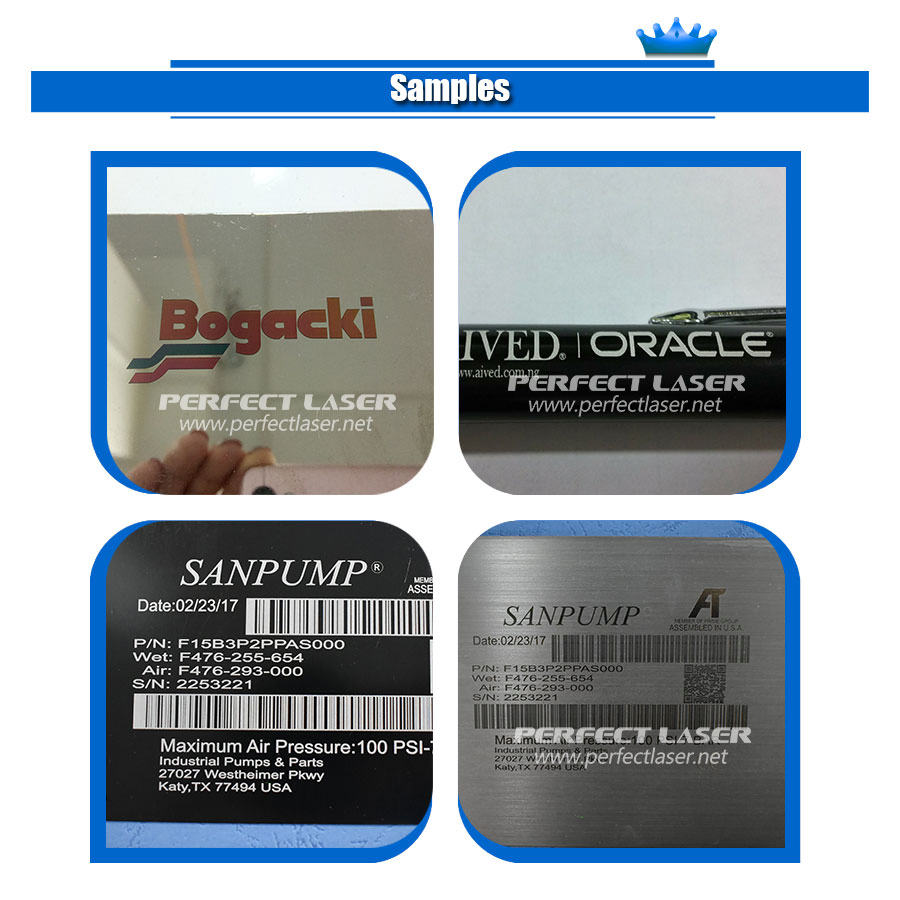

Sample & Application
Application materials: The Fiber Laser Marking Machine is widely for stainless steel marking, carbon steel marking, iron marking, aluminum marking, copper marking, brass marking, anodized and coated materials marking, etc., and non-metallic such as nylon marking, ABS/PVC/PC board marking, hard plastics marking, rubber marking, resin marking, ceramic marking etc. In the industries of electronic and communication products, IC products, electric lines, cable computer components and electric appliance.

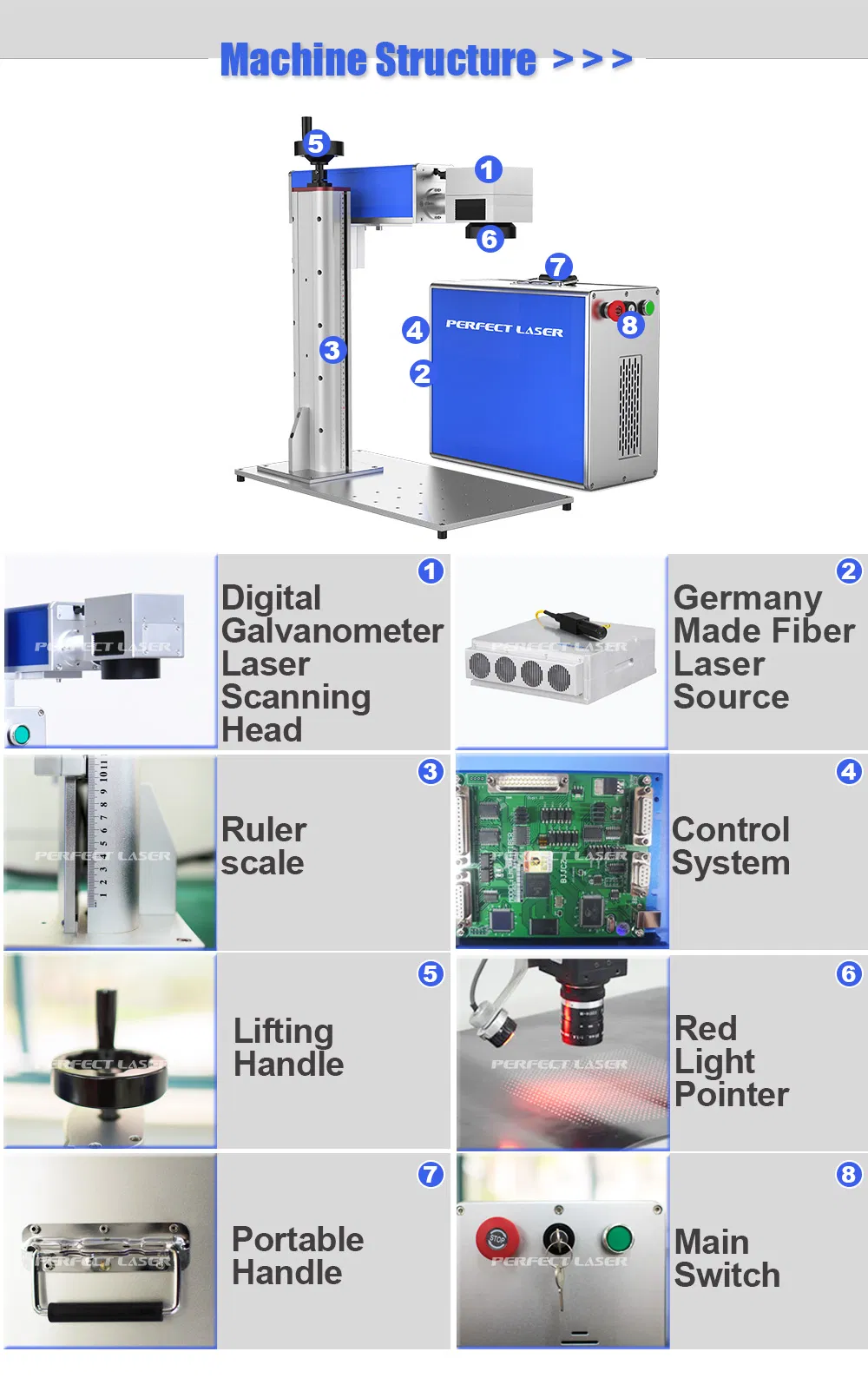

Machine Details
Best Marking Effect: The laser beam of fiber laser is fine and thin. It can provide the best marking effect among all the laser machine machines. Especially good in smallest character marking, such as mark on IC chip.
Deep Marking: The Fiber Laser Marking Machine can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm.
Higher Accuracy: Fiber laser can reach unto 0.001mm precision, while diode only 0.01mm.
10 Years Long lifetime: Utilizing the fiber laser module made by Germany IPG technology, the lifetime of the fiber laser device is 100,000 hours, so the machine can be used for 8-10 years.
No consumables: Fiber laser machine can be used for 8-10 years without any consumables.
Alignment Free: No need to adjust the laser path.
Maintenance Free.
Integrated Air Cooling System.
Low Power Consumption: Low cost, only 0.5kw/hour.
Small and compact: The volume of the Fiber Laser Marking Machine is small, only 0.15 M3.
Product Parameters
Product Specification Key
Details & Values
Product Name

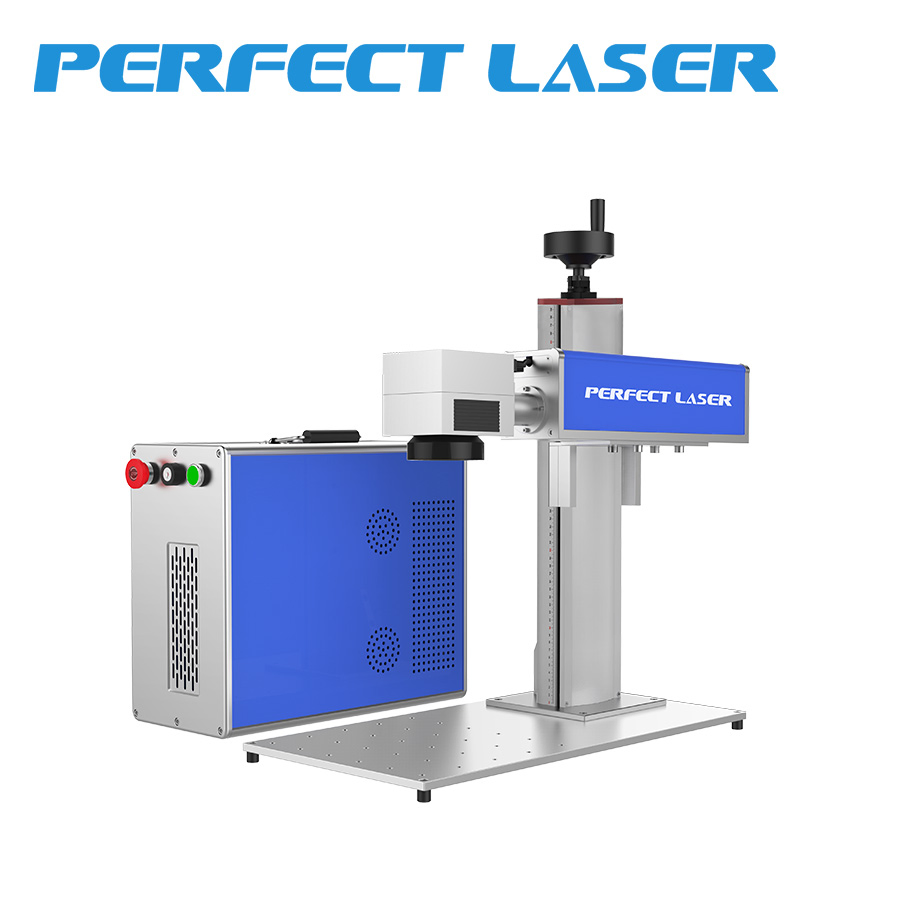

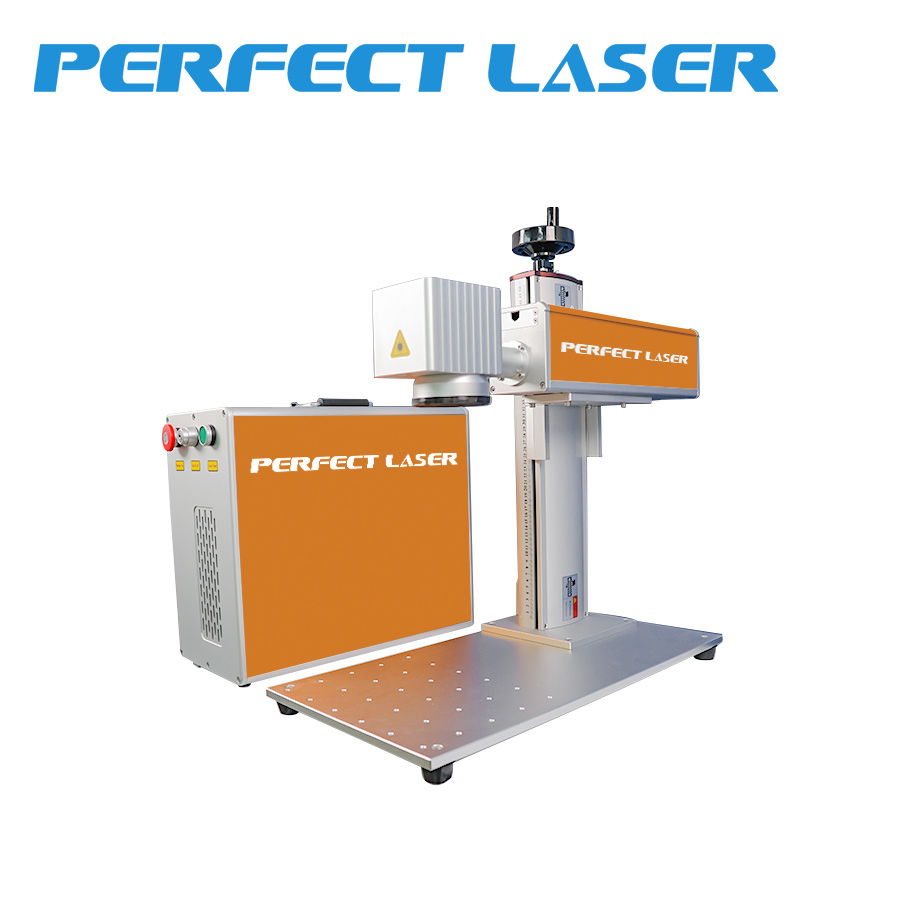

Desktop Fiber Laser Marking Machine
Model No.

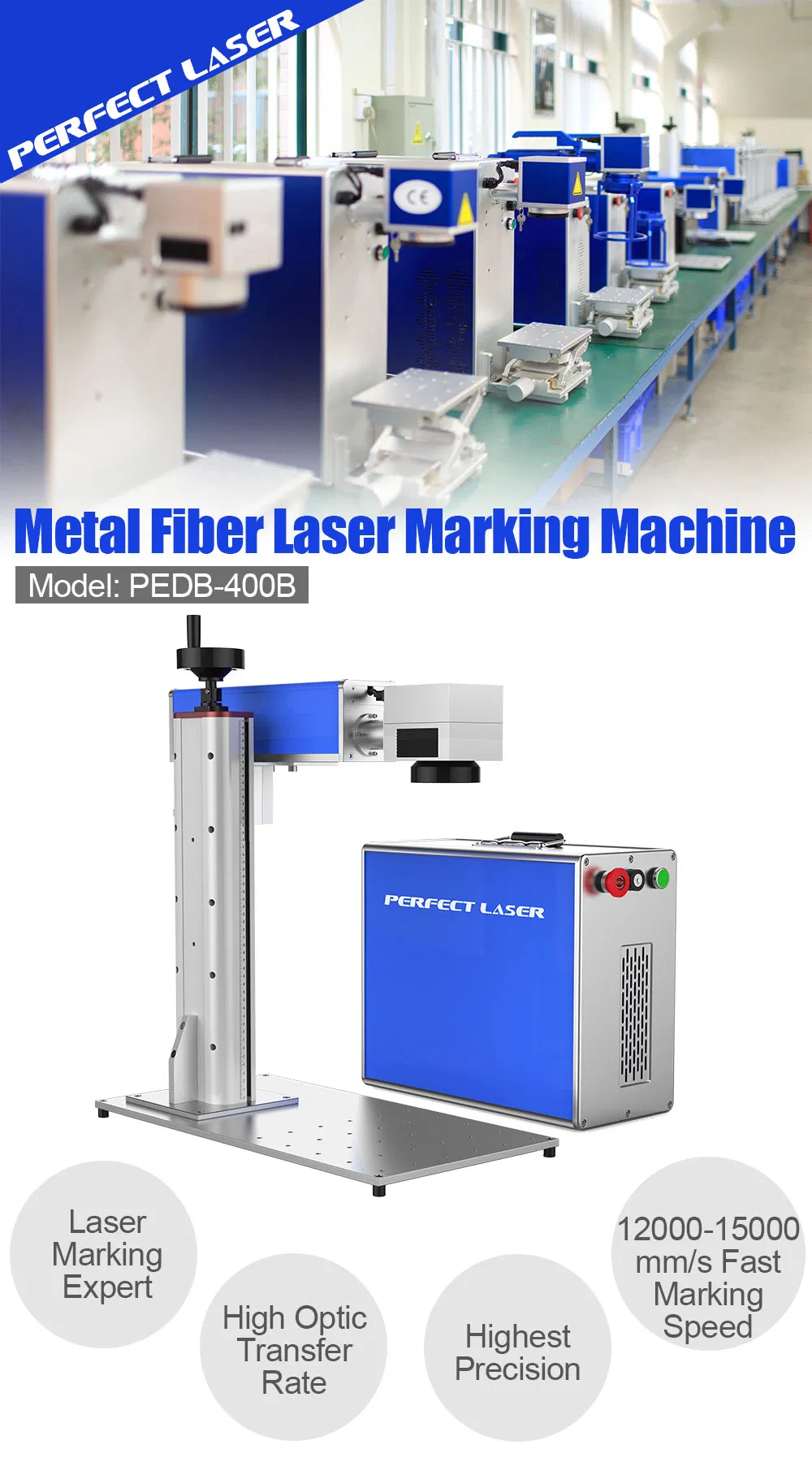

PEDB-400B
Computer
Not includes PC
Laser Source Parameters
IPG Series
Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation
Pulsed
Polarization
random
Standard output power
20W - 50W For PEDB-400A /400B /400C 20W - 100W For PEDB-400D
Central emission wavelength
1060-1070 nm, Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth(FWHM)
<10 nm
Long-term average power instability
<5%
Pulse width, (FWHM)
100 ns
Laser switching ON time
180 μsec
Laser switching OFF time
180 μsec
Pulse Repetition Rate* kHz
20-80 kHz
Energy per pulse (PRR = 20 kHz)
0.95 mJ
Typical beam quality, M2
<1.8
Output fiber delivery length
3m
Operating voltage
220V
Max. Power consumption
600W
Net Dimensions
80*38*72cm
Net Weight
53 kgs
Gross Weight
70 kgs
Laser System Configurations
Scanning Speed
0-10000mm/s
Marking Speed
0-7000mm/s
Marking size
110mm×110mm (F-theta 160)
Spot size
≤ 40 micron (F-theta 160)
Cooling unit
Air cooled
Pilot laser
650nm diode laser, visible red light for marking guide
Continuous working time
≥16h
Humidity
45~85% (no condensation)
Operating temperature
0~40ºC
Control units
Laser Mark (English Version)
Our Service
Free Training by VCD: The machine is supplied with a comprehensive user guide and training video in English for installation, operation, maintenance, and troubleshooting. Technical support is always available via remote channels.
Free Training in Factory: Operators can be sent directly to the production facility for hands-on, face-to-face instruction. Training sessions typically last 1 to 3 days and occur in a fully-equipped testing center.
On-site Training: Professional engineers are available to perform local, door-to-door instructional training at your production site if requested.
Quality Guarantee & After-Sales Services: The system features a 36-month quality guarantee period starting from its arrival at the port of destination. Except for human-induced damage, defective components will be replaced free of charge during the warranty term, subject to component validation. Post-warranty repairs and parts supply remain available on a cost basis.
Frequently Asked Questions
✦ What materials can this desktop fiber laser marking machine process?
This fiber laser marking system is highly versatile. It works with standard metals (stainless steel, carbon steel, iron, aluminum, copper, brass) as well as anodized/coated surfaces. It is also suitable for plastics (nylon, ABS, PVC, PC, hard plastics), rubber, resin, and ceramic materials.
✦ How long is the expected operational lifespan of this fiber laser?
The machine utilizes premium pulsed fiber laser source modules. The design lifetime can reach up to 100,000 operational hours. This allows for approximately 8 to 10 years of consistent usage without requiring consumables.
✦ What is the maximum engraving depth achievable with this model?
This unit supports deep metal marking up to 1.0mm on stainless steel and aluminum substrates, which is significantly deeper than traditional YAG or diode lasers.
✦ Does this marking system require regular cooling maintenance?
No. The marking machine features an integrated air cooling system. This keeps the design highly compact, low-maintenance, and eliminates the need for water-based cooling media or chiller devices.
✦ What is the power consumption and input voltage of the machine?
The machine operates on a standard 220V voltage. It runs with extremely low power consumption, requiring only about 0.5 kW/hour, and has a maximum power draw rating of 600W.
✦ What is covered under the warranty package?
The equipment includes a 36-month quality guarantee from the date of port arrival. Under normal operation (excluding user-inflicted physical damage), replacement components are provided free of charge during the warranty cycle.
