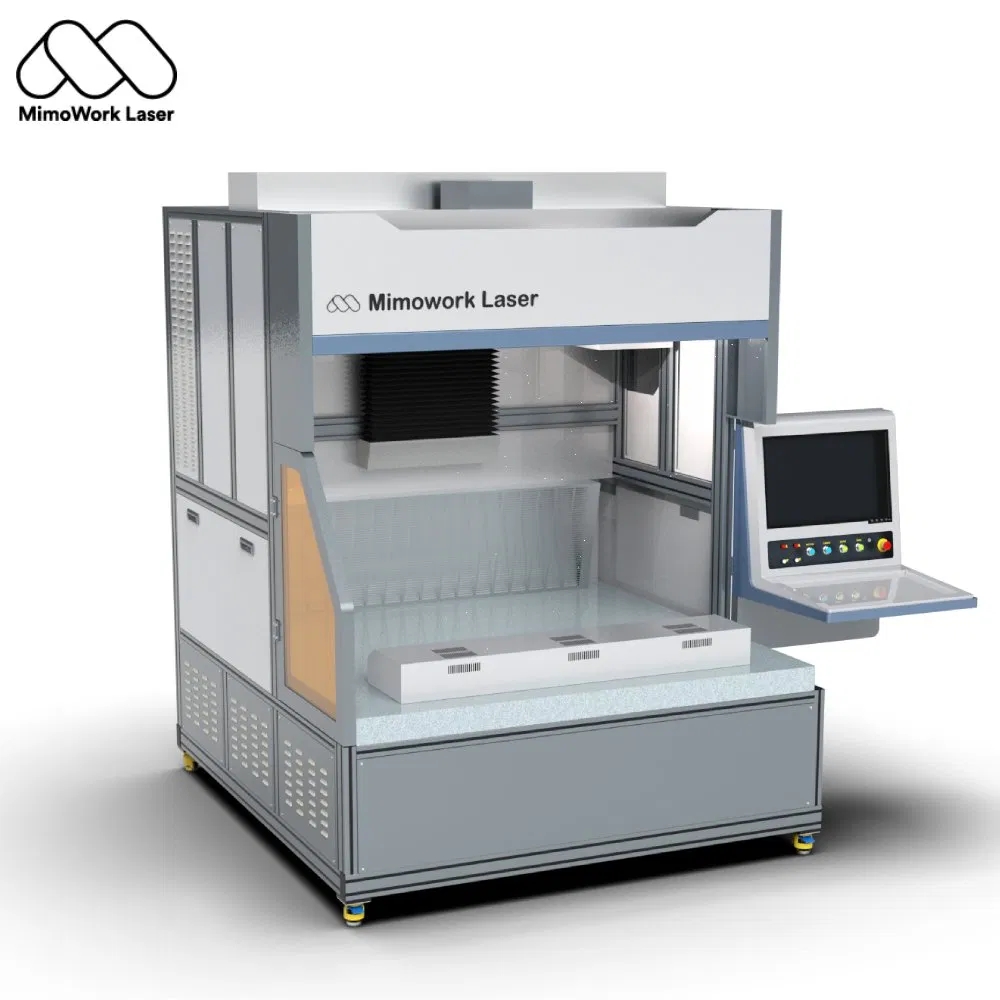

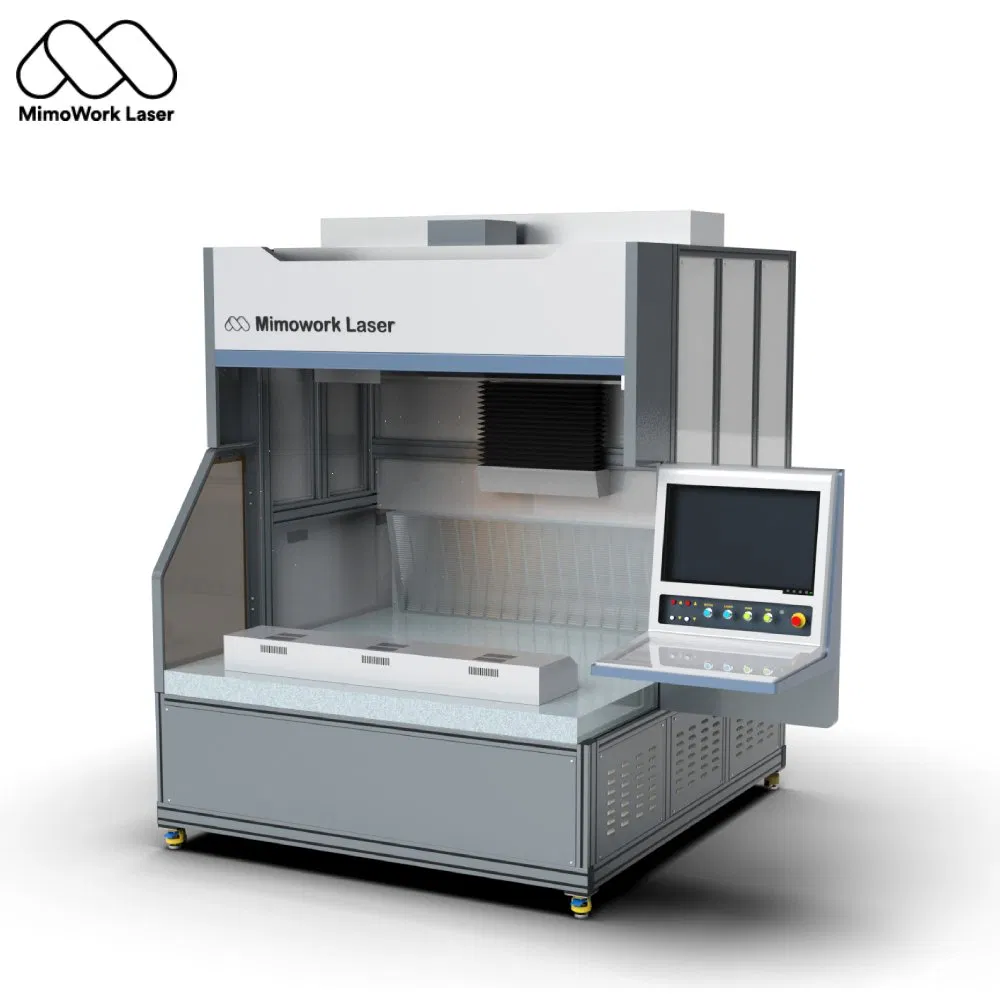

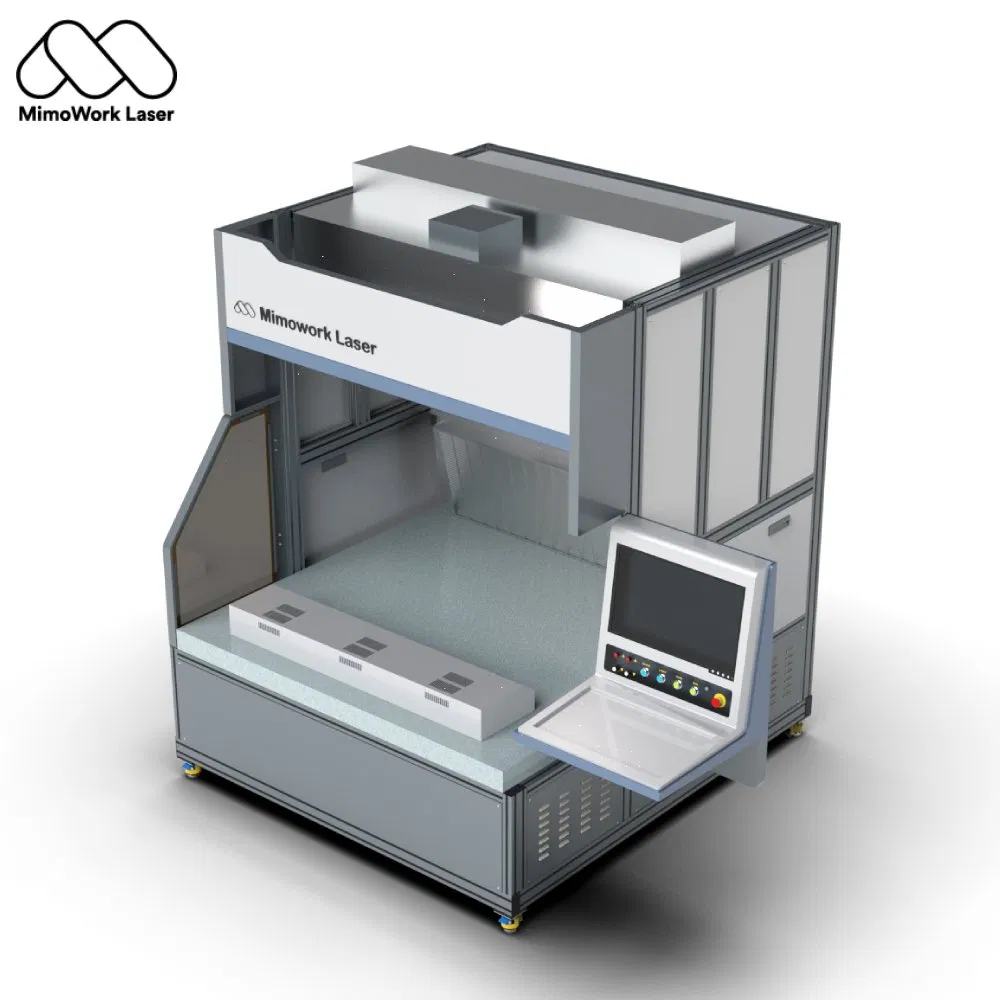

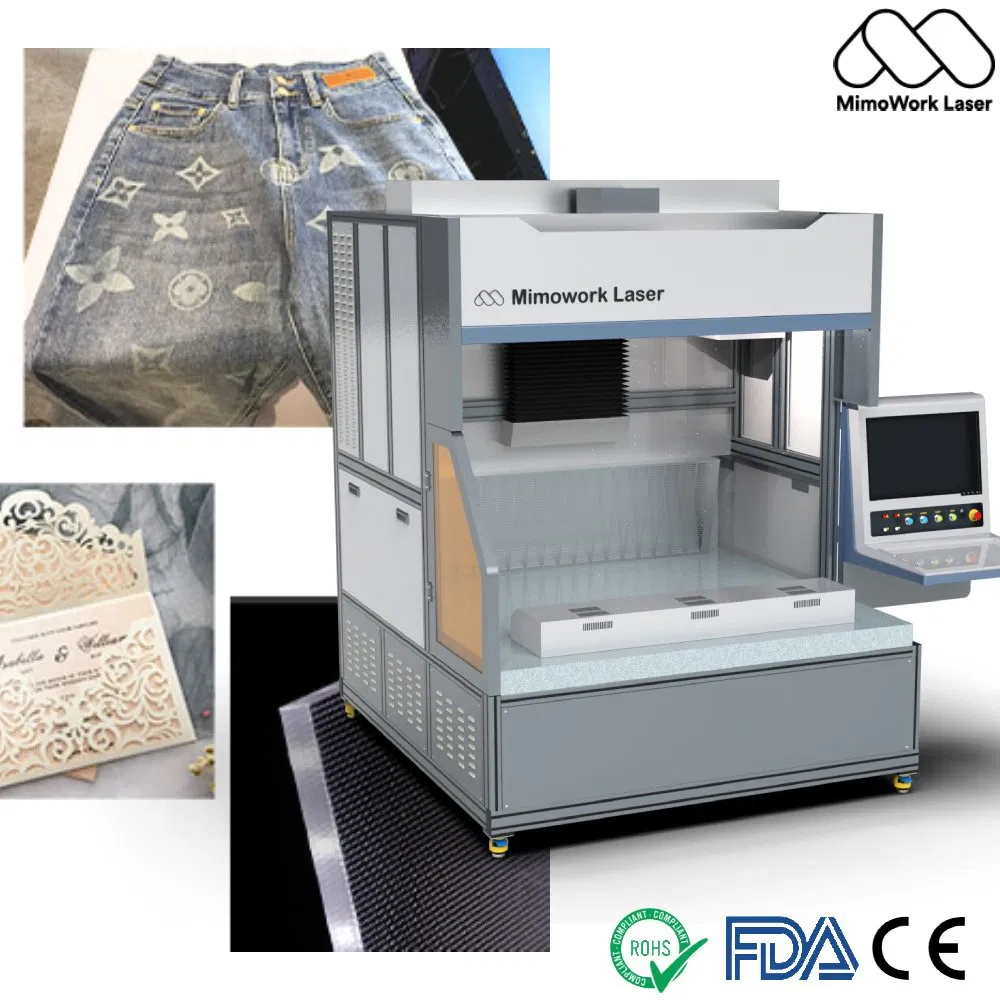

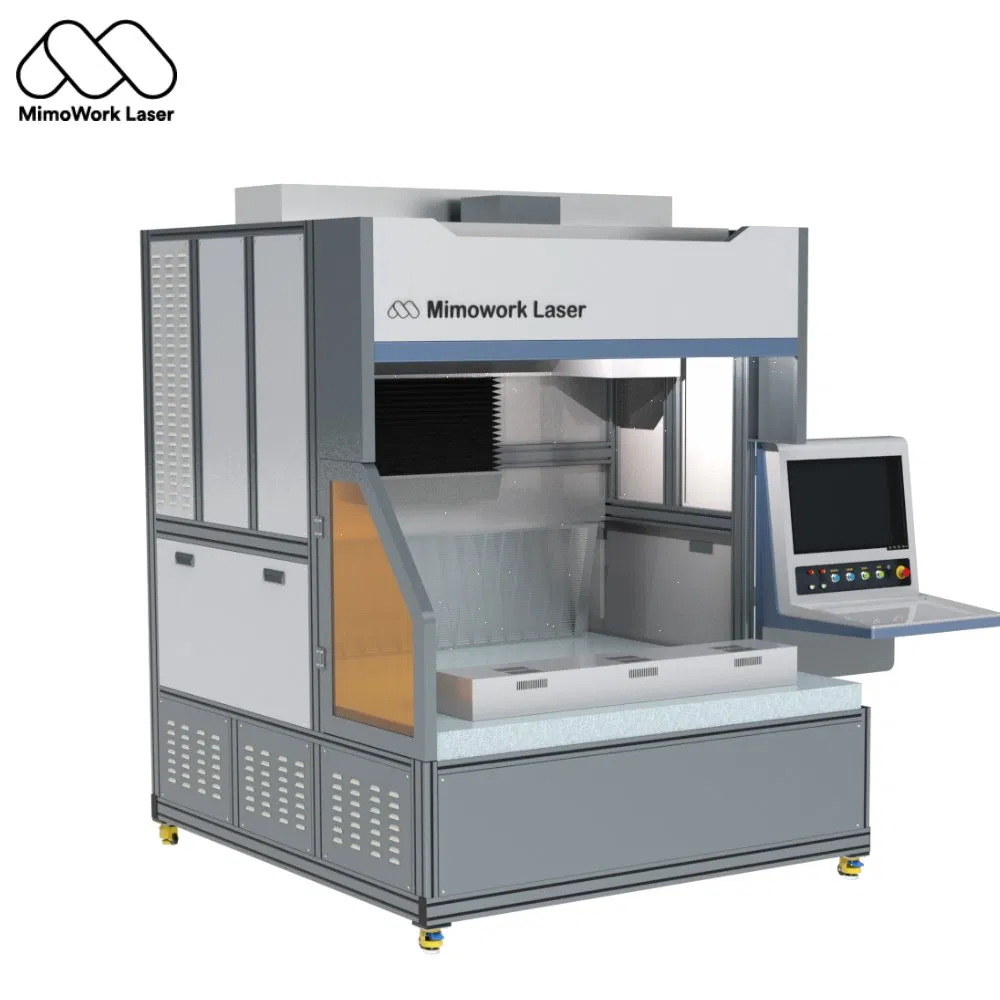

A CO2 galvo laser marking machine is a high-speed, precision laser system designed for marking, engraving, and cutting various non-metallic materials and coated metals. The "galvo" system uses galvanometer mirrors to direct the laser beam with exceptional speed and accuracy, making it ideal for intricate designs and high-volume production. The 3D dynamic focusing system is particularly useful for applications where the material surface is not perfectly flat or when you need to mark complex 3D objects.
Suitable for various materials and sizes, our CO2 laser marking machine has different working sizes available ranging from 400mm * 400mm to 800mm * 800mm. For some special materials sizes and marking requirements, our laser experts can customize the laser machine size and configurations for you.
| Main Machine Models | |
|---|---|
| Model Type | G-40, G-40E, G-60, G-60E, G-80, G-80E, G-160 |
| Working Table Size | 400mm * 400mm, 600mm * 600mm, 800mm * 800mm, 1600mm * Infinity, etc. (500mm * 500mm, 700mm * 700mm, 1200mm * 1200mm, 1500mm * 1500mm CUSTOMIZED) |
| Laser Power | 100W, 150W, 180W, 250W, 350W, 500W, 600W, 800W, 1000W |
| Machine Specifications | |
|---|---|
| Laser Source | CO2 RF Laser Tube, CO2 Glass Laser Tube |
| Laser Source Brand | Luxinar(Rofin), Coherent, etc. |
| Life Span | About 20,000 hours |
| Max Marking Speed | 10,000mm/s |
| Max Cutting Speed | 1000mm/s |
| Repetition Precision | ±0.01mm |
| Min Line Width | 0.3mm |
| Working Table | Fixed Honeycomb Laser Cutting Bed / Shuttle Table / Mild Steel Conveyor Working Table |
| Laser Frequency | 20kHz~200kHz |
| Focusing | 3-axis dynamic focusing |
| Control Software | 2D, 3D Laser Marking Software |
| Cooling Mode | Water Cooling and Protection System |
| Gross Power | <1250W |
| Operation System | Windows |
| Controlling System | DSP High Speed Controller |
| Working Environment | Temperature: 15ºC-30ºC; Humidity: 30-80% |
| Machine Standard | CE, ROHS, FDA, ISO-9001 |
With the integration of the RF laser tube and the high-speed Galvo scanning system, the machine can achieve ultra-fast marking speeds, making it perfect for high-volume production. This high speed does not come at the cost of precision, making it ideal for industries requiring quick turnarounds without compromising on quality.
The combination of high-quality optical components, RF laser technology, and the Galvo system enables extremely precise laser marking. This makes it suitable for detailed engraving, fine text, and intricate designs on a variety of materials.
The CO2 laser marking machine can handle a wide range of materials, including: paper, cardboard, leather, plastic, denim, fabrics, wood, acrylic, vinyl, etc.
With the high precision and fast scanning speed of the galvo laser, the CO2 laser marking machine is not only for marking on most non-metal materials, but suitable for engraving and cutting. Speaking of laser cutting, the galvo laser marking machine is perfect for cutting holes in fabric and kiss cutting heat transfer vinyl, but the galvo laser cutting is only suitable for thin materials like paper, film and fabric.
The machine is designed with ergonomics in mind, ensuring that operators can use it comfortably for long periods. Features include:
When selecting a CO2 laser marking machine, there are several key factors to consider to ensure you get the machine that best meets your specific requirements:
Choosing the right working table size according to your material sizes and pattern sizes. We have several standard working table sizes 400mm * 400mm, 800mm * 800mm and 1600mm * infinity that are suitable for most requirements for marking and cutting. If you have special sizes of materials, please contact our laser expert to discuss the possibility of customizing the laser marking machine.

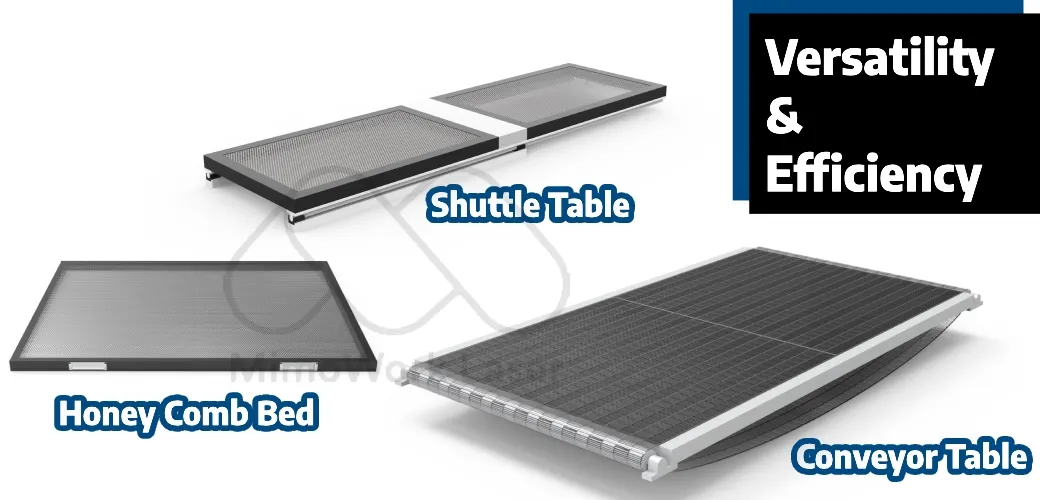

The working table type is another critical consideration when selecting a CO2 laser marking machine, as it directly impacts the efficiency, versatility, and accuracy of your engraving or cutting process.
| Conveyor Table | Fixed Honeycomb Laser Cutting Bed | Shuttle Table |
|---|---|---|
| Best for Continuous Production: Conveyor tables are ideal for roll materials or mass production applications where materials are continuously fed into the machine for high-speed processing. | Best for Small or Delicate Items: The honeycomb bed is designed to hold delicate or small materials securely during the marking process. The holes in the honeycomb surface allow for proper airflow, preventing material burning or distortion when using higher laser power. | Best for Versatility and Increased Productivity: A shuttle table consists of two platforms that alternate, allowing the operator to load one side while the machine is working on the other. This increases productivity, as you can prepare materials for the next batch without waiting for the current one to finish processing. |
The laser power is one of the most important factors in determining the capabilities of your CO2 laser marking machine. The power of the laser directly impacts how effectively it can process various materials, especially in terms of speed, cutting depth, and engraving precision. Our CO2 laser marking machines offer a range of power options from 100W to 1000W, allowing you to select the perfect fit for your materials and processing requirements.
The Galvo laser head uses two high-speed motors to control mirrors that direct the laser beam. This allows the laser to move much faster while maintaining precision. The Galvo system is ideal for high-speed engraving or marking, fine detail work, and large volume production.
Enables the machine to automatically adjust the focus of the laser beam in real-time based on the height variations of the material. Ideal for engraving or cutting uneven surfaces or materials with non-flat geometry, ensuring high-quality results and consistent engraving depth.

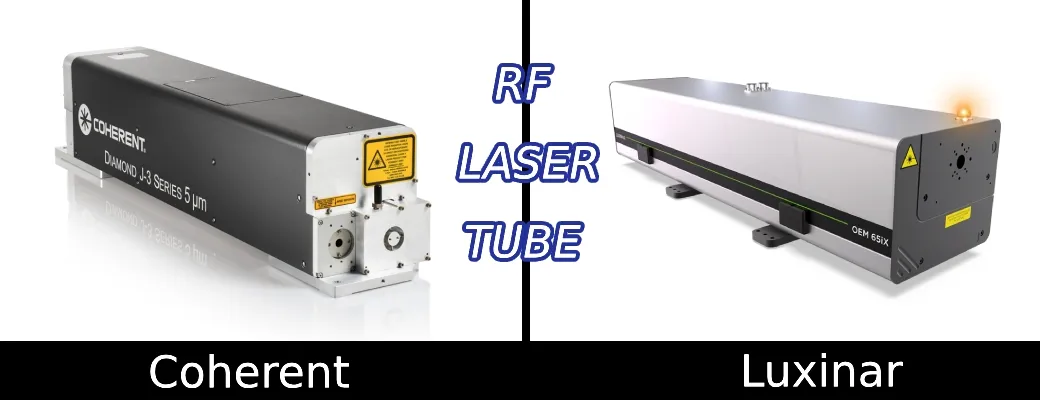

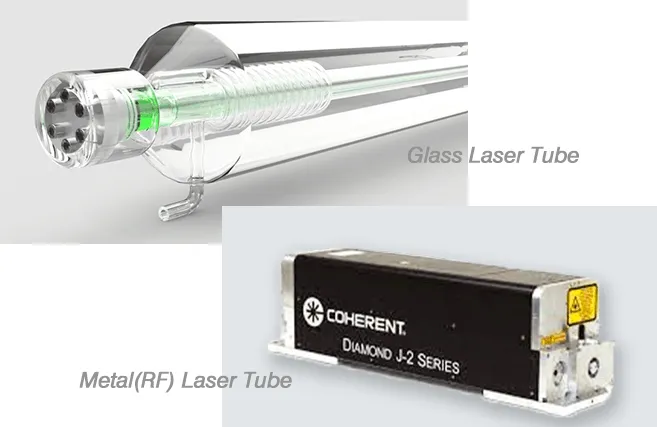

The RF (Radio Frequency) laser tube offers greater stability, higher power output, and a longer lifespan compared to glass tubes. RF tubes are maintenance-free, making them ideal for high-speed marking and engraving.
A cost-effective solution commonly used for less demanding marking and engraving tasks. They provide sufficient power for materials like wood, acrylic, and leather, making them suitable for low to medium power applications.
A visual alignment tool projecting a red dot path onto the material. It helps the operator visually check the exact location and alignment of the laser beam before processing, reducing errors.
A cooling system that maintains optimal temperature limits for high-power lasers, preventing overheating and extending the lifespan of the laser tube during extended operational periods.
A safety enclosure protecting operators from potential laser hazards, direct beam exposure, and process fumes. It also reduces noise, providing a safer and more comfortable working environment.
Designed to focus the laser beam over a large working area. It maximizes beam intensity and ensures consistent engraving quality and performance across larger surfaces.

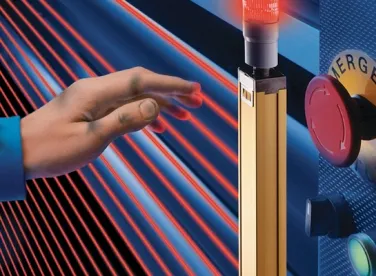

Uses infrared light beams or laser sensors to create a virtual safety barrier. When crossed, the system automatically shuts down or halts laser operation to prevent user injury.
Provides real-time visual feedback of the marking area. Enables precise alignment, focus calibration, and adjustment when processing irregularly shaped objects.
A ventilation system that filters out toxic substances, dust, and odors produced during materials processing, ensuring a clean and safe environment for the operator.
An optional accessory that rotates cylindrical or curved objects (bottles, tubes, pens) while the laser head works, providing even and consistent engraving on non-flat geometries.
Period of Delivery: 15-20 working days after receiving the down payment.
Warranty: 12 months (laser tube has a 6-month warranty; reflection mirror & focus lens have no warranty).
We are a results-oriented laser manufacturer. With 20 years of deep operational expertise, we produce advanced laser systems and offer comprehensive processing and production solutions to small and medium-sized enterprises (SMEs) across a wide array of industries.
| Features | Laser Marking | Laser Engraving |
|---|---|---|
| Material Removal | Surface-level change | Material is removed, creating a recessed pattern |
| Depth | Shallow, no significant depth | Deeper, creating 3D textures or grooves |
| Appearance | Color change, flat surface, no texture | Textured surface, 3D look |
| Durability | Less wear-resistant | More wear-resistant, deeper marks |
| Speed | Faster, suitable for high-volume marking | Slower, suitable for intricate designs |
| Applications | Product identification, logos, barcodes | Custom engraving, industrial parts, tools |
