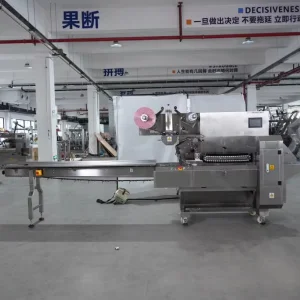

Explore our premium range of industrial horizontal form-fill-seal machines engineered for speed, accuracy, and operational reliability.
Analyzing key commercial vectors, cross-border demands, and technical standardization across global industrial sectors.
Global logistics and rapid consumption require robust protective primary packaging. The demand for HFFS technology is shifting from basic containment to high-integrity barrier preservation, driven by food safety regulations and longer storage shelf-life requirements.
Exporters face distinct target market standardizations. Machine profiles must accommodate European CE certifications, North American UL/CSA safety criteria, and eco-centric materials configurations, such as biodegradable films and plastic-free alternatives.
Traditional multi-layer plastic substrates are phasing down. Modern exporters engineer wrapping apparatuses optimized for high-performance paper-based substrates and ultra-thin, compostable mono-materials requiring sophisticated heat control mechanics.
Understanding the system mechanics behind horizontal form-fill-seal (HFFS) wrappers, highlighting structural and electronics innovations.

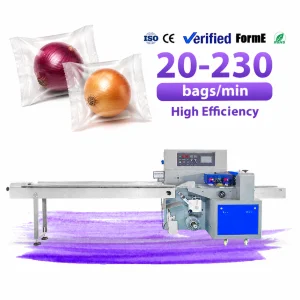

Modern high-speed flow wrappers leverage sophisticated multi-axis servo systems (typically 3-axis to 5-axis setups) that decouple the infeed conveyor, film feed, and rotary or reciprocating end seal jaws. Through dynamic Ethernet communication (such as EtherCAT or Profinet), the PLC real-time controller calculates velocity curves on-the-fly. This prevents product misfeeds and ensures millimeter-level accuracy of cutting registration marks, even at speeds exceeding 300 packs per minute.
| Technical Parameter | Standard Machinery Tier | High-Speed Servo System Tier | Advanced Eco-Configuration |
|---|---|---|---|
| Dynamic Output (PPM) | 30 - 120 Packs/Min | 120 - 350 Packs/Min | Custom Variable Speed |
| Applicable Film Types | OPP, PE, Pet, Laminates | All Standard Laminate Films | PLA, Biodegradable Paper, Mono-PE |
| Sealing Mechanisms | Rotary Heat Sealing Jaws | D-Motion / Box Motion Sealing | Ultrasonic Sealing & Cool-Seals |
| Controller Architecture | Dual Frequency Converters | 3/5-Axis Servo PLC Touchscreen | Cloud IoT Smart Diagnostics Interface |
Continuous dynamic film tensioning is maintained using proportional valves and mechanical dance rollers, ensuring that delicate biodegradable and ultra-thin films are not stretched or distorted before sealing.
Integrated photo-eye sensors detect when a product feed is missing, pausing film distribution to eliminate waste and optimize operational efficiency during irregular infeed rates.
If a product is positioned out of phase, the cutting jaws automatically stop and reverse, preventing physical machine damage, material binding, and reducing subsequent line downtime.
A decade of design, engineering, and manufacturing excellence in automated packaging machinery.
Henan Collins Machine Co., Ltd. was established in 2015. From day one, the company has focused on designing and manufacturing end-to-end automated packaging solutions. With 20 national invention patents, Collins demonstrates a decade of technical expertise in integrated systems including labeling, filling, capping, coding, sealing, and shrink-wrapping for a wide range of industries.

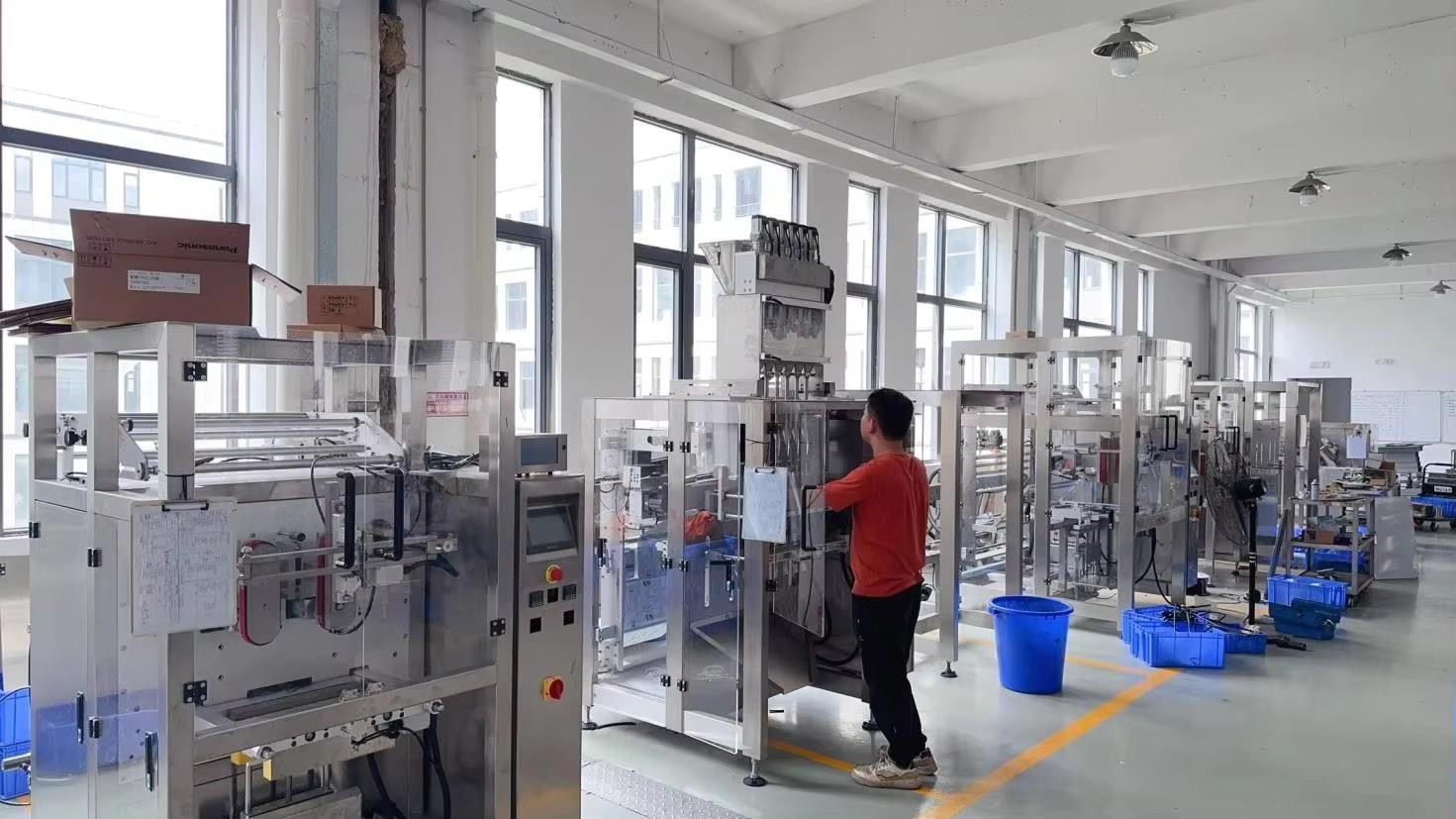

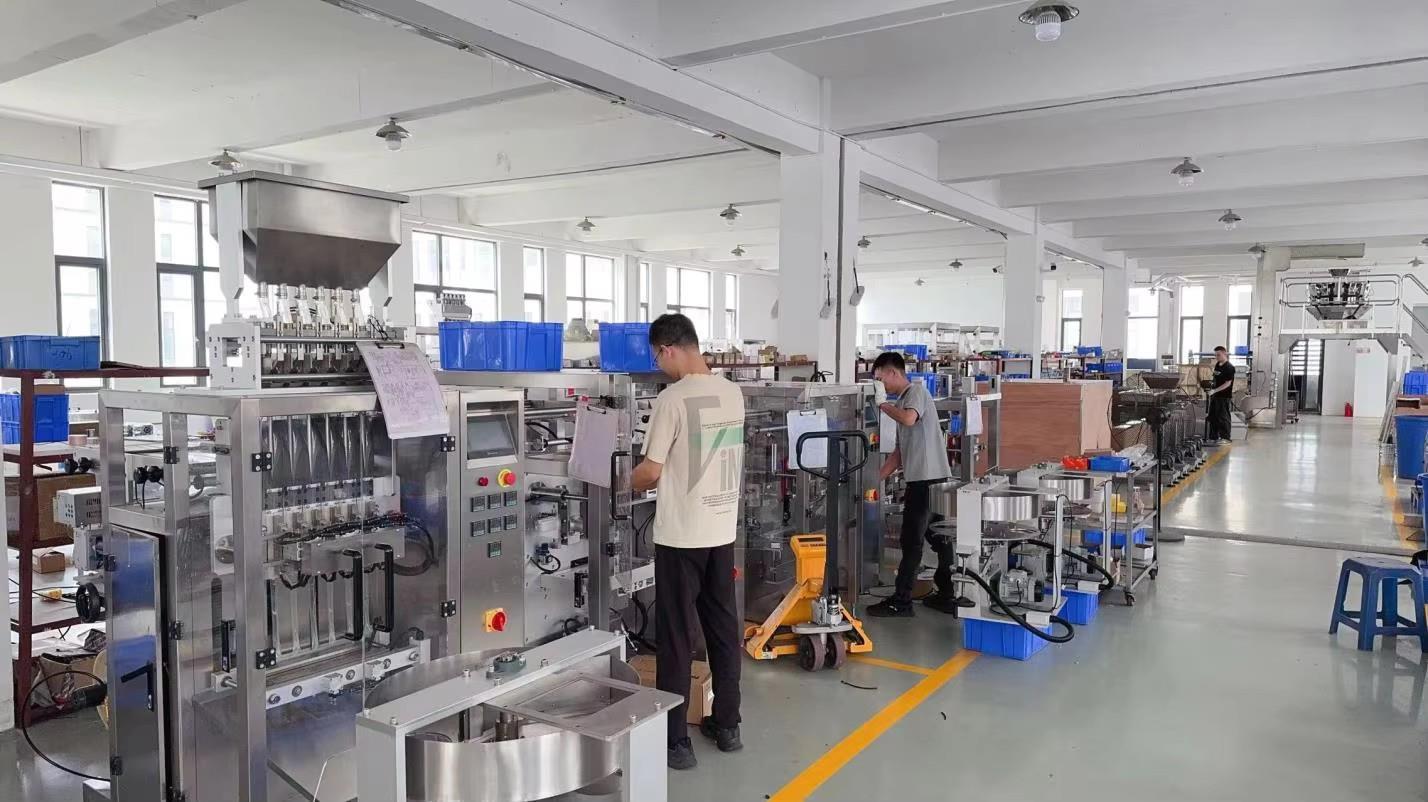

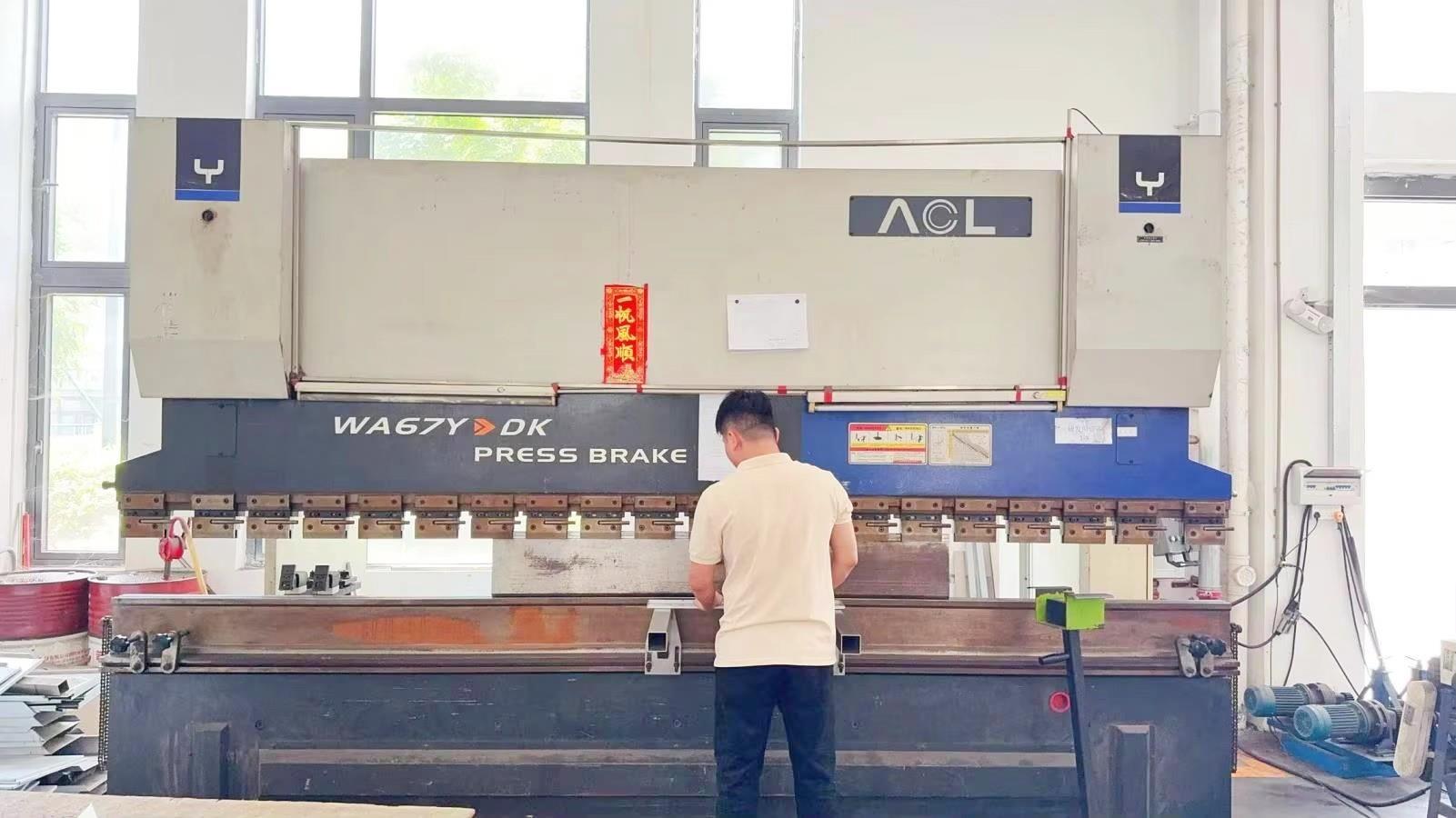

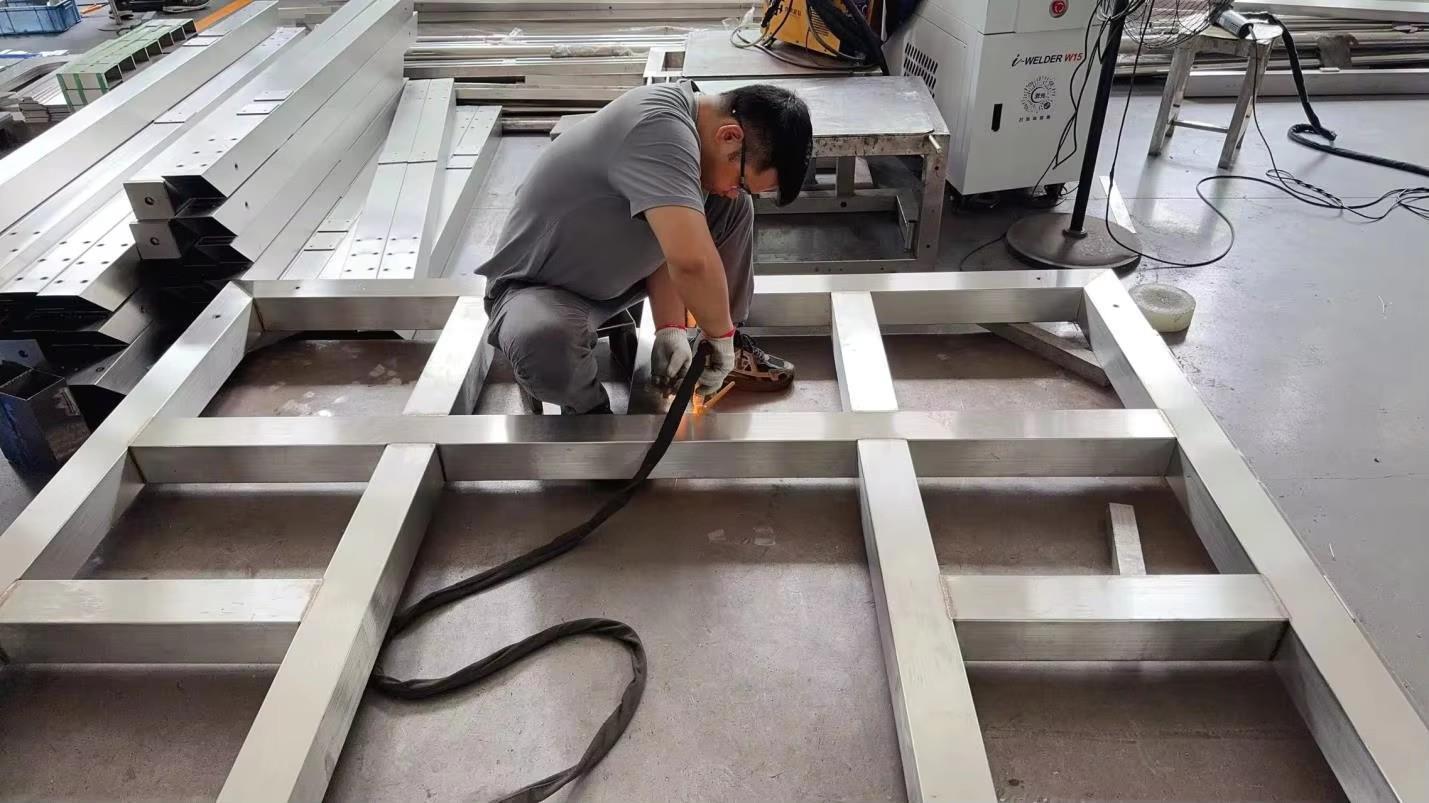

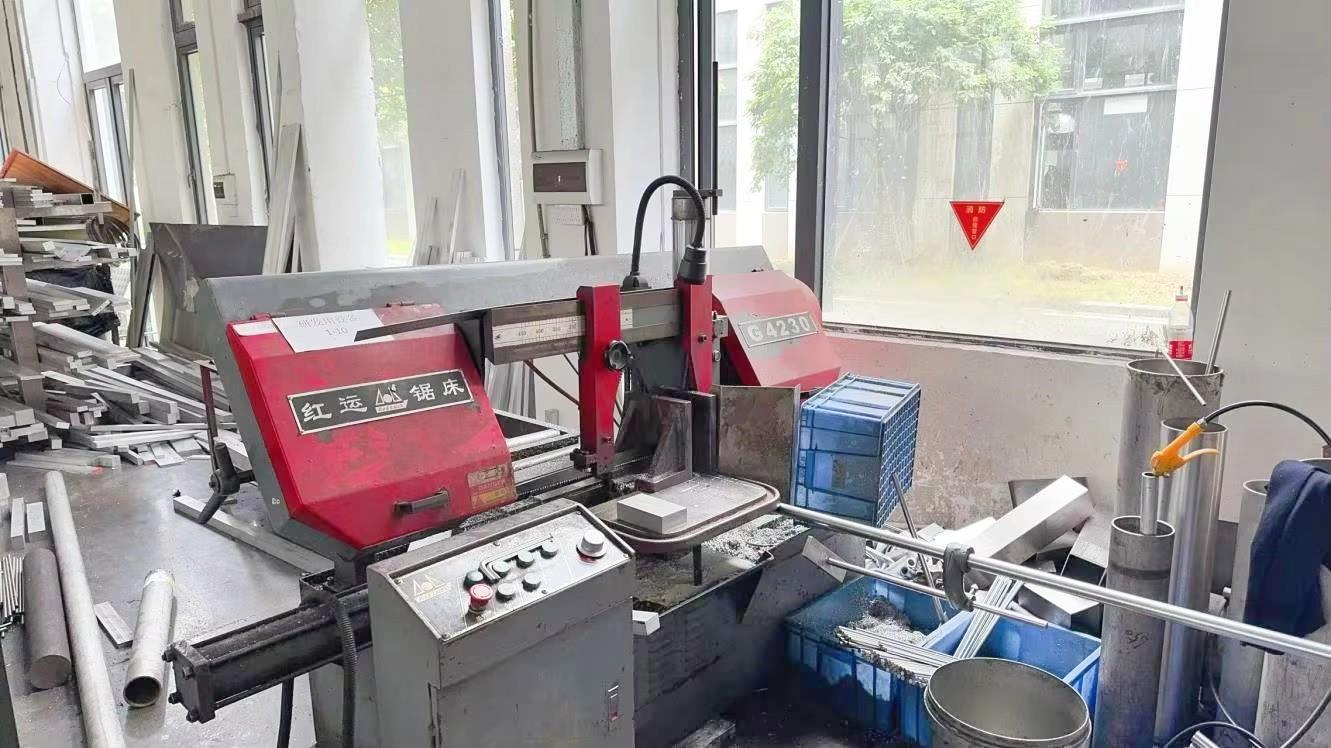

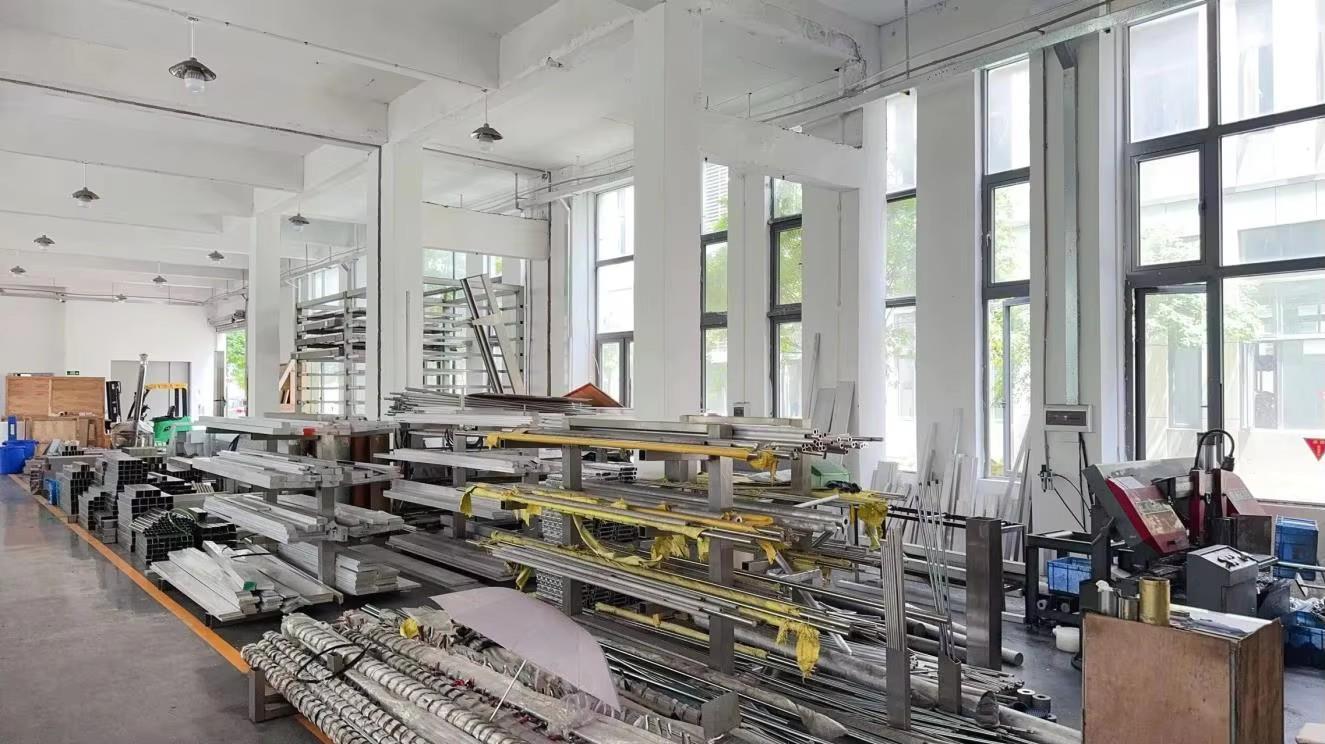

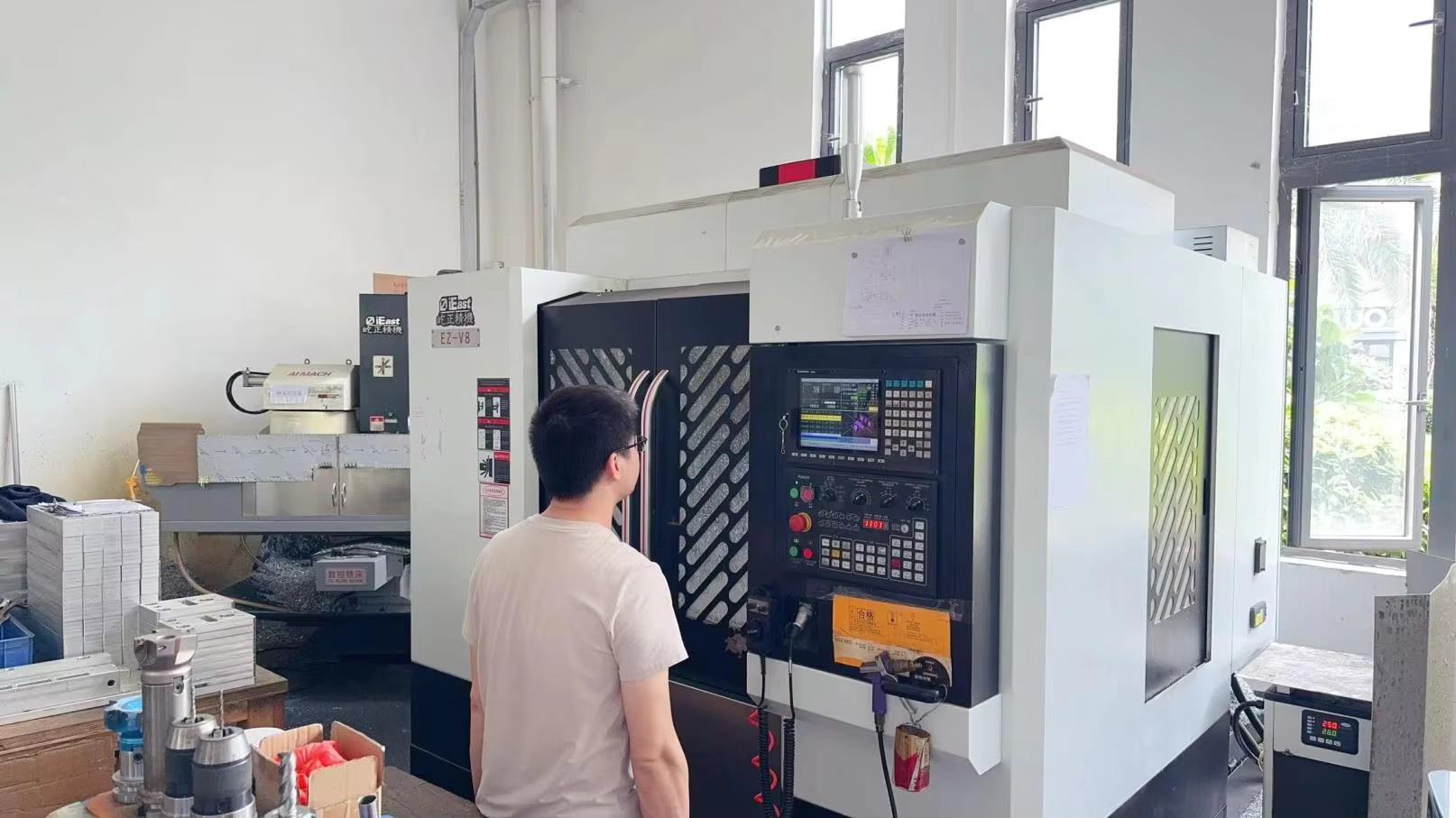

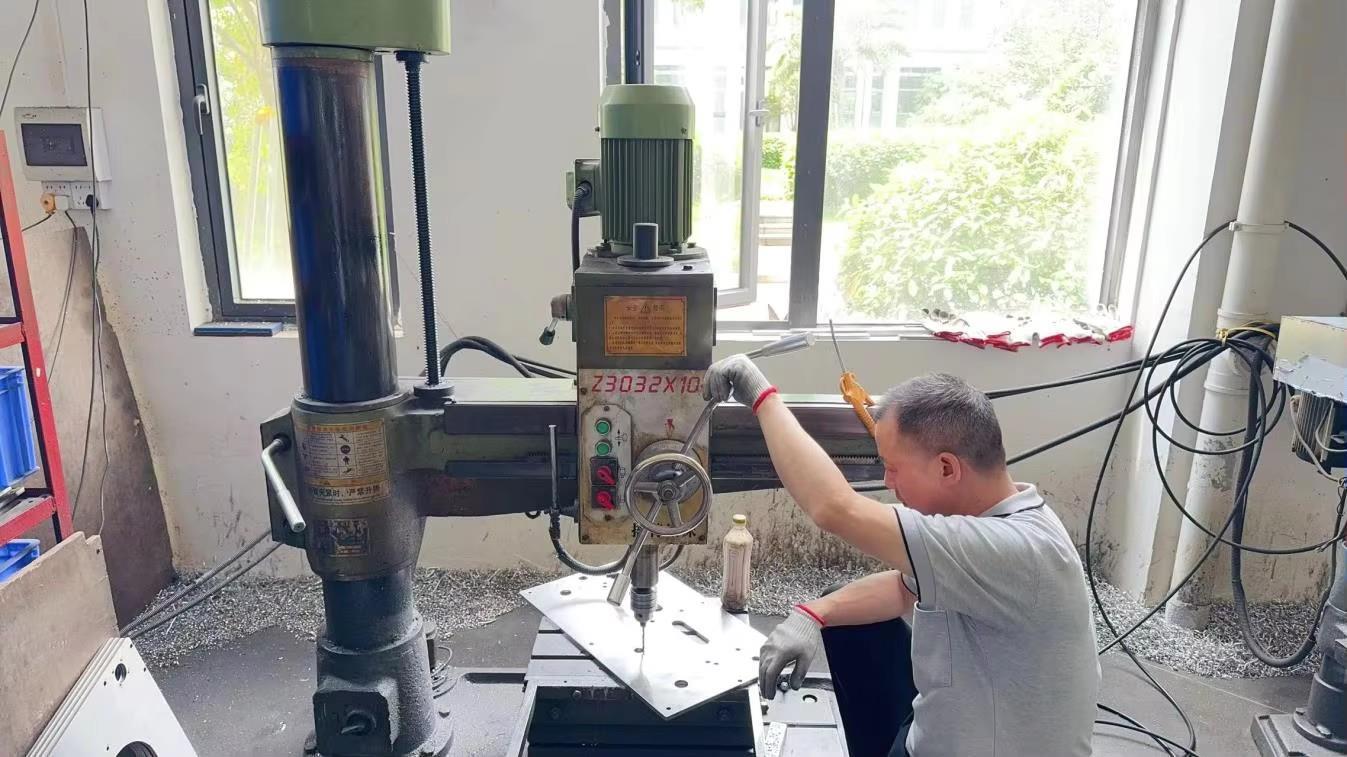

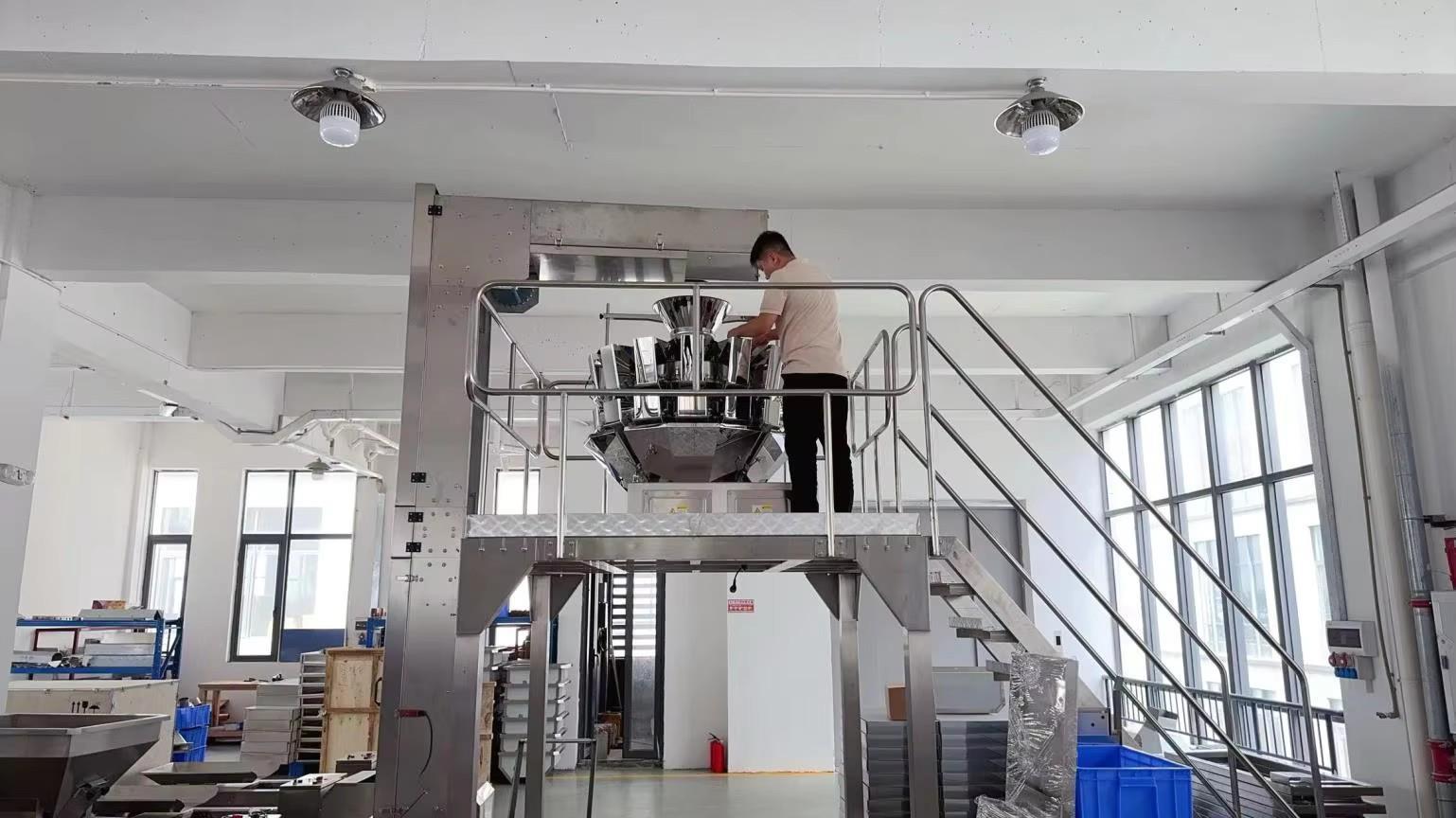

In a 5,000 m² state-of-the-art facility, more than 80 skilled engineers and technicians support advanced production and assembly capabilities. The company operates automated coating, slitting, and quality-control lines to ensure precision and reliability across all equipment and consumables. Certified under ISO 9001, SGS, and RoHS standards, Henan Collins Machine Co., Ltd. is committed to delivering high-performance packaging machinery that meets global OEM and contract packaging requirements.
Henan Collins Machine Co., Ltd. specializes in the development, production, and sales of labeling machines, filling machines, packaging machines, thermal transfer coders, ribbon coders, ink roller coders, laser coders, and other coding equipment. The company also provides a full range of consumables, including TTO ribbons, ink ribbons, ink rollers, carbon ribbons, and label paper. This integrated product portfolio supports industries such as food, daily chemicals, pharmaceuticals, cosmetics, and more, offering a complete one-stop packaging solution.
With self-operated import and export licenses, Henan Collins Machine Co., Ltd. delivers turnkey solutions to customers across Asia, Africa, Europe, and North and South America. A multilingual service network ensures efficient installation, preventive maintenance, and 24/7 remote support. Serving industries from food and beverage to pharmaceuticals, cosmetics, electronics, and logistics, Collins provides customized production line design, fast response service, and on-site training—helping customers improve uptime, traceability, and overall equipment effectiveness worldwide.
How horizontal flow wrappers adapt to strict, sector-specific mechanical demands and hygiene rules.

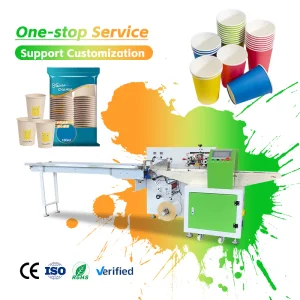

Requiring high-speed hermetic sealing to maintain freshness. Systems are configured with gas flushing (MAP) to replace oxygen with inert gases, ensuring chocolate, biscuits, and croissants maintain optimal texture and longer shelf lives.
Processing assortments of plastic, wooden, or biodegradable cutlery items combined with napkins, toothpicks, and condiment packets. Advanced counting and feeder integrations align components at high speed prior to sealing.
Hygiene is paramount. Machines feature stainless steel construction, specialized chemical-resistant conveyors, liquid dosing injectors for disinfectant wet wipes, and airtight sealing elements to prevent evaporation.
Resolving operational challenges, system optimization queries, and raw material compatibility concerns.
Rotary Sealing: The cutting and sealing jaws rotate continuously in a circular motion. This is highly efficient for thin materials and high-speed packaging but has shorter contact time, making it less suitable for thicker, laminated, or gusseted packages.
Box Motion (Reciprocating): The jaws move in a rectangular path, tracking the product's forward movement to maximize pressure and heat contact time. This is optimal for thick laminated films, heavy products, and MAP setups that require guaranteed hermetic seals.
Eco-friendly substrates like PLA, water-soluble films, or recyclable papers have much narrower sealing temperature windows compared to traditional plastics. Modern flow pack systems integrate high-accuracy PID temperature controllers, localized cooling bars, and precise tension control (via servo motors) to prevent stretching, tearing, or burning of these sensitive materials.
In traditional setups, mechanical chains and gears connect the feeding, film drawing, and cutting components. Any speed change requires mechanical adjustment. In a 3-axis/5-axis servo setup, individual digital motors control each phase independently. The PLC synchronizes their velocities electronically, allowing quick recipe changeovers via the touch-screen panel and minimizing mechanical wear.
Yes. By utilizing an adjustable forming shoulder (bag former), the wrapper can accommodate different product widths and heights. Digital control over the sealing jaws allows operator input to adjust the bag cutting length instantly, without mechanical tool changeovers, which is ideal for contract packaging operations.
Explore specialized bagging configurations, stretch-wrappers, high-speed candy packaging, and kitchenware wrapping options.
