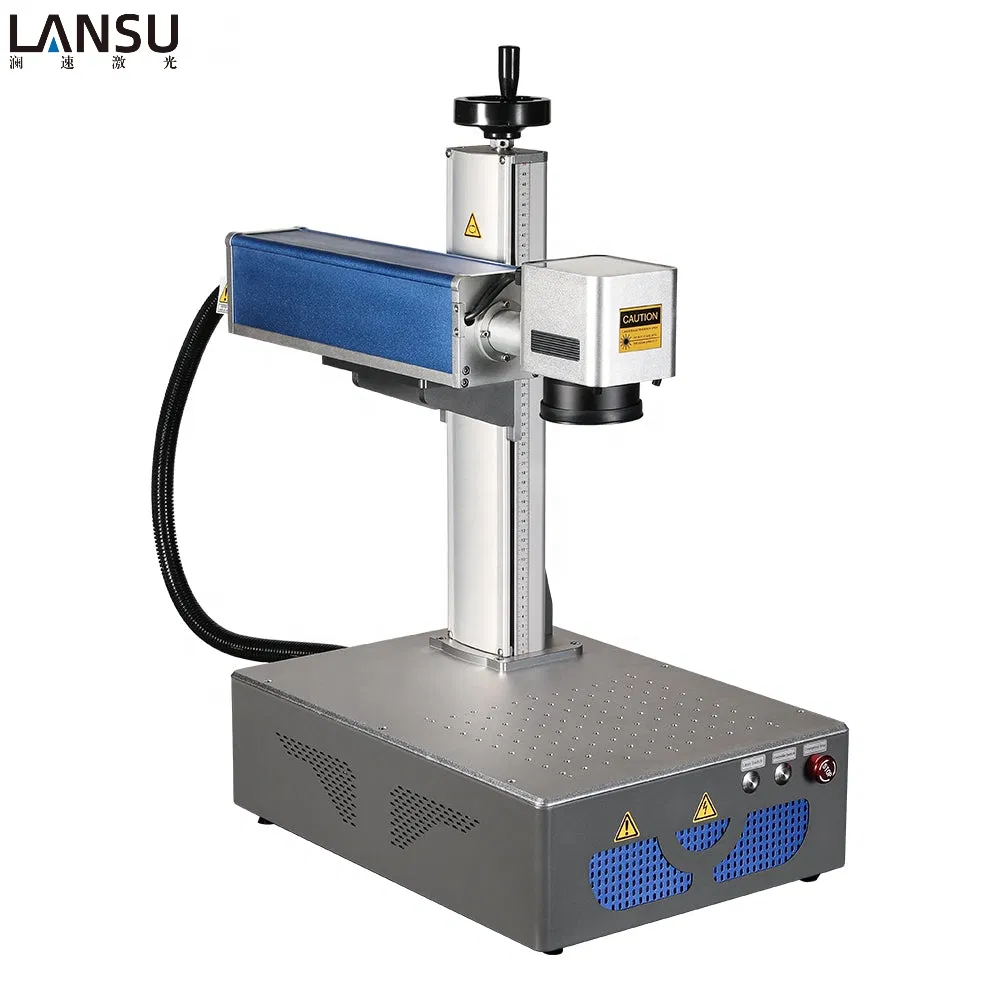

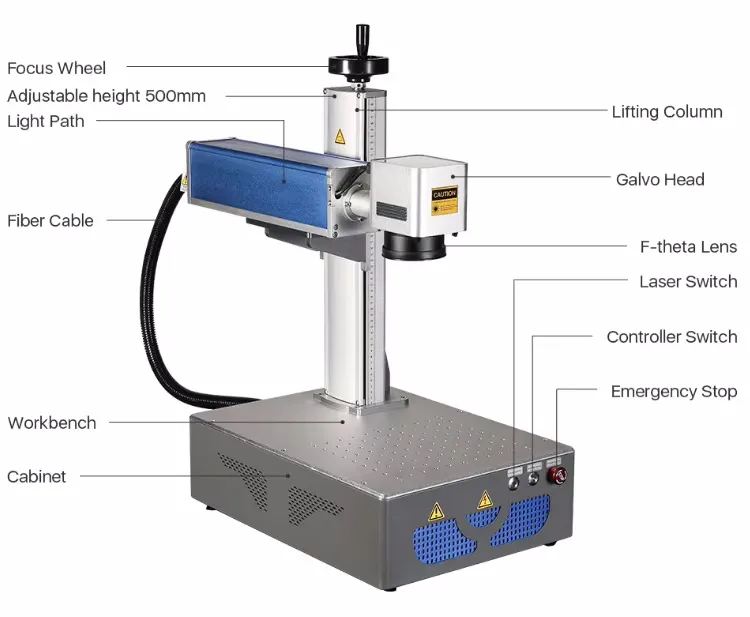

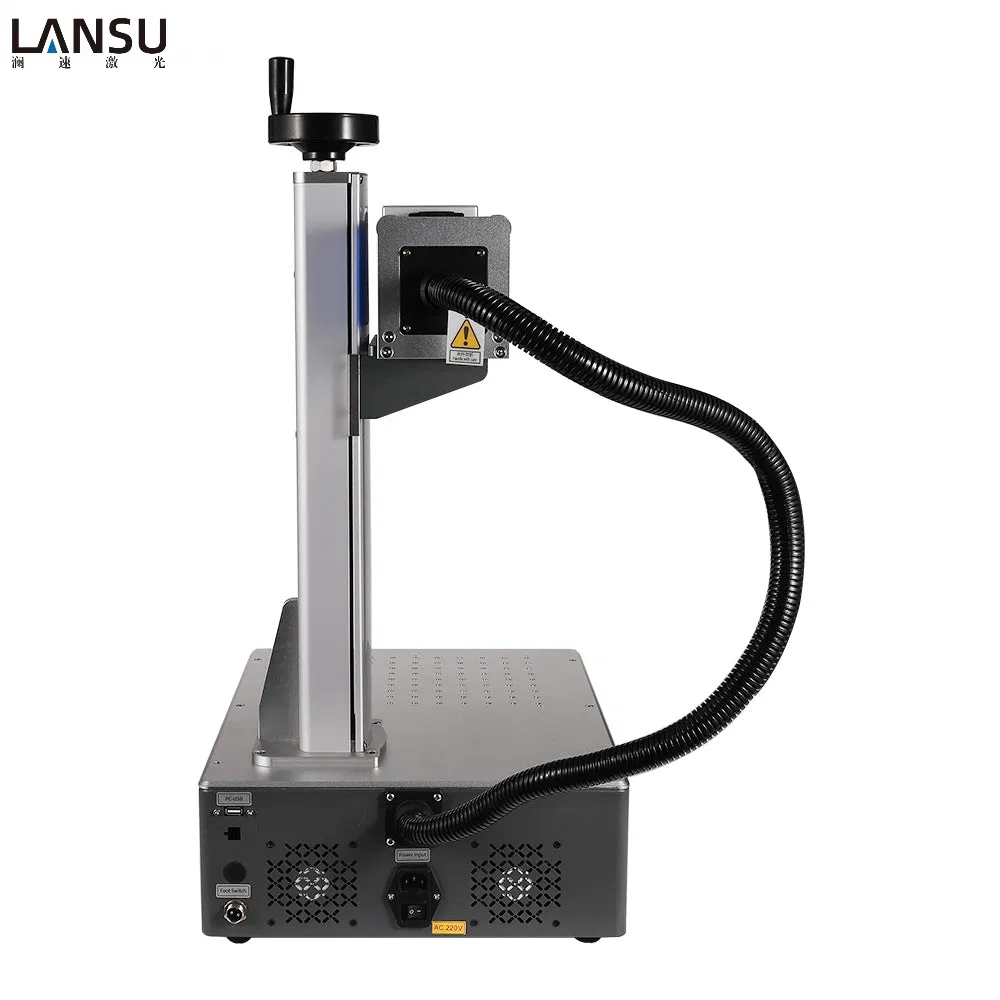

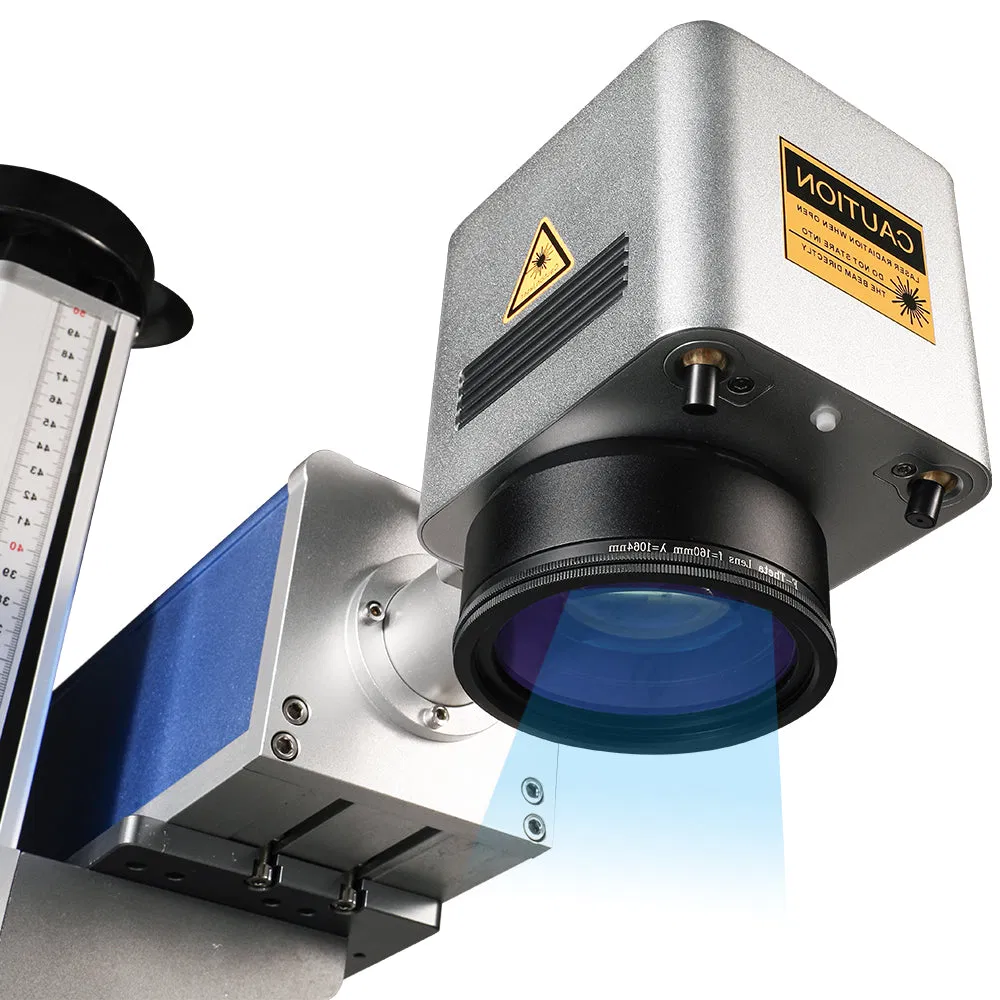

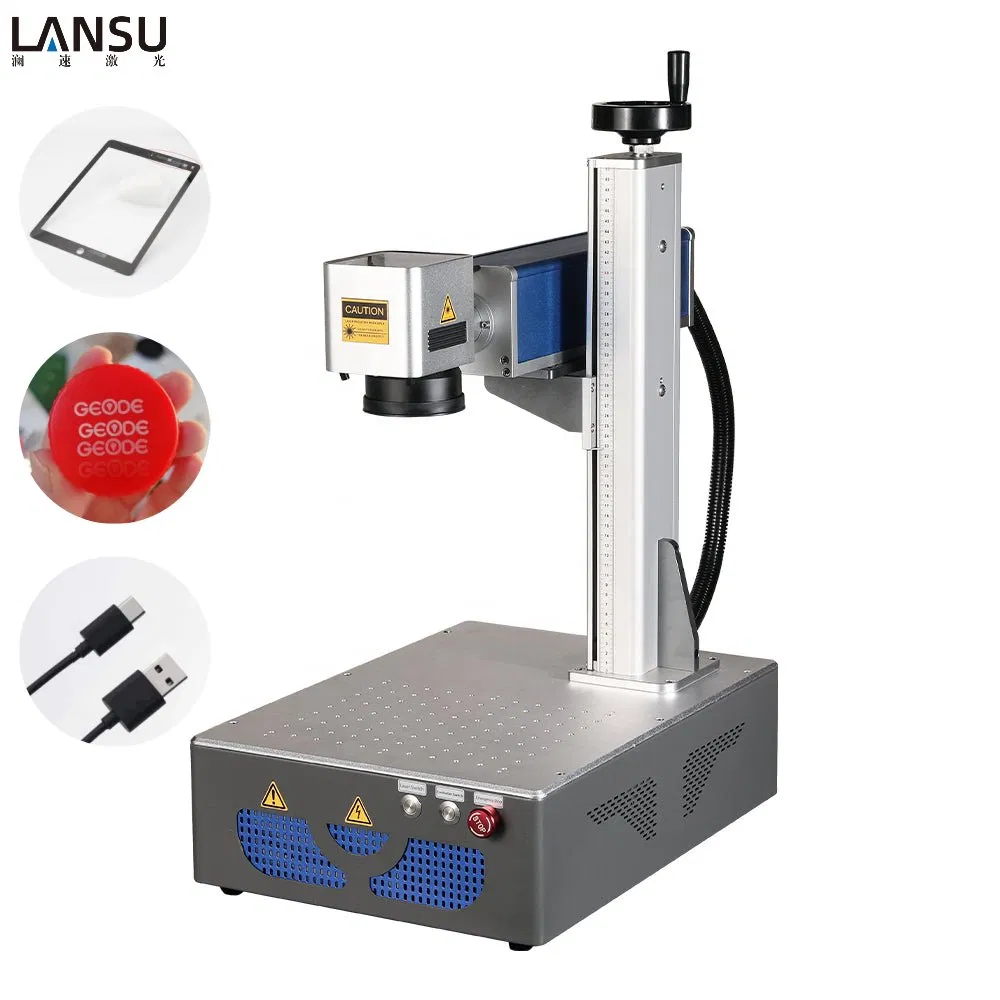

The portable optical fiber laser marking machine has high electro-optical conversion efficiency, adopts air-cooled cooling mode, small size, good output beam quality, high reliability, ultra long operation life, energy saving, and can carve metal materials and some non-metal materials. It is mainly used in the fields with high requirements for depth, smoothness and fineness.
Portable optical fiber laser marking machine can make more space and install more equipment or operators, so as to produce more products and increase more economic benefits. Secondly, the portable fiber laser marking machine is more convenient in handling, a person can move, and can be transported by air.

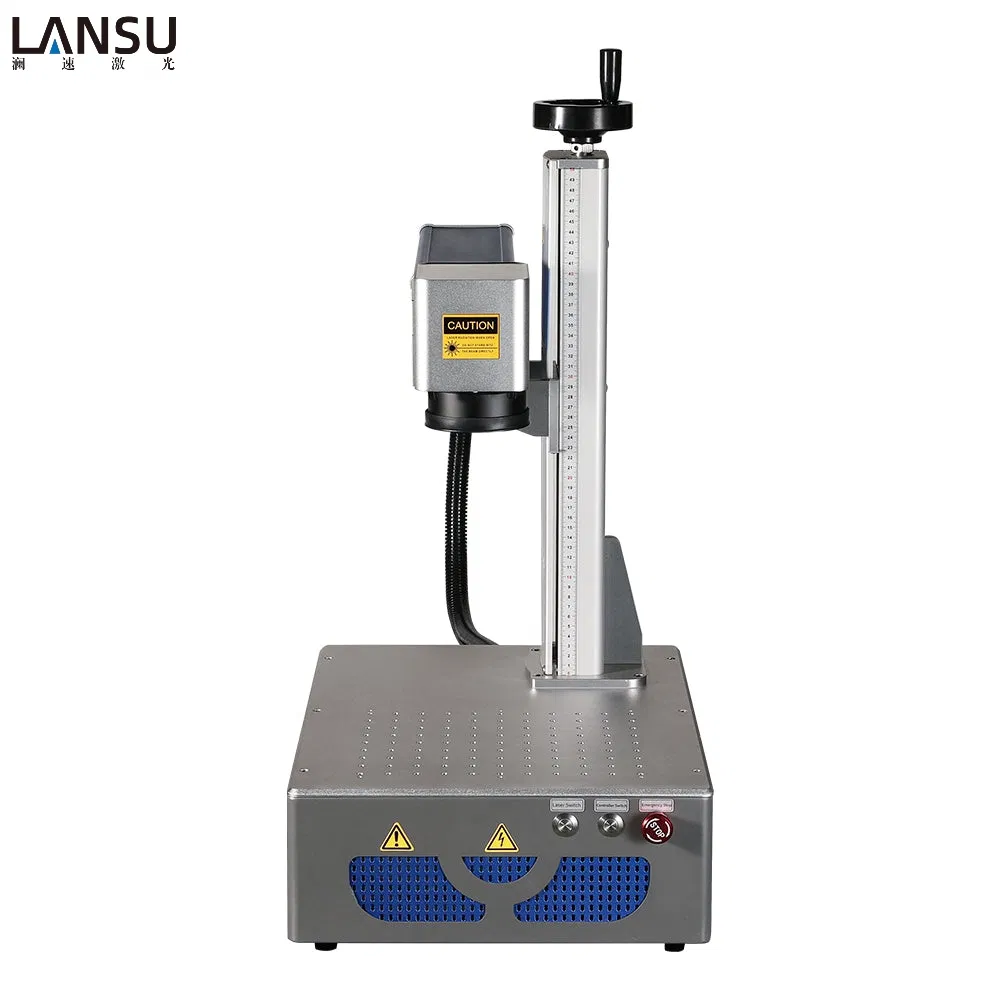

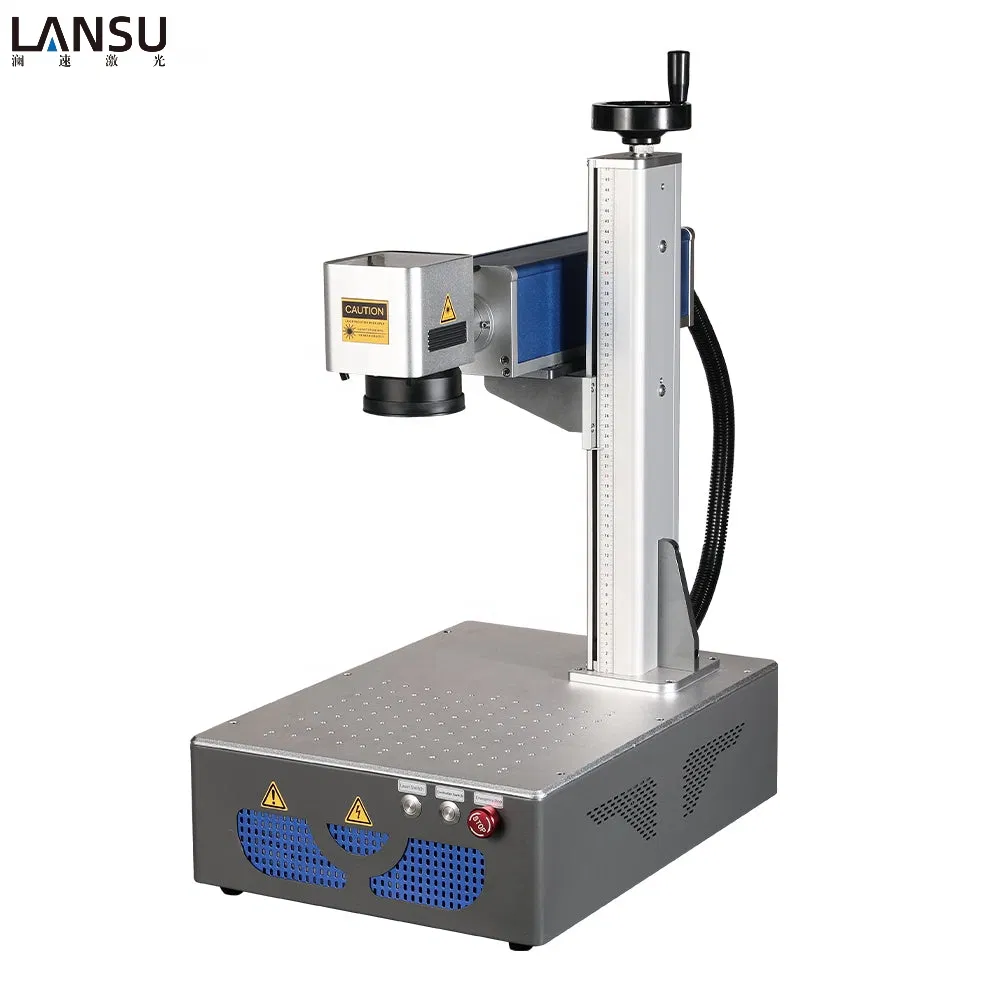

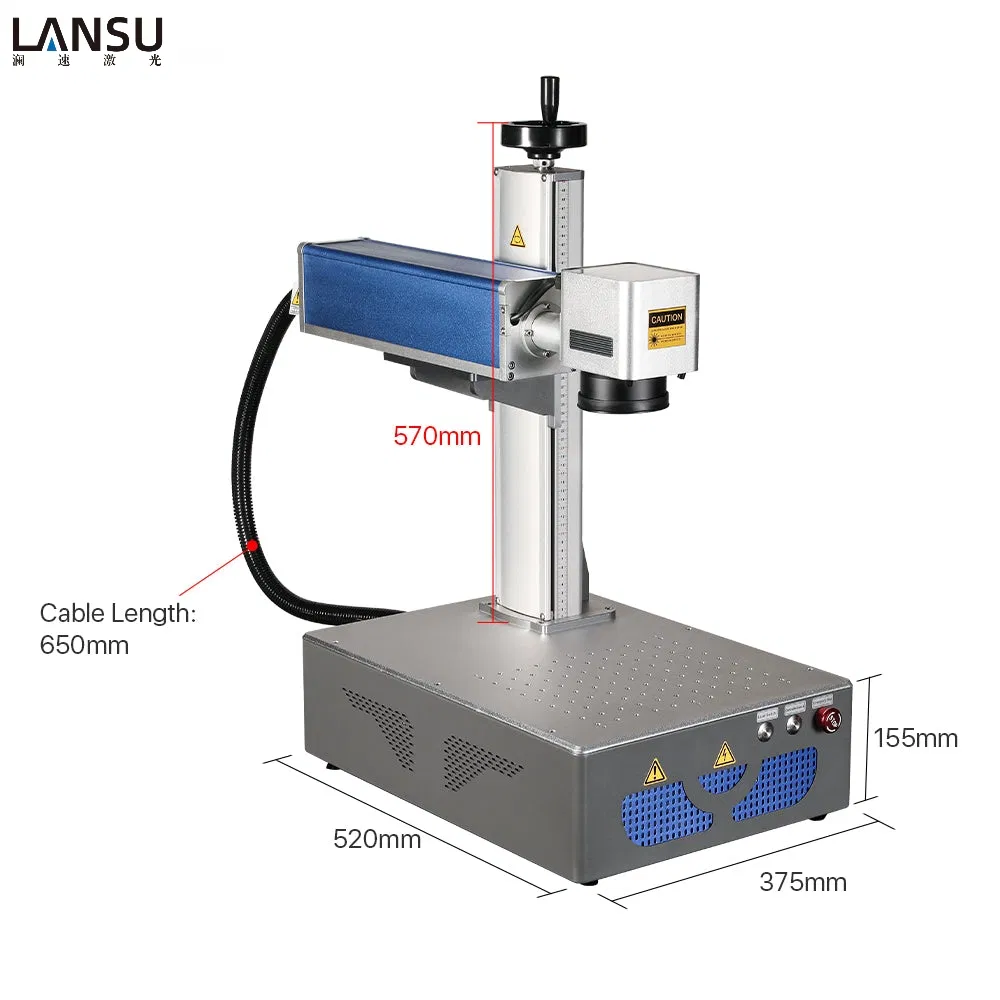

Desktop portable machine without computer, suitable for engraving artworks, easy to carry, engraving range is 150*150MM.
Private customization of handicraft producers, carrying of people who often go out, store workers.
| Model | LS-BJS-3/5/8/12/20/30/50W |
| Laser power | 3/5/8/12/20/30/50W |
| Wavelength | 1064nm |
| Frequency range | 20-100KHz |
| Pulse width | 200ns |
| Marking area | 150mm×150mm (optional) |
| Marking speed | ≤7000mm/s |
| Minimum linewidth | 0.02mm |
| Minimum character | 0.2mm |
| Repeatability | ±0.01mm |
| Power supply | AC220V/50Hz |
| Cooling mode | Air cooling |
