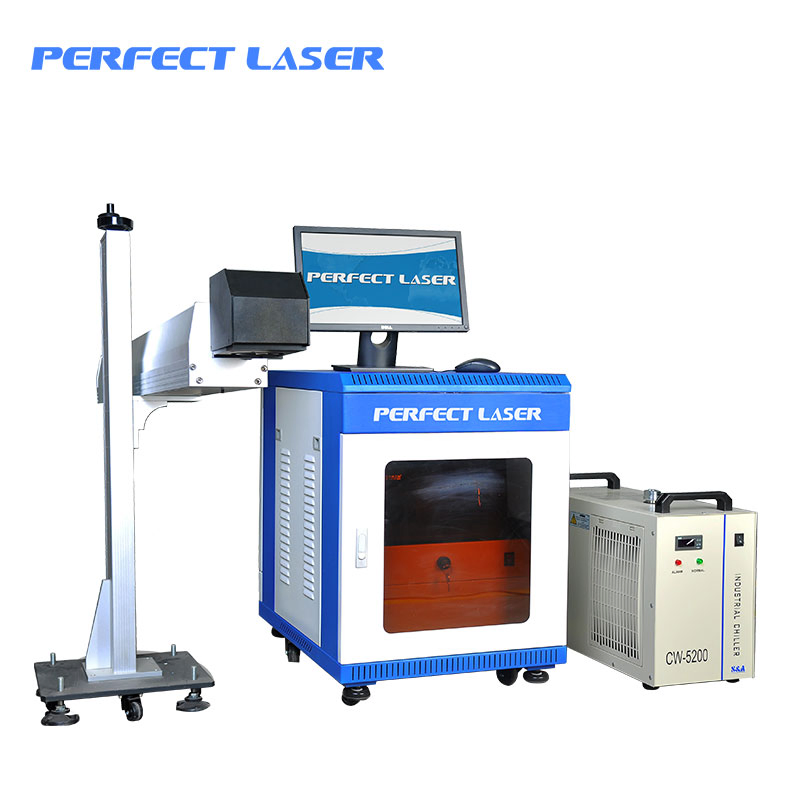

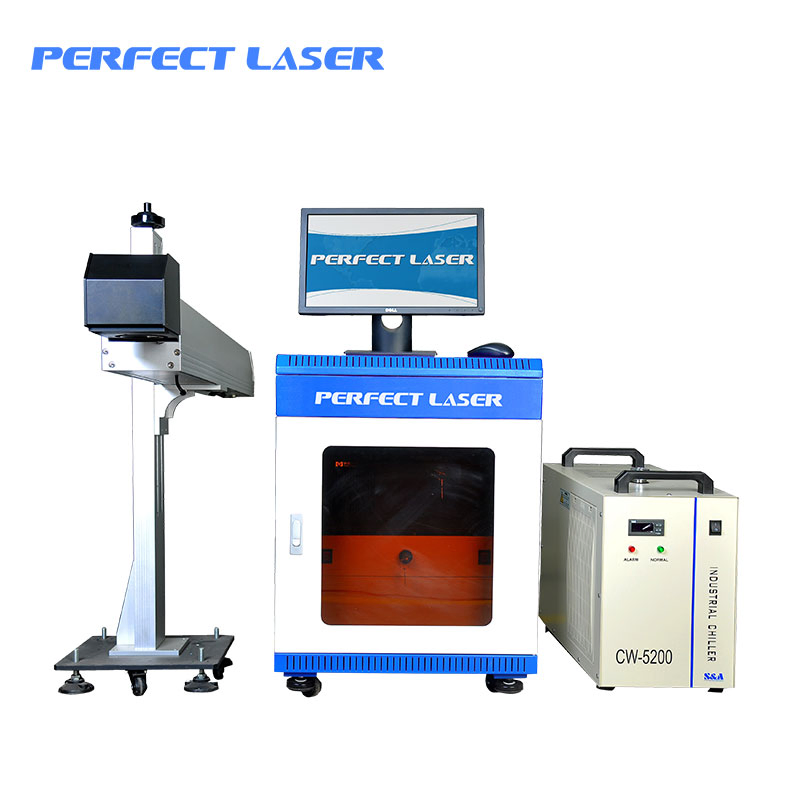

CO2 Automatic Textile Laser Marking Machine for Plastic Bottle

Customization:	Available
After-sales Service:	Online Service
Warranty:	One Year

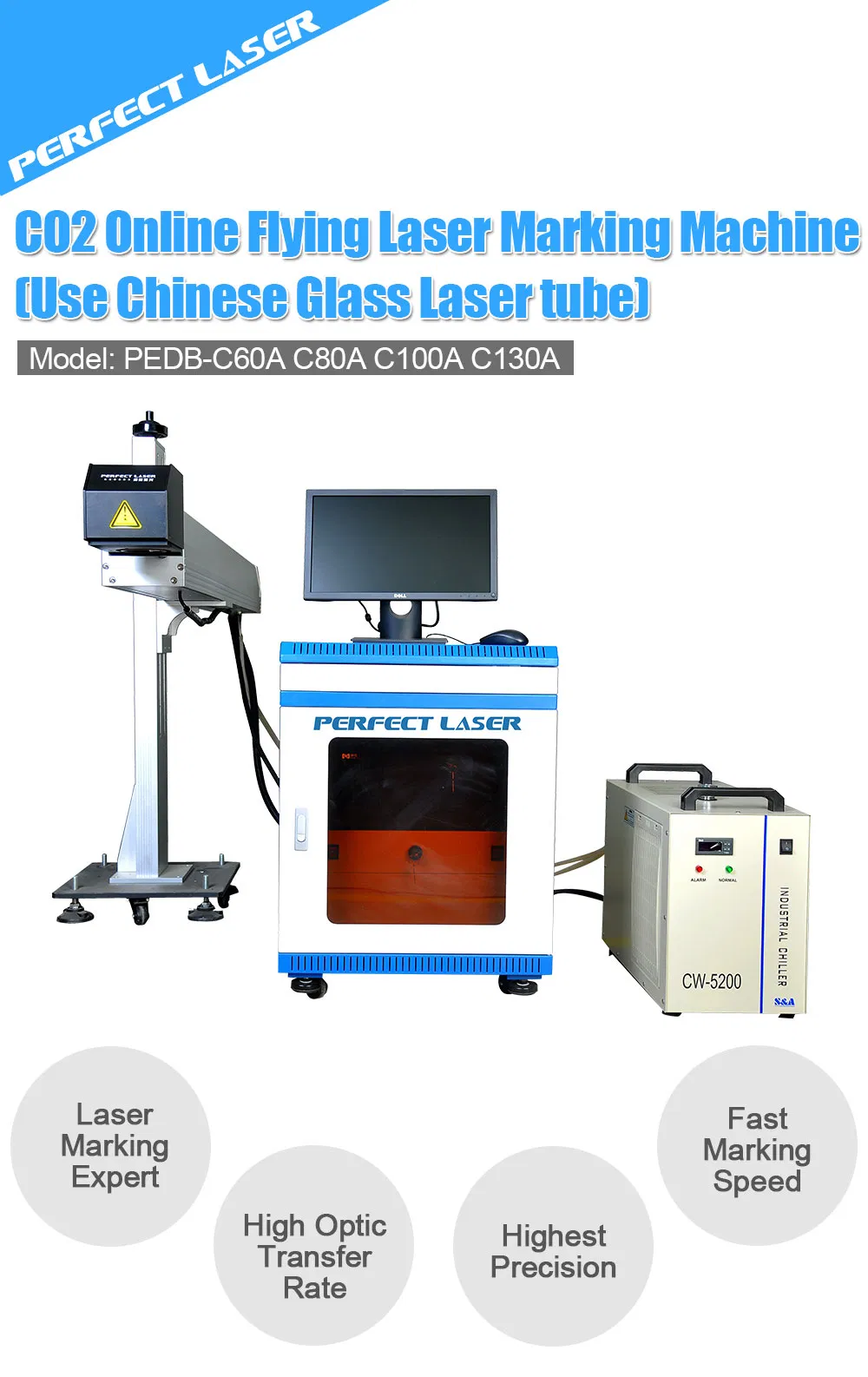

CO2 Automatic Textile Laser Marking Machine For Plastic Bottle
(Model: PEDB-C60A 80A 100A 130A)

Basic Info

Model NO.

PEDB-C60A 80A 100A 130A

Laser Visibility

Invisible

Applicable Material

Nonmetal

Cooling System

Water Cooling

Technical Class

Continuous Wave Laser

Laser Wavelength

CO2 Laser

Laser Classification

Free Electron Laser

Type

CO2 Laser Marking Machine

Marking Method

Scanning Marking

Cooling Method

Water Cooling

Repeated Accuracy

0.01mm

Machine Power

2 Kw

Power Supply

220V/ 380V/50Hz

Minimum Line Width

0.015mm

Laser Power

20W-150W

Working Size

110*110mm

Material

Nonmetal Materials

Laser Source

CO2 Laser

Life Time of Laser Tube

20000 Hours

Transport Package

Compound Wooden Cases

Specification

CE, ISO

HS Code

8456110090

Production Capacity

5000 Units

Product Description

This economic CO2 laser marking system uses a superb quality carbon dioxide glass laser tube as a laser source, which can meet the needs of customers who have strict requirements for marking accuracy. Additionally, the machine is maintenance-free and has a service life of 3000-10000 hours.

A special fog-sealed structure is designed by adding a fog adsorption system. During operation, gas and fog are absorbed into the sealed box, then directed outside through side air pipes.

This particular and unique CO2 laser marking system is specially designed for European markets or other markets with high demands for working environmentally. It is ideal for water bottle marking, pvc marking, and plastic marking.

CO2 Automatic Textile Laser Marking Machine for Plastic Bottle

Application Range

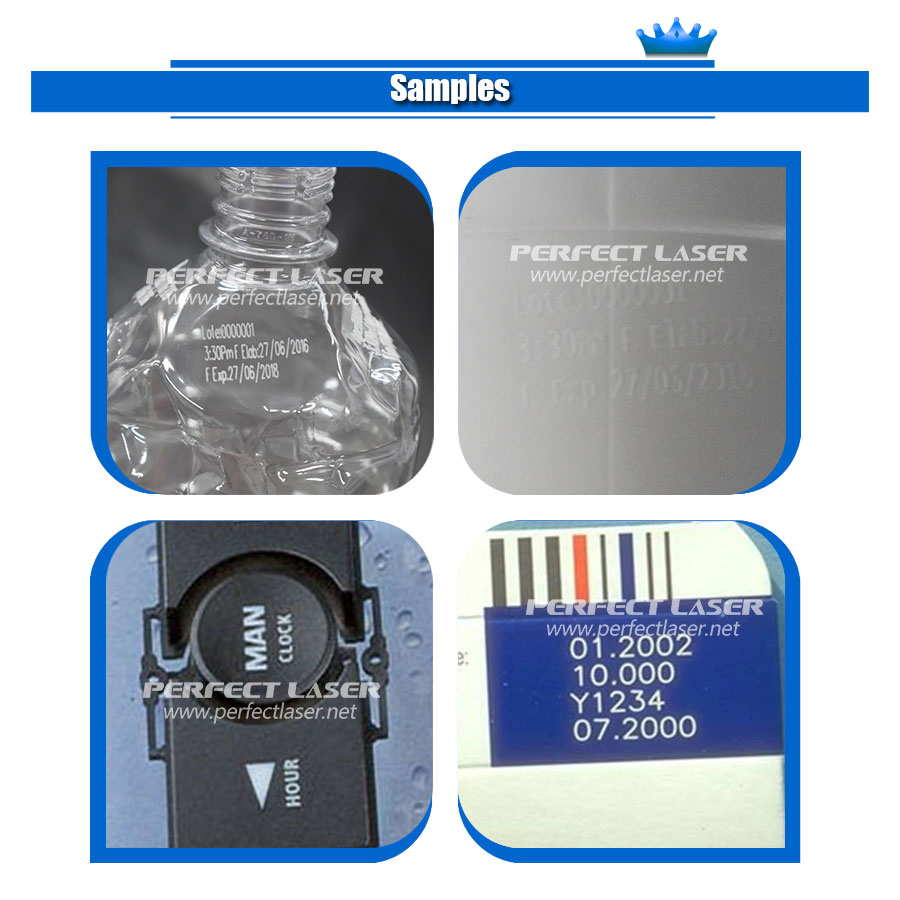

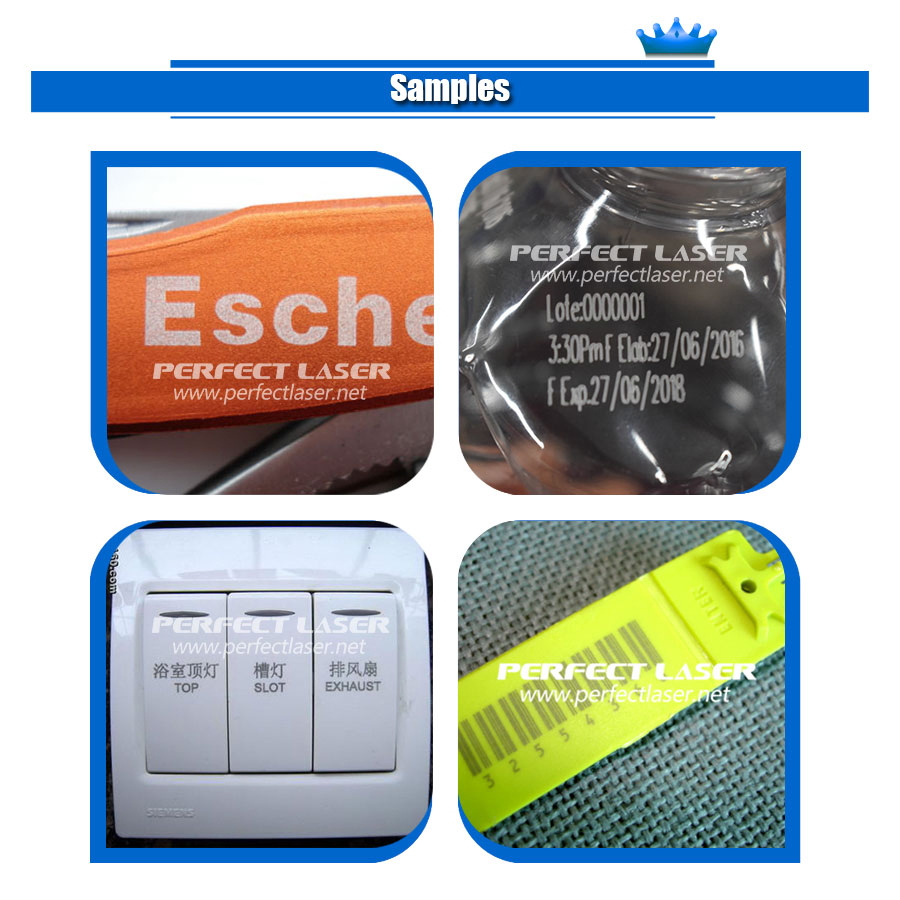

The CO2 laser marking system is mainly applied in cloth and textile engraving and cutting, shoes and carpet cutting, food printing, medicine printing, soft-drink printing, cigarette codes, the wine industry, mineral water, daily cosmetics, wires, cables, and all kinds of production lines. Due to its various applications, it is also known as a plastic laser marking machine, water bottle marking machine, and pvc marking machine.

Main Features

High Speed: Imported laser scanning system speeds up marking up to 8000mm/s.
High Precision: Re-position precision is 0.002mm.
High Quality Laser Beam: Reliable laser beam quality, long lifetime, and free of maintenance.
Available Data Networking: Automatically marks data, serial numbers, and barcodes.
Integrated and Compact: Small size, taking only 0.5 M², can be desktop mounted and easily installed.
Easy Operating: Extremely user-friendly interface, VCD training included, hassle-free operation.

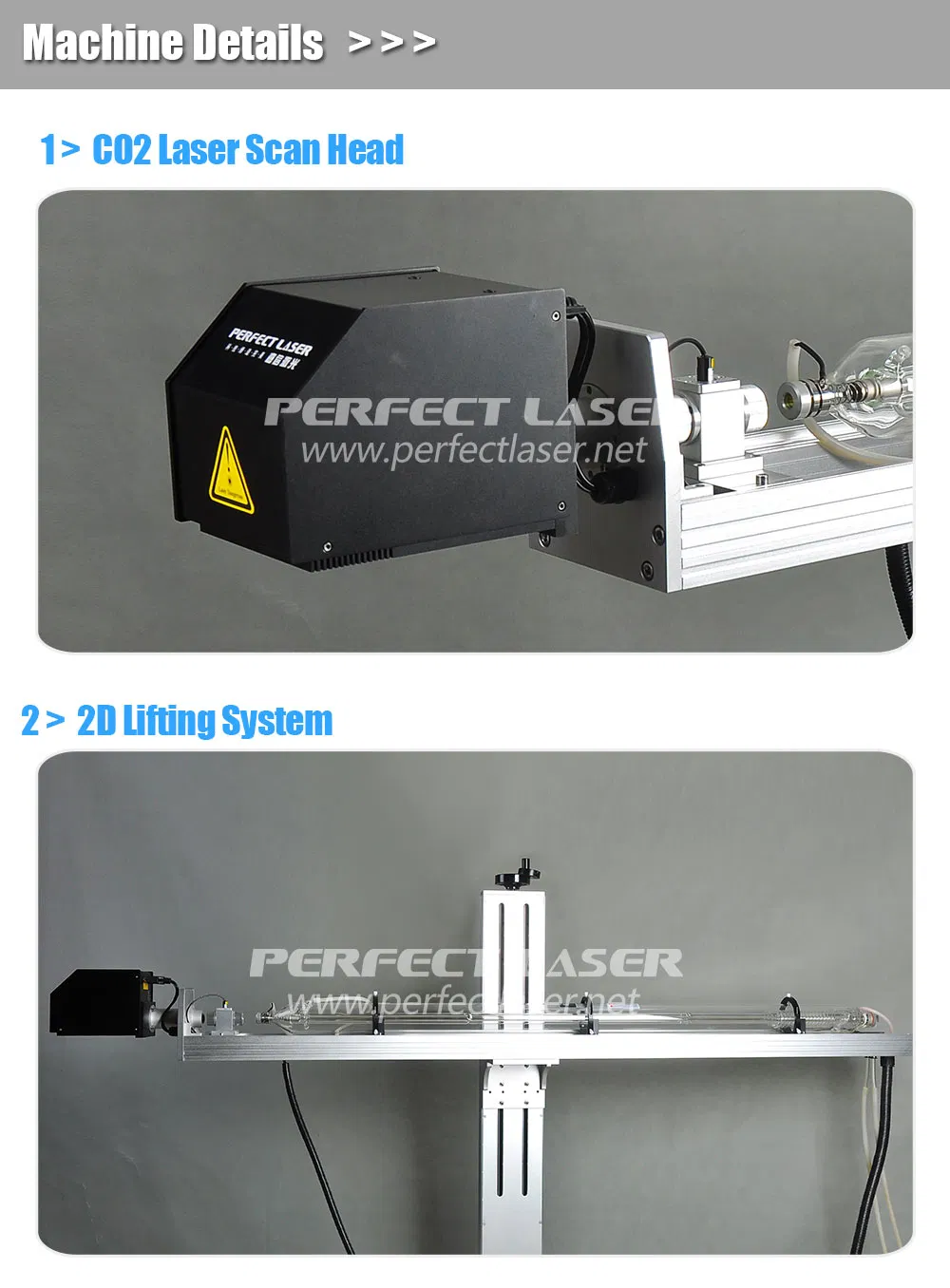

Machine Details

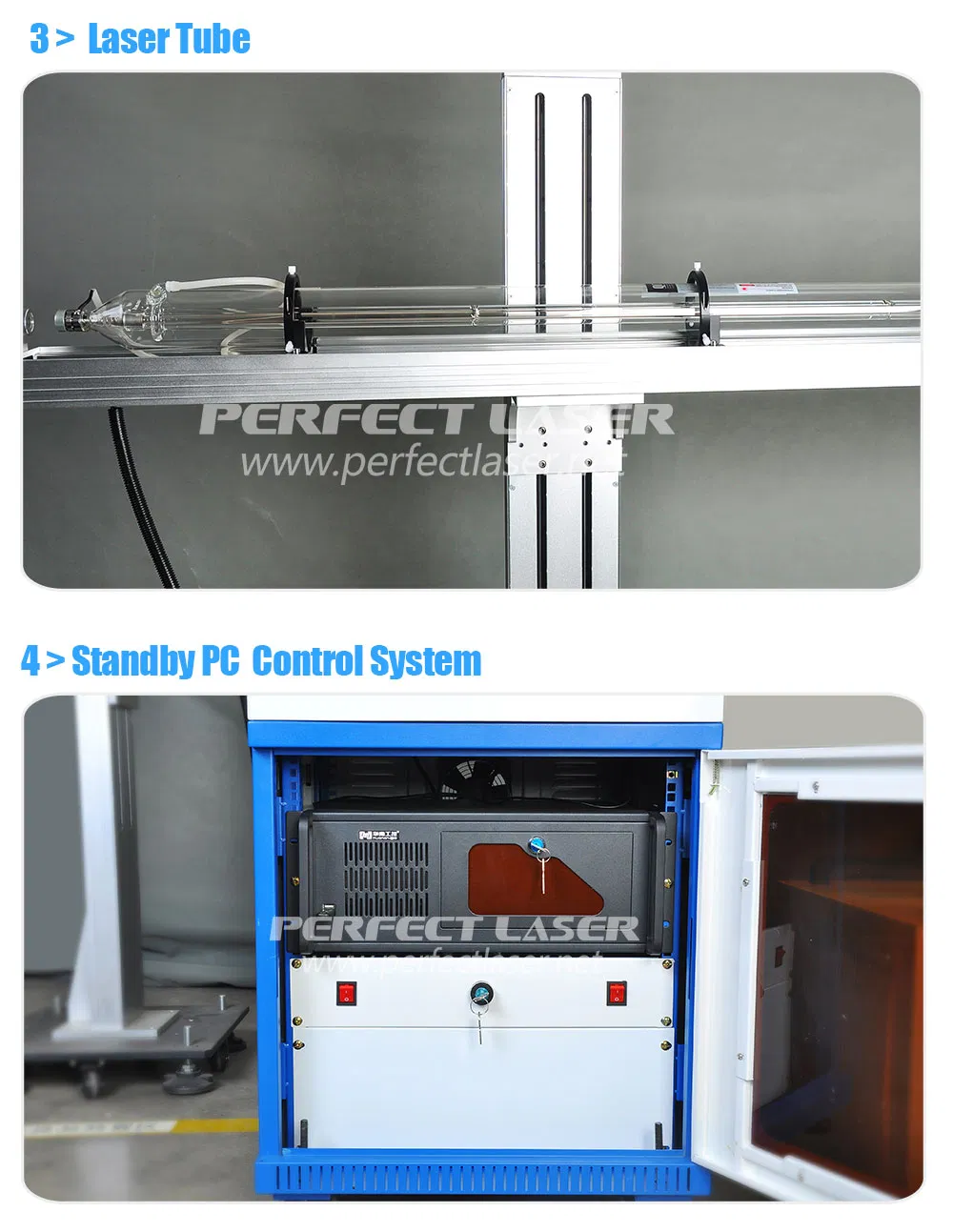

CO2 Automatic Textile Laser Marking Machine Setup

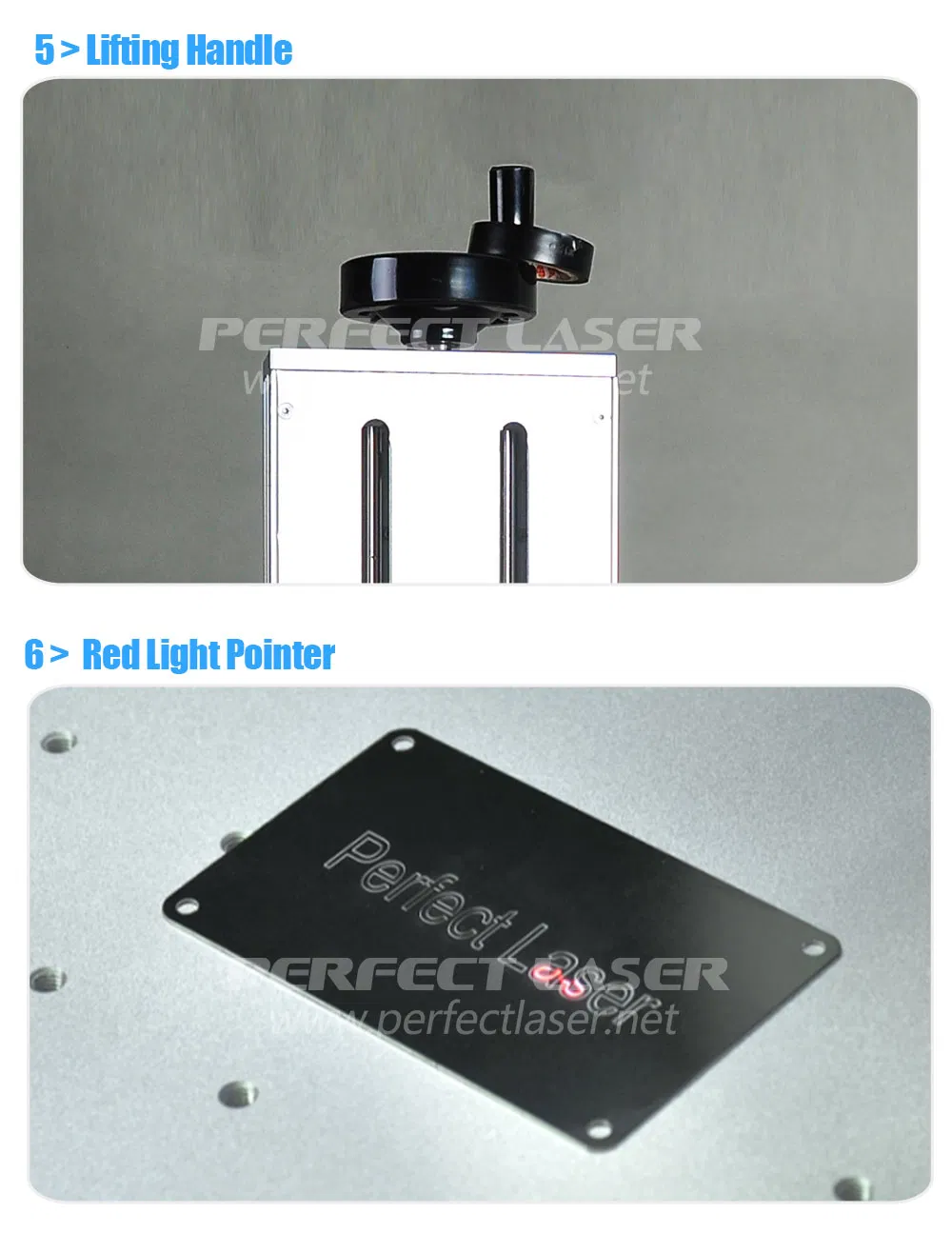

CO2 Automatic Textile Laser Marking Machine Construction

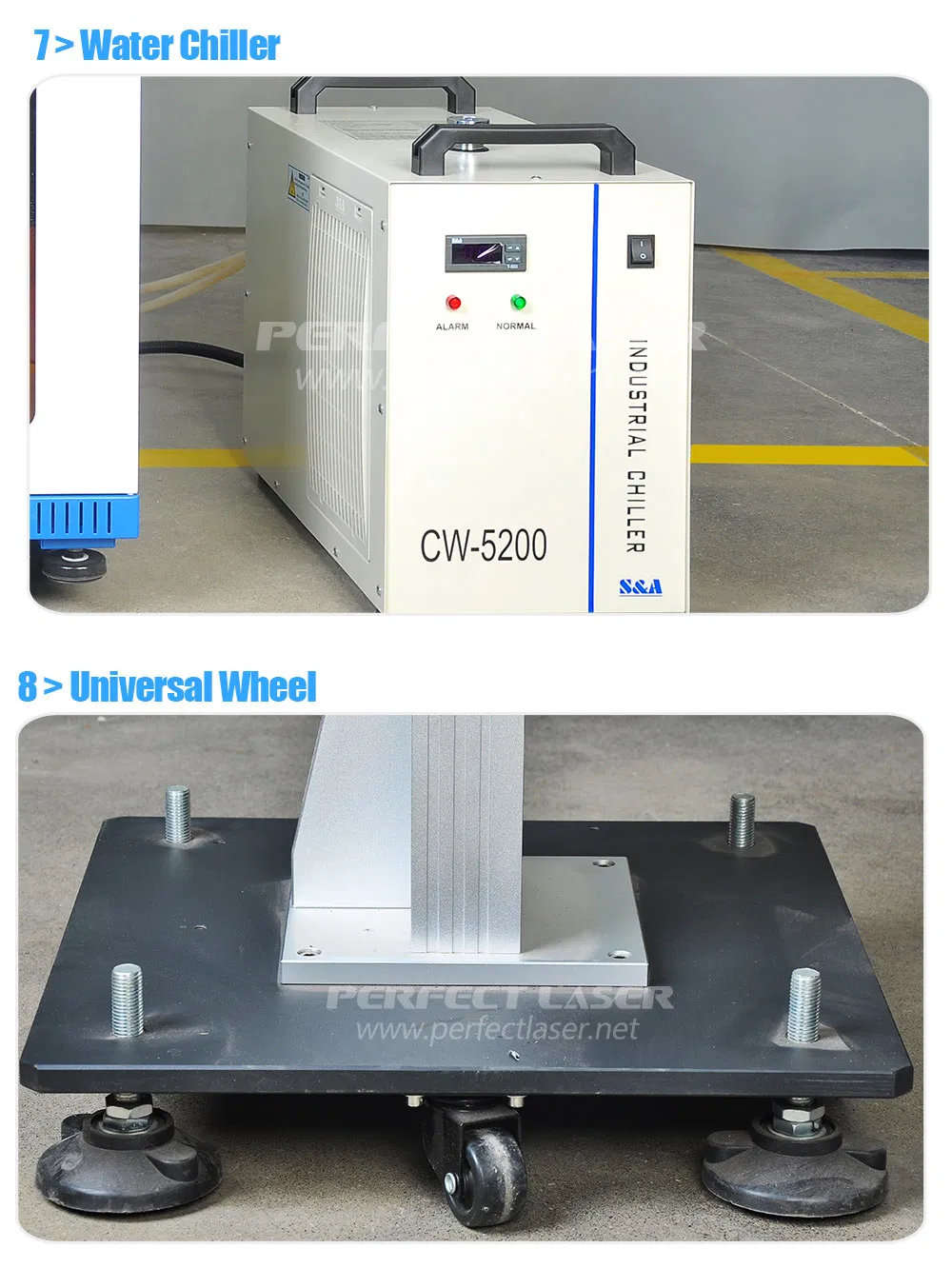

CO2 Automatic Textile Laser Marking Machine Working State

Technical Data Table

Type	PEDB-C60A	PEDB-C80A	PEDB-C100A	PEDB-C130A
Laser Output Power	60W Glass Tube	80W Glass Tube	100W Glass Tube	130W Glass Tube
Laser Tube Origin	Made In China
Life Time of Laser Tube	20000 hours
Cooling Method	Water Cooling
Marking Speed	0-8000mm/second
Working Area	Standard: 110×110 mm (customizable)
Marking Depth	0.01~0.3mm
Repeated Accuracy	0.01mm
Laser Wavelength	1064um
Minimum Line Width	0.015mm
Power Supply	380V/50HZ
Machine Power	2 kw

CO2 Laser Marking Production Line integration

Frequently Asked Questions (FAQ)

What materials are suitable for this CO2 laser marking machine?

This system is designed primarily for nonmetal materials. Common applications include plastics (PVC, PET), textiles, cloth, wood, paper, acrylic, food packaging, and wires/cables.

What is the lifespan of the laser tube and does it require maintenance?

The high-quality CO2 glass laser tube boasts a working lifespan of up to 20,000 hours. The system is virtually maintenance-free, saving long-term operational costs.

How fast can this laser marking machine operate?

Thanks to its high-speed imported scanning system, it can reach marking speeds of up to 8,000 mm/s, making it suitable for high-speed continuous production lines.

What kind of cooling system does the machine use?

The machine uses a highly efficient water-cooling system that keeps the laser tube temperature stable during heavy, continuous work sessions.

Is the machine environmentally friendly for indoor use?

Yes, it features a special fog-sealed structure paired with an adsorption system. This setup captures gas and fog, venting them safely away via side air pipes, meeting strict environmental demands.
