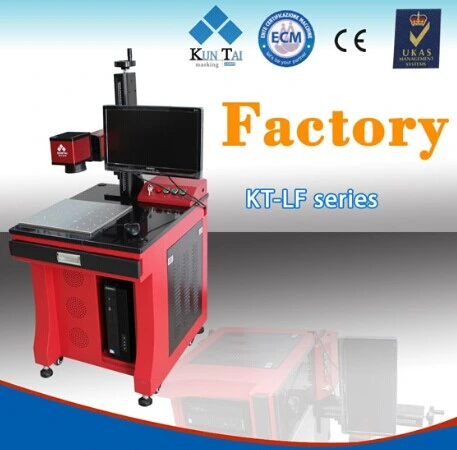

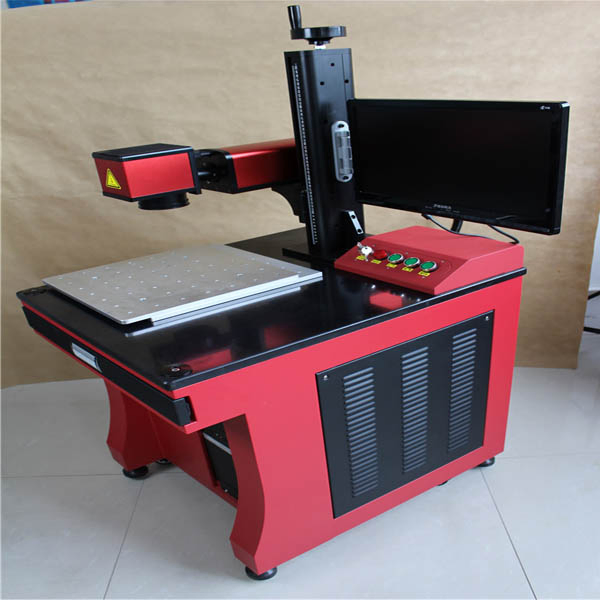

Durable marking fiber laser marking machine designed specifically for metal surfaces.

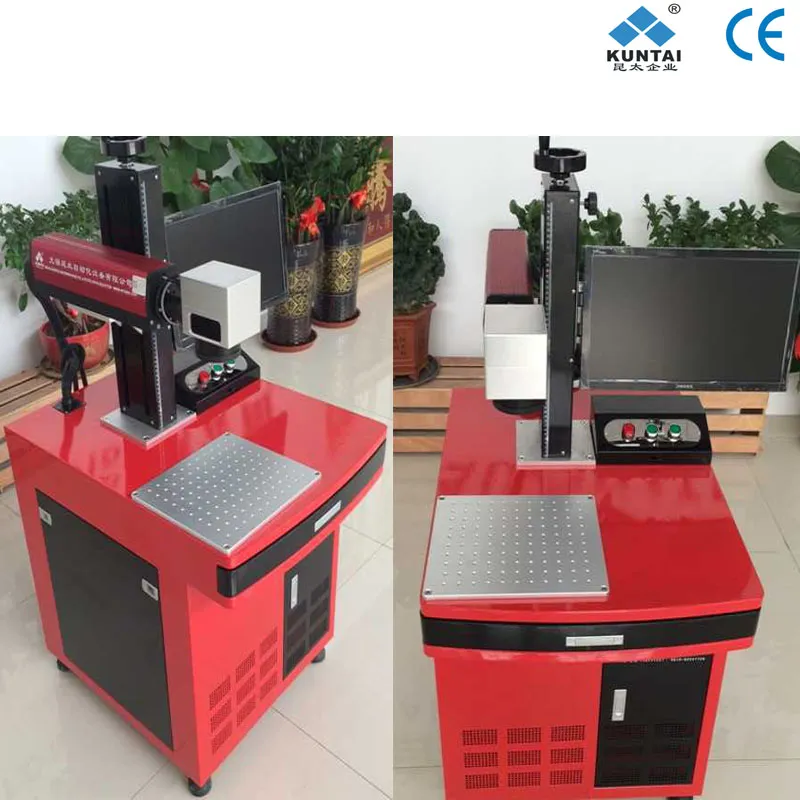

The KT-series high-quality laser marking machine represents a new generation of laser marking systems built with state-of-the-art global laser technology. Utilizing a fiber laser source combined with a high-speed galvanometer scanning system, this machine offers exceptional electro-optical conversion efficiency. It is engineered for applications demanding extreme depth, smoothness, and precision, such as timepieces, communication products, and graphical marking.
Specification:
Item no
KT-LF
Laser output
20w 30w 50w 100w 120w
Max marking speed
800 characters/s, height of character 1mm
Laser wavelength
1064nm
Beam quality(m2)
< 1.8 square metres
Standard marking area
100mm × 100mm
Marking depth
< 0.1mm, depending on materials
Whole machine power
800W
Min line width
0.01mm
Repeatability precision
± 0.001mm
Out package size
900X700X1150mm
Cooling system
Air cooling

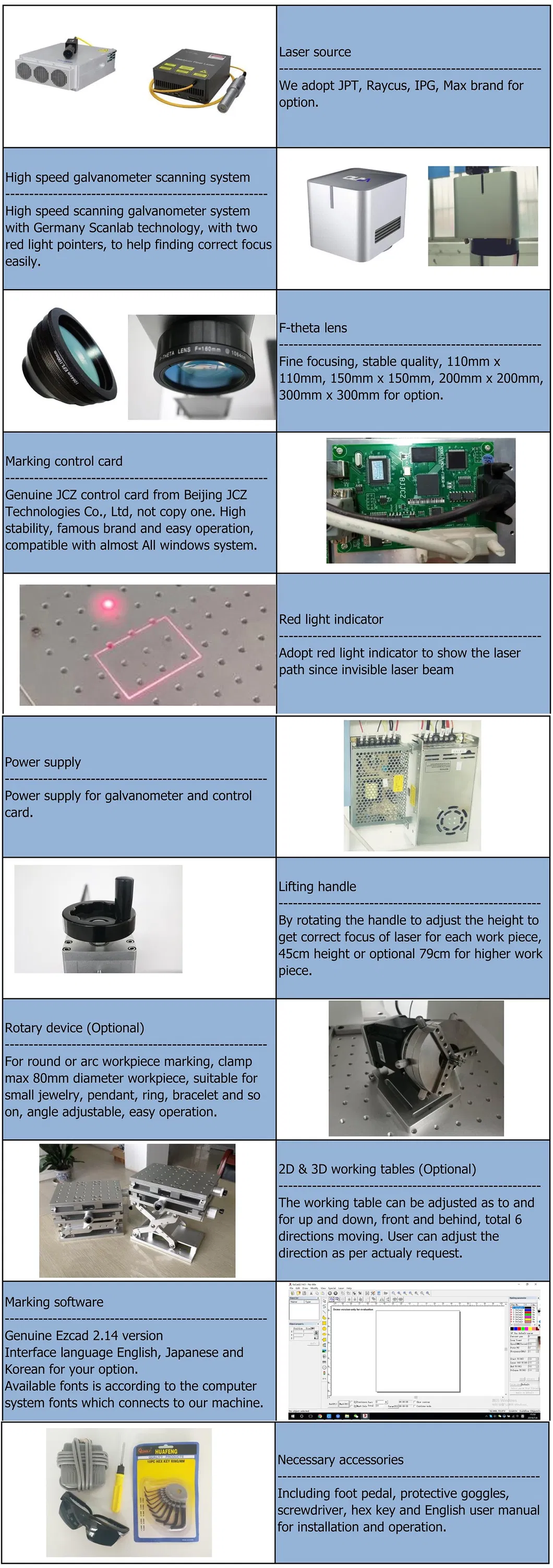

Main Spare Parts & Packing List:

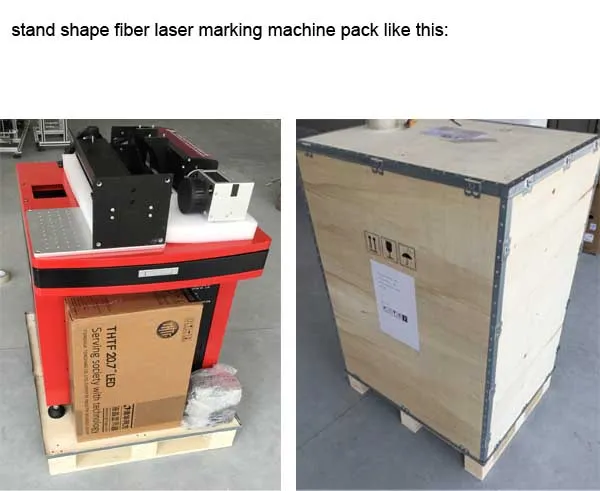

Packaging and Shipping
Model: KT-LF
Packaging: One unit per plywood case
Outer Dimension: 90 x 70 x 115 cm
Gross Weight: 150 kg
Delivery Lead Time: Within 15 days post-payment
Shipping Methods: Ocean freight, air freight, or international express delivery
Advantages
USB Interface Connection: Fully compatible with laptops and personal computers.
Compact & Portable: Designed with small footprints for easier movement and space saving.
High Precision: Offers superior and highly consistent marking effects.
Superior Laser Beam: Defined accuracy down to 1 micron, which is 10 times more precise than traditional systems.
Zero Consumables: A maintenance-free setup capable of running for years without consumer parts.
Fast Operating Speed: Marks 800 standard characters per second, 3 to 5 times faster than standard equipment.
Fixed Path: No adjustments needed for the laser optical path.
Up/Down Focus Scale: Built-in focusing systems and scale plates make positioning quick, convenient, and precise.
Applicable Materials
Suitable for metals and various non-metallic materials, including:
Hard alloys, oxides, plating, and coatings.
ABS, epoxy resin, ink, and engineering plastics.
Highly recommended for work requiring depth, smooth finish, and intricate details, such as clocks, watches, mold industries, and bitmap engraving.

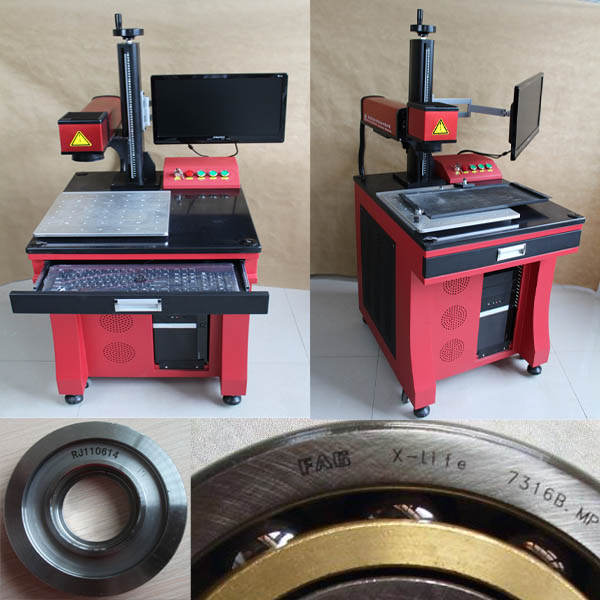

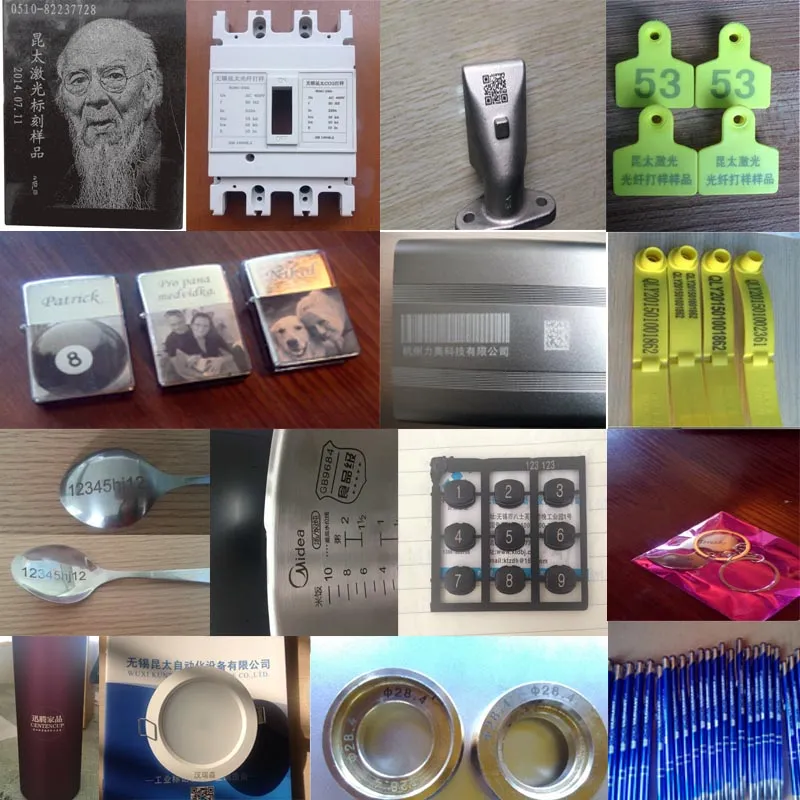

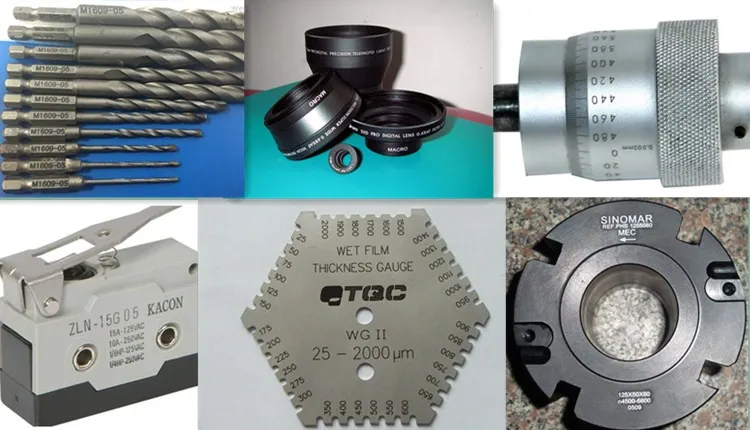

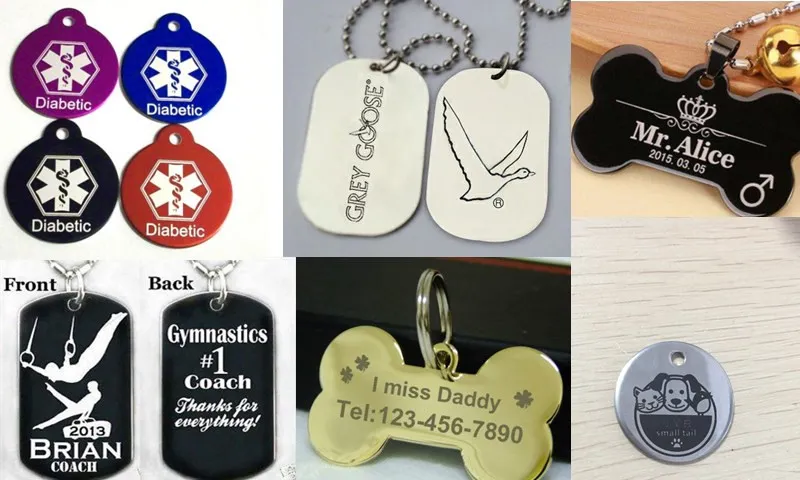

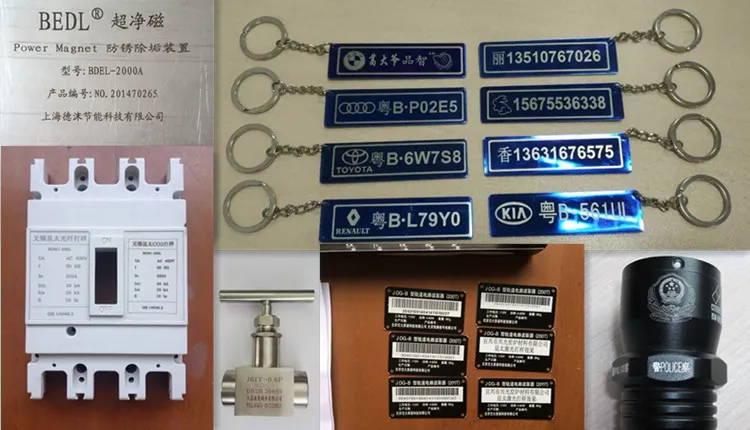

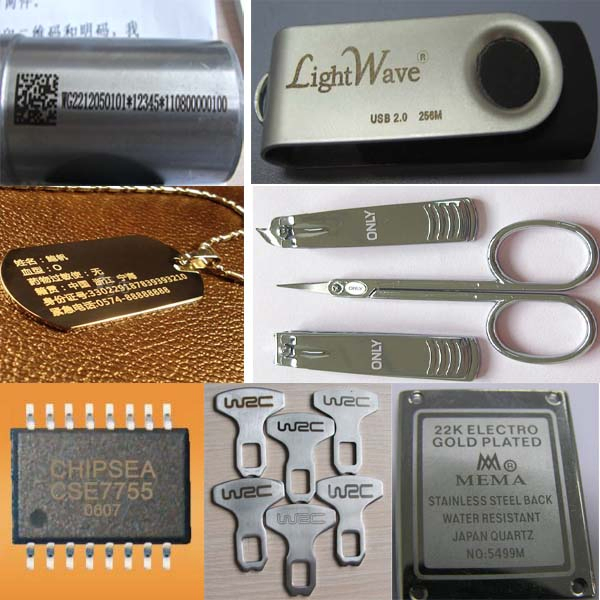

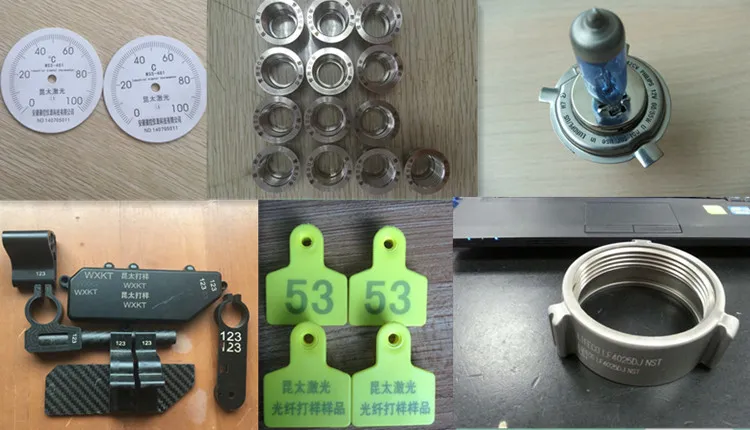

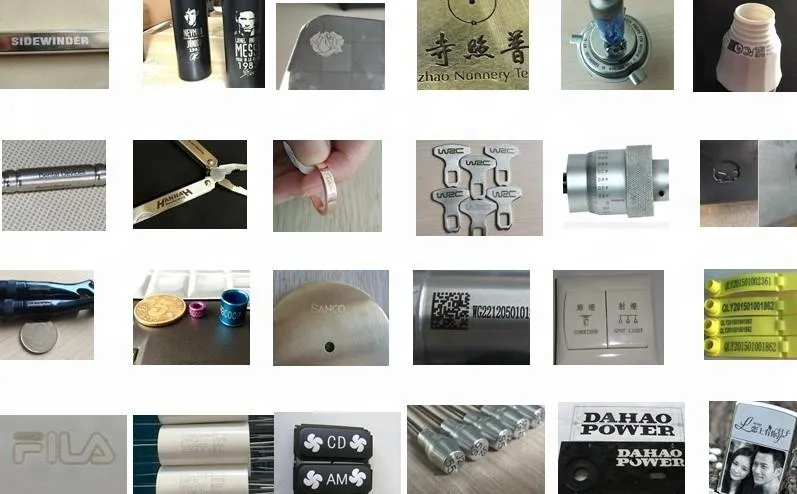

Marking Samples
Warranty & Service Support
We supply matching control software to assist machine operations.
Free engineering design for fixtures as requested by customers, along with technical support.
Guaranteed production delivery times within 7 days.
Custom manufacturing of marking machines according to unique parameters.
TWO YEARS WARRANTY for the laser source, and one year for other components.

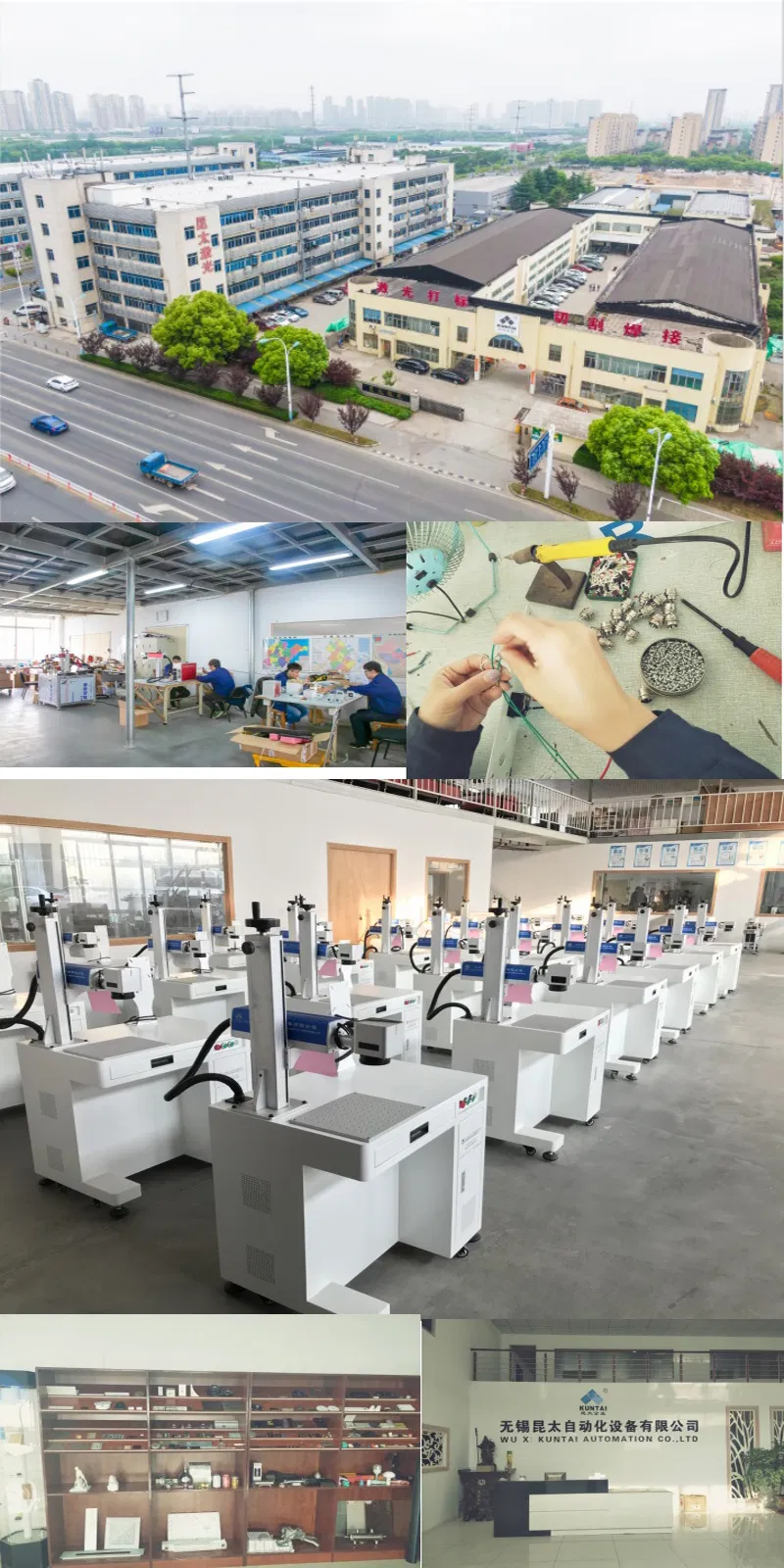

Certificates
Products are fully qualified and compliant with CE, ROHS, FDA, and ISO guidelines, exported worldwide to regions including Europe, North America, Latin America, the Middle East, and Southeast Asia. Constant research and development are conducted to optimize current product ranges and design innovative laser applications.
Frequently Asked Questions (FAQ)
What materials are compatible with this laser marking machine?
The machine supports metals (like steel, aluminum, brass, and alloys) and various non-metallic materials, including oxides, plating coatings, ABS, epoxy resin, ink, and engineering plastics.
What is the warranty period for the KT-LF model?
We provide a comprehensive two-year warranty specifically for the laser source, and a one-year warranty covering all other spare parts and machine components.
Does this laser marking system require special cooling?
No water chillers or external systems are needed. The machine uses a highly efficient, built-in air cooling system, keeping the unit compact and low maintenance.
What certifications does this equipment carry?
The fiber laser marking systems conform to global standards and carry full CE, RoHS, FDA, and ISO certifications, qualifying them for worldwide use.
How fast can this fiber laser machine engrave?
The machine supports marking speeds up to 9000mm/s, which translates to a standard output of about 800 characters per second (with a character height of 1mm).
How is the machine packaged for delivery?
Each unit is safely secured inside a sturdy plywood case. The package dimensions are 90x70x115cm, with a gross weight of approximately 150kg to ensure safety during transport.
