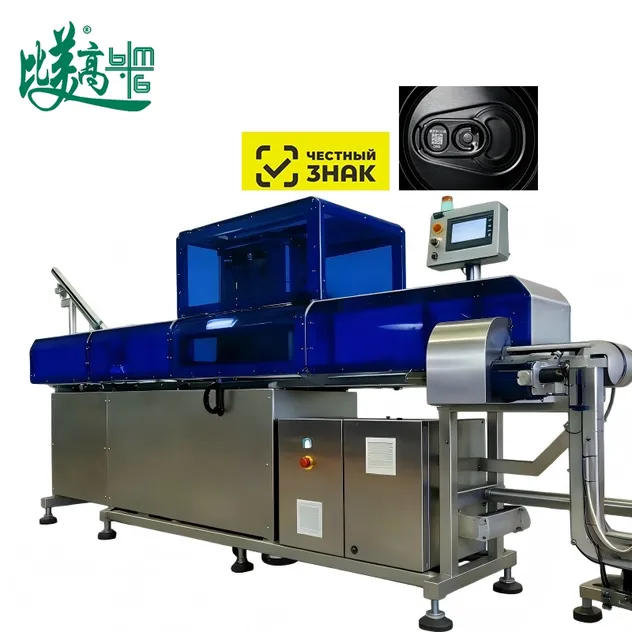

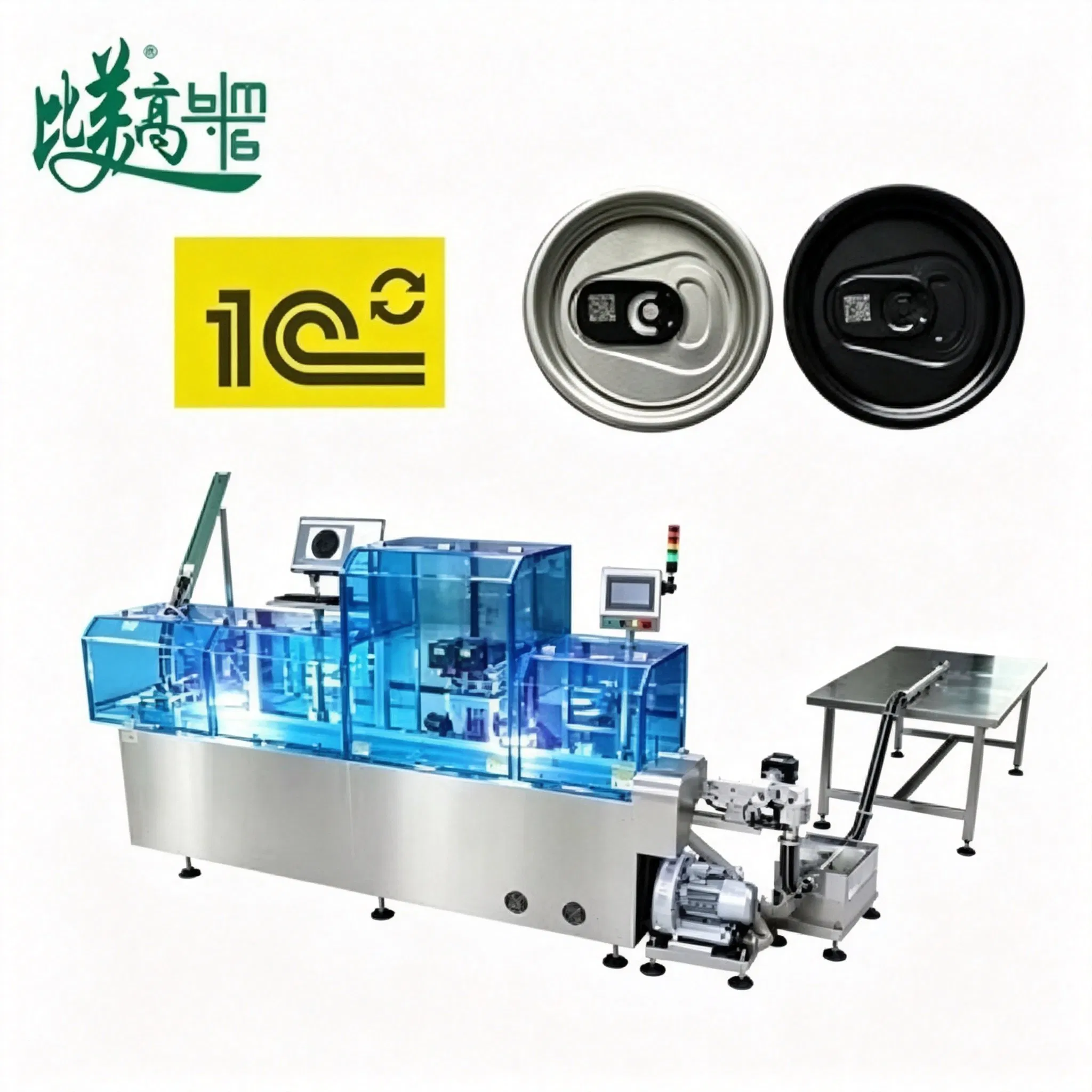

Automatic Aluminum Cap Laser Marking Coding Integr
Laser Visibility
Invisible
Applicable Material
Metal
Cooling System
Water Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Certificates
CE ISO CCC
Touch Screen
10 Point Capacitive Touch
Output
45000 Units Per Hour
Operating System
Ezcad
Applicable Product
Pharmaceutical Bottle Caps, Can Pull Rings, Alumin
Marking Depth
0.01-0.02mm
Keywords
Laser Marking Machines
Laser Power
60W(Optional)
Product Name
Fiber Laser Machine
Data Compatibility
GS1 International Standard, 1c Enterprise System C
System Feature
Integrated Coding and Sorting System
Transport Package
Wooden Case
Specification
Customized according to customers
Origin
China
HS Code
8471492000
Packaging & Delivery
Package Size
700.00cm * 800.00cm * 900.00cm
Package Gross Weight
90.000kg
Product Description

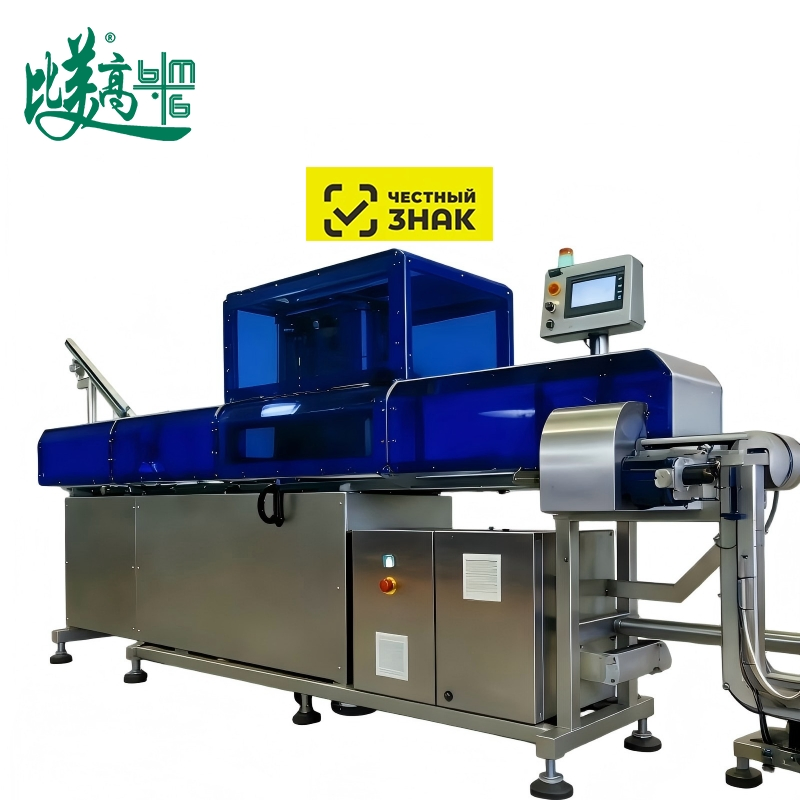

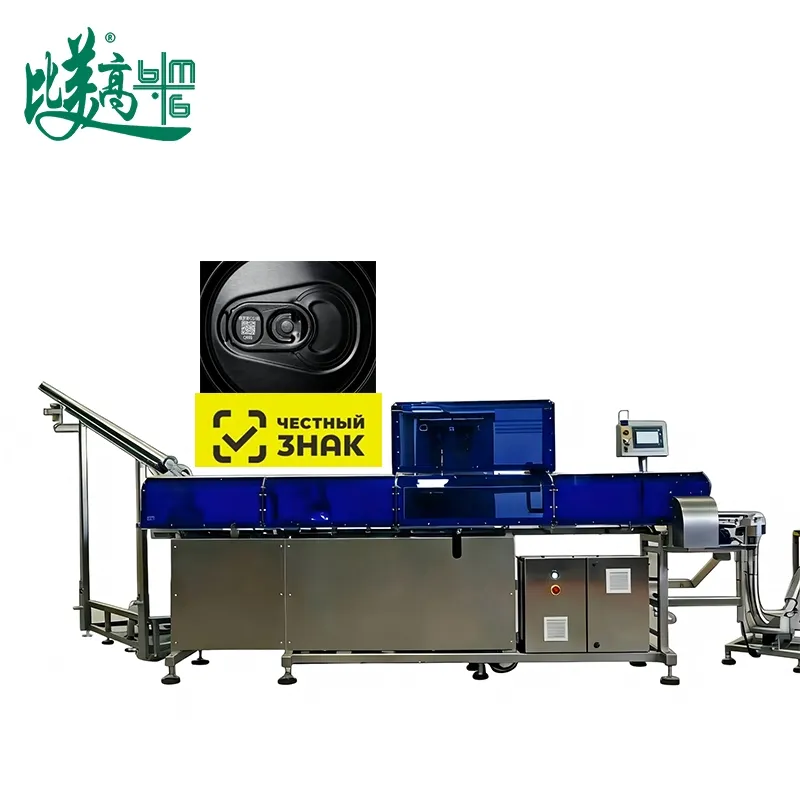

Full International Compliance, Zero Export Risk
Fully supports Russia Honest Label certification, 1C system data docking and GS1 international standard. Realizes independent one item one traceable QR code for aluminum can lids, fully meeting Russian market commodity supervision rules. Help food and beverage manufacturers pass customs inspection smoothly and avoid export penalties and product returns.

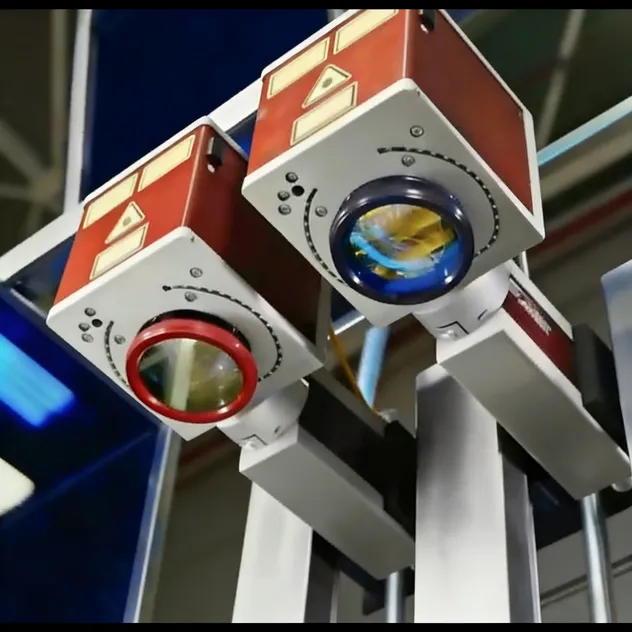

Standard configuration of fiber laser, excellent for stable and clear metal aluminum surface marking. Optional UV laser and CO2 laser according to customer production process requirements. Flexible equipment configuration to meet different marking precision and surface processing standards.

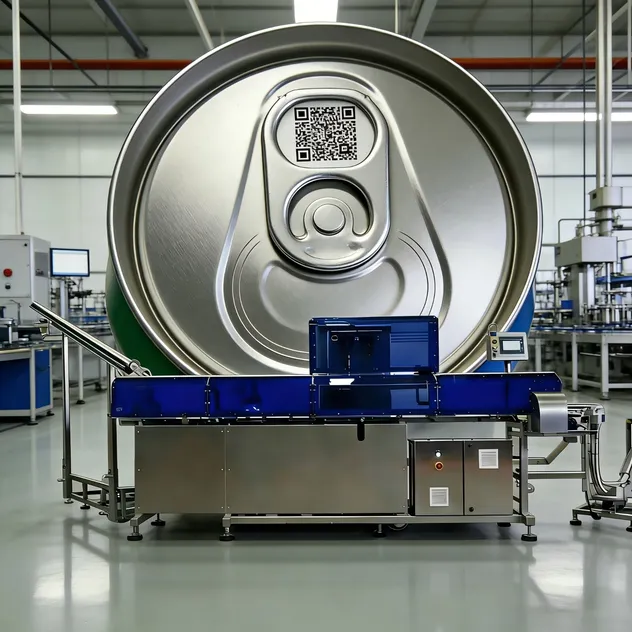

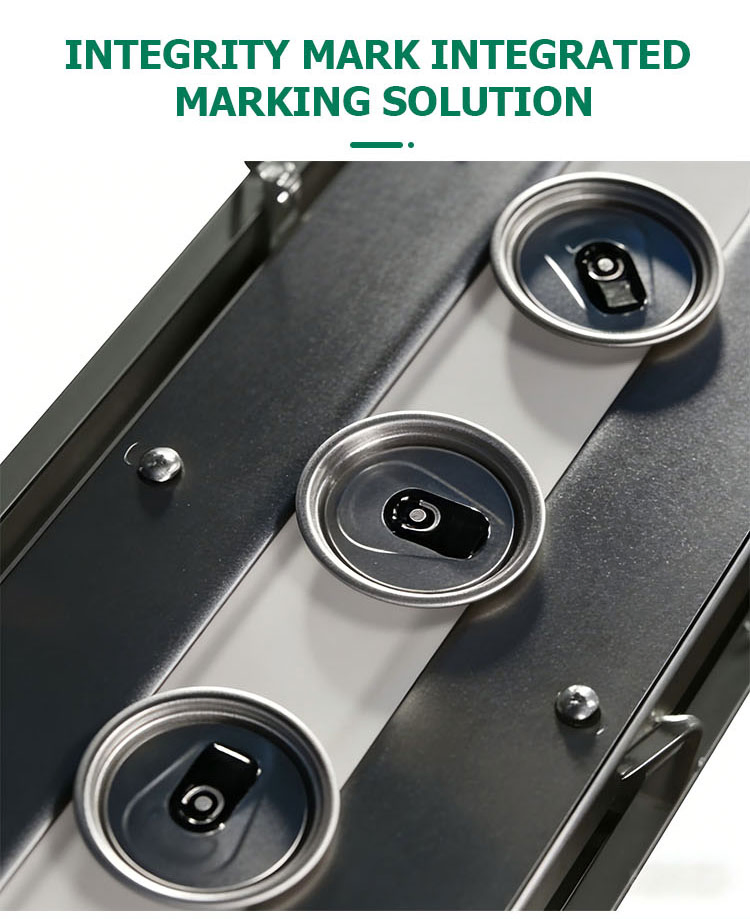

Professional Aluminum Can Lid Exclusive Marking
Specially designed for metal aluminum pull ring can lids. Laser marking pattern and code are clear, wear-resistant, non-fading and highly recognizable. Effectively solve the problems of blurry code, easy falling off and poor anti-counterfeiting performance of traditional inkjet coding on metal surfaces.

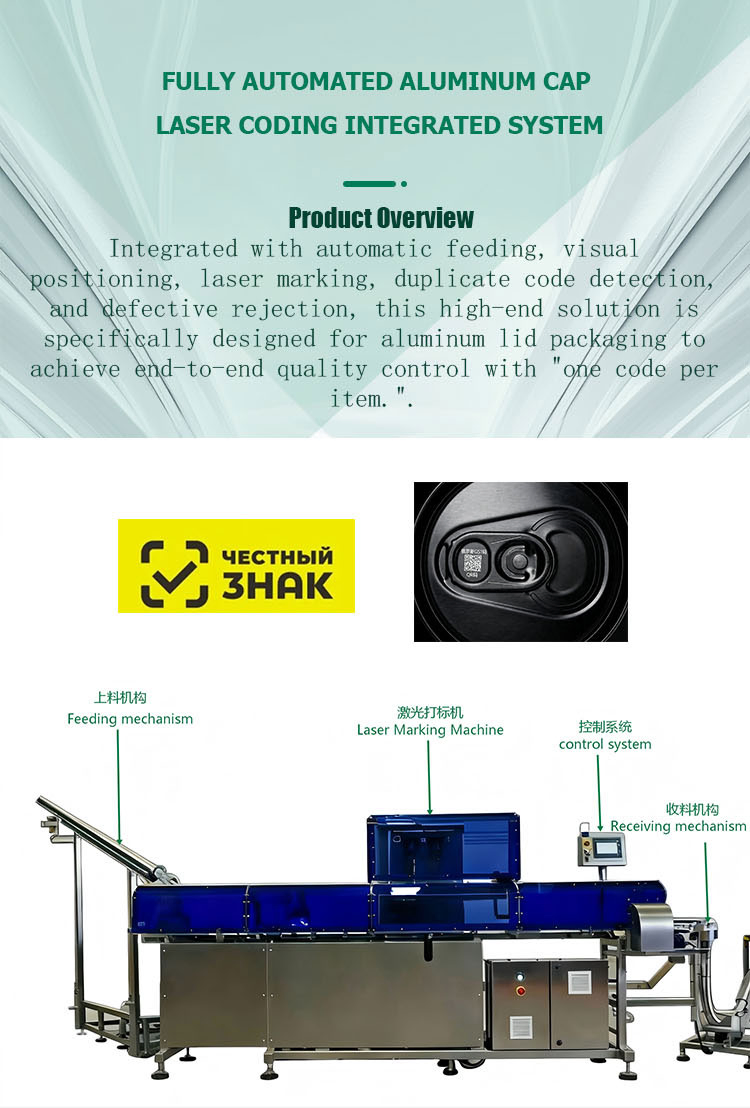

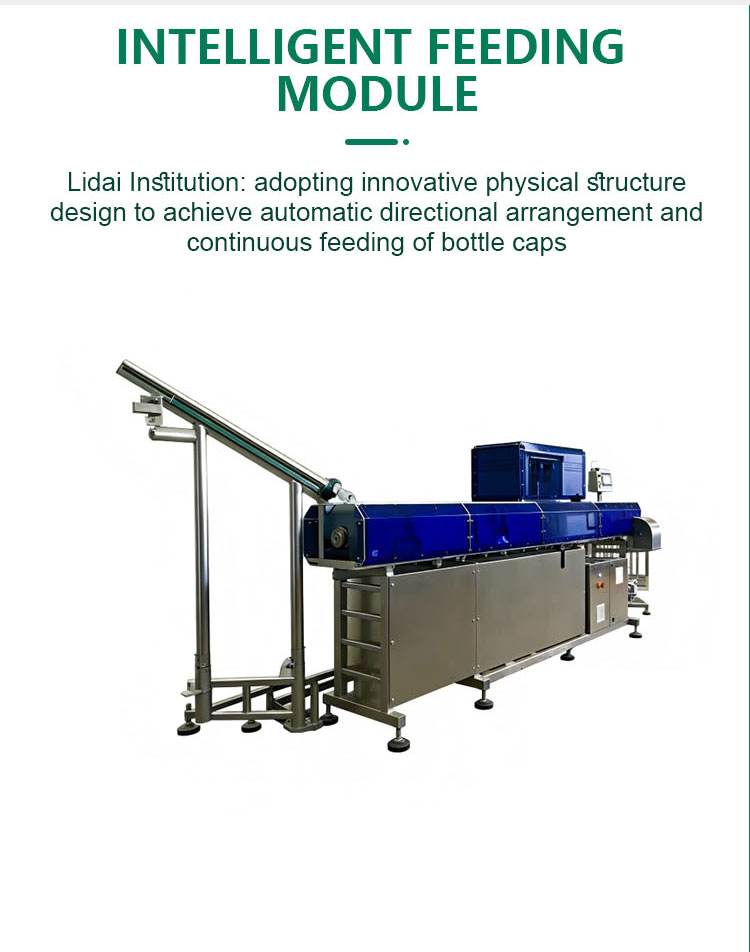

Full Automatic Integrated Operation, Labor Saving
Integrates automatic feeding, intelligent laser marking, system control and automatic material collection. The whole machine runs unmanned, effectively saving factory labor costs, eliminating manual operation errors and improving overall production efficiency and product qualification rate.

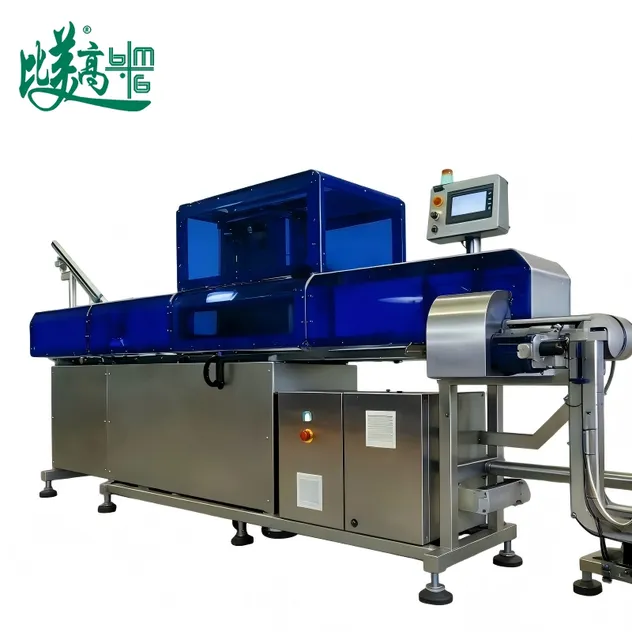

Seamless Production Line Docking
Mature and stable mechanical structure and intelligent control system. Can be perfectly connected with customers' existing food and beverage packaging production lines, realizing continuous online automatic marking and helping factories upgrade intelligent automated production.
Technical Specifications
FIBER LASER MARKING MACHINE
Laser wavelength
1064 um
Average output power
60W
Beam quality
m2<1
Modulation frequency
1KHZ-200KHZ
Engraving depth
0.01mm-0.2mm (subject to the actual product)
Minimum line width
0.02mm
Minimum character
0.1mm
Repeatability accuracy
±0.05mm
The power consumption of the entire machine is
700W
Ambient temperature
5-45°C
Humidity
Relative humidity 95%RH non-condensation
Operating System
EZCADJ
Operating language
English
Font
Supports all TTF fonts, including dedicated fonts for laser marking
Maximum linear writing speed
15,000 mm/s
Cooling system
forced air cooling
Power supply
Single-phase, 220VAC, 1KVA
Marking range
110mmX110mm or larger (optional)
Interface
USB, RS232
VISUAL INSPECTION SYSTEM
Operating system
Windows 10
Anti-duplication detection software
Patent No. :201510915664.5-V1
Camera brand
Hikvision
Camera power
1.3 million pixels
Scanning range
100mmx100mm
Human-machine interface
15-inch display screen
Operating language
English
Light source
LED-Ring light source
Signal line
5 meters
Control module
Built-in Integration
Communication interface
network port, USB, serial port
Appearance and structure
304 stainless steel
Sensor
Color mark
Power supply
Single-phase, 220VAC, 1KVA
About Us
Established in 2009, we specialize in producing various CO2 / UV laser / Fiber laser marking machines, providing one-stop solutions with sorting, traceability, anti-counterfeiting, visual inspection, labeling, printing, paging, and cases association functions. Our team comprises experts in optics, electronics, software development, mechanical design, electronic control development, and technical application services. We primarily serve the medicine, beverage, food, hardware, auto parts, electronics, household appliances, plastics, and glass products industries, working with both metallic and non-metallic materials. Our products are exported to over 50 countries and regions including Azerbaijan, Vietnam, India, Dubai, Saudi Arabia, Russia, Australia, and Colombia.
Frequently Asked Questions
Which materials and products are suitable for this marking machine?
This system is primarily designed for metals, specifically aluminum surfaces. It is ideal for marking metal aluminum pull ring can lids, pharmaceutical bottle caps, and other metallic packaging items.
Does the machine support international systems like the Russia Honest Label certification?
Yes, it fully supports the Russia Honest Label certification, 1C enterprise system data docking, and the GS1 international standard. It delivers independent, traceable QR codes for can lids to facilitate smooth customs export.
What is the marking output capacity and depth capability?
The machine can output up to 45,000 units per hour. It features an engraving depth ranging from 0.01mm to 0.2mm (subject to the actual product) with a repeatability accuracy of ±0.05mm.
Can this machine be integrated into our existing packaging production line?
Yes. The machine features a mature and stable mechanical design that can seamlessly dock with existing food and beverage packaging production lines, enabling continuous, automated online marking.
What are the core components of the Visual Inspection System?
The visual inspection system includes a Windows 10 platform, anti-duplication detection software (Patent No. 201510915664.5-V1), a 1.3 million pixel Hikvision camera, and a 15-inch human-machine display interface.
