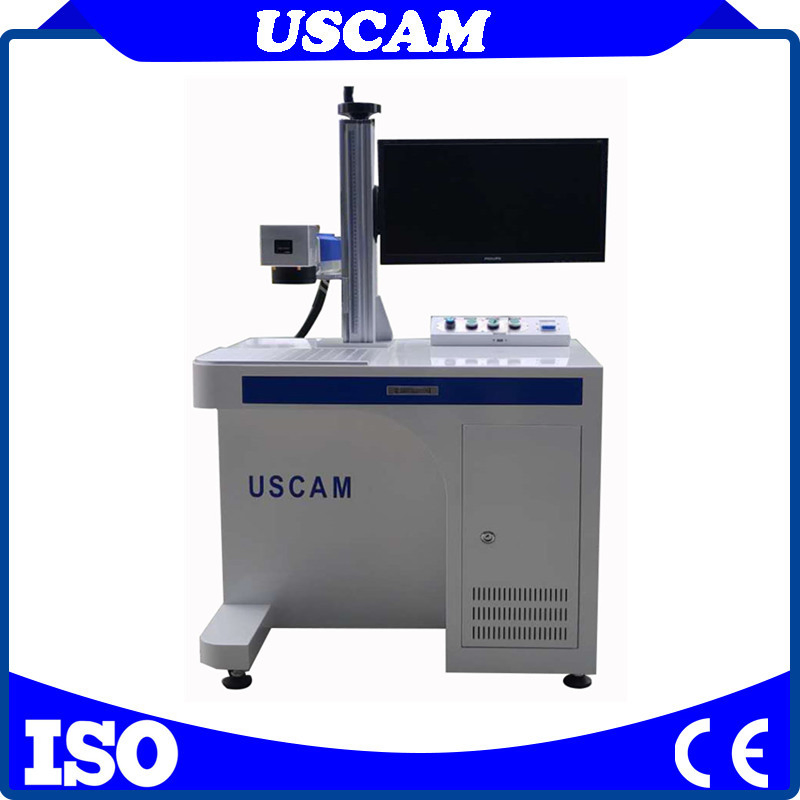

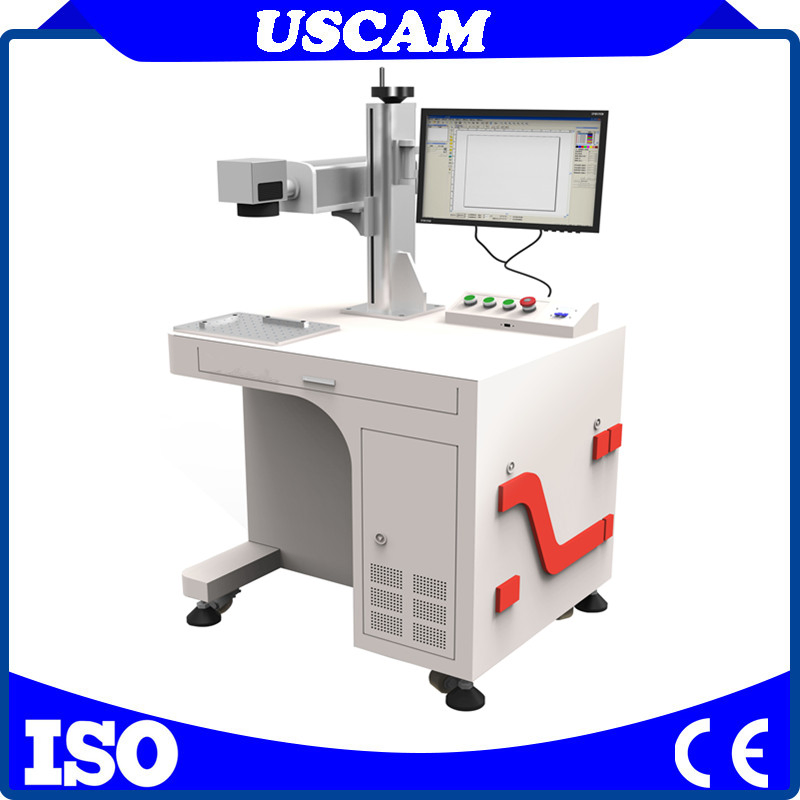

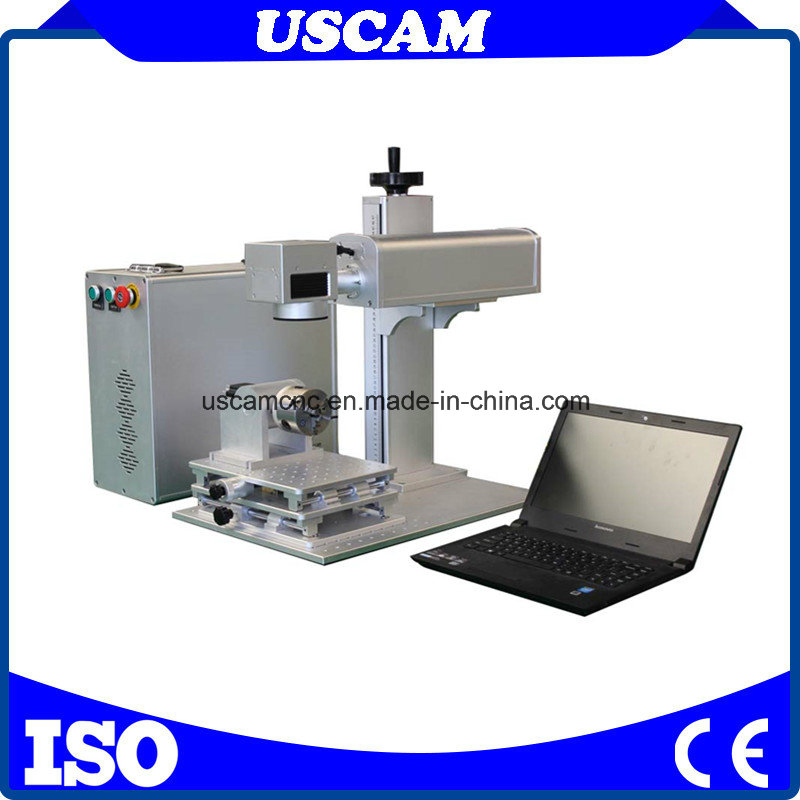

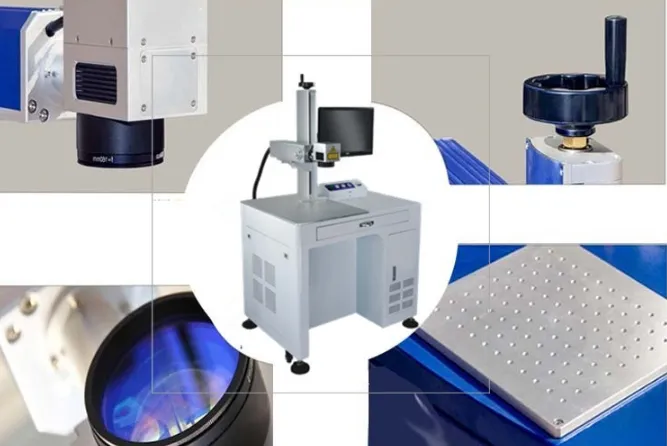

Fiber Laser Marking Machine adopts the imported fiber laser generator, high speed Galvo system to enable stable laser output and high quality laser mode. This model Fiber Laser Marking boasts for its fast marking speed, good marking effect and high efficiency to meet the demand of mass production. Furthermore, Fiber Laser Marking Machine Price also enjoys the advantages of easy operation, low running cost, long-term trouble-free working and free from maintenance. All these factors devotes to its capacity to satisfy industrial production.
| Item Name | Technical Parameter | ||
|---|---|---|---|

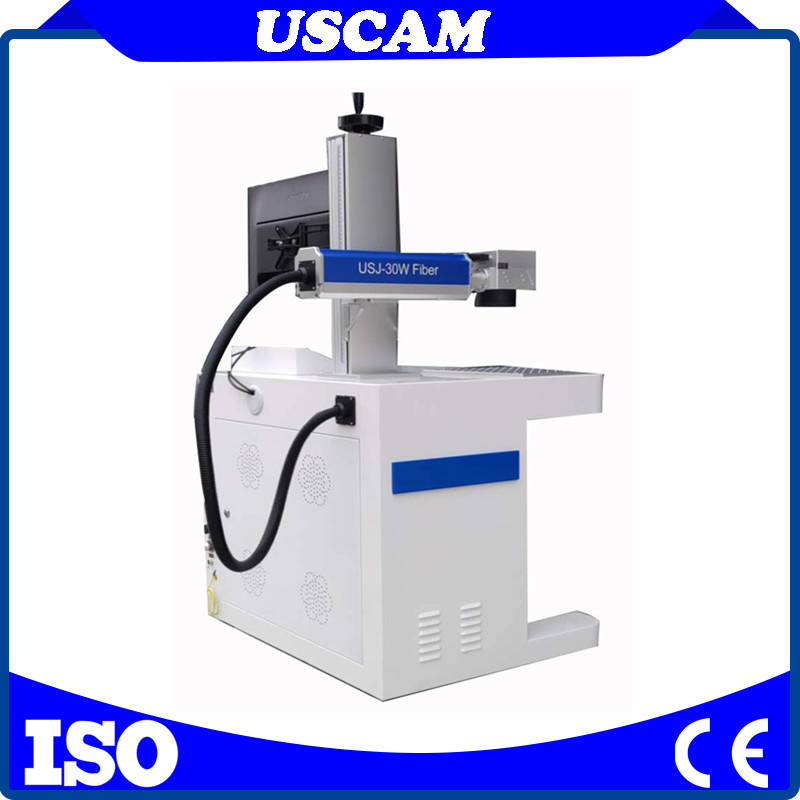

| Model | USJ- 20W | USJ-30W | USJ-50W/100W |
| Laser power | 20W | 30W | 50W/100W |
| Laser wavelength | 1064nm | ||
| Laser type | Fiber laser source | ||
| Max Pulse Energy | 0.5m J | ||
| Repeat frequency | 1KHz-1000KHz | ||
| Pulse width | 6-250 ns | ||
| Marking depth | 0.01-0.5mm | ||
| Marking area | 110*110mm/175*175mm/200*200mm/300X300mm | ||
| Rated power consumption | 500W | 800W | 1200W |
| Operating voltage | 110V- 240V/50-60 Hz/15A | ||
| Cooling | Air Cooling | ||
| Packing size | 770*780*1510 mm (L*W*H) | ||
| Gross weight | 120kg KG | ||
| Package | Standard strong export wooden case | ||

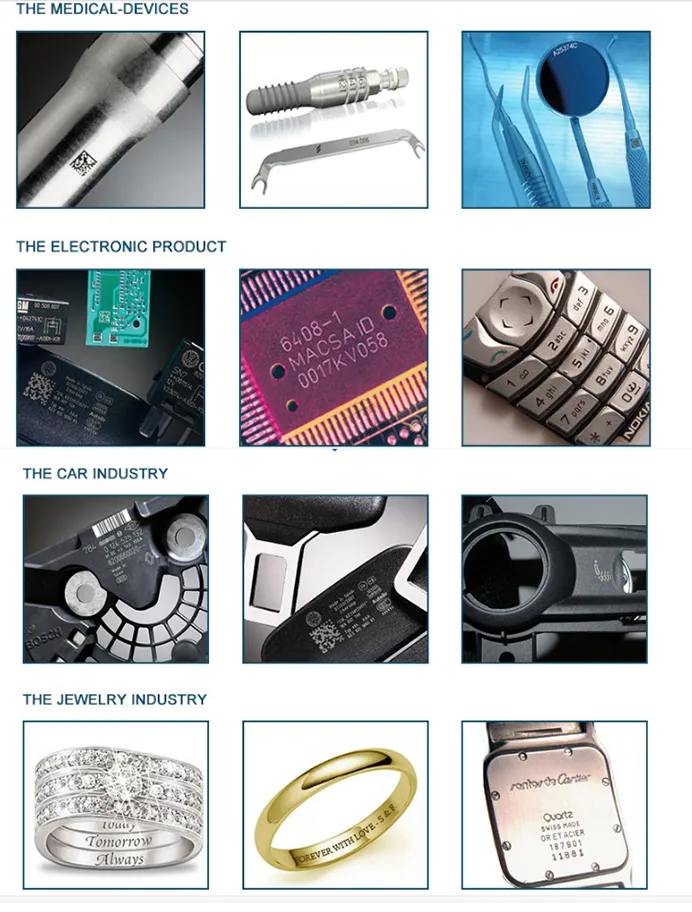

Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES, steel, titanium, copper and other materials.

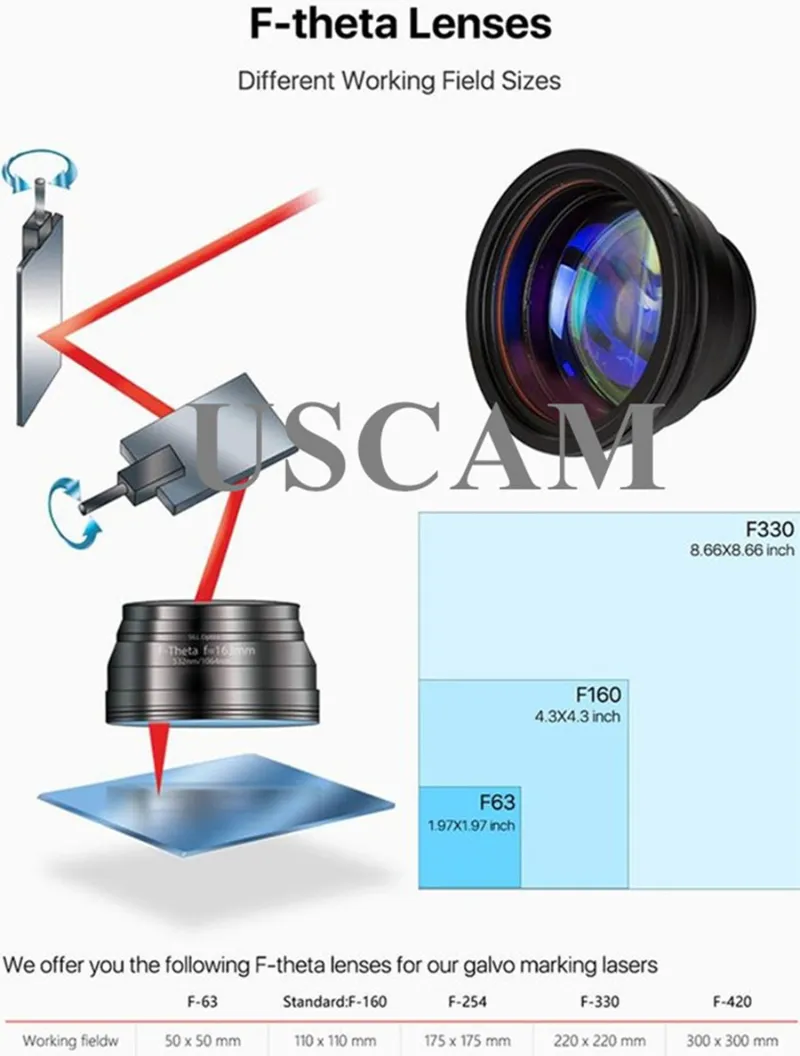

You can confirm the appropriate marking field lens based on the following technical parameters:
| Lens model | Marking size | Power Available |
|---|---|---|
| F160 | 110*110mm | 20w/30w/50w |
| F210 | 150x150mm | 20w/30w/50w |
| F290 | 200*200mm | 20w/30w/50w |
| F430 | 300*300mm | 30w/50w |
| F580 | 400x400mm | 50w |
| Note: 100w is Quartz lens (Since normal lens easy to be broken because of 100w is bigger power in marking) | ||
1. Always choose a big brand laser source (Standard configuration is Raycus QB type).

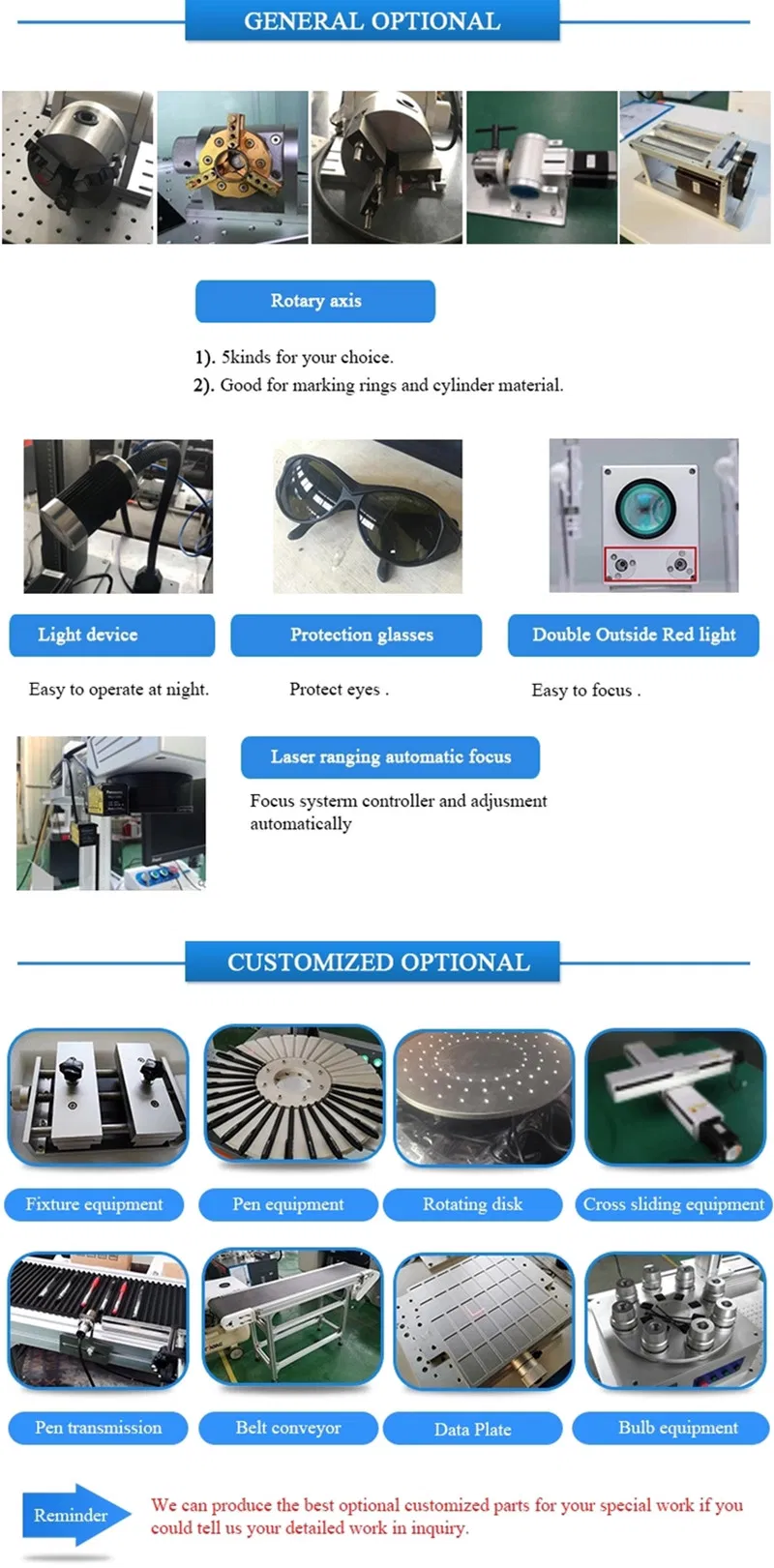

2. Confirm if you need extra optional parts according to your specific marking requirements.
The standard payment term is 30% T/T in advance and 70% paid before delivery.
1). Proforma Invoice: Once you confirm the machine offer, we will issue a Proforma Invoice. The production starts immediately after receiving the 30% T/T deposit.
2). Production: After production is completed, we will conduct video testing and provide photos for your approval. You can pay the balance after verification.
3). Shipping: You can coordinate shipping using your own shipper, or we can assist in arranging the shipping for you.

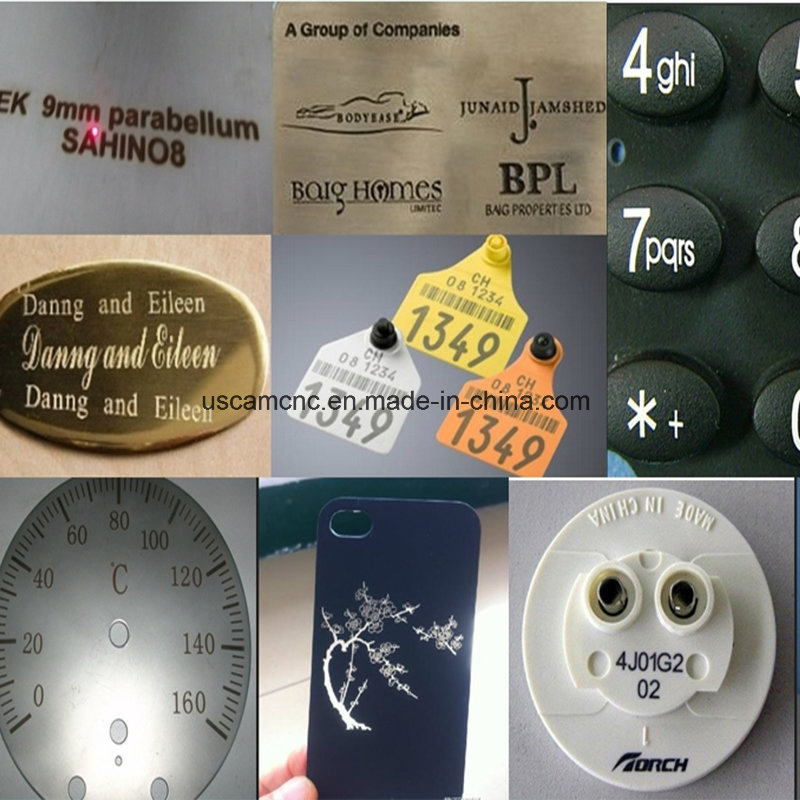

The machine is capable of marking and engraving on metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES, steel, titanium, copper, and various other materials.
We provide a 1.5-year quality guarantee for the machine's main parts (excluding consumables). Additionally, we offer lifetime free maintenance, free training at our plant, replacement parts at agency prices, and 24-hour online technical support.
