| Model NO. | PL420 |
| Laser Visibility | Invisible |
| Applicable Material | Metal |
| Cooling System | Air Cooling |
| Technical Class | Pulse Laser |
| Laser Wavelength | CO2 Laser |
| Laser Classification | Gaseous Laser |

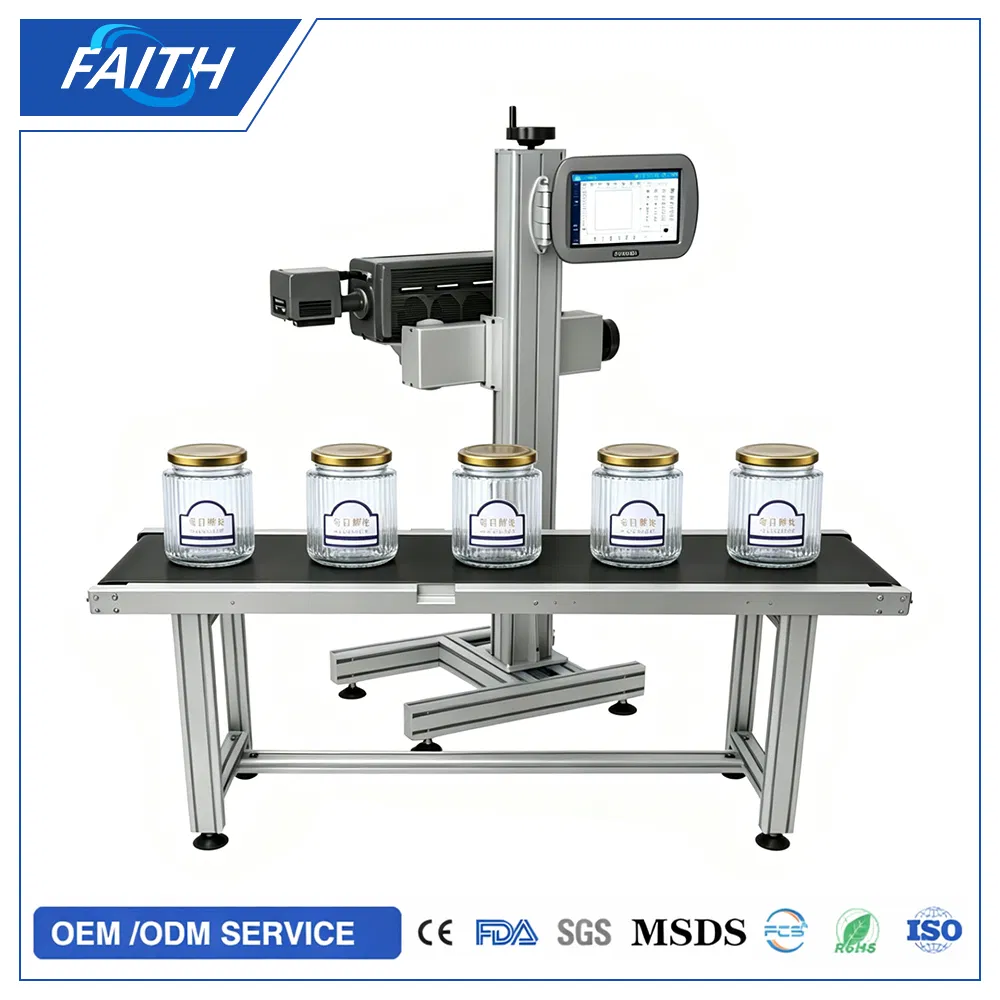

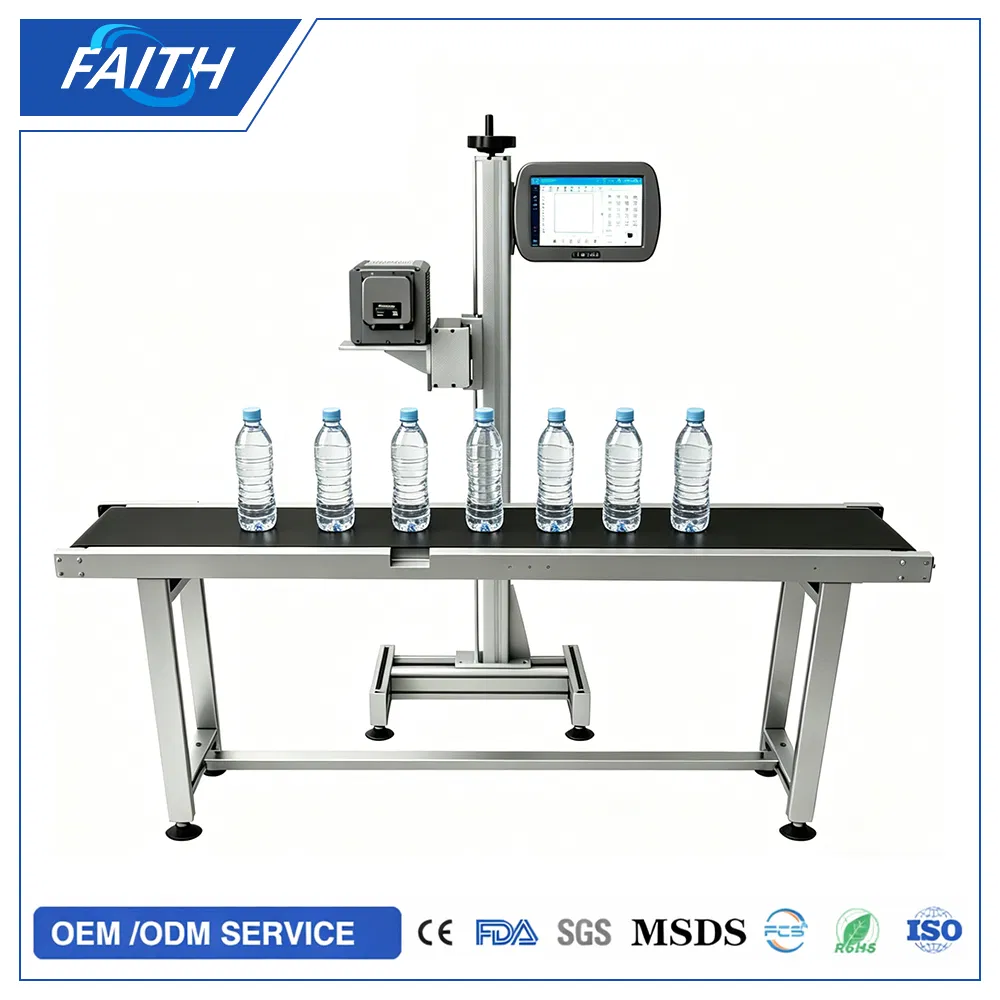

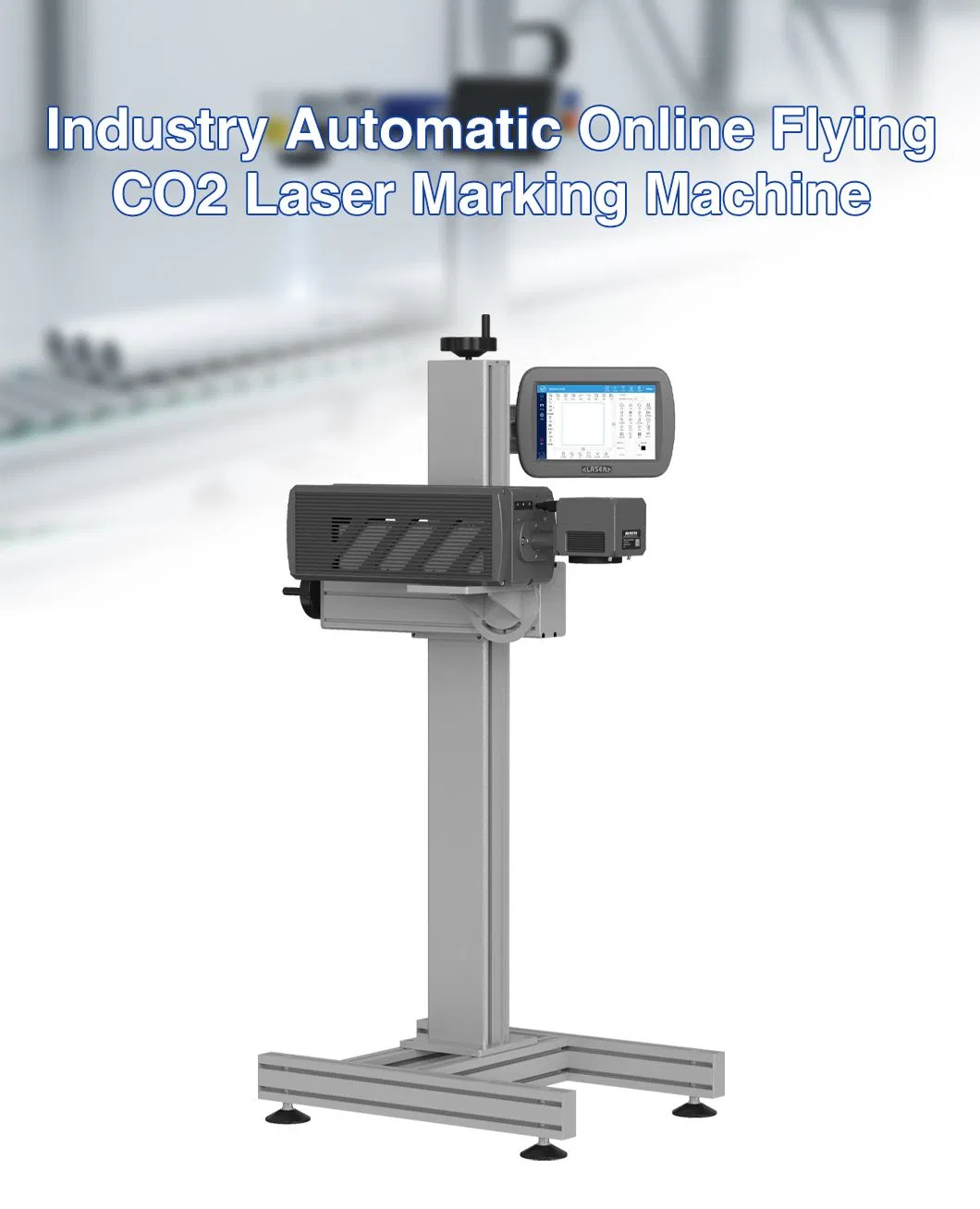

| Type | CO2 Laser Marking Machine |
| Marking Method | Scanning Marking |
| Laser Source | Crd-Laser |
| Marking Speed | 12000mm/S |
| Operating System | Linux |
| Repeat Precision | +/-0.002mm |
| Service Life | 50000 Hours |
| Environment | External Temperature 0 °C -45 °C |
| Place of Origin | China |
| Production Capacity | 10000/Year |
| Package Size | 78.00cm * 53.00cm * 28.00cm |
| Package Gross Weight | 28.000kg |
| Transport Package | Carton and Wooden Packing |
| Specification | 40W/60W/100W |
| HS Code | 8443393100 |
| Item | Product Parameter Table | Detail Specification |
|---|---|---|
| Overall Machine Characteristics | Machine material | Sandblasted aluminum |
| Laser Power | 40w/60w | |
| Laser wavelength | Standard 10.6um, optional 10.2um or 9.3um | |
| Marking speed | ≤14000mm/s | |
| Main control | touch controller | |
| Cooling system | air cooling / water cooling | |
| Coding Parameters | Focus lens | 145mm |
| Minimum line width | 0.03mm | |
| Repeat positioning accuracy | 0.01mm | |
| Marking range | Standard 110*110mm, Maximum 600*600mm (Optional) | |
| Positioning method | Red light focusing | |
| Number of marking character lines | Any lines within the marking range | |
| Production line speed | 0~130m/min (depending on material) | |
| Software Introduction | Multi-language | English, French, Spanish, German, Chinese, Russian, Arabic, etc. |
| Management authority | Multi-user management authority | |
| Operating system | Linux system | |
| Marking mode | static, analog, encoder | |
| Reserved signals | Start printing, printing status, printing completed, fault alarm | |
| Data protection | With power-off data protection function | |
| Missed marking monitoring | Provide over-speed alarm function for false triggering caused by material reflection | |
| Crossing point removal | Automatically remove crossing points to avoid overlapping marks | |
| Code sending software | Able to realize single and dual machine code sending | |
| Remote Control | Supported | |
| Supported Types | Fonts | Chinese, English, Numbers, supporting customization |
| File formats | BMP/DXF/HPGL/JPEG/PLT, etc | |
| Barcodes | CODE39, CODE128, CODE126, QR, GS1 | |
| Machine Parameters | Power supply | 220V/50HZ, Customizable |
| Machine net weight | laser machine part: 40W 14kg, 60W 23kg; Flight bracket part: 30kg | |
| Overall dimensions | 40W machine head: 666X160X165mm; 60W machine head: 850X160X165mm | |
| Requirements | External temperature 0ºC-45ºC; Humidity ≤95%; Non-condensing |
| Certification Code | Certification Name |
|---|---|
| FCC | Federal Communications Commission Certification |
| CE | Conformité Européenne Certification |
| ISO9001 | International Organization for Standardization 9001 Quality Management System Certification |
| ROHS | Restriction of Hazardous Substances Directive |
| FDA | Food and Drug Administration Certification |

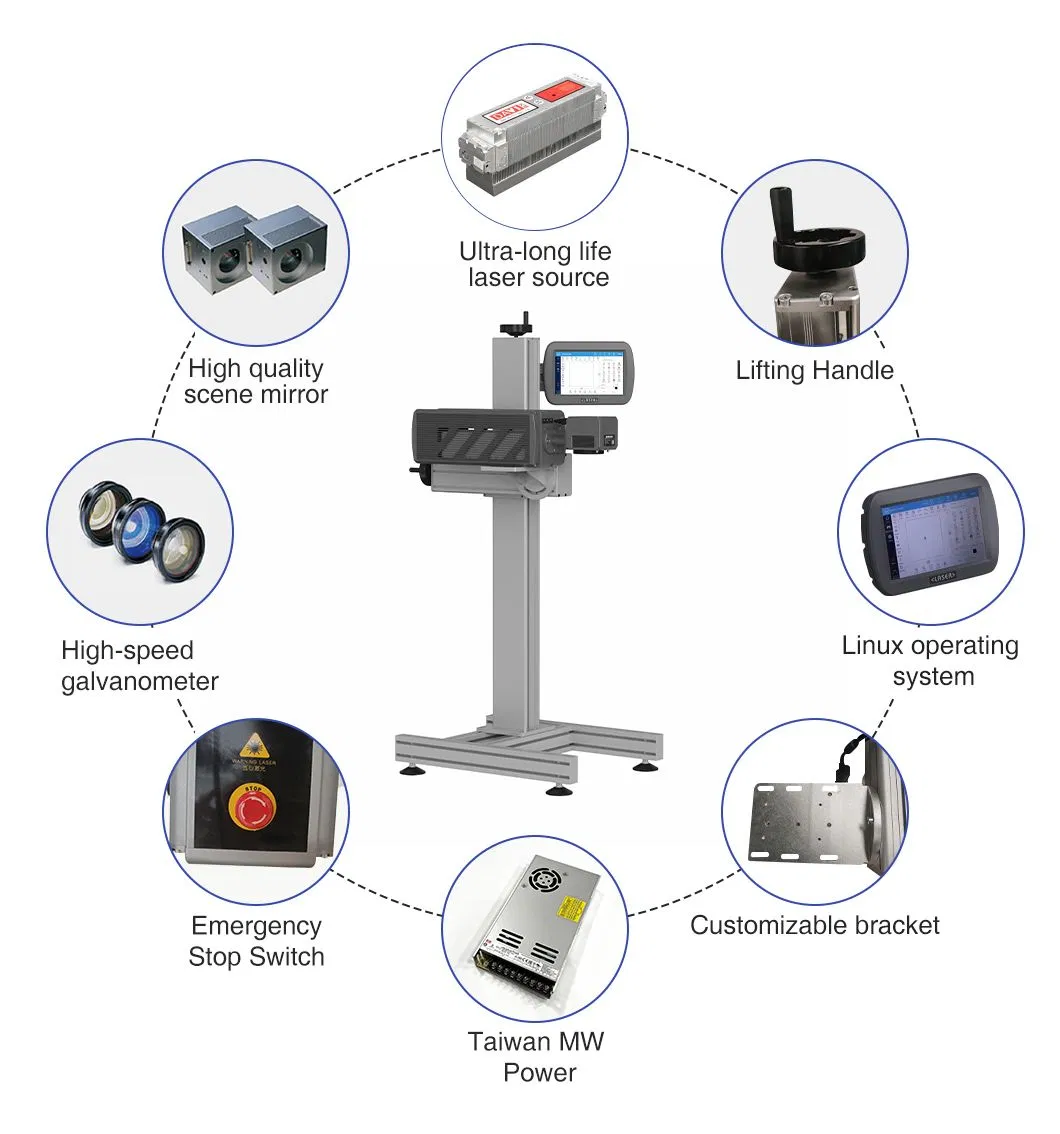

| Serial No. | Subsystem Name | Model | Quantity |
|---|---|---|---|
| 1 | Laser | CO2-40/60 | 1 unit |

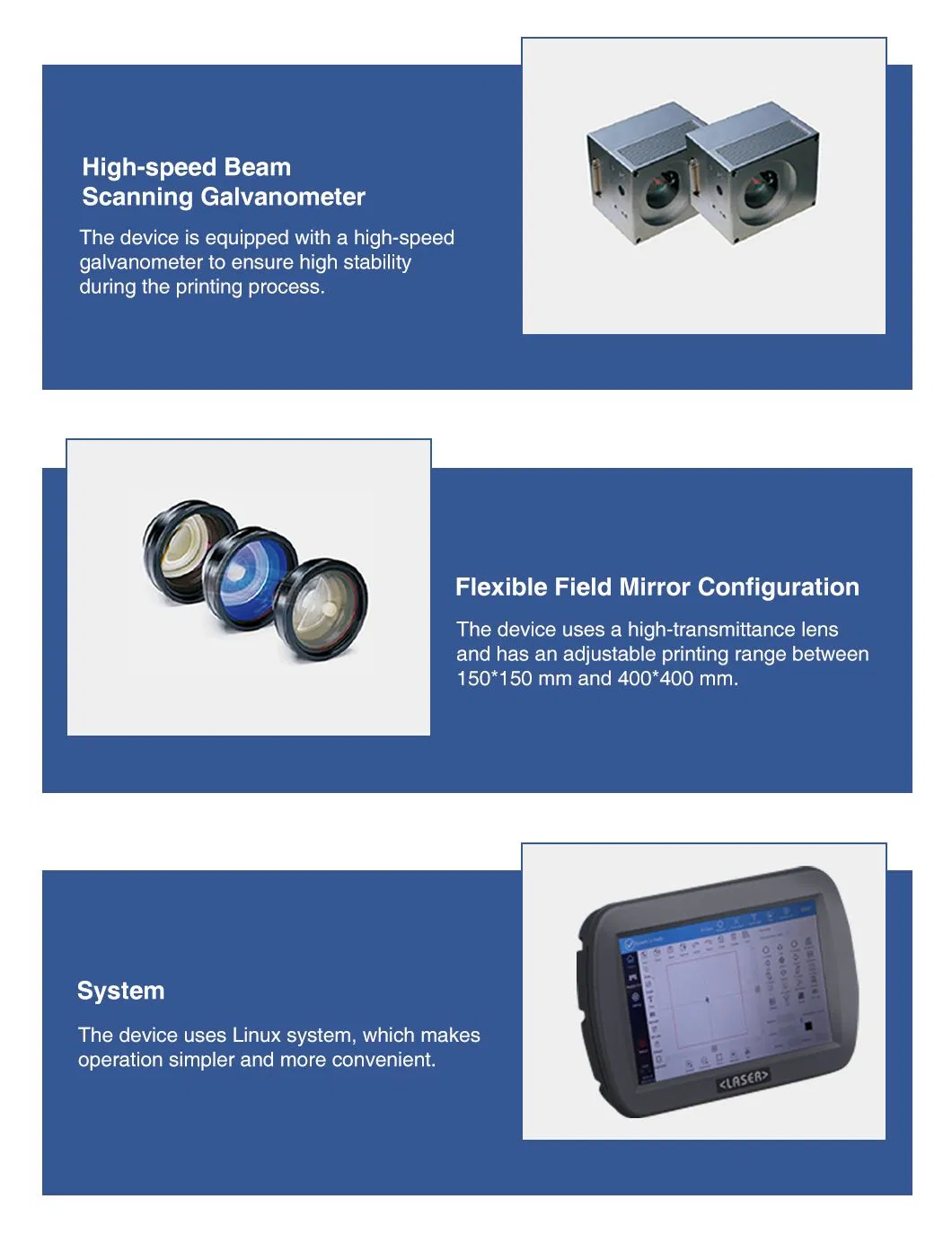

| 2 | Galvanometer | ZB2D10C10600 | 1 piece |
| 3 | Field lens | JGZL1-150-110-8 | 1 piece |
| 4 | Beam expander | JG-BEX-4C | 1 piece |
| 5 | Power supply | S600-48W | 1 unit |
| 6 | Software control system | external control screen | 1 unit |
| 7 | Photoelectric switch | FZ2-22N | 1 piece |
| 8 | Synchronizer | 38S6-2500 | 1 piece |
| 9 | Dual red light focusing | ZB2D10C10600 | 1 set |
| 10 | Filter | CW2B-10A | 1 unit |
| 11 | 2D bracket | SY02415-1500 | 1 set |
| Serial No. | Packing List Item | Quantity |
|---|---|---|
| 1 | Laser machine equipment | 1 unit |
| 2 | Control system | 1 unit |
| 3 | Photoelectric Sensor | 1 piece |
| 4 | Synchronizer | 1 piece |
| 5 | Flight bracket | 1 unit |
| 6 | Debugging toolbox | 1 piece |
| 7 | Instruction manual, warranty card, certificate of conformity | 1 copy each |
Our primary products include laser marking machines, inkjet printer machines, and paging machines.
Our laser equipment is widely applied to metals, non-metals, textiles, leather, footwear, advertising media, gifts, electronic components, stamp engraving, and more.
Our products are exported globally, including to Poland, Russia, Ukraine, Korea, Thailand, Egypt, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, and various other international regions.
The standard delivery time is within one week after order verification and confirmation.
All of our equipment is fully certified with CE and ISO standards, ensuring compliance with international quality requirements.
Under standard operating conditions, the high-performance laser source has an expected service life of up to 50,000 hours.
