Dana 100W Fiber Laser Engraving Machine Stainless Steel Marking Machine

Customization:	Available
After-sales Service:	Provided
Warranty:	12months

Basic Info

Model NO.

F3100

Laser Visibility

Invisible

Applicable Material

Metal

Cooling System

Air Cooling

Technical Class

Continuous Wave Laser

Laser Wavelength

Fiber Laser

Laser Classification

Solid Laser

Type

Optical Fiber Laser Marking Machine

Marking Method

Scanning Marking

Working Method

Flying Marking

Laser Power

100W

Marking Field

110mm*110mm; Max:500*500mm

Focal Length

Standard 177mm(Optional)

Transport Package

Wooden Case

Specification

920*720*520mm, 1320*410*280mm, 110KG

Origin

China

HS Code

8456100090

Production Capacity

10000set/Year

Product Description

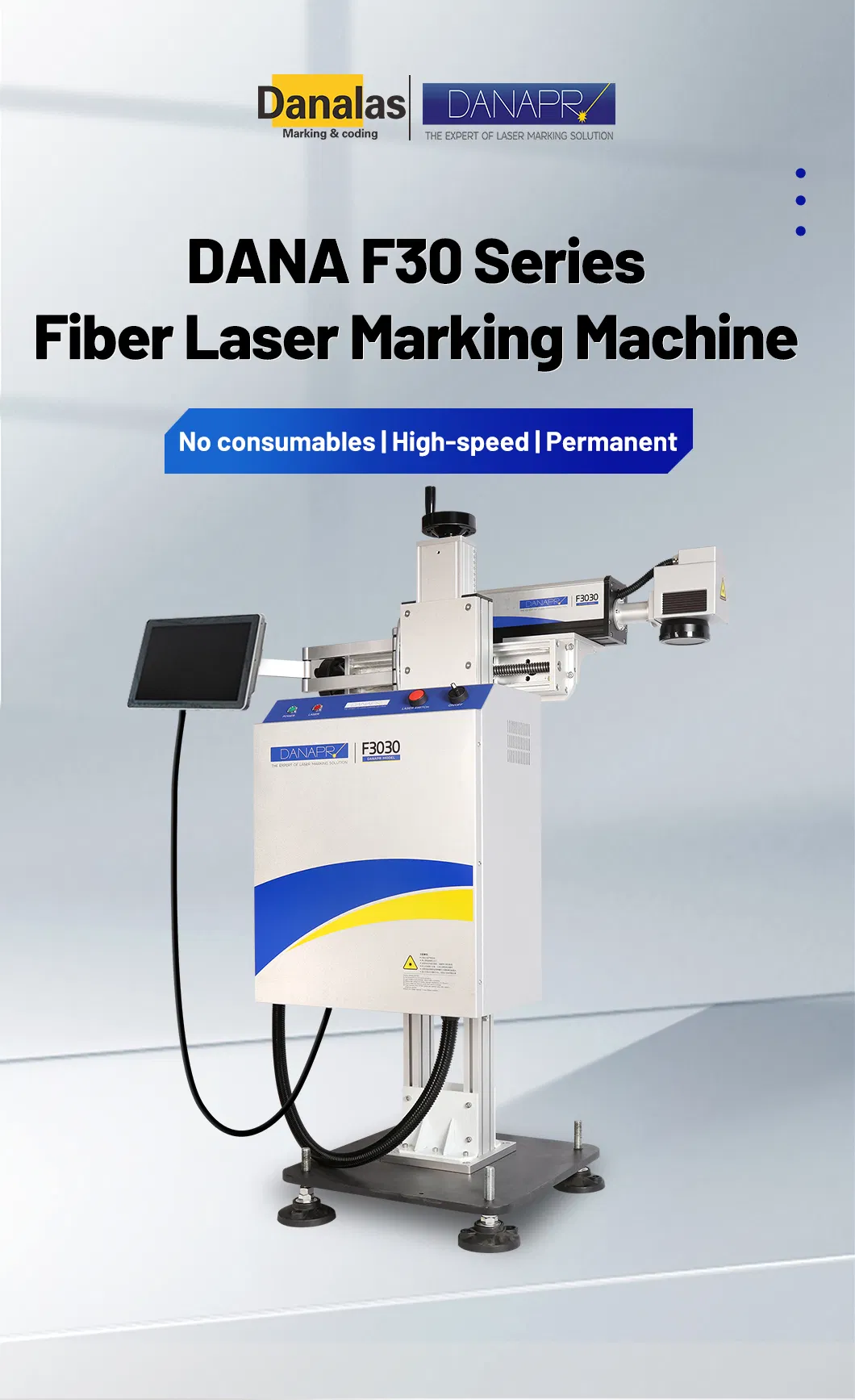

F30 series Fiber Laser Marking Machine

Fiber laser marking machines, along with other types of laser marking machines, do not require consumables and can permanently mark the surface of objects. They are capable of marking a wide range of materials and are currently primarily used for metals and non-metallic materials with high ignition points.

1

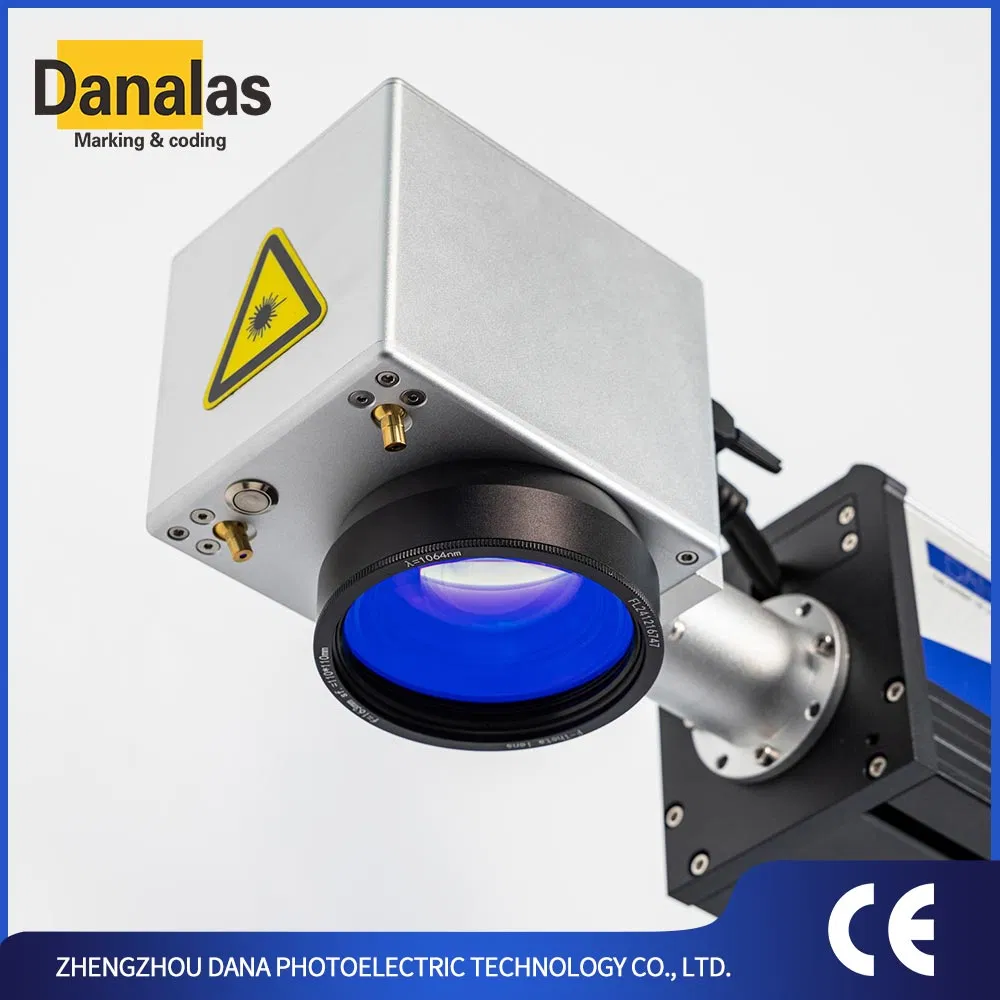

The fiber laser marking machine utilizes a fiber laser to output laser beams. These beams are then directed by a high-speed scanning galvanometer system to achieve the marking function, which is to engrave process permanent codes or labels on products.

2

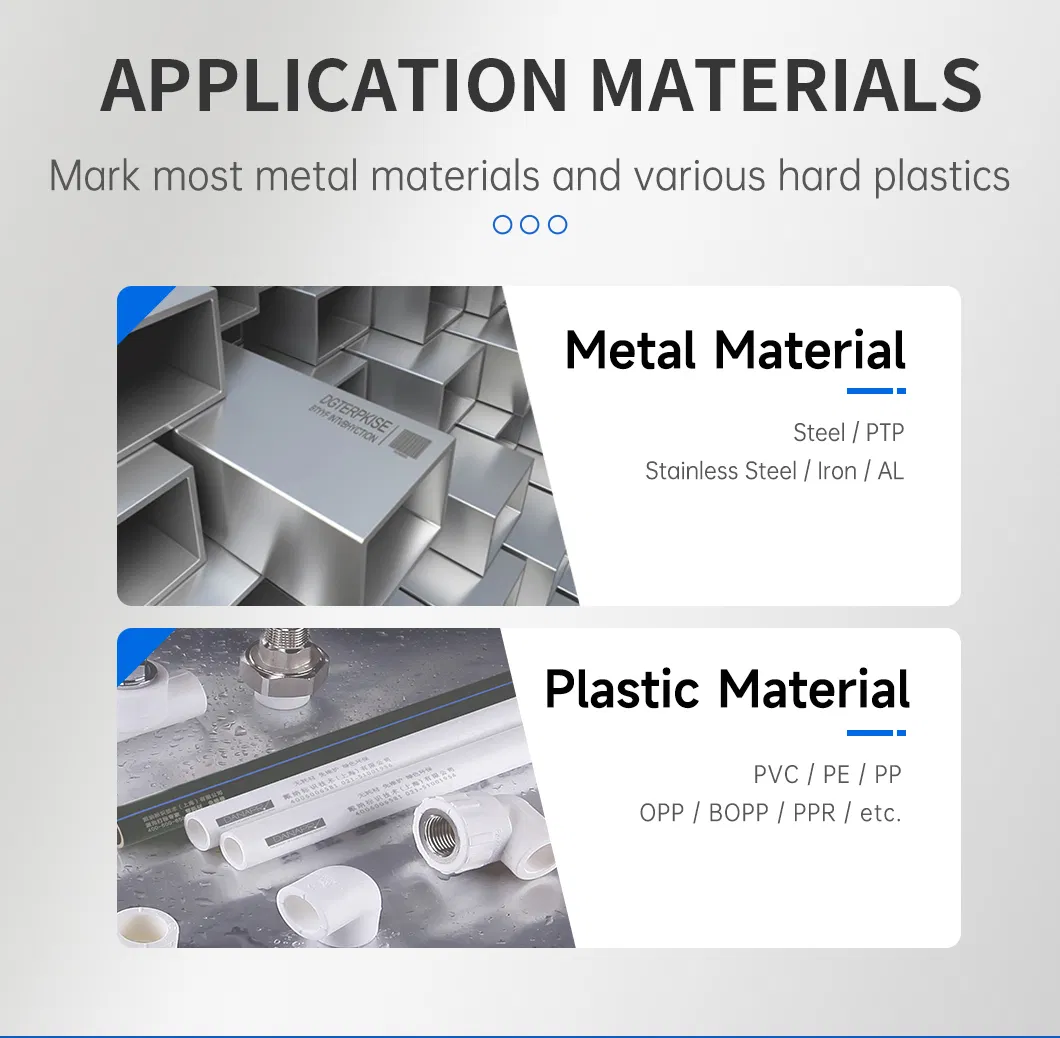

The Fiber laser wavelength is 1064nm, which can mark and carve on a variety of metal and non-metal materials. Metals are such as aluminum, copper, iron, and Aluminum-Based Film. Non-metallic materials are such as wood products, paper boxes, and plastic such as pet, PVC, PP, PS, PA, XLPE, etc.

3

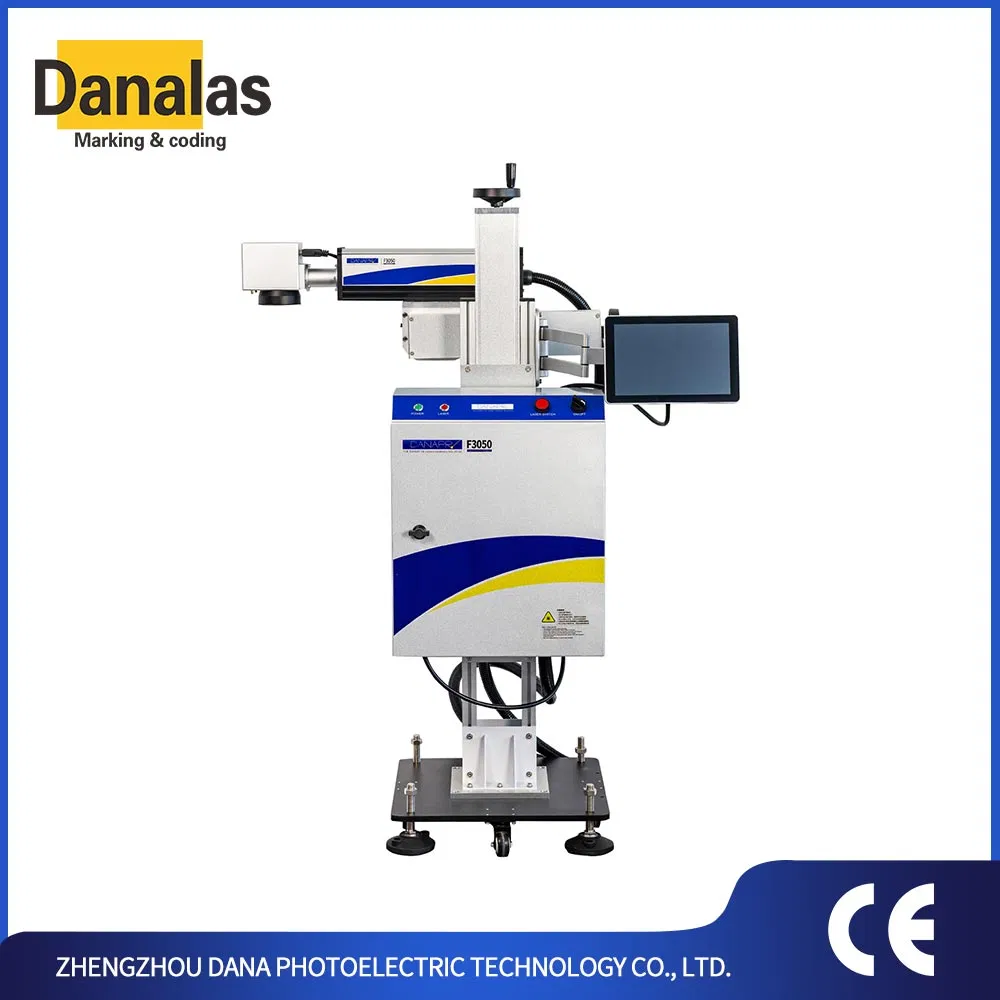

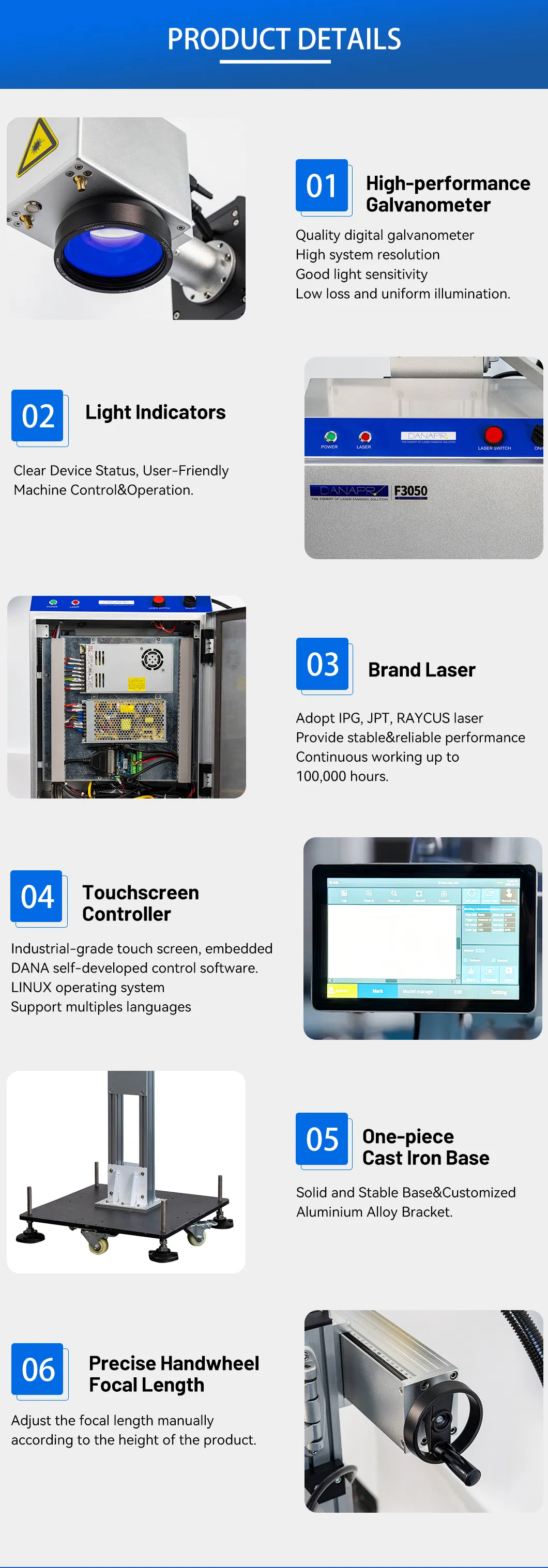

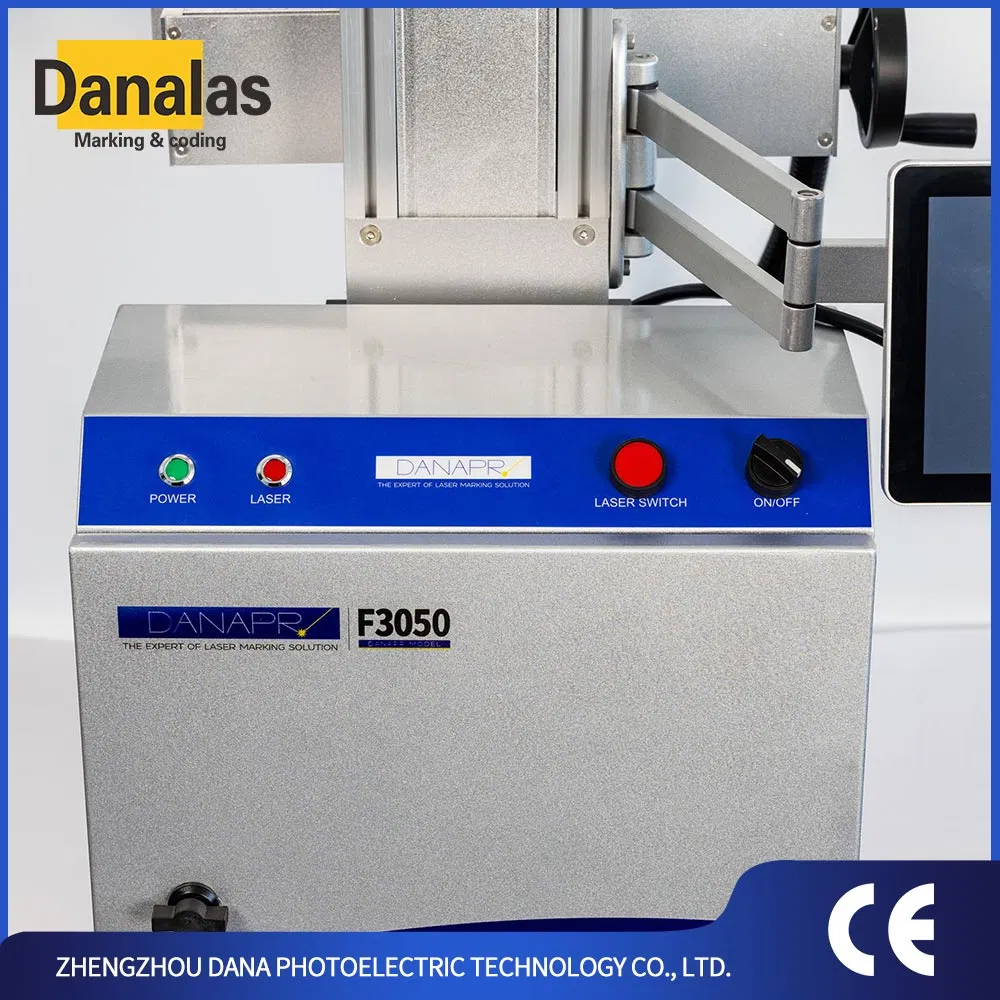

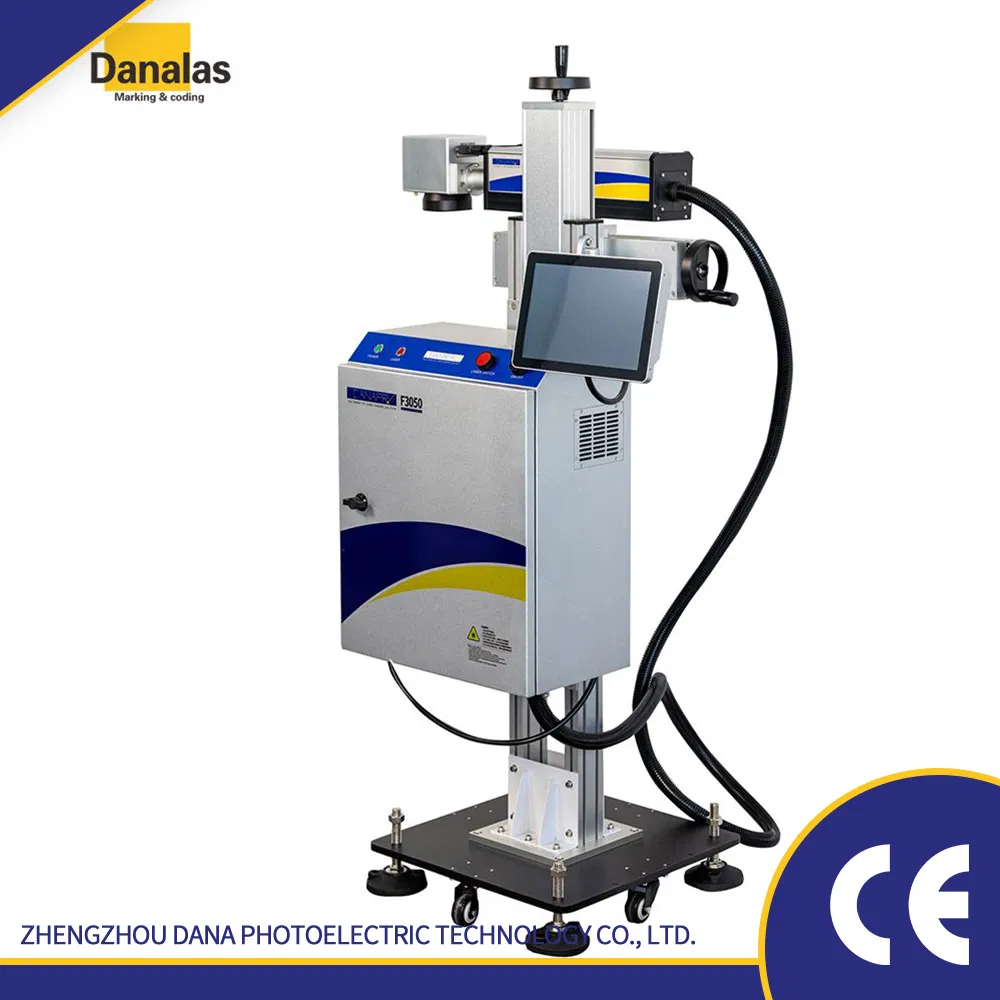

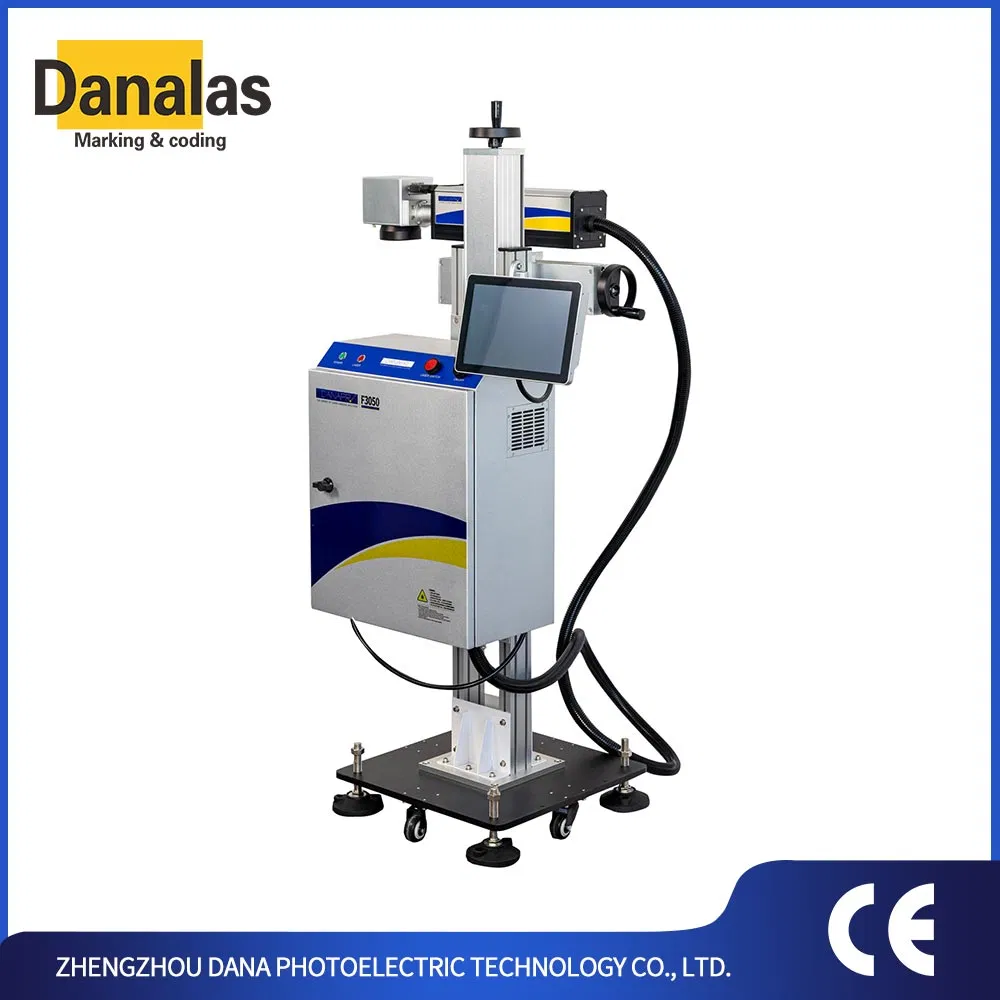

F30 series fiber laser marking machine is mainly composed of German IPG/ custom laser, galvanometer, field lens, host, touch computer, and floor bracket. This model offers versatile marking directions through the optional addition of a joint bar construction component. Utilizing air cooling, the machine ensures efficient heat dissipation while maintaining stable and reliable operation. F30 series machines have stable and reliable performance, it can continuously marking for 100000 hours.

4

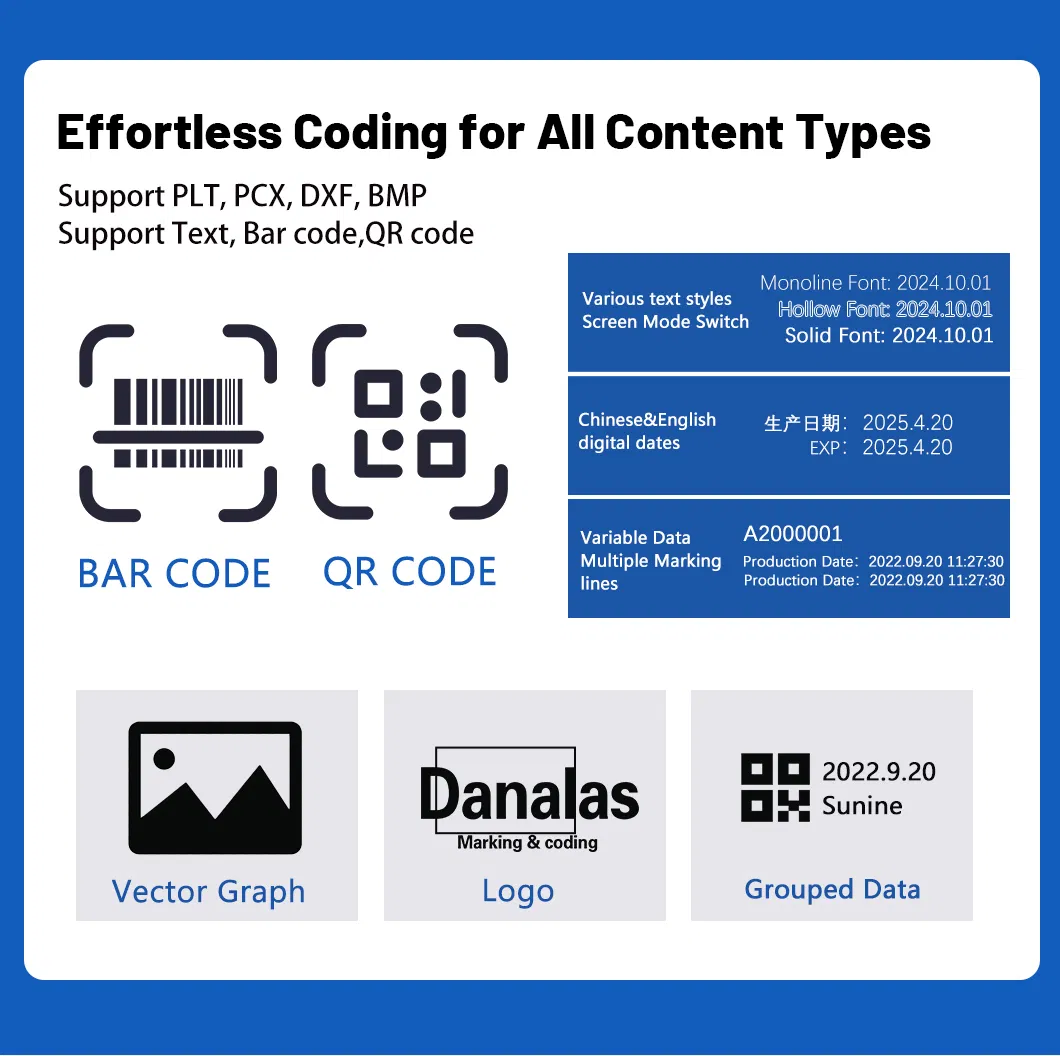

The self-developed control system supports a variety of file formats including PLT, PCX, DXF, BMP, and others. It is compatible with files exported from commonly used software such as AutoCAD, CorelDRAW, Photoshop, and CAXA. Additionally, it features an embedded auto-coding program that generates serial numbers, batch numbers, dates, and more.

5

The F30 fiber laser machine provides four selectable power levels to meet the requirements of different marking materials, speeds, and effects.

100W Fiber Laser Engraving Machine Stainless Steel Marking Machine

Specification

Product Name	On-line Fiber Laser Marking Machine
Laser-Type	Fiber Laser Wavelength: 1064nm, 100000 hrs continuous working time
Laser Power Class	20W/30W/50W/60W/100W/200W
Focal Length	177mm(Standard)
Max. Line Marking Speed	10000mm/S
Marking Field	Standard 110mm×110mm, Max: 500×500mm
Marking Lines	Set any line numbers within the valid marking range
Min. Line Width	0.02mm
Character Height	0.2-70mm
Typeface	Singleline, Dotmatrix, TrueType
Marking Content	Text, Graphics, Barcode, QR code, Dynamic serial number, real-time clock, TXT file, RS32 Communication data
Marking Angle	Any Angle, Three-dimensional adjustable
Monitor	Industrial Touch Screen
Operating Language	Chinese, English and other Languages
Protection Degree	≥IP54
Cooling Method	Air Cooling
Working Temperature	-5-45°C
Working Humidity	80% RH, Non Condensing
Power Supply	220V, 0.6KVA

Packing & Delivery

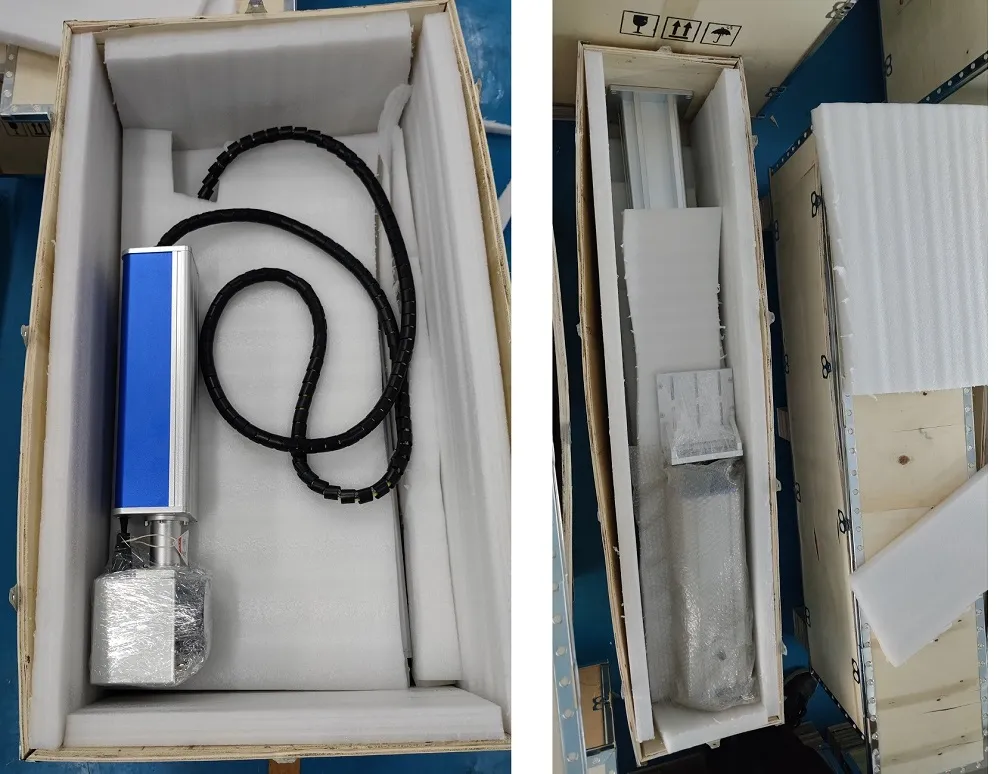

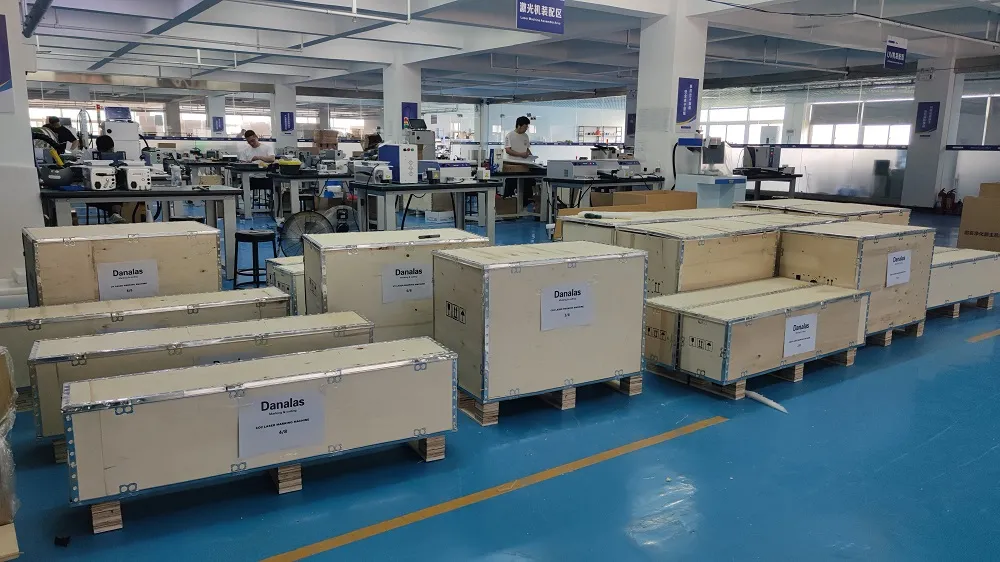

We package and ship machines in standard exporting wooden cases.

Company Profile

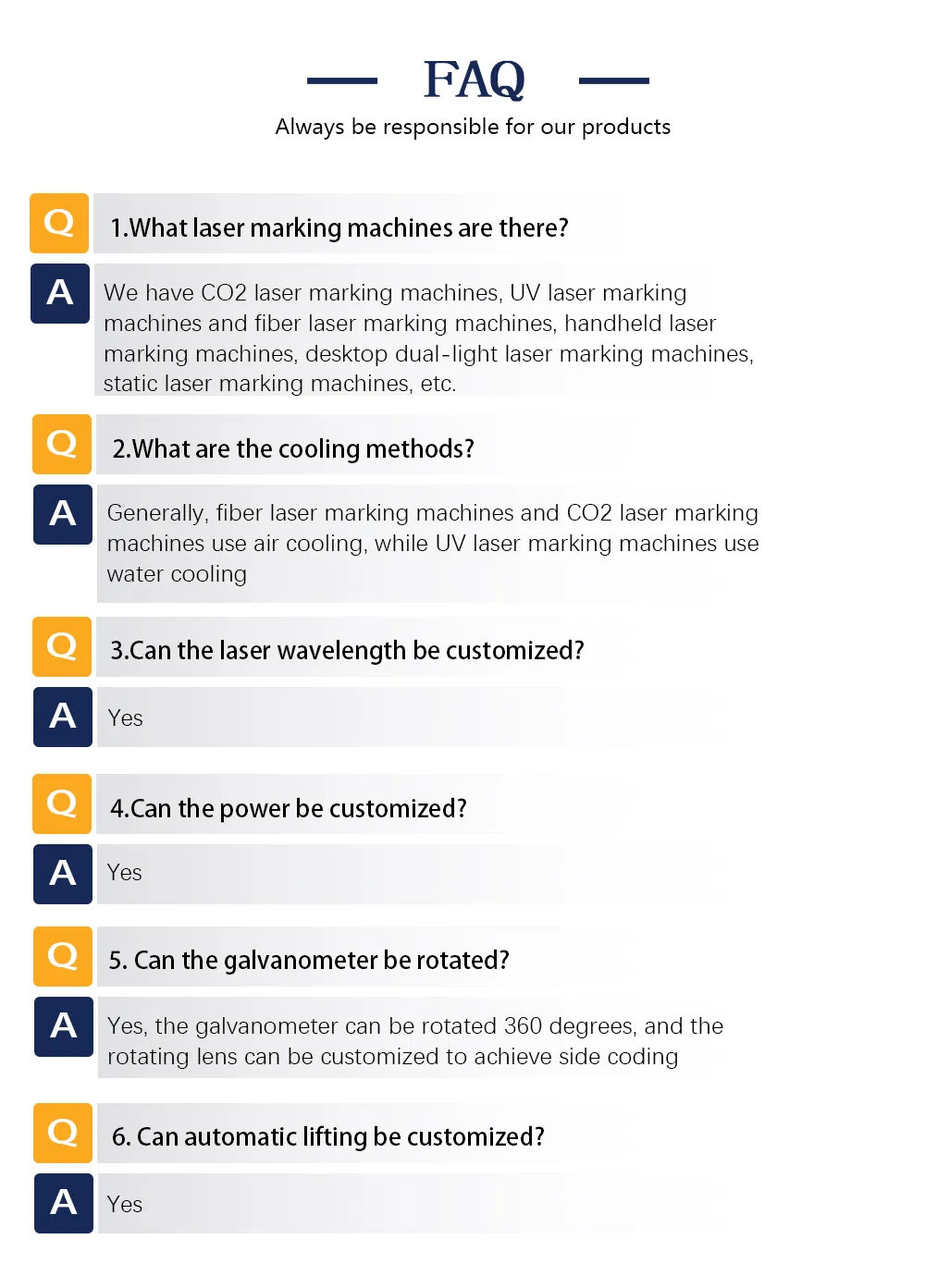

FAQ

What materials can this fiber laser marking machine process?

It can mark and engrave on a wide range of metals (including aluminum, copper, iron, and aluminum-based films) as well as non-metal materials with high ignition points (such as wood, paper boxes, and plastics like PET, PVC, PP, PS, PA, and XLPE).

What is the lifespan and reliability of the laser source?

The machine features high-quality lasers with stable and reliable performance, capable of continuous marking operations for up to 100,000 hours without requiring consumables.

What file formats and software are compatible with the control system?

The self-developed control system supports file formats such as PLT, PCX, DXF, and BMP. It is compatible with files exported from popular design software including AutoCAD, CorelDRAW, Photoshop, and CAXA.

What cooling method does the marking machine use?

The machine utilizes an efficient air-cooling system, which ensures stable heat dissipation and reliable operation without the need for external water cooling units.

Are there different power levels available for different applications?

Yes, the series offers multiple selectable power levels (including 20W, 30W, 50W, 60W, 100W, and 200W) to suit various requirements of marking speeds, materials, and depths.

Does the system support automatic coding and serialization?

Yes, it features an embedded auto-coding program that automatically generates serial numbers, batch numbers, dates, real-time clocks, and supports RS232 communication data.
