Collins Machine
1 / 5
2 years guarantee and life-time after sales service
Electric Series: GQ Series
Models: GQ 20A1
Name: Open Table Design Marking System

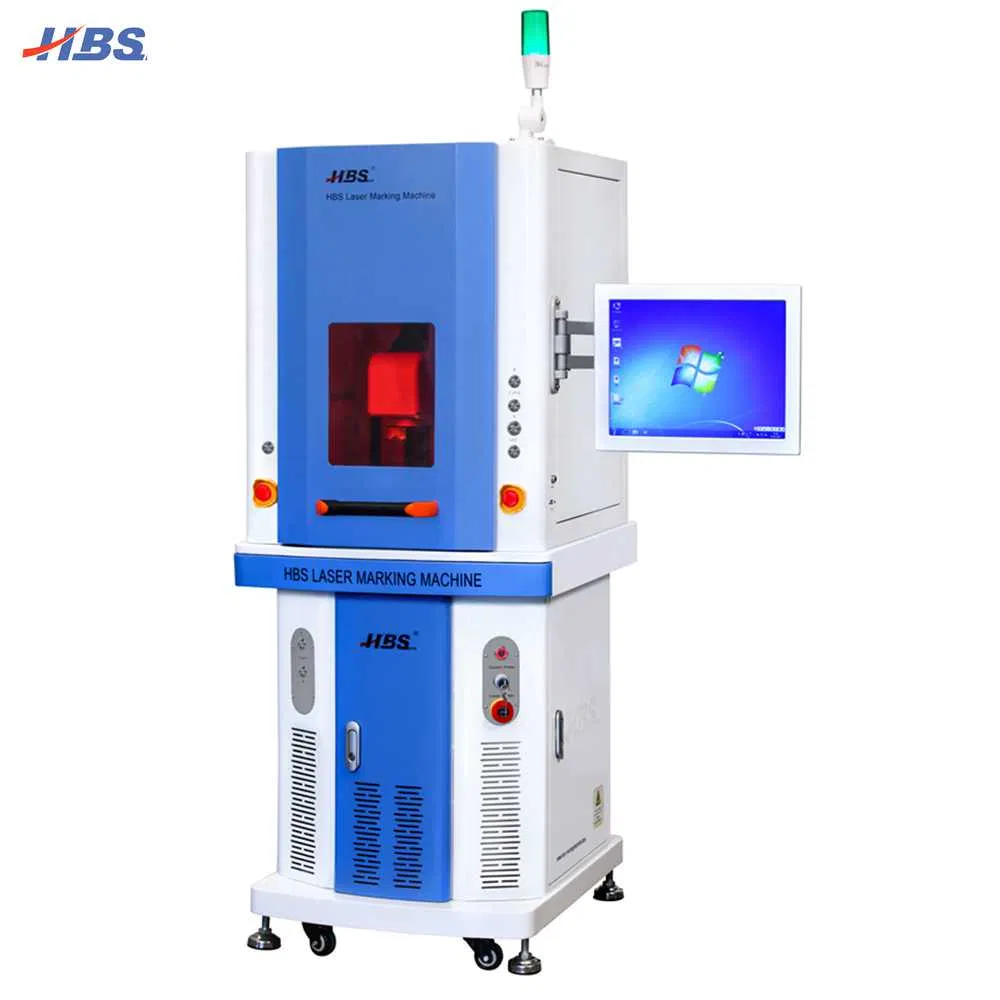

GQ 20A1 fiber laser marking system equipped with a high-quality fiber laser, high-stability galvanometer system, simple, flexible and easy to use. This fiber laser marking design can meet the common marking needs, such as marking metal parts and plastic parts (characters, text, logo, QR code, etc. ).
Fiber laser marking machine:
Open table design, which gives you the maximum flexibility during your marking process. You can put many different sizes of workpieces on the table. With our focus finder system, pilot laser, easy to use software, motorized Z axis, your production process will be more efficient and productive. Besides, the open table design also makes it easier for you to integrate GQ 20A into your production line.
From 20W to 100W, our professional engineer will provide the right laser source for you which will greatly meet your needs and requirements. Because fiber laser has such a wide application range, it can be used on metals, plastics, or even some organic materials.

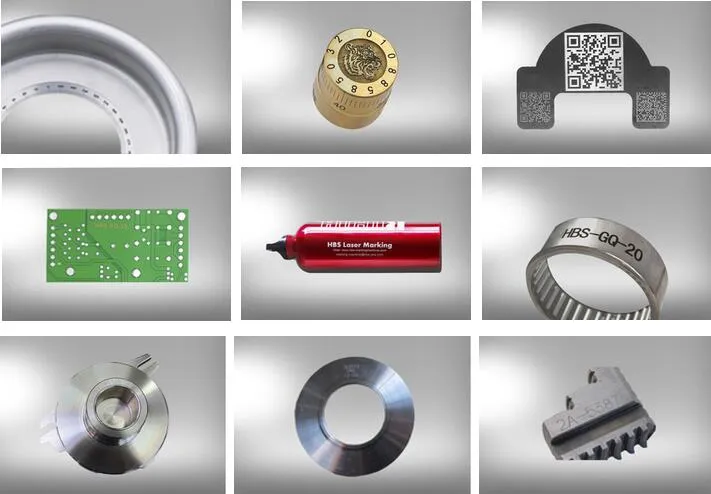

This system has a wide range of applications and is highly effective on various metals, plastics, and even some organic materials. It is commonly used for marking both metal parts and plastic components with text, logos, characters, and QR codes.

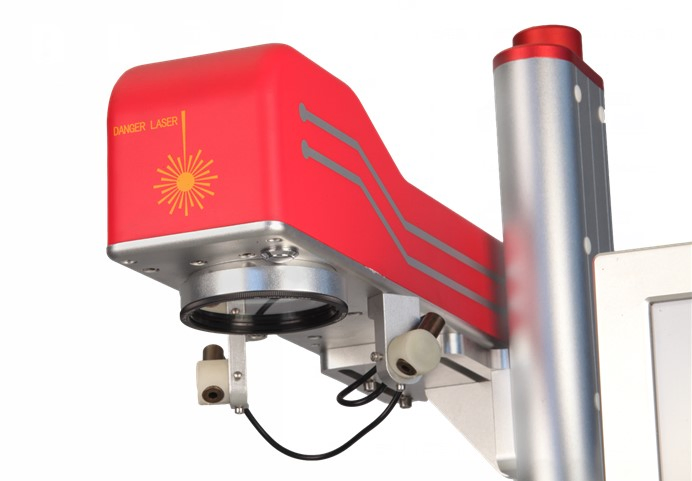

The machine features a high-quality fiber laser source, supporting options from Raycus or IPG. Power options range between 20W, 30W, and 50W, depending on your application requirements.

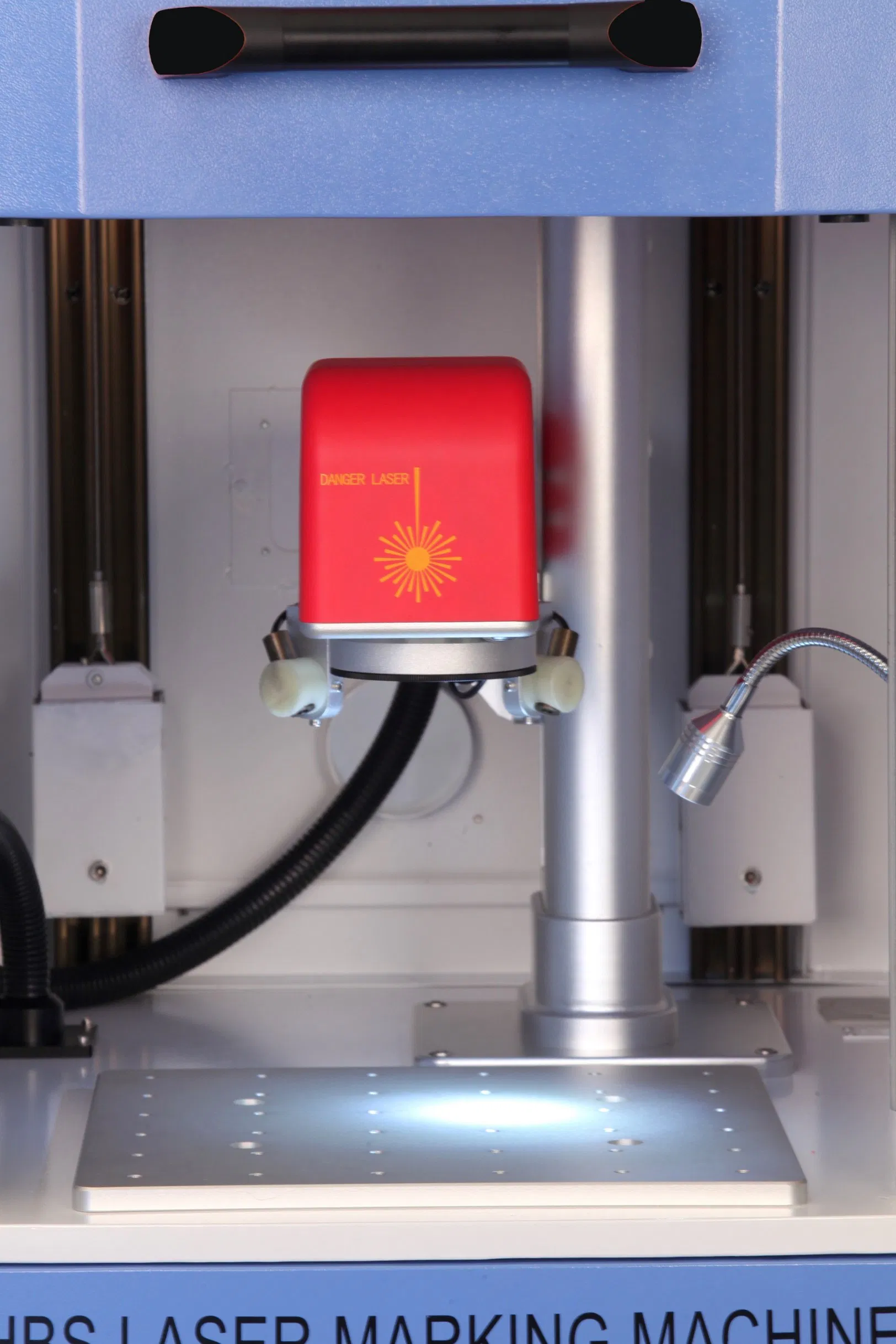

The open table design provides maximum flexibility, allowing you to place workpieces of various sizes on the work area. It features a focus finder system, pilot laser, motorized Z-axis, and is exceptionally easy to integrate into existing production lines.
The HBS-GQ-20A1 fiber laser marking machine is fully certified and compliant with CCC, CE, ISO, and SGS standards.
The machine utilizes Ezcad control software. It supports a wide range of popular graphic formats, including AI, BMP, DXF, DXP, LAS, and PLT.
The HBS-GQ-20A1 fiber laser marking system comes with a comprehensive 2-year guarantee and life-time after-sales service support.
