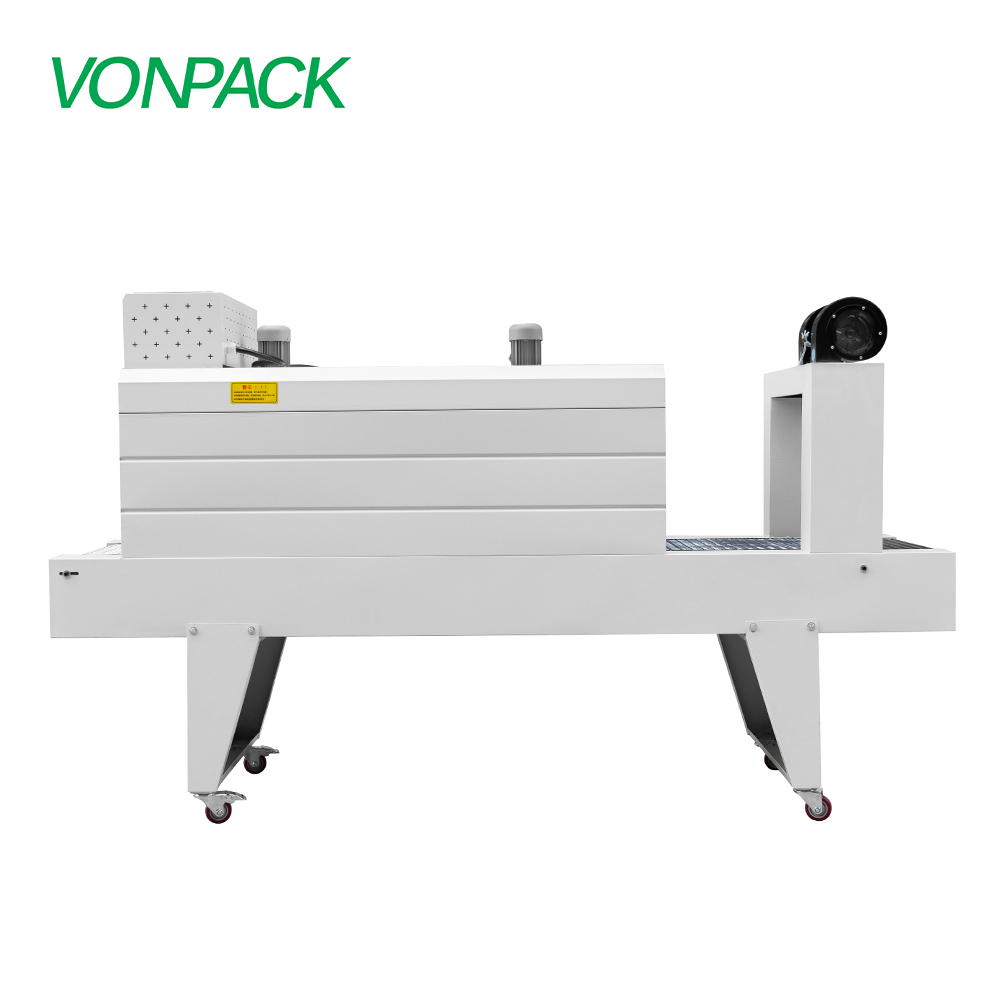

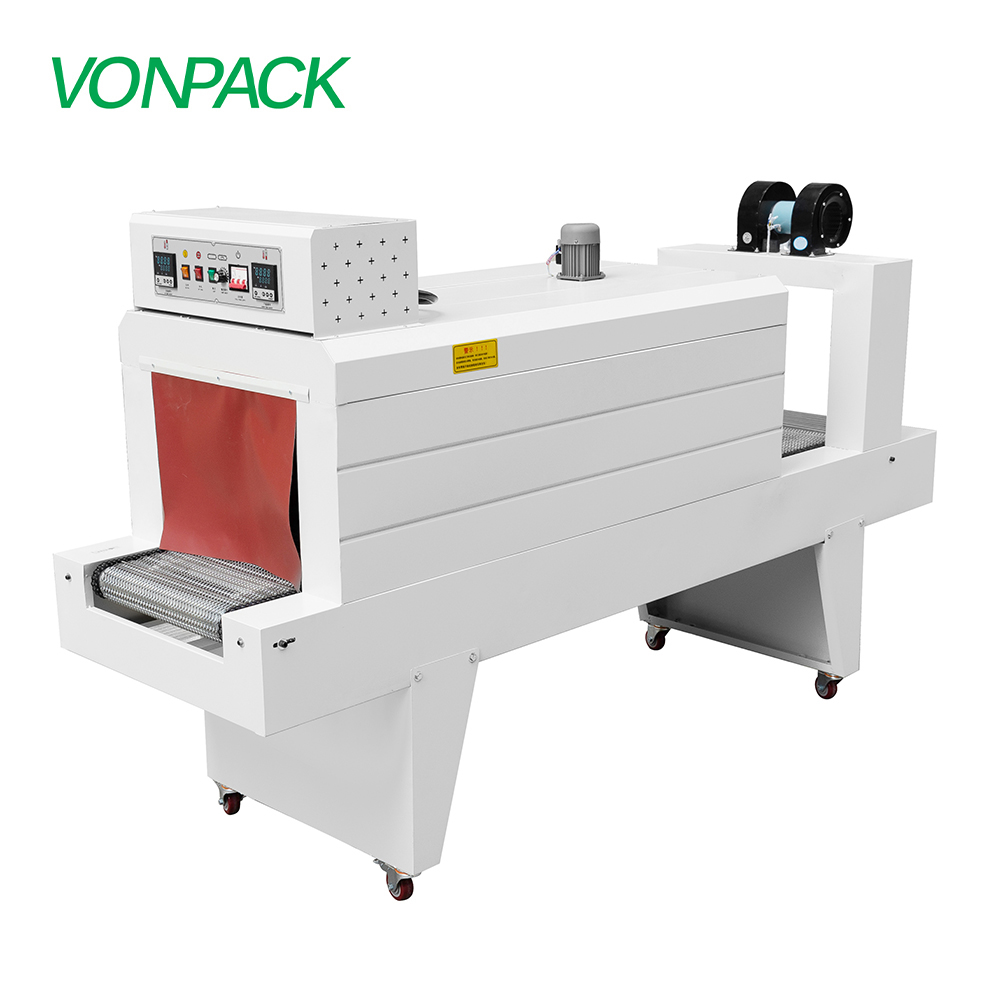

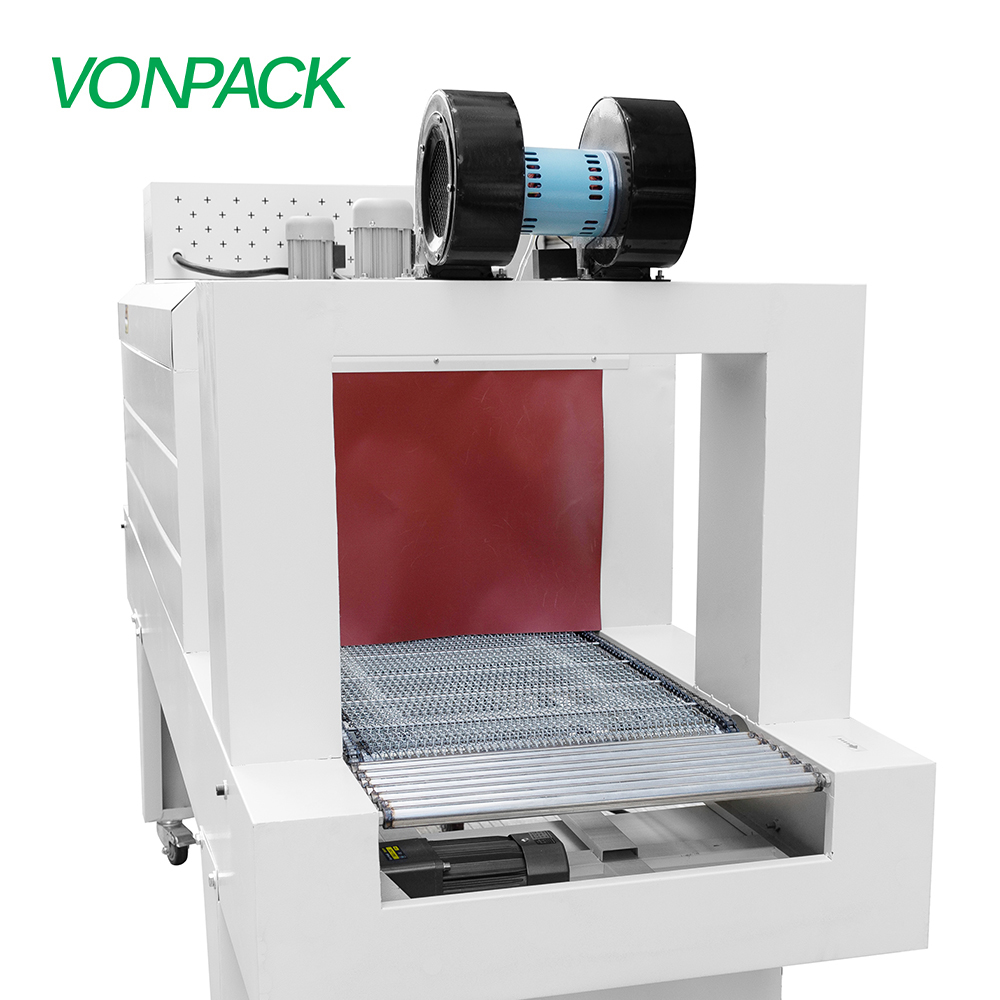

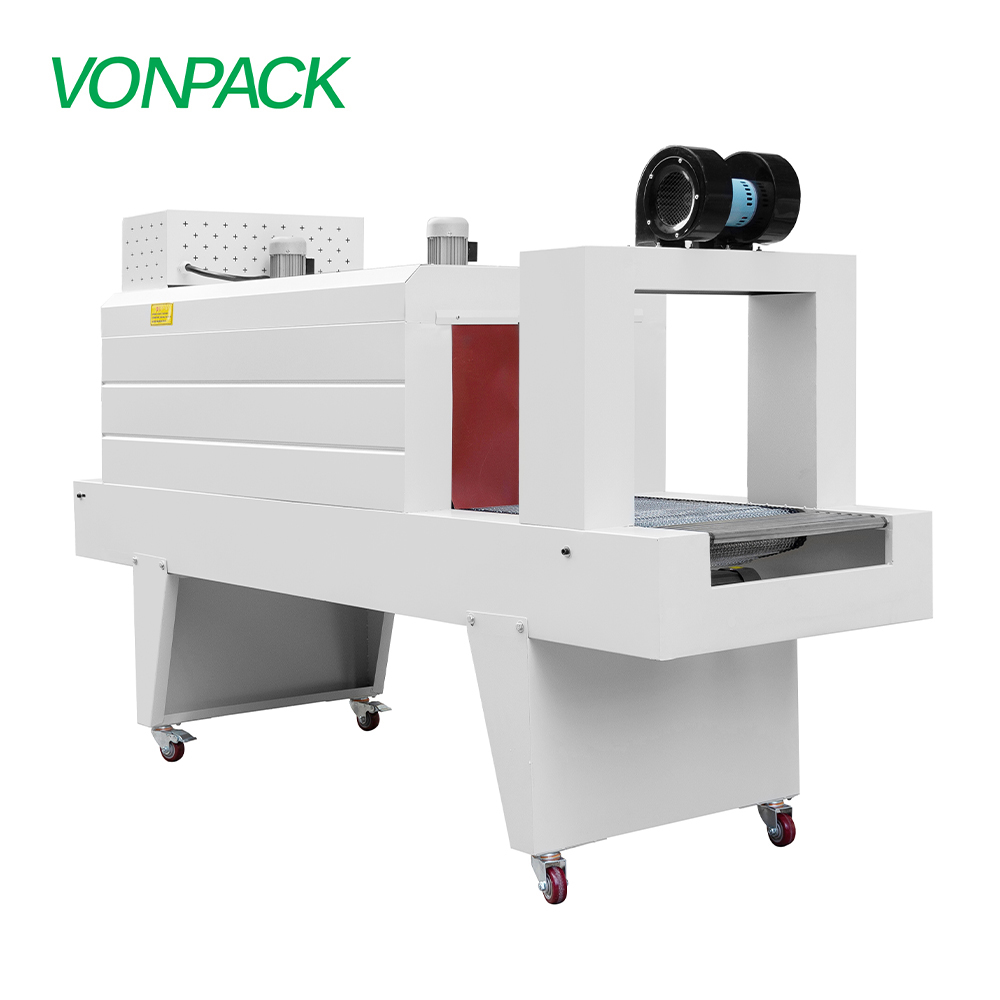

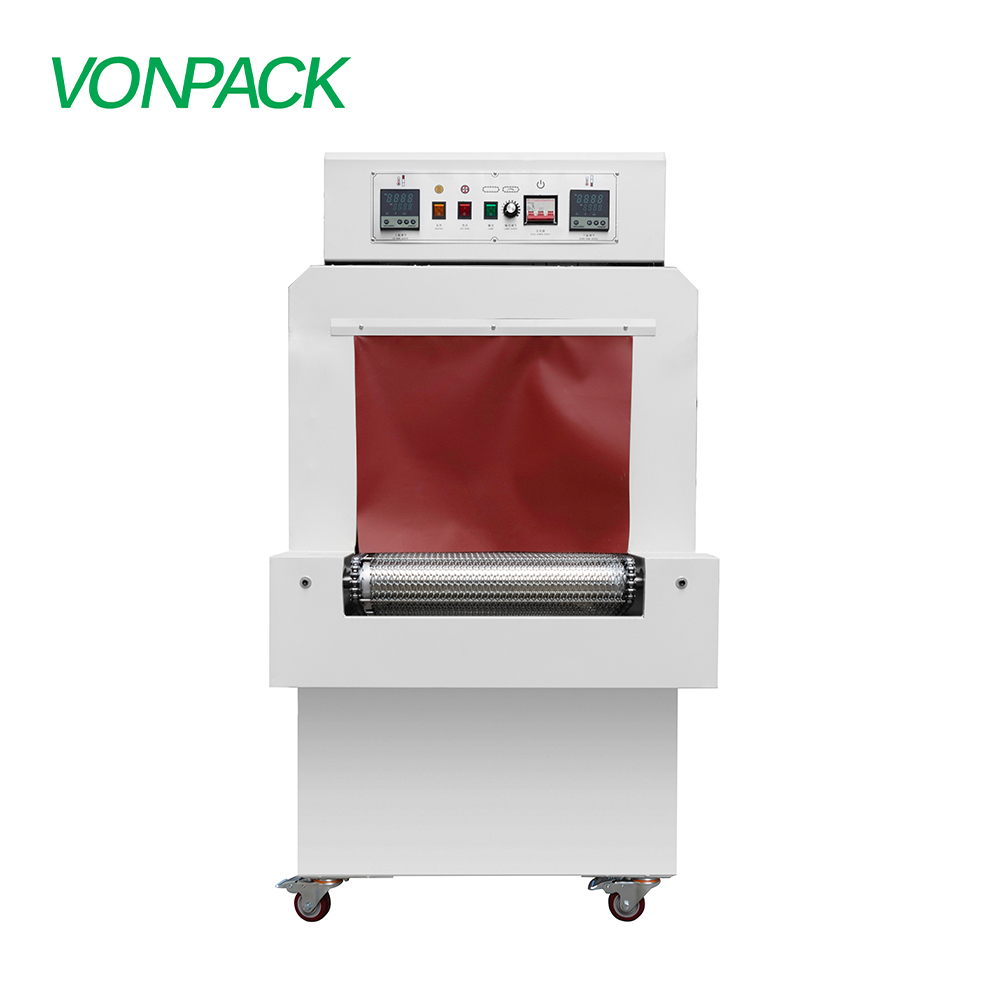

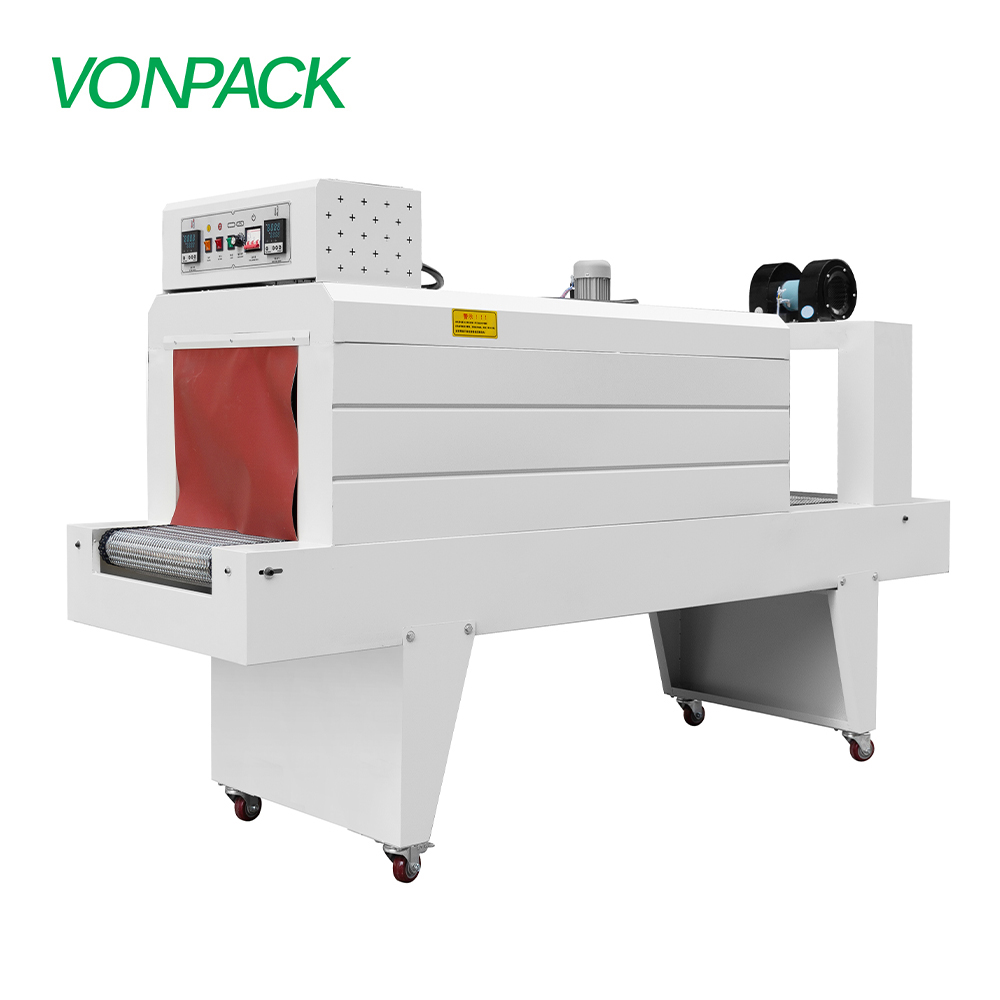

| Model No | PE-5040 |
| Product Name | Shrinking Machine |
| Voltage | 380V/50Hz |
| Power | 20KW |
| Loading | 25KGS |
| Channel Size | L1500 x W500 x H400(mm) |
| Conveyor Width | 480mm |
| Applicable Size | ≤ W350 × H320(mm) |
| Speed | 0-10M/min |
| Consume materials | PVE/PP/POF/PE (max 0.1mm = 100microns) |
| Package Size | L2600 × W800 × H1070(mm) |
| Weight | 216kgs |
The machine is designed to work with PVE, PP, POF, and PE films. The maximum thickness of the consumable film should not exceed 0.1mm (100 microns) for optimal performance.
The PE-5040 model is suitable for products with dimensions less than or equal to 350mm in width and 320mm in height (≤ W350 × H320 mm).
The machine requires a standard industrial power supply of 380V/50Hz. Its total operational power consumption is 20KW.
Yes, the conveyor speed is adjustable and ranges from 0 to 10 meters per minute, allowing you to sync it with different production line speeds.
The conveyor channel has a loading capacity of up to 25KGS, making it robust enough for a wide range of medium-weight packaged products.

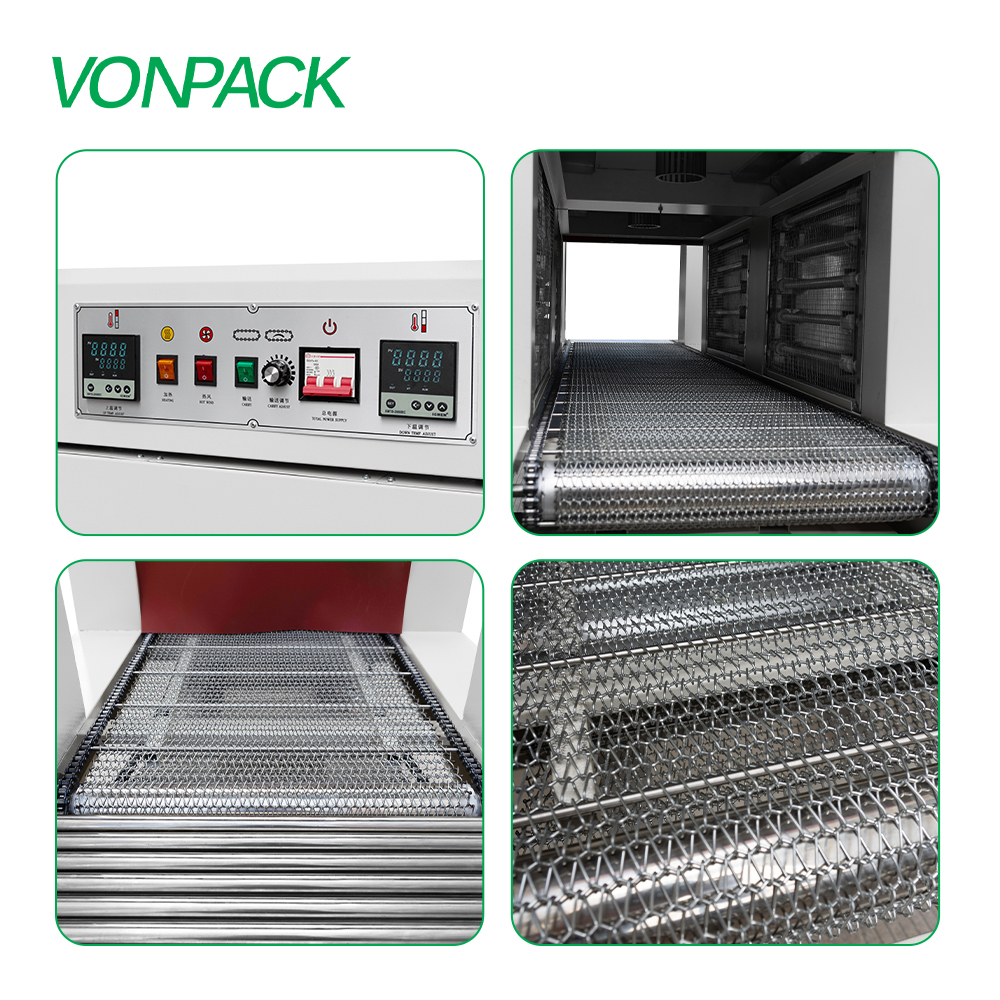

The channel size of the heating chamber is L1500 x W500 x H400 mm, providing sufficient space for efficient heat circulation and shrink packaging.
