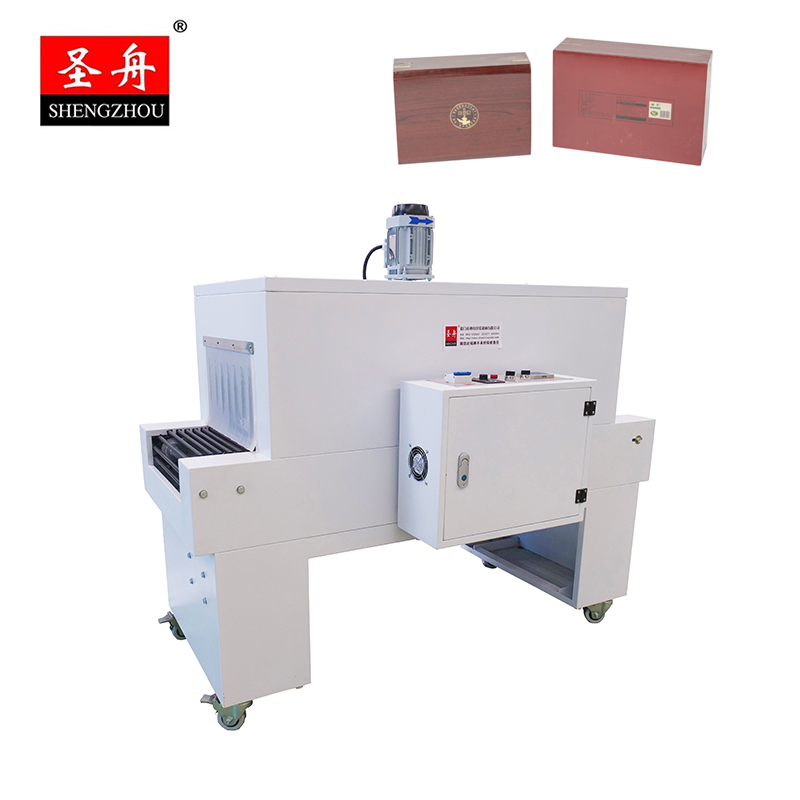

Industrial Efficient Heat Shrink Film Tunnel Wrapping Machine

Products Description

Heat Sealing Shrink Film Wrapping Air Convection Shrink Tunnel adopting advanced international technology is an economic shrink wrap machine with constant temperature, high efficiency, easy to operate, high-performance cost ratio.
This shrink wrapper is suitable for products grouped and packed together as well as the pallet products. It's widely used in books, toys, foods, gift box, hardware, electric, etc.

Automatic Heat Shrink tunnel Packing Machine

Features & Advantages

Ideal contraction solution to box, case, carton, bottle and jar.
Accepts packages up to 350 x 200 mm.
PP, POF & PVC shrink film compatible.
Finned heating elements delivers quick & even heat source.
20 mm asbestos insulation engineered as a double insulated chamber to reduce heat loss.
Heavy duty welded structural tube steel construction & superior quality components.
Speed variable stainless steel mesh conveyor allows hot air to reach shrink film from bottom.
Quality coating supports and protects the machines even work in harsh environment.
Lock casters for easy re-location.
Work alone or easy integration with production line.
Custom model available on demand.

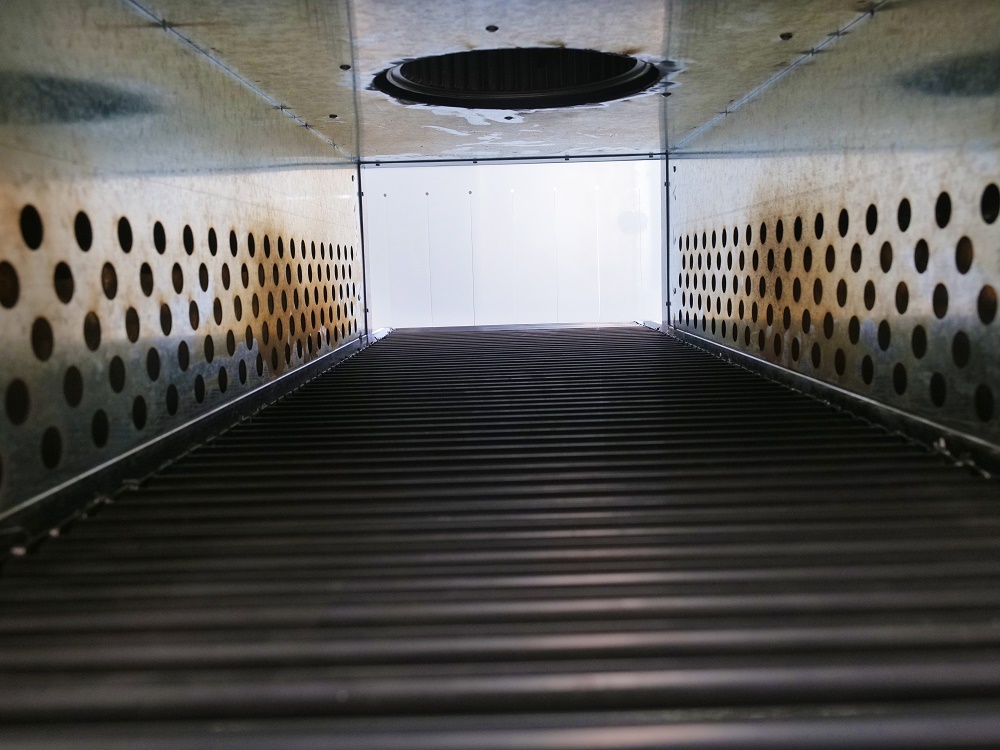

Engineered Hot Air Circulation

Precisely engineered hot air circulation system ensures even heat distribution & hot air circulation inside chamber, offering up to 30% power consumption saving.

Tight & Uniform Shrinkage

Uniform airflow surrounds product to produce tight & uniform shrinkage. Best shrink effect by eliminating burn-outs and wrinkles on shrink film.

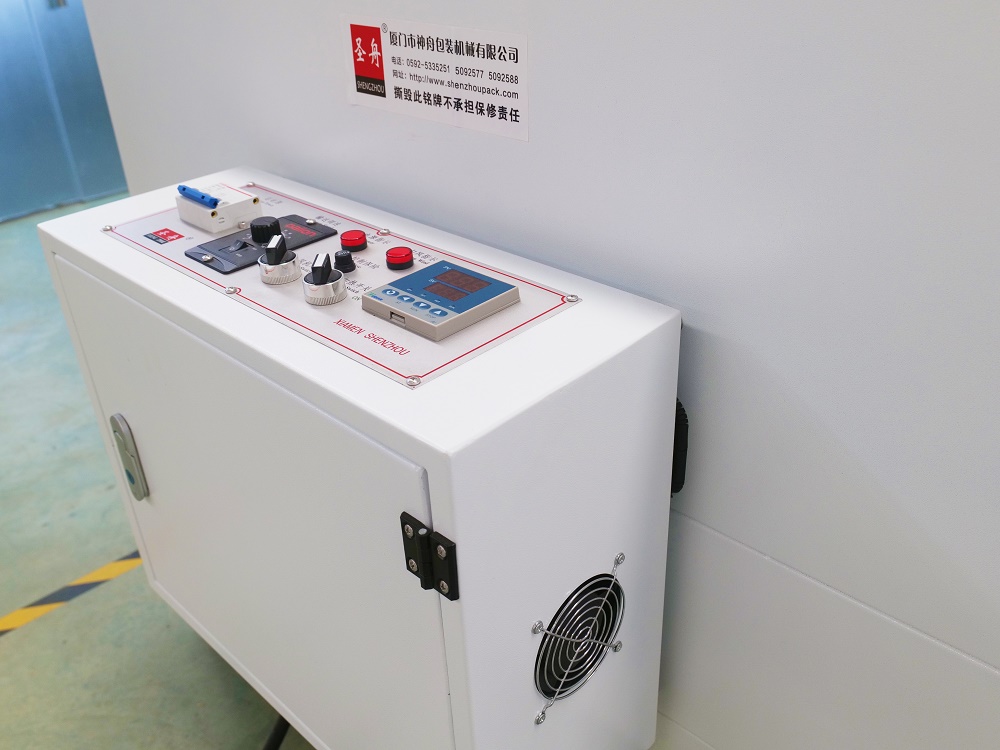

User Friendly Control Panel

Very easy to use control interface. No special training required and ensures low maintenance for the operator.

Flexible Product Sizing

Accept any product in size within limits: Maximum width of 350 mm and maximum height of 200 mm.

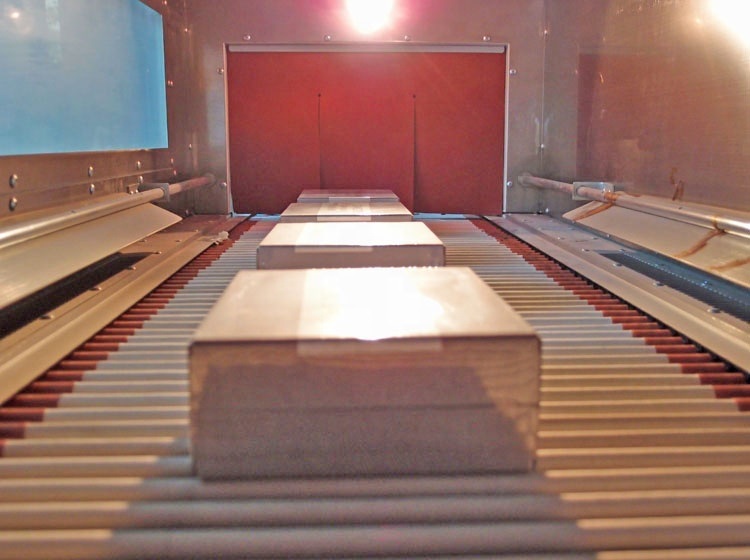

Conveyor Options

Die roller, stainless steel mesh, or belt conveyor optional. Variable speed control up to 10 meters per minute (32.8 fpm).

Why Our Technology is Superior

Others

Bare heaters exposed, flammable and explosive, posing safety hazards.

Ours

Separate heating chamber with hot air circulation, offering high safety performance.

Others

The heating device is a quartz tube. Fragile, flammable, and explosive.

Ours

Stainless steel heating tube with a hanging liner. Extremely durable and reliable.

Specification

Style	Heat Shrink tunnel machine
Model	EPH-4525
Chamber Size, L x W x H	1200 x 450 x 250 mm
Accept Package, W x H	Max. 350 x 200, mm
Chamber Temperature	Max. 200 oC (392 oF)
Conveyor Speed	Max. 10 m (33') per minute
Electrical	380 v, 50 hz, 3 ph
Power Consumption	10.5 kw
Machine Dimension, L x W x H	1,600 x 690 x 1,350, mm
Weight	150kg

We offer customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.

Samples

Happy Customers

Why Choose Us

We are a premier designer and manufacturer of engineered packing machines, specializing in heat shrink packing solutions.

We are your committed partner with the equipment, technology, resources, experience, and people to deliver the results you require. Our facility has been providing millions of packing machines, materials, and products over the last 20 years with astonishing quality and stellar on-time delivery performance.

We have the capability to produce your most challenging designs. Whether you are looking for a competitive quote on an existing part or if you are launching a new product, our experience will help you design, refine, validate, prototype and launch your product safely, efficiently and confidently.

Not only can we provide packing equipment to you, but we can also provide you with value added services to whatever extent you need, along with customized models in accordance with users' specific demand. OEM and ODM orders are acceptable.

Our rigorous APQP and ISO Quality Standards ensure that you receive parts that meet your specifications 100% of the time - on-time and at a very competitive price. This is our promise to you.

About Us

Our Steam Shrink Tunnel is the first of its kind, and has been available since 1998. Though it has been available for quite some time, we have continued to improve its design, and can honestly claim that we offer the best, most reliable Steam Shrink Tunnel on the market today.

Our Steam Shrink Tunnel is currently being used in many of the world’s most notable manufacturing plants including several Fortune 500 companies.

Our high-performance Steam Shrink Tunnels are designed to meet the most challenging shrink applications. They are recognized in the industry for their flexibility and their capability of shrinking various decorative shrinkable sleeve labels onto a wide range of container types, shapes and sizes.

This flexibility makes our Steam Shrink Tunnel one of the best values in the industry. We can always recommend or specify the Steam Shrink Tunnel type best suited to your needs, your constraints and your budget.

Frequently Asked Questions

What warranty do you offer? Do you have replacement parts?

We warrant all our packaging machines to be free from defects in material or workmanship for a period of one year (12 months) from date of shipment. We have replacement parts for every machine we offer. We will ship the required parts within 24 business hours. All our machines come with a 12 months manufacturer warranty unless otherwise stated. In this case, the return costs of replacement parts are shared (you pay to ship it to us, and we pay to ship the replacement back). Beyond this 12-month period, repair and shipment costs are paid by the customer.

What information do I need to provide for a quote?

If a quick, high-level budgetary quote is all you need, we are happy to provide you with the base machine rate. However, the more information you provide us about your particular application, the more accurately we can quote you. It also enables us to identify potential challenges and discuss how we can overcome them.

What type of payments do you accept?

We accept Credit Card, Debit Card, Western Union, E-checking, Wire Transfer and Letter of Credit. Contact us for more options if your payment method is not listed.

How do you deliver my machine to my place?

We will arrange international shipment and pay shipping freight at our expense, if you place a CIF or CFR order. Bill of Lading in original hard copy will be couriered to your office together with Commercial Invoice & Packing List, within 7 working days from vessel sailing date or flight departure date. What you need to do is to appoint a customs broker for importation declaration and inland transportation to your plant. Our factory is located near a major seaport from where we ship packaging machines on a weekly basis to any main seaports worldwide. For urgent demands, we deliver some small size & light weight machines or consumable packaging materials by air freight.

I am not quite sure which machine is right for my project and packaging method.

No worries! Tell us more about your application and we will help you choose the right model and options. The more detail on products and desired package method you give, the better we understand your need and the faster we offer a solution. Send us your samples, and we will test the machine with the materials we receive. Videos and photos will be sent back immediately by e-mail so you know exactly how our machine operates before making the final decision. Physical samples can also be returned for your evaluation by courier.

Why do you need samples for a firm quote? What if I don't have any?

Samples allow us to help you avoid unforeseen challenges, determine the need for special options or recommend a different machine model better suited for your application. In nearly 65% of all projects, sample reviews prevent costly mistakes, inferior performance and extended lead times. In addition, before delivery, we will test your machine again with your samples in order to verify and assure the machine is built to 100% satisfaction. If samples aren't available, we will provide a quote based on the information and drawings you provide.
