Application:

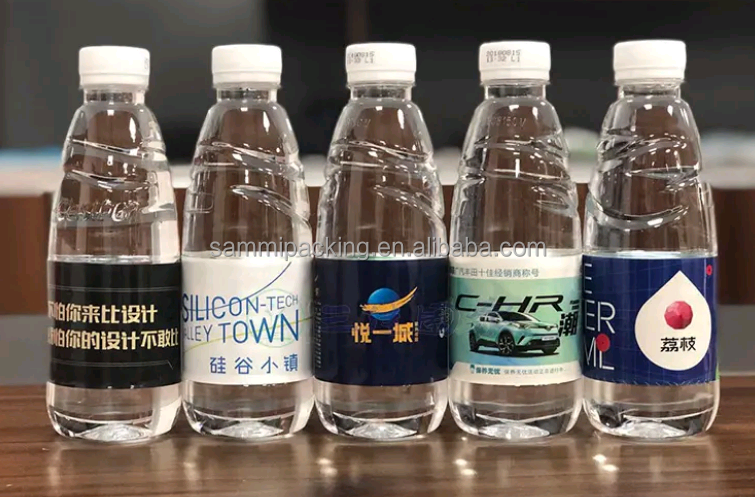

It is mainly used to shrink label of product in bottle shape, can shape or barrel shape with glass bottle, plastic bottle or paper cup. The label either on the top, in the middle, at bottom of bottom or wrapping the whole bottle is able to be shrank with different type model. It is widely applied in the industry of food, medicine, cosmetic and pesticide, etc.
Features

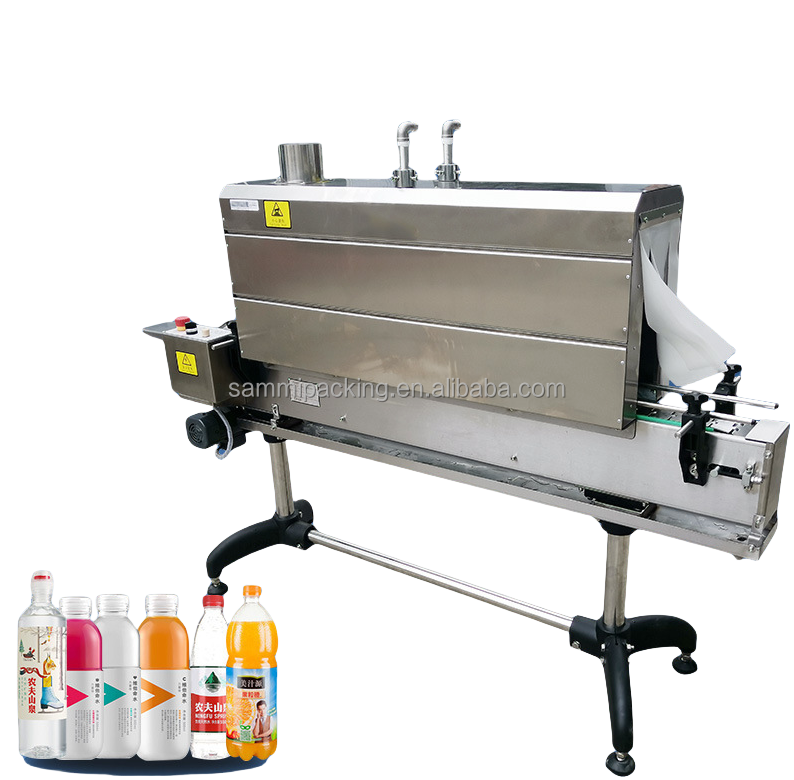

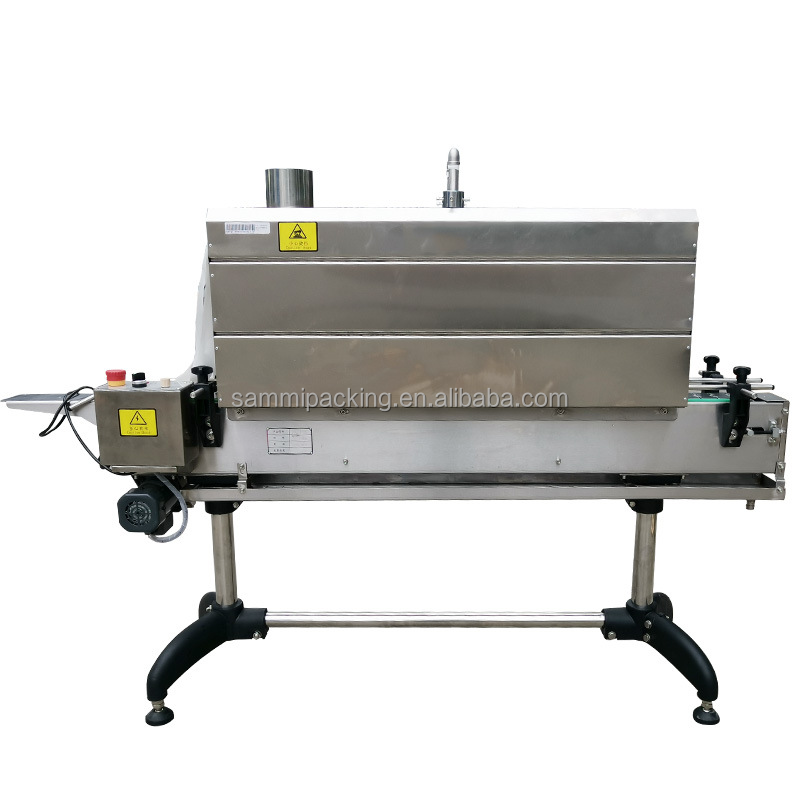

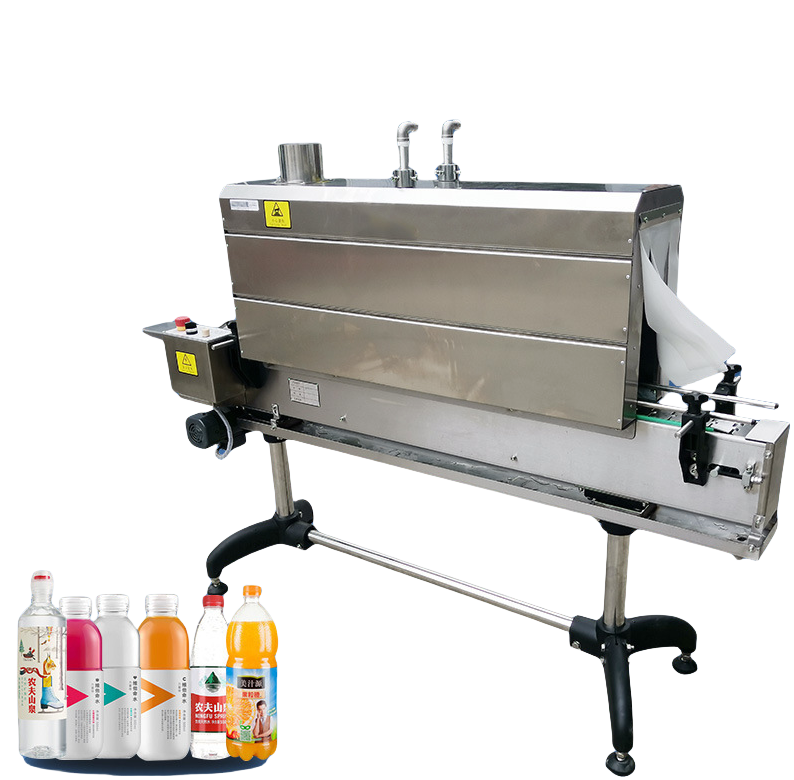

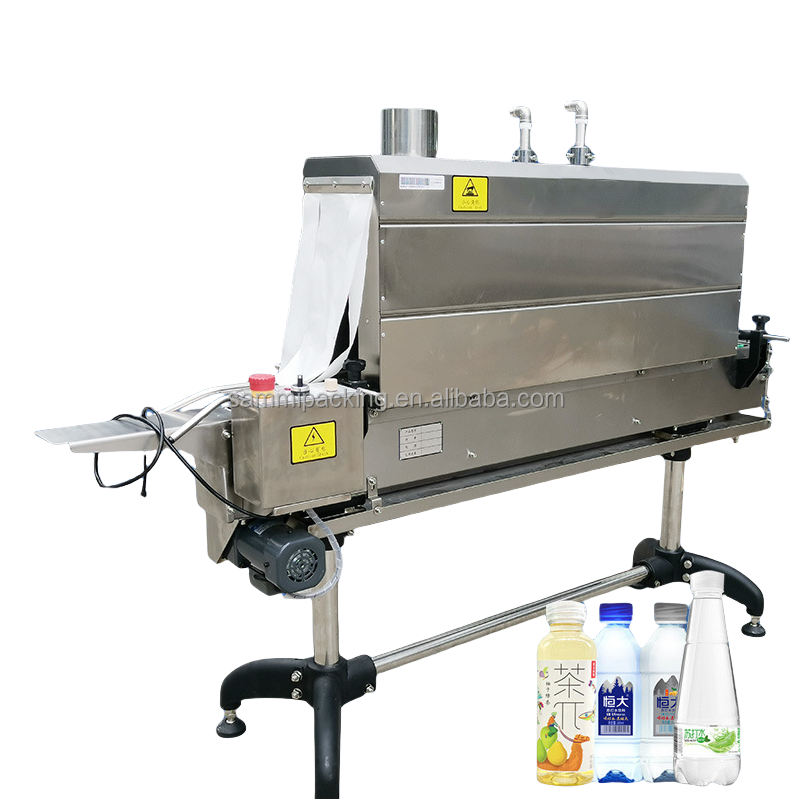

This bottle label steam shrink tunnel is our new-developed shrink machine. It adopts steam as heat source, and has features of high speed, even heating, no wrinkle, adjustable power and perfect shrink effect.
This not only saves energy, but also accords to international security standard. Whole machine adopts water-proof design, and S/S water receiver is mounted in the bottom in order to collect condensed water. It is easy to operate and maintain, and widely applied in the industry of mineral water, pure water, carbonated drink and tea etc.
The bottle label steam shrink packing machine has advantage of high efficiency in energy-consumption, simple operation and easy adjustment. Achieve perfect shrink effect with lowest power consumption. Any shape bottle is able to reach nice-looking shrink effect after simple adjust.
Specifications
Model
BS-1135
Volt
220V 50/60Hz
Shrink tunnel width
110mm
Max suitable width
100mm
Max suitable height
29cm
Speed
5000-7500BPH
Steam pressure
0.1Mpa
Steam consumption
8kg/H
Shrink temperature
75-85°C
Suitable material
PVC PP PE POF

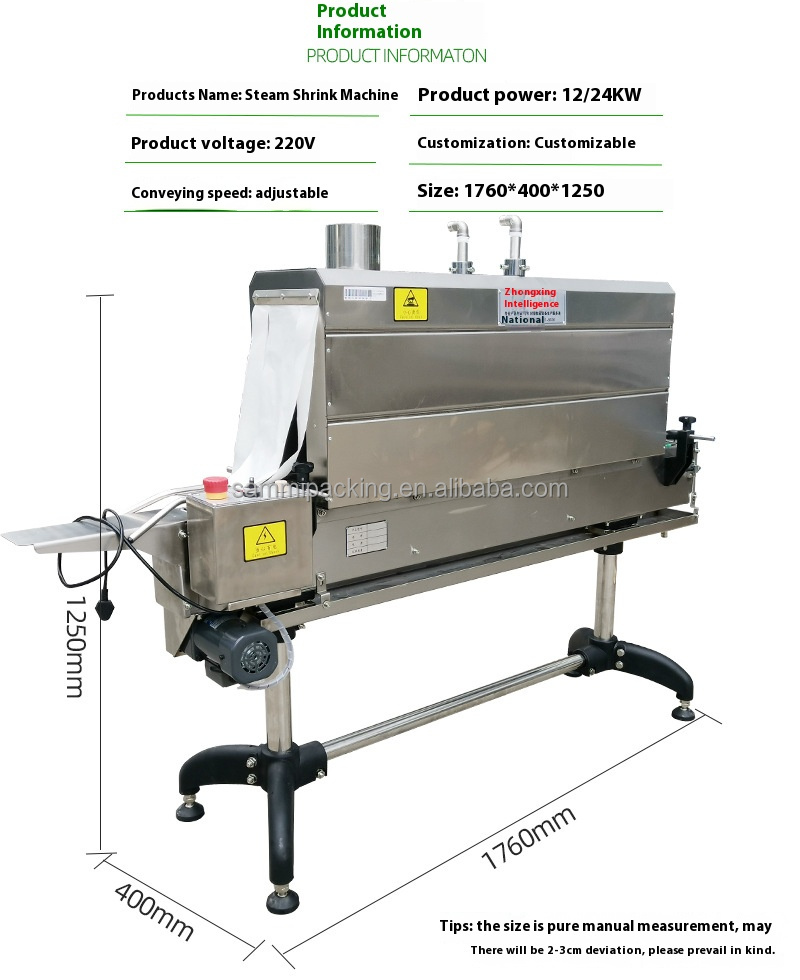

Machine size
1760x450x125mm
Weight
168kg
Product Display
Frequently Asked Questions (FAQ)
What container shapes and label positions is this machine suitable for?
The BS-1135 is designed for bottle, can, or barrel shapes made of glass, plastic, or paper. It can efficiently shrink labels placed on the top, middle, bottom, or wrapping the entire container.

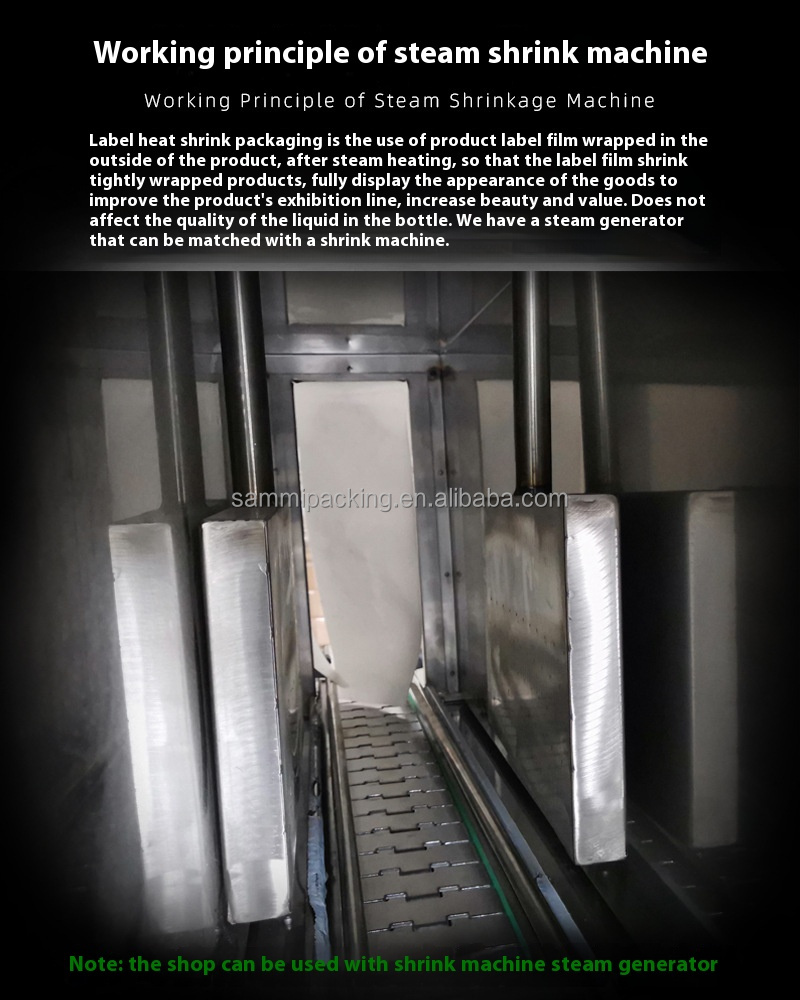

What are the benefits of using steam as a heating source in this tunnel?

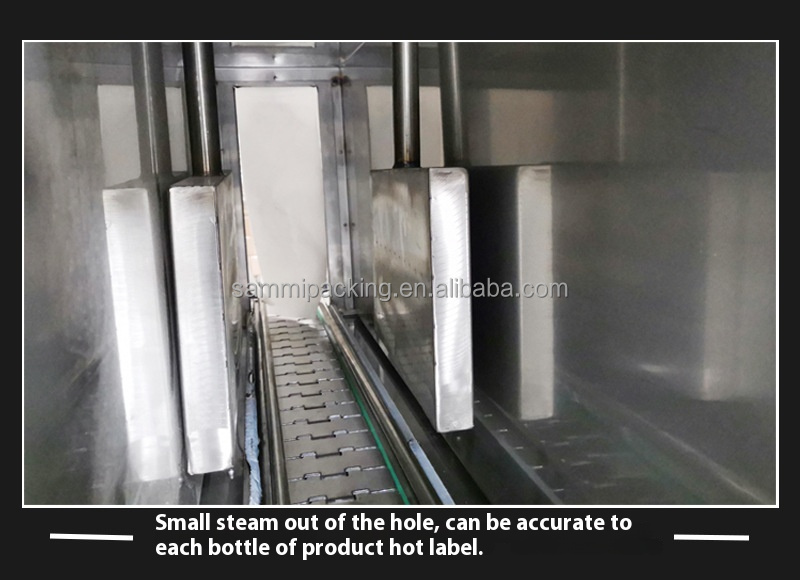

Steam heating provides exceptionally even heat distribution, prevents label wrinkling, operates at high speeds, and allows for adjustable heating power. It is both highly energy-efficient and compliant with international safety standards.
What packaging materials are compatible with the BS-1135?
This steam label shrink machine is compatible with common industry shrink film materials, including PVC, PP, PE, and POF.
How does the machine handle condensed water accumulation?
The machine incorporates a complete waterproof design. A dedicated stainless steel (S/S) water receiver is integrated at the bottom of the tunnel to collect condensed water effectively, making maintenance simple and clean.
What is the operational speed of the BS-1135?
The machine delivers a high-efficiency performance, reaching throughput speeds between 5,000 to 7,500 Bottles Per Hour (BPH), depending on the bottle design and label specifications.
