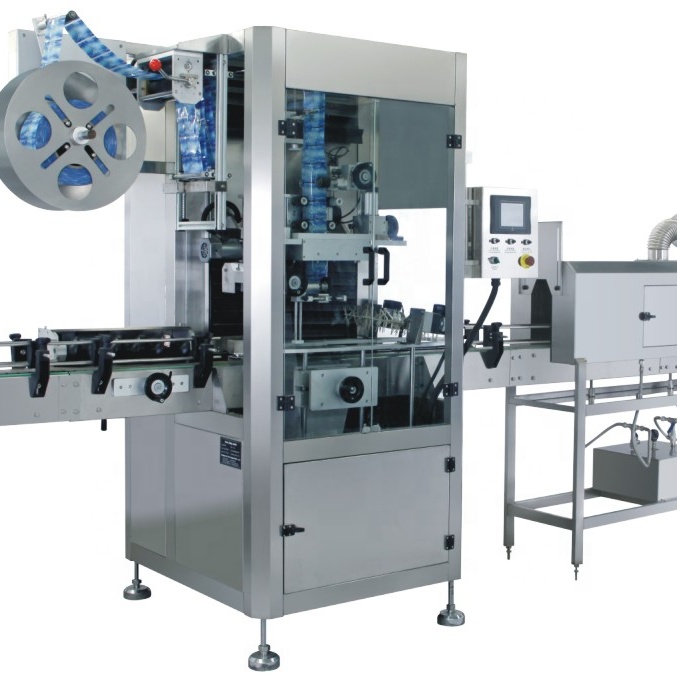

High Precision PVC Neck Banding Machine Wrap Shrink Machine Manufacturer with Shrink Tunnel
High Precision PVC Neck Banding Machine Wrap Shrink Machine Manufacturer with Shrink Tunnel
High Precision PVC Neck Banding Machine Wrap Shrink Machine Manufacturer with Shrink Tunnel
High Precision PVC Neck Banding Machine Wrap Shrink Machine Manufacturer with Shrink Tunnel
High Precision PVC Neck Banding Machine Wrap Shrink Machine Manufacturer with Shrink Tunnel
1 / 5
High Precision PVC Neck Banding Machine Wrap Shrink Machine Manufacturer with Shrink Tunnel
High Precision PVC Neck Banding Machine Wrap Shrink Machine Manufacturer with Shrink Tunnel
High Precision PVC Neck Banding Machine Wrap Shrink Machine Manufacturer with Shrink Tunnel
High Precision PVC Neck Banding Machine Wrap Shrink Machine Manufacturer with Shrink Tunnel
High Precision PVC Neck Banding Machine Wrap Shrink Machine Manufacturer with Shrink Tunnel

High Precision PVC Neck Banding Machine Wrap Shrink Machine Manufacturer with Shrink Tunnel

Send Inquiry

Product Description

Automatic Wrap Shrink Bottle Body Banding Machine Banner 1
Automatic Wrap Shrink Bottle Body Banding Machine Banner 2

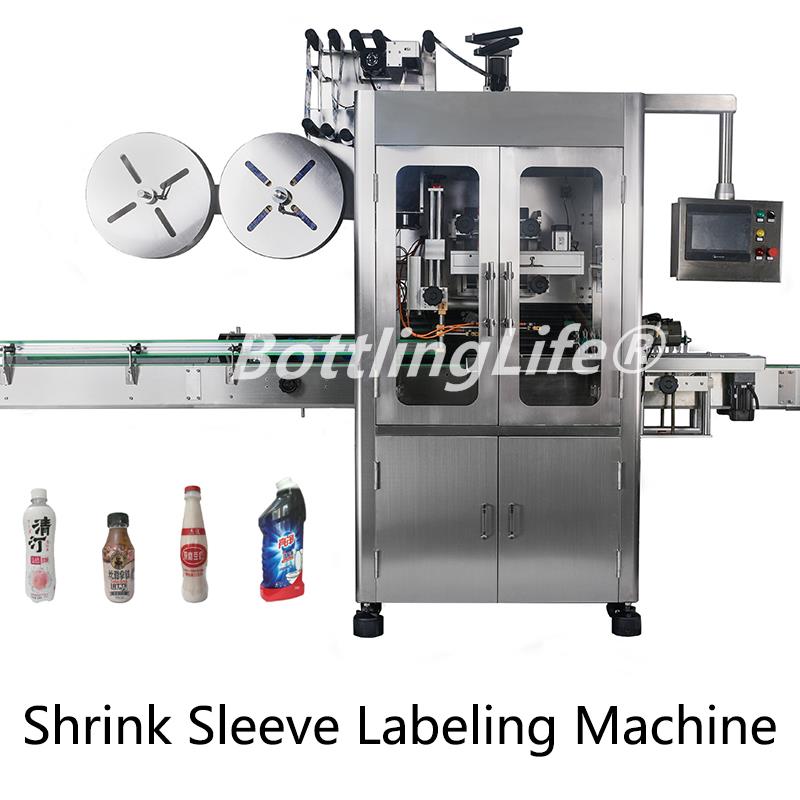

Shrink Labeling Machine Details
Advanced Labeling Technology
This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different direction and different height.
The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.
Technical Specifications
Description Automatic Wrap Shrink Bottle Body Banding Machine
Power 220V, 50HZ
Air pressure 0.6Mpa
Labeling Speed 100 bottle/min
Labeling Accuracy 99%
Object Size 30-200 mm(H), 30-100 mm(W)
Label Size 25-300 mm(L), 20-180 mm(W)
Dimension 2800(L) × 1600(W) × 1500(H) mm
System Structure Overview

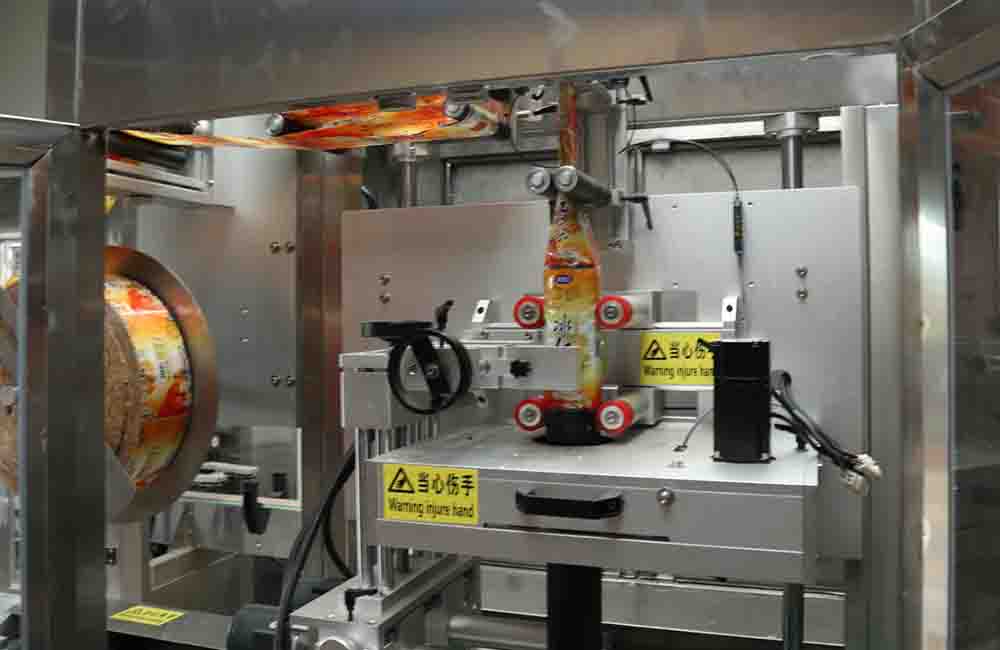

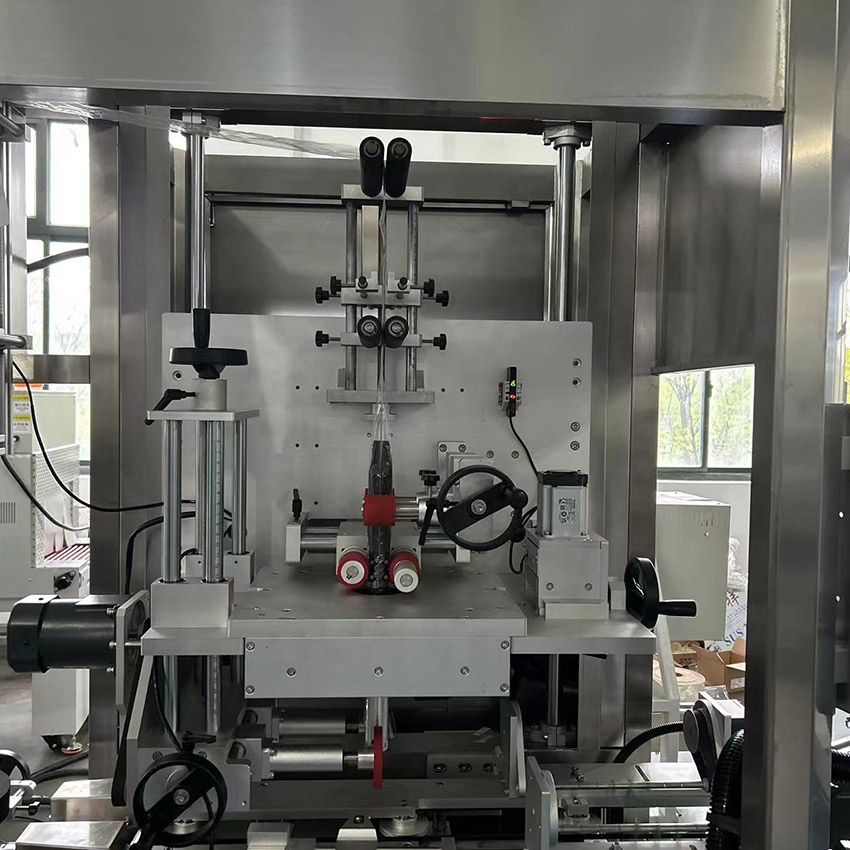

Labeling Head
All closed Stainless steel main body:
Safety for the operator. The whole machine is water-proof and anti-corrosion.
Adjustable knife pallet:
Unique design rotary type knife, double-blade with long duration.
Labeling Head Mechanism

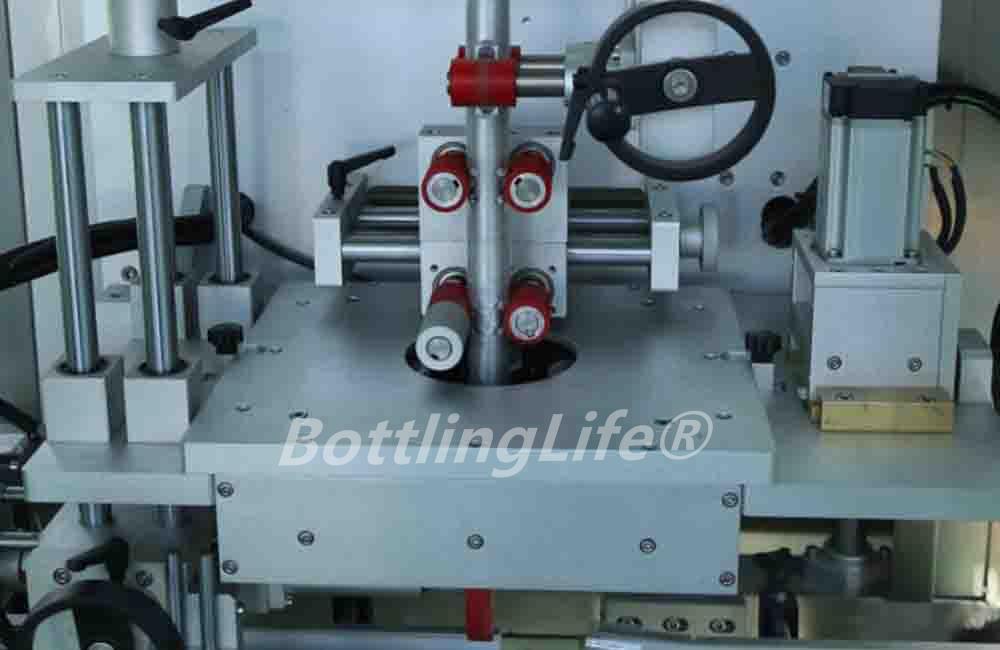

Positioning Components
Positioning & Control Features

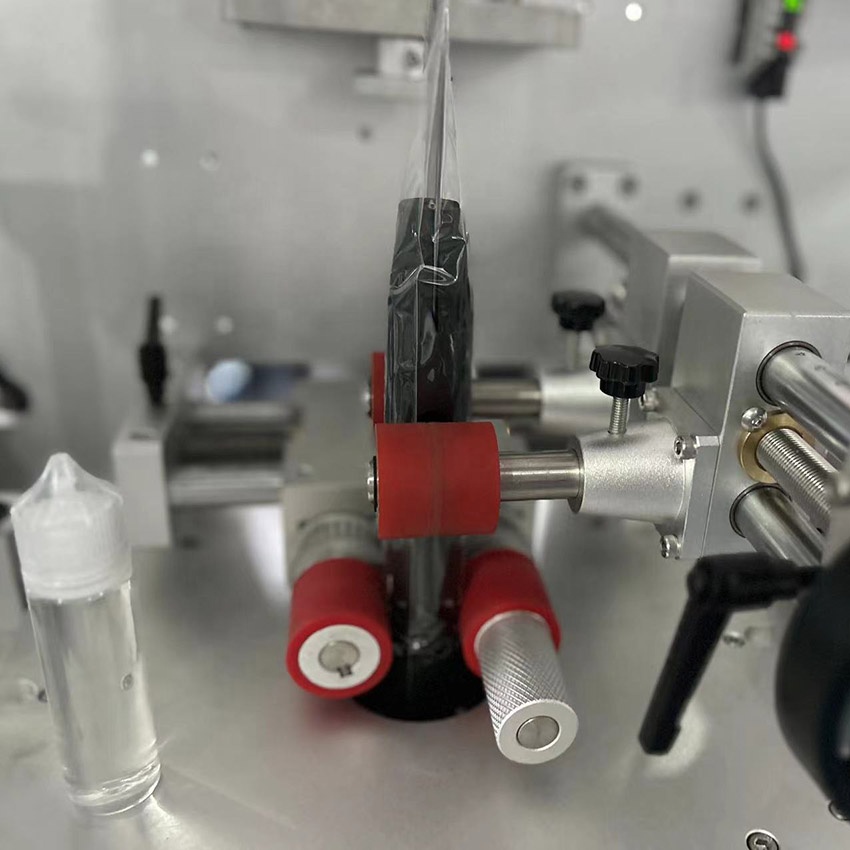

  • Single positioning core column: Convey the label stably.
  • Bottle Space Adjustment: The bottle will not run out of conveyor and moves stably.
  • Brush for label positioning: Provides higher accuracy.

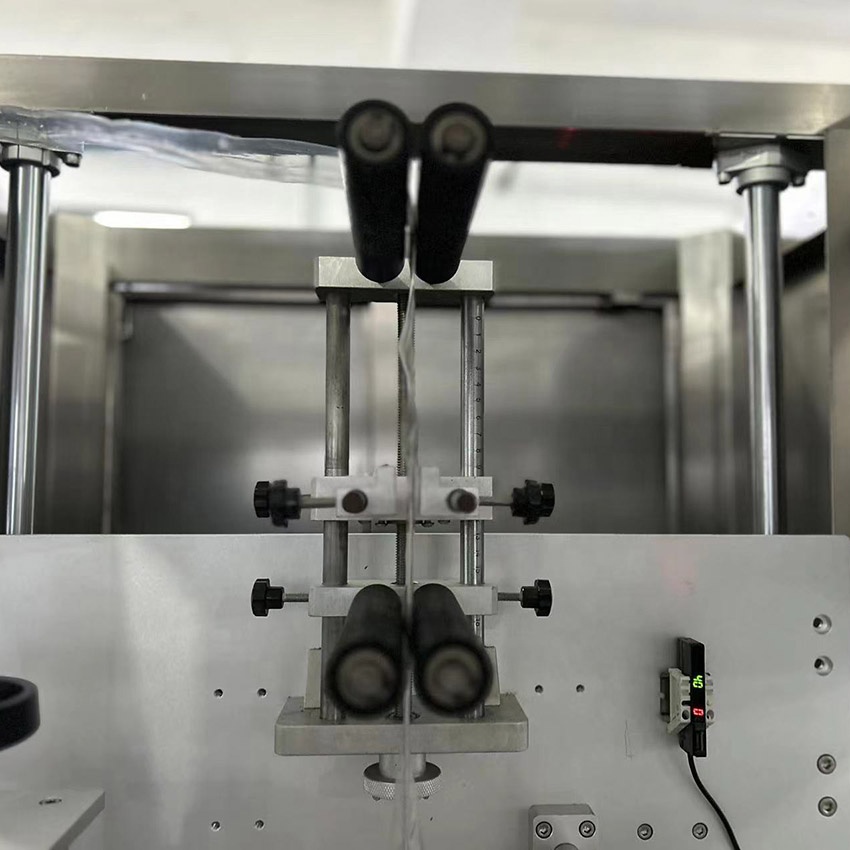

  • Label control photocell frame: Unique empennage combined with photocell, enhancing the cutting accuracy.
  • Single color HMI screen: Intuitive operational controls.

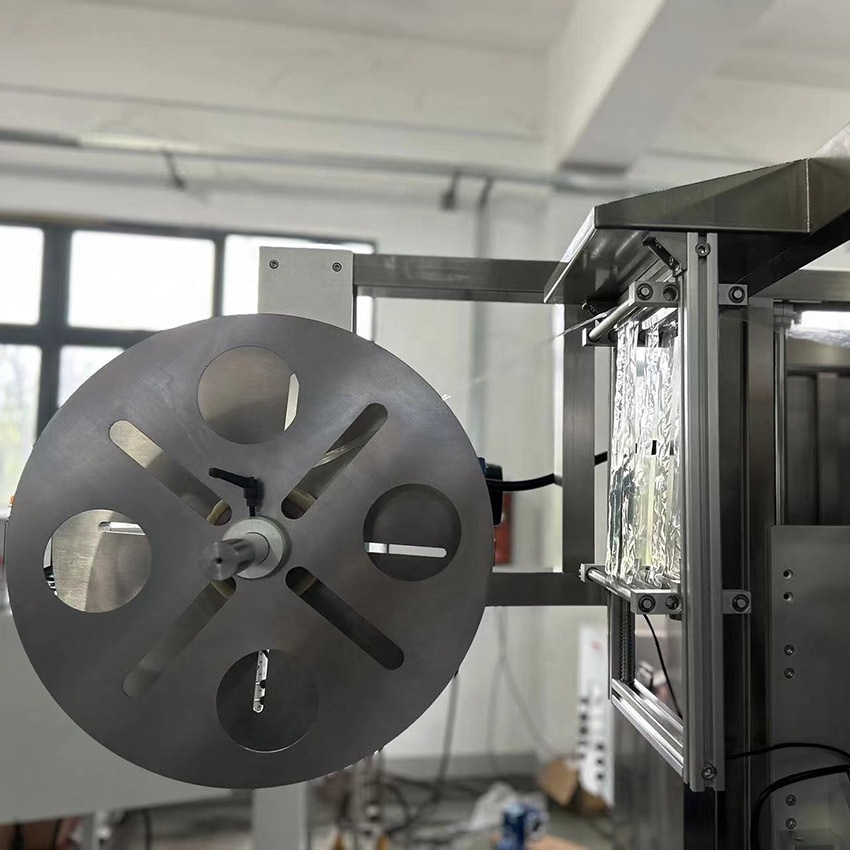

PVC Film Loading
Safety for the operator. The whole machine is water-proof and anti-corrosion. Unique design rotary type knife, double-blade with long duration. Convey the label stably.

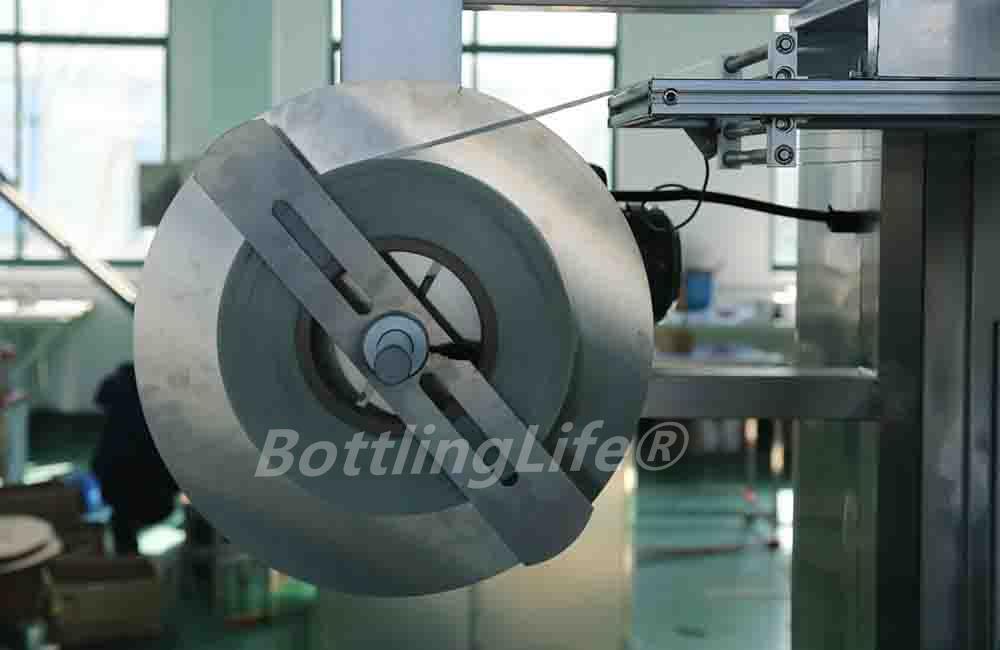

PVC Film Loading Area

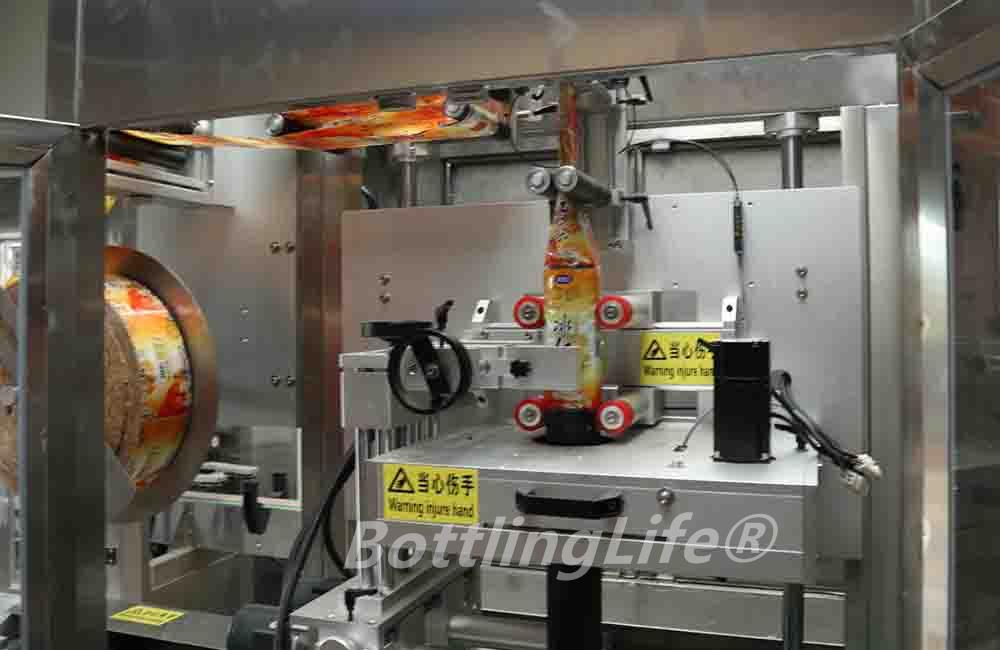

Film Cutting Mechanism
Film Cutting
High-precision cutting system ensures precise label lengths. Engineered for high performance with minimal wear and tear, reducing maintenance downtime.
Production Process Overview

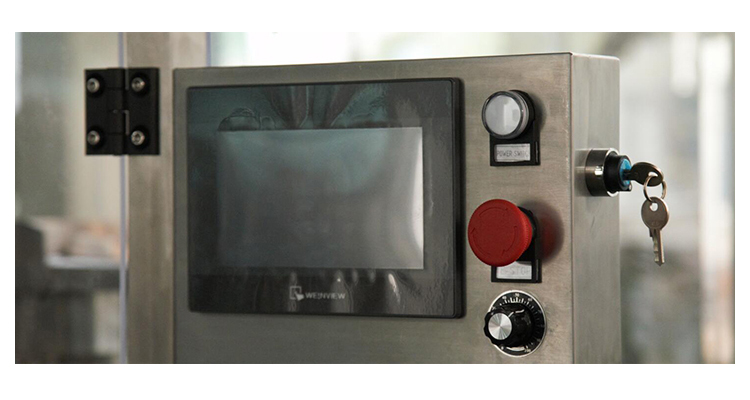

Control System
Control System Interface
  • Stainless steel panel control.
  • Stainless steel, tubular holding post with Twin axis swivel panel control.
  • Emergency Stop on the control panel.
  • 7’’ multi-color touch screen control with high HMI resolution.
  • Programmable feeder, conveyor speed, and other configurations.
  • Normal machine operation with real-time alarm display.
  • Support for multiple language interfaces.

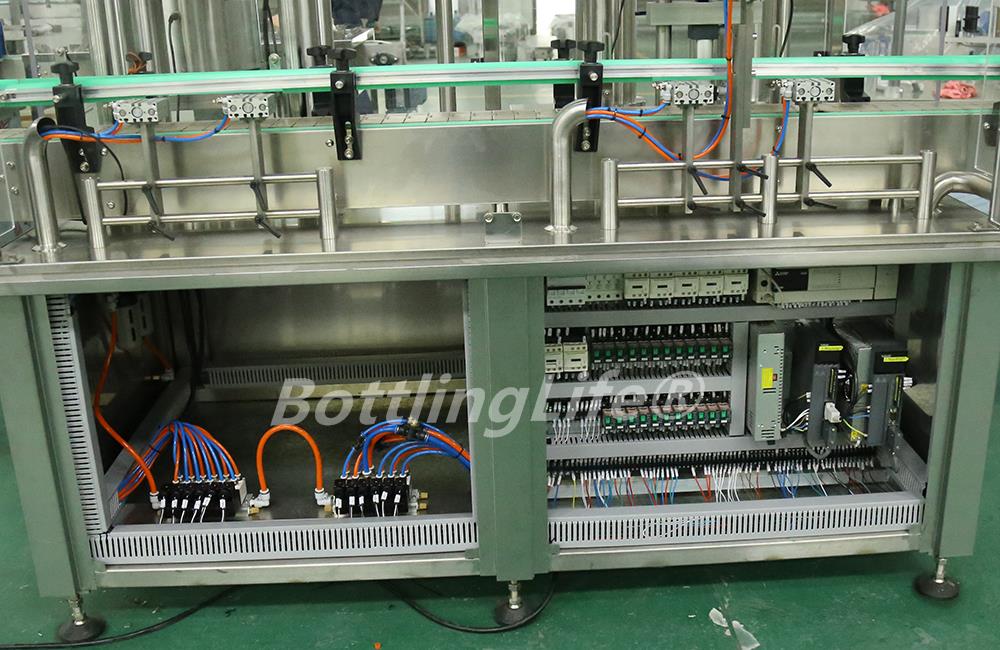

Installation Requirements
Installation Configurations
  • Power: 220 volts, 3 phases, 60 Hz, 15 amp (or customized).
  • Power consumption: 4.5 kw.
  • Air regulator with filter: 1/4’’ quick connect male with 1/2’’ NPT.
  • Air Pressure: 100 PSI (6.9 bar).
  • Air consumption: 20 CFM (566 L/m).
  • Instruction sticker included for easy setup.
Equipment & Component Gallery
Component Gallery 1
Component Gallery 2
Component Gallery 3
Component Gallery 4
Component Gallery 5
Component Gallery 6
Component Gallery 7
Component Gallery 8
Frequently Asked Questions
Q1: How long is the warranty?
A: The warranty is one year, and easy-damage parts are provided for free.
Q2: How long does it take to deliver after order confirmation?
A: Because all of our machines are customized according to your specific bottles, the production time is about 30-40 days after receiving your bottle samples and deposit.
Q3: What is the daily power consumption of the machine?
A: The machine power requirement is approximately 2kW to 5kW.
Q4: In case of breakdown, are spare parts easily available and delivered quickly?
A: Yes. We provide a one-year warranty with any easy-damage spare parts shipped for free.
Q5: What resources are offered in terms of setup and additional support?
A: Engineers are available to set up the machine and provide technical support. Additionally, we provide complete operation manuals and video support.
Q6: Can I send bottles and caps for testing before delivery?
A: Yes, our machines are customized according to the bottle and cap sizes. Once the machine is ready, we will send you a test video using your bottle and cap samples. We require about 100 bottles and 200 caps for each size.
