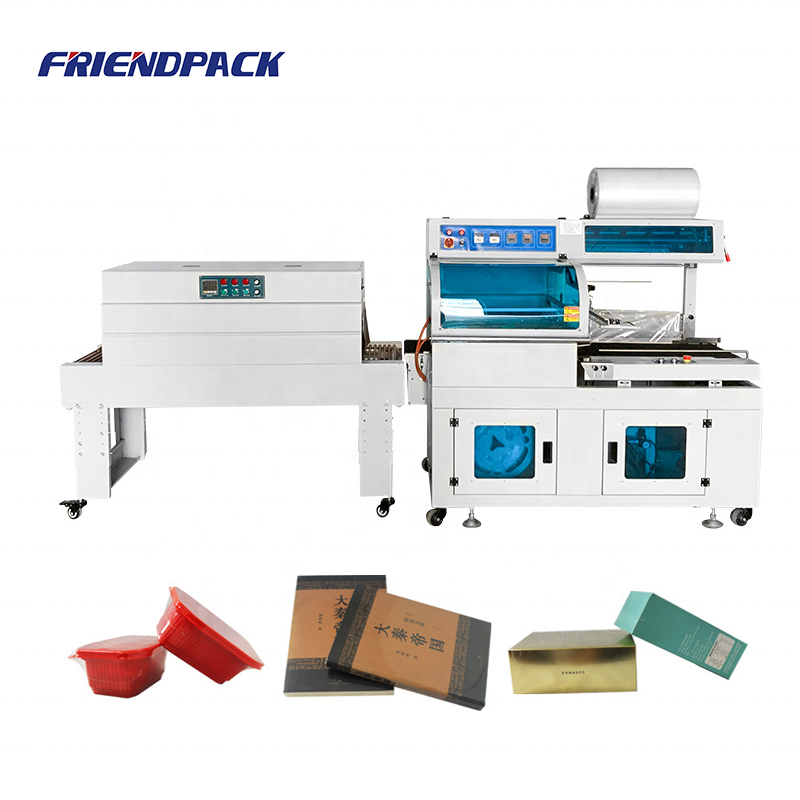

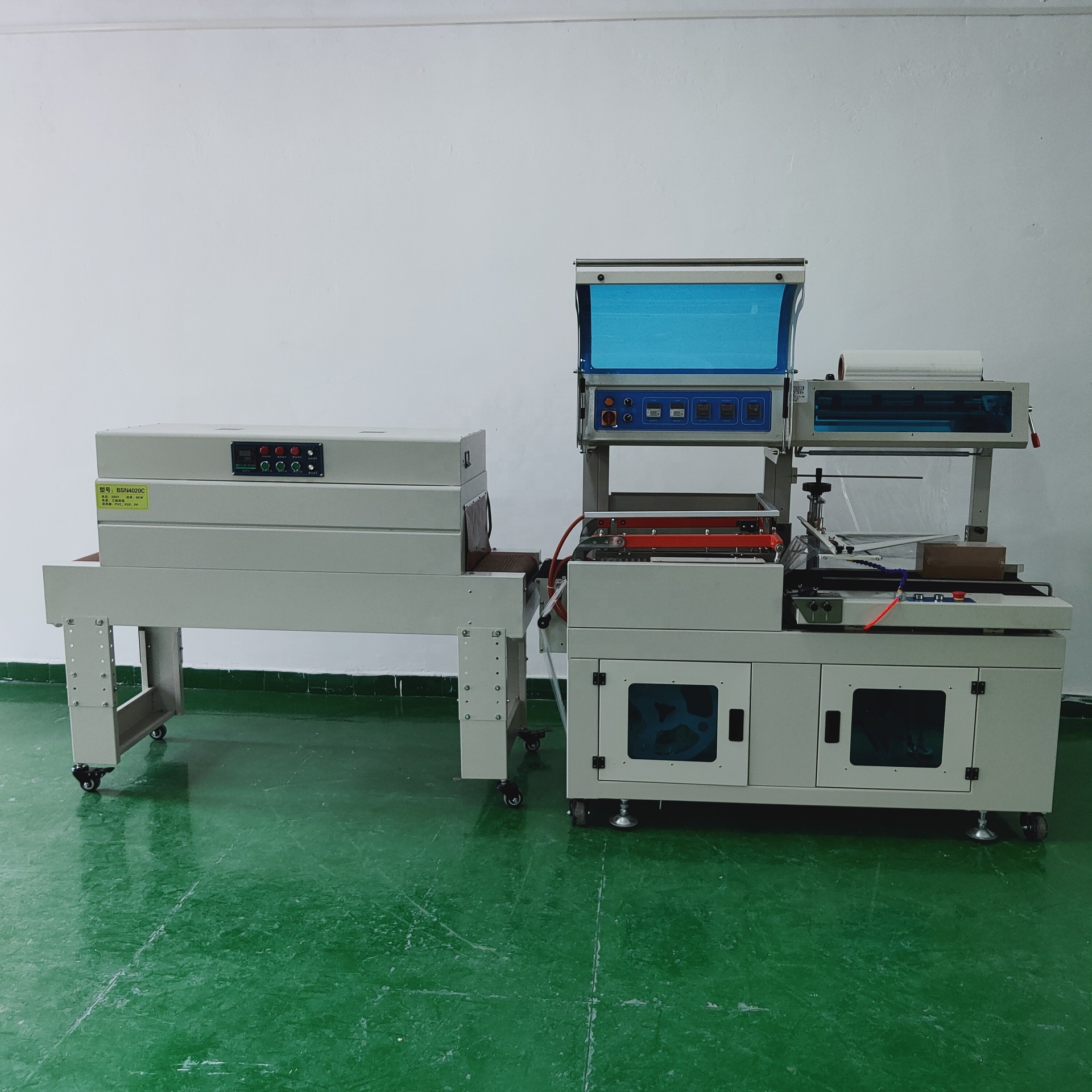

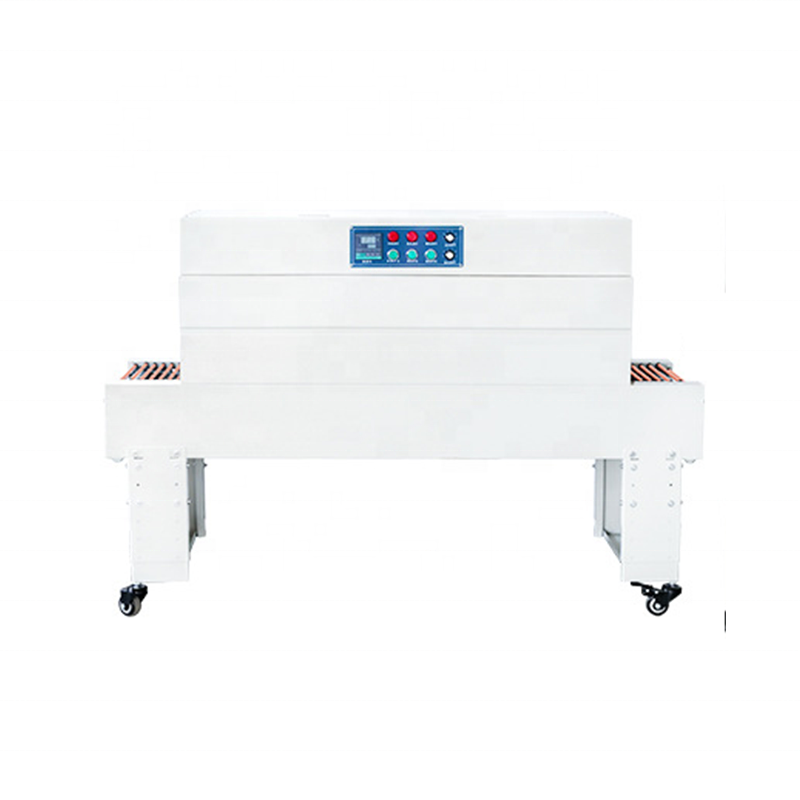

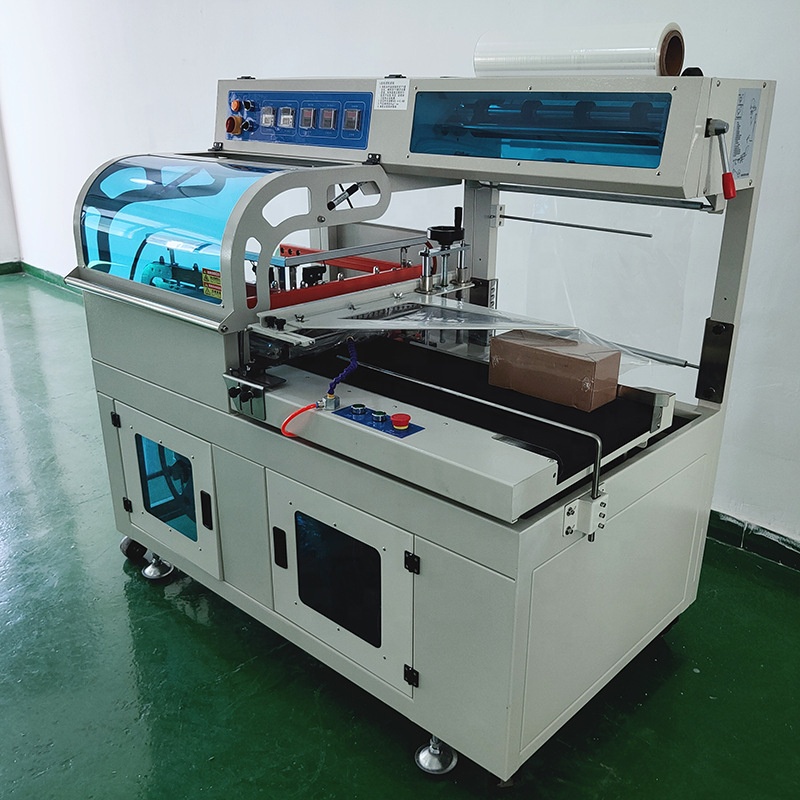

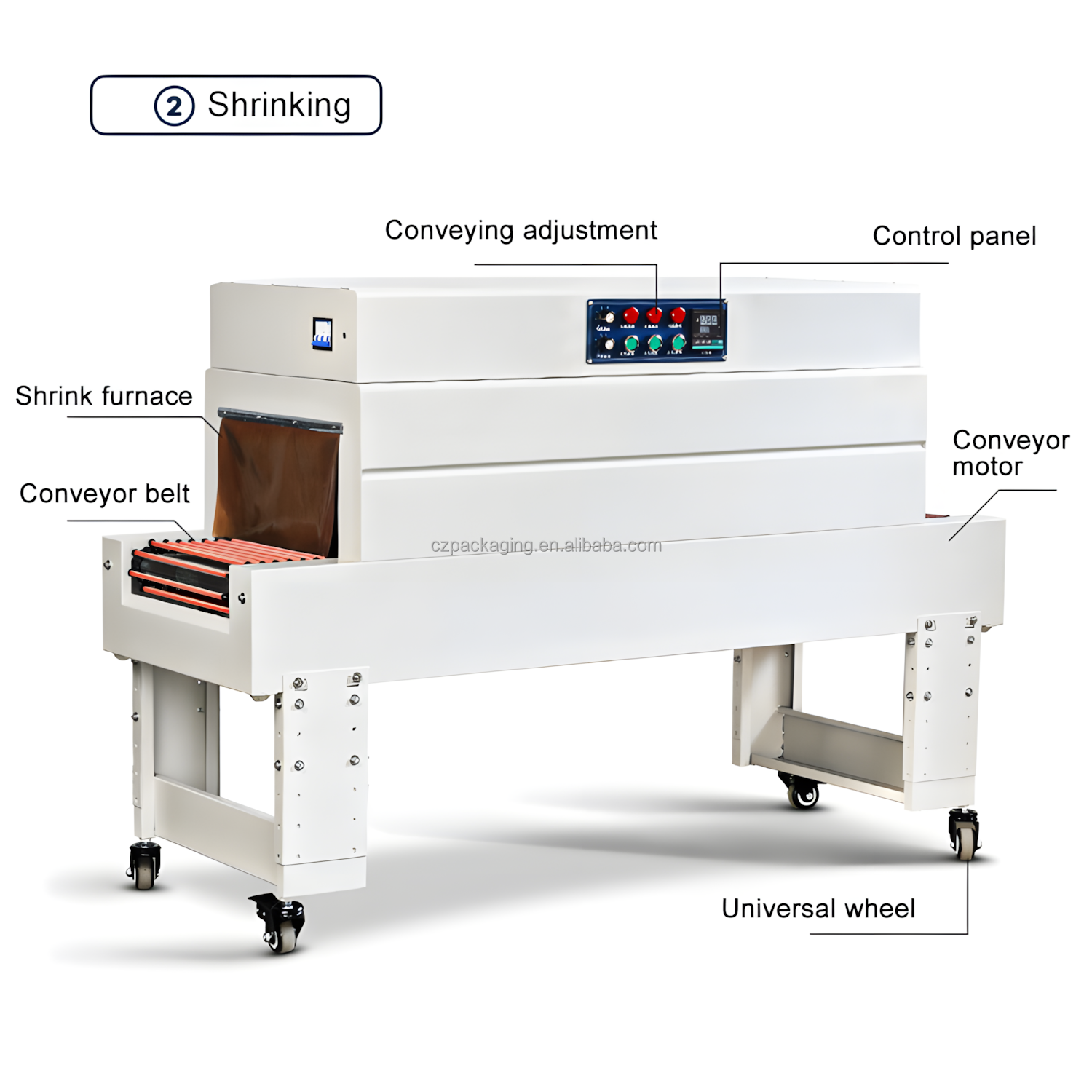

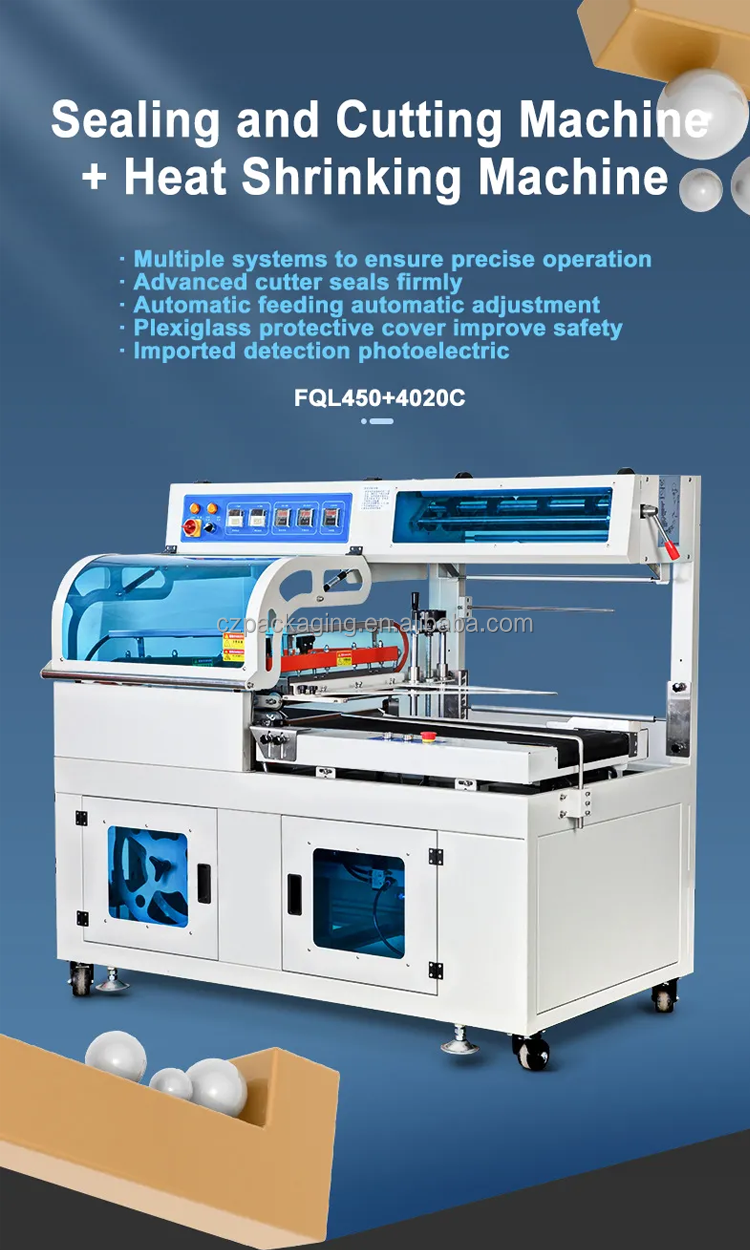

| Film Cutting Machine (FQL450 L Sealer) | Shrinking Machine (BSN4020C Shrink Machine) | ||
|---|---|---|---|
| Power Voltage | 220V/50-60HZ | Power Voltage | 380v 50-60HZ/220V 50Hz |
| Gas source | 5-7kg/cm³ | Power | 9 KW |
| Power | 1.5KW | Heat shrink Box (L*W*H) | 1200*400*200mm |
| Packing Speed | 15-30bags/min | Produce Size (W*H) | 350x150mm |
| L+H (H<150) | <500mm | Conveyor Speed | 0-15m/min |
| W+H (H<150) | <400MM | Conveyor material | roller chain |
| Max Height | <150mm | Roller Chain | Several Spare pieces |

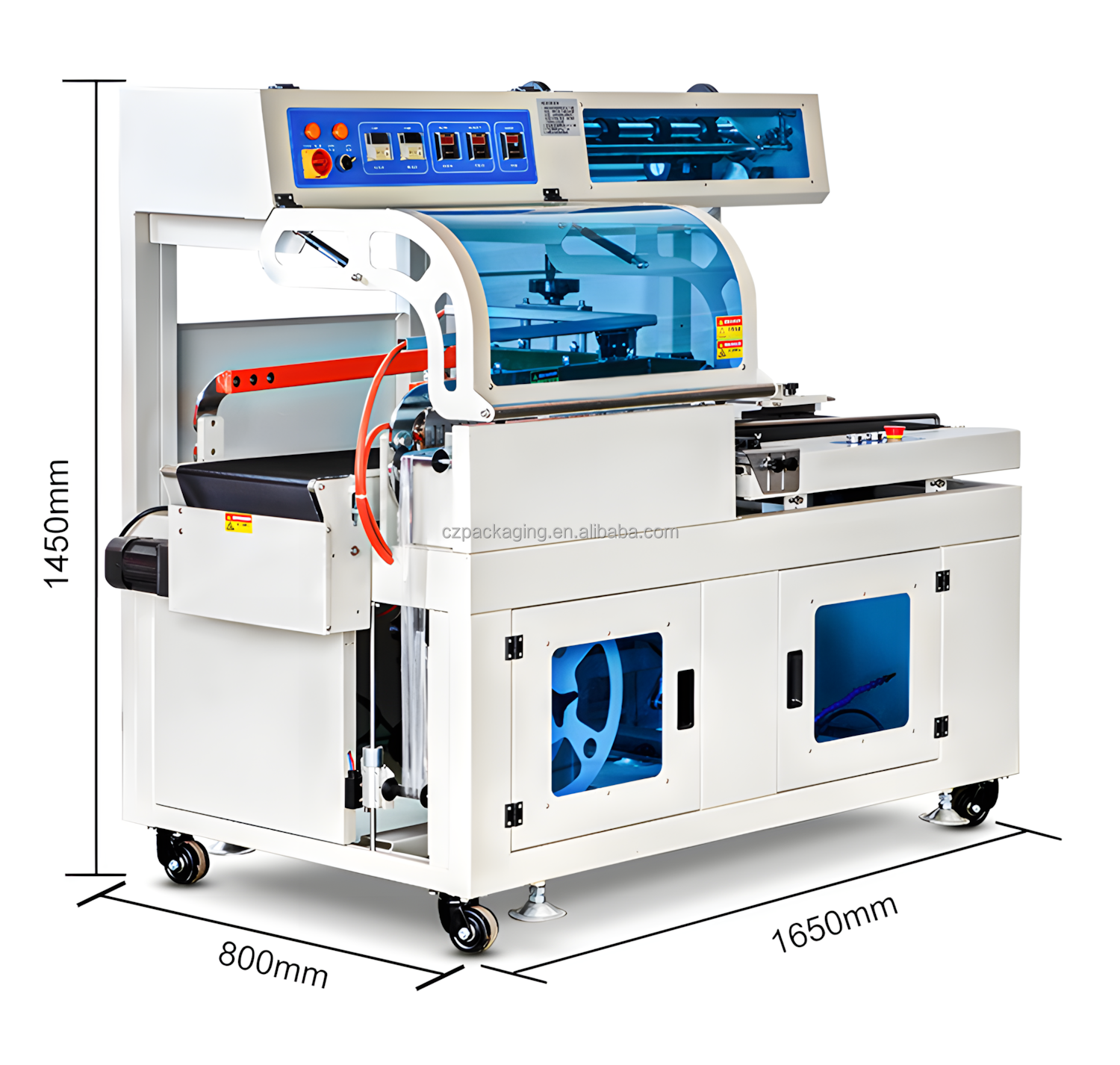

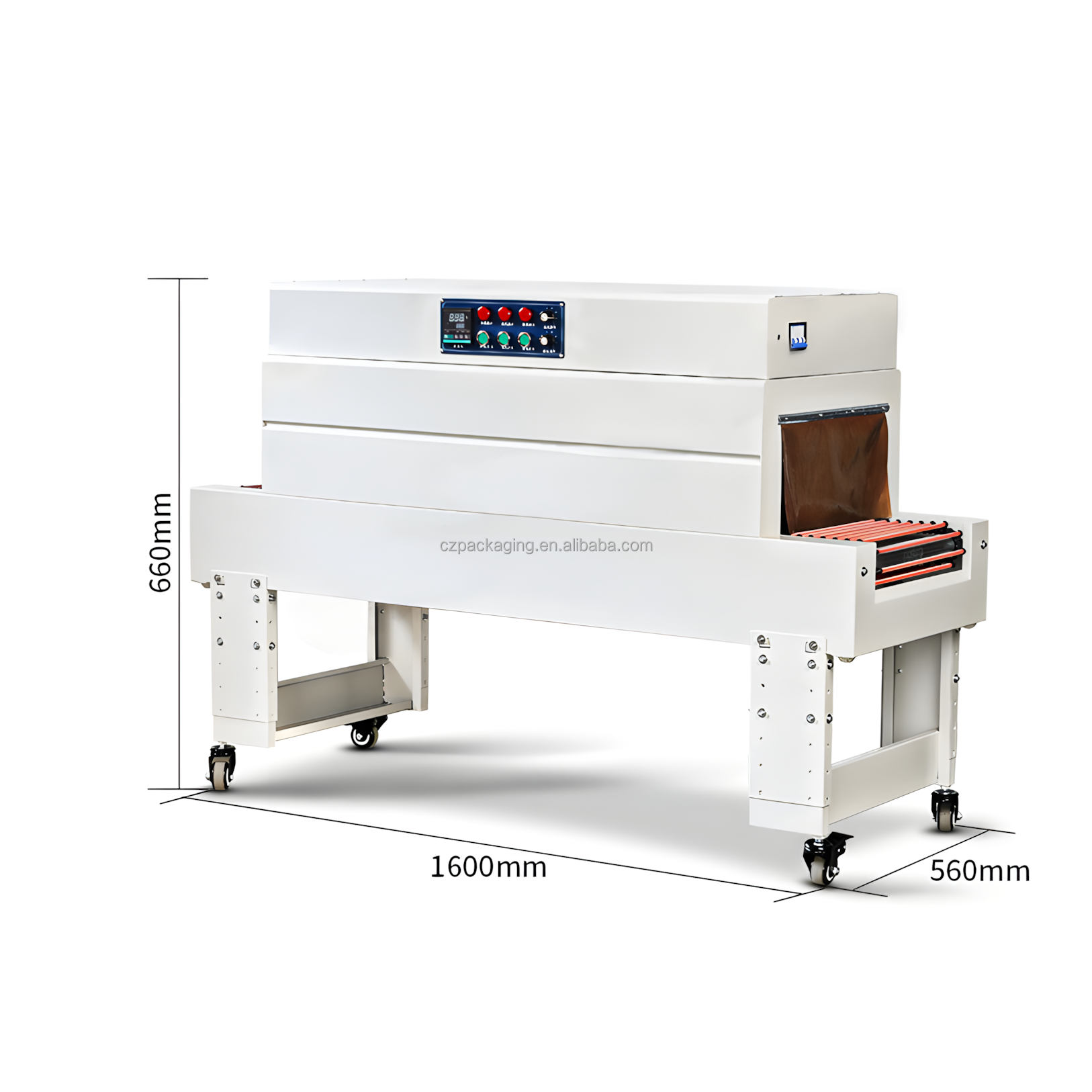

| External Dimensions | 1650x800x1450mm | Machine Size (L*W*H) | 1400x560x660mm |
| Weight of Machine | 350kg | Weight of Machine | 100kg |
| Applicable Film | POF/PE | Applicable Film | POF.PVC.PP |
| Wooden Case Package | 2100*1050*1570mm | Wooden Case Package | 1700*820*820mm |
| Name | Qty | Parts Original Manufacturer |
|---|---|---|
| cylinder | 1 | AIRTAC |
| Motor | 1 | Maili China |
| Photoelectric switch | 1 | Omron |
| Intermediate relay | 1 | Omron |
| Digital display (temperature controller) | 1 | Xinpu China |
| Time Relay | 1 | C-Lin |
| Indicator light other small electrical switch | 5 | Shuangke |
| Micro Switch | 1 | Omron |
| Name of Parts | Qty | Original Manufacturer |
|---|---|---|
| Non-sequencing carrier | 1 | CHINT |
| AC contactor | 1 | CHINT |
| Intermediate power supply | 1 | CHINT |
| Fixed electric device | 3 | C-Lin |
| Power Switch | 1 | CHINT |
| Intelligent temperature controller | 1 | Yuhe |
| Indication Light | 3 | GOCHENG |
| power switch button | 3 | Shanghai Jiangda |
| Three-phase motor | 1 | SULIN Moter |

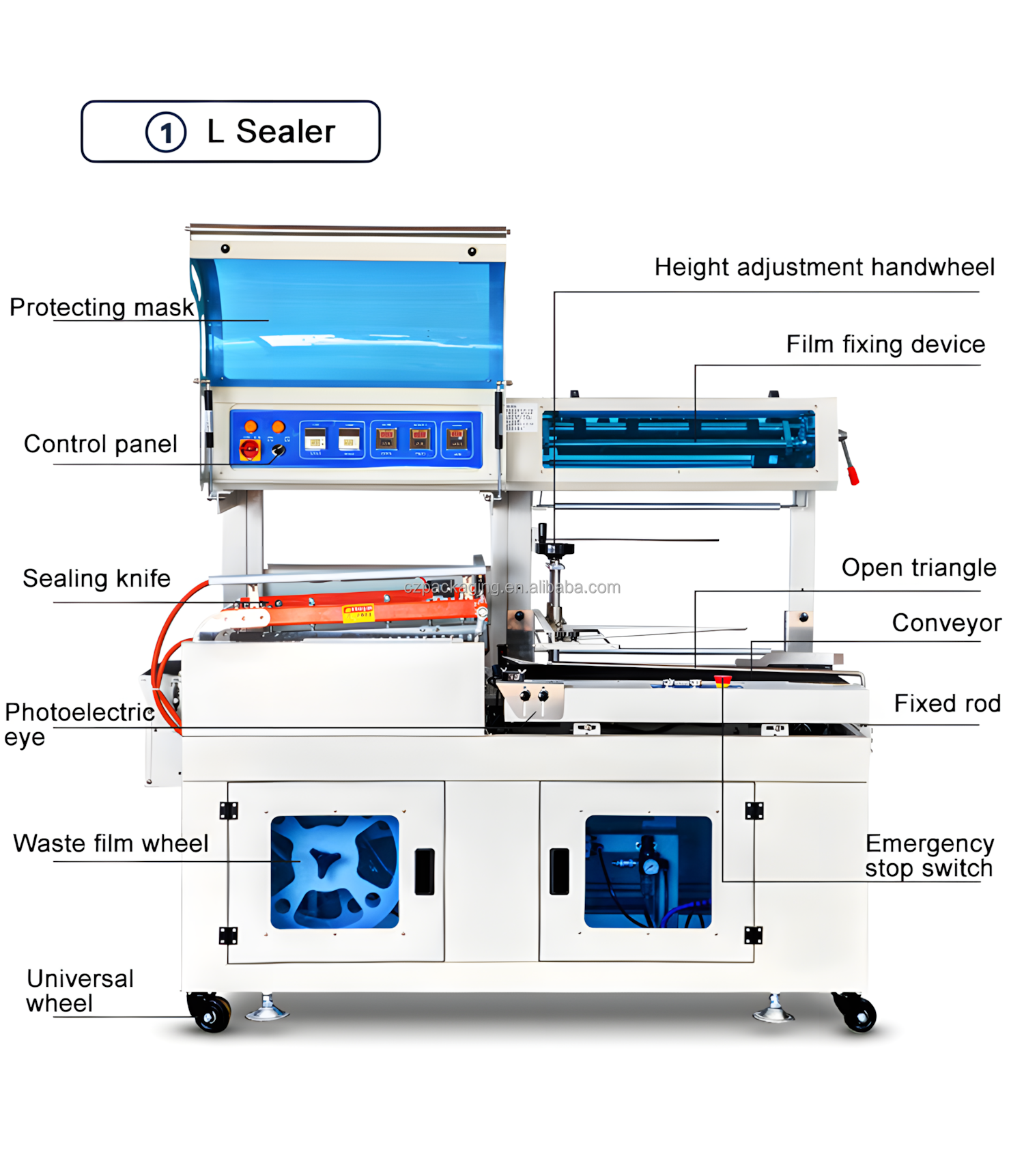

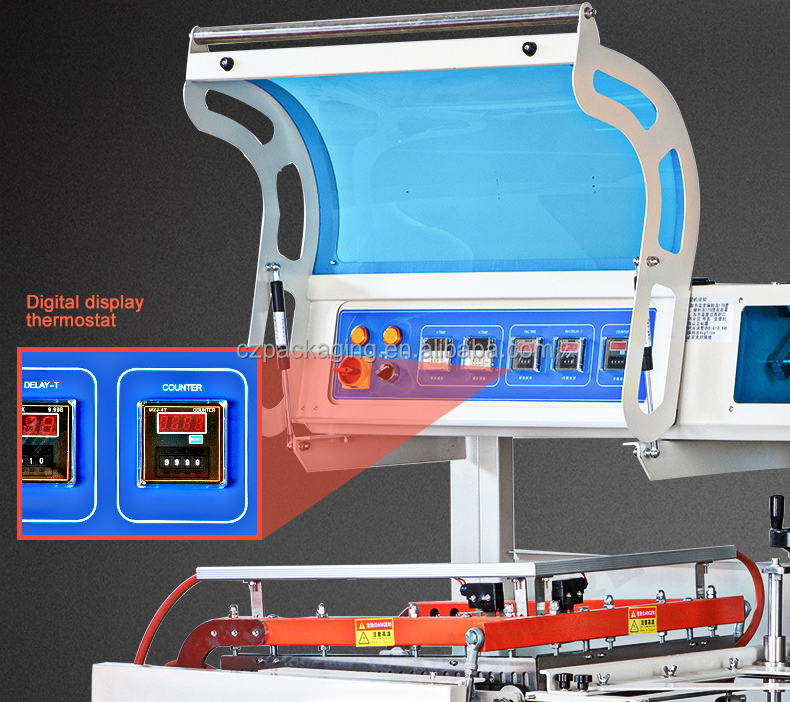

The thermostat adopts a digital display thermostat with built-in PLD function, and the temperature of the sealing knife is sensitive and accurate, which can be set at will. The sealing knife itself also has an automatic protection function, which can effectively prevent the package from being cut by mistake.

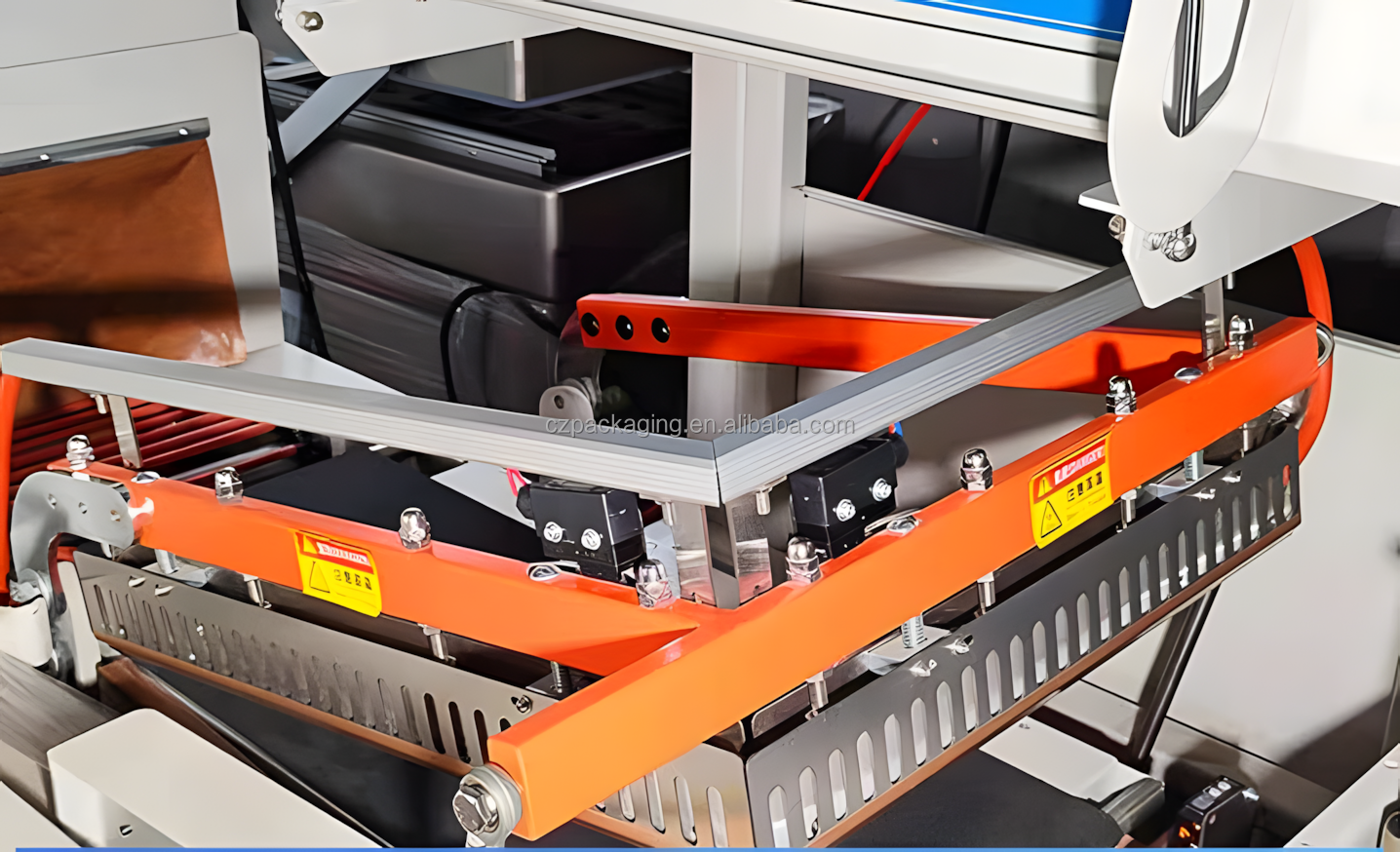

The sealing and cutting knife part adopts Teflon coating, which is resistant to adhesion and high temperature, and the sealing does not crack, coke, or smoke. The sealing frame is made of high-quality alloy steel, and the frame is not easy to deform.
Automatic feeding, length can also be adjusted automatically by the combination of electric eye and timer. Equipped with an induction motor to automatically take up waste.

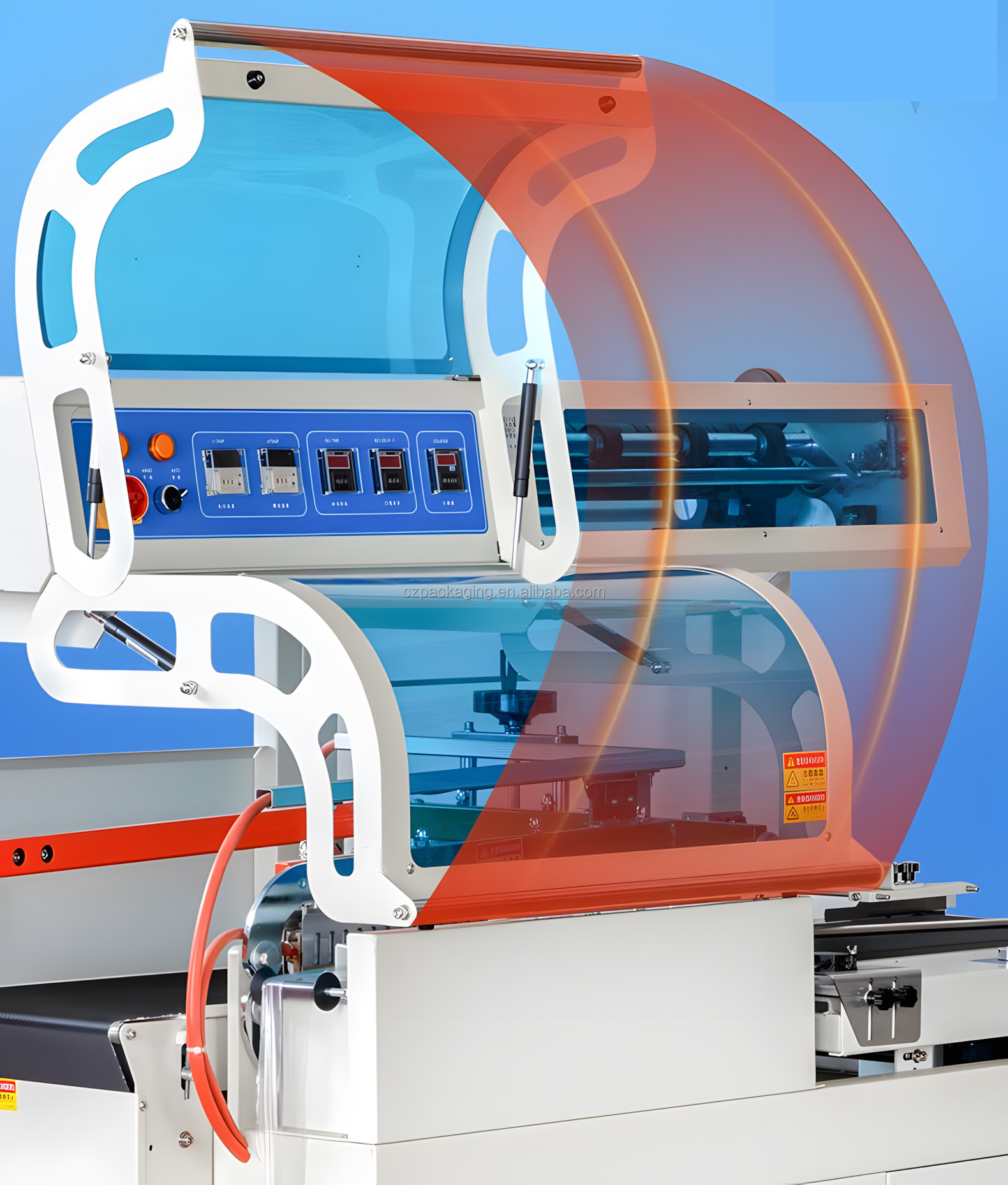

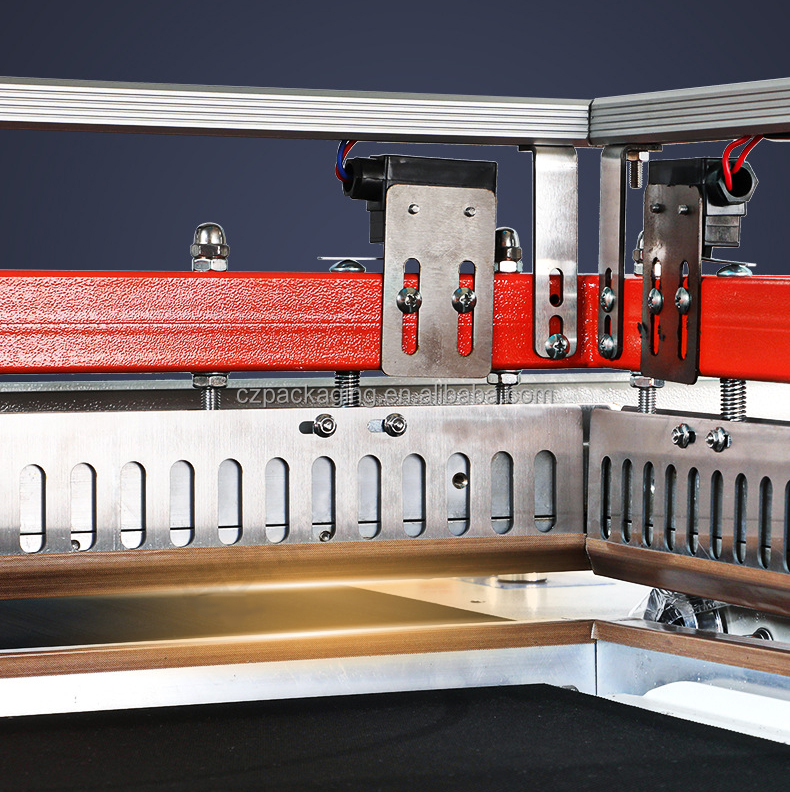

The sealing and cutting part of the machine is equipped with a plexiglass protective cover, and has an automatic alarm function,which greatly improves the safety of the operator.

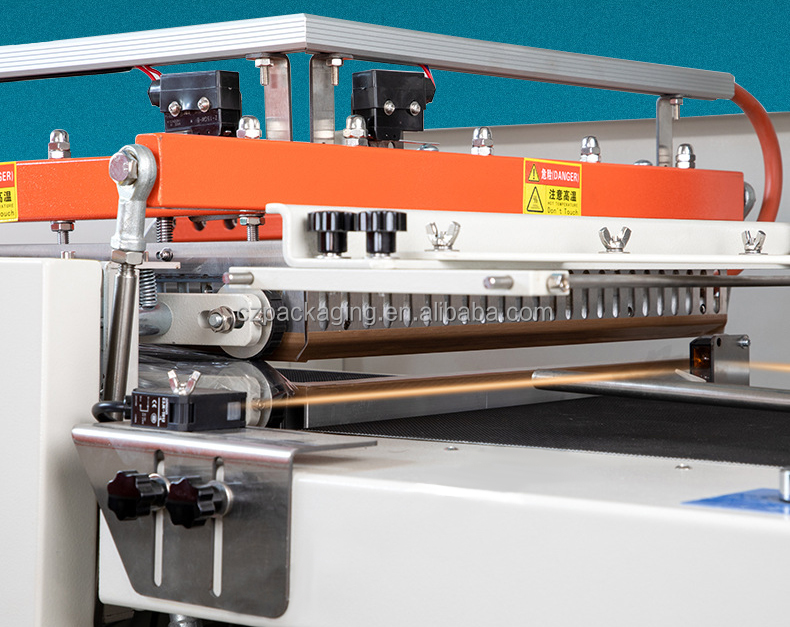

Horizontal and vertical detection each group
