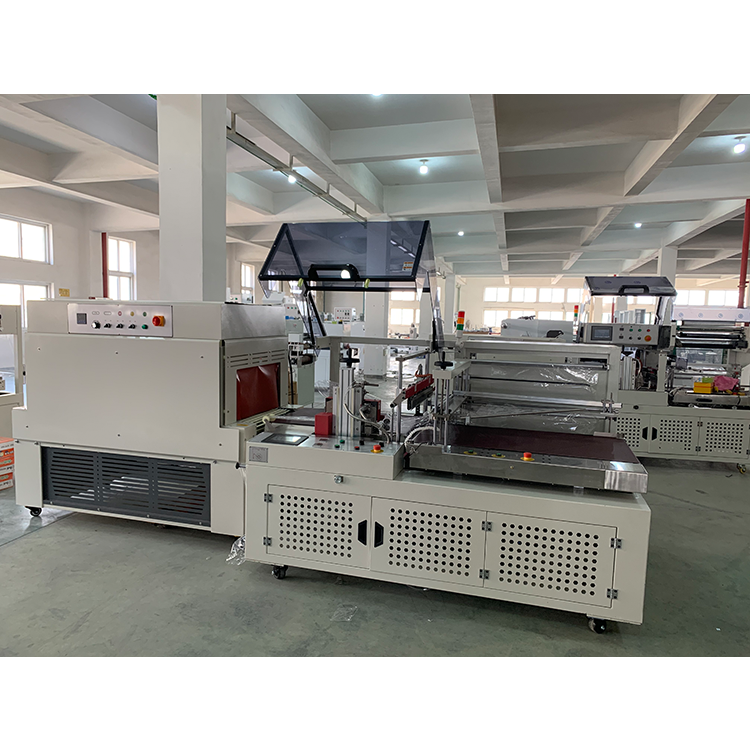

Automatic Film Shrinkage Wrapping Machine Shrink Tunnel

Product Description

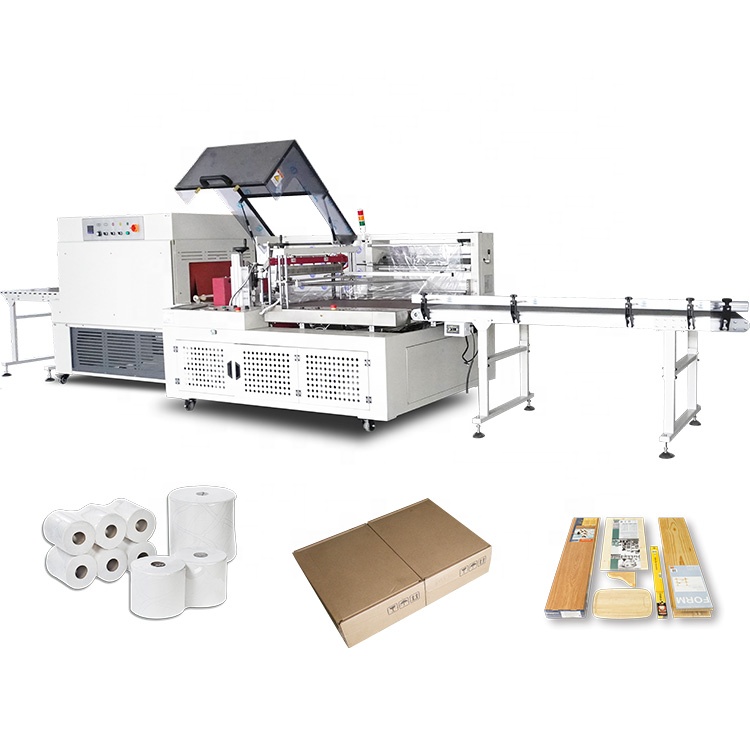

Automatic Film Shrinkage Wrapping Machine Shrink Tunnel
line divider

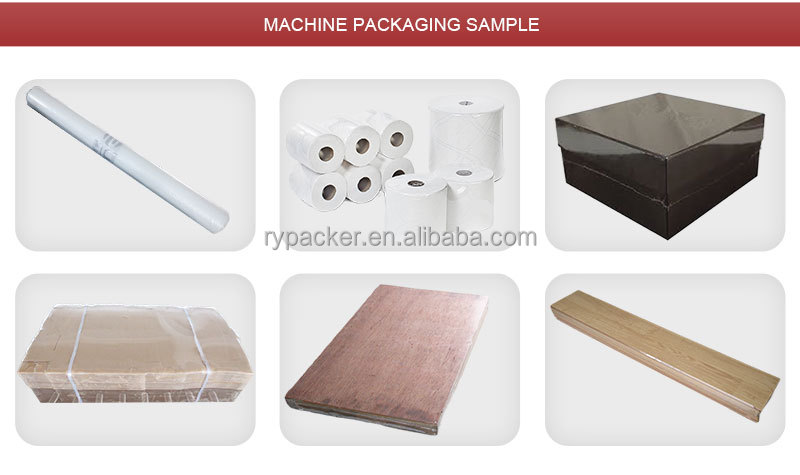

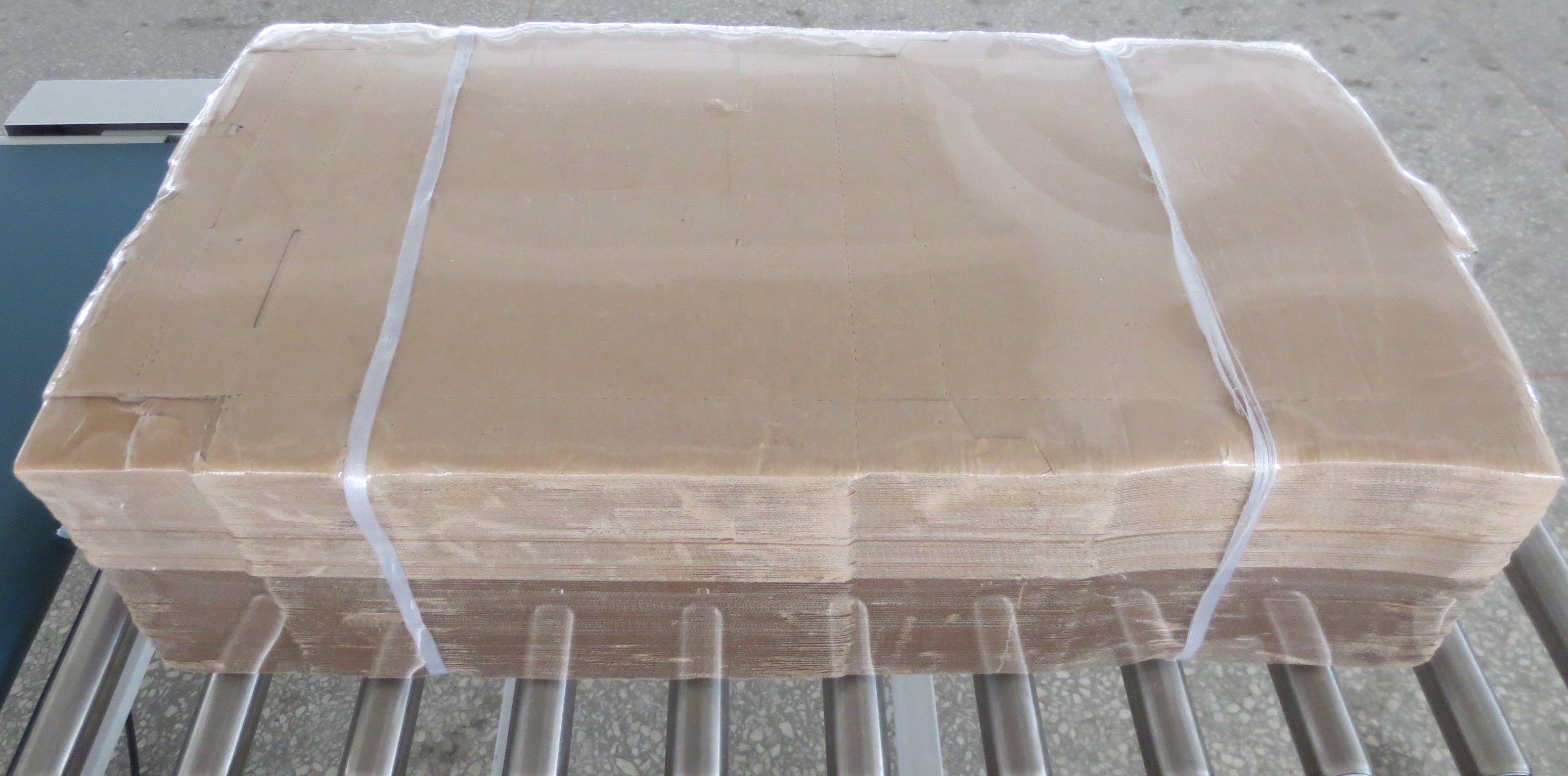

Longer products such as flooring boards, paper rolls, etc.

line divider

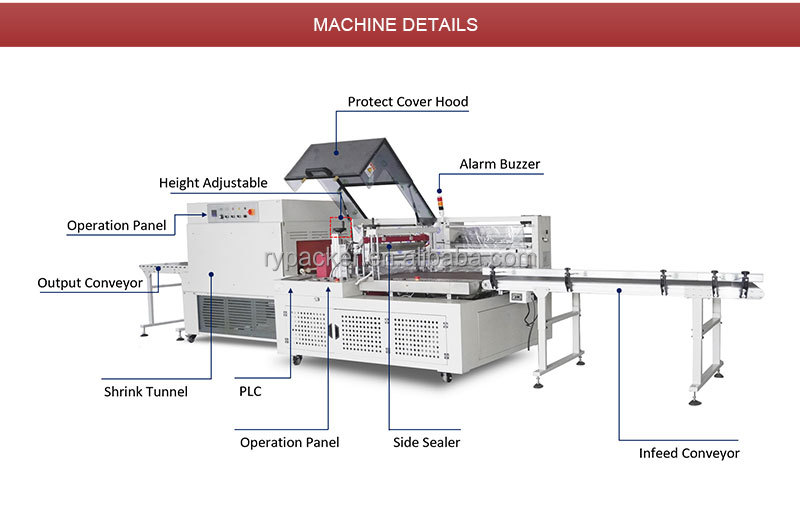

Automatic Film Shrinkage Wrapping Machine Shrink Tunnel Details
line divider
  • This machine can pack long products. there is no limit of product length because of side sealing system.

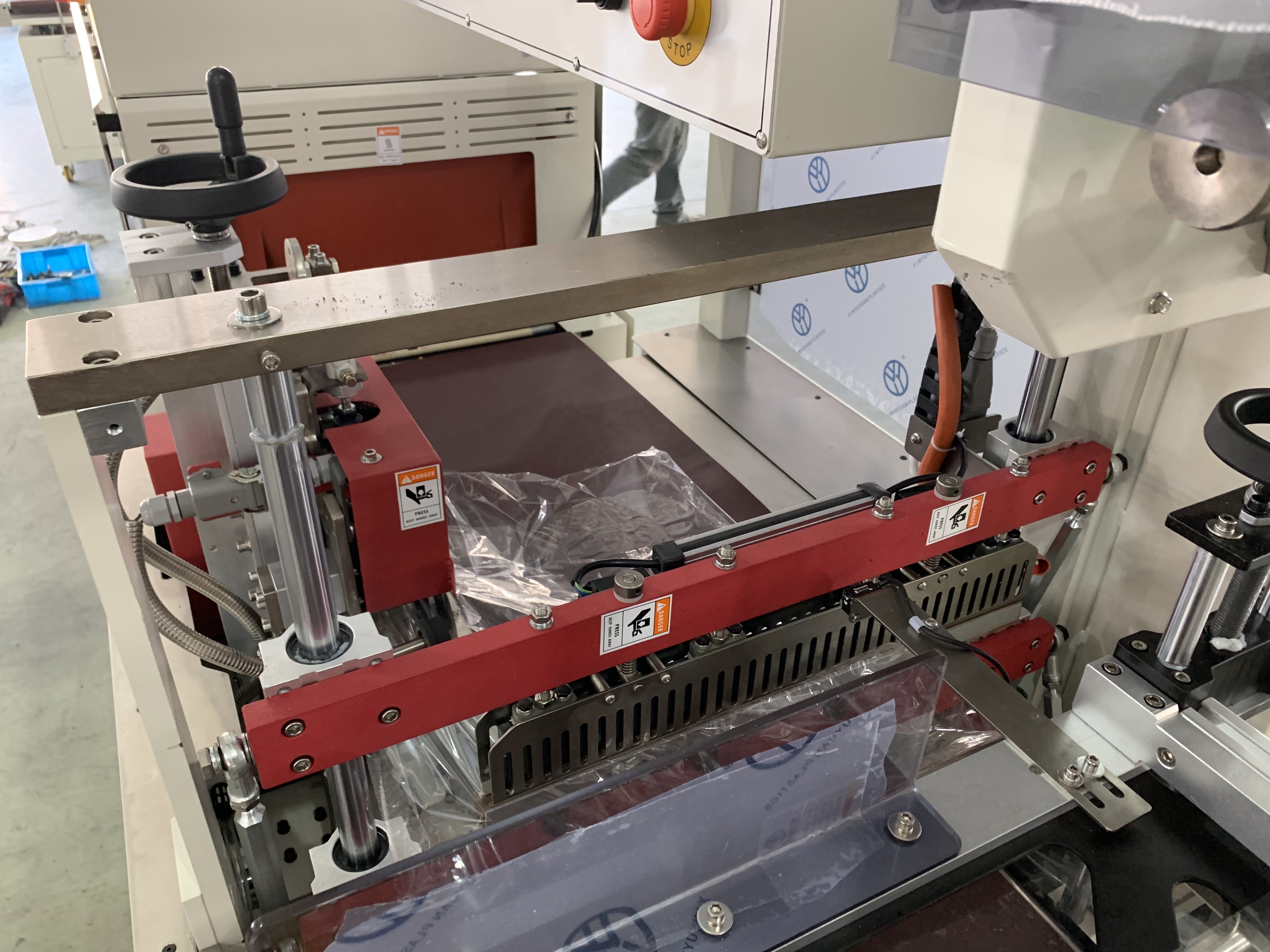

  • Special durable alloyed sealing knife with anti-stick teflon coats makes sealing strong and has better performance of heat conduction.
  • Side sealing line can be adjusted in the center of product or other desired position.
  • Film perforating wheels can be adjusted or removed easily.
  • Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. packing length can be detected by the sensor automatically.
  • Operate easily and conveniently by moveable control panel.
  • Adopt siemens plc and colorful touch screen, omron temperature controller, timer, relay, switch, and sensor.
  • A pair of photoelectric switch in vertical for thin products.
  • Optional sensor for transparent products.
line divider
MODEL RG-730
Sealing Type Continuous Sealing
Installed Power 380V/50-60HZ/3Phase
Packing Capacity Max. 40 Packs per Minute (Depends on Product Size)
Sealing Height 220MM
Packing Width 500MM
Conveyor Speed Variable, 30M/Min
Film Thickness 12-30 Micron (Minimum-Maximum)
Packing Size Width + Height < 600MM
Film Type Center Folded POF Film
Max Film Roll Size 900MM (Width) X 280MM (Outer Diameter)
Power Consumption 2 KW
Working Height 780-850 MM
Air Pressure 0.5MPA (5 BAR)
Sealing Knife Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
Machine Material Carbon Steel
Sealing Machine Dimensions 2600 X 1450 X 1680 MM
Shrink Tunnel
Power Supply 380V/50-60HZ/3Phase
Oven Size 1500MM (L), Entrance 600(W) X 300(H) MM
Conveyor Speed Variable, 40 M/Min
Conveyor Chains with Rotating Silicon Coated Rods
Rated Power Consumption Max. 7 KW
Working Height 780 - 850 MM
Machine Material Carbon Steel
Tunnel Machine Dimensions 1800 X 980 X 1560 MM
Weight (Net/ Gross) 1000KGS/ 1100KGS (For Reference Only, Including Sealer and Tunnel)
line divider

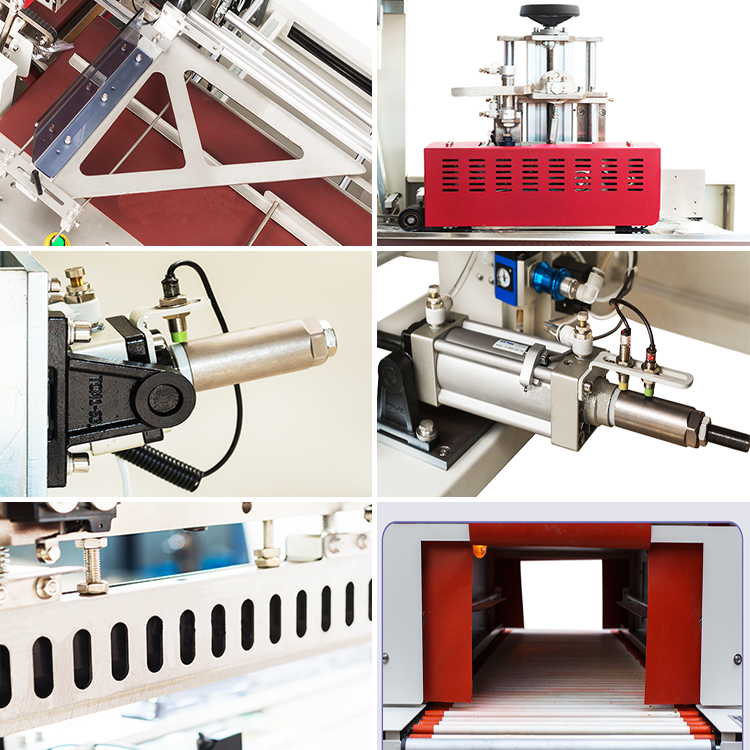

Automatic Heat Shrink Packing Machine Spec Detail
line divider

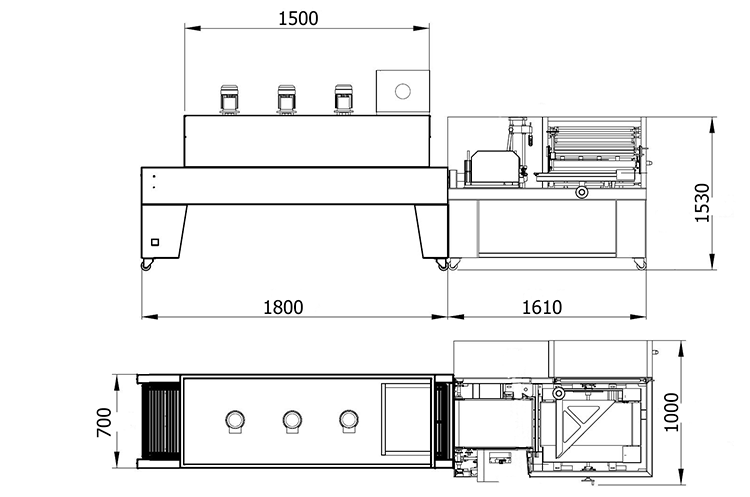

Automatic Shrink Wrapping Process Detail 1 Automatic Shrink Wrapping Process Detail 2

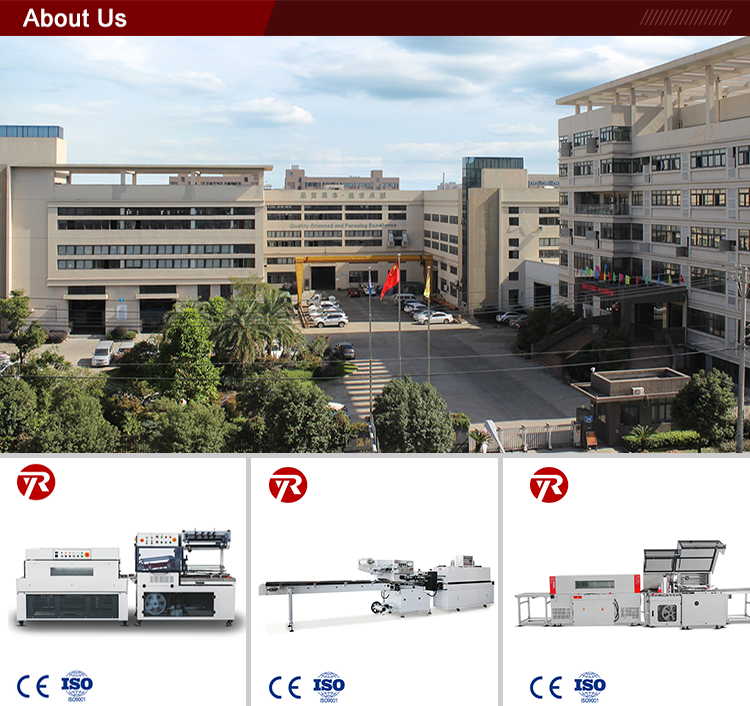

We are a technology-based enterprise, a professional manufacturer of automatic heat shrink packing machinery. In the shrink wrapping industry, we have always been a pioneer in improvements, targeting high-quality packaging machines without compromise in quality.

We are well known for providing the highest quality in packaging appearance, machine availability, and efficiency. Many of our machines accompany customers throughout their working life. Our ISO and CE certified shrink packing equipment includes automatic L sealers, automatic continuous sealers, automatic horizontal flow sealers, automatic sleeve sealers, shrink tunnels, and more.

The broad scope of expertise of our engineers has led to the development of an equally wide range of machinery, capable of solving virtually any shrink packaging problem. Besides complete shrink wrapping systems, we also produce customized projects for infeed and discharge automation, such as product package grouping, automatic feeding, paper inserting, product aligning, rotating, and labeling. No matter where you are, we have a suitable shrink packaging solution for your products!

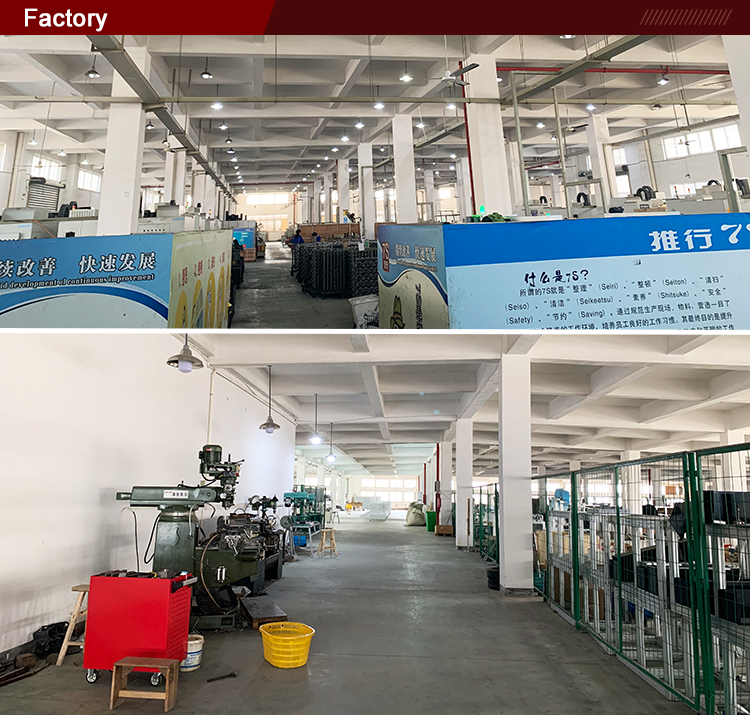

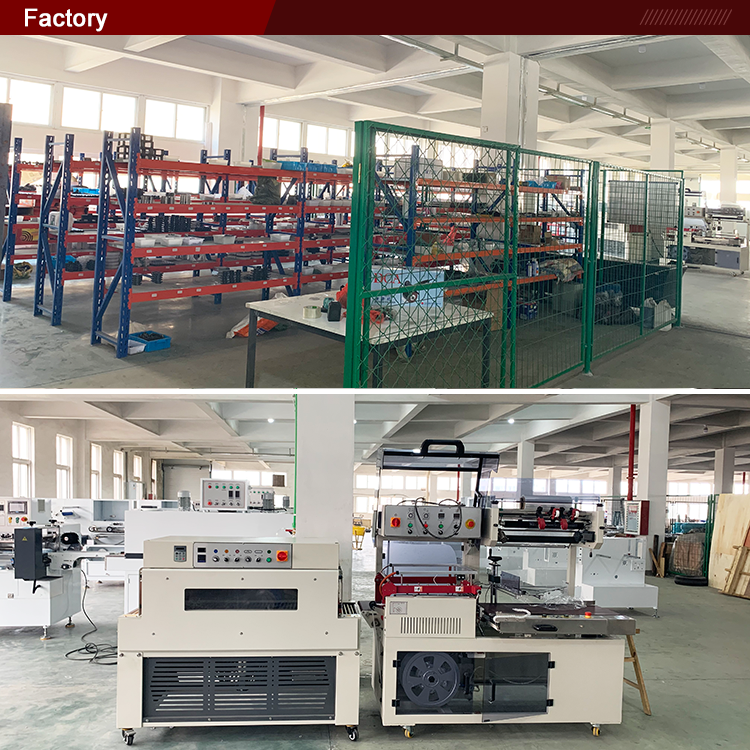

Packaging Machine Factory Manufacturing 1 Packaging Machine Factory Manufacturing 2 Packaging Machine Factory Manufacturing 3 Packaging Machine Factory Manufacturing 4 Packaging Machine Factory Manufacturing 5
Frequently Asked Questions
Are you a trading company or manufacturer?

We are a manufacturer. We have our own factory and holding export entitlement.

How fast can you deliver the machine?

Standard machine delivery time is 7 days, and customized machine delivery time is 20-30 days.

How does the machine guarantee work?

We guarantee the machine for 1 year. During this period, if any defective parts (excluding heaters and sealing knives) are found, we will courier replacements to you free of charge.

What types of machines do you produce?

Our ISO and CE certified shrink packing equipment includes automatic L sealers, automatic continuous side sealers, automatic horizontal flow sealers, automatic sleeve sealers, shrink tunnels, conveyor belts, etc.

What kinds of packaging applications are your machines used for?

Applications are widely used in beverage, food, pharmaceutical, stationery, toy, auto parts, cosmetics, printing, hardware, electrical appliances, and other industries.

What thickness and type of film does this machine support?

The machine uses Center Folded POF Film with a thickness range between 12 and 30 Microns.
