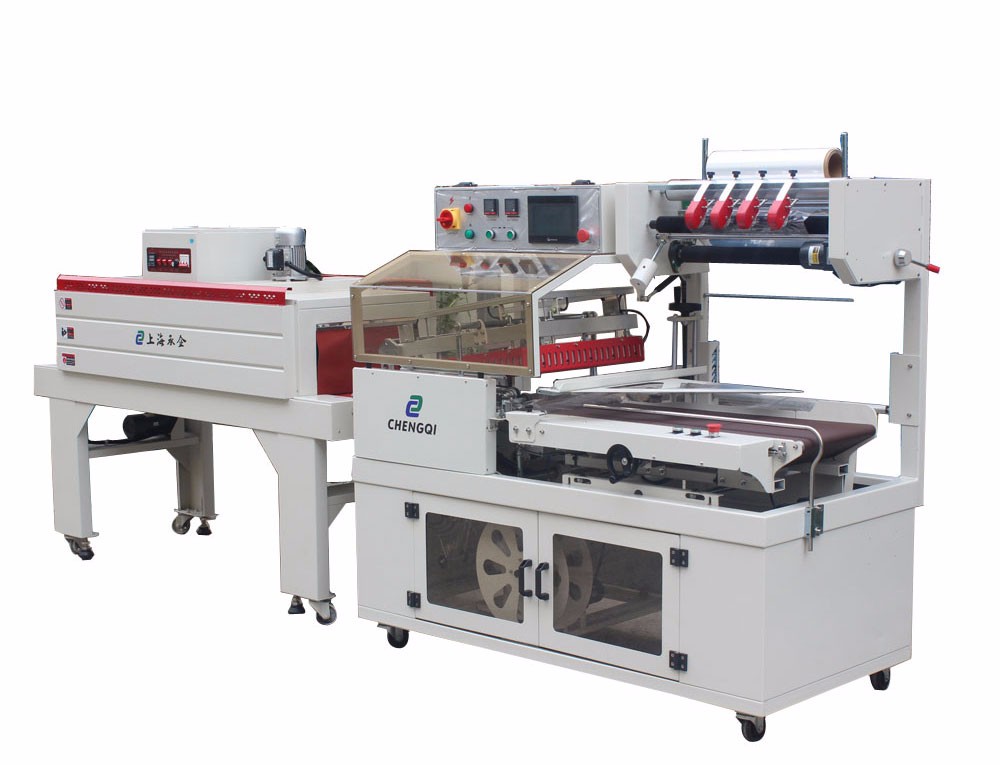

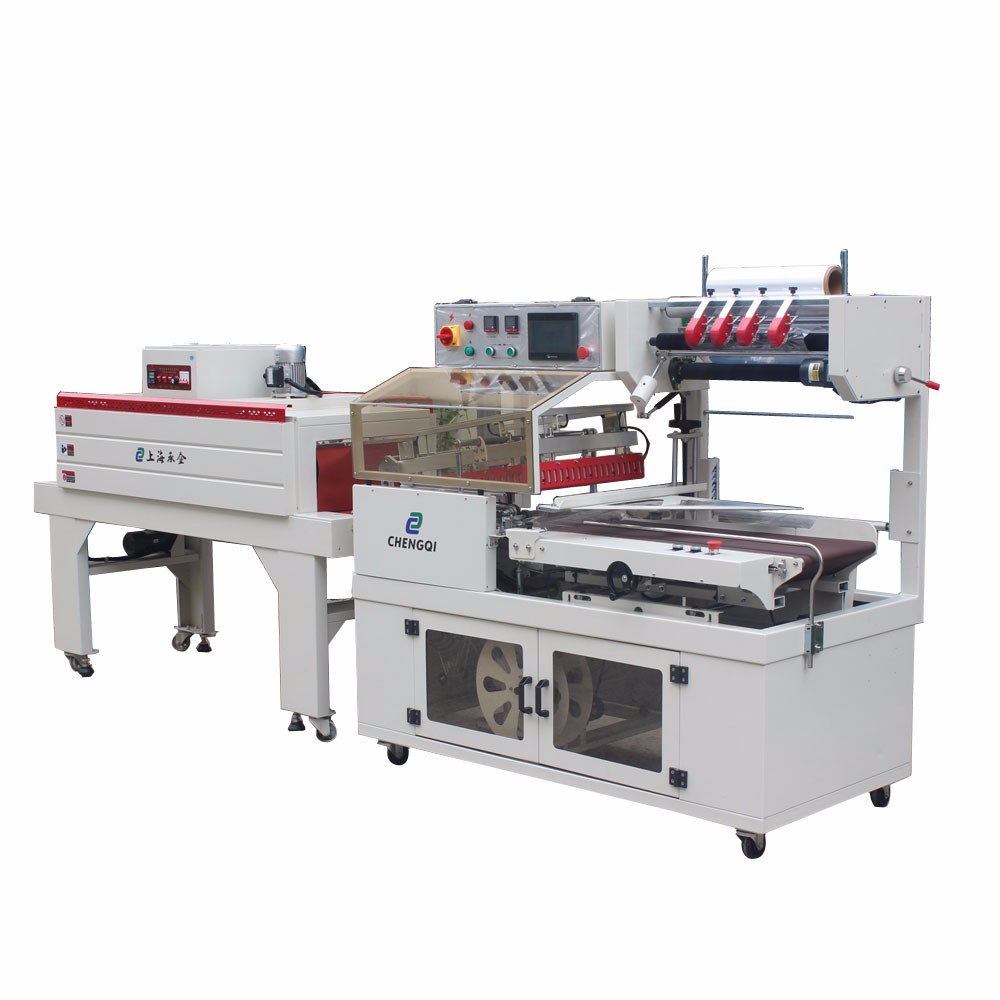

Automatic shrink wrapping machine shrinking tunnel the sealing machine L Type Shrink Tunnel Shrink Wrapping Machine
Performance features
- High speed servo drive L bar sealer, do not need connect with air pressure.
- FQL450S is fully automatic L bar sealer which is widely used in mass production packaging line with high efficiency.

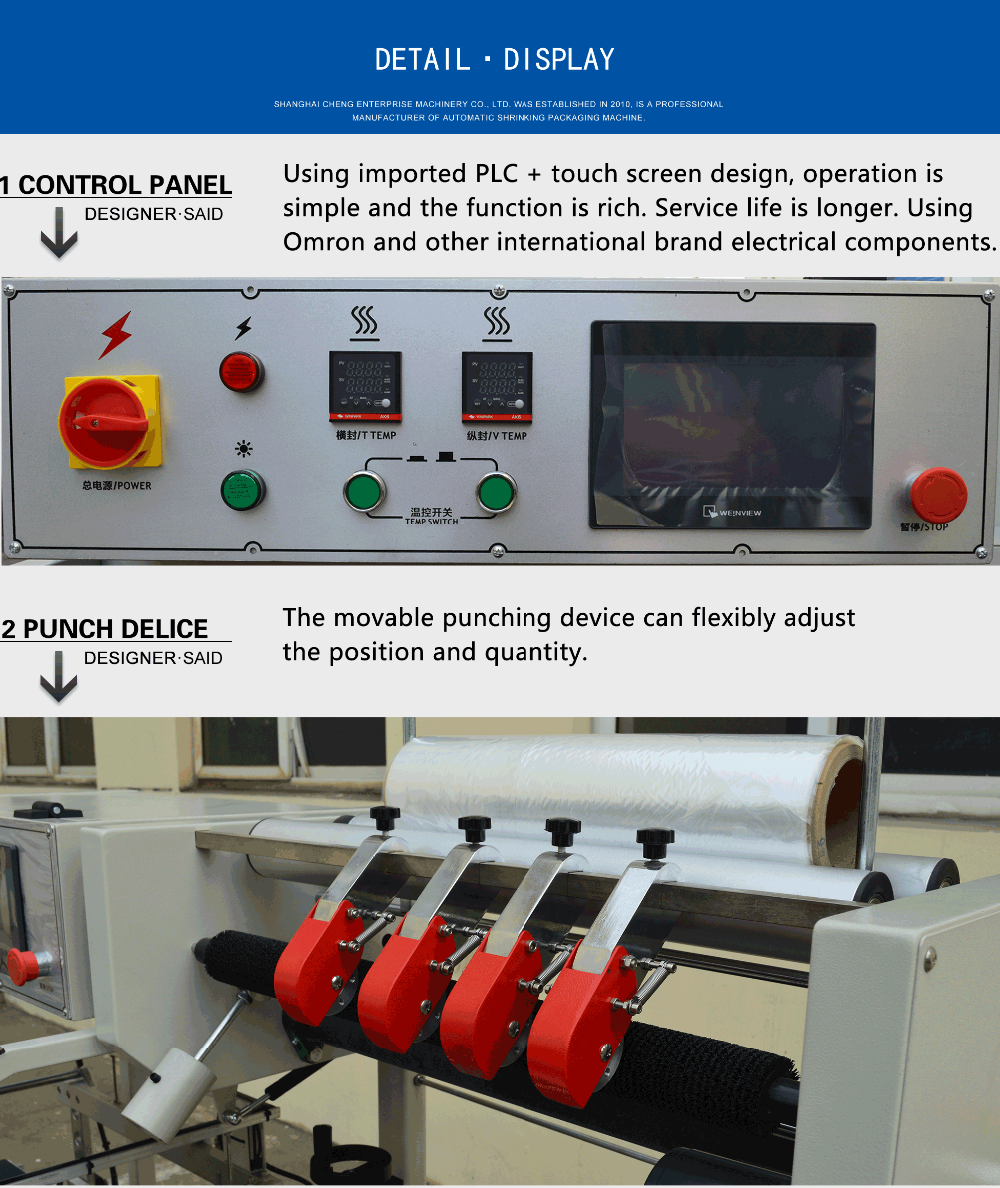

- With movable type punching device, you can switch the punching position and control the pinholes number.

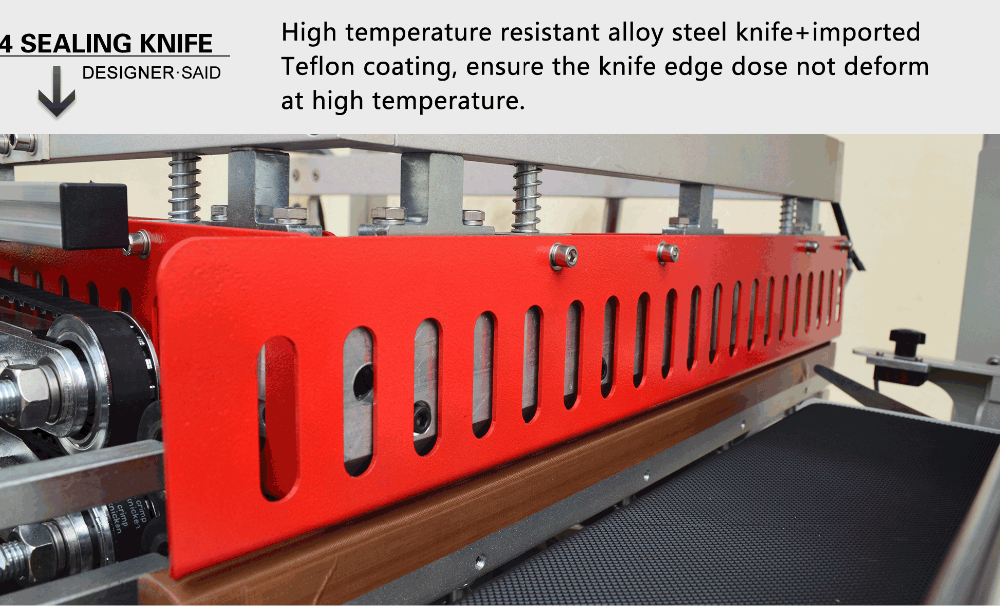

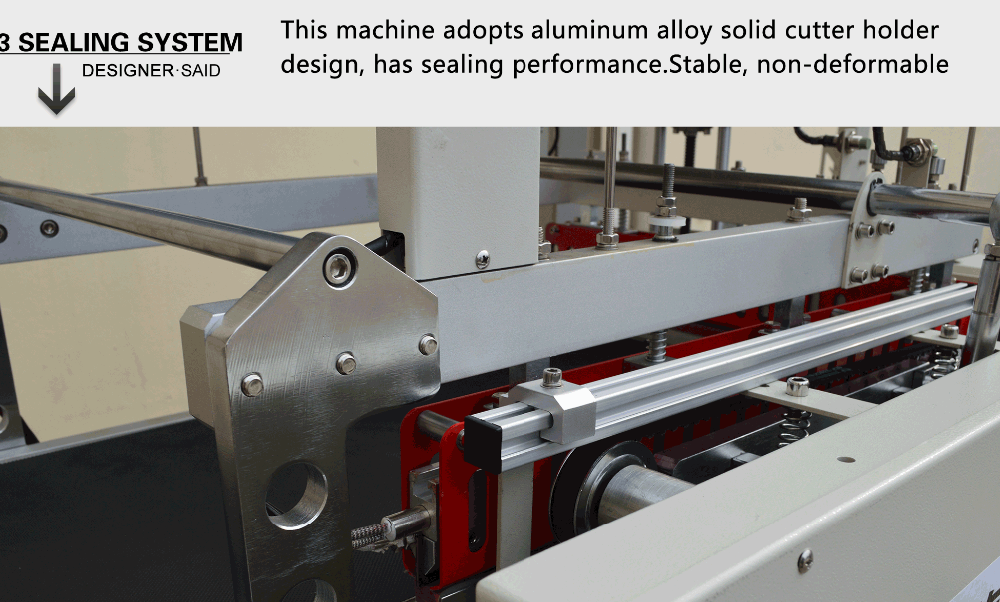

- Sealing knife uses the special steel knife with Daikin Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking with zero pollution.
- Using digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate which can be set arbitrarily.
- Imported photoelectric sensor, positioning accuracy, fast response.
- Adopt Panasonic PLC programmable controller and WEINVIEW 7-inch man machine interface, simple operation.

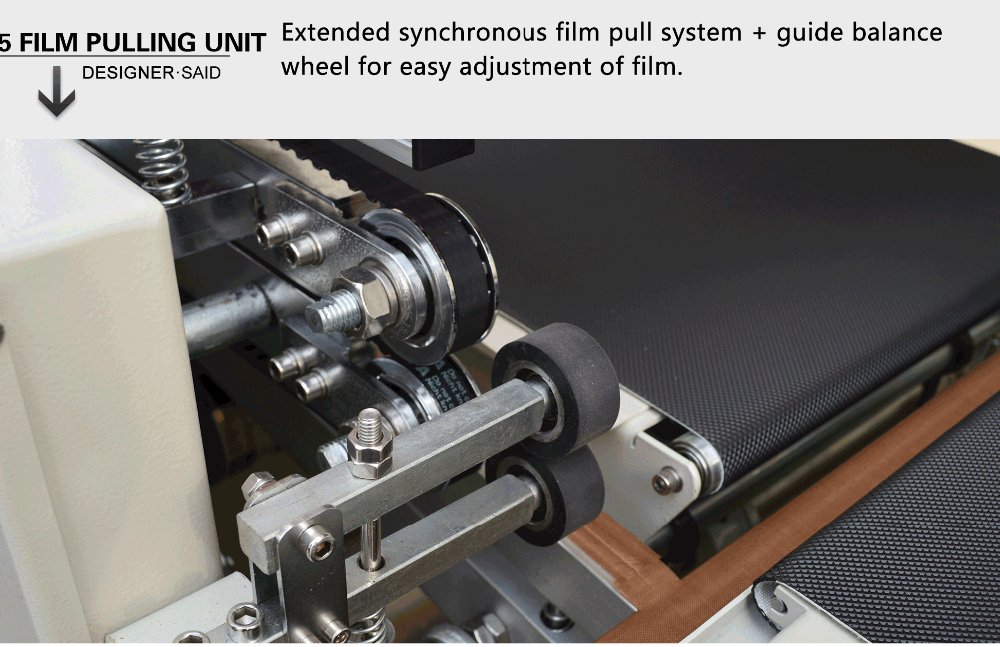

- Manual adjustment film-guide system and feeding conveyor platform make the machine suitable for different width and height items.
- Equipped with automatic scrap recycling mechanism, built-in film broken alarm function.
- The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting.
- Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.
- The entire machine realizes unmanned operation with the production line connecting.
- Apply to daily necessities, food, cosmetics, pharmaceutical, hardware and other industries shrinking packaging.
- BS4522N shrink tunnel adopts the design of internal double recycling air fan, so that the hot air in the tunnel is even, constant temperature.
- The machine uses stainless steel finned heating tube which has a long service life and high heating efficiency.
- Chain bar conveying, using hollow steel covered with durable imported silicone tube, each bar can rotate freely.
- Suitable for POF, PVC, PP, PET heat shrinkable film.
Technical Parameter
L bar sealer
| Model |
FQL-450S |
| Power supply |
220V 1/3ph 50/60Hz |
| Power |
1.8KW |
| Packing Size |
(L+H)＜550mm (W+H)＜430mm (H)＜130mm |
| Sealing Size |
(L)550×(W)450mm |
| Table height |
800mm |
| Packaging speed |
30～50pcs/min（Determined by product size） |
| Driving type |
Servo motor |
| Shrink film |
POF fold film |
| Shrink film size |
(W)≤530mm, (D)≤250mm, (weight)≤35KG |
| Sealing form |
L type full closed |

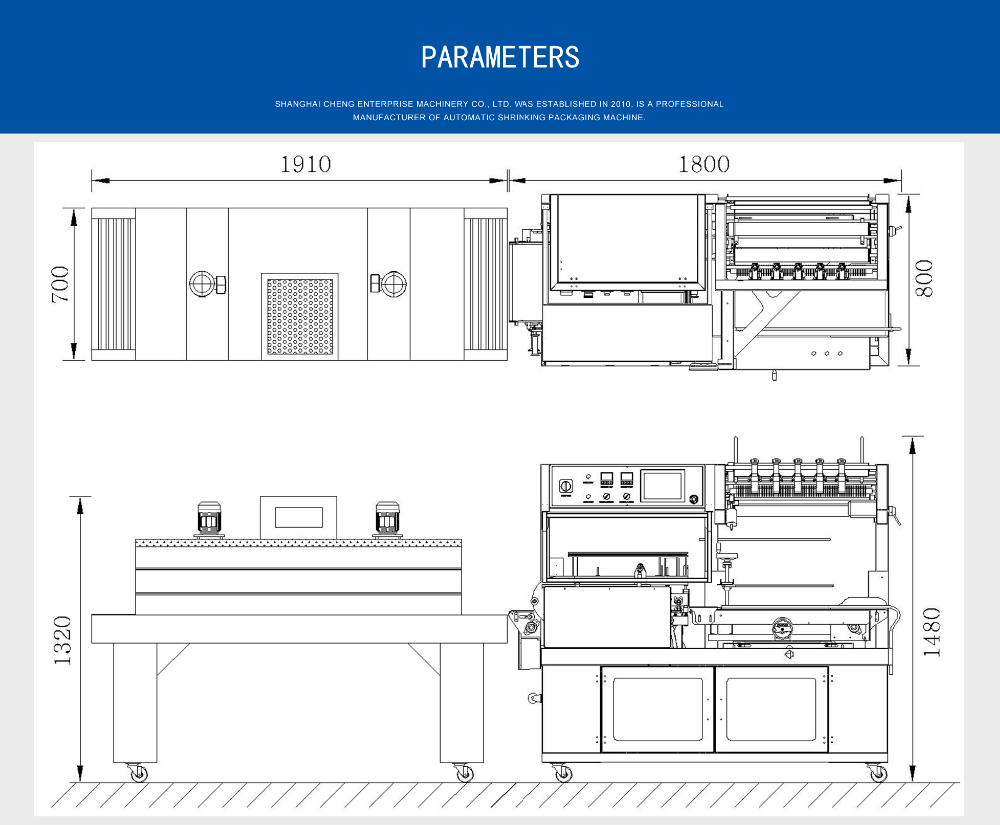

| Overall dimension |
(L)1800×(W)800×(H)1480mm |
| Package size |
(L)1850×(W)900×(H)1630mm |
| G./N. weight |
380/350KG |
Heat shrink tunnel
| Model |
BS4522N |
| Power supply |
380V 3ph 50/60 Hz |
| Power |
12KW |
| Table height |
780+50mm |
| Conveyor load |
30KG |
| Conveyor speed |
1-15m/min |
| Tunnel size(L×W×H) |
1500×450×220mm |
| Overall dimension(L×W×H) |
1910×700×1320mm |
| Package size(L×W×H) |
1960×800×1470mm |
| G./N. weight |
290/250Kg |

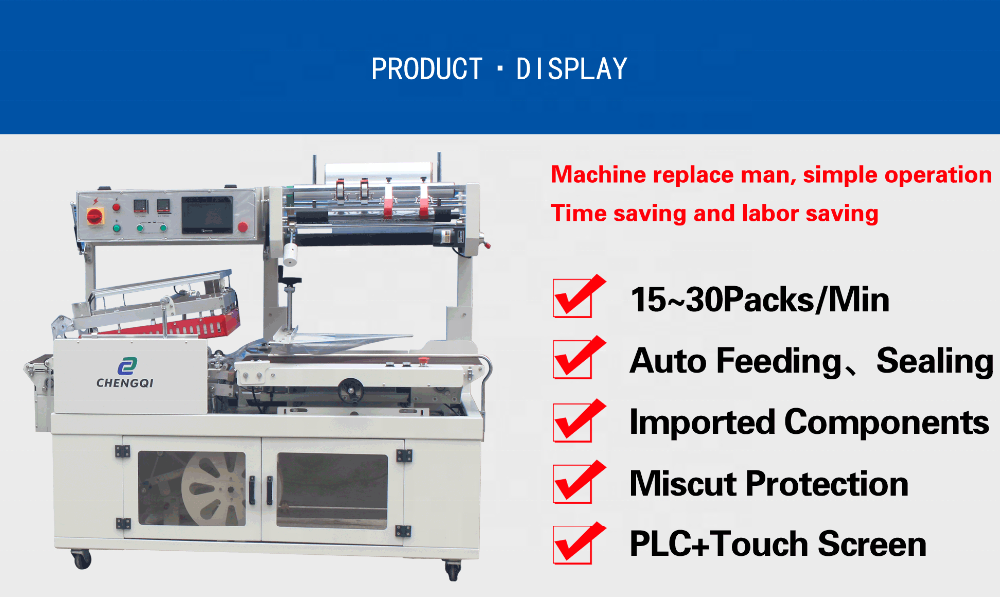

Detailed Images

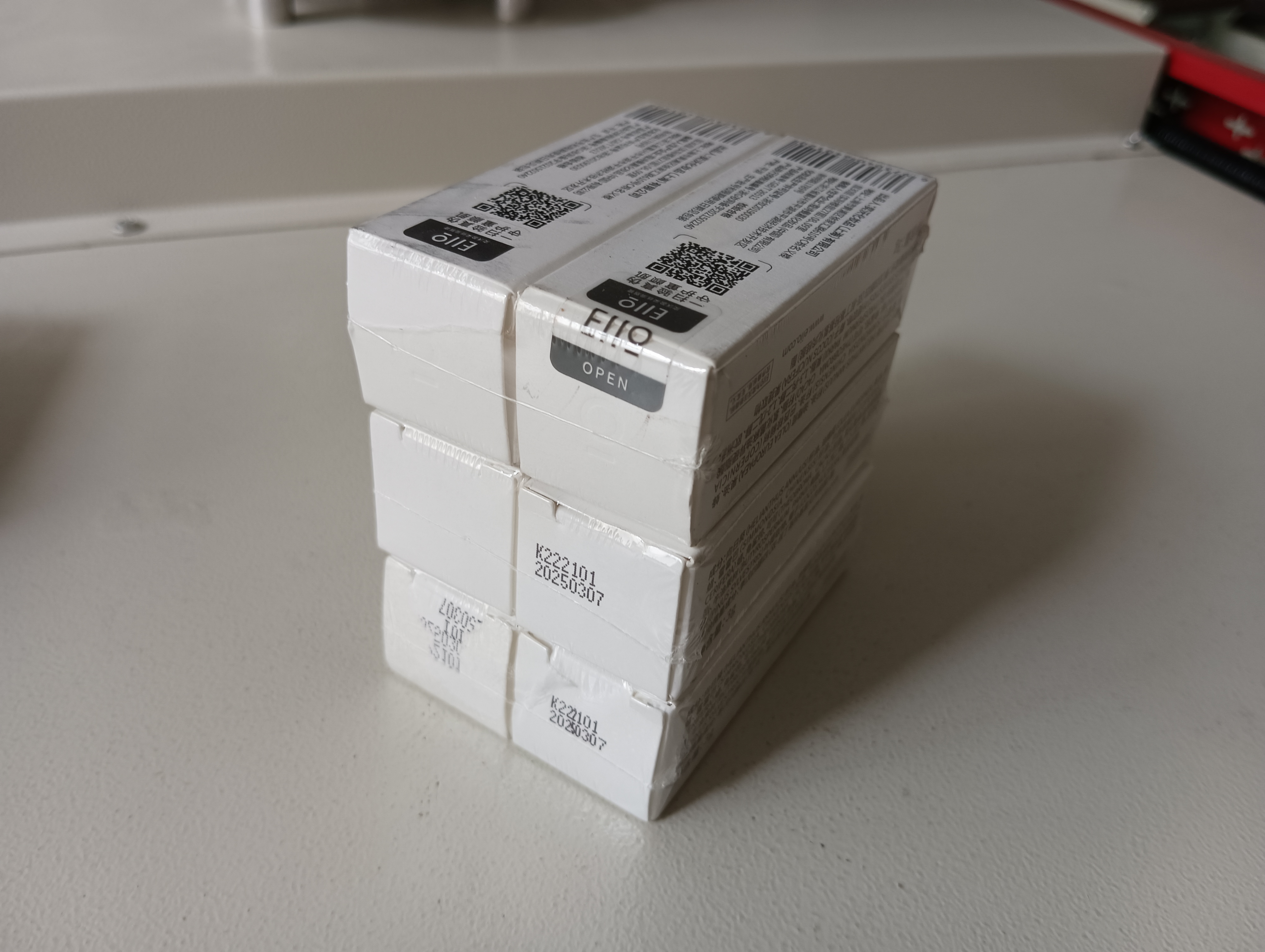

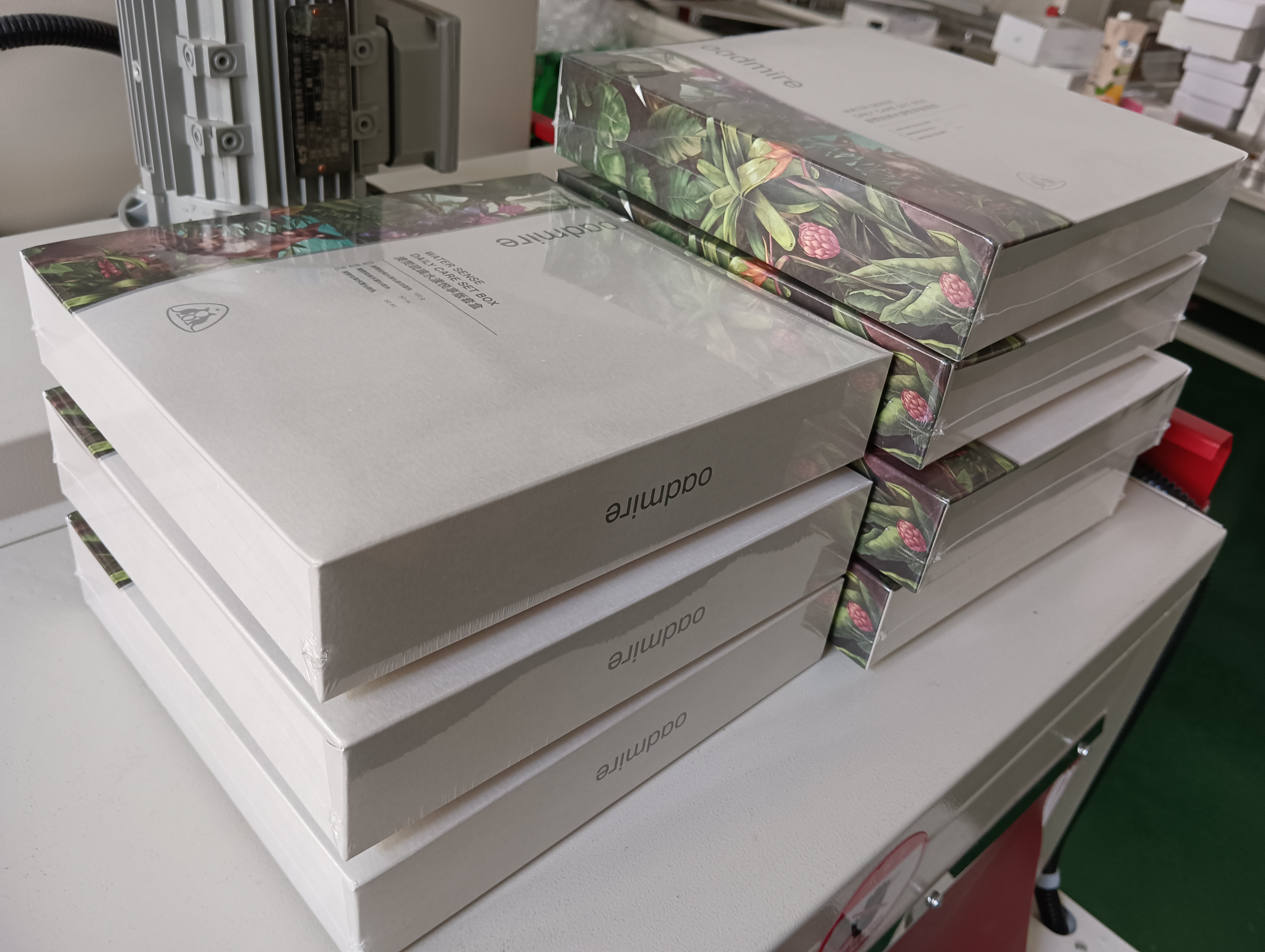

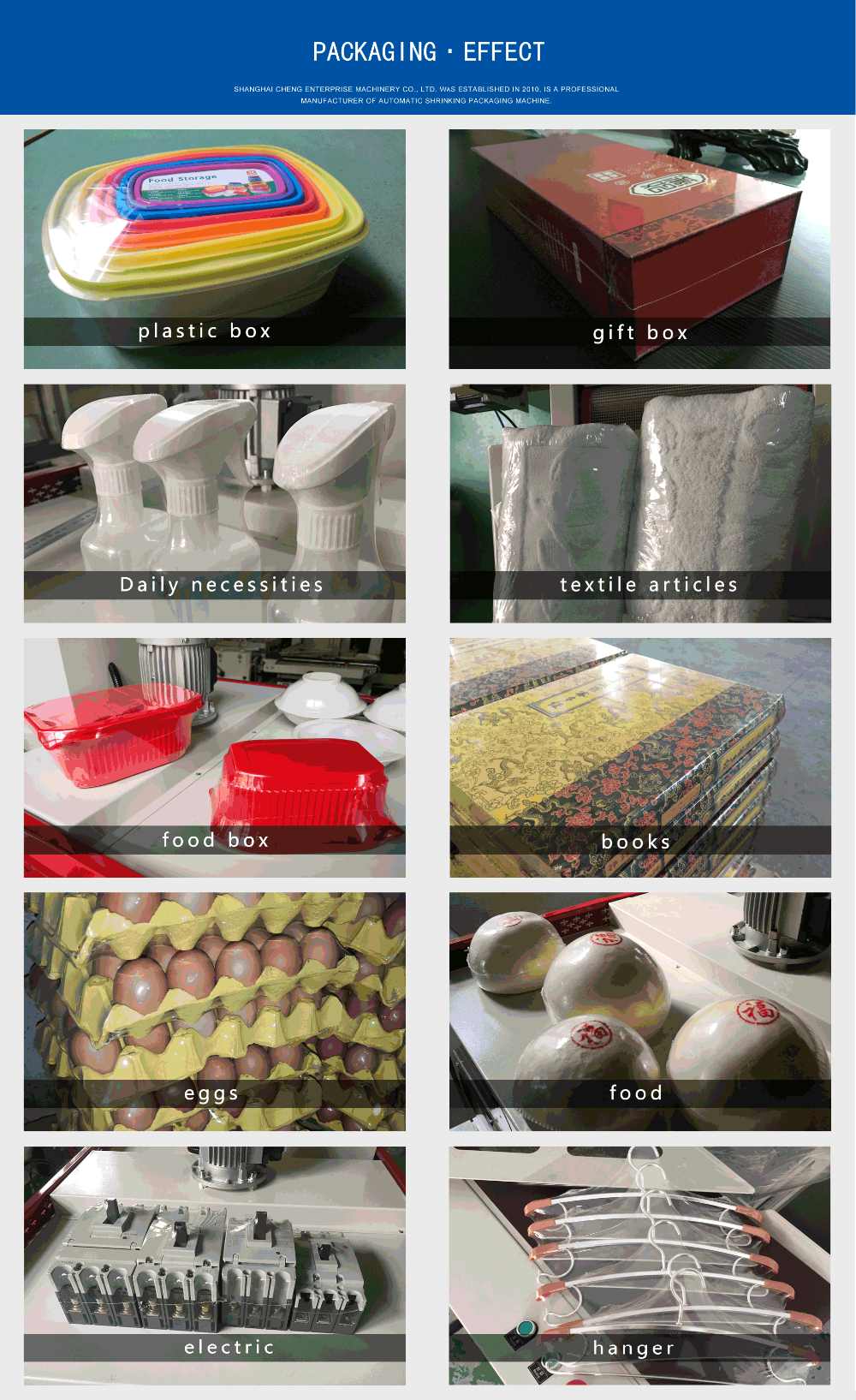

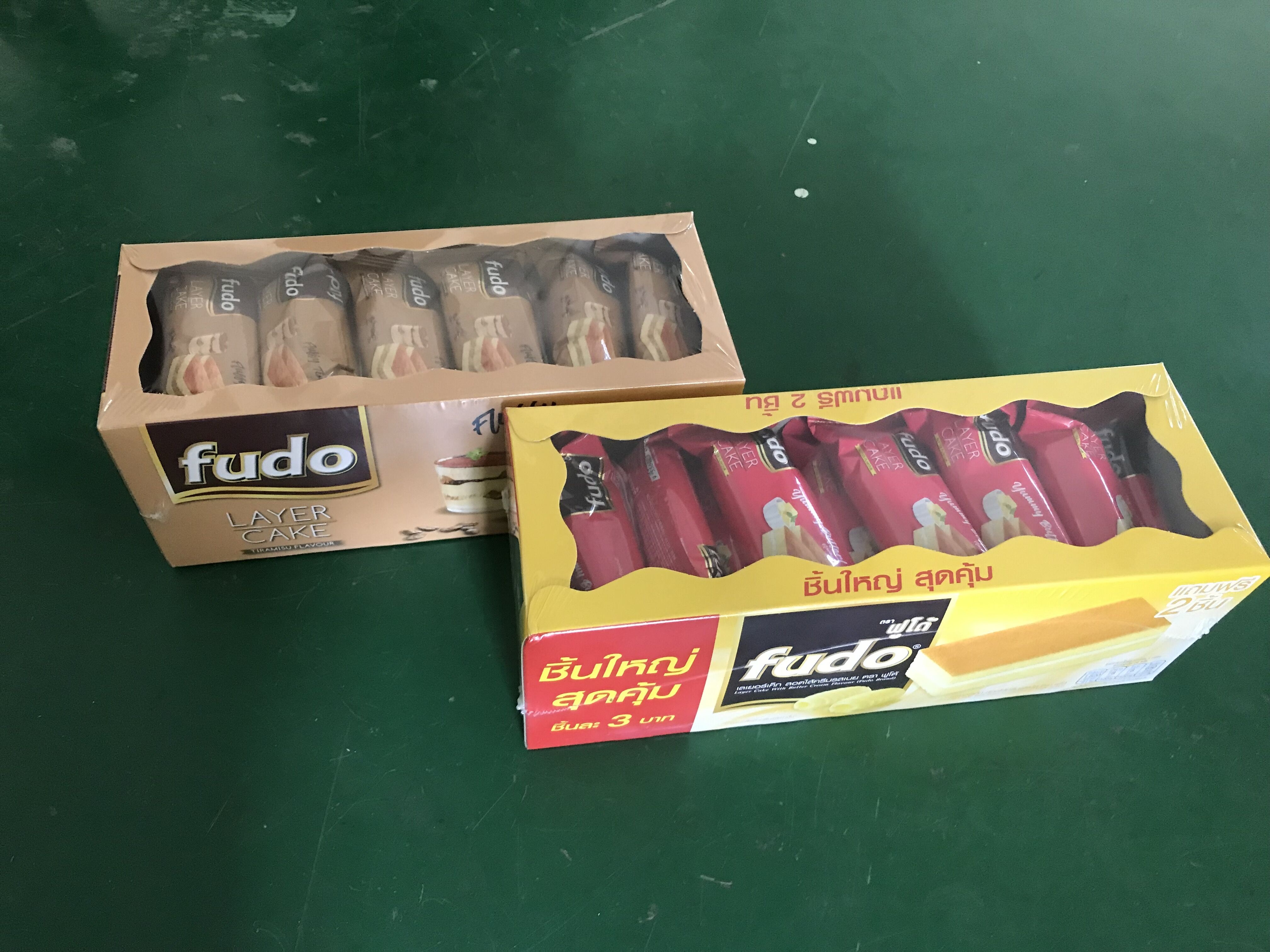

Application Range
Applies to software, food, cosmetics, printing, pharmaceutical, flooring, ceramic, beverages, hardware and other industries large quantities of shrink wrap.

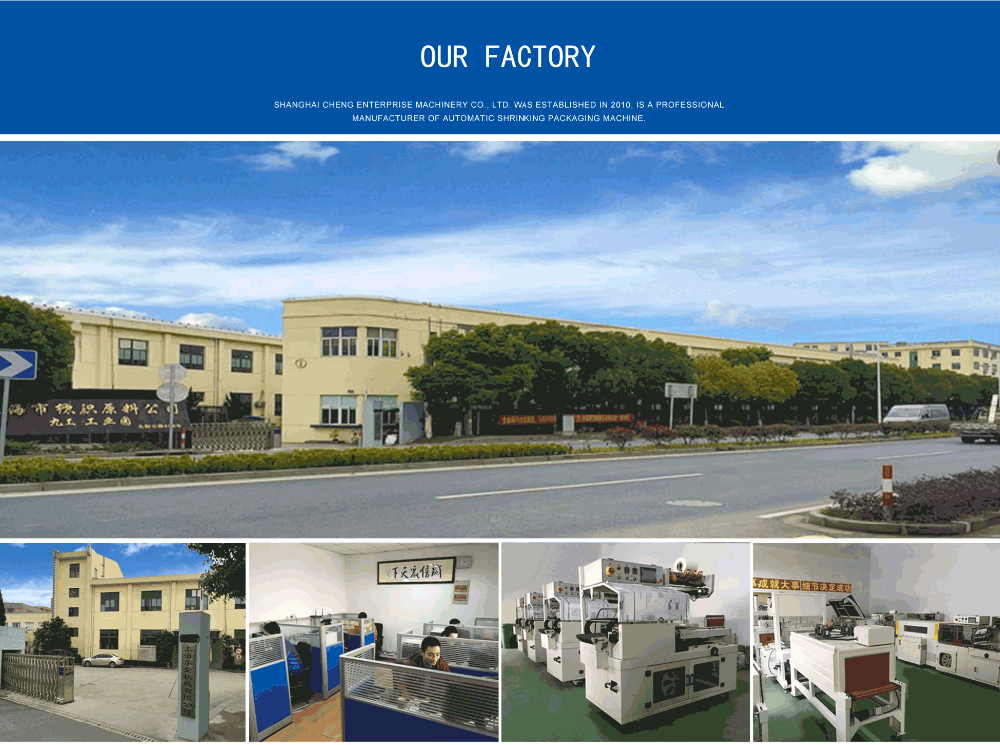

Our Company
Packing & Delivery
Packaging Details: Standard Export Wooden Box
Delivery Detail: Common specifications are available in stock
Our Service
- We can customize machine according to your requirements and your products.
- One year Warranty. We will replace the spare parts for free within one year which are non-man made damage except the wearing parts. After the guarantee, we will offer you the most favorable lifelong spare parts.
Frequently Asked Questions
How do we test your machine?
When the machine complete manufactured, we will send video for you check, you can also come to our factory to test and learn how to operate it.
What information shall I provide you when I need your offer?
Normally, please tell us what product you plan to pack and please send us your product size (L*W*H) with weight then we can quote exactly what you need.
What types of shrink films are compatible with this sealing machine?
This machine is designed to work efficiently with multiple heat shrinkable films, including POF fold film, PVC, PP, and PET shrink films.
How does the L-bar sealer achieve clean cuts without smoking?
The sealing knife utilizes special steel coated with Daikin Teflon. This advanced anti-stick and anti-high temperature coating ensures the sealing line remains clean, smoke-free, and strong without cracking or coking.
Is the operation of the packaging machine automated?
Yes, the machine features a Panasonic PLC programmable controller and a WEINVIEW 7-inch touch-screen interface, allowing for smooth, unmanned automated operation when connected to a production line.
What safety measures are implemented on the sealing blade?
The sealing blade is equipped with an integrated automatic protection function that instantly stops operation upon detecting obstructions, preventing accidental cutting and ensuring operator safety.
