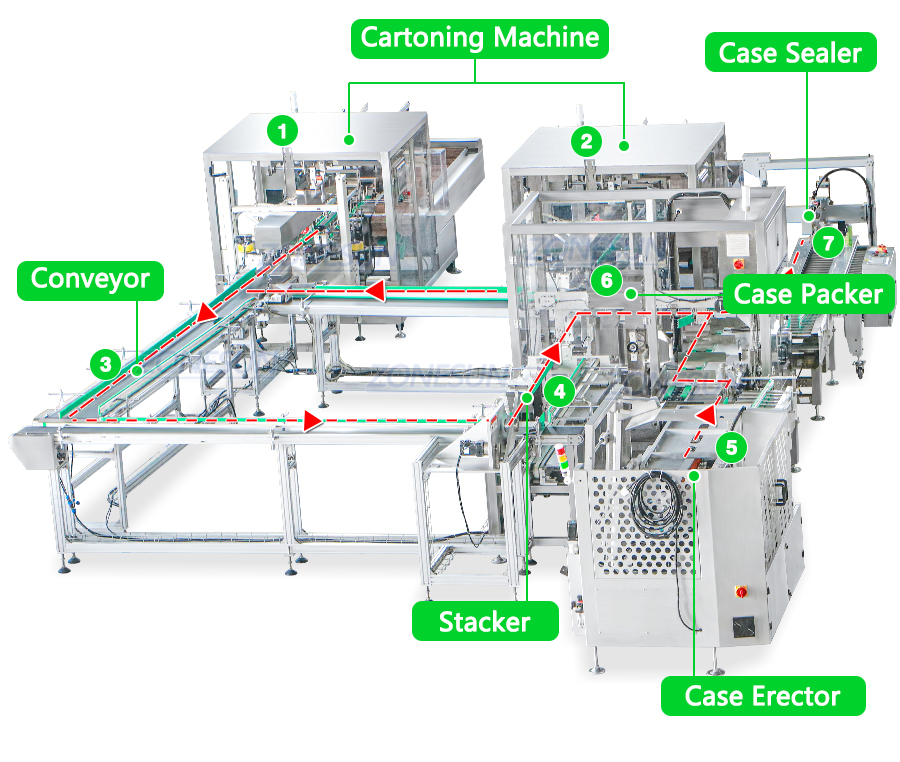

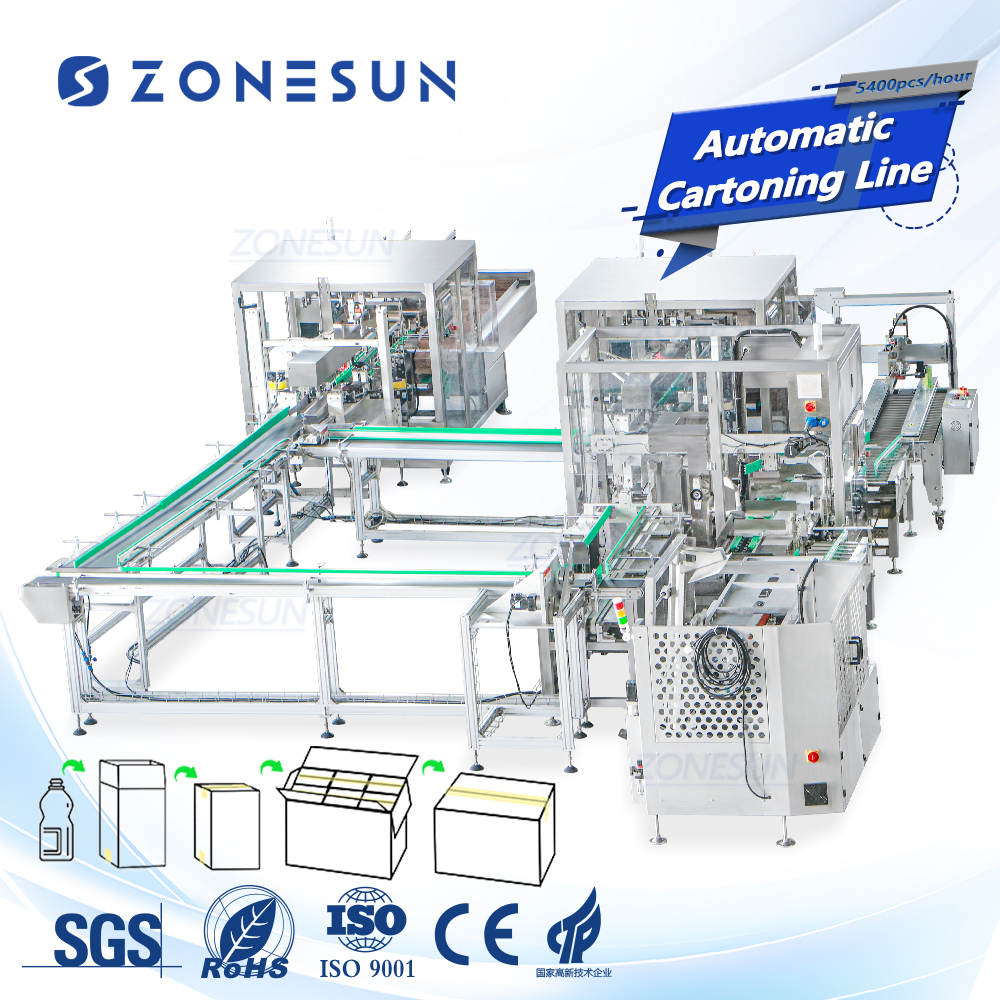

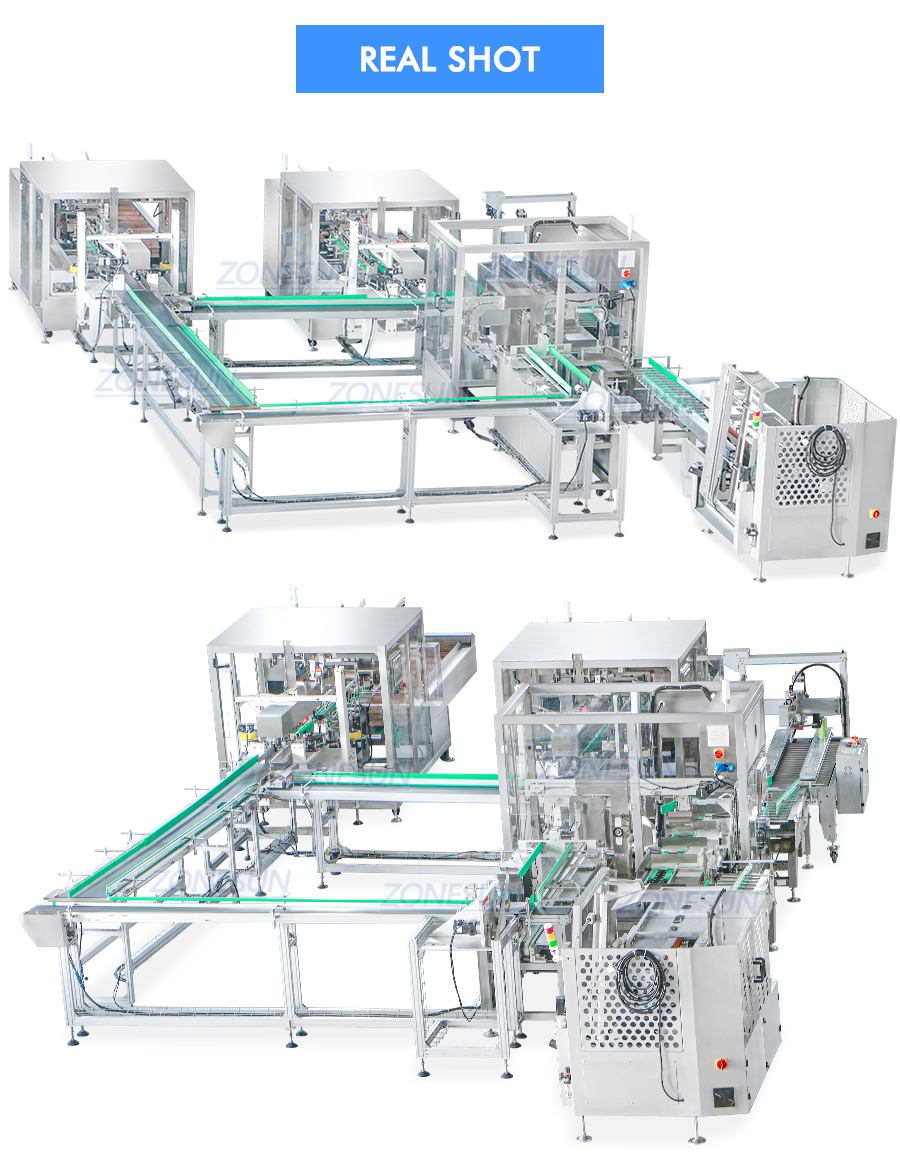

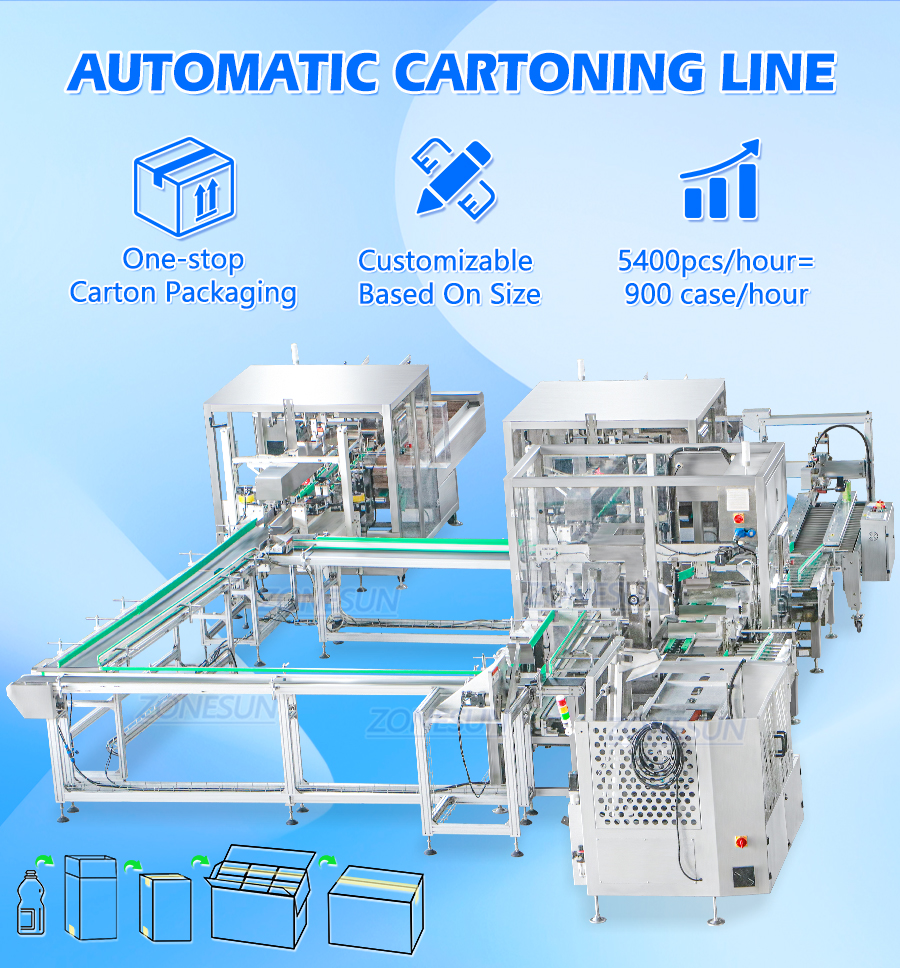

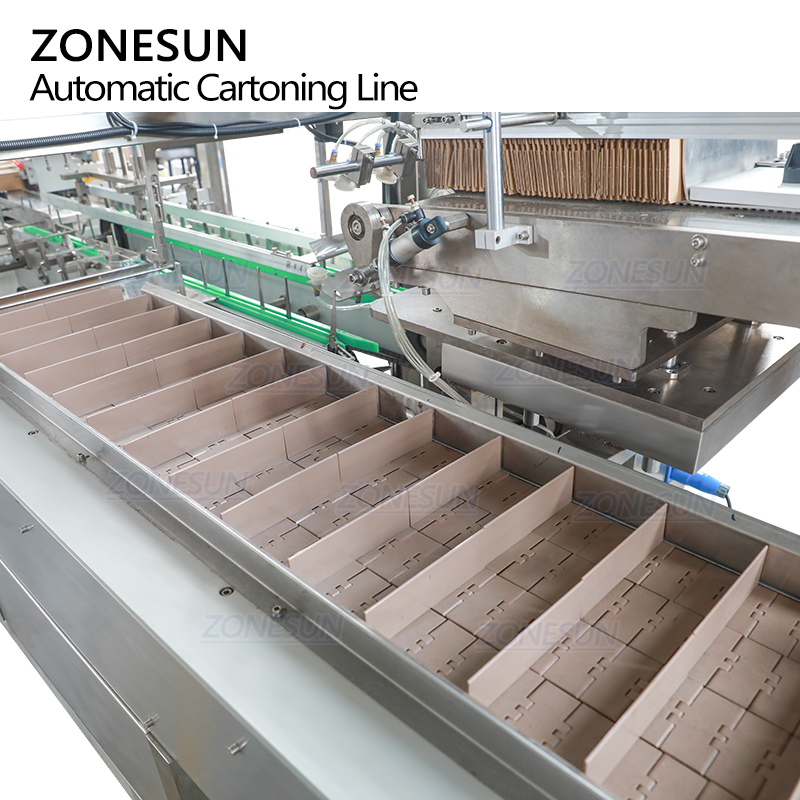

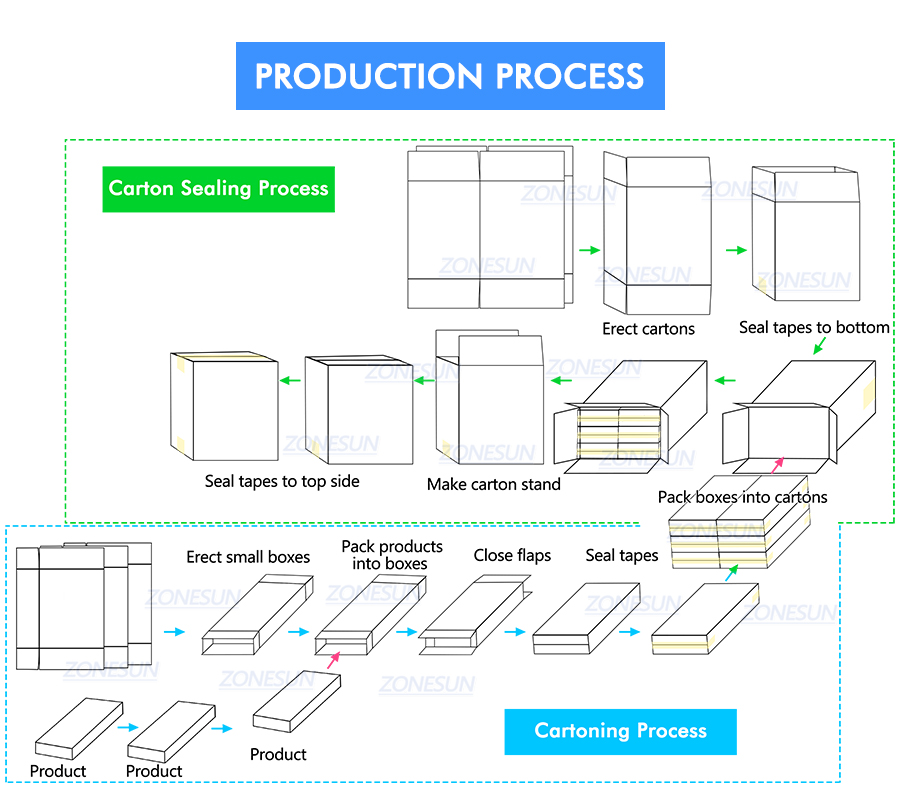

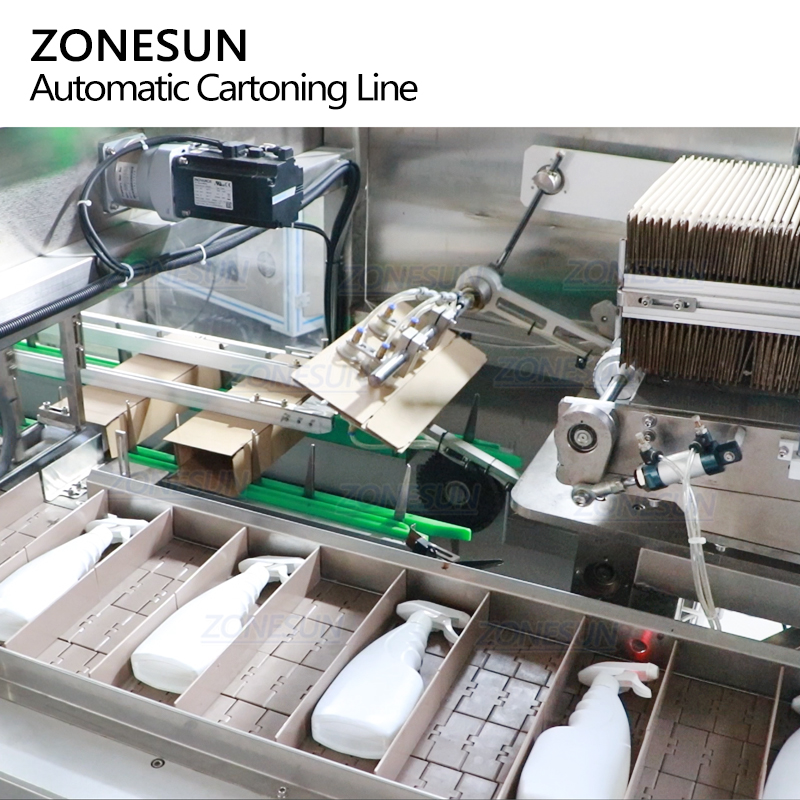

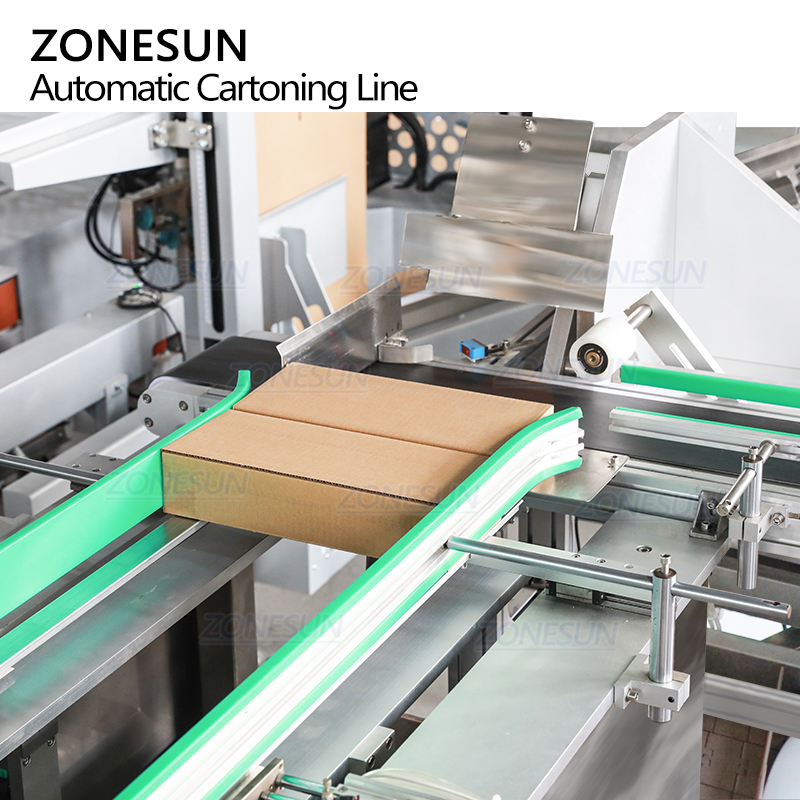

This carton packaging system integrates cartoning, case erecting, case packing, and case sealing functions, achieving a full automated operation from product loading to case sealing. It ensures precise cartoning, automatic stacking, and efficiently pushes the stacked cartons into cases for quick sealing. This packaging system supports customizable configurations. Its fully automated design greatly enhances efficiency and reduces labor costs.

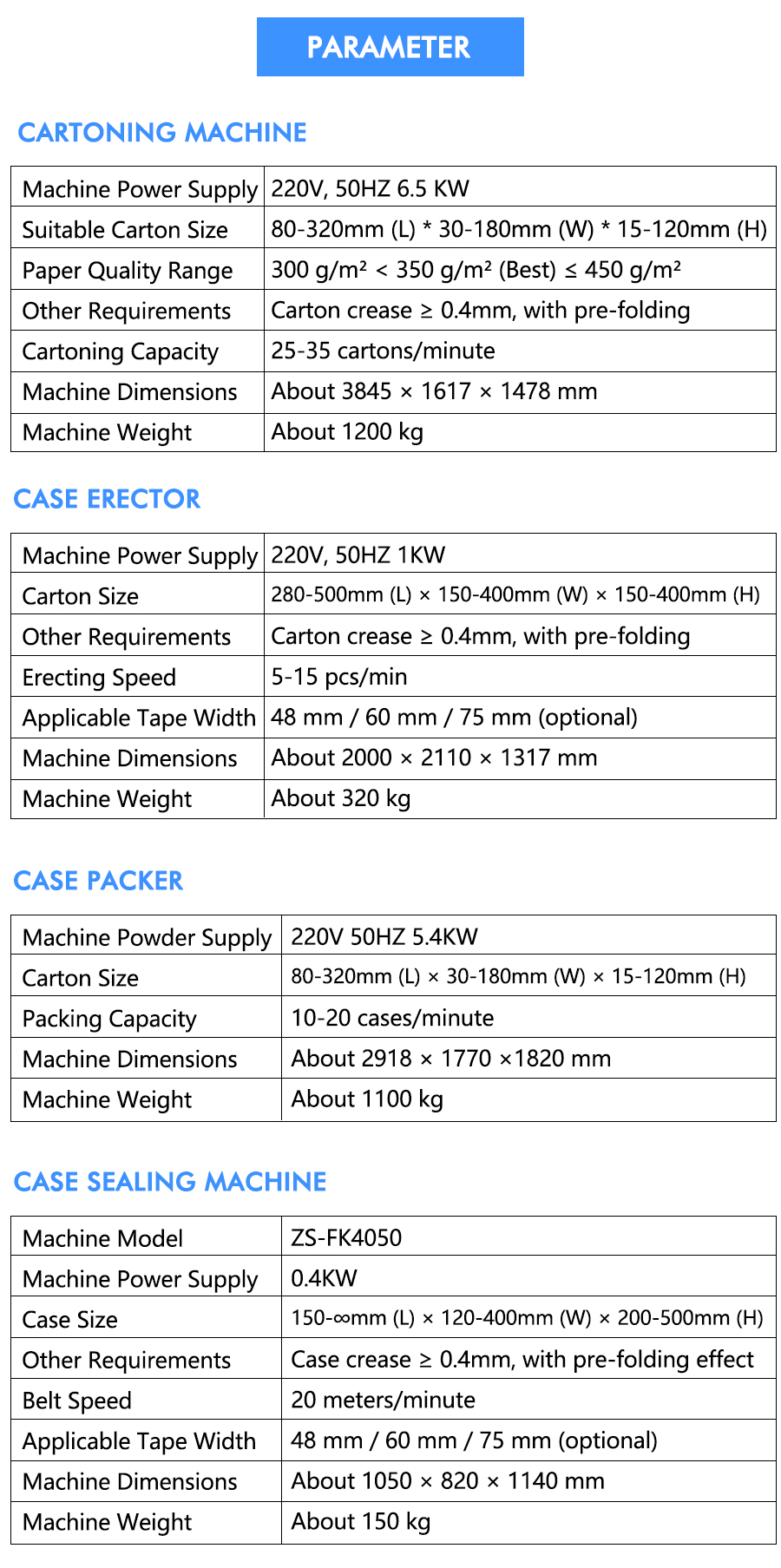

Machine Power Supply
220V, 50HZ 6.5 KW
Suitable Carton Size
80-320mm (L) * 30-180mm (W) * 15-120mm (H)
Paper Quality Range
300 g/m² < 350 g/m² (Best) ≤ 450 g/m²
Other Requirements
Carton crease ≥ 0.4mm, with pre-folding
Cartoning Capacity
25-35 cartons/minute
Machine Dimensions
About 3845 × 1617 × 1478 mm
Machine Weight
About 1200 kg
Machine Power Supply
220V, 50HZ 1KW
Carton Size
280-500mm (L) × 150-400mm (W) × 150-400mm (H)
Other Requirements
Carton crease ≥ 0.4mm, with pre-folding
Erecting Speed
5-15 pcs/min
Applicable Tape Width
48 mm / 60 mm / 75 mm (optional)
Machine Dimensions
About 2000 × 2110 × 1317 mm
Machine Weight
About 320 kg
Machine Powder Supply
220V 50HZ 5.4KW
Carton Size
80-320mm (L) × 30-180mm (W) × 15-120mm (H)
Packing Capacity
10-20 cases/minute
Machine Dimensions
About 2918 × 1770 × 1820 mm
Machine Weight
About 1100 kg
Machine Model
ZS-FK4050
Machine Power Supply
0.4KW
Case Size
150-∞mm (L) × 120-400mm (W) × 200-500mm (H)
Other Requirements
Case crease ≥ 0.4mm, with pre-folding effect
Belt Speed
20 meters/minute
Applicable Tape Width
48 mm / 60 mm / 75 mm (optional)
Machine Dimensions
About 1050 × 820 × 1140 mm
Machine Weight
About 150 kg

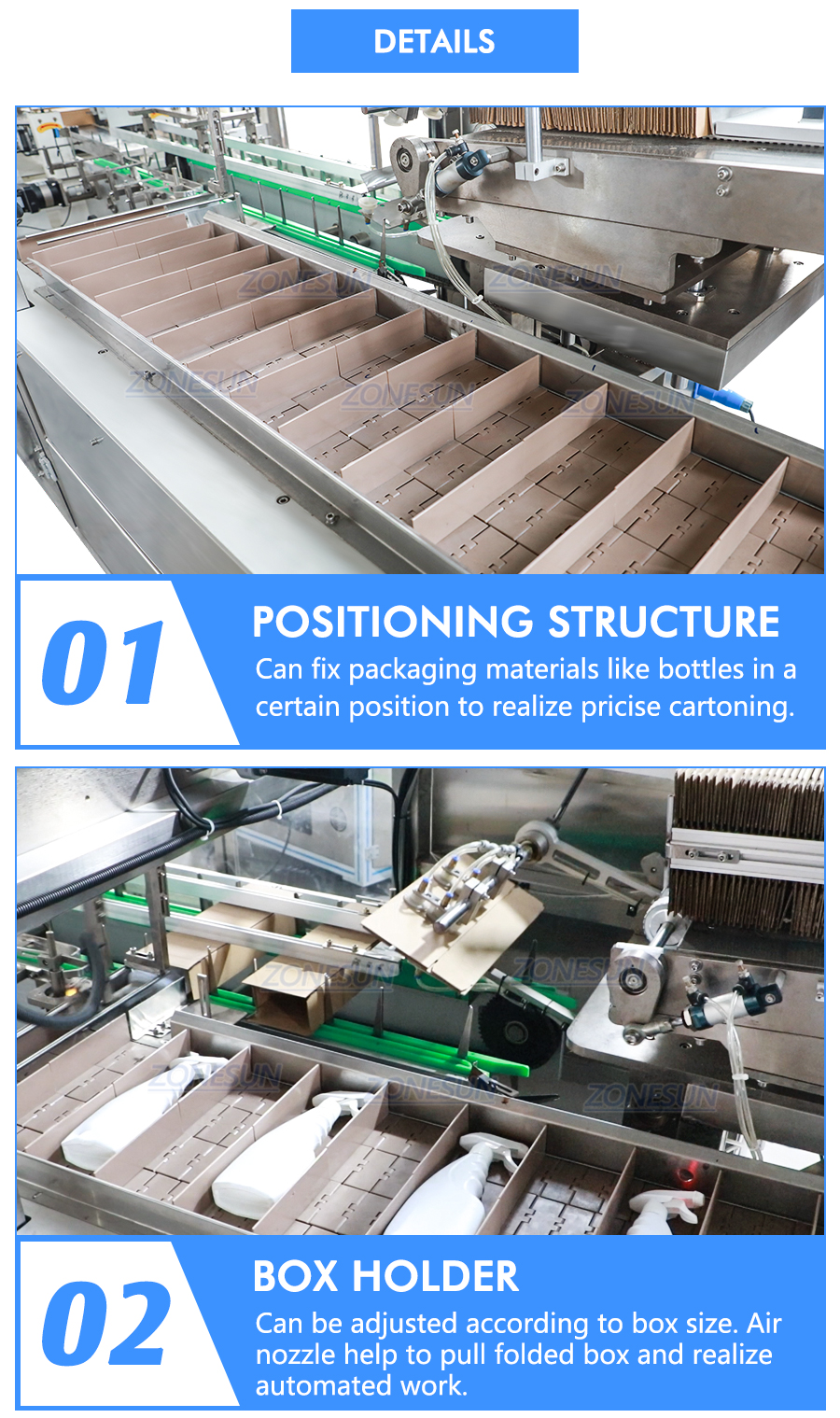

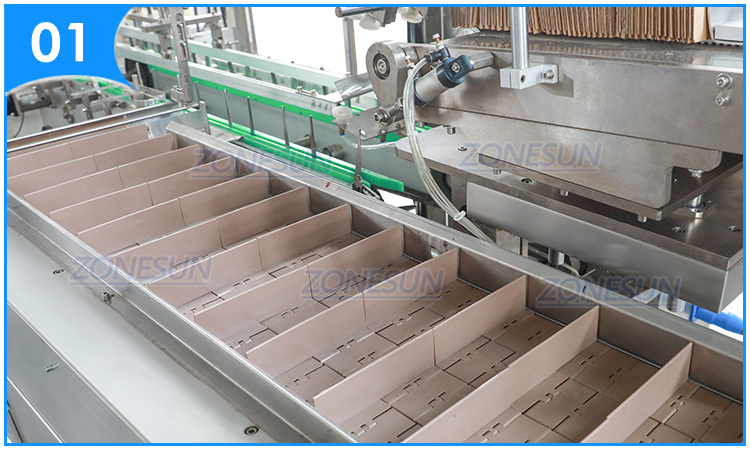

Positioning Structure
Can fix packaging materials like bottles in a certain position to realize precise cartoning.

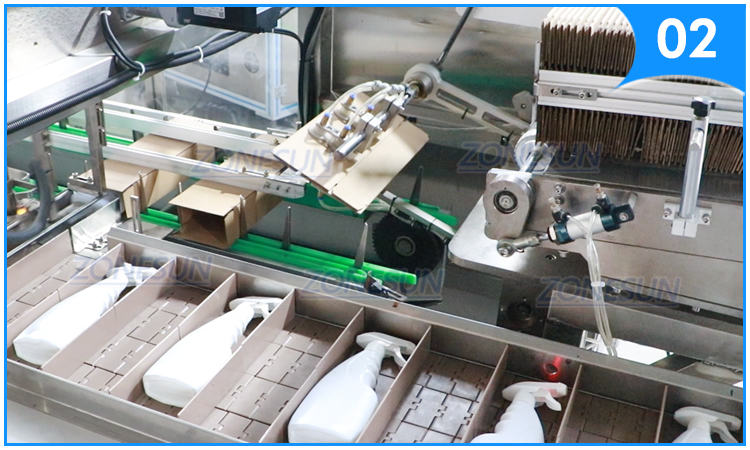

Box Holder
Can be adjusted according to box size. Air nozzle help to pull folded box and realize automated work.

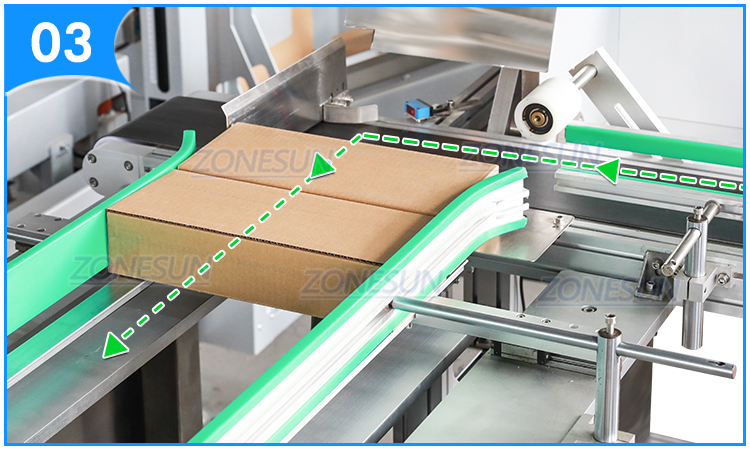

Stacking
Precisely stacks boxes and integrate with the rest of the packaging line.

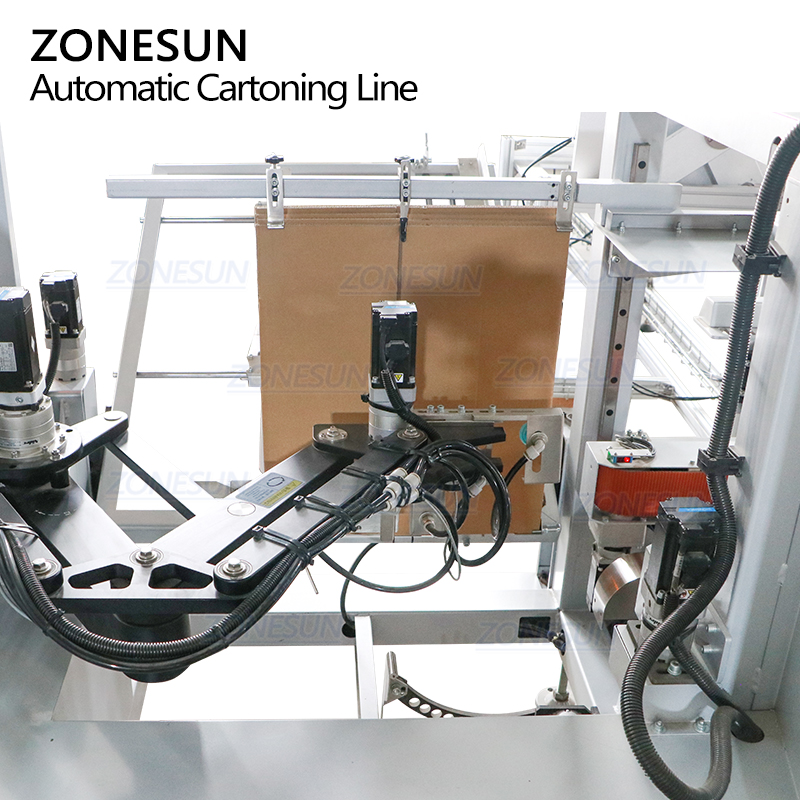

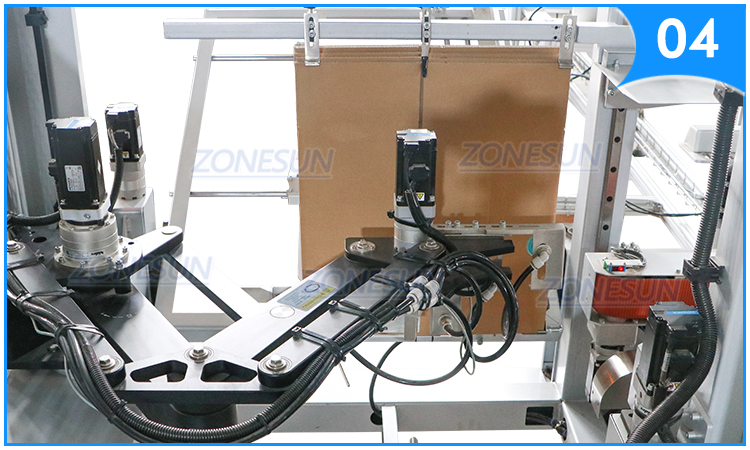

Carton Erecting
Robotic arms operate at high speeds, reducing errors and improving packaging quality.

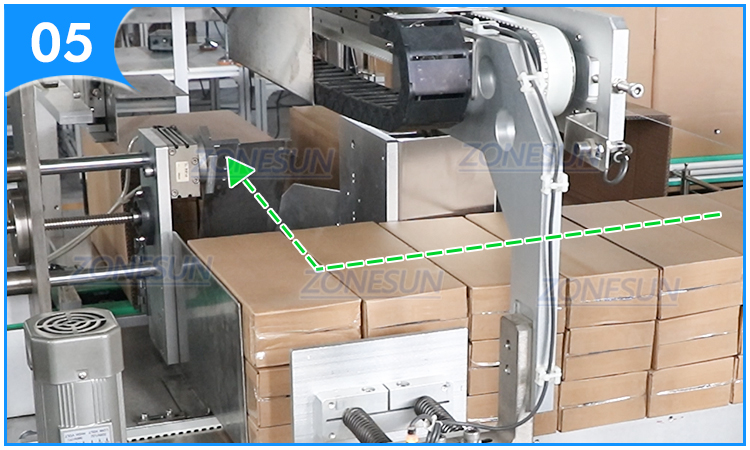

Carton Packing
Horizontally put boxes into case, it ensures accurate and gentle placement.

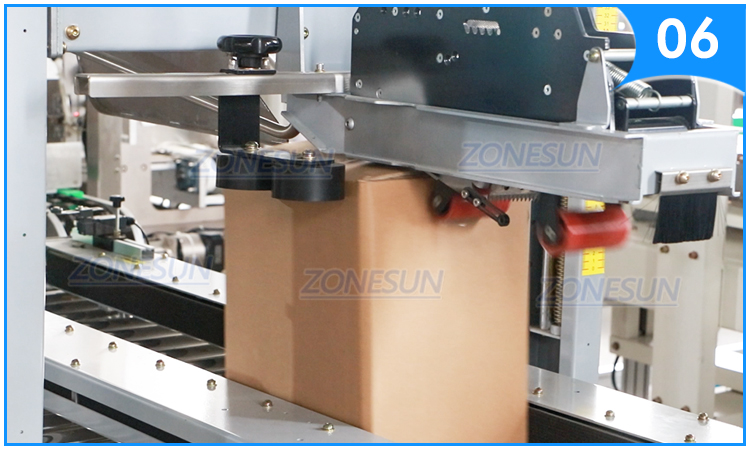

Carton Sealing
This is customizable based on carton size & sealing type.
FAQ
Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
How could I get the spares on machines?
We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
What's the payment terms and trade terms for new customers?
Payment terms: 30% T/T DEPOSIT PAYMENT IN ADVANCE, BALANCE 70% AGAINST COPY OF B/L. WESTERN UNION, LC ARE ACCEPTABLE.
What's the Minimum Order Quantity and warranty?
MOQ: 1 set. Warranty: 12 months, some customized products will be 24 months.
Do I need to pay for the extra cost like tax or duty?
It is the buyers' responsibility to pay the custom duty. The shipping fee will not include the tax, please pay attention to this.
