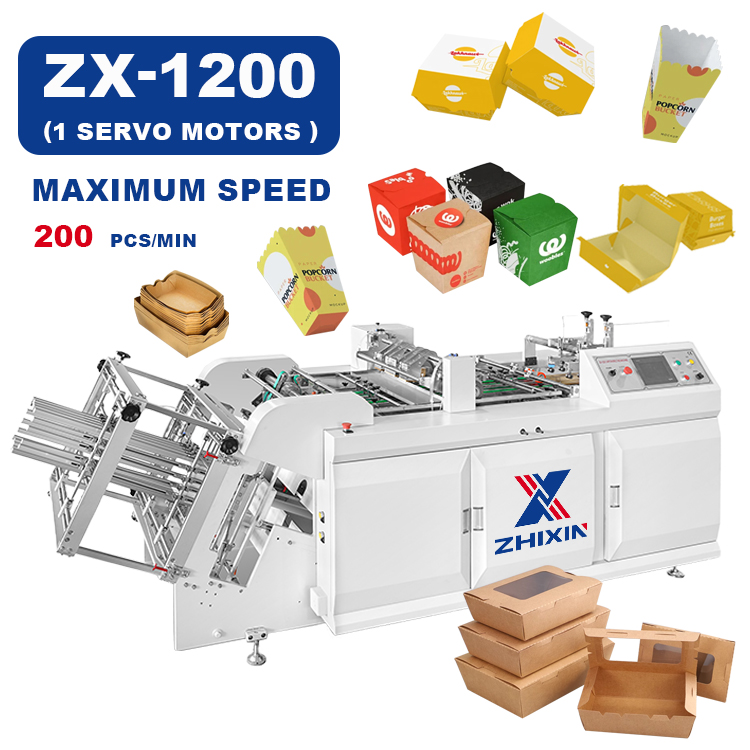

ZX-1200 (1 SERVO MOTOR)
ZX-1200 (1 SERVO MOTOR)

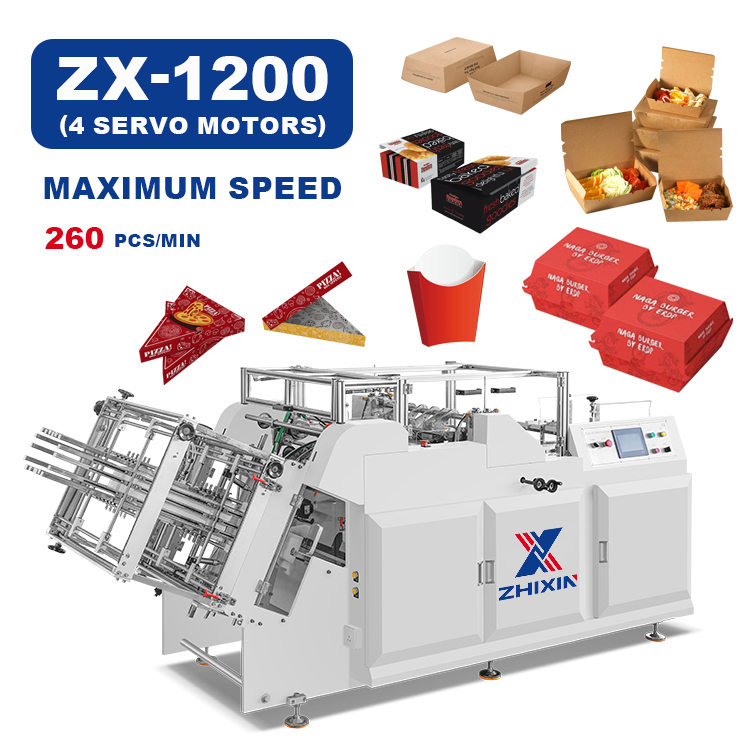

ZX-1200 (4 SERVO MOTORS)
ZX-1200 (4 SERVO MOTORS)

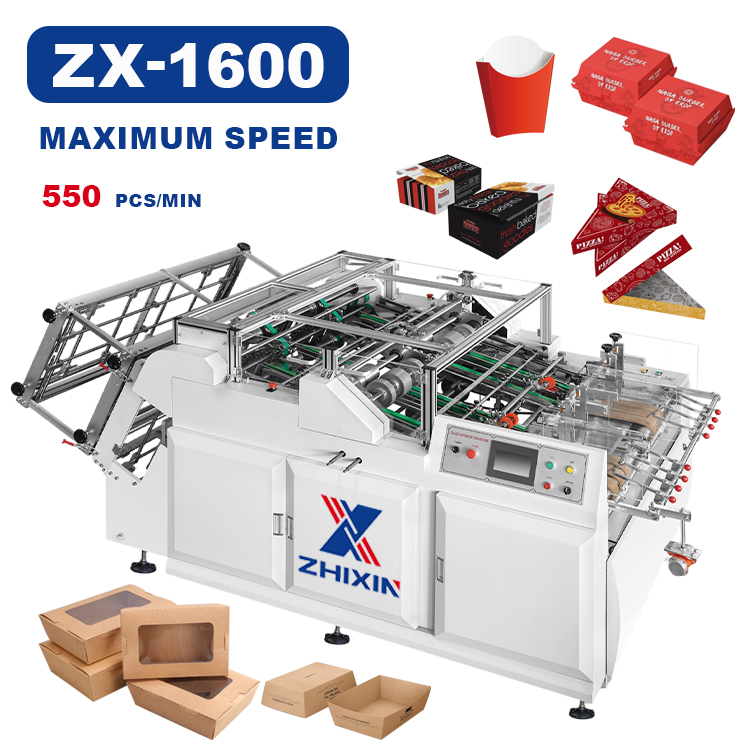

ZX-1600
ZX-1600

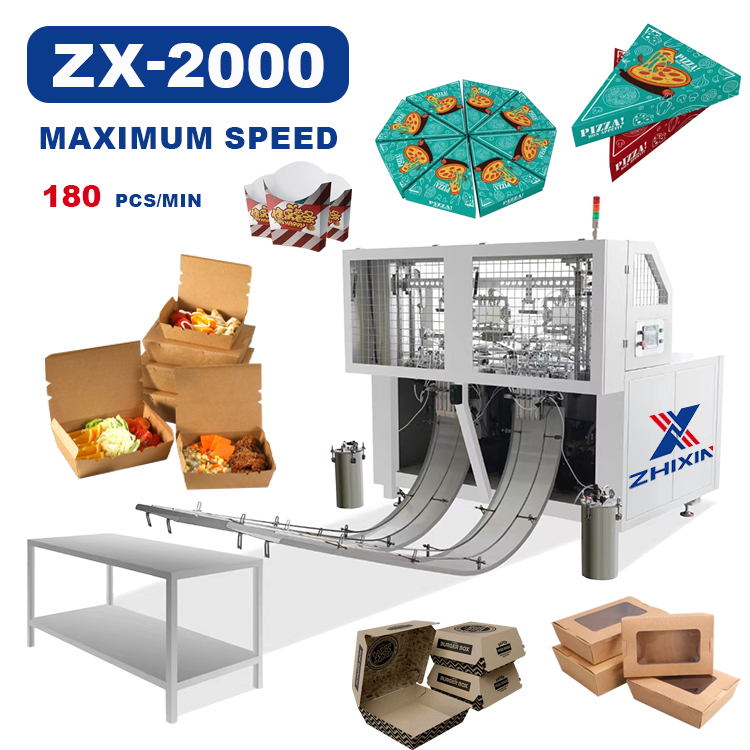

ZX-2000
ZX-2000

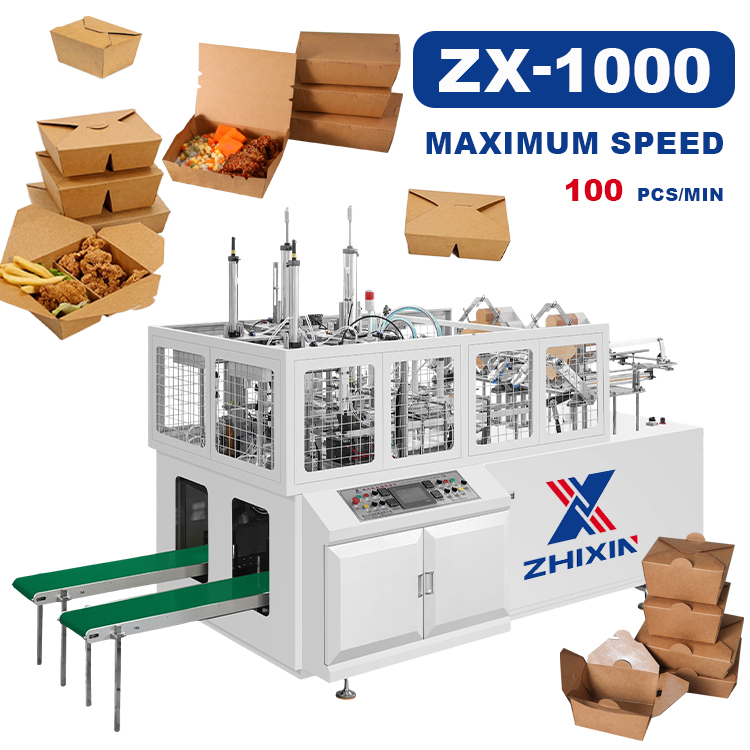

ZX-1000
ZX-1000

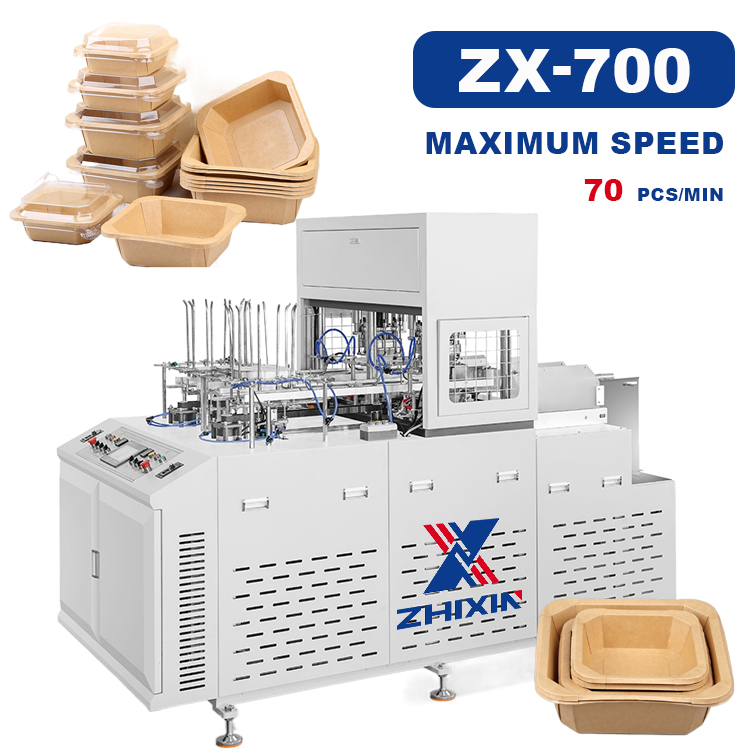

ZX-700
ZX-700

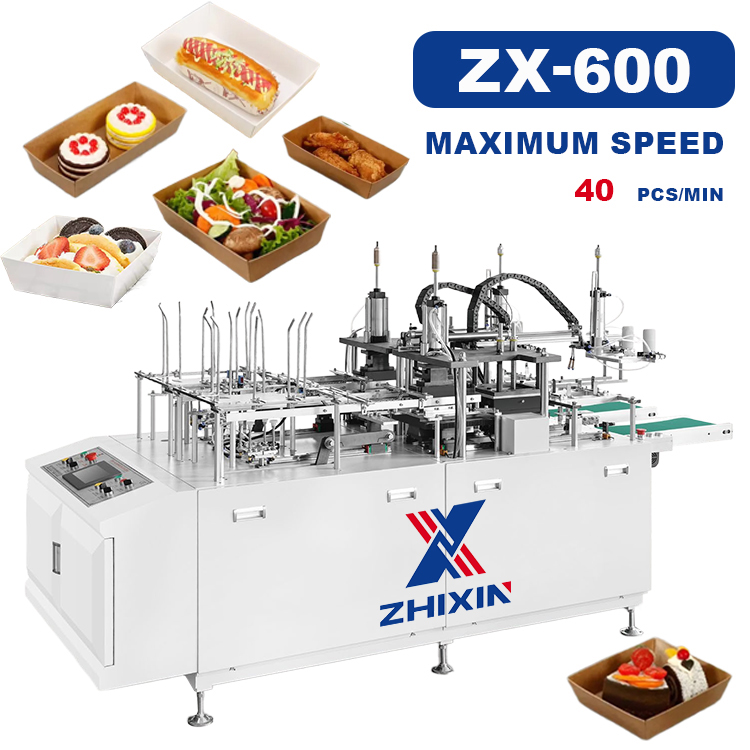

ZX-600
ZX-600

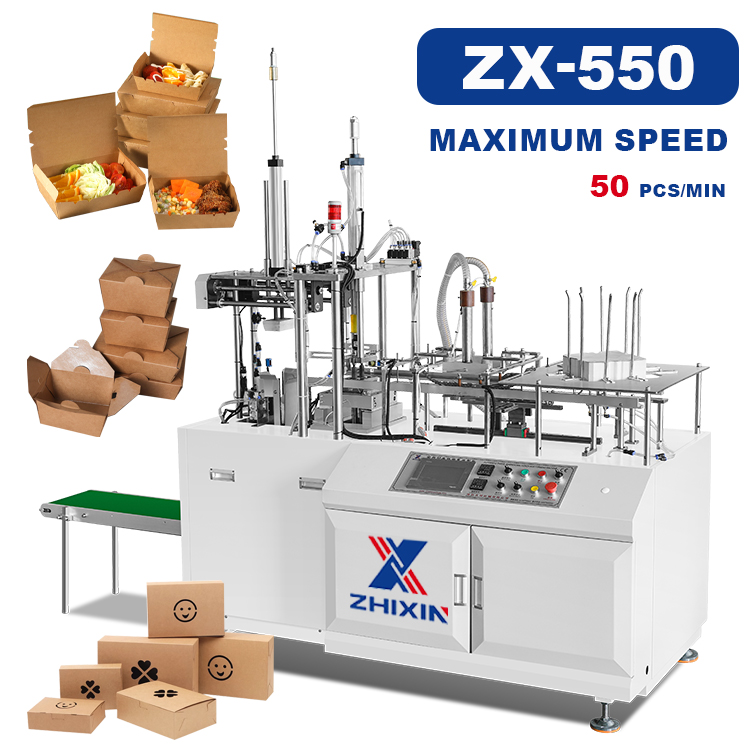

ZX-550
ZX-550

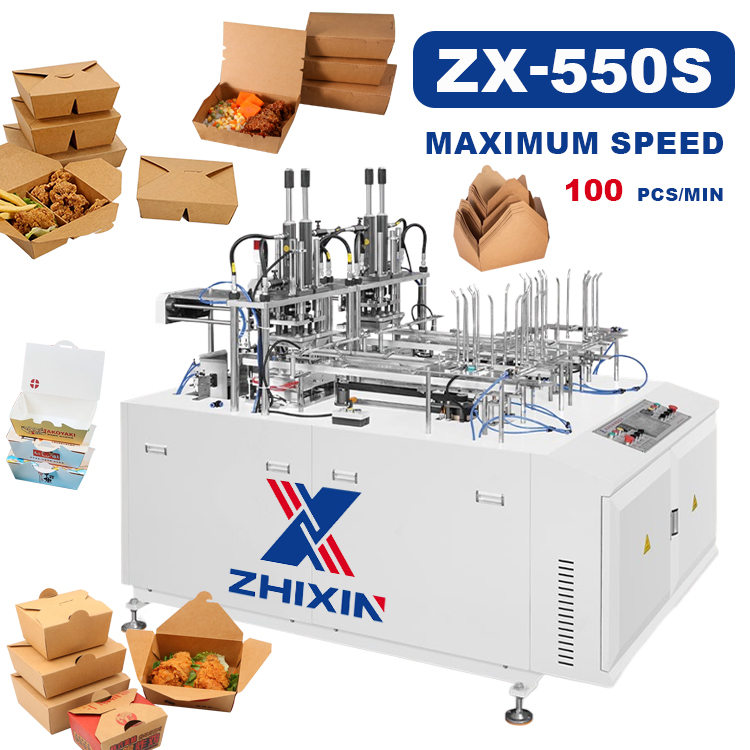

ZX-550S
ZX-550S
Carton Erecting Machine
Product Description
Machine Description
Carton Erecting Machine (paper box forming machine) is an automatic machine, specialized in making food carton, box, container which are made from cardboard, paper, paperboard, corrugated paper etc.
The food box (carton, container, dish, tray) is widely used as burger box, hot-dog box (tray), one block box, food pail box (Chinese food box, take-away box), fries box (chips box, chips tray), lunch box, meal box, etc.
Model ZX-2000
Paper Weight 200-620g
Speed 180pcs/min (one station)
Material 200-620gsm (Corrugating paper thickness: 1.6mm)
Box Size (Length) L 100-450mm (Degree: 5°-45°)
Box Size (Width) W 100-600mm
Box Size (Height) H 15-200mm
Paper Thickness ≤1.6mm
Machine Size 2300*2200*2100mm
Take Away Box Max 530*530, Min 263*263
Burger Box Max 376*262, Min 250*140
Tray Box Max 290*210, Min 164*107
Voltage 380v/220v
Current 50hz
Power 6.5kw
Air Requirement 0.5Mpa, 0.4cube/min
Power Source 380V/220V
Weight 2000kg

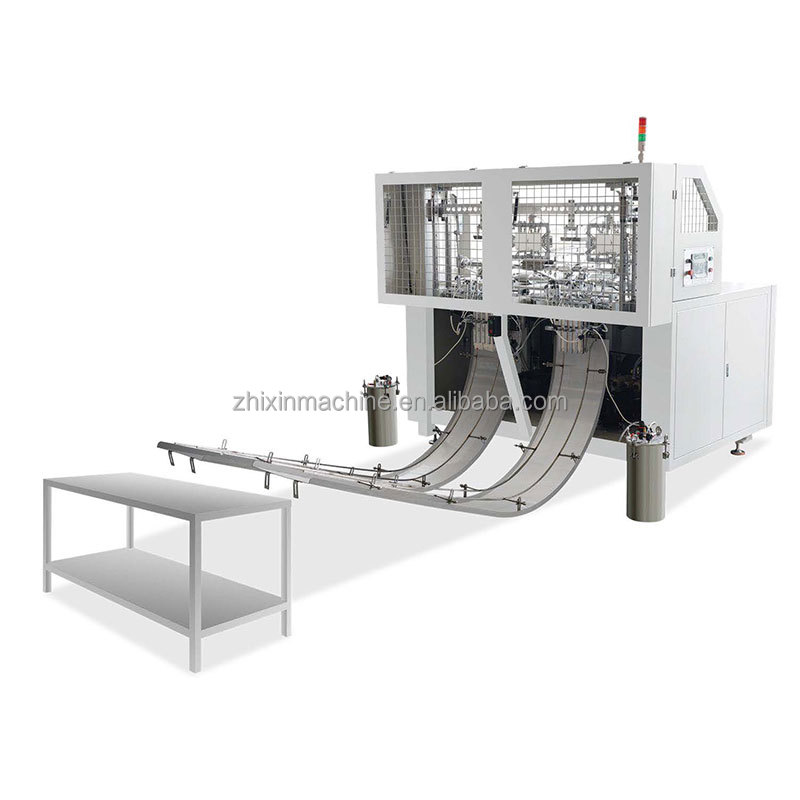

Machine Structure Detail
Basic Paper Box Shape
Box Shape Types 1

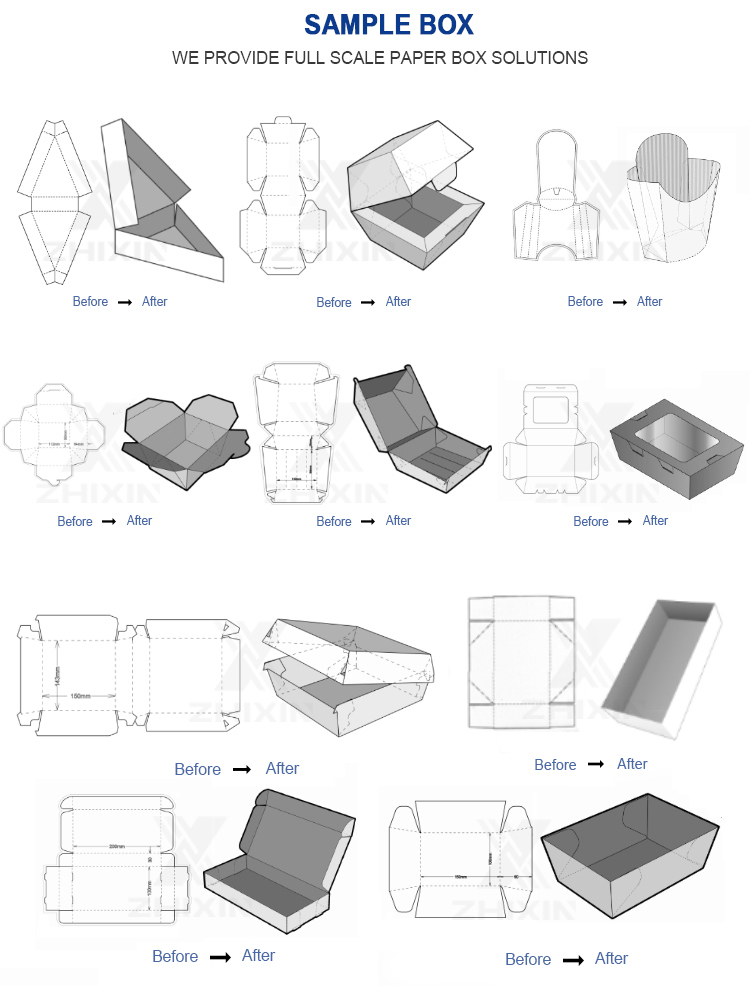

Box Shape Types 2
Comparison with others - Multi Advantages

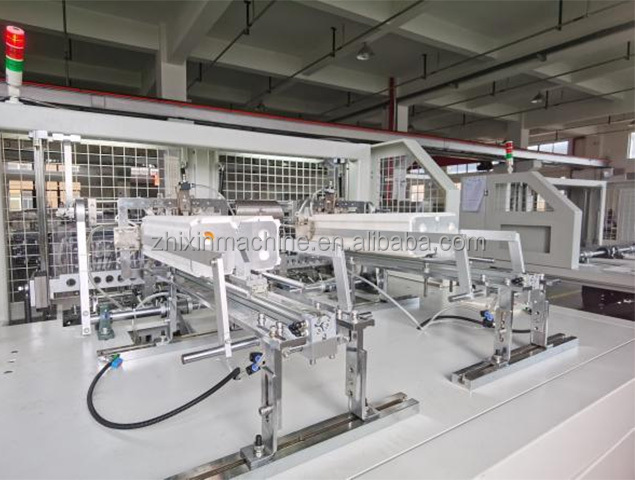

Discharging part
Discharging part
The paper is conveyed forward through the control of the cylinder, and the pressure plate is controlled by the pedal to replenish the material to achieve a non-stop state.

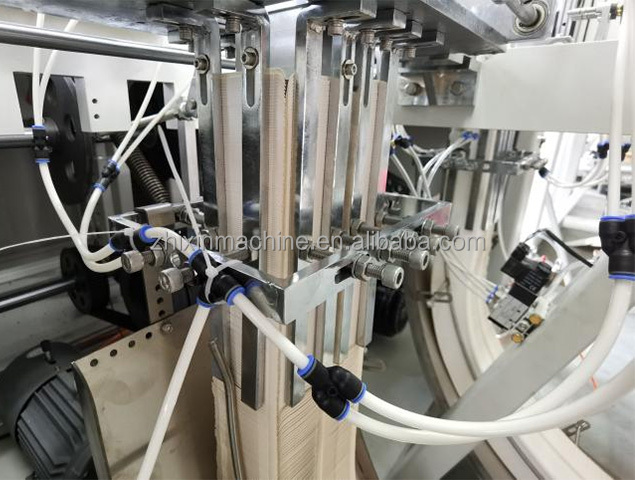

Collection department
Collection department
The product is compressed and shaped by the mold

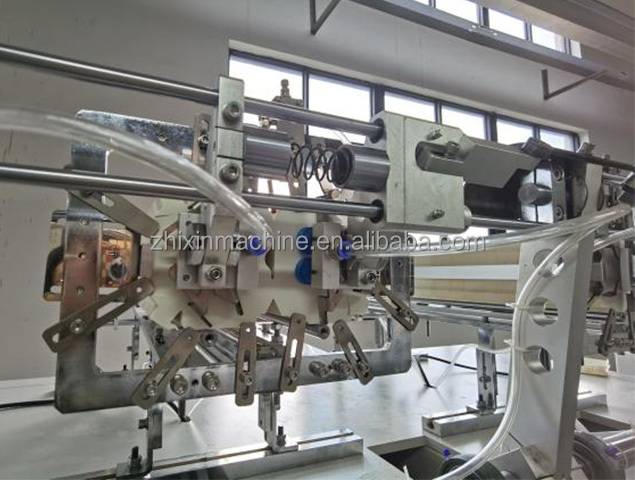

Paper suction part
Paper suction part
Through the up and down movement of the swing arm, the suction nozzle of the machine sucks the paper into the mold from the discharge place.

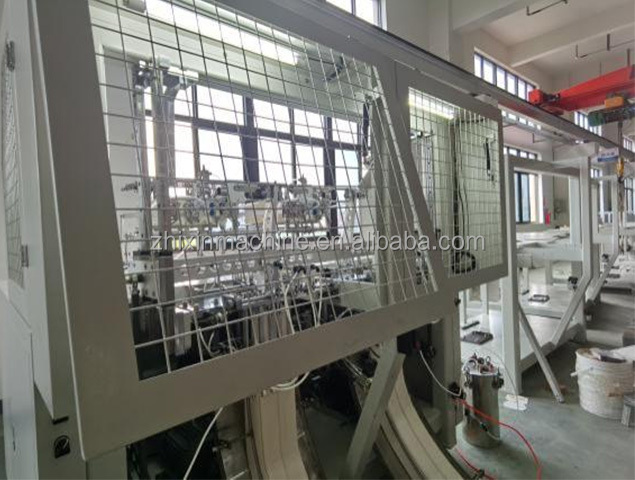

Safety window
Safety window
protect the operator from injury when the machine is in operation

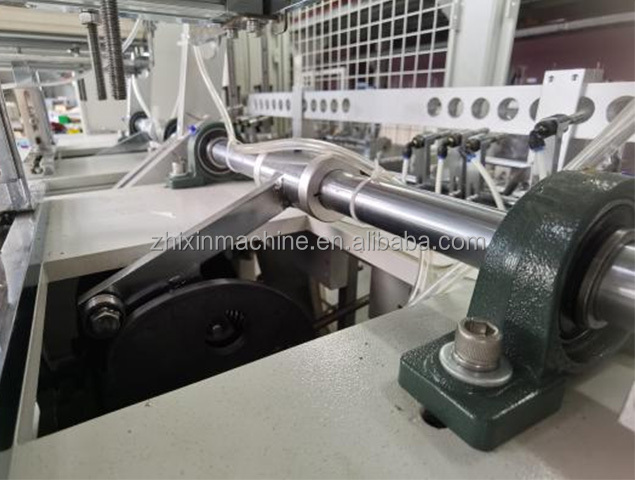

Swing arm part
Swing arm part
control suction nozzle part suction paper and mold pressing

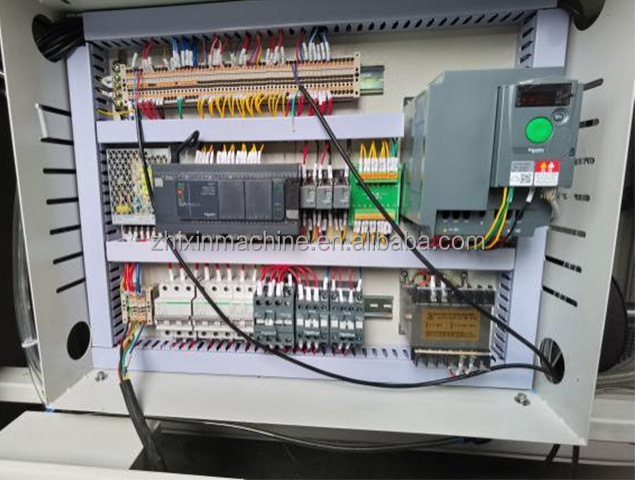

Electric cabinet
Electric cabinet
control the data of each motor and servo of the machine, the main electrical appliances are controlled by Schneider

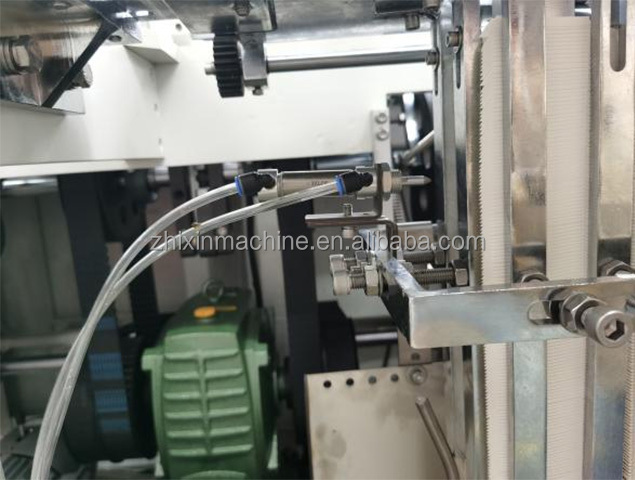

Counter
Counter
How many quantities can be programmed as a unit.

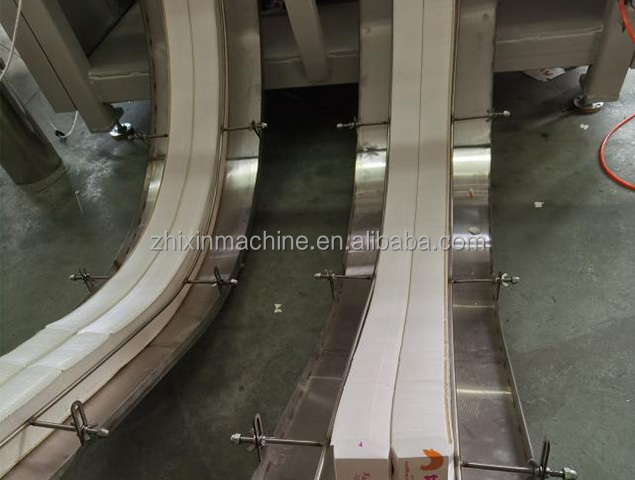

Transport track
Transport track
Let the product be transported neatly, the size of the product is fixed by the fixing rods on both sides, and the packaging is more convenient.

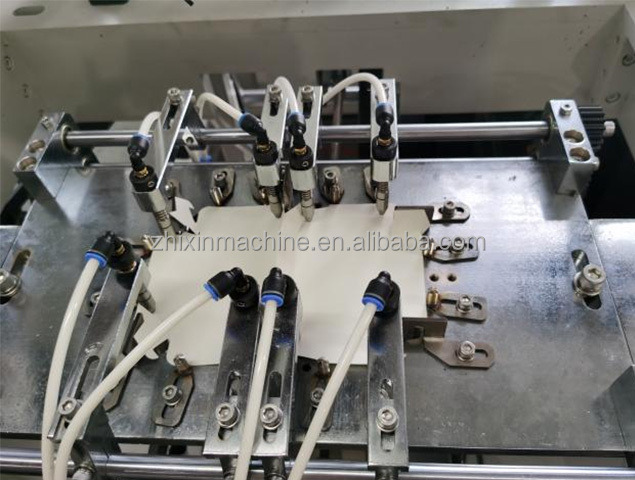

Gluing parts
Gluing parts
The carton is placed under the mold through the suction nozzle and the corresponding corners are glued.

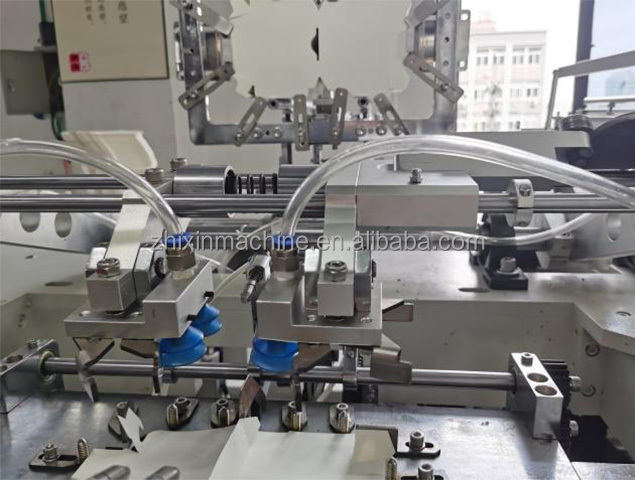

Suction nozzle
Suction nozzle
Suck the carton by the suction force generated by the air pressure of the cylinder.
Company Profile

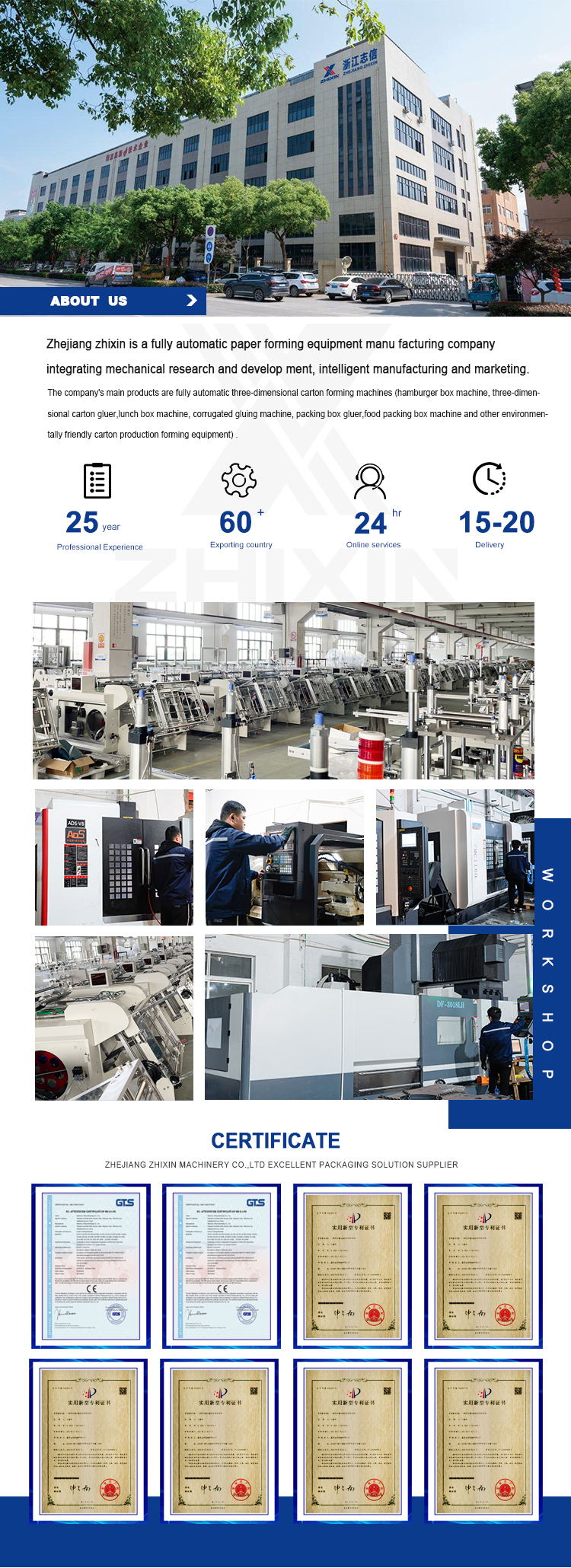

Factory Overview
Why Choose Us
Advantage Point 1
Advantage Point 2
Packaging and Shipping
Packaging Process
FAQ
QAre you a factory or trading company?
We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
QHow does your factory do regarding quality control?
All the products will be 100% checked before the shipment. 48 hours running without stop to confirm no problem.
QWhat is your payment term and delivery time?
Payment: by bank T/T payment. 30% down payment, and balance for 70% payment before shipment. Delivery time: within 45 working days after receiving the deposit.
QHow about warranty and after sales?
From the day of the use of the machine in the buyer's factory: 2 years. The seller guarantees the machines are 100% new. The above clause is only effective being properly used, any artificial misuse or destroy prepensely is not within the limit of quality.
QWhat types of paper products can the Carton Erecting Machine process?
The machine is specialized in producing food containers made from cardboard, paper, paperboard, and corrugated paper up to 1.6mm thickness (200-620gsm).
QWhat kind of boxes can the ZX-2000 machine form?
It can form burger boxes, take-away food pails, tray boxes, hot-dog trays, lunch boxes, fries boxes, and meal boxes with customizable sizes.
