| Technical Specification | |||
|---|---|---|---|
| Model | ZH-GPA-50 | ZH-GPC-50 | ZH-GPE-50P |
| Conveying Speed | 18m/min | 18m/min | 18m/min |
| Carton Range | L:150mm W:150-500mm H:120-500mm | L:200-600mm W:150-500mm H:150-500mm | L:150mm W:180-500mm H:150-500mm |
| Voltage Power | 240W 110/220V 50/60Hz 1Phase | 240W 110/220V 50/60Hz 1Phase | 240W 110/220V 50/60Hz 1Phase |
| Tape Size | 48/60/75mm | 48/60/75mm | 48/60/75mm |
| Mesa Height | 600mm + 150mm | 600mm + 150mm | 600mm + 150mm |
| Machine Dimensions | L:1020mm W:850mm H:1350mm (Excluding front and rear roller frames) |
L:1770mm W:850mm H:1520mm | L:1020mm W:900mm H:1350mm |
| Weight | 130kg | 270kg | 140kg |

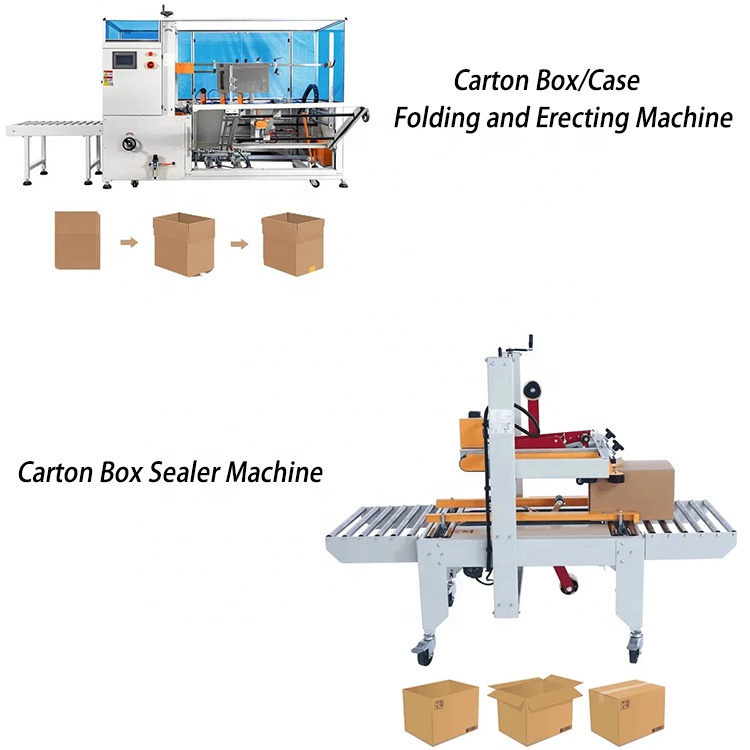

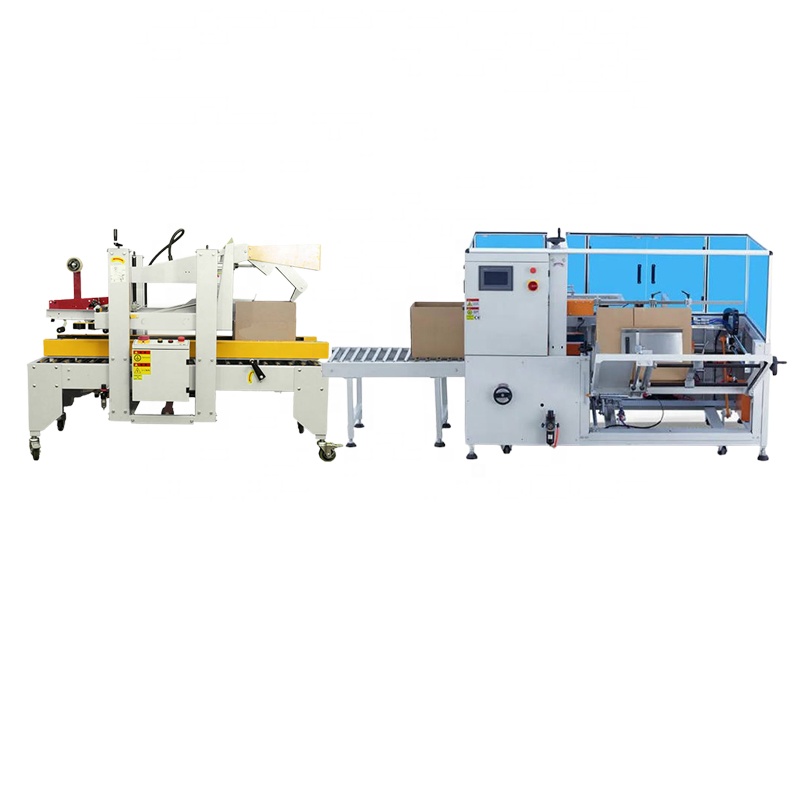

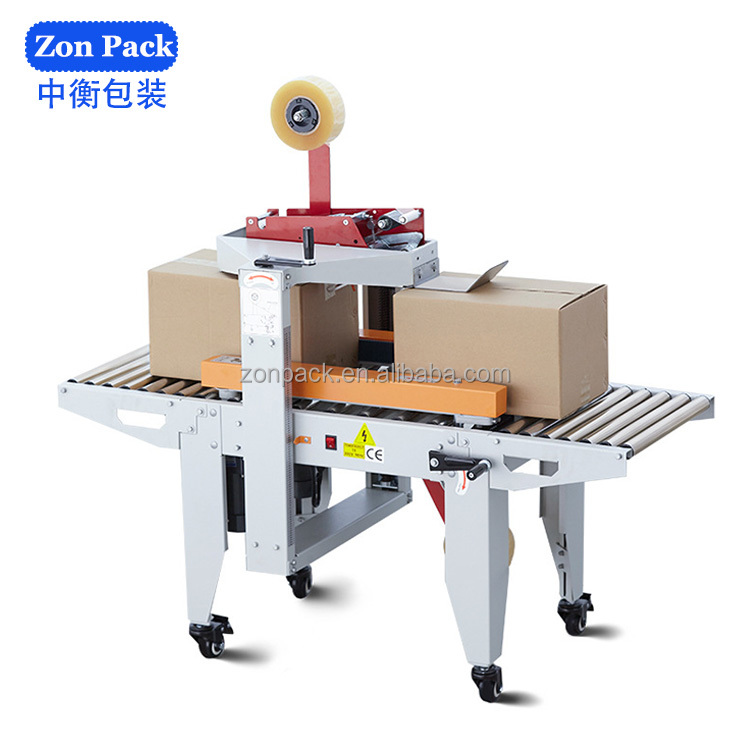

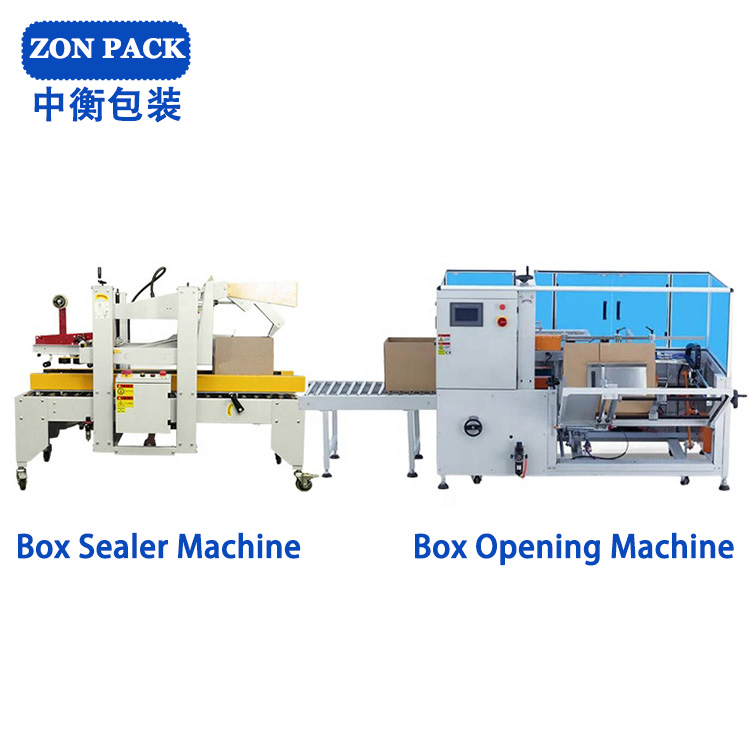

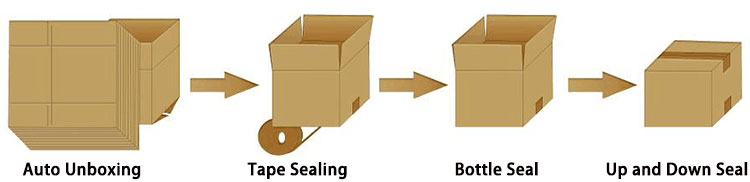

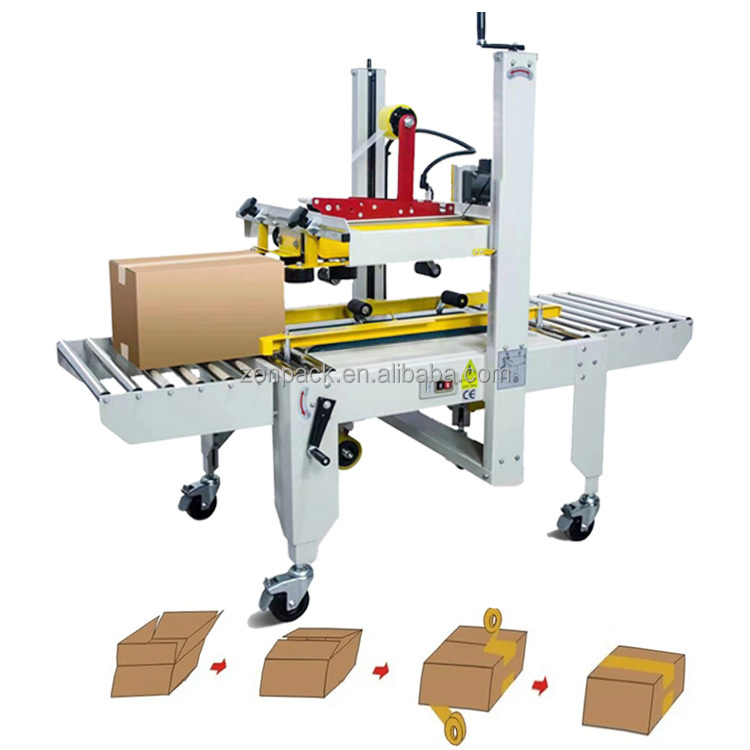

The automatic carton sealer machine with both-side drive is designed to close all four top case flaps. The width and height can be easily adjusted using the handle. The high-strength structural design ensures reliable performance and adapts perfectly to continuous, heavy-duty production line sealing workloads. It is ideal for packing and sealing products across various industries, including household appliances, textiles, food, daily provisions, medicine, light industry, chemical industry, and more.
This left & right + up & down driven carton sealer utilizes adhesive tape for sealing, executing top and bottom sealing operations simultaneously to ensure a clean, professional finish. The machine supports independent width and height adjustments corresponding to carton sizes. For enhanced branding, printed tape can also be applied. The system is lightweight, structured on swivel casters for flexible mobility, and is widely utilized in sectors such as food processing, pharmaceuticals, toys, tobacco, chemical processing, and electronics.
Key Design Feature: Equipped with premium drive belts and durable sealing heads to handle consistent output without damaging cartons.

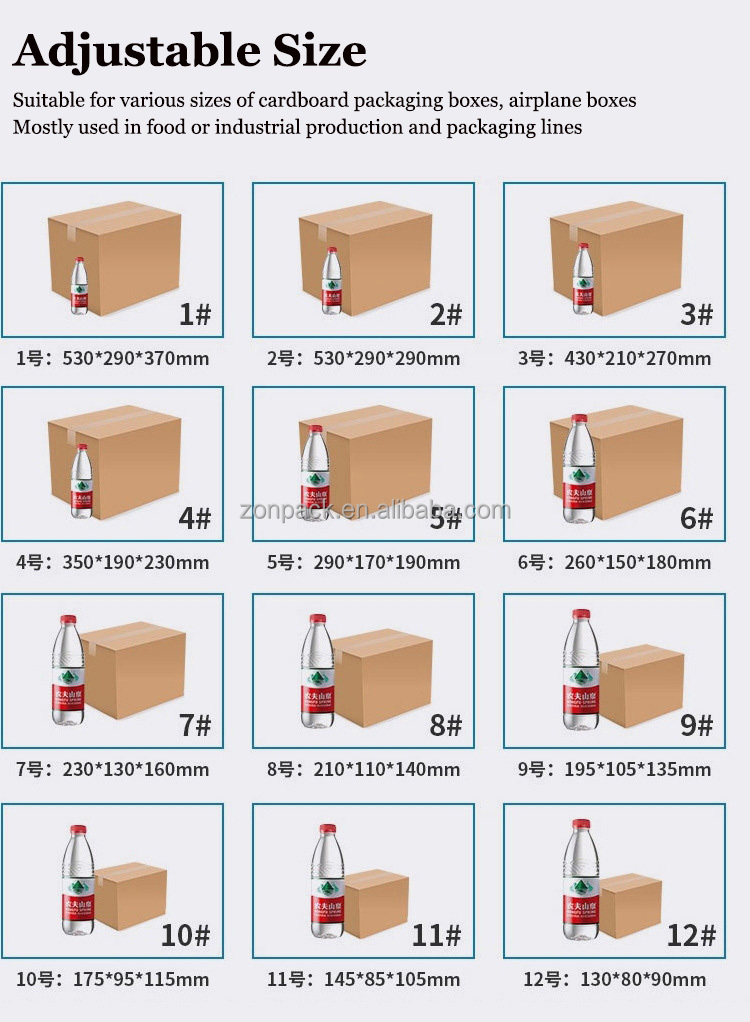

You can determine the right model by measuring your maximum and minimum carton dimensions (Length, Width, and Height) and matching them with our Technical Specification table. Our models support various size capacities to fit different throughput demands.
The complete machine is covered by a 1-year warranty. During the warranty period, replacement parts for any component that experiences operational failure will be provided free of charge.
We accept T/T and L/C payment options. The standard term requires a 40% deposit via T/T, with the remaining 60% balance payable prior to shipment.
Yes, we supply premium quality plastic roll film. Thanks to long-term partnerships with dedicated material manufacturers, we are able to provide wrapping and packing films at highly competitive rates.
For new clients, trade assurance services are fully supported. This system protects your transactional interests and guarantees product delivery standards throughout the entire order process.
Yes. While our standard models feature manual handle adjustments for specific batch runs, they allow independent width and height adjustments to match various box runs securely and quickly.
