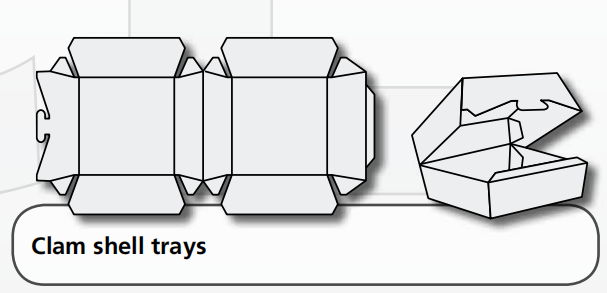

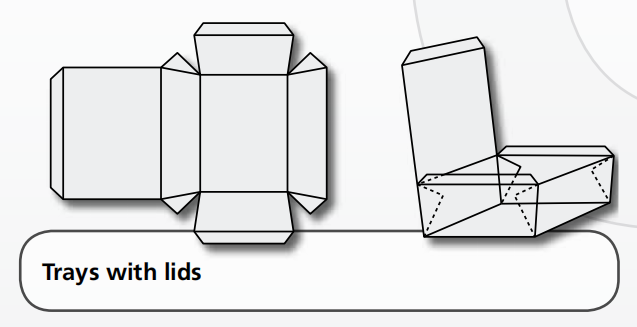

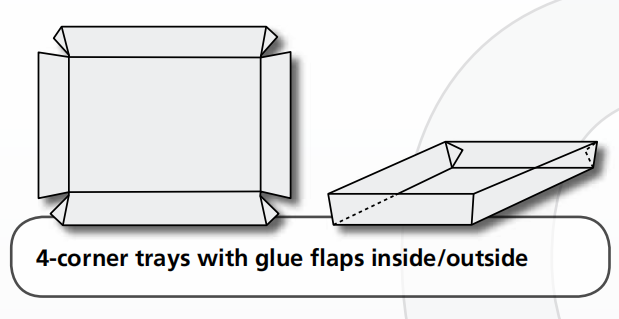

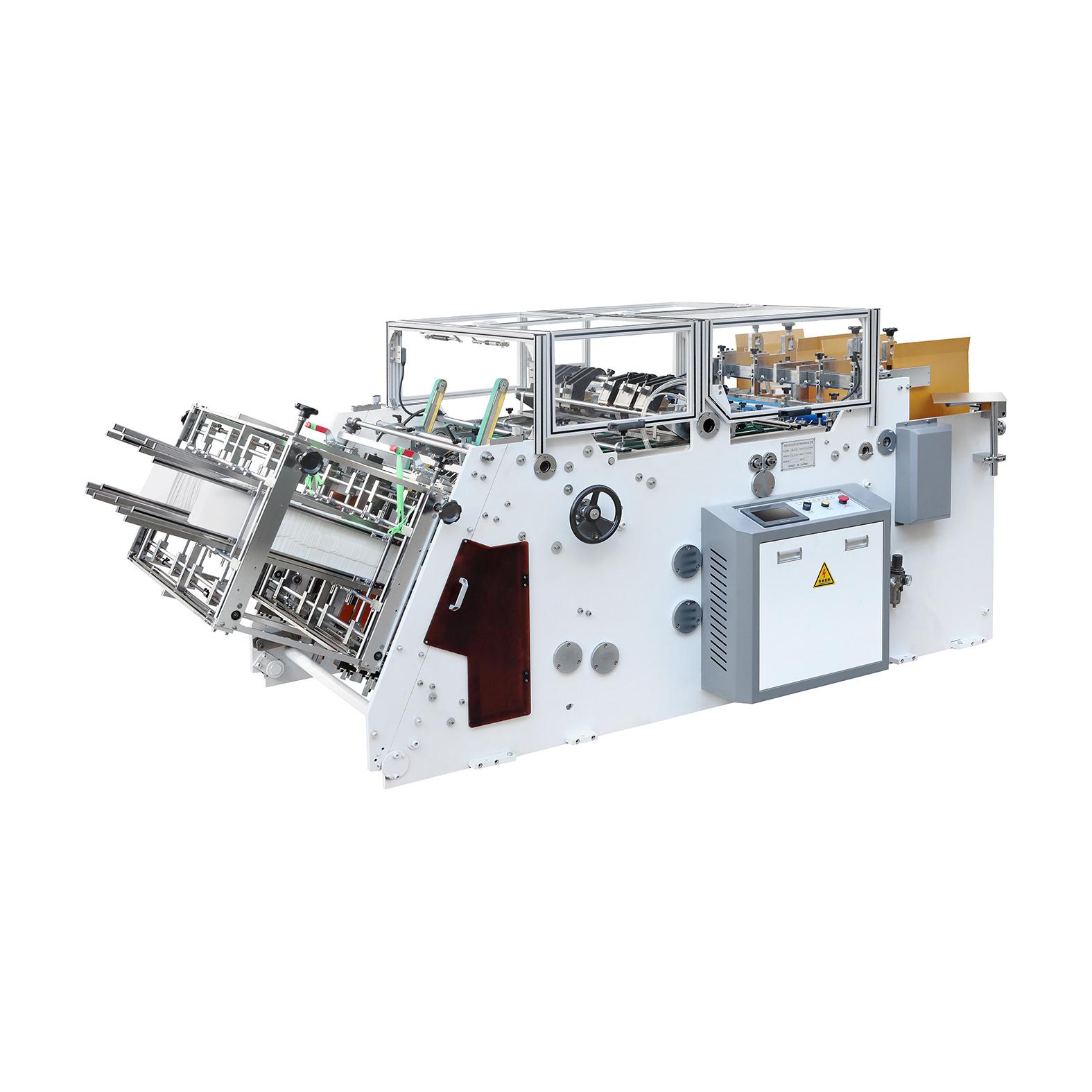

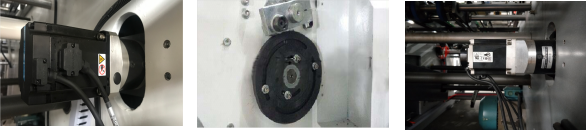

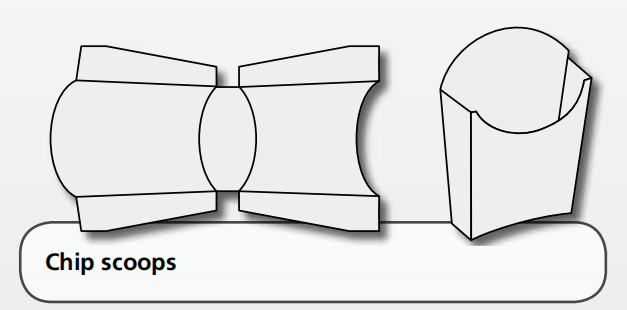

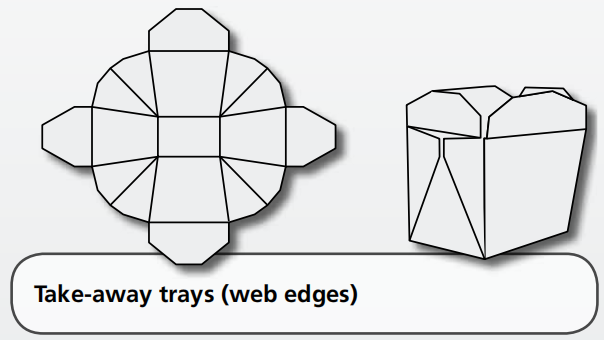

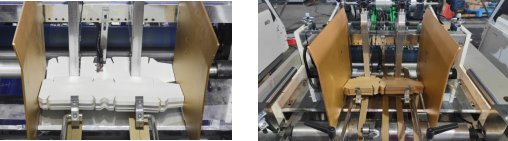

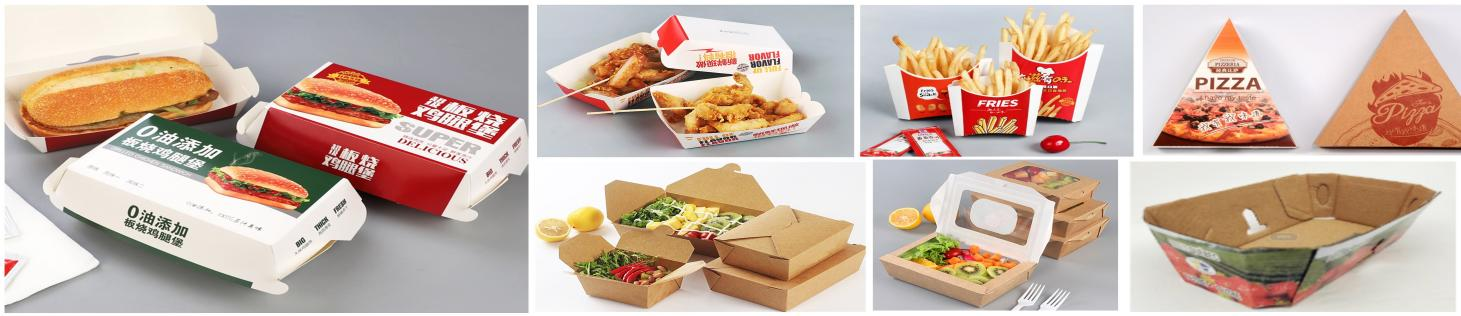

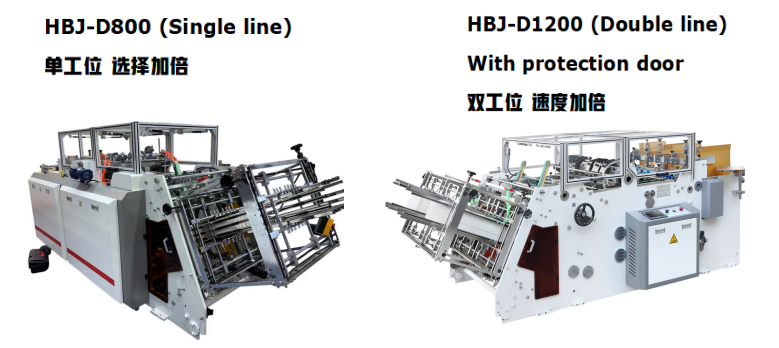

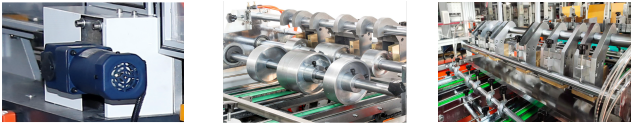

HBJ-D paper carton erecting machine is an ideal choice to produce hamburger boxes, chips boxes, take away box, etc. It adopts micro-computer, PLC, servo feeding, alternating current frequency converter, the vacuum-sucking, auto gluing, automatic paper tape counting, chain drive. All of these main parts and electric control system adopts famous brand to guarantee steady working, precise positioning, smooth running, safety and reliability operation.
| Type | HBJ-D800 | HBJ-D1200 |
| Production capacity: | 40-160 pcs/min | 80-320pcs/min |
| Suitable Material: | 200-600gsm card paper, PE coated paper, kraft paper, corrugated paper (up to 1.5mm) | |
| Paper open length: | L100-450mm degree:5°-40° | |
| Paper open width: | W100-600mm Height H15-200mm (for special sizes can be customized) |
W100-400mm Height H15-200mm (for special sizes can be customized) |
| Total Power: | 5KW | 6.25KW |
| Weight: | 1.8T | 2.4T |
| Dimension: | 3600 x 1400 x 1700 mm | 3600 x 1850 x 1700 mm |
| Power source: | 380V 50HZ (can be customized) | |

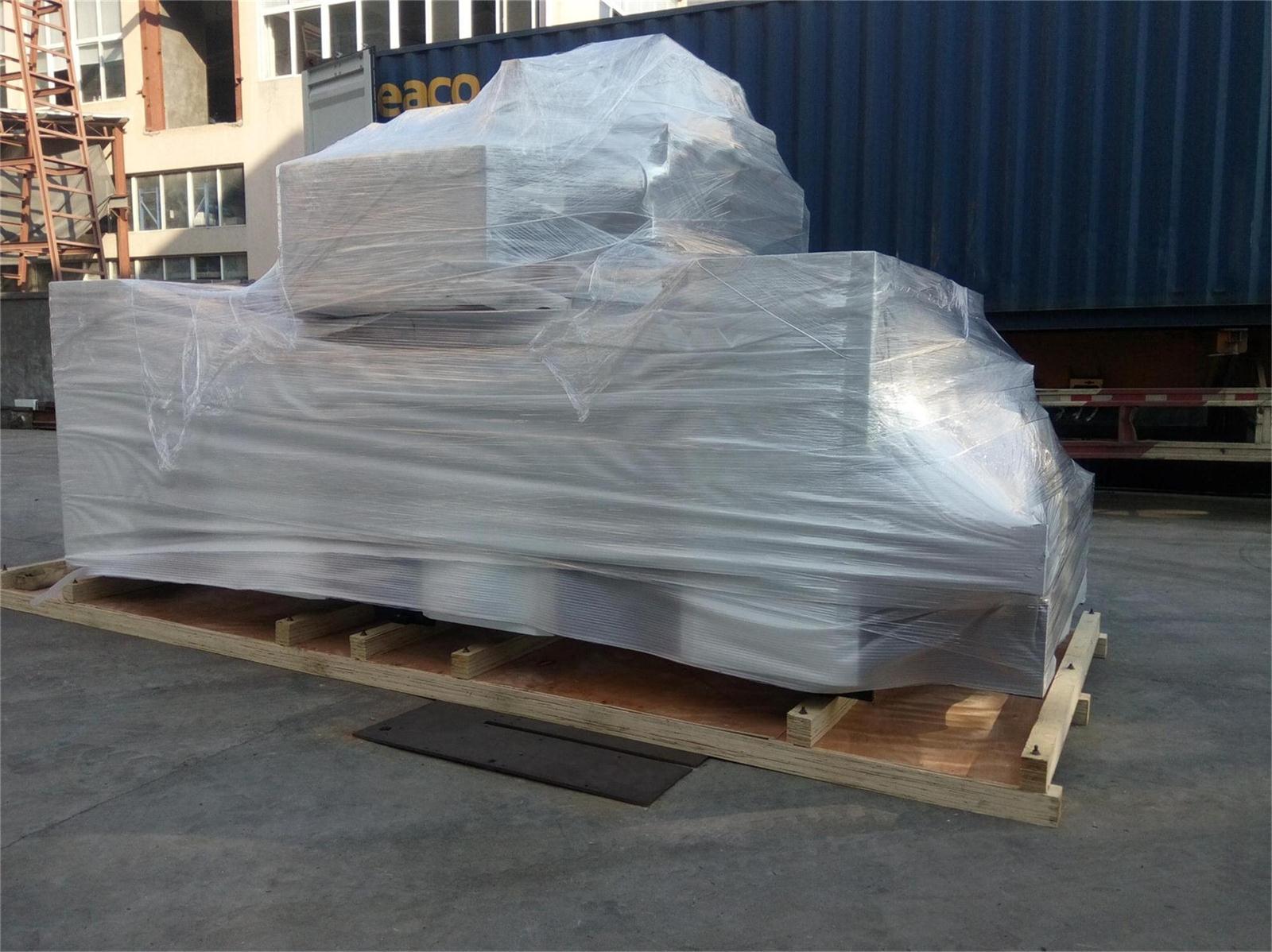

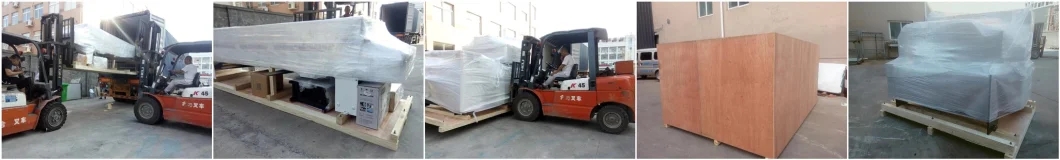

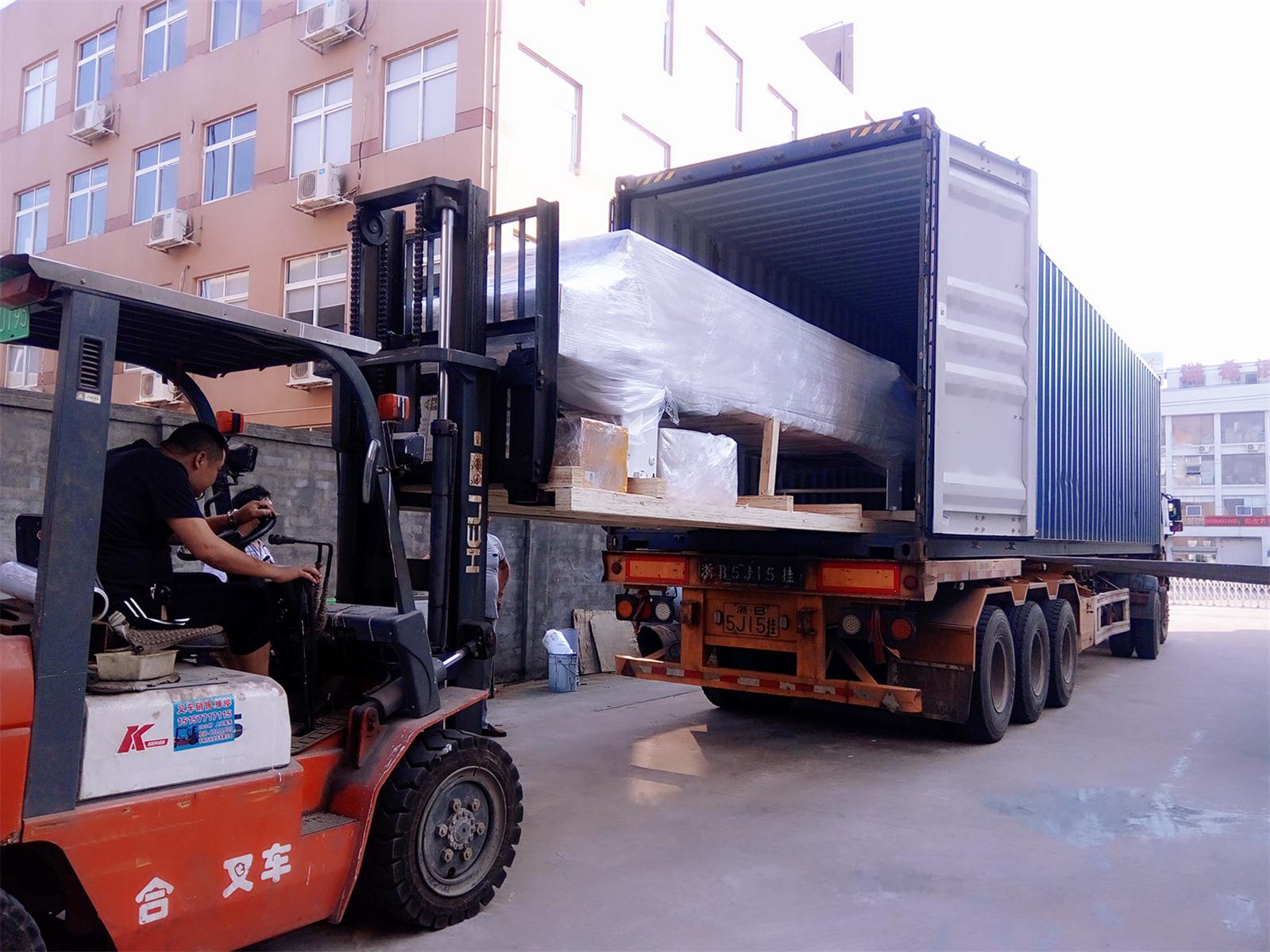

Normally, we use wooden pallets and cases, we use fumigation/ free fumigation wooden pallets and cases for some European countries, also some are according to the customer's requirement.
