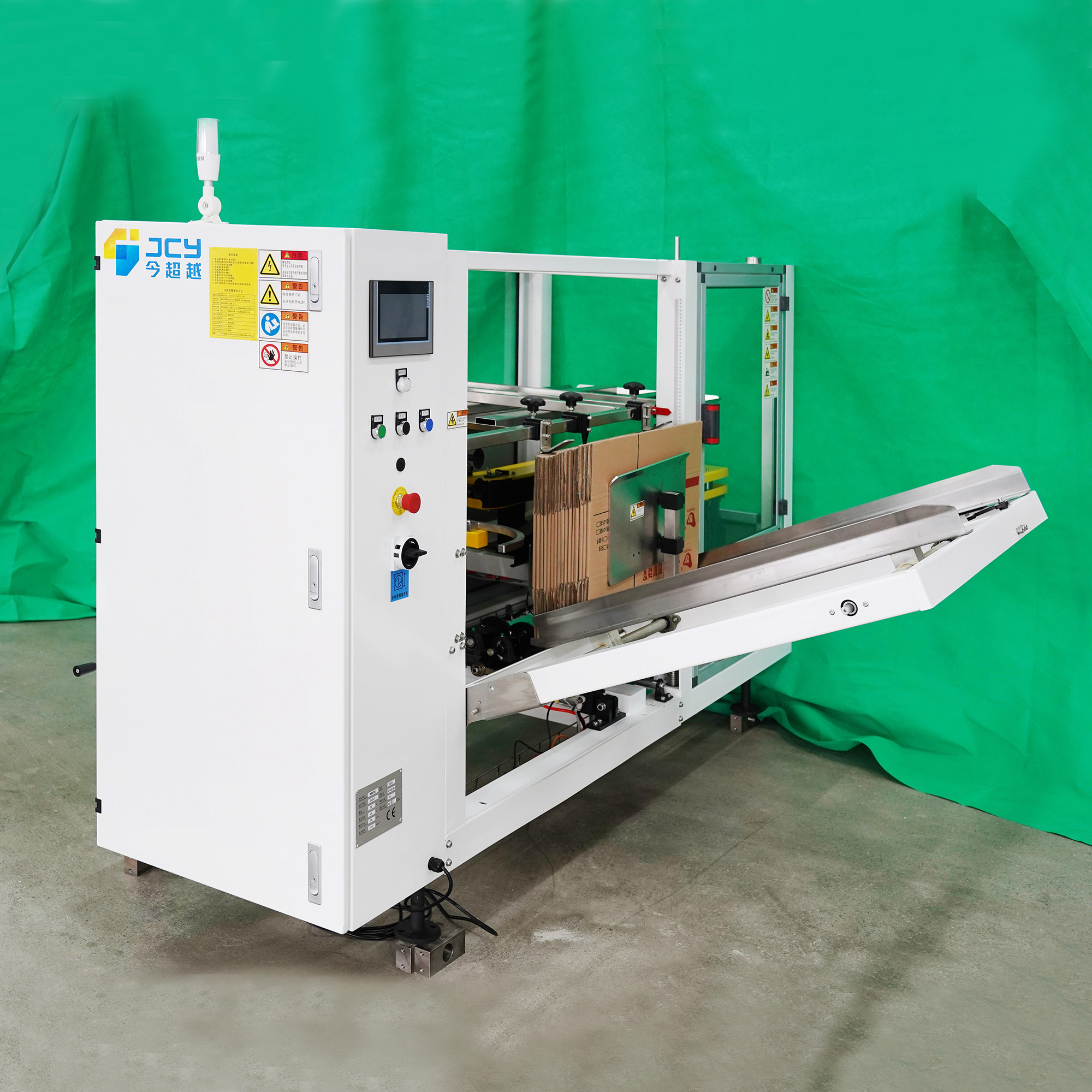

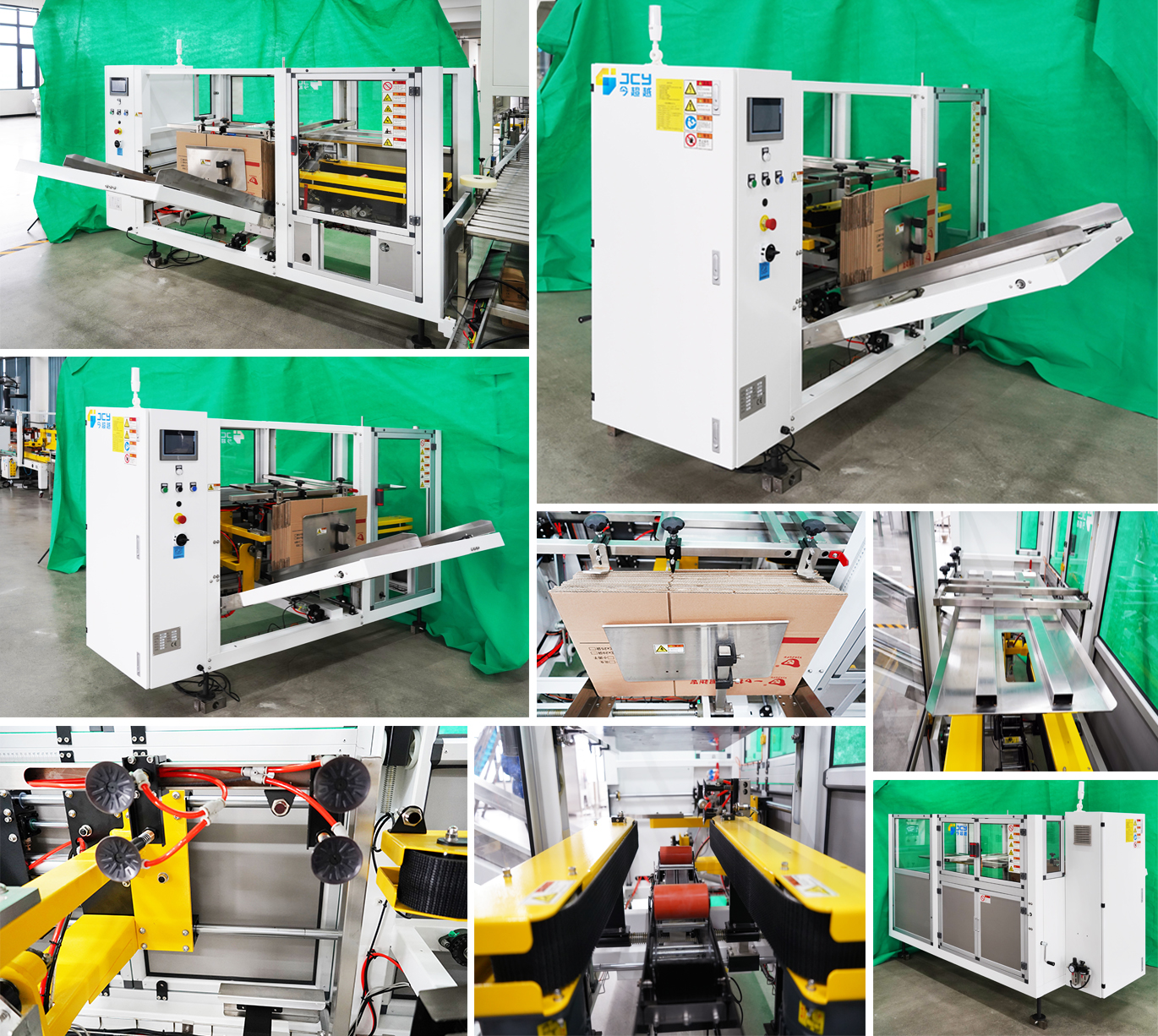

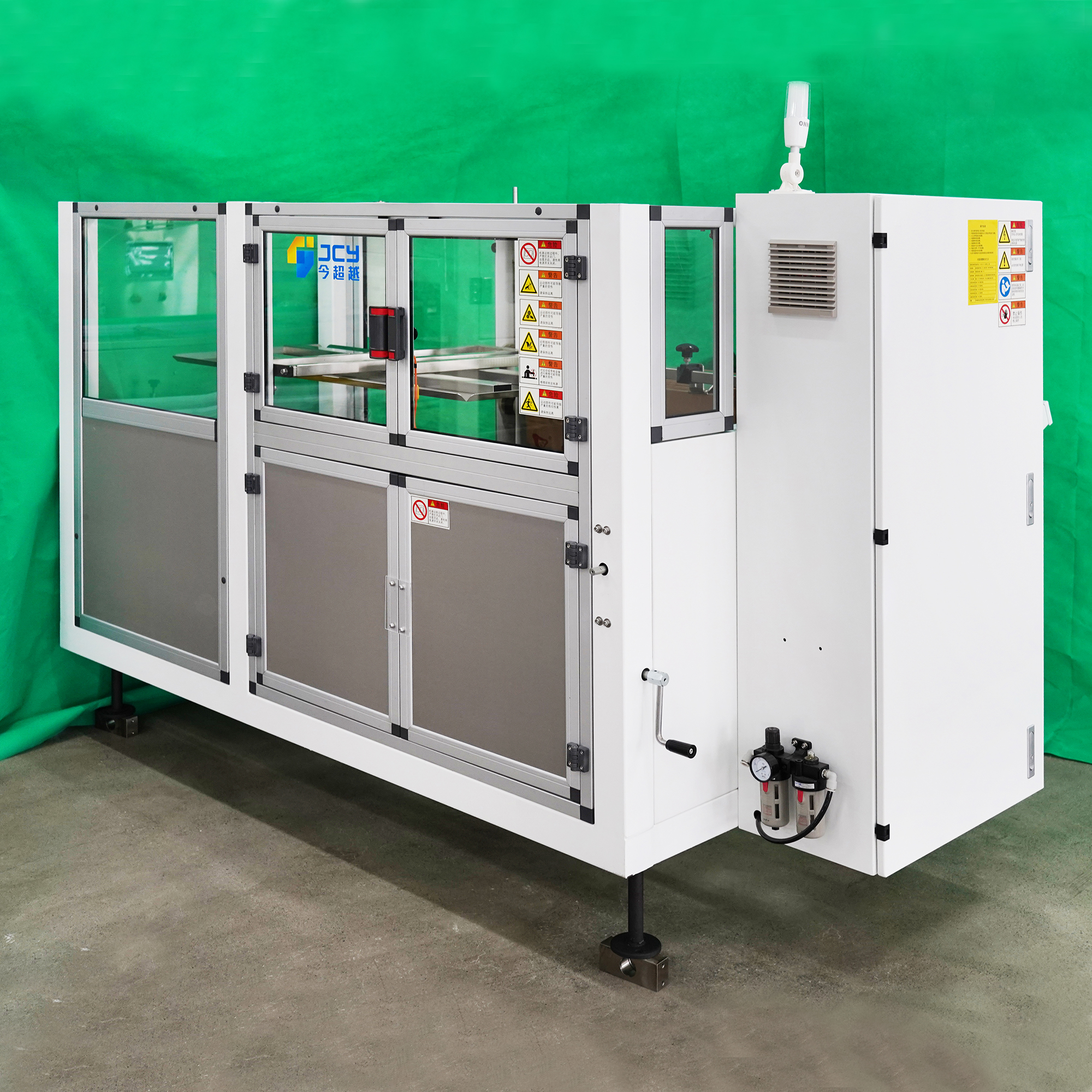

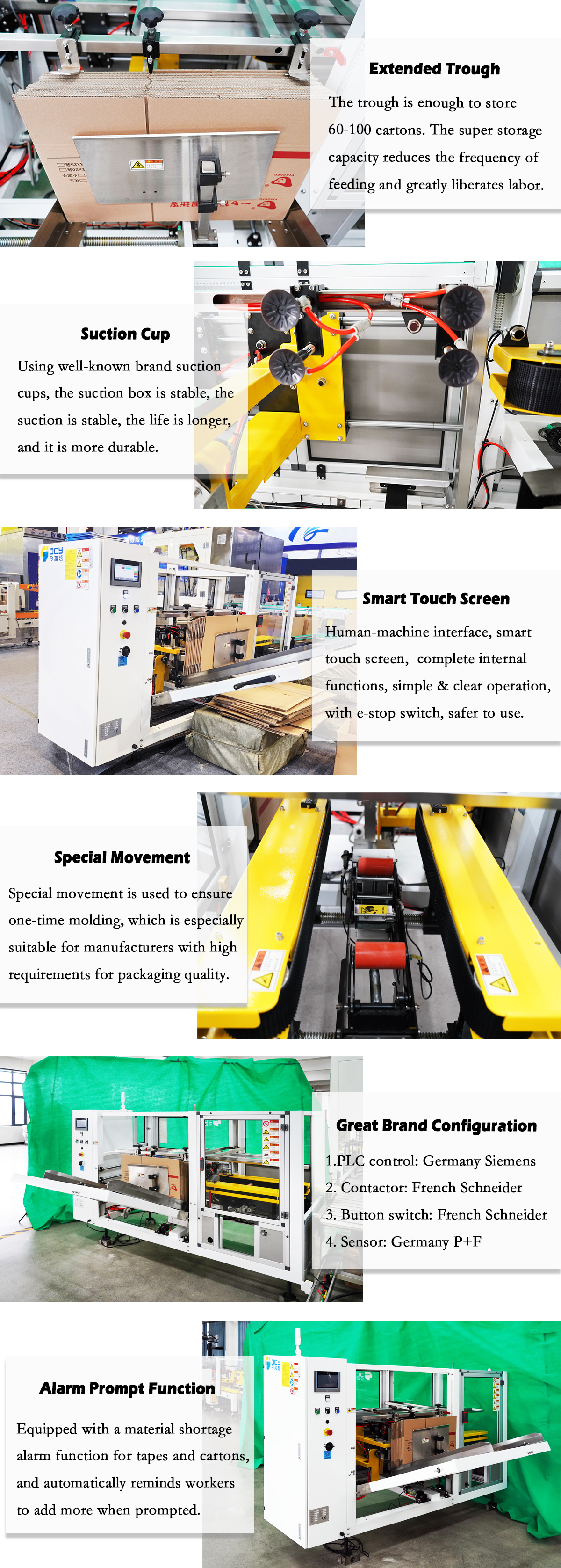

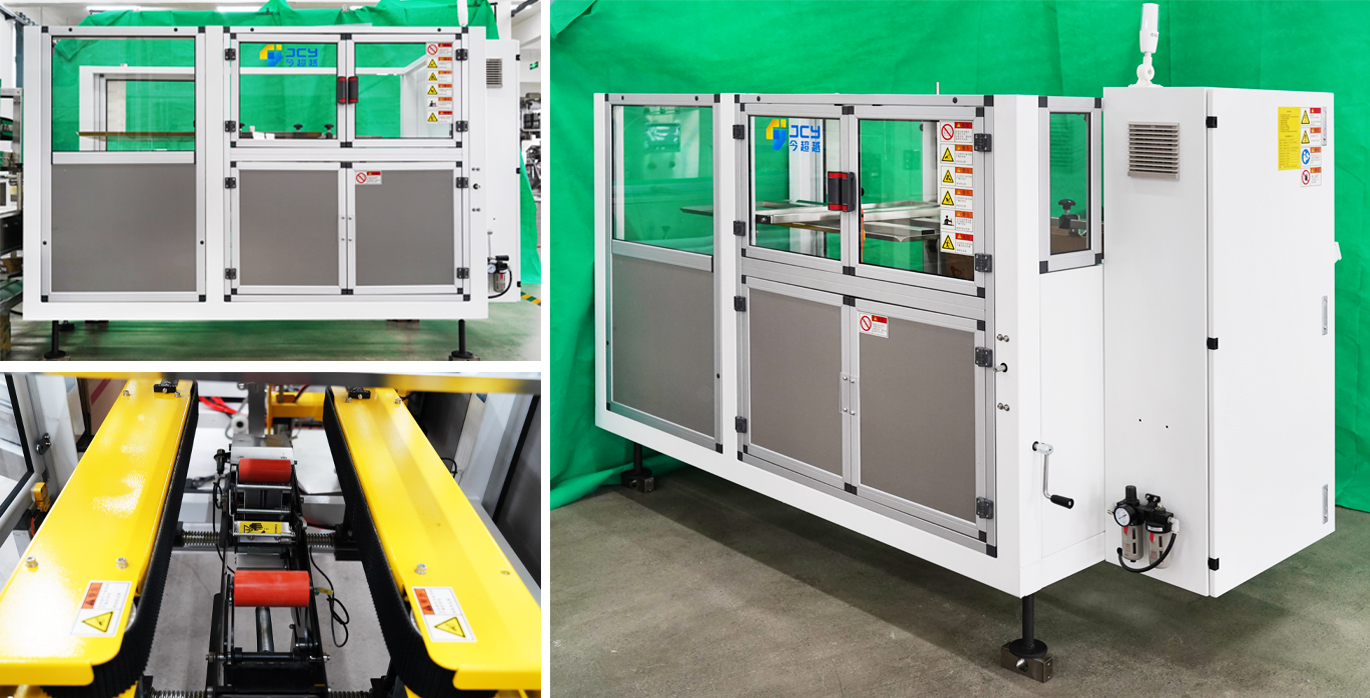

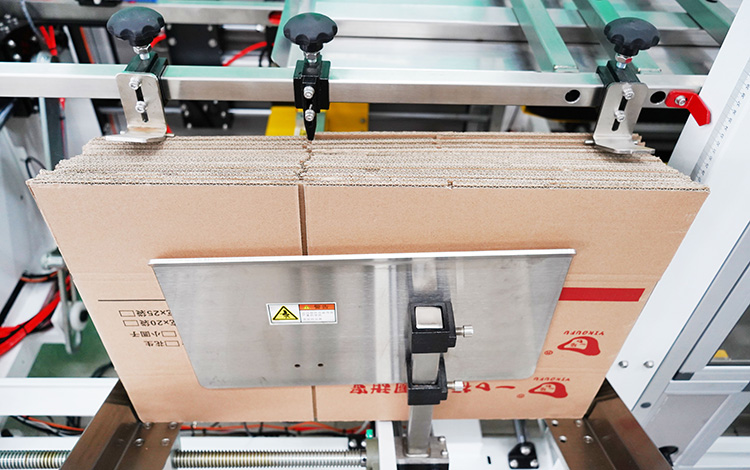

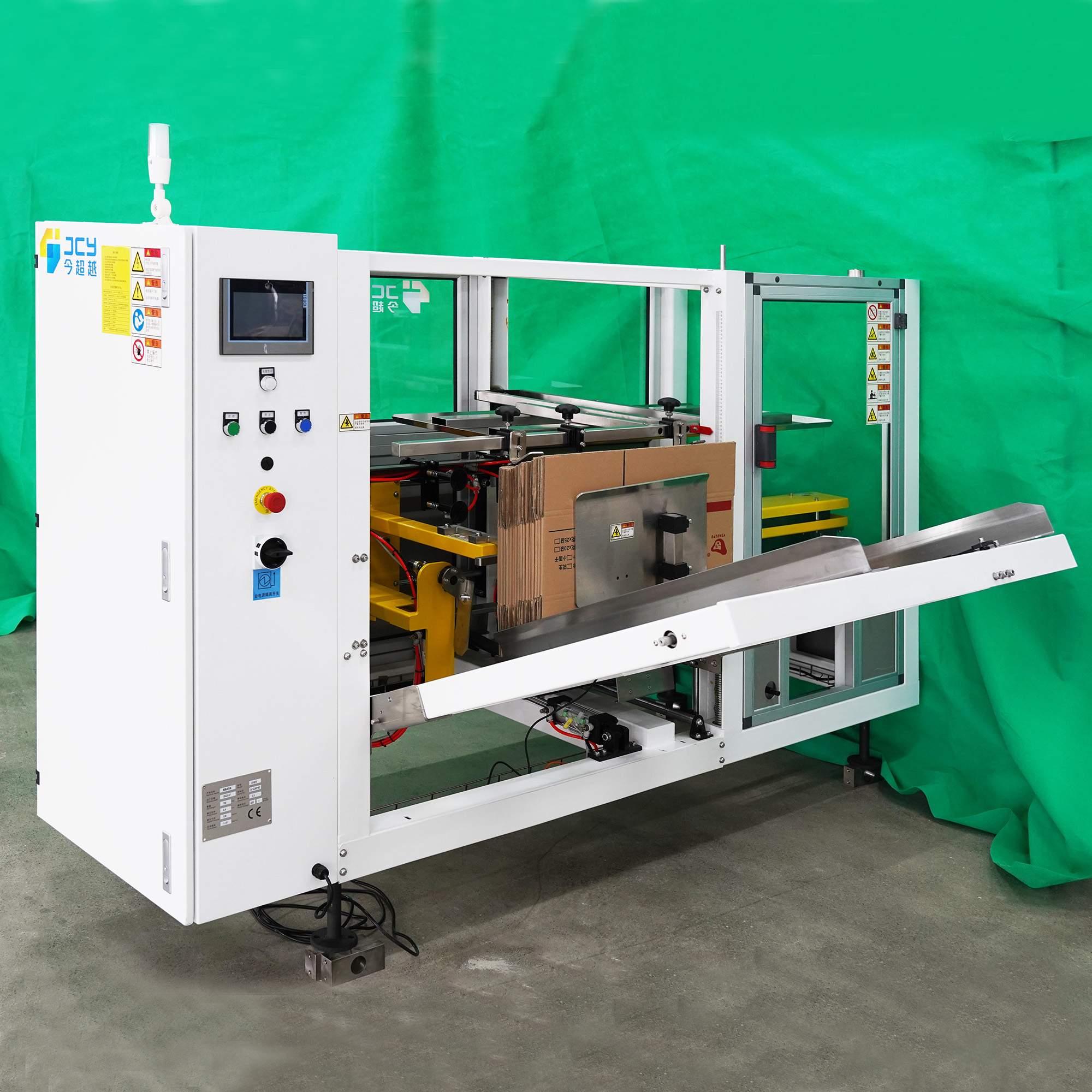

Automatic carton unpacking machine is also called a carton forming machine and a tape back sealing machine. Automatic carton unpacking machine integrates carton unpacking, forming, lid folding and back sealing. Place the flat carton on the storage trough, suck the carton out of the trough through the suction cup, and shape the carton while sucking and pulling it out. Then fold the front and rear and left and right covers, and then complete the tape sealing.
| Parameter | Specification Details |
|---|---|
| Product Name | Automatic Carton Unpacking Machine |
| Compressed Air Pressure | 0.5MPa~0.6MPa |
| Power Supply | 220V 50HZ 500W |
| Air Consumption | 200L/Min |
| Dimension(L*W*H) | 3050*1950*1560MM |
| Out-of-box Table Height | 750MM |
| Net Weight | 450KG |
| Tape Width | 48-72MM |
| Working Speed | <15Cartons/Min (standard box) |
| Applicable Carton Range | L300-500 W150-380 H150-380 |
| Productivity | ≥95% |
| Carton Loss | 3% |
| Unboxing Method | Vertical Molding |
