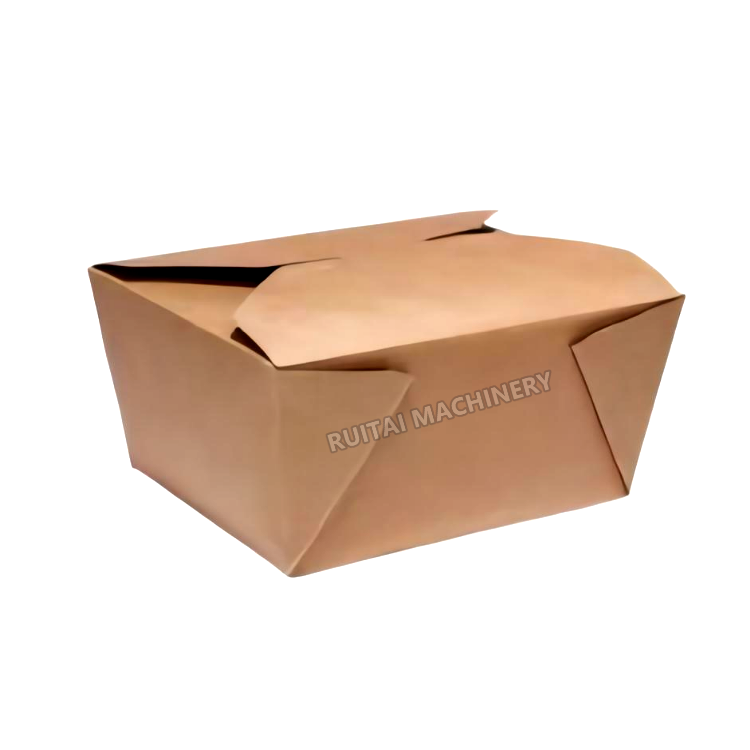

Introduction: Ideal for making sweet boxes, pizza boxes, popcorn and French fry pouches, hamburger boxes, noodle boxes, lunch boxes, trays, and more.

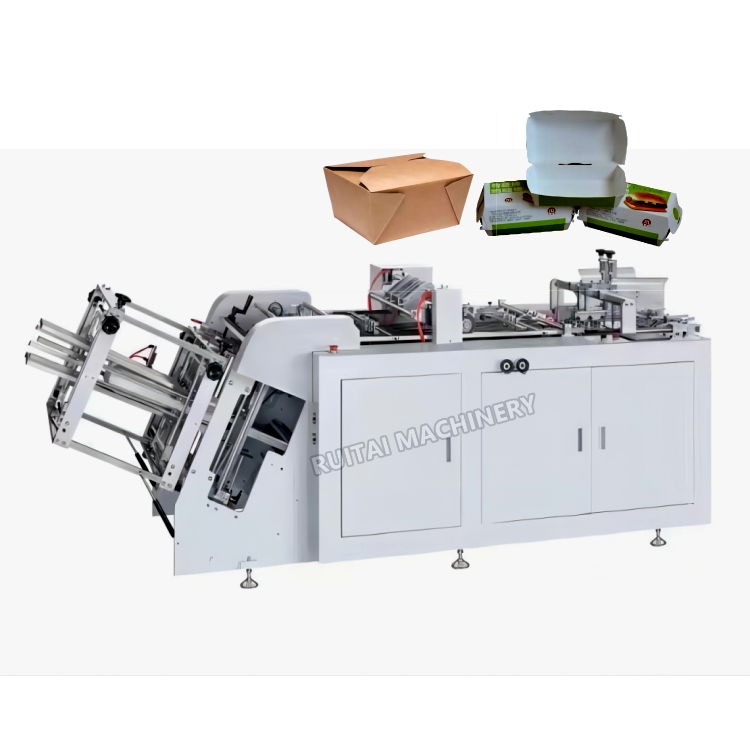

| Name | Carton erecting machine / Lunch Food Box Making Machine |
|---|---|
| Model | DB-1200 |
| Paper Material | 180—600gsm cardboard / corrugated paper |
| Box Type | Hamburger boxes, square boxes, food boxes, fast food boxes, French fries boxes |
| Max. Liner Speed | 80—180 pcs/min (Speed varies according to different paper box shapes) |
| Paper Thickness | Max 1.5mm |
| Carton Size | Length: 100-450mm Width: 100-580mm Height: 15-200mm |
| Glue Material | Water-base cold glue |
| Paper Size | Max: 650mm(W) * 490mm(L) |
| Max Box Size | 450mm * 400mm |
| Min Box Size | 50mm * 30mm |
| Air Source | 6kgs/cm² * 200L/min |
| Dimension (mm) | 2950 * 1300 * 1300mm |
| Voltage | 380V 50Hz / 220V 50Hz |
| Total Power | 4.5kw |
| Machine Weight | 2000kgs |
What kinds of boxes can this carton erecting machine make?

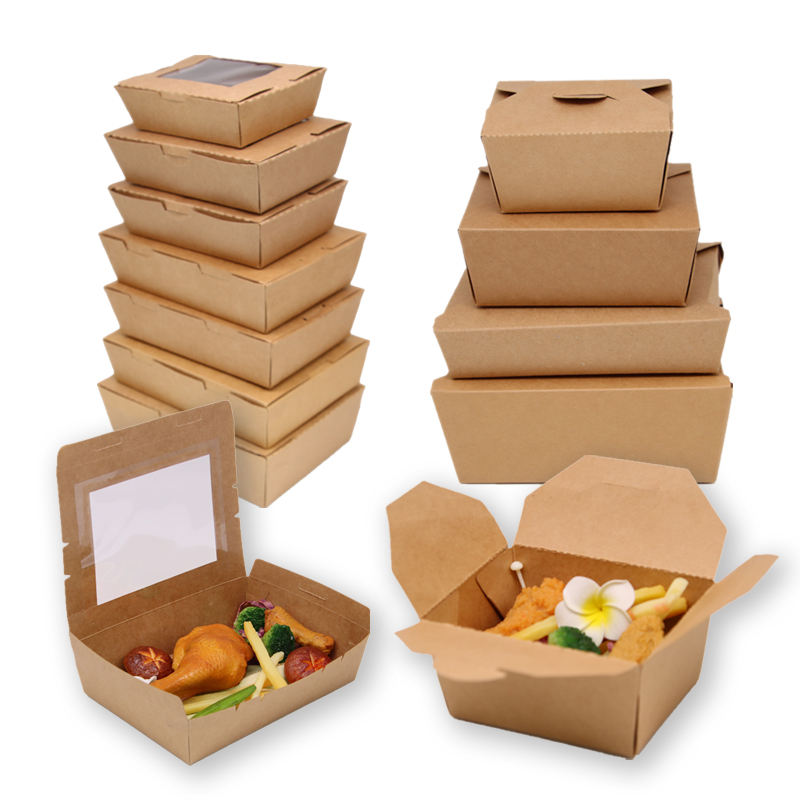

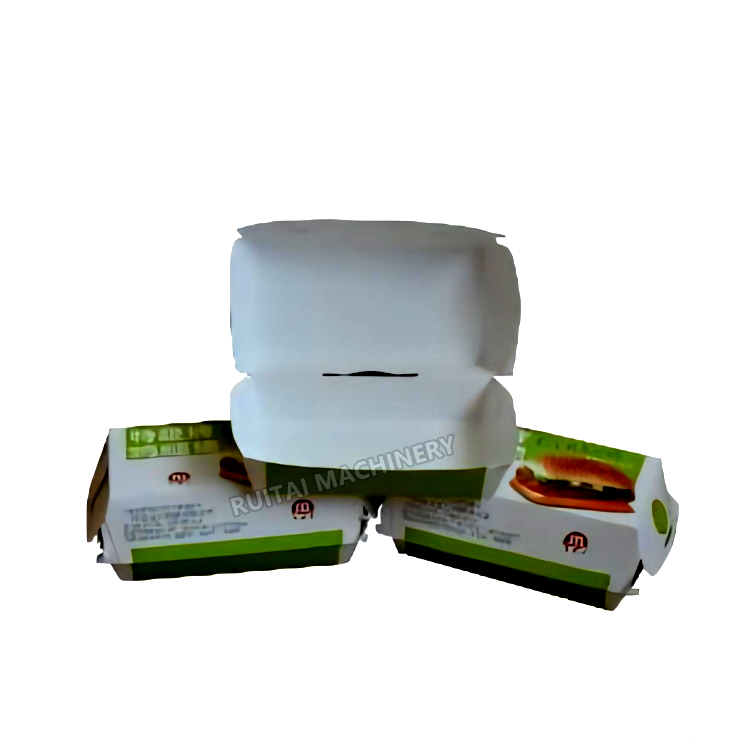

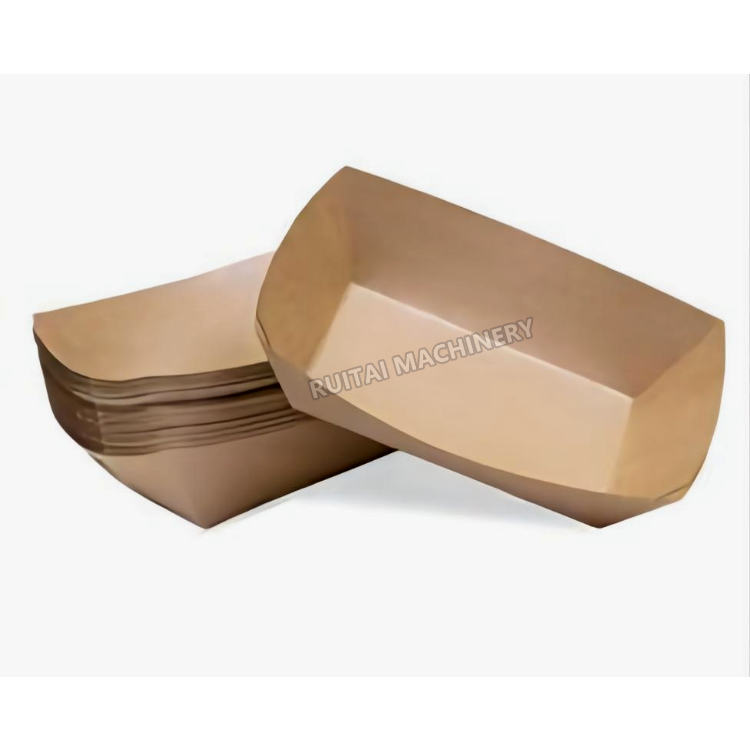

This machine is versatile and ideal for manufacturing hamburger boxes, square boxes, food boxes, fast food boxes, French fries boxes, sweet boxes, pizza boxes, popcorn/French fry pouches, noodle boxes, lunch boxes, and trays.
What is the production speed of the DB-1200 model?
The machine has a maximum liner speed of 80 to 180 pieces per minute. Please note that the actual speed depends on the specific shapes and sizes of the paper boxes being processed.
What thickness and materials of paper can the machine handle?
It is compatible with 180—600gsm cardboard and corrugated paper, supporting a maximum paper thickness of up to 1.5mm.
What type of glue system is used in this machine?
The machine uses an eco-friendly water-base cold glue system to ensure a secure and precise bond for all box types.
What are the power requirements and dimensions of the machine?
The machine runs on either 380V 50Hz or 220V 50Hz with a total power consumption of 4.5kw. Its physical dimensions are 2950 * 1300 * 1300mm, and it weighs approximately 2000kgs.
