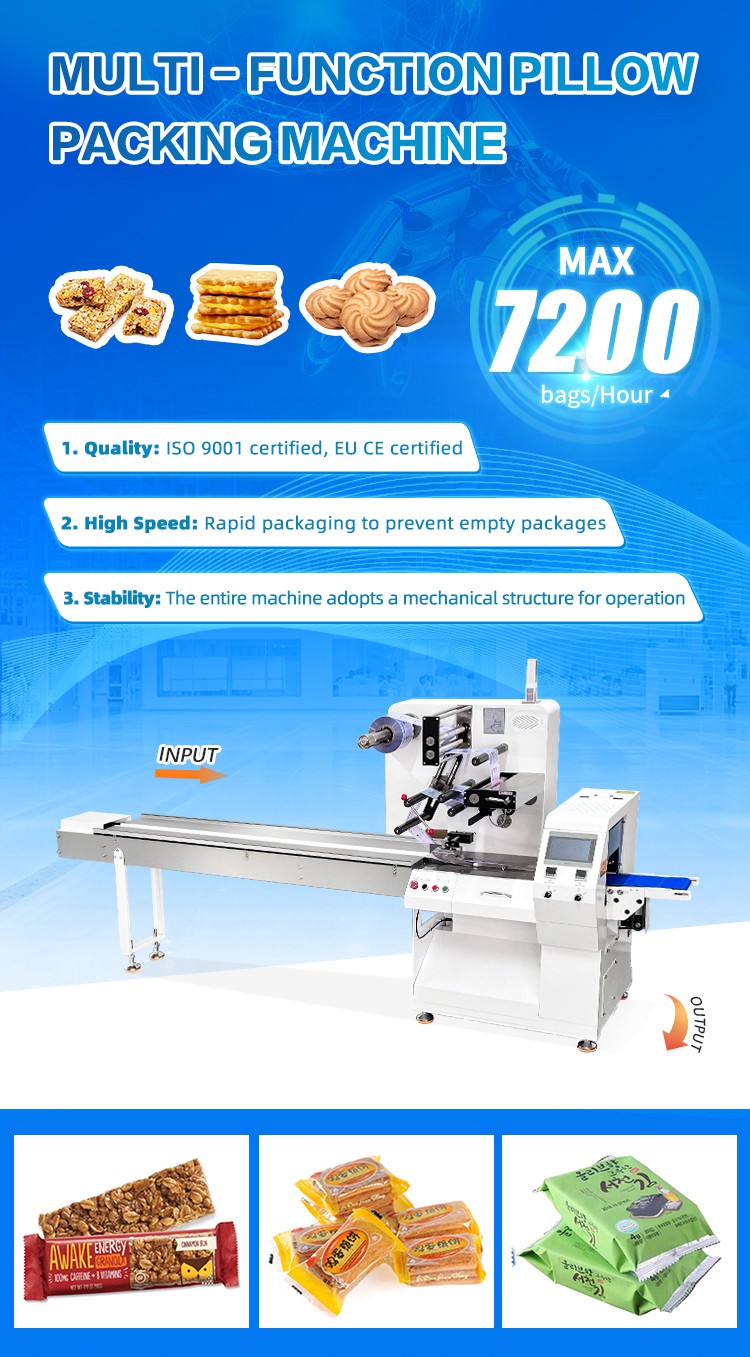

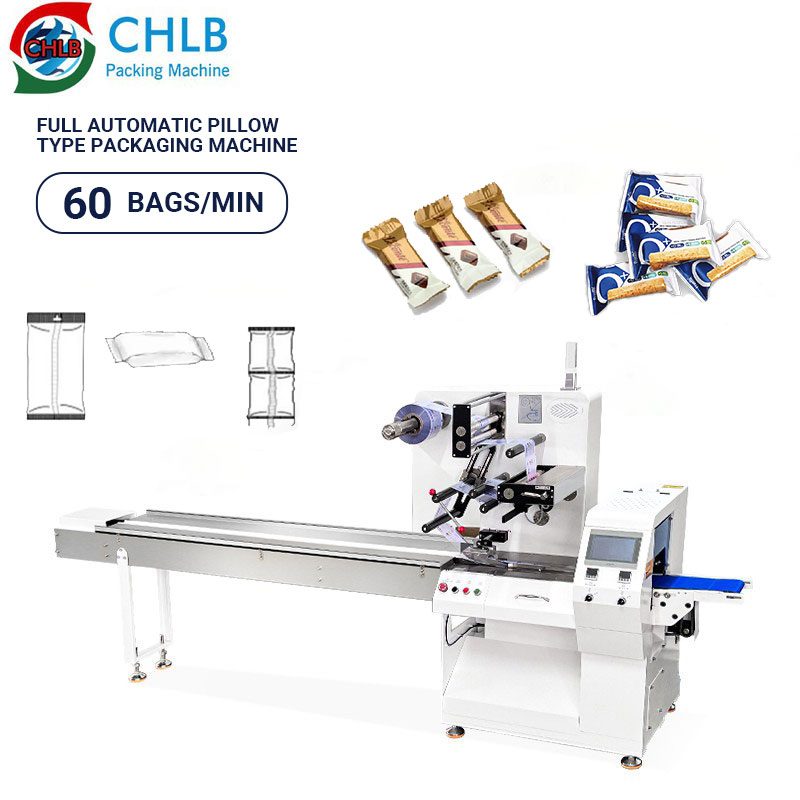

Flow Wrap Machine Servo Controlled For Cookie Packing
Features:

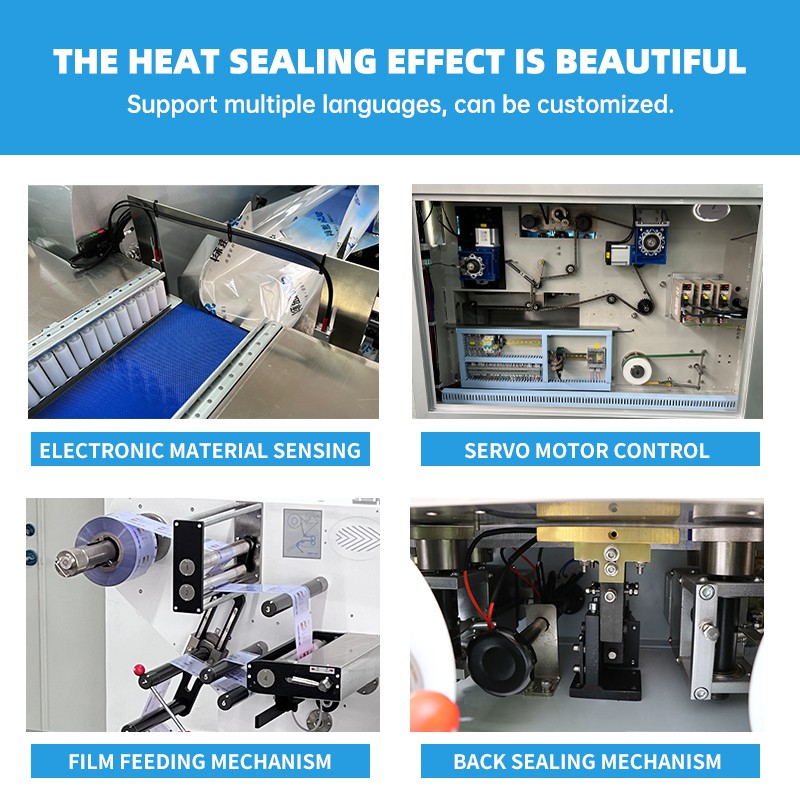

- Three servo motors, PLC control, bag length is set and cut immediately, no need to adjust the empty run, one-step to achieve, save time and film.

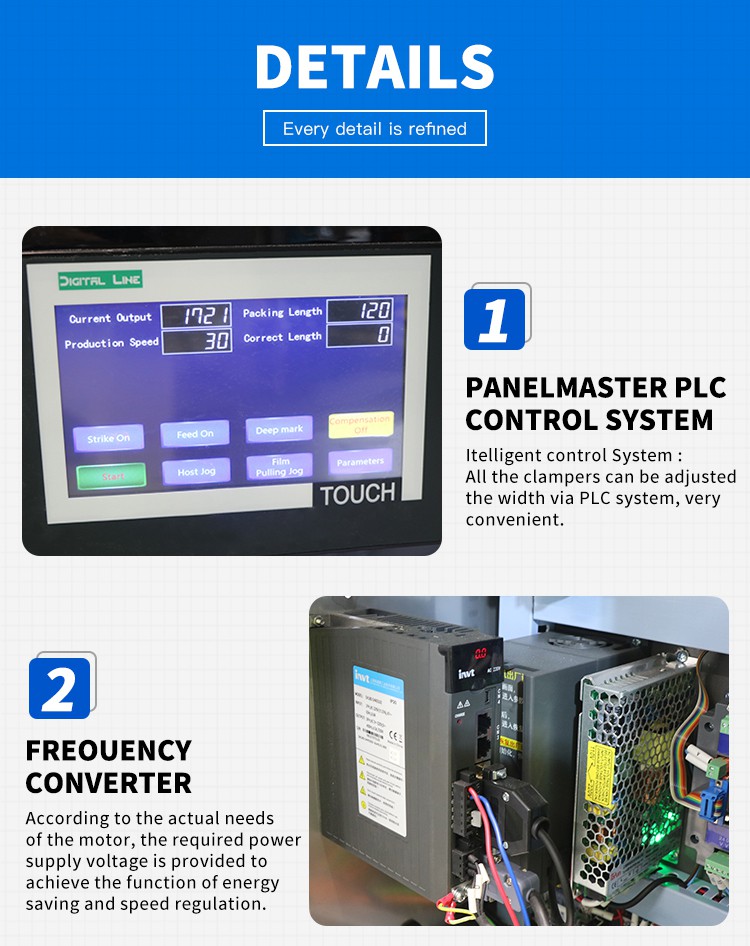

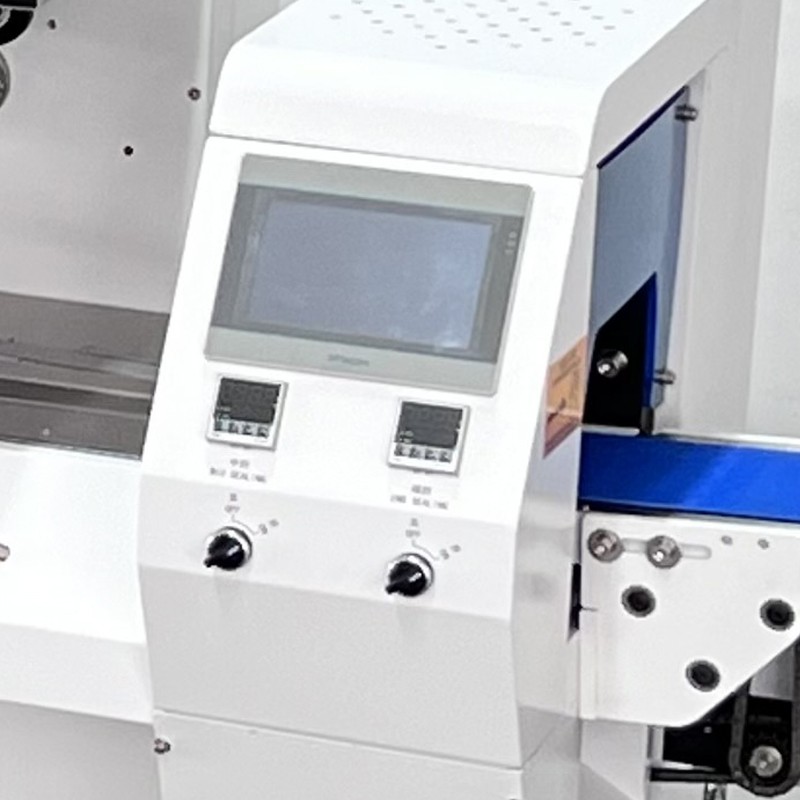

- Human-machine interface, parameter setting is convenient and fast.
- Fault self-diagnosis section function, fault display is clear at a glance.
- Advanced photoelectric eye color mark tracking, digital input sealing and cutting position, making the sealing and cutting position more accurate.
- Temperature independent PID control, better suitable for various packaging materials.
- Positioning stop function, no sticking knife, no waste of film.
- The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
- All controls are realized by software, which is convenient for function adjustment and technology upgrade, and never lags behind.
- Automatically sense the length of the material, automatically pack the product, and stop waiting without product, without adjusting the bag length.
| Output |
Up to 200 products per minute
Up to 40 m/min film speed
Product and film characteristic may affect machine output |
| Size Range |
| Package cut-off length |
50-6000mm |
| Product width |
max.140mm |
| Product height |
max.60mm |
| Packaging Material Reel |
| Reel diameter |
≤350mm |
| Core diameter |
≤65mm |
| Packaging material width |
max.350mm |
| Weight |
max. 25KG |
| Connections |
| Voltage |
220V 50/60Hz 2.8KW |
| Power usage |
2.8KW |
| Machine weight |
650kg |
| Machine dimensions |
L4020mm*W820mm*H1320mm |
| Blade cut type |
Rotary cutter |
| Motor configuration |
Dual servo |
| Optional Device |
date printer, auto feeder, gas charger, etc. |
Company Information
Production Process
Certificate
Exhibition & Customer Photos
Packaging & Shipping
FAQ
What info do you need before confirming the machine?

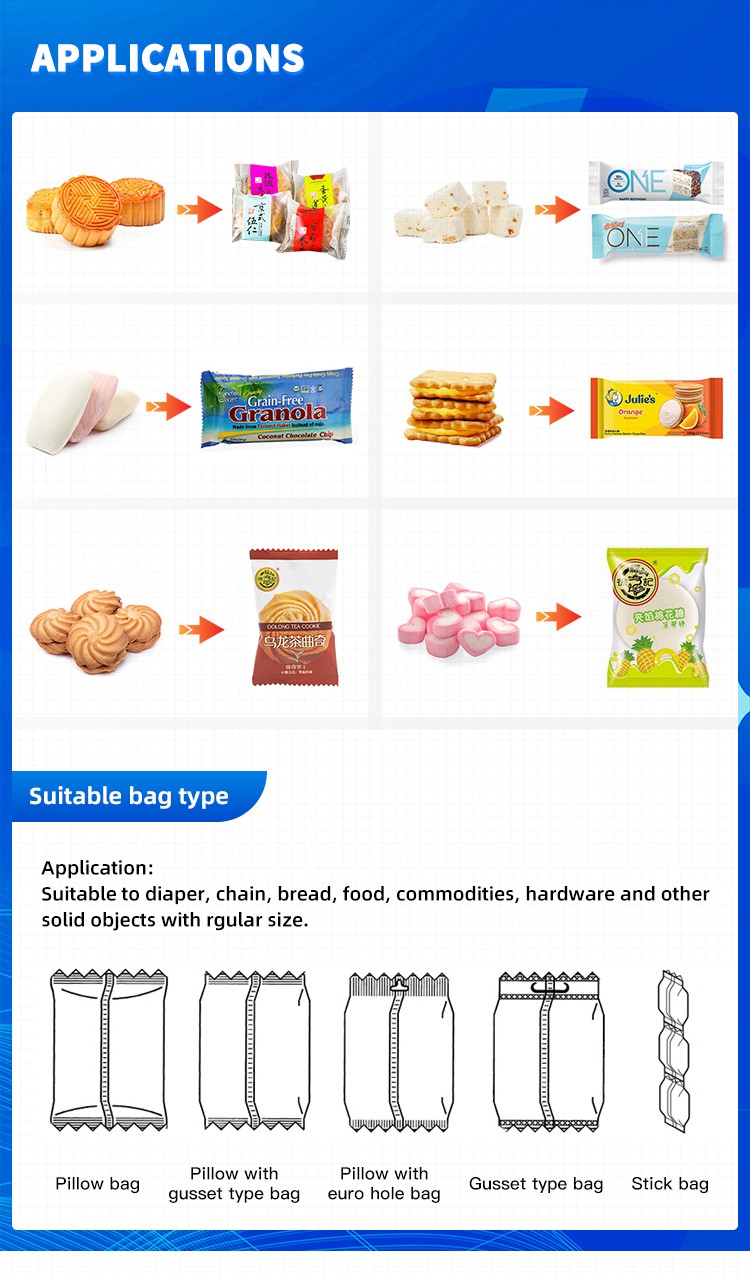

Your product picture, your product size (length, width, height, weight etc.), packing type (Back seal/ quad seal/ 3-side seal/ 4-side seal etc.), and your product samples (for testing).
What is the material of the contact food/material parts?
The contact food/material parts are made of 304# stainless steel. The machine body can be 304# stainless steel or carbon steel.
Can this machine make different bag sizes?
One former can make one bag width, and the bag length can be adjustable within a range. It should be ordered an extra former if you want to make the other bag width.
Do you accept OEM?
Yes, we have a professional design and technical team to accept customization.
How about your warranty?
We provide a 13-month warranty, starting from the issue date of the bill of lading.
What can you provide for after-sales service?
We can provide machine testing videos and pictures before delivery, English manuals, some free spare parts, installation in clients' factories, and technical training.
