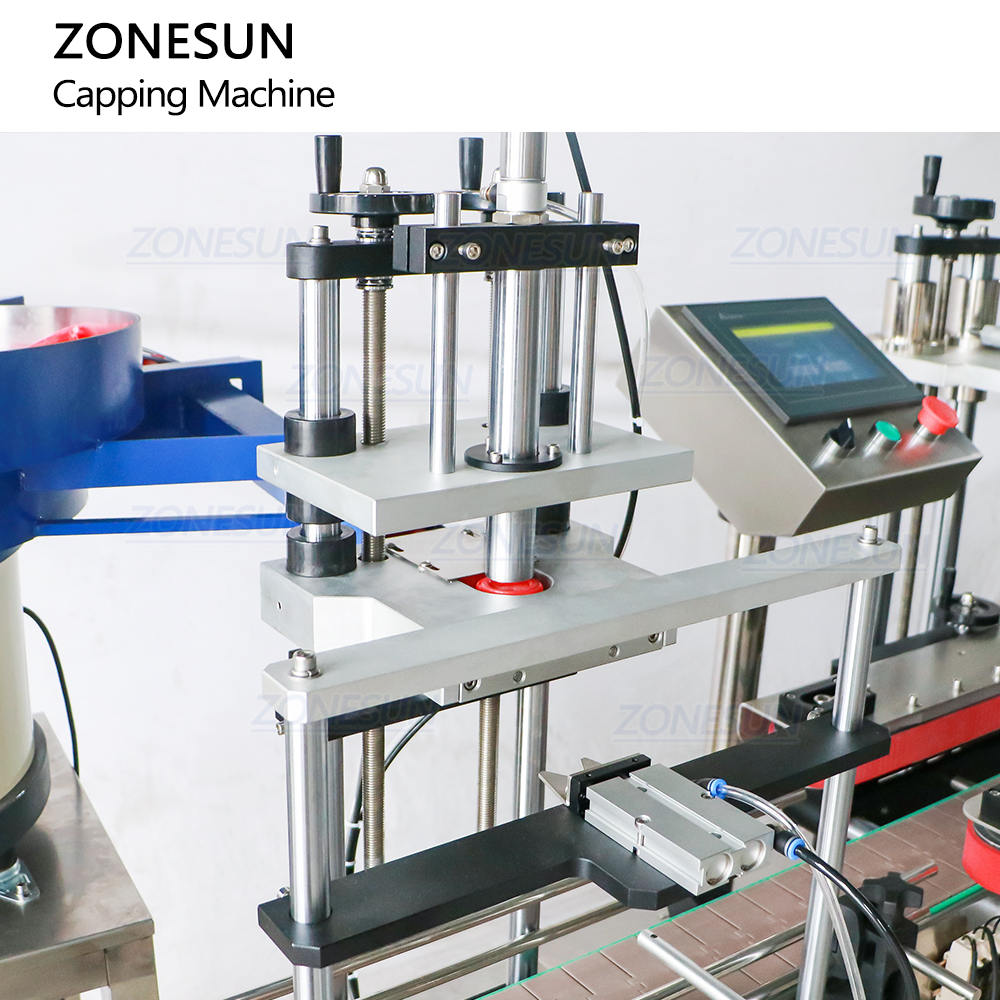

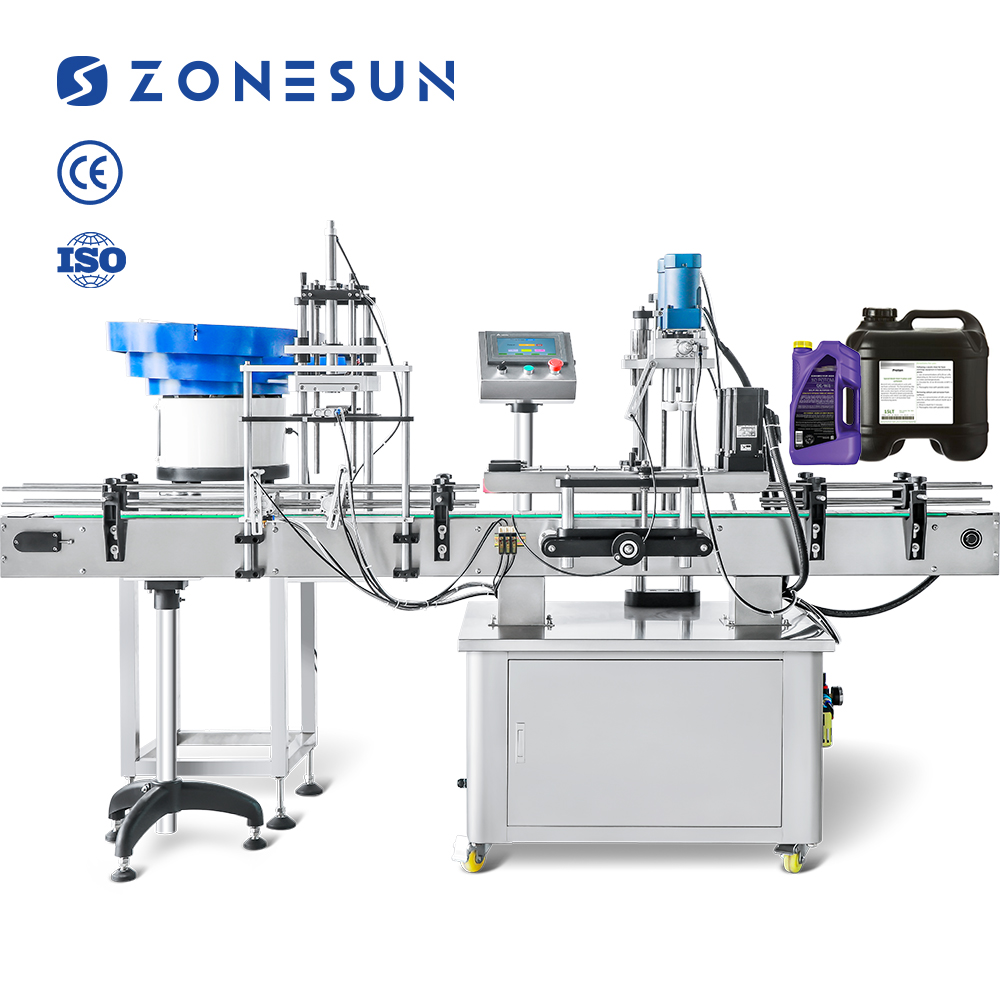

ZONESUN ZS-XG440H Automatic Jerry Can F-style Gallon Bottle Cap Screw Capping Machine With Cap Feeder

Product Description

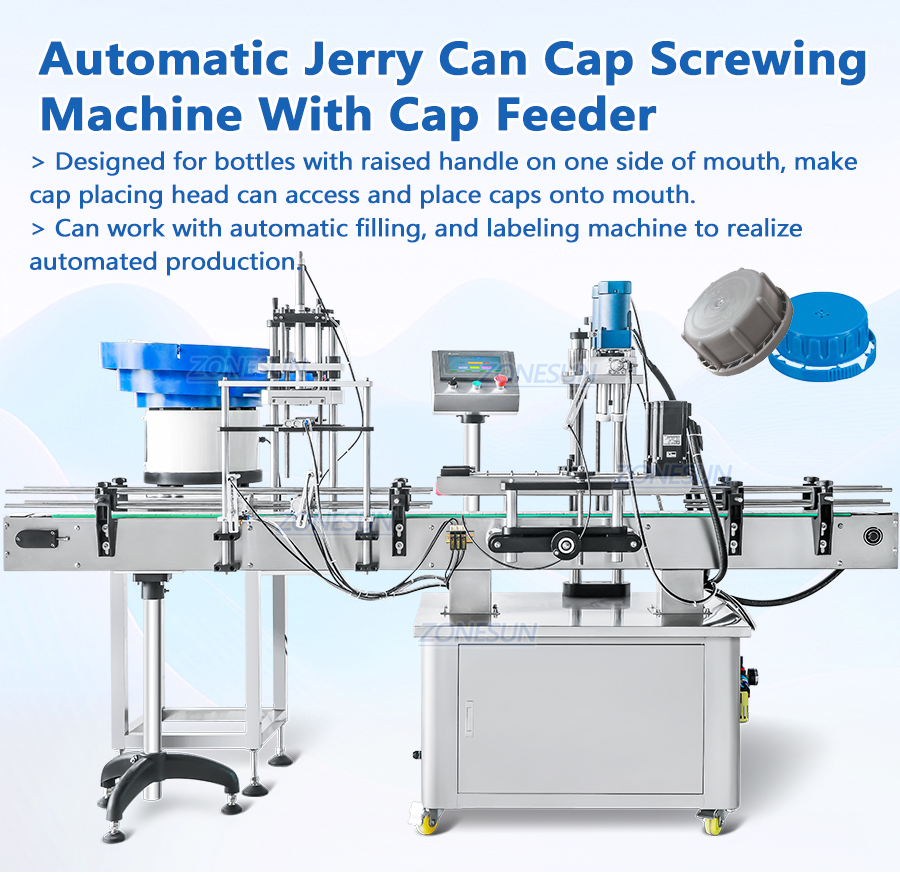

Automatic Screw Capping Machine Banner

Product Description

This machine is a type of packaging machinery used to automatically screw caps onto bottles, jars, or containers. It is equipped with vibratory bowl sorter, caps will be arranged orderly and pushed onto bottle mouth precisely. It is widely used in industries like food, beverage, cosmetics etc.

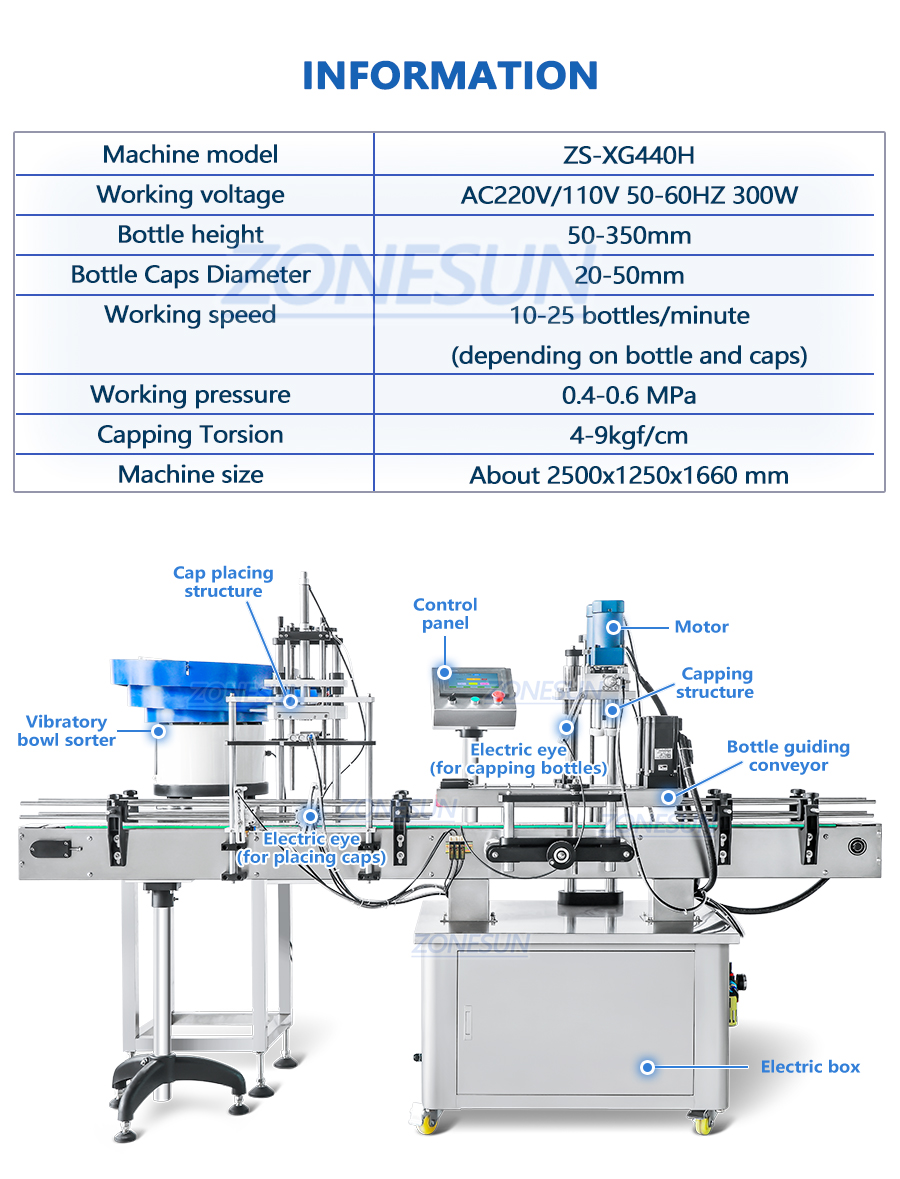

Automatic Capping Machine Side View Automatic Capping Machine Front View

Specifications

Parameter Specification
Machine model ZS-XG440H
Working voltage AC220V/110V 50-60HZ 300W
Bottle height 50-350mm
Bottle Caps Diameter 20-50mm
Working speed 10-25 bottles/minute (depending on bottle and caps)
Conveyor size 2500mmx114mm(LxW)(customizable)
Working pressure 0.4-0.6 MPa
Capping Torsion 4-9kgf/cm
Machine size About 2500*1250*1660mm
Packing size About 2600*840*1680mm (Capping Machine)
About 1150*700*600mm (Vibratory Bowl Sorter)
Gross weight About 320kg (Capping Machine) + 130kg (Vibratory Bowl Sorter)
Machine Configuration Structure View

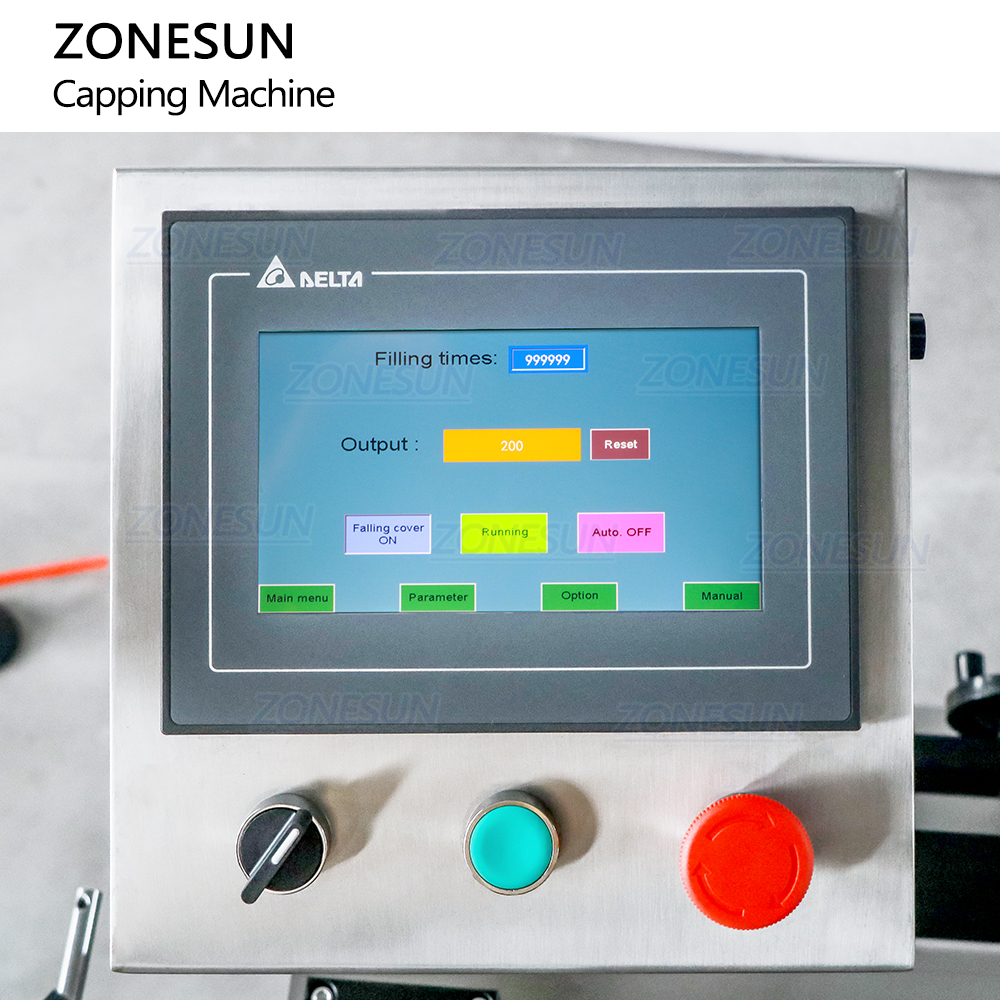

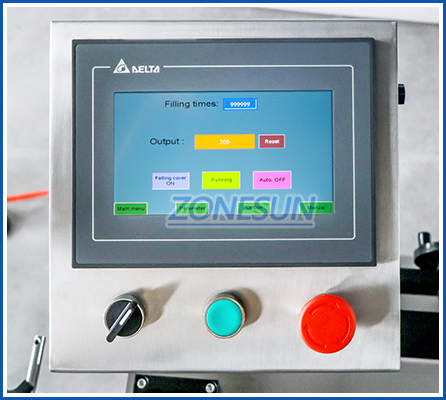

Control Panel Details

The control panel displays real-time data on the machine's performance, such as production rate, efficiency, temperatures, pressures, and other critical parameters. We also support multiple languages for use in different regions.

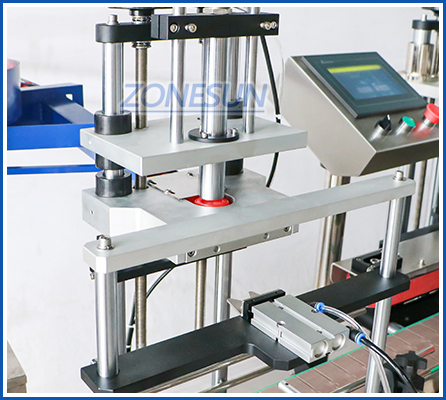

Cap Placing Mechanism

This cap placing structure is designed for bottles with raised handle on one side of mouth. The raised handle limits the allowed clearance space, this kind of cap placing structure can put caps onto mouth more accurately.

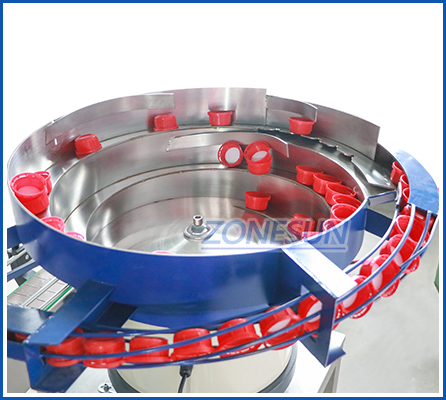

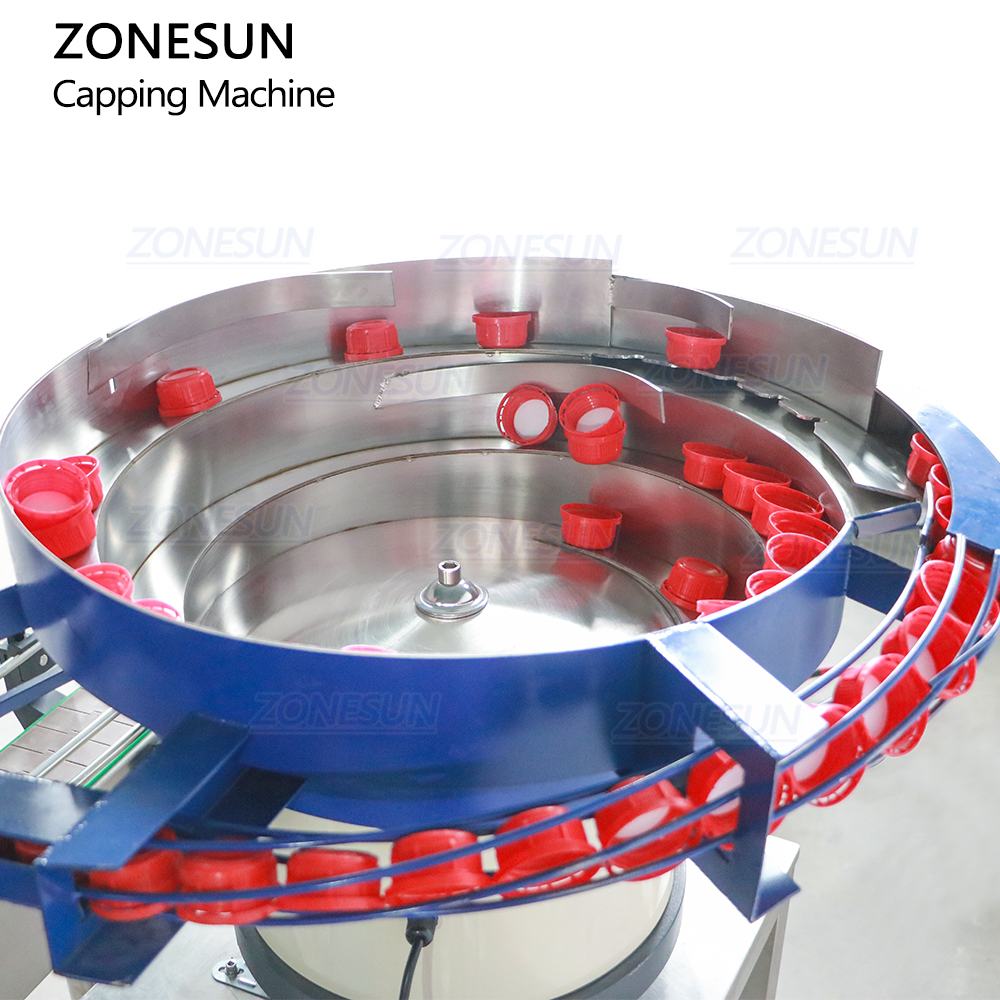

Vibratory Bowl Sorting System

Vibratory bowl sorters can be customized to accommodate different types of parts and sorting requirements. The bowl size, shape, and amplitude of vibration can be adjusted to optimize sorting performance for specific applications.

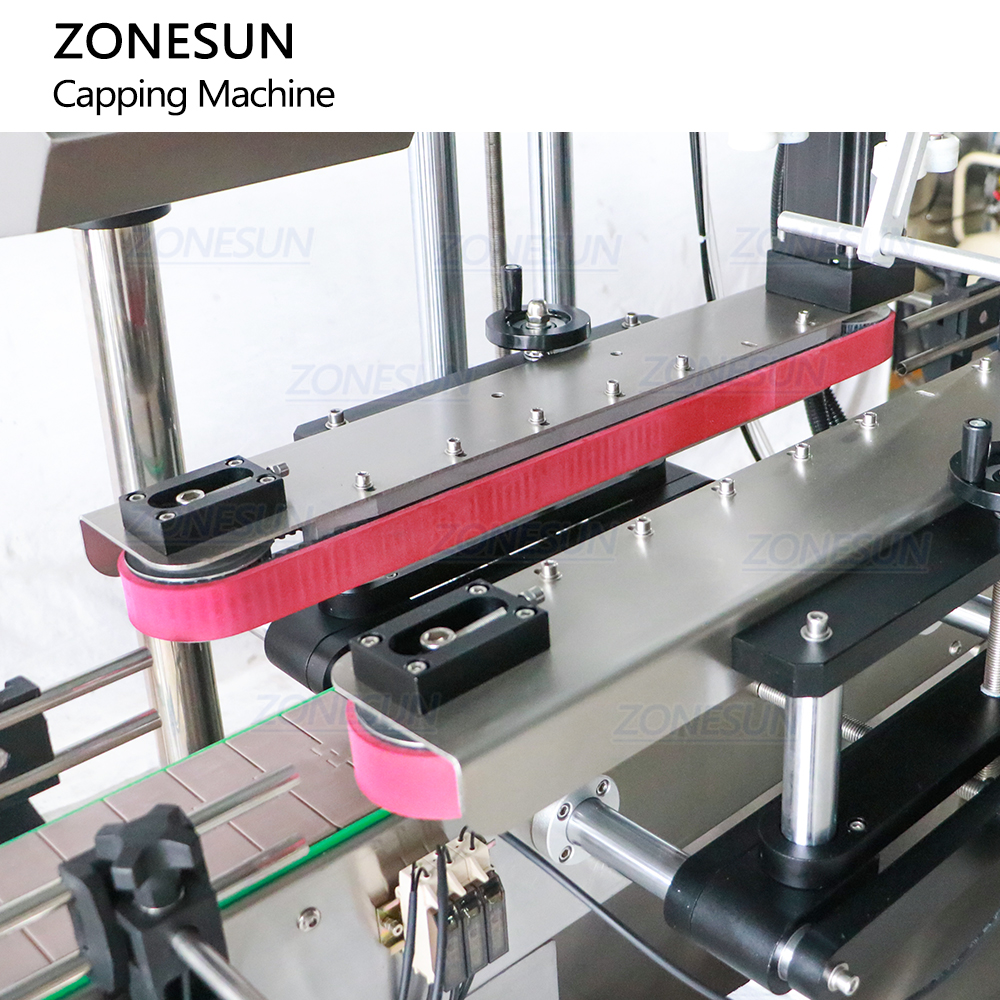

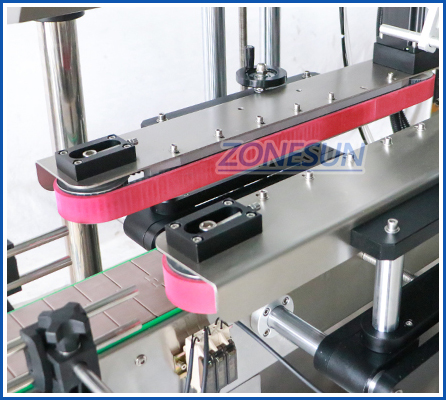

Bottle Guiding Conveyor System

Bottle guiding conveyors minimize the risk of product loss or damage by securely holding bottles in place and preventing them from tipping over or colliding with each other during transportation.

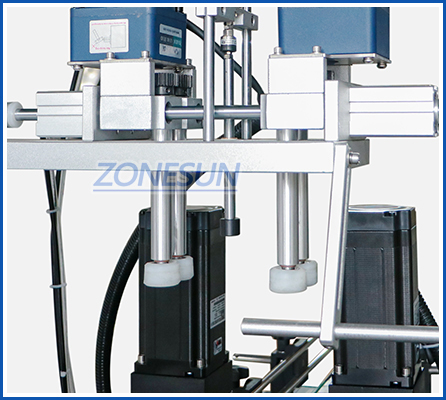

Capping Head Adjustment

The position of capping structure can be adjusted according to bottle height and cap size. This kind of capping method is suitable for caps with screw threads.

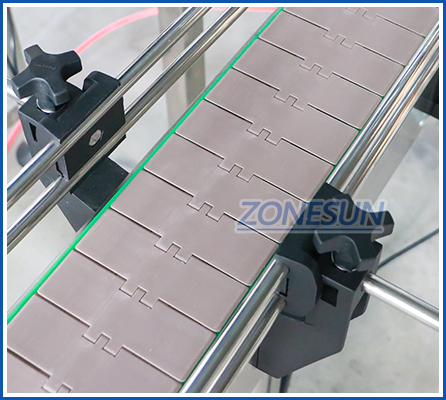

Chain Conveyor Belt Details

Equipped with chain conveyor belt, it has larger weight capacity. By ensuring consistent bottle alignment and movement, these conveyors contribute to overall production efficiency.

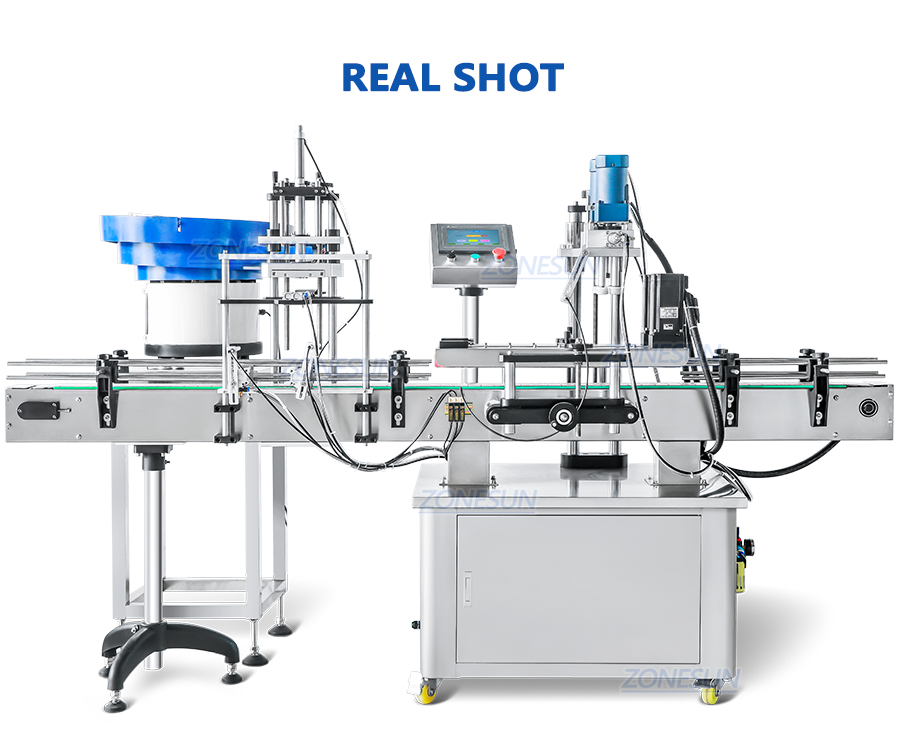

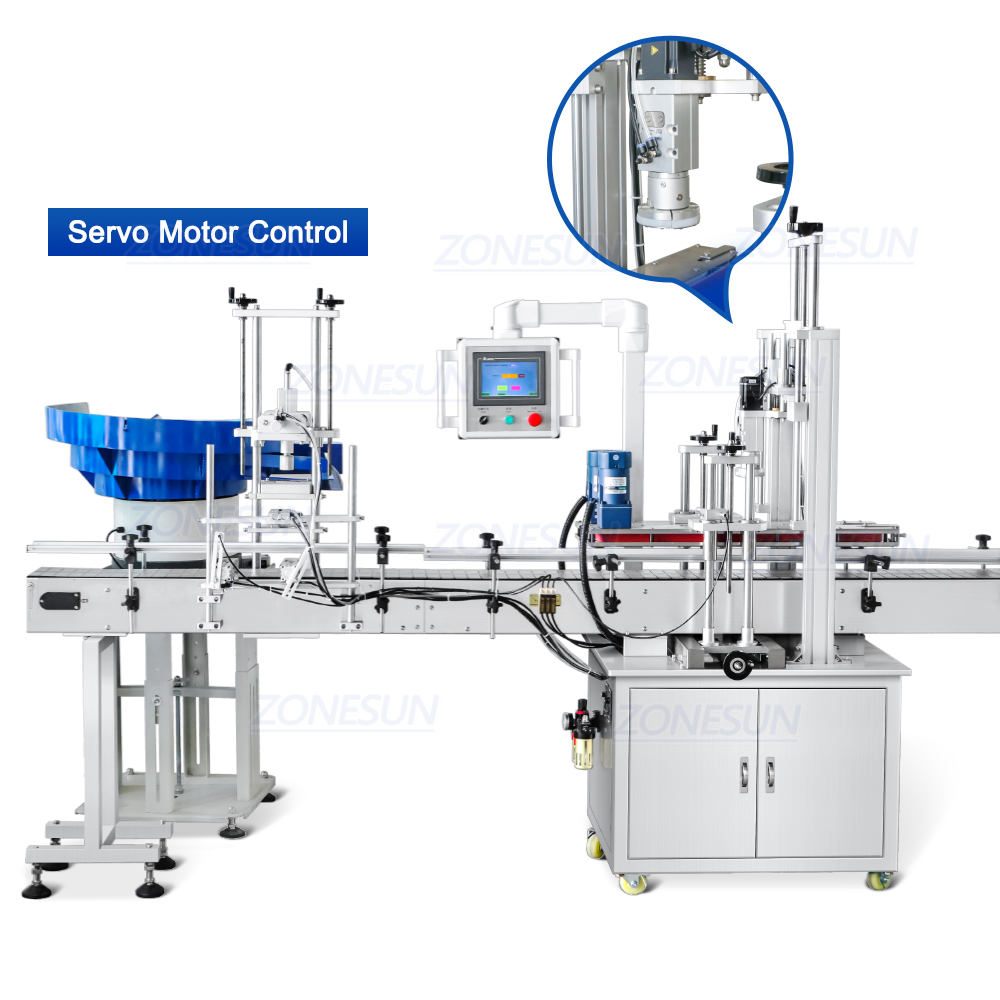

Finished Bottle Output Machinery Production Line

FAQ

Are you a factory or a trading company?
We are a factory and manufacturer.
Can you guarantee your quality?
Of course. We are the manufacturing factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured of our production completely.
What should I do if we are not able to operate the machine when we receive it?
An operation manual and video demonstrations are sent along with the machine to give instructions. Besides, we have a professional after-sales group to resolve any operational problems.
How could I get the spares for the machines?
We will send extra sets of easily damaged spares and accessories like O-rings, etc. Non-artificially damaged spares will be sent free of charge, with free shipping, during the 1-year warranty period.
What are the payment terms and trade terms for new customers?
We accept payment terms including T/T, L/C, D/P, O/A, Western Union, and others.
What is the Minimum Order Quantity and warranty period?
The MOQ is 1 set. The standard warranty is 12 months, with some customized products carrying a 24-month warranty.
