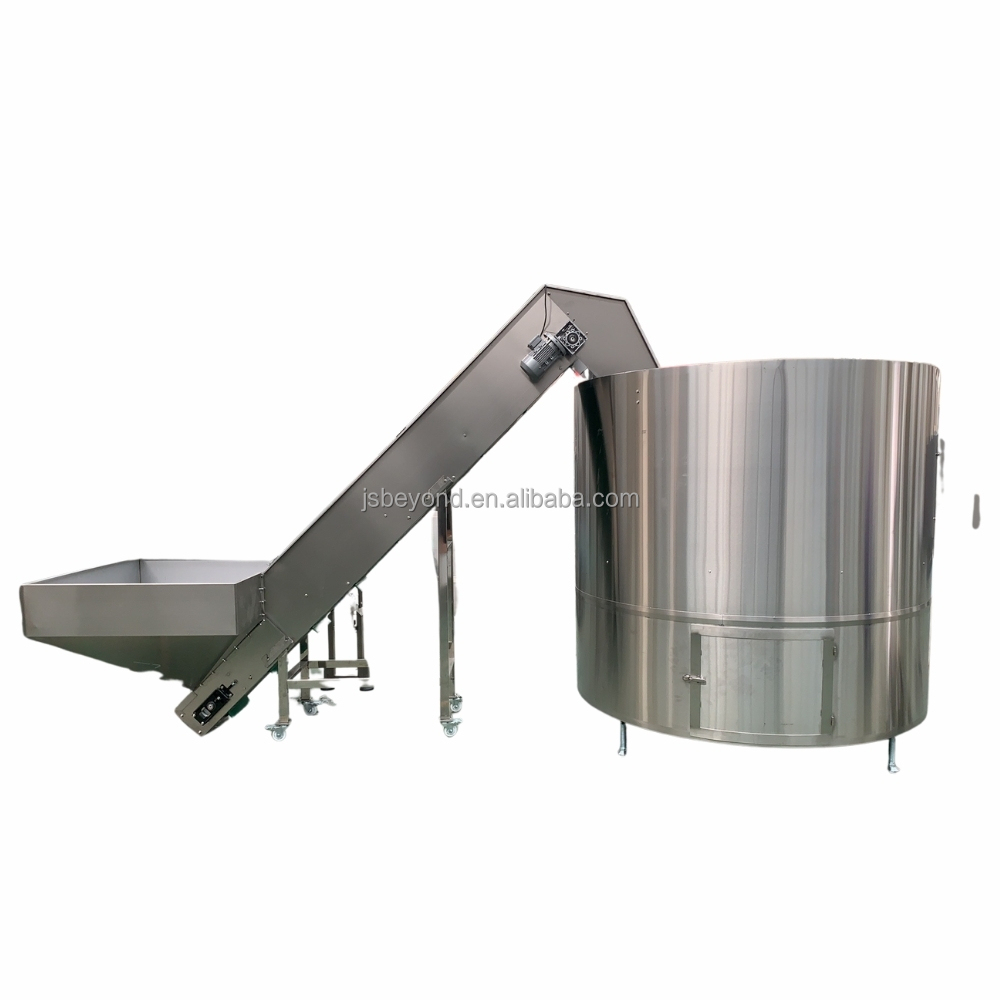

A Pet Bottle Unscrambling Machine is an advanced, fully automatic system designed to efficiently sort and arrange plastic bottles, particularly PET (polyethylene terephthalate) bottles, for further processing in packaging lines. It automatically picks up, or "unscrambles," disordered bottles and orients them in the correct position for labeling, filling, and capping. Ideal for high-volume production environments, this machine ensures a smooth, fast, and reliable flow of square plastic bottles, enhancing the efficiency and productivity of manufacturing operations.
| Parameter | Specification |
|---|---|
| Bottle Handling Speed | ≤ 200 bottles/min |
| Adapt to Bottle Type | Diameter: Φ40-90 mm, Width: 40-90 mm |
| Applicable Bottle Height | 80-240 mm |
| Air Source Pressure | 0.5~0.7 MPa |
| Power Supply | ~220V, 50Hz |
| Power | 1.5 kW |
| Dimensions of Bottle Unscrambler | 2600 × 1500 × 1500 mm (L×W×H) |
| Dimensions of Bottle Loading Machine | 2200 × 1200 × 1900 mm (L×W×H) |
| Weight of the Whole Machine | About 450 kg |

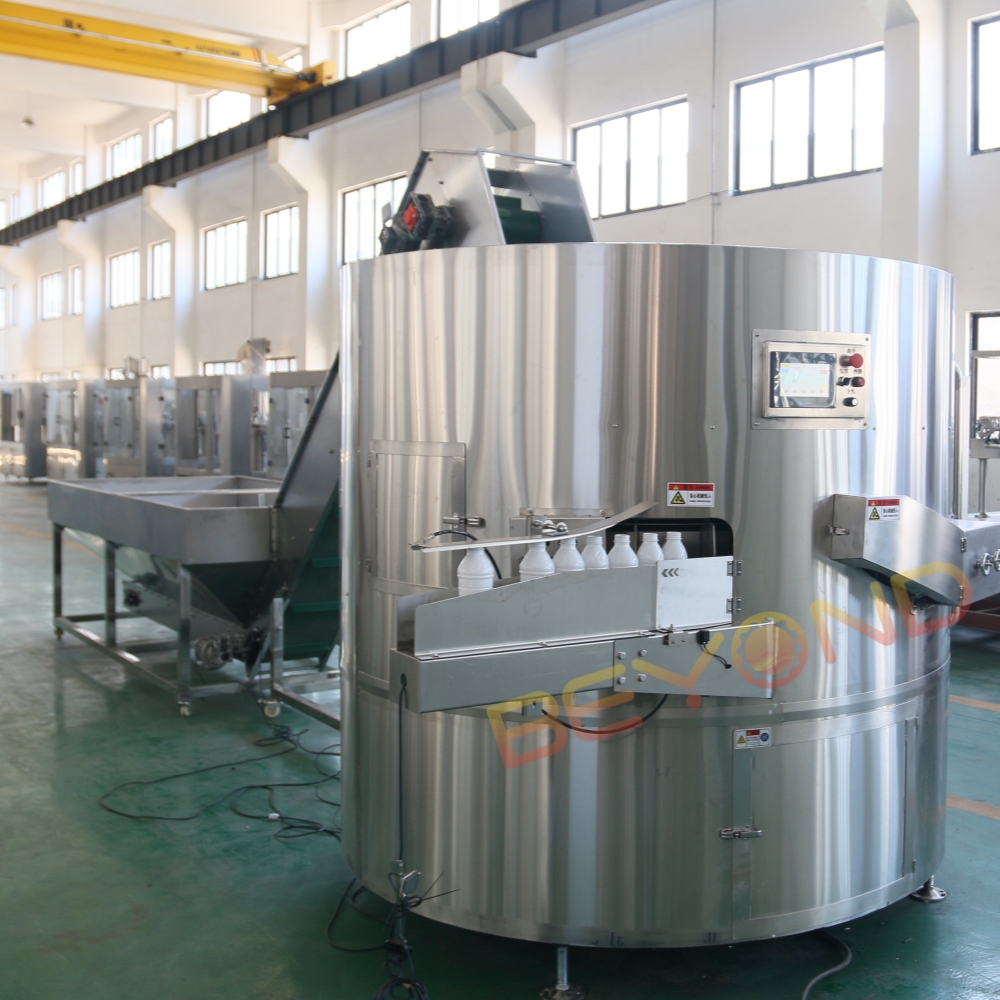

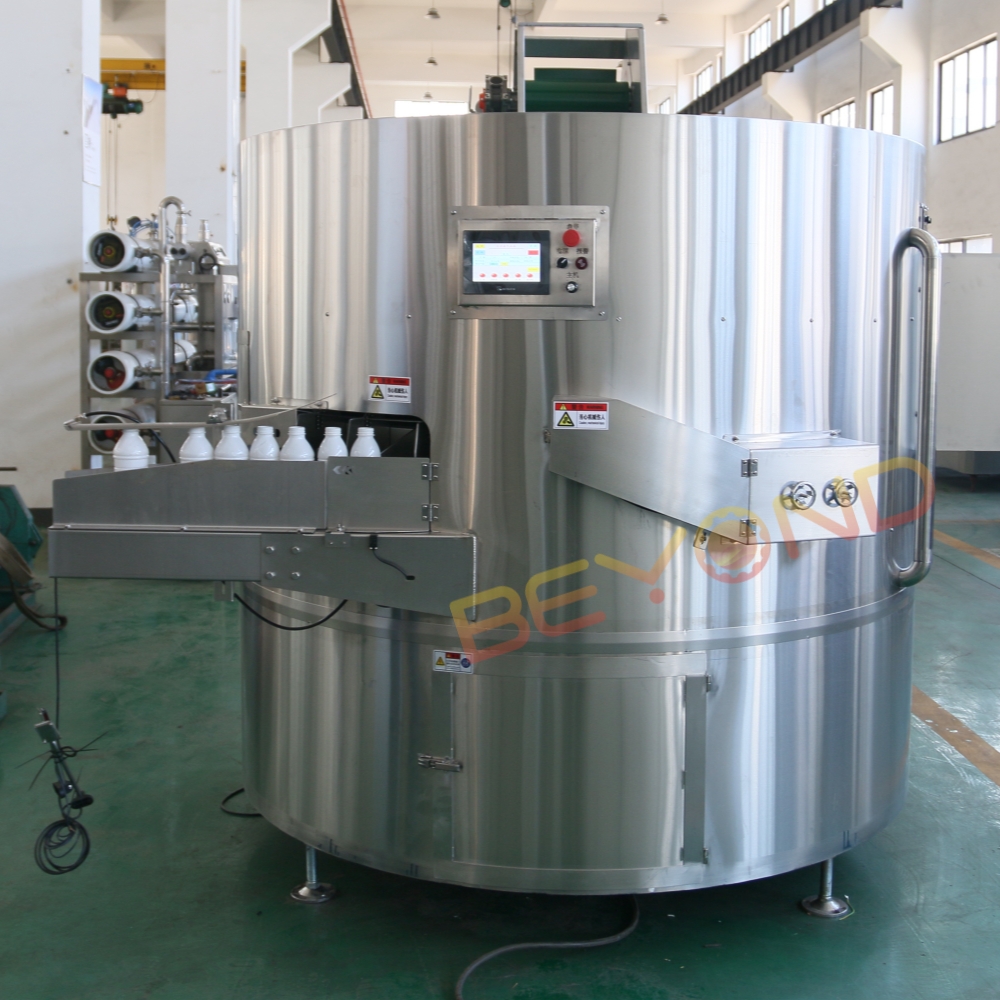

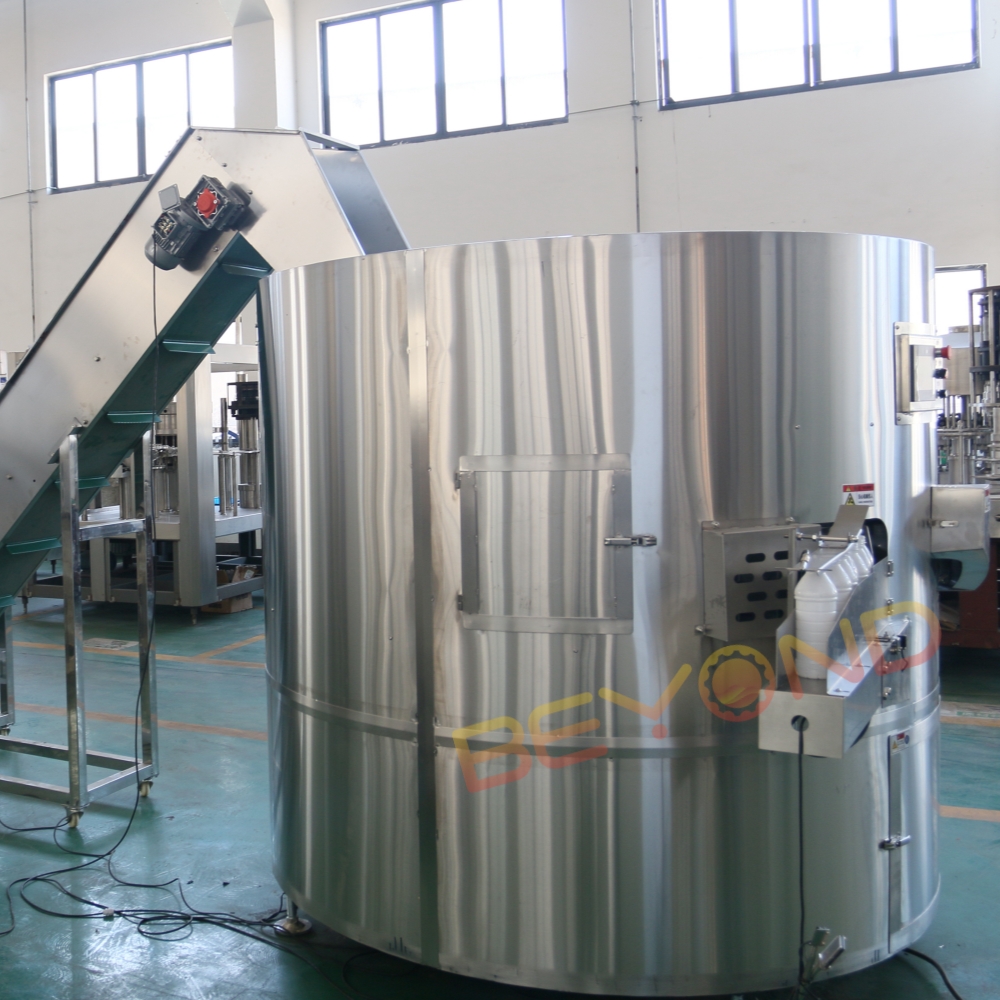

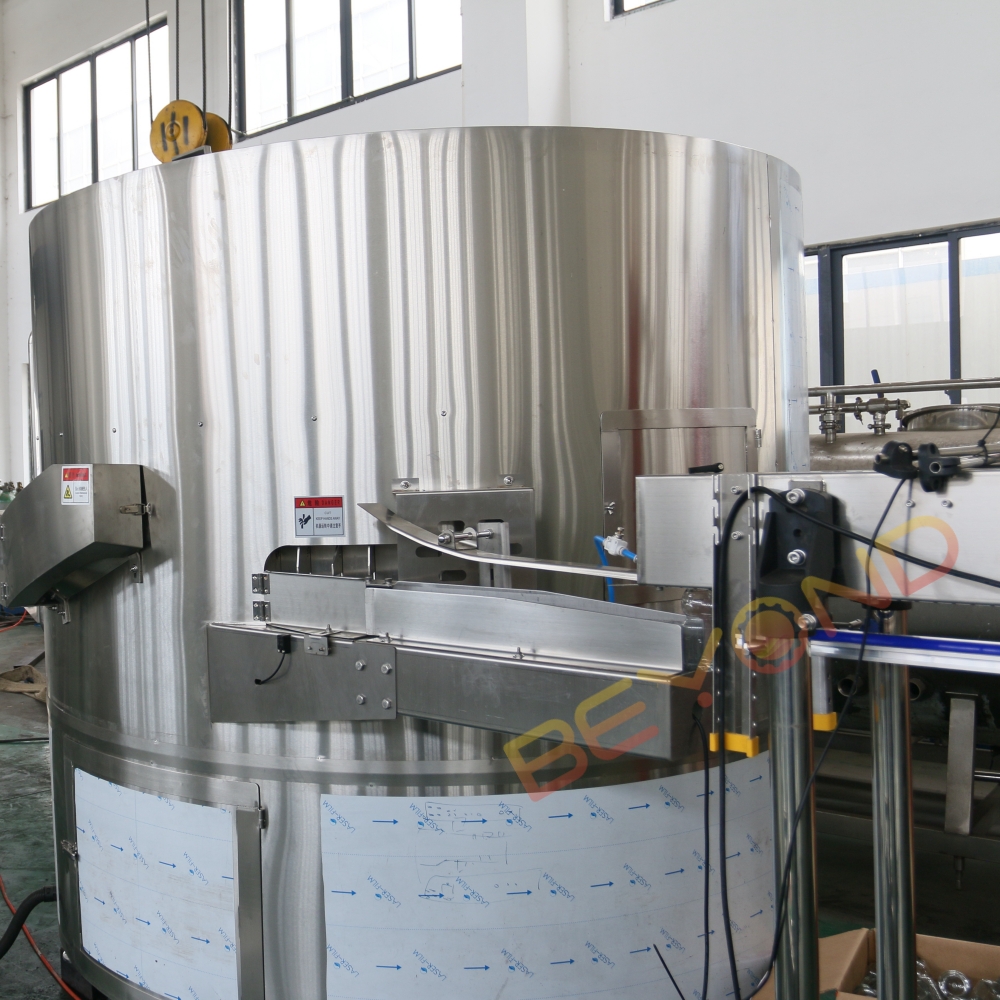

The automatic bottle unscrambler is composed of a bottle loading machine, bottle unscrambler turntable, bottle rejection part, bottle unscrambler part, and electrical box. A large number of disordered bottles are put into the bottle unscrambling turntable by the bottle loading machine, and transferred to the bottle unscrambling part through the conveyor belt, so that the bottles can be vertically transported to the user's conveyor belt. The model is compact in structure, simple in principle, mature in technology, stable and reliable in each action, and has been widely used in packaging production lines for many years.
Initial installation support is available with scheduled technician dispatch. Training courses are provided to customer operators covering basic usage, maintenance procedures, and adjustments. Standard installation cycles generally conclude within 5 working days depending on the machine specifications.
Warranty: All mechanical components are protected by a 2-Year manufacturer warranty against defects.
Payment: 30% T/T deposit upon contract sign-off; 70% balance via T/T prior to dispatch (or L/C at sight alternatives).
A: We specialize in complete beverage and packaging line systems, including liquid filling machines, water treatment plant setups, PET bottle blow-molding machines, automatic bottle unscramblers, labeling machines, shrink wrap systems, and associated sterilizers.
A: We can dispatch professional technical engineers to your site to handle assembly, testing, and operational training. Alternatively, client engineers are welcome to receive complete assembly training at our workshop before shipment.
A: We provide high-quality equipment backed by a 2-year warranty (24 months) on standard components and motors. If any design or manufacturing defects arise during this period, spare parts are supplied at no charge.
A: Because these are large-scale industrial machines, we do not ship samples. However, we provide comprehensive operation videos, detail photographs, and welcome you to visit our factory to see the machines running in real-time.
A: Main product contact parts are crafted using premium 304 stainless steel. Depending on customer requirements, upgraded options such as full 316 stainless steel or custom configured hardware interfaces are available.
A: Standard delivery times range between 7 to 45 days after deposit validation and the receipt of customer bottles/caps sample materials.
