Product Description

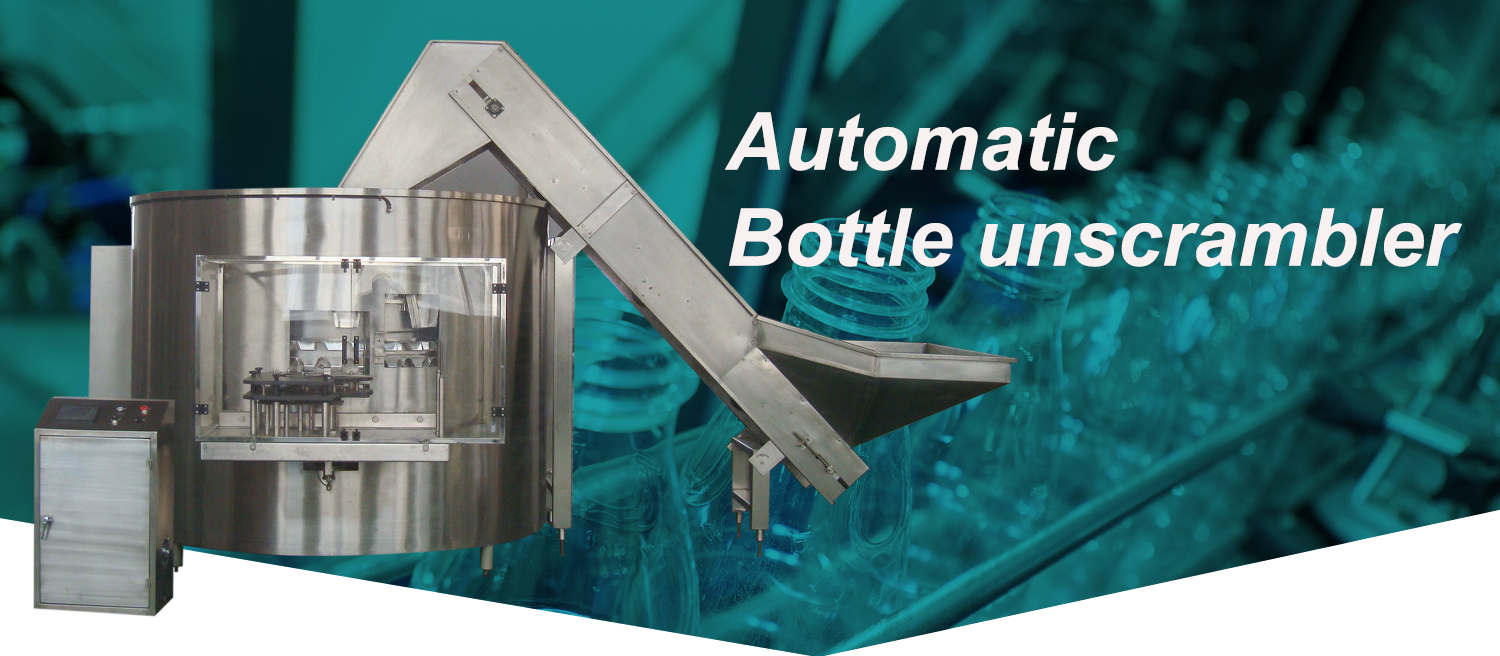

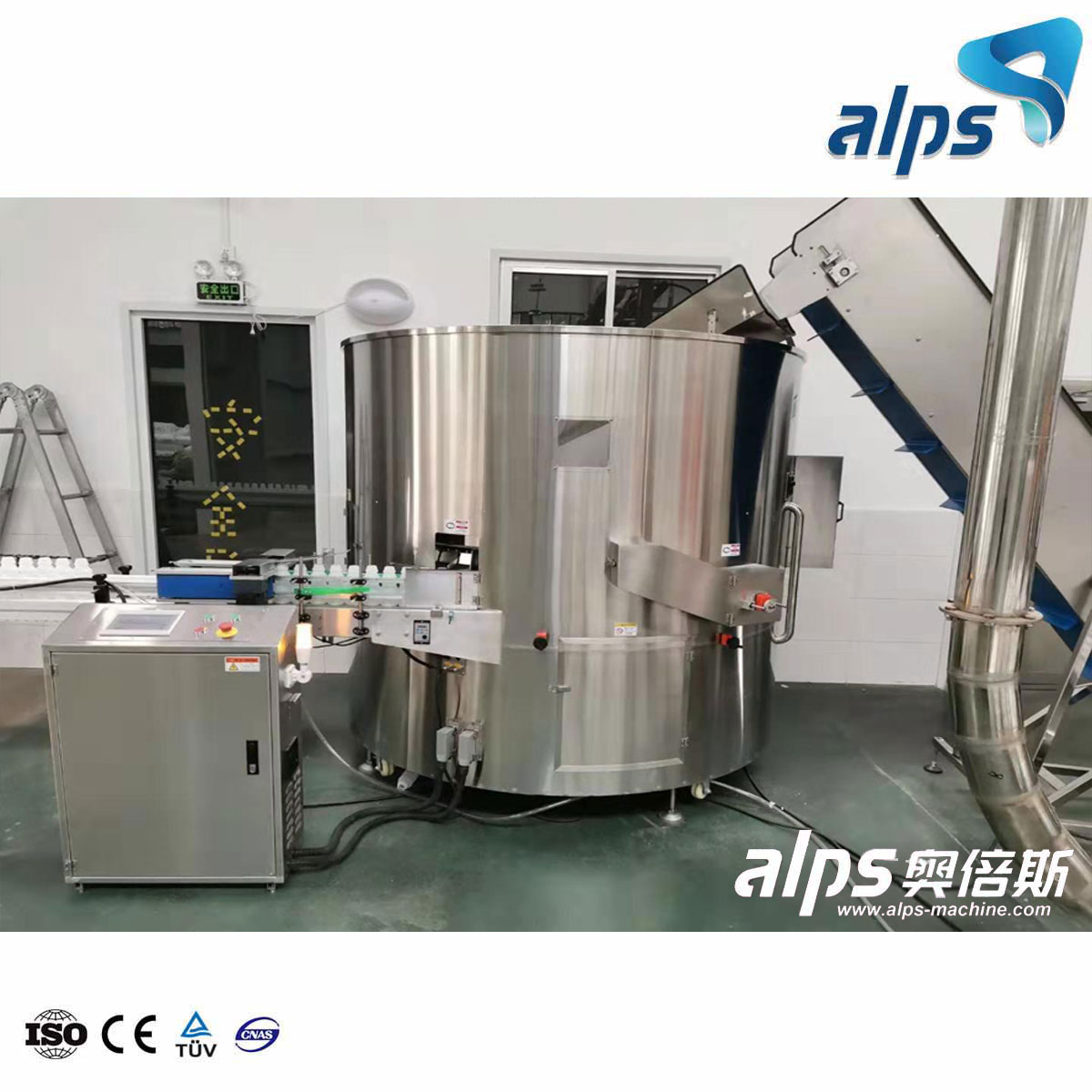

Automatic Bottle Unscrambler

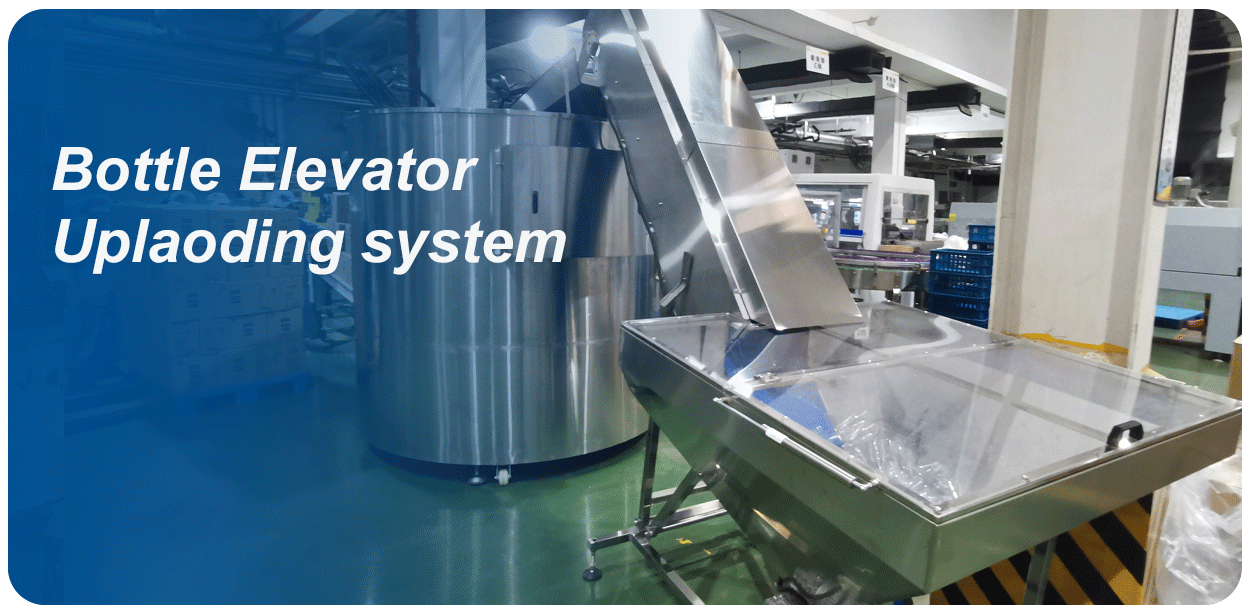

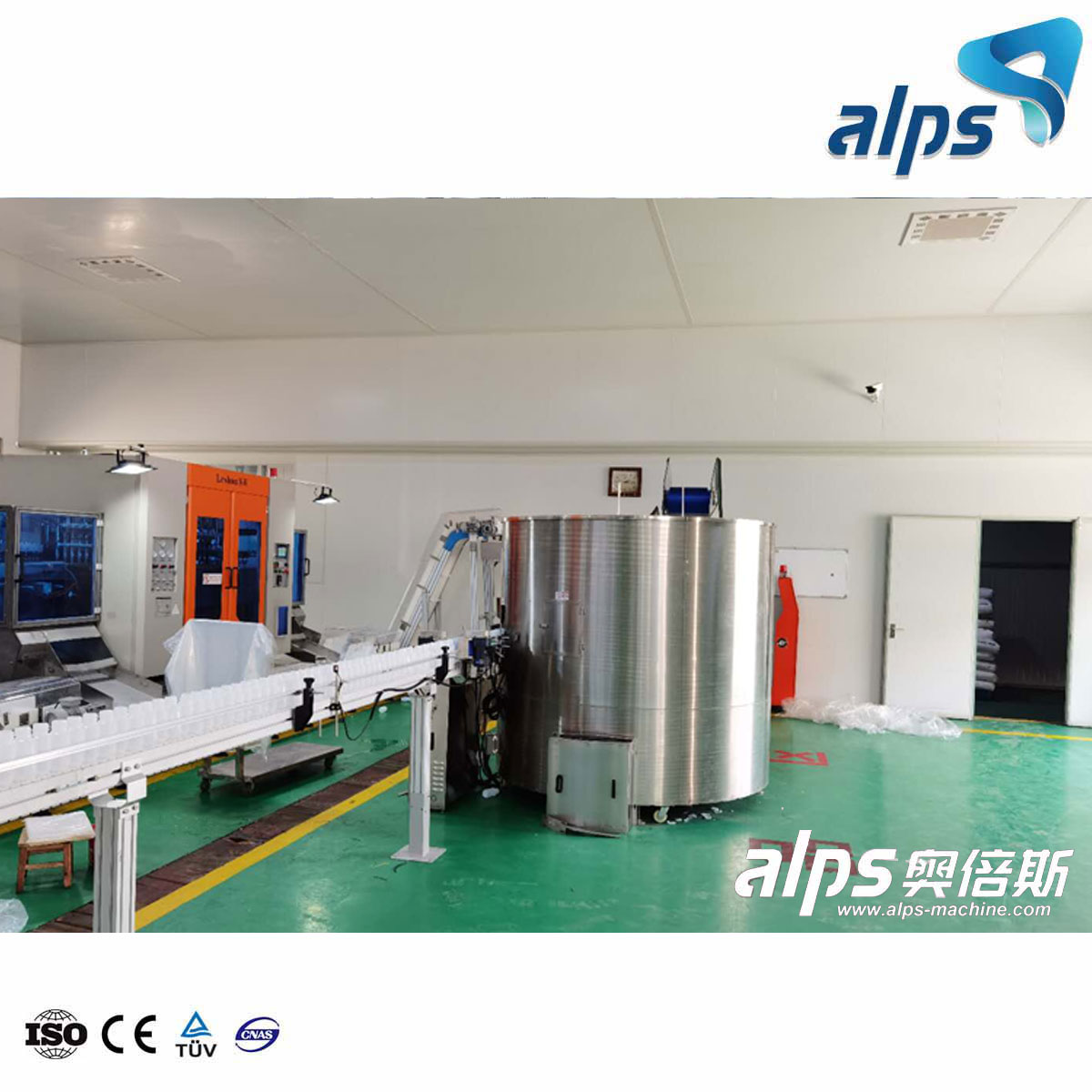

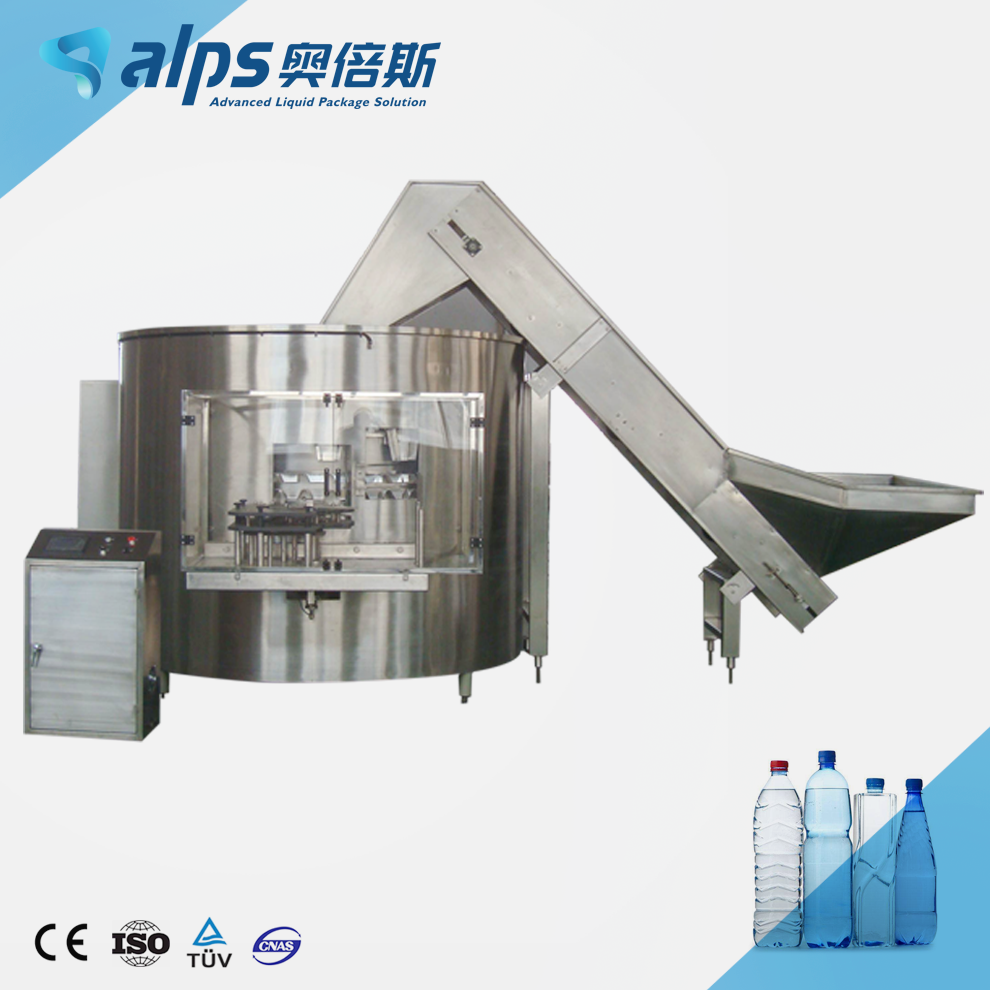

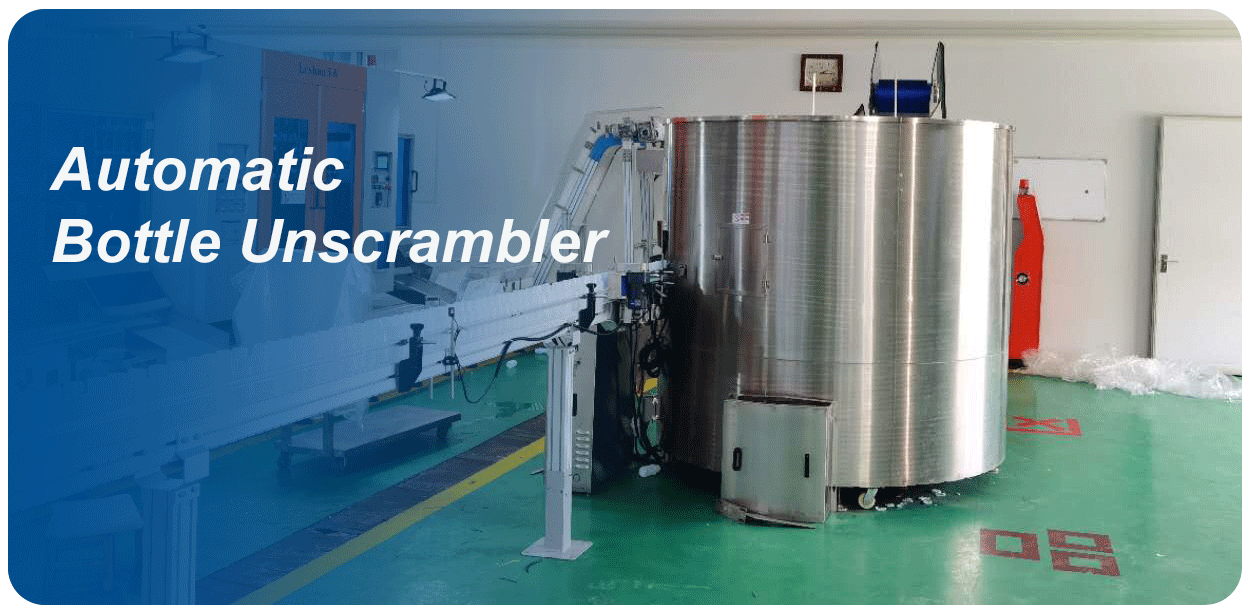

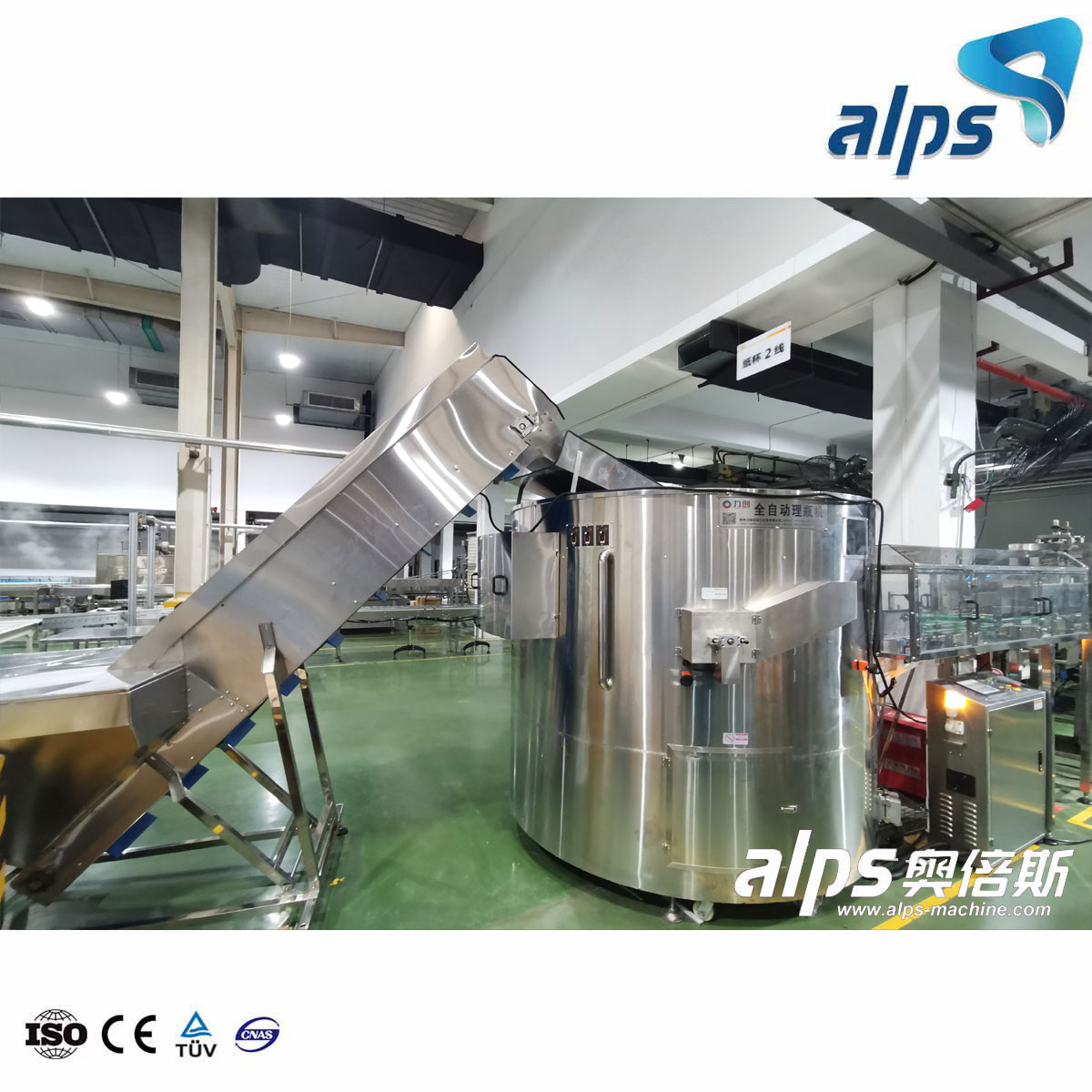

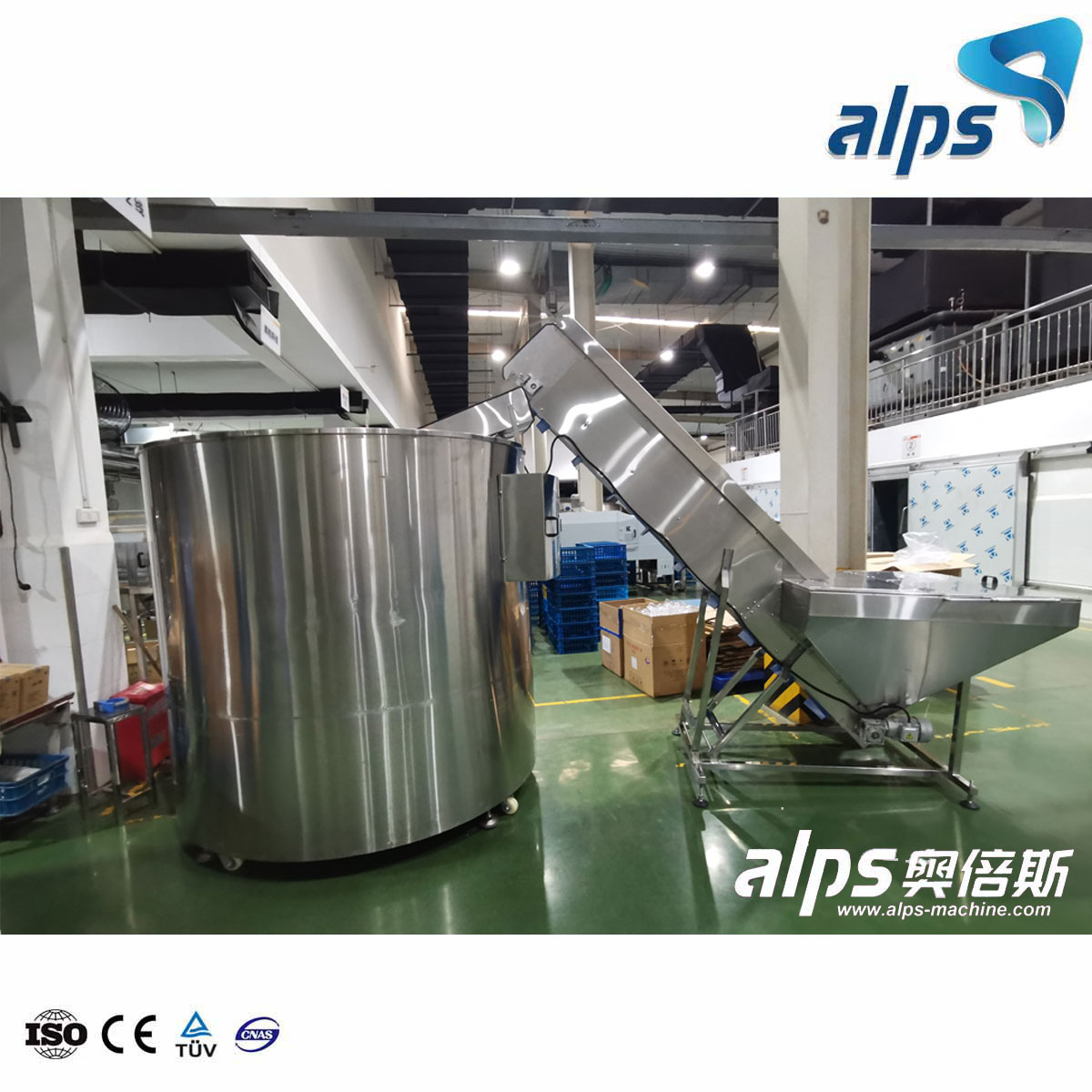

This machine is used for the sorting of disordered polyester bottles. Disordered bottles are sent into the bottle unscrambler's bottle ring via a bottle elevator. With the thrust of the turntable, the bottles enter the bottle grid and position themselves through the bottle turning device and the bottle shifting device. In the device, the bottles are arranged so that the mouth of the bottle stands upright, and is output into the next process through the air-feeding bottle conveying system. The body of this machine is made of high-quality stainless steel, and other parts are also made of non-toxic and durable series of materials. The electrical and pneumatic systems are selected from imported parts. The whole working process is controlled by PLC programming, so the equipment failure rate is low and the reliability is high.
Beverage & Liquid Packaging Solutions
Focus on integrated solutions for beverage and liquid food, such as Mineral drinking water, Fruit Juice, Carbonated beverage, Energy drinks, Alcohol Wine, Beer, Edible oil, Dairy and Daily care products, etc.
Frequently Asked Questions
How does the automatic bottle unscrambler work?
Disordered bottles are loaded into the machine's ring via an elevator. Assisted by turntable thrust, they enter a grid system where turning and shifting devices align them upright. Once structured, they exit to the next production step through an air-conveying track.
What bottle sizes and capacities can this series handle?
The LP series is suitable for bottle sizes ranging from 200ml up to 1500ml. Depending on the exact model (from LP06 to LP24), the production capacity ranges from 6,000 bottles per hour up to 24,000 bottles per hour.
What materials are used to construct the machine?
The body of the machine is constructed from high-quality stainless steel, and other functional parts are made of durable, non-toxic materials. The electrical and pneumatic configurations consist of high-end imported components.
How is the reliability of the equipment guaranteed before shipping?
All units are subjected to a rigorous 24-hour test running session before dispatch. This ensures the stability of pneumatic and electrical setups, mechanical components, and water pipelines.
Can your production lines handle liquids other than mineral water?
Yes. Integrated production systems are optimized for carbonated soft drinks, fruit juice, energy drinks, alcoholic beverages like beer and wine, edible oils, dairy, and daily chemical care products.
