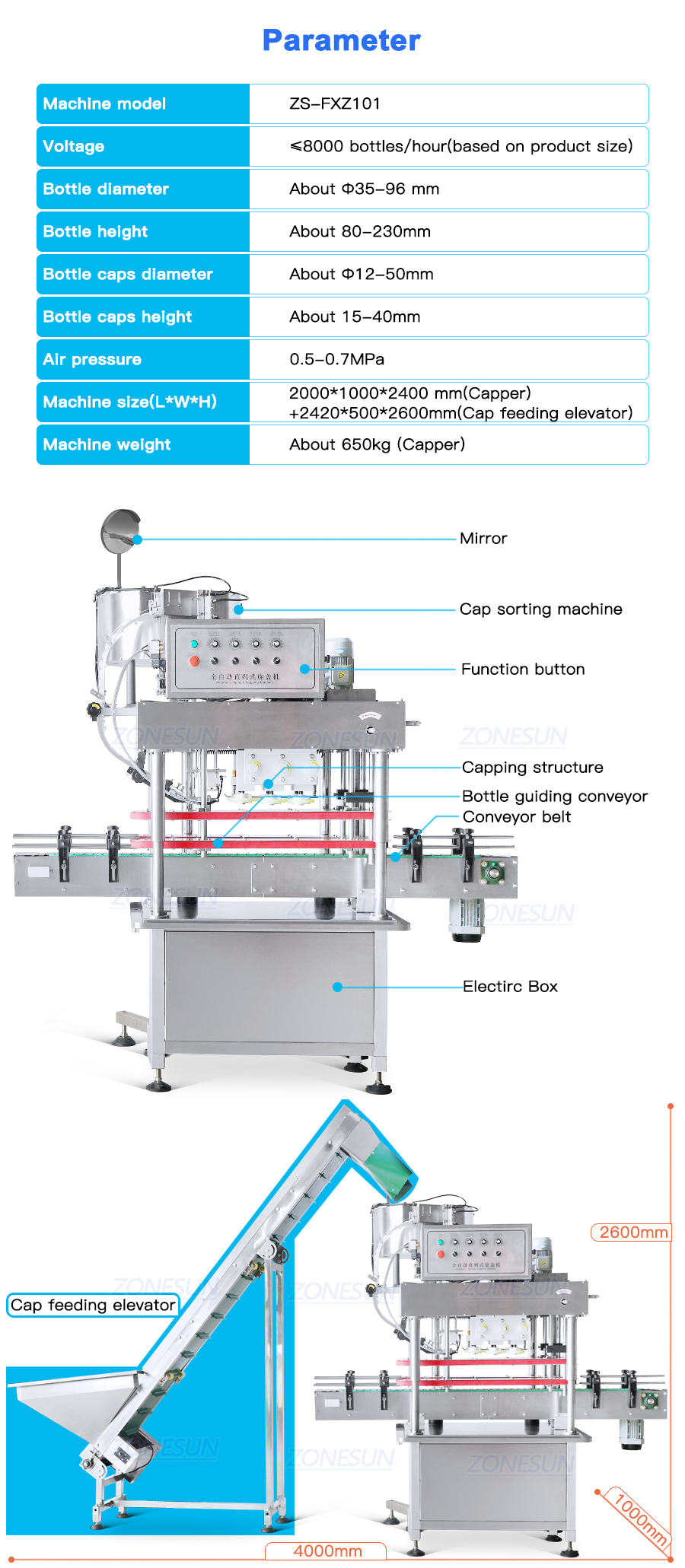

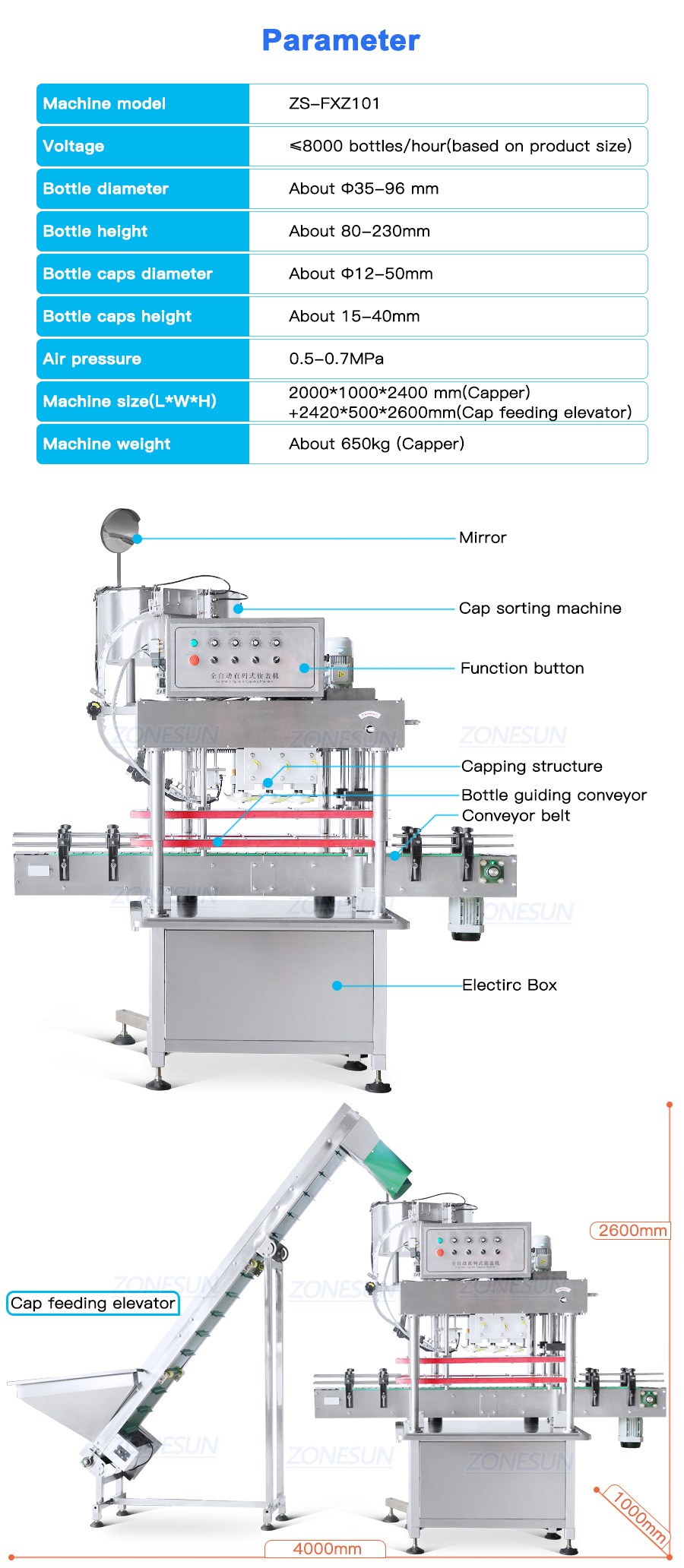

| Machine model | ZS-FXZ101 |
| Voltage | 110/220V 50-60HZ 2KW |
| Working speed | ≤8000 bottles/hour (based on product size) |
| Bottle diameter | About Φ35-96 mm |
| Bottle height | About 80-230mm |
| Bottle caps diameter | About Φ12-50mm |
| Bottle caps height | About 15-40mm |
| Air pressure | 0.5-0.7MPa |
| Machine size (L*W*H) | About 2000*1000*2400 mm (Capper) About 2420*500*2600mm (Cap feeding elevator) |
| Machine weight | About 650kg (Capper) |

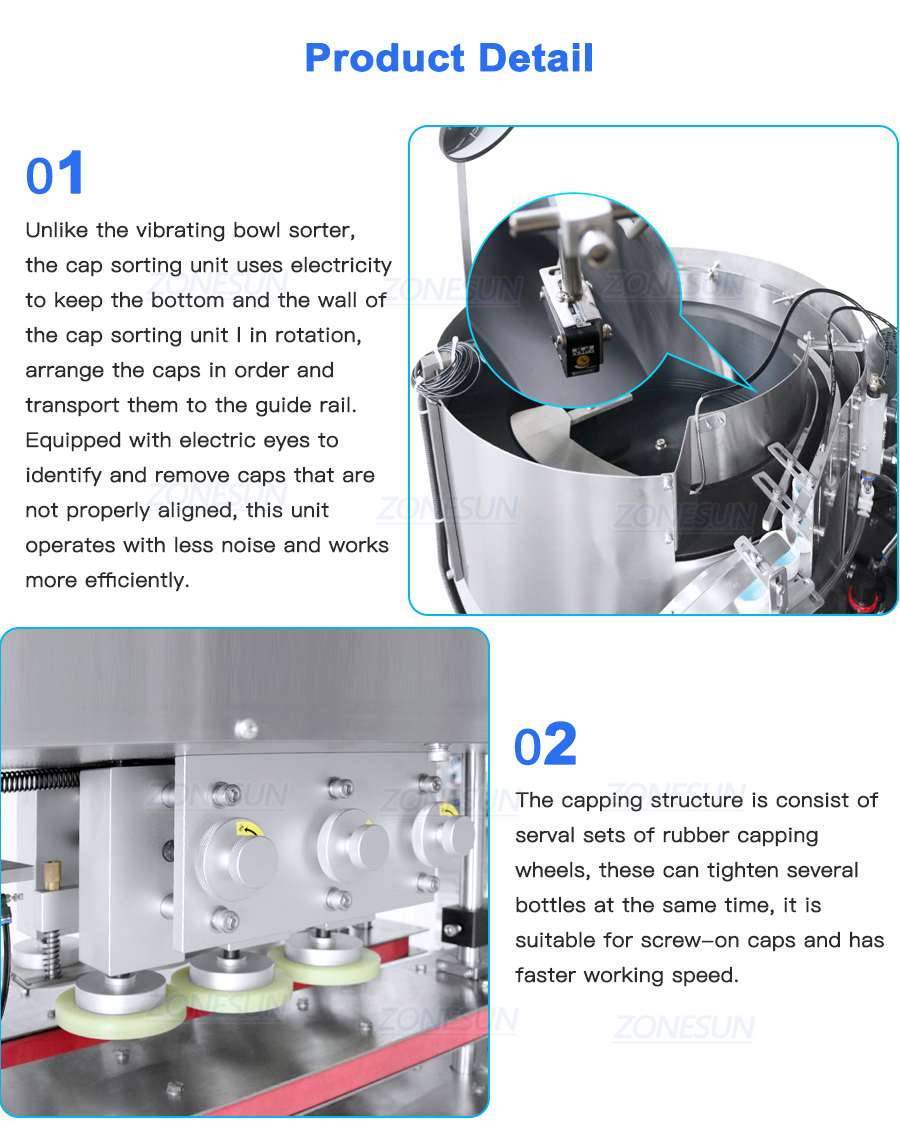

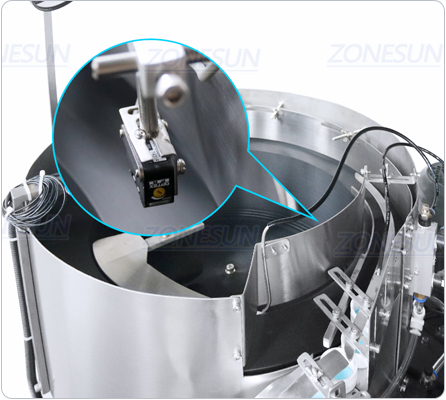

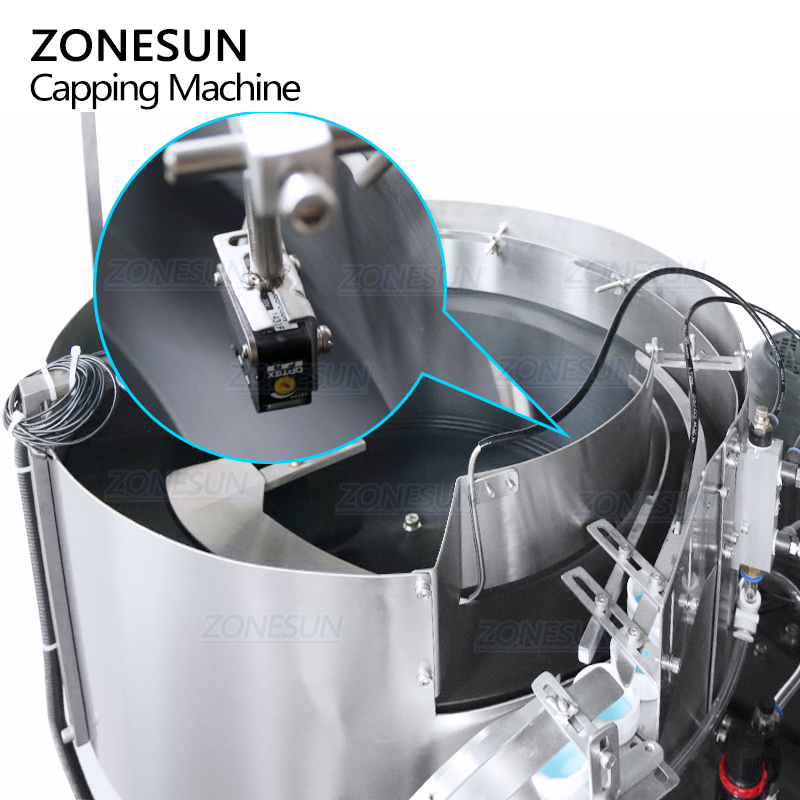

Unlike the vibrating bowl sorter,the cap sorting unit uses electricity to keep the bottom and the wall of the cap sorting unitl in rotation,arrange the caps in order and transport them to the guide rail. Equipped with electric eyes to identify and remove caps that are not properly aligned,this unit operates with less noise and works more efficiently.

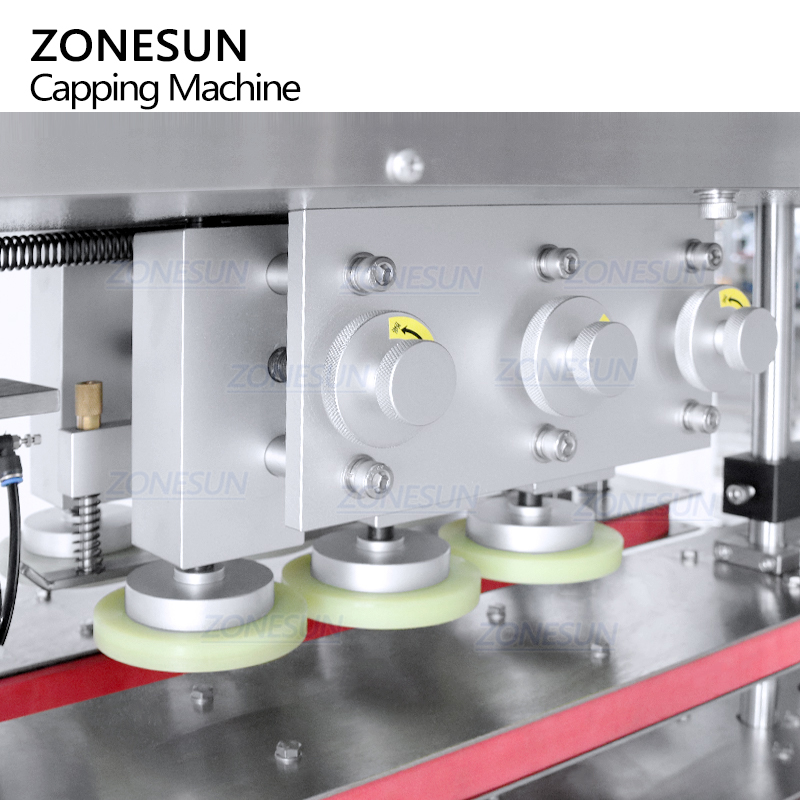

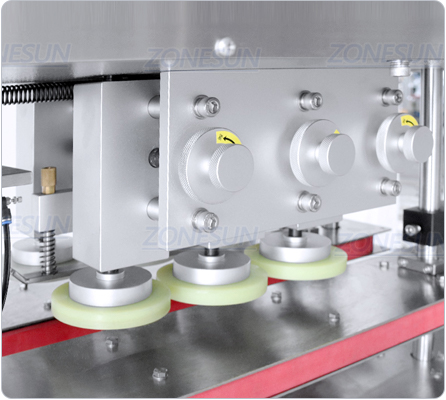

The capping structure is consist of serval sets of rubber capping wheels, these can tighten several bottles at the same time,it is suitable for screw-on caps and has faster working speed.

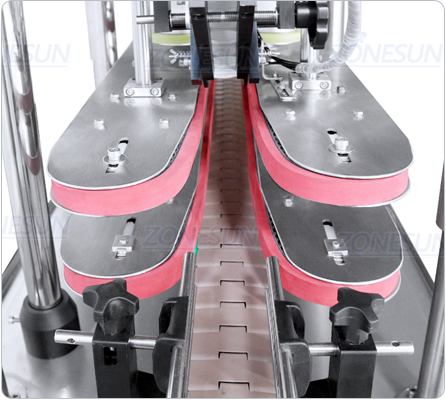

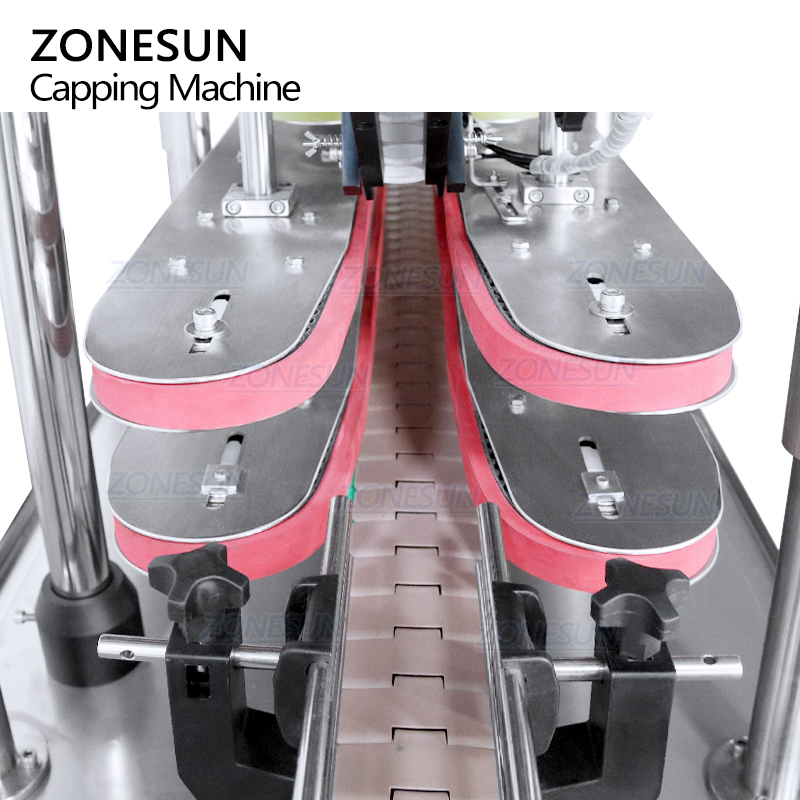

The bottle guiding conveyor can be adjusted according to bottle diameter. This can prevent oval bottles from falling down during capping process.

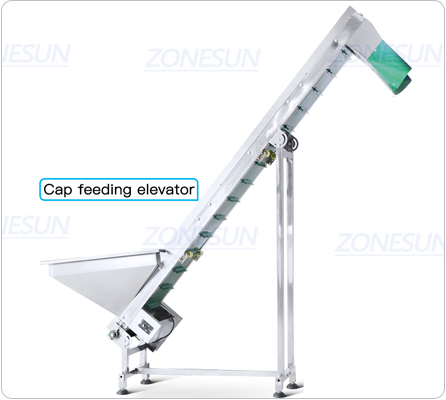

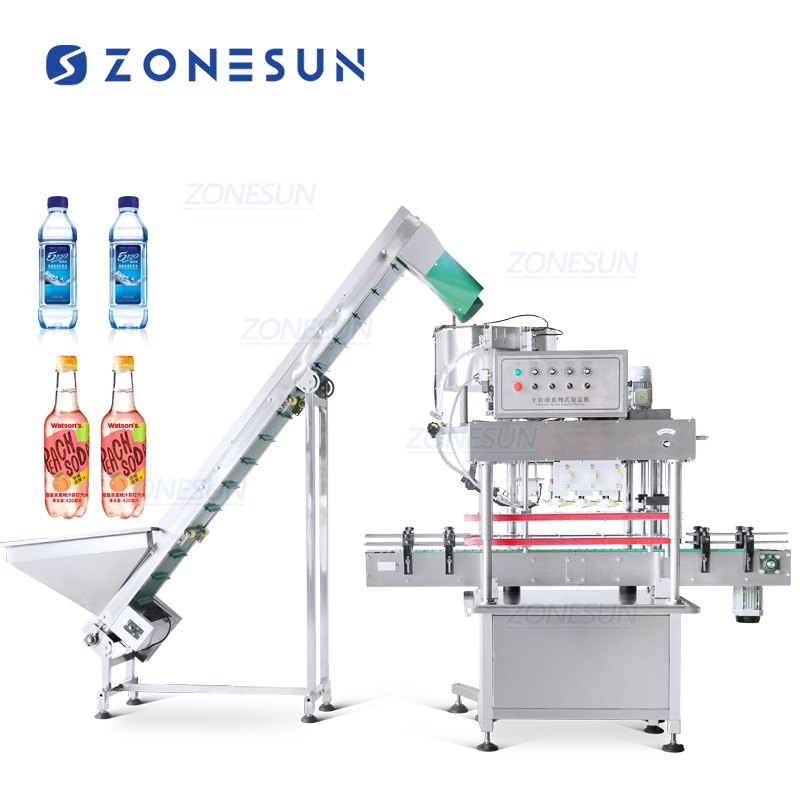

Equipped with cap feeding elevator,this can ensure bottle caps can be supplied in time.It saves working labor and can improve working capacity greatly.

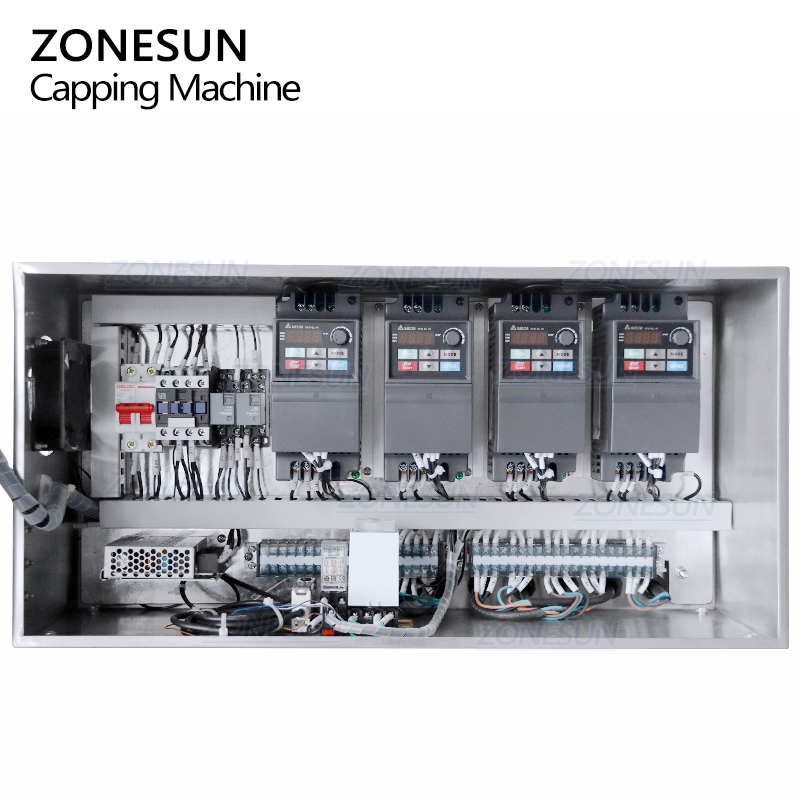

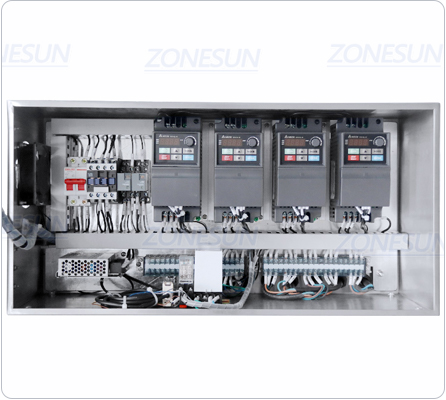

The orderly circuit in a machine can help improve performance,reduce errors, make maintenance and repairs easier, and allow for a more compact design.
A: We are a factory and manufacturer. You are purchasing directly from the producer to ensure high-quality construction and dedicated after-sales support.
A: Of course. We are the manufacturing factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to solve any problems.
A: We will send extra sets of easy broken spares and accessories. Non-artificial damaged spares will be sent freely during 1 year's warranty.
A: We support various payment terms, including T/T, L/C, D/P, O/A, Western Union etc. to provide flexibility and security for our clients.
A: The MOQ is 1 set, and the machinery is backed by a comprehensive 1-year warranty.
