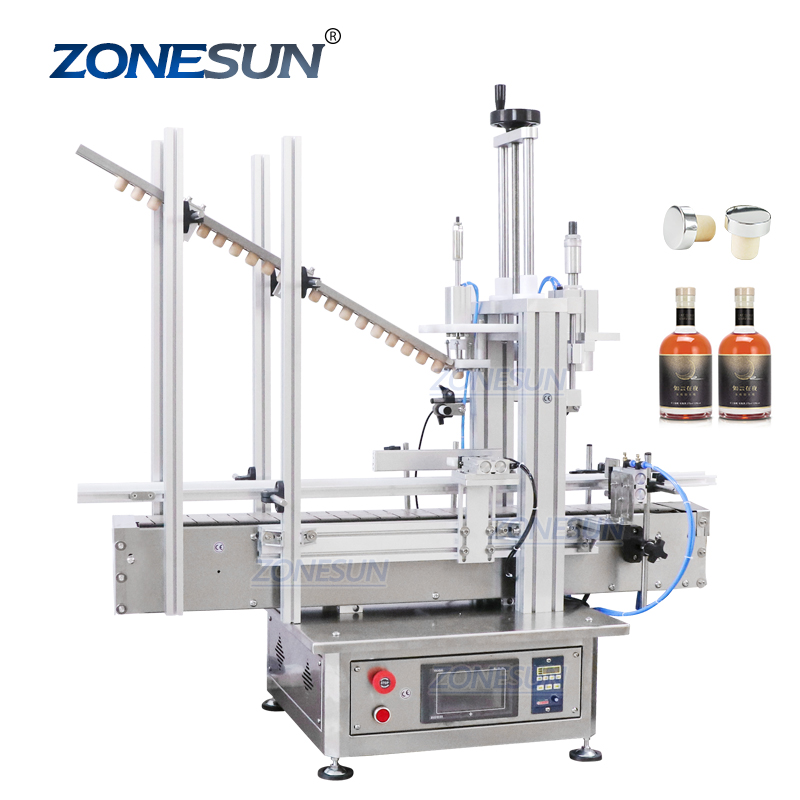

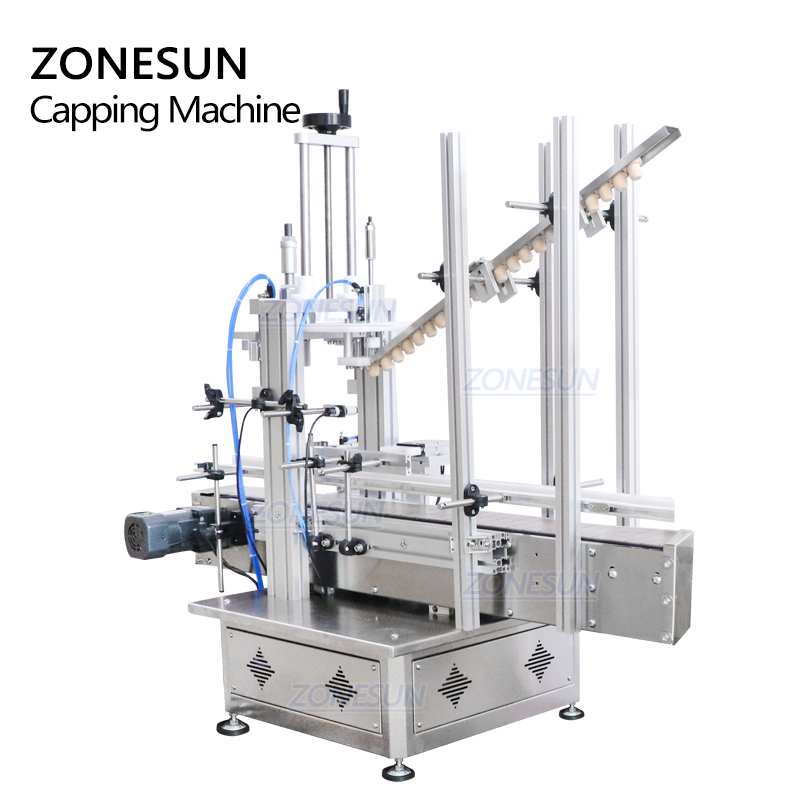

ZONESUN ZS-XG1870D1 Tabletop Cork Pneumatic Automatic Wine Bottle Capping Crimping Pressing Machine

Product Description

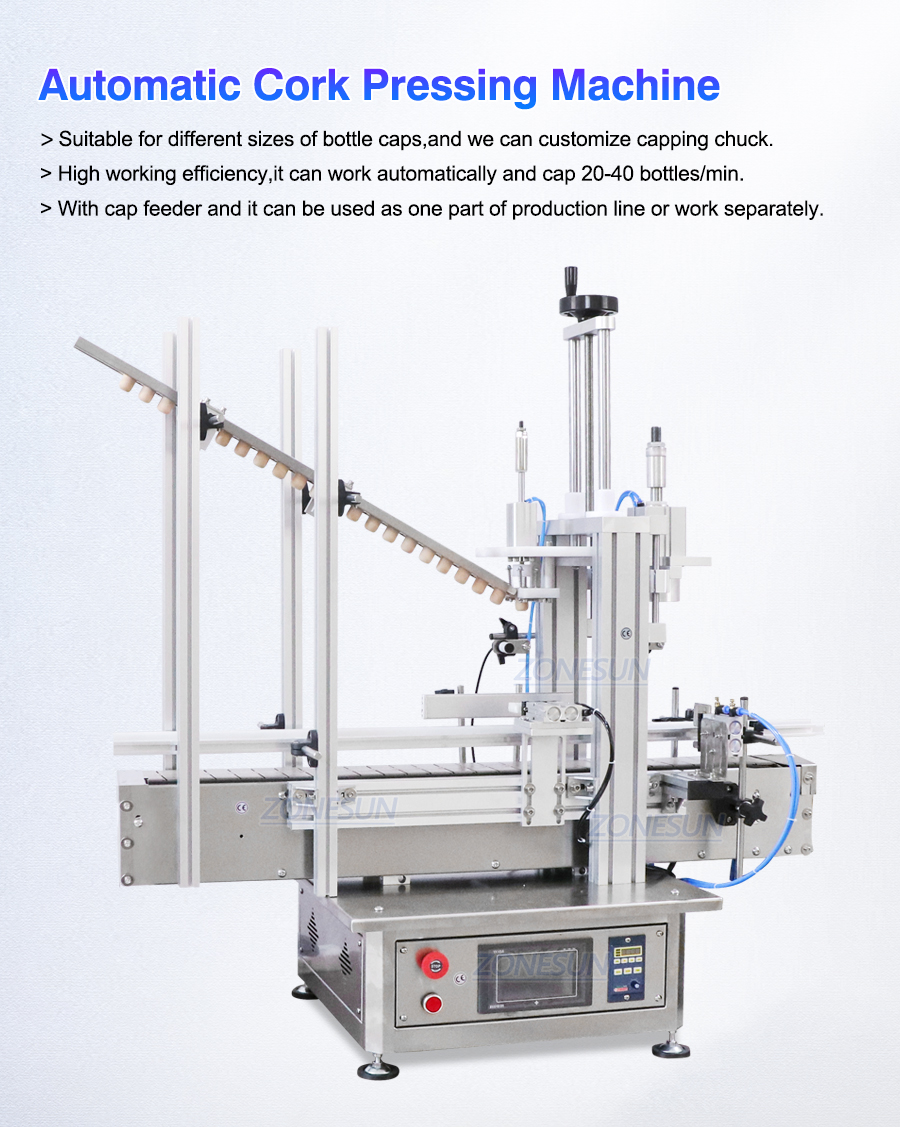

Desktop Capping Machine Main Banner
Product Description
The desktop capping machine is suitable for different sizes of bottle caps, the capping chuck can be customized according to your need, you can customize several pieces of capping chuck for multiple sizes of bottles. This one is with the cap feeder which can make it possible to feed caps faster. It can work automatically and help you save labor and time, helping you improve working efficiency.
Application
This machine is widely used in food, daily chemical, wine, and pharmaceutical industries. It is an ideal choice for small scale production.
Capping Machine Details View 1
Capping Machine Details View 2

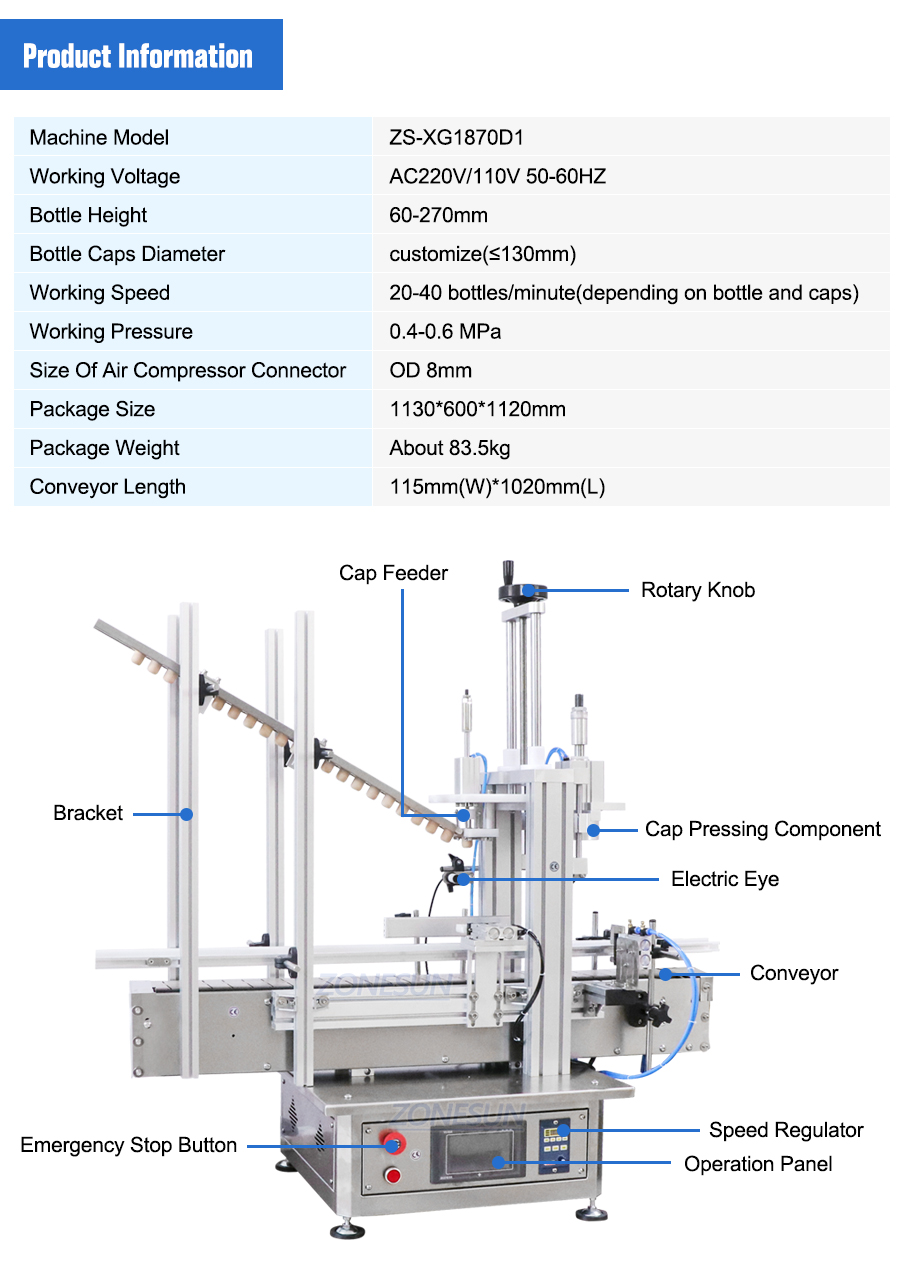

Technical Parameters
Parameter Specification
Machine model ZS-XG1870D1
Working voltage AC220V/110V 50-60HZ
Bottle height 60-270mm
Bottle caps diameter customize (≤130mm)
Working speed 20-40 bottles/minute (depending on bottle and caps)
Working pressure 0.4-0.6 MPa
Size of air compressor connector OD 8mm
Conveyor length 115mm(W)*1020mm(L)
Package size About 1150*650*820mm
Package weight About 95kg
Technical Layout 1
Technical Layout 2
Product Details & Features

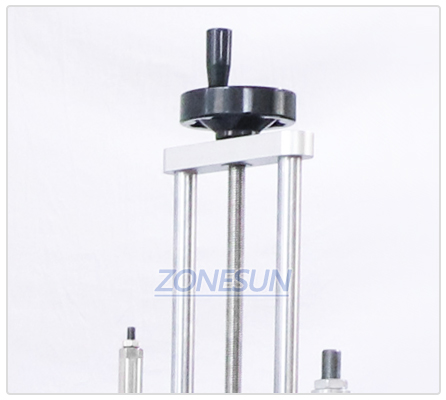

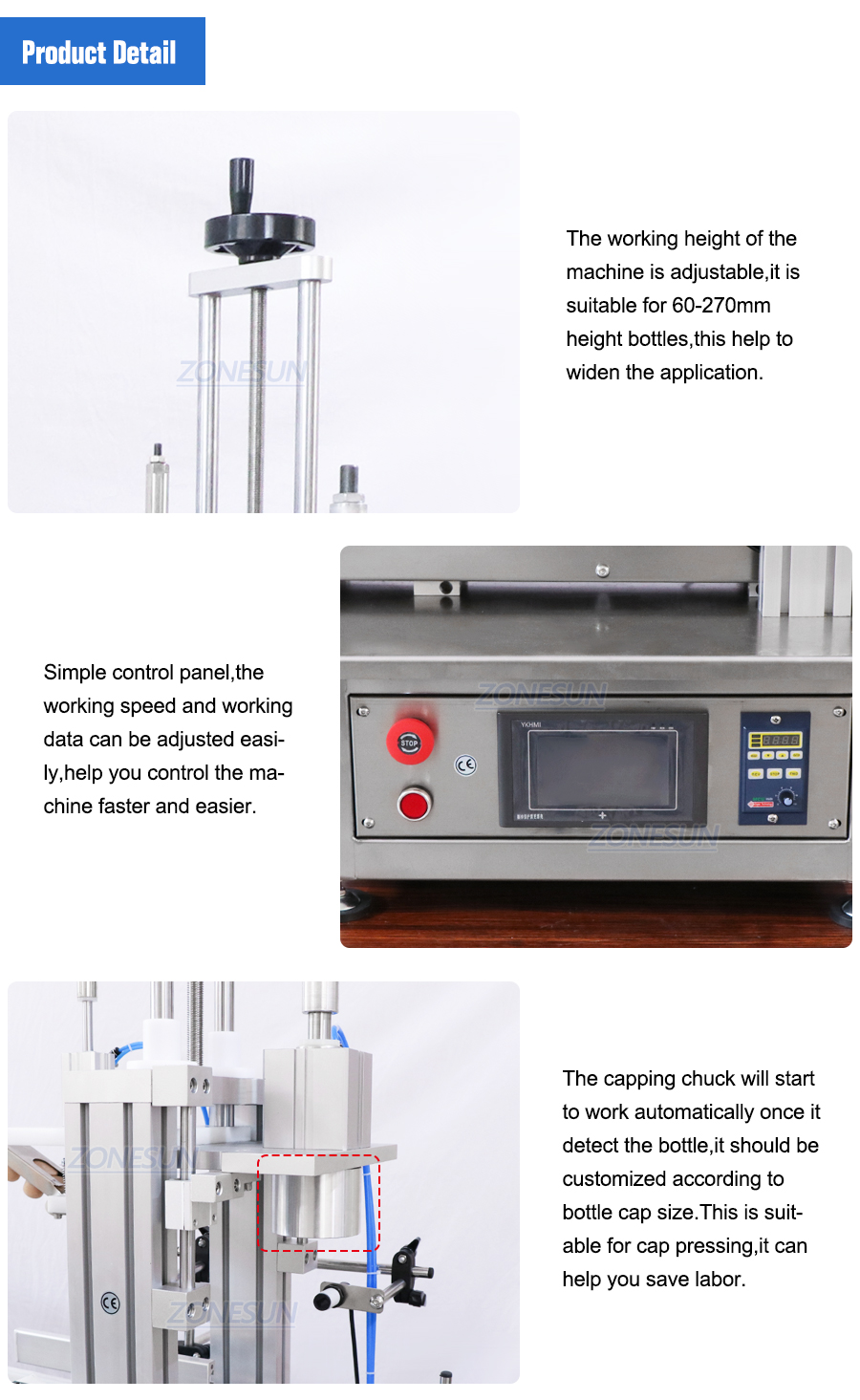

Adjustable Working Height
Adjustable Working Height
The working height of the machine is adjustable. It is suitable for 60-270mm height bottles, which helps to widen the application.

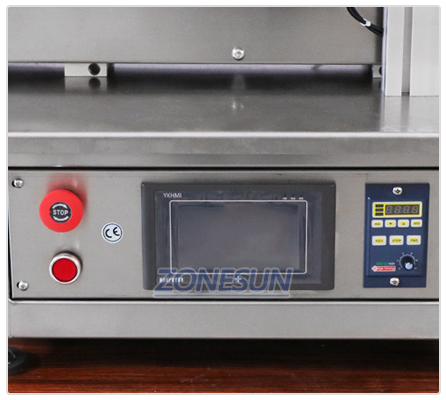

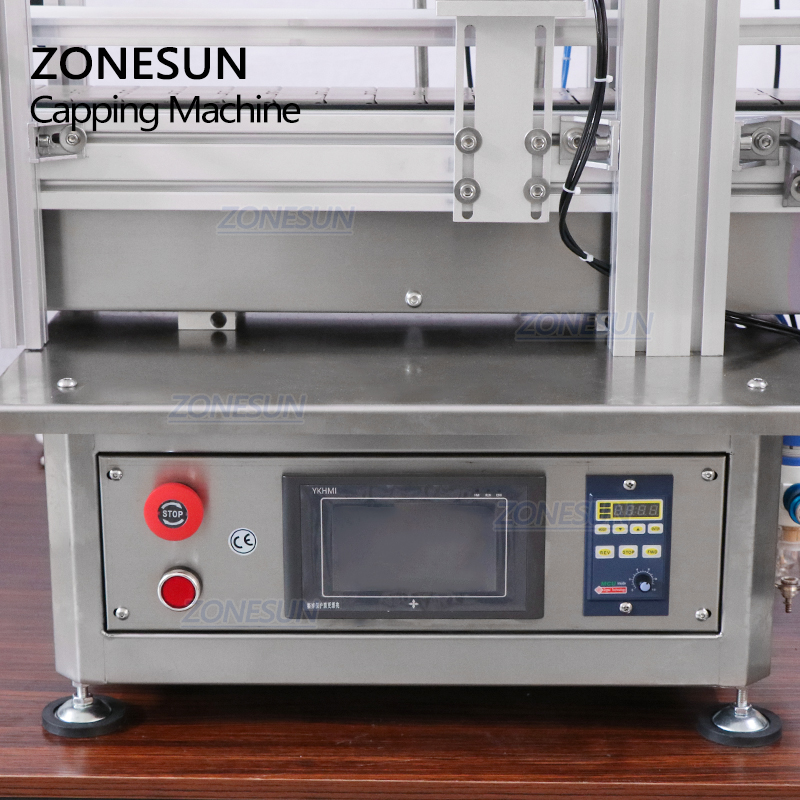

Simple Control Panel
Simple Control Panel
Simple control panel, the working speed and working data can be adjusted easily, helping you control the machine faster and easier.

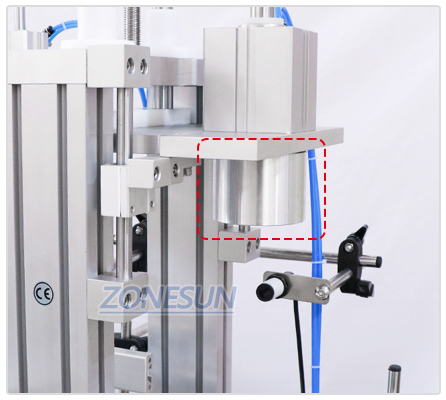

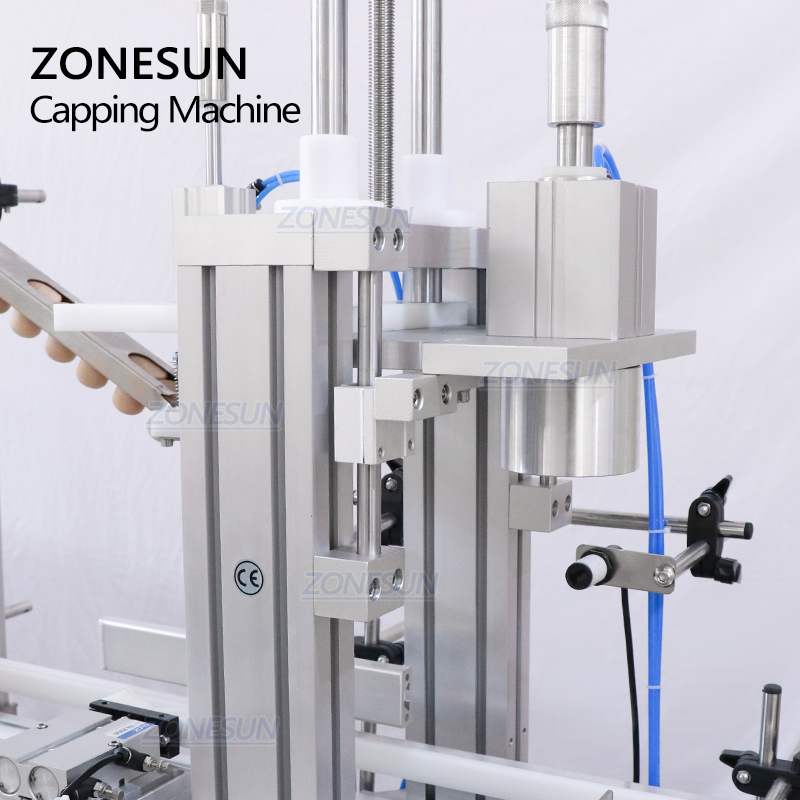

Capping Chuck
Customized Capping Chuck
The capping chuck will start to work automatically once it detects the bottle. It should be customized according to bottle cap size. This is suitable for cap pressing, helping you save labor.

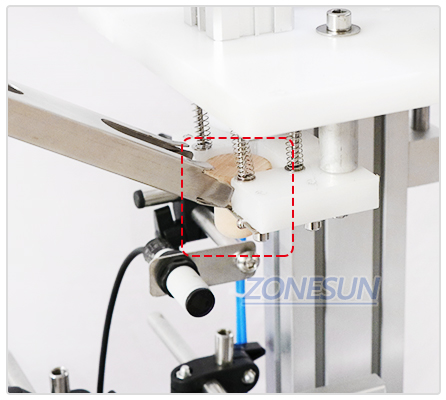

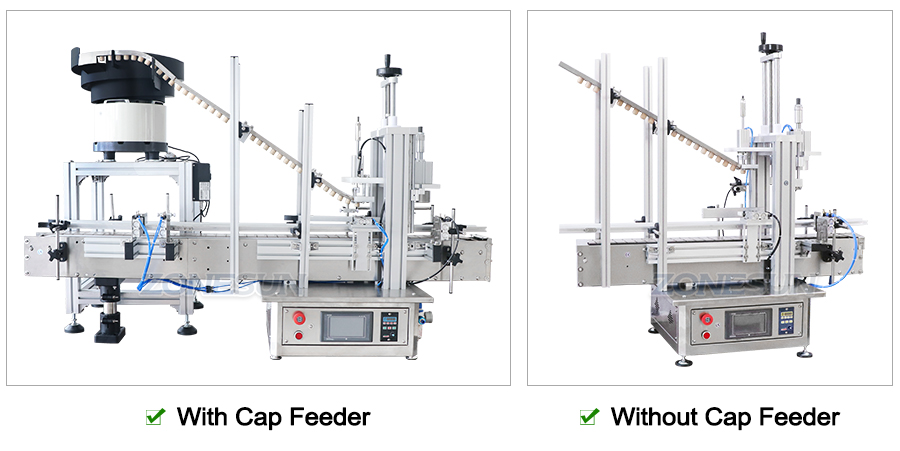

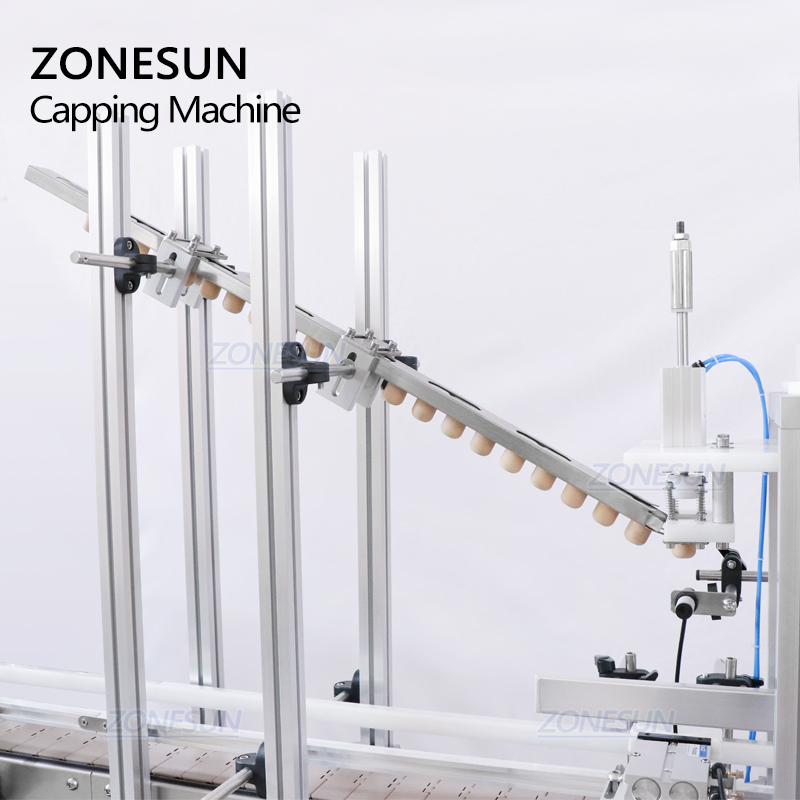

Cap Feeder
Efficient Cap Feeder
With the cap feeder, it can arrange bottle caps and put the production in order. The cap feeder will be customized according to your material, ensuring it works perfectly with your caps.

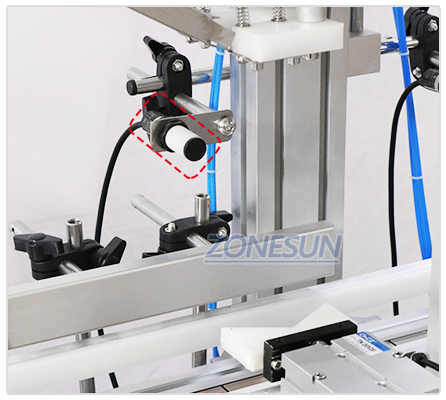

Electric Eye Detection
Electric Eye Detection
This machine is equipped with electric eyes to detect bottles and achieve an automatic working mode. This prevents missed bottles and reduces operation errors.

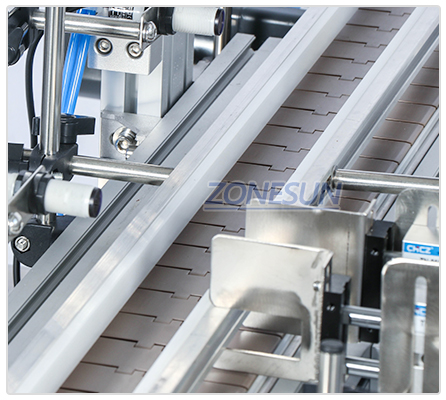

High Quality Conveyor
High Quality Conveyor
High quality conveyor, where the working speed can be controlled via the operation panel. It helps to transfer and separate bottles, improving overall working efficiency.

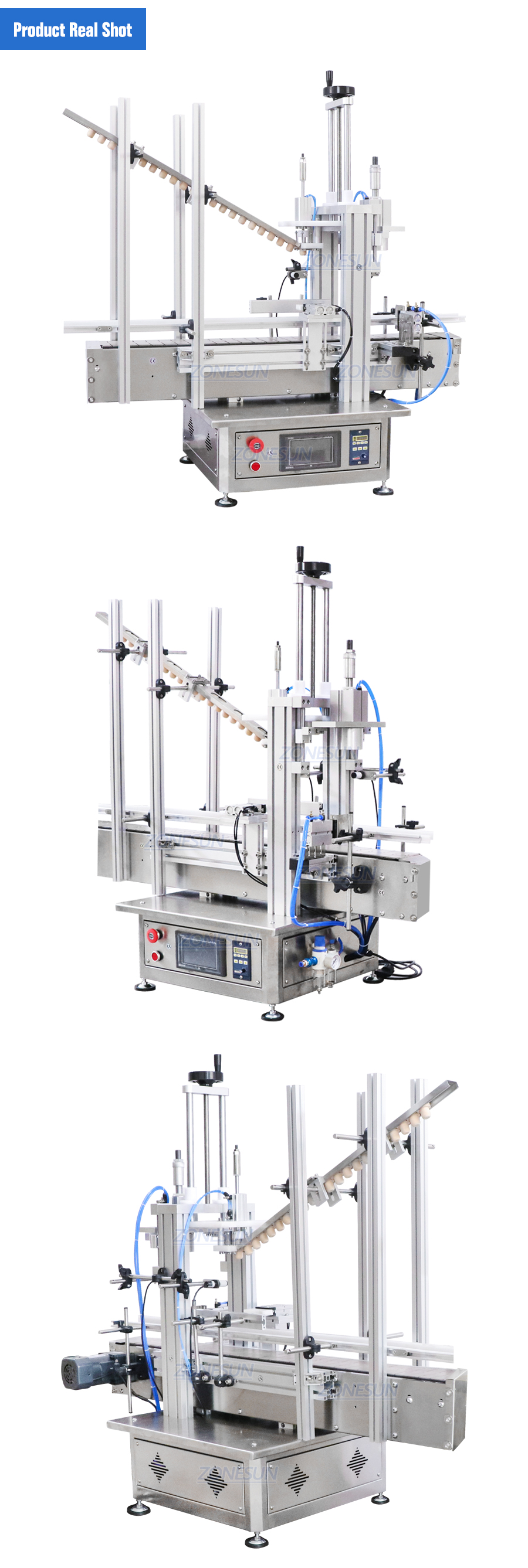

Capping Machine Components 1
Capping Machine Components 2
Related Products
Related Capping Products
Our Service
Service Flow and Guarantee
Frequently Asked Questions
Q Are you a factory or a trading company?

We are a factory or manufacturer.

Q Can you guarantee your quality?

Of course. We are the manufacturing factory. More importantly, we place a high value on our reputation. Best quality is our principle all the time. You can be assured of our production completely.

Q What should I do if we are not able to operate the machine when we receive it?

The operation manual and a video demonstration are sent along with the machine to provide instructions. Besides, we have a professional after-sales group that can assist with any problems.

Q How could I get spare parts for the machines?

We will send extra sets of easily broken spare parts and accessories like O-rings, etc. Non-artificially damaged spare parts will be sent freely with free shipping during the 1-year warranty period.

Q What's the Minimum Order Quantity (MOQ) and warranty?

MOQ: 1 set.
Warranty: 12 months, though some customized products will have a 24-month warranty.

Q Do I need to pay extra costs like tax or duty?

Yes, custom duties/taxes are the buyer's responsibility to pay. The shipping cost does not include taxes.
