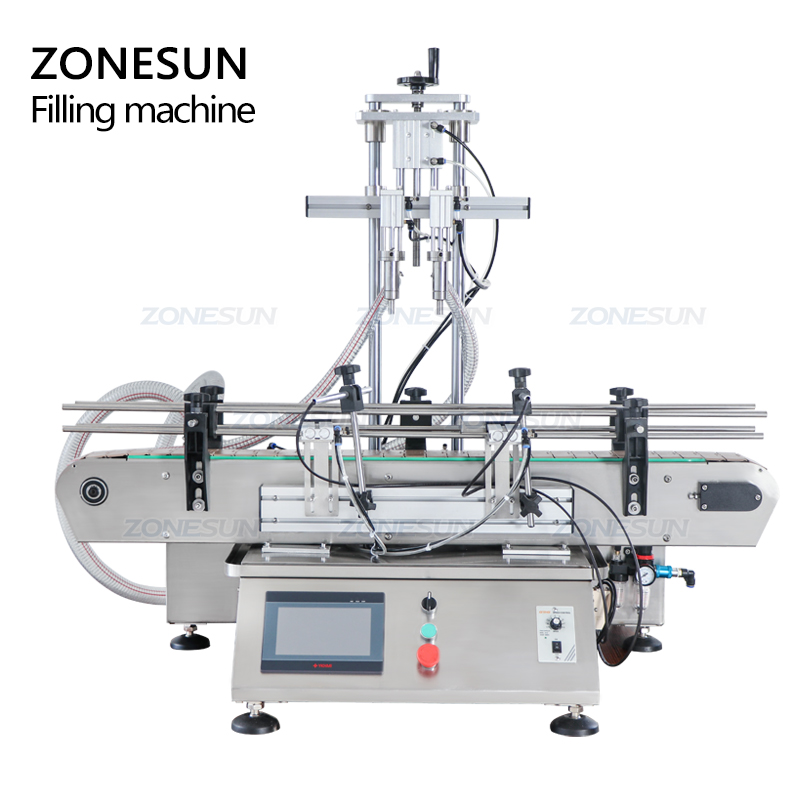

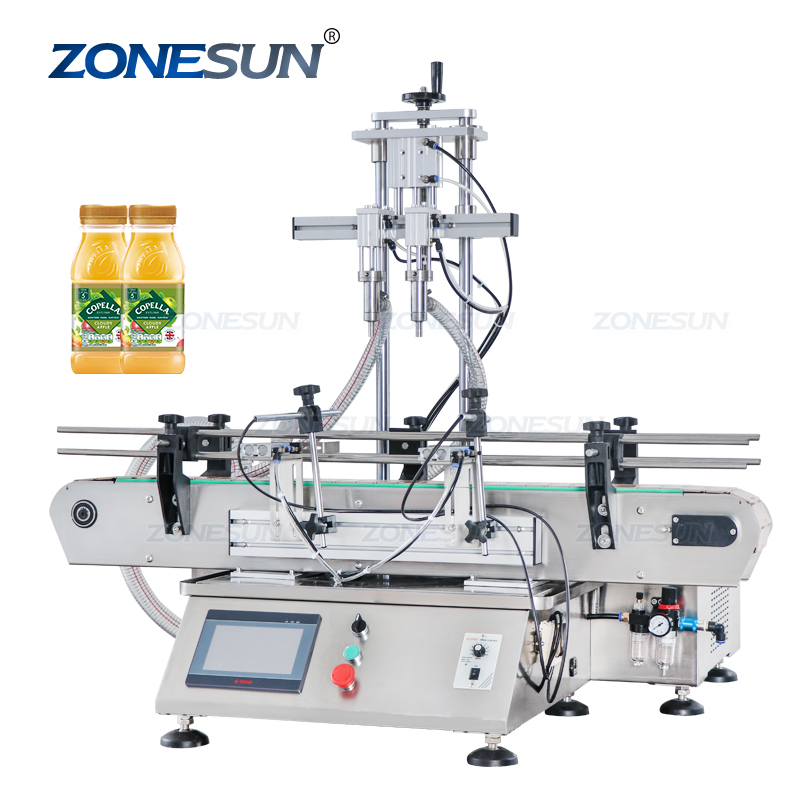

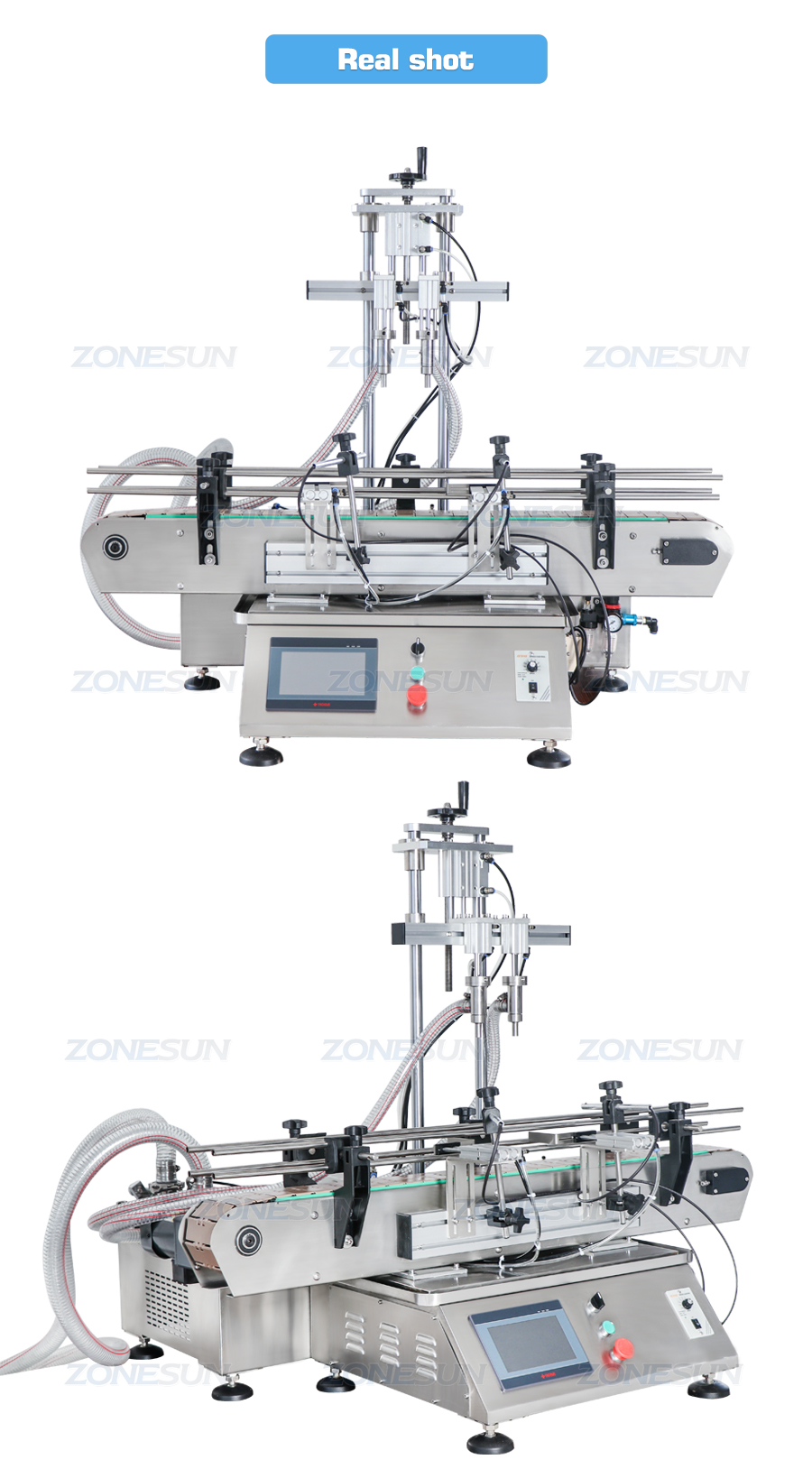

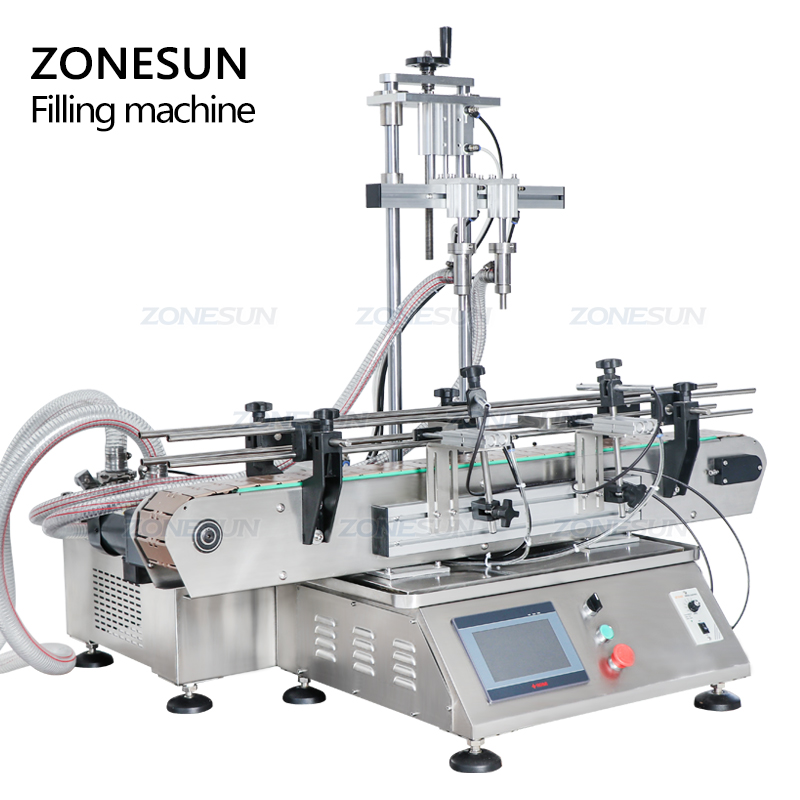

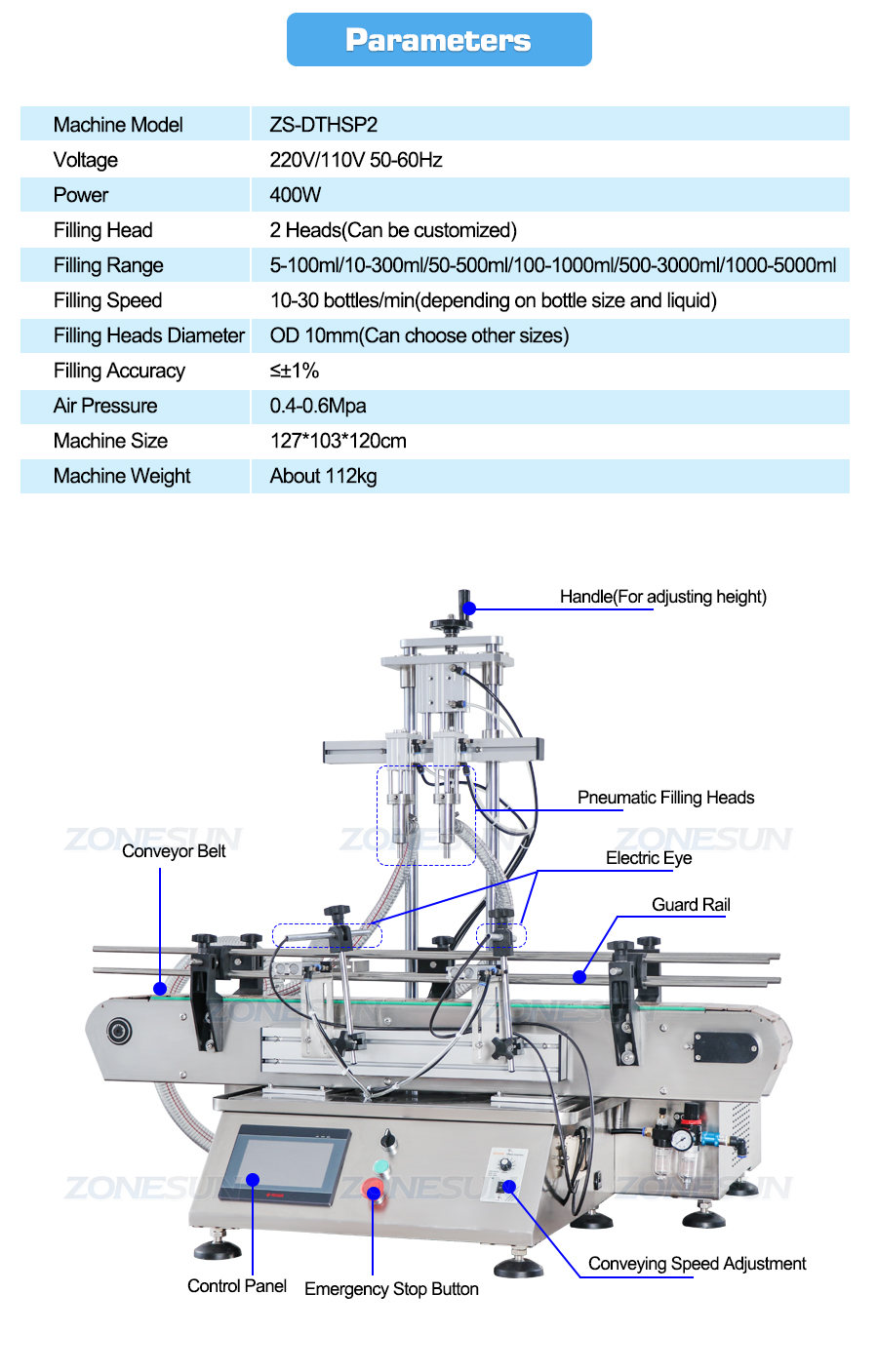

| Machine Model | ZS-DTHSP2 |
| Voltage | 220V/110V 50-60Hz |
| Power | 400W |
| Filling Head | 2 Heads (Can be customized) |
| Filling Range | 5-100ml / 10-300ml / 50-500ml / 100-1000ml / 500-3000ml / 1000-5000ml |
| Filling Speed | 10-30 bottles/min (depending on bottle size and liquid) |
| Filling Heads Diameter | OD 10mm (Can choose other sizes) |
| Filling Accuracy | ≤±1% |
| Air Pressure | 0.4-0.6Mpa |
| Machine Size | About 1270*1030*1200mm |
| Machine Weight | About 112kg |

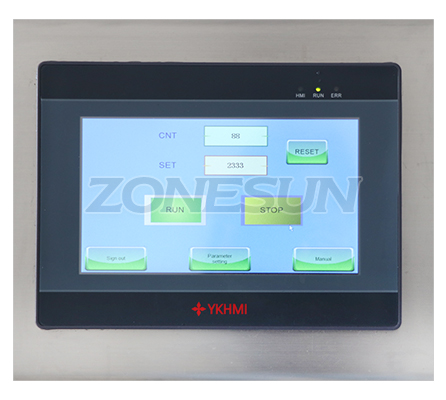

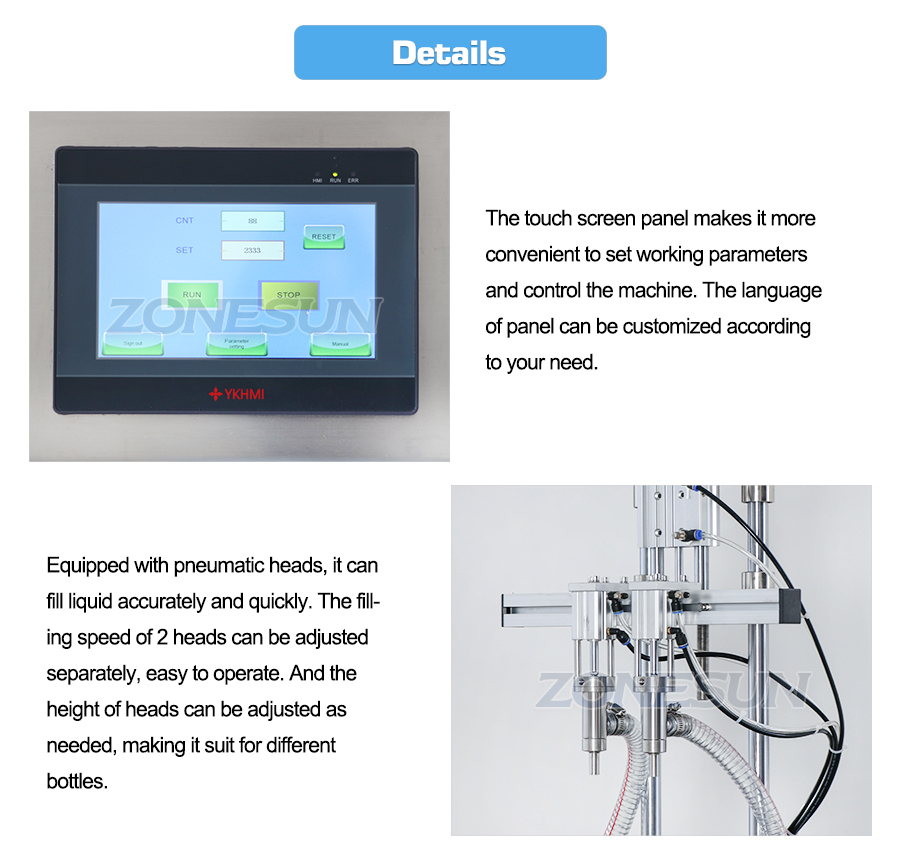

The touch screen panel makes it more convenient to set working parameters and control the machine. The language of the panel can be customized according to your need.

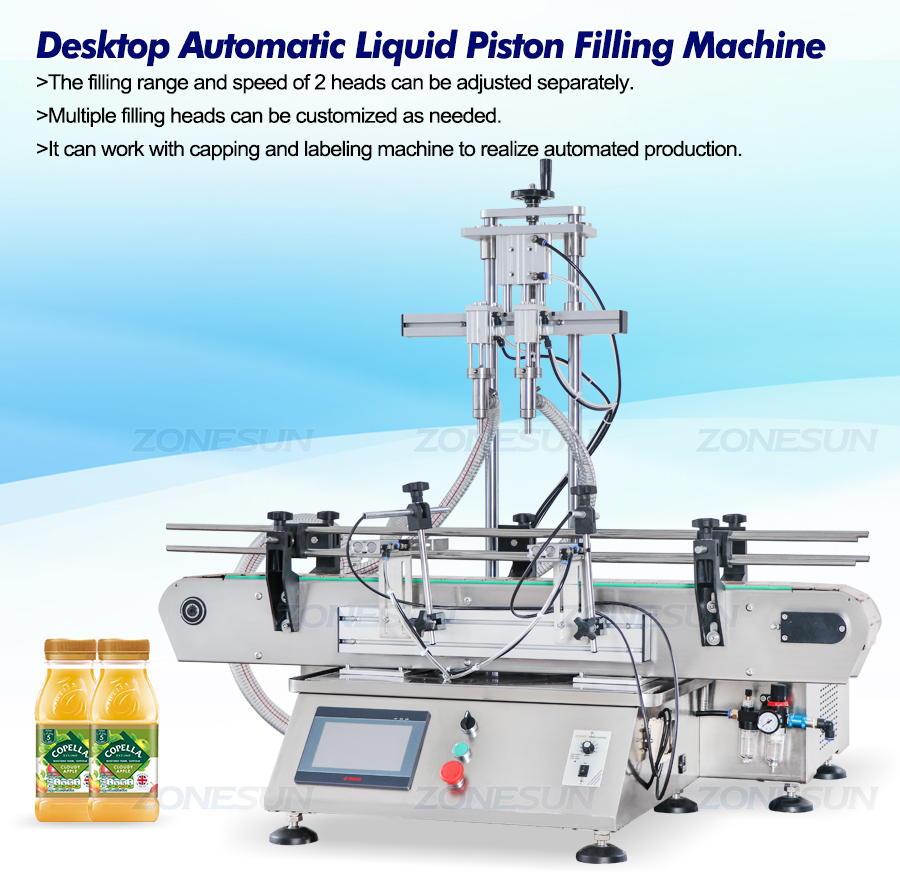

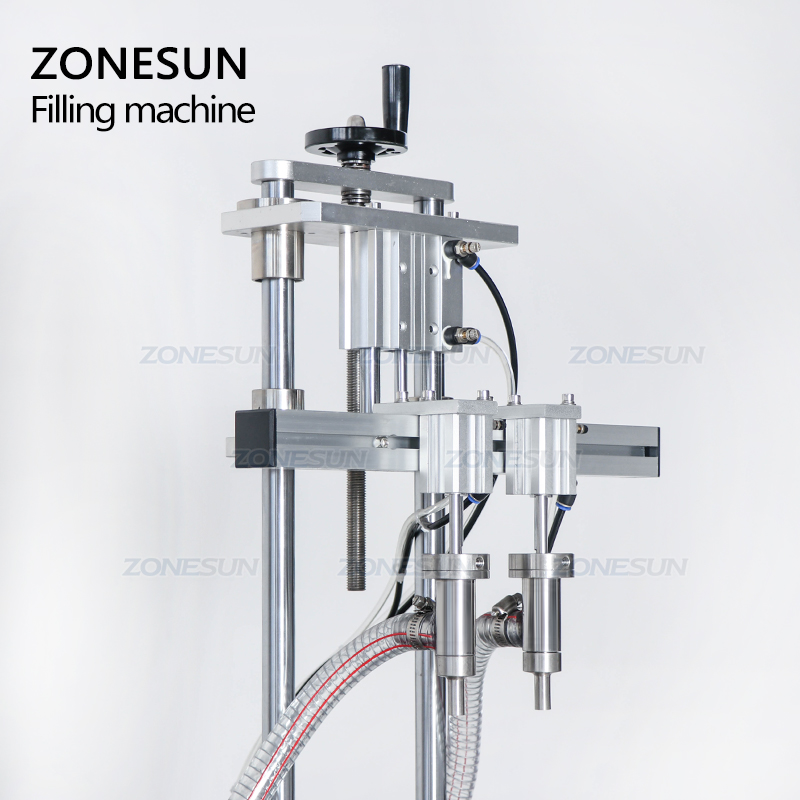

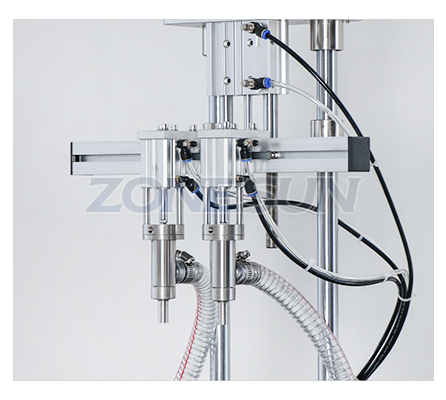

Equipped with pneumatic heads, it can fill liquid accurately and quickly. The filling speed of the 2 heads can be adjusted separately, making it easy to operate. The height of the heads can also be adjusted as needed, making it suitable for different bottles.

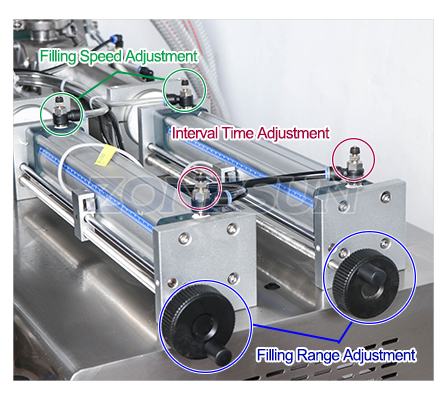

Through rotating the knobs marked in the picture, you can adjust the filling range, filling speed, and interval time of each nozzle. Easy and convenient.

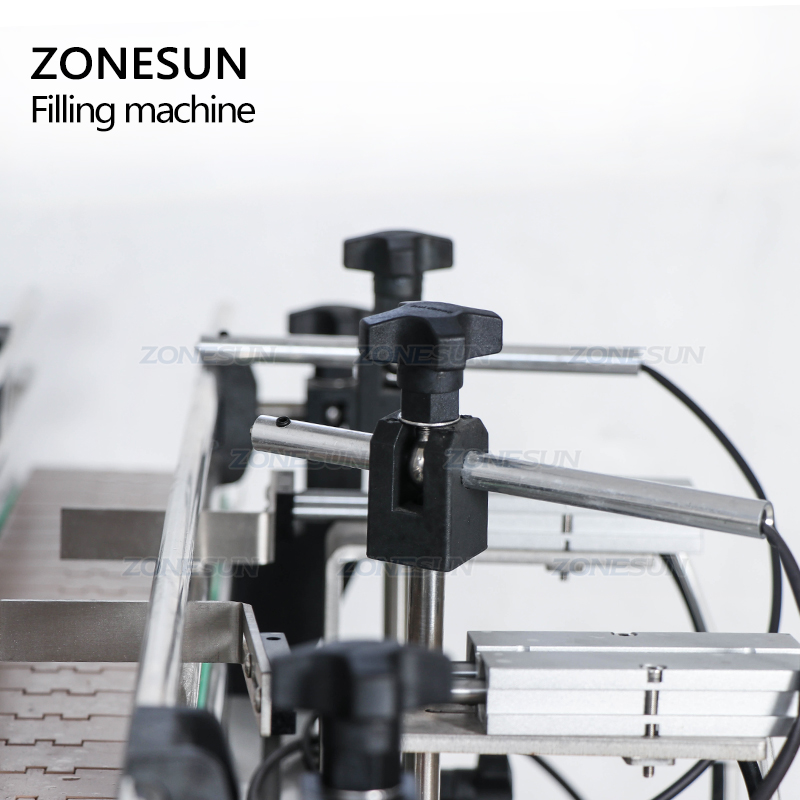

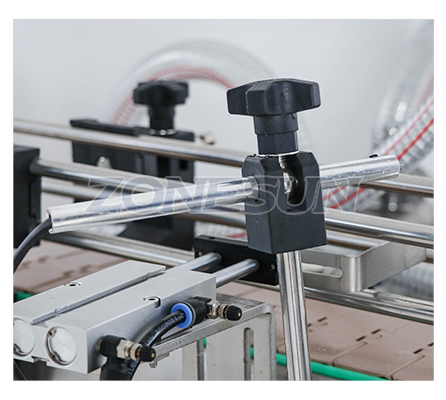

Designed for detecting bottles, the electric eye can control the machine to work automatically, making production intelligent and efficient. The sensitivity of the electric eye can be regulated according to production needs.

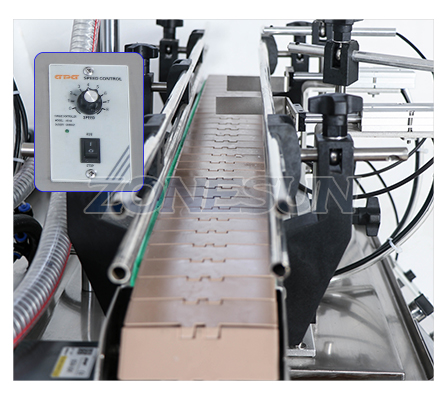

The chain conveyor belt has the advantage of a large loading capacity, which can convey bottles steadily. The width and conveying speed of the belt can be adjusted as needed.

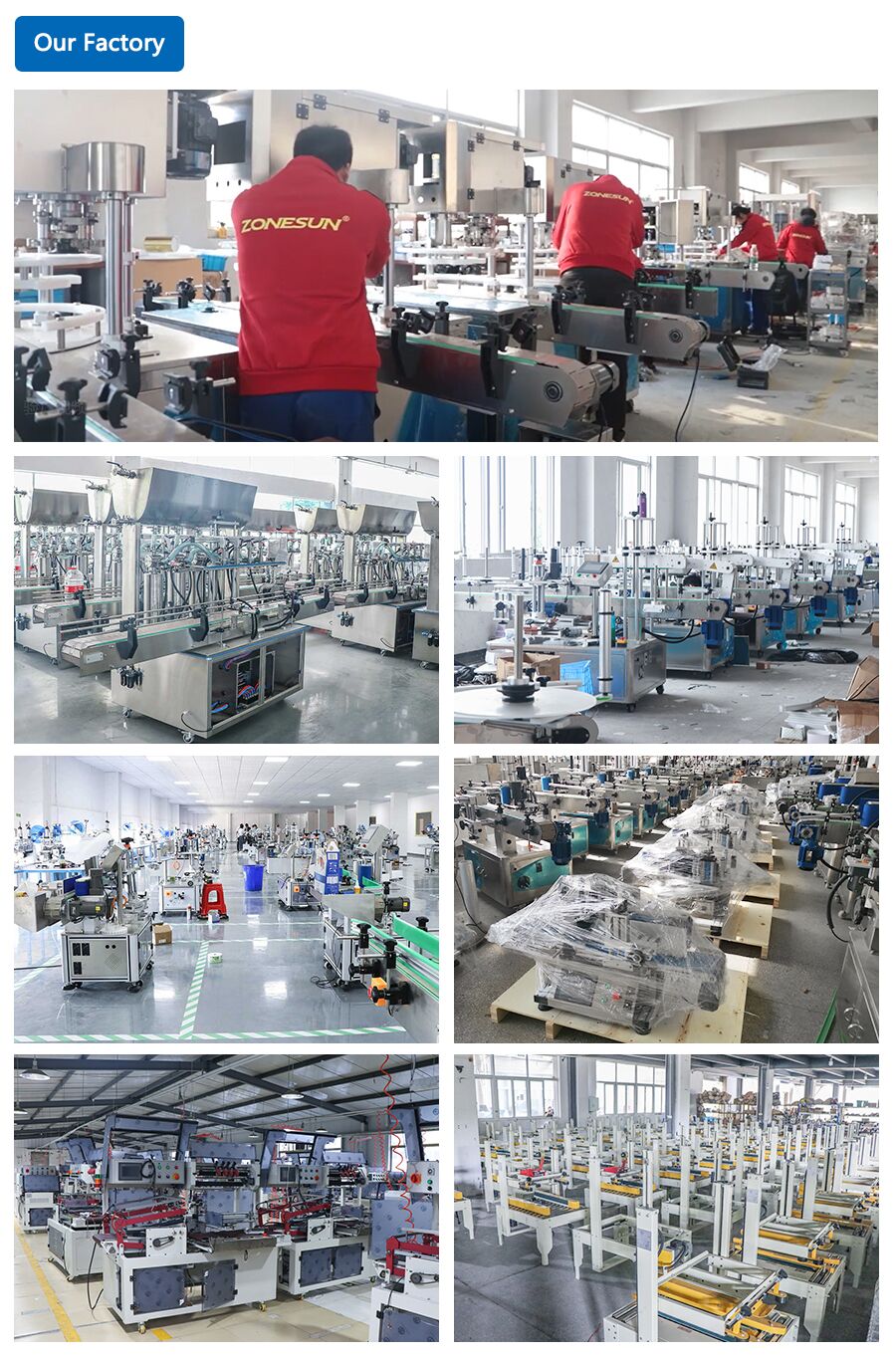

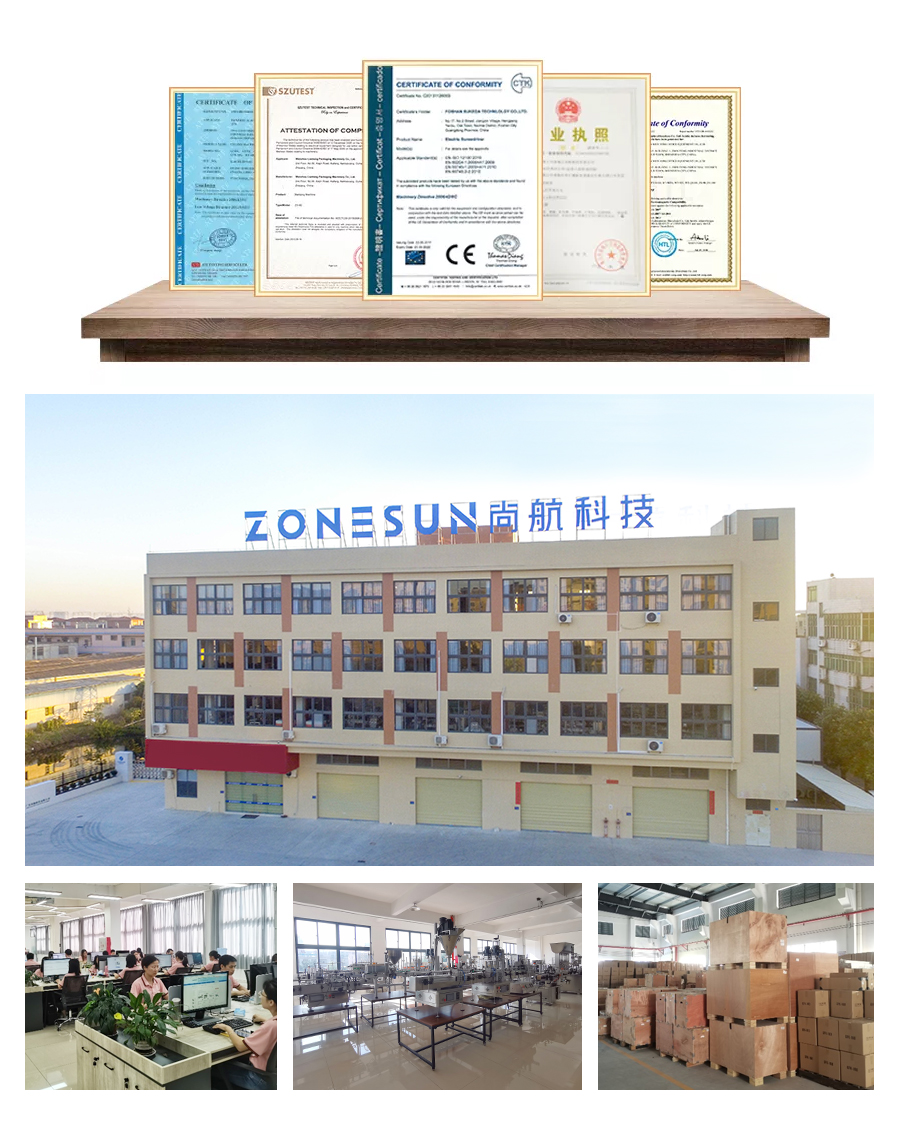

We are a factory and manufacturer.
Of course. We are the manufacturing factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be completely assured of our production quality.
An operation manual and video demonstration are sent along with the machine to provide detailed instructions. Besides, we have a professional after-sales group to support solving any operational problems.
We will send extra sets of easily broken spares and accessories like O-rings, etc. Non-artificially damaged spares will be sent for free, with shipping covered during the 1-year warranty period.
Payment terms: 30% T/T deposit payment in advance, balance 70% against copy of B/L. Western Union and LC are also acceptable.
MOQ: 1 set.
Warranty: 12 months, with some customized products carrying a 24-month warranty.
