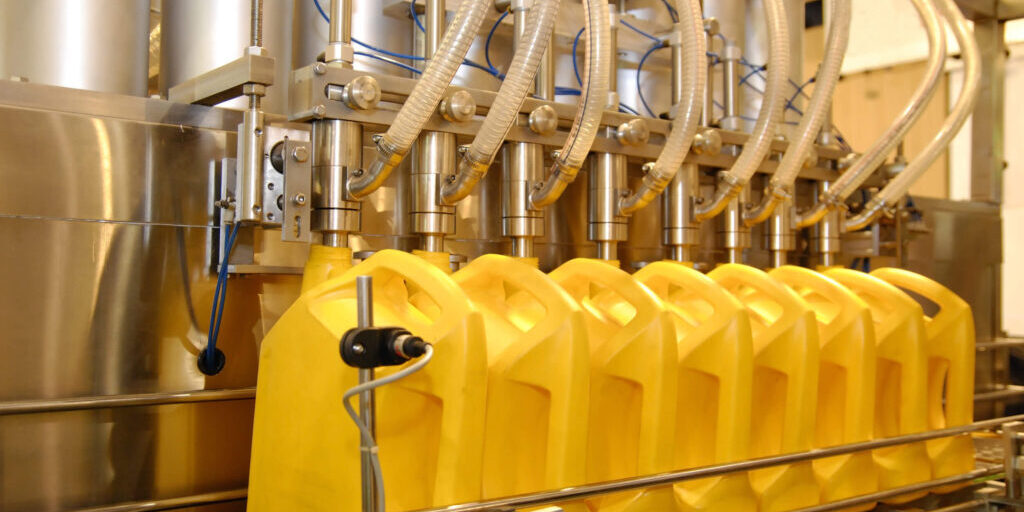

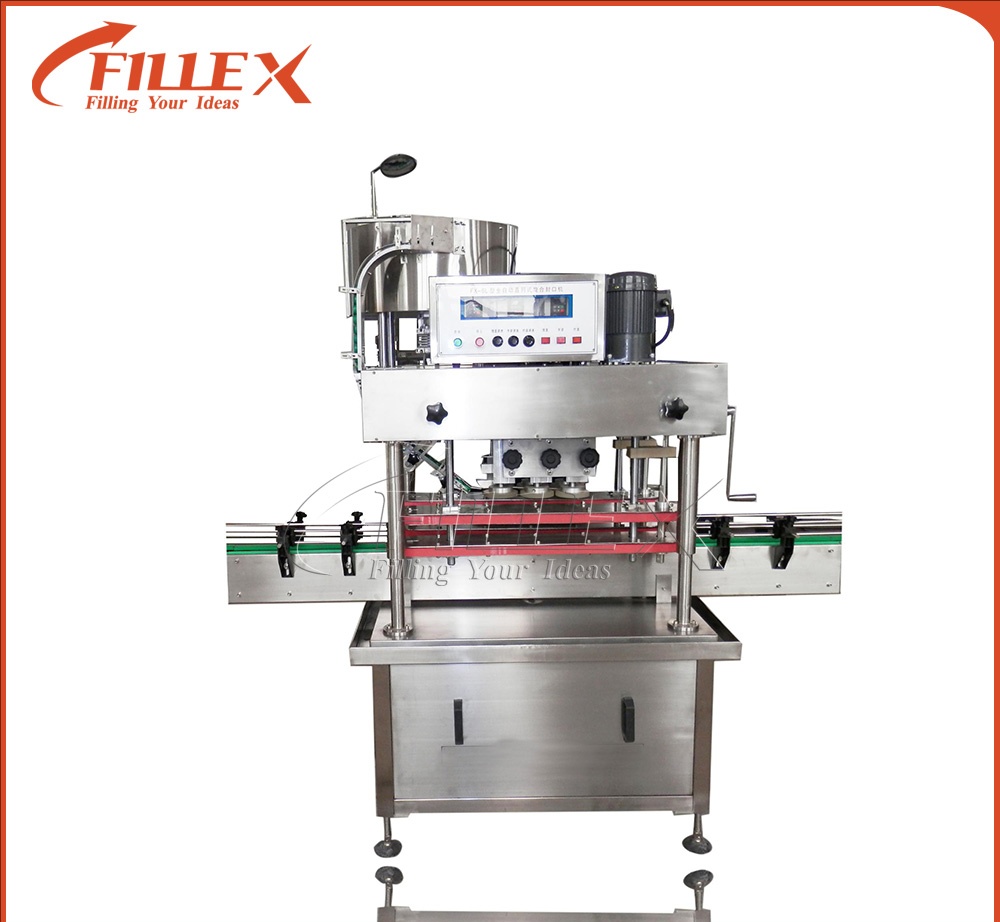

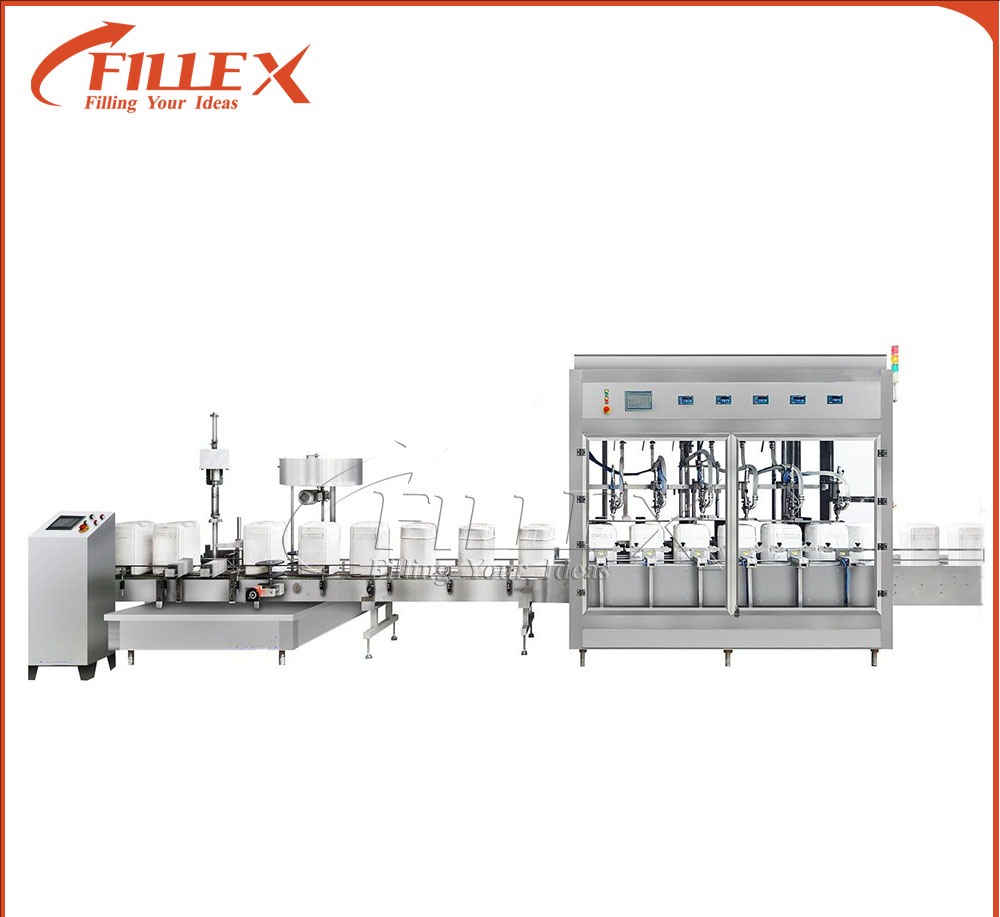

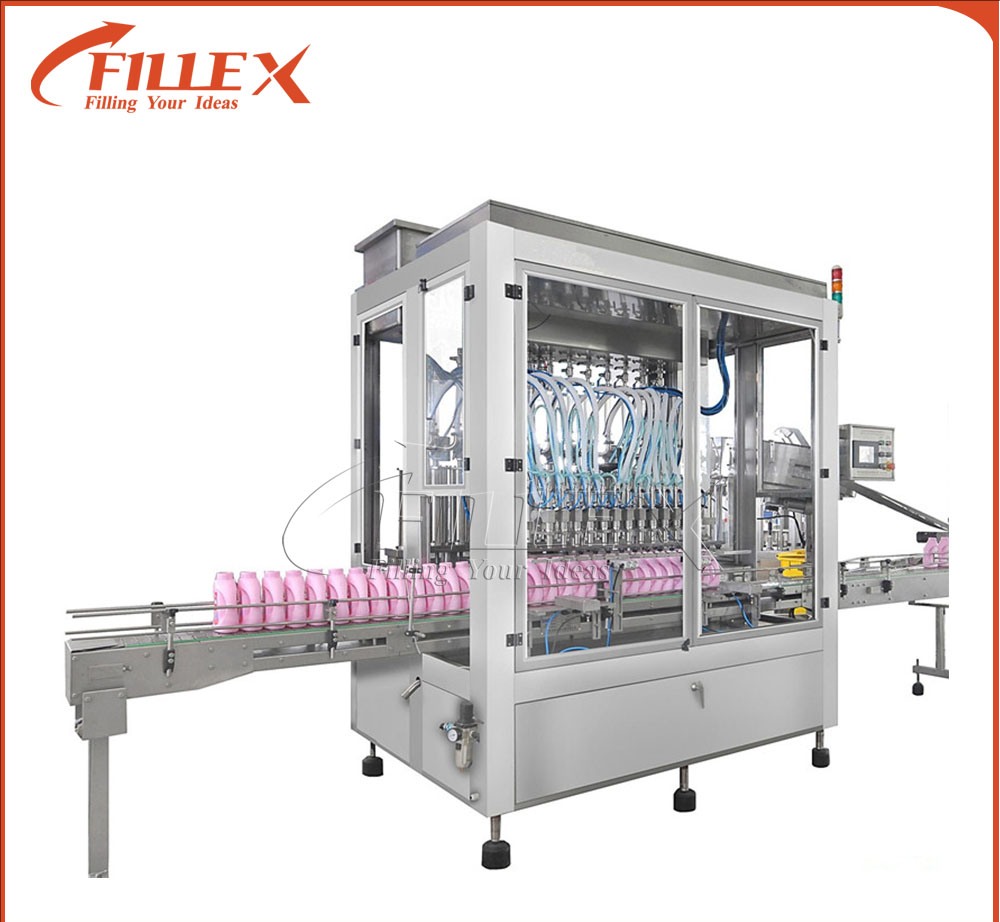

Linear filling machines have been part of production lines for decades. These machines fill containers passing down a conveyor system using gravity, pistons or pumps.

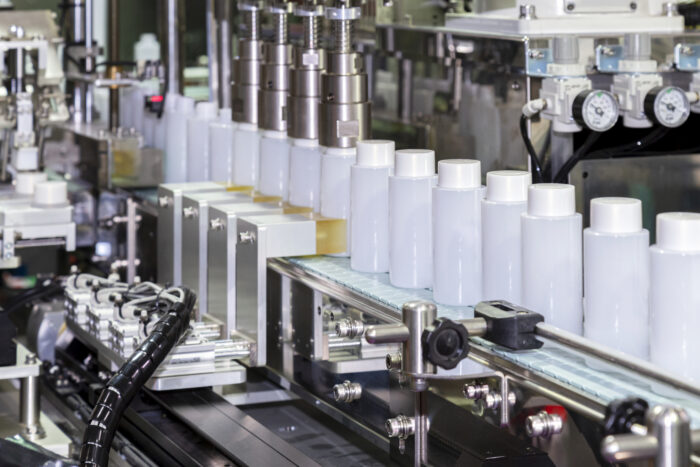

Linear machines fill bottles in sequence. They stop to fill each batch of bottles before moving to the next. They usually operate with one, two, four, or eight heads, but some can use up to twenty. The bottles then move to cap placing and tightening machines, and then accumulation tables for further processing.

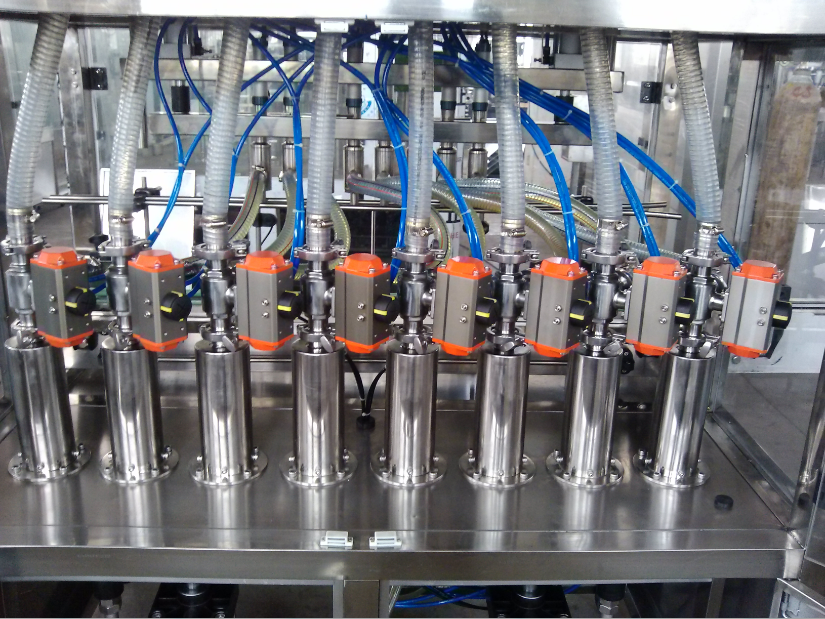

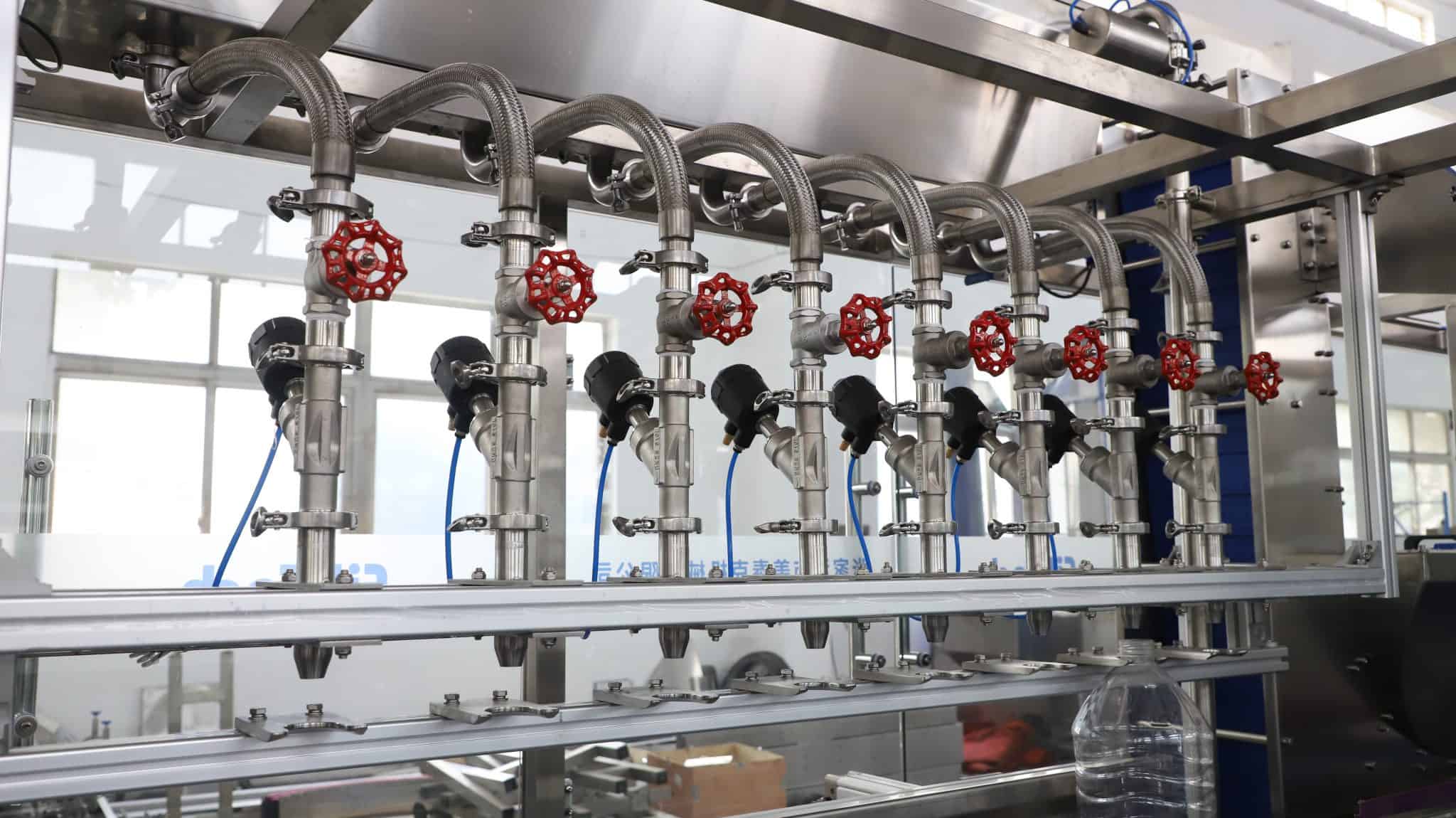

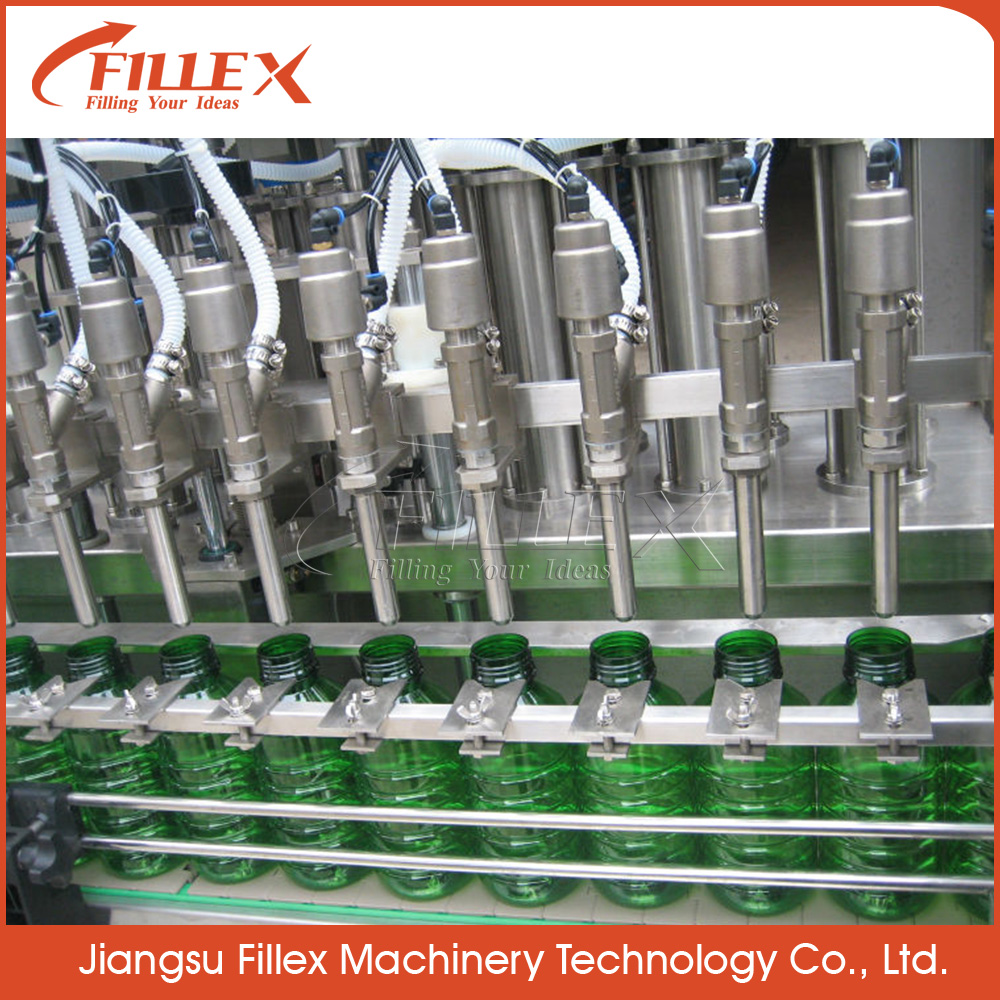

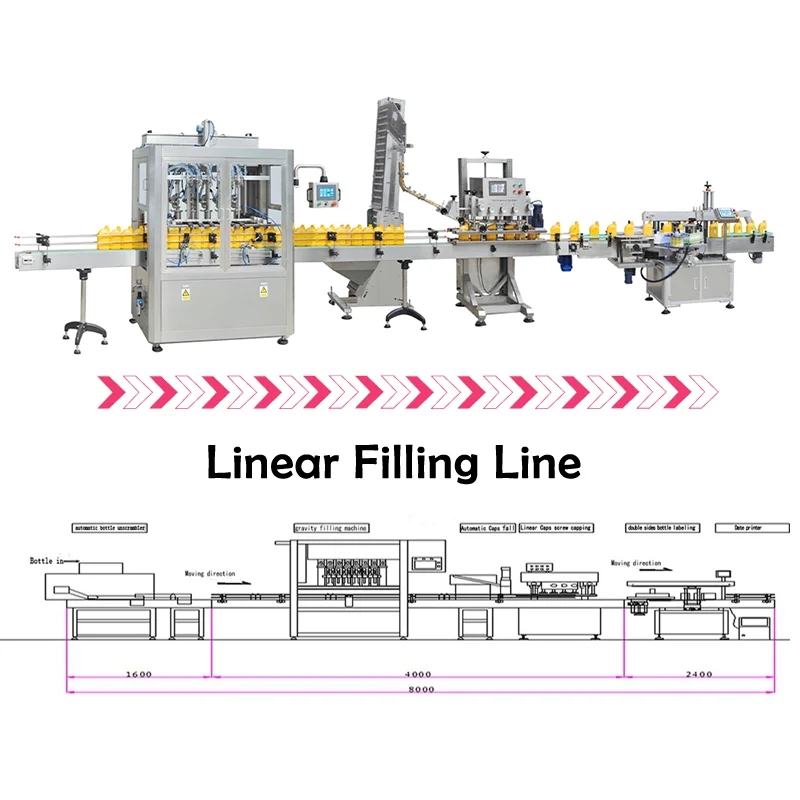

Linear filling machines run on sequential cycles. Containers move down a conveyor system and are grouped under the filling nozzles. Depending on the liquid density and accuracy requirement, gravity, pistons, or pumps are utilized to inject the liquid.
Once a batch is successfully filled, the conveyor system transports the containers to the cap placing and tightening phases, allowing the next batch to line up instantly for filling.
Linear filling machines are workhorses with many benefits. This makes them perfect for many businesses.
Linear machines are relatively cheap to buy and easy to install. Spare parts are cheap and readily available, especially if you source locally.
Linear machines are highly scalable. A business can easily make upgrades to increase production, adjust without stopping production, and complete changes with minimal downtime.
Linear machines are well known for their simplicity and reliability. They are intuitive to use and maintain. Quick repairs lead to less downtime and product wastage.
Linear filling machines have a much smaller footprint than rotary machines. This is perfect for smaller businesses where production space is at a premium.

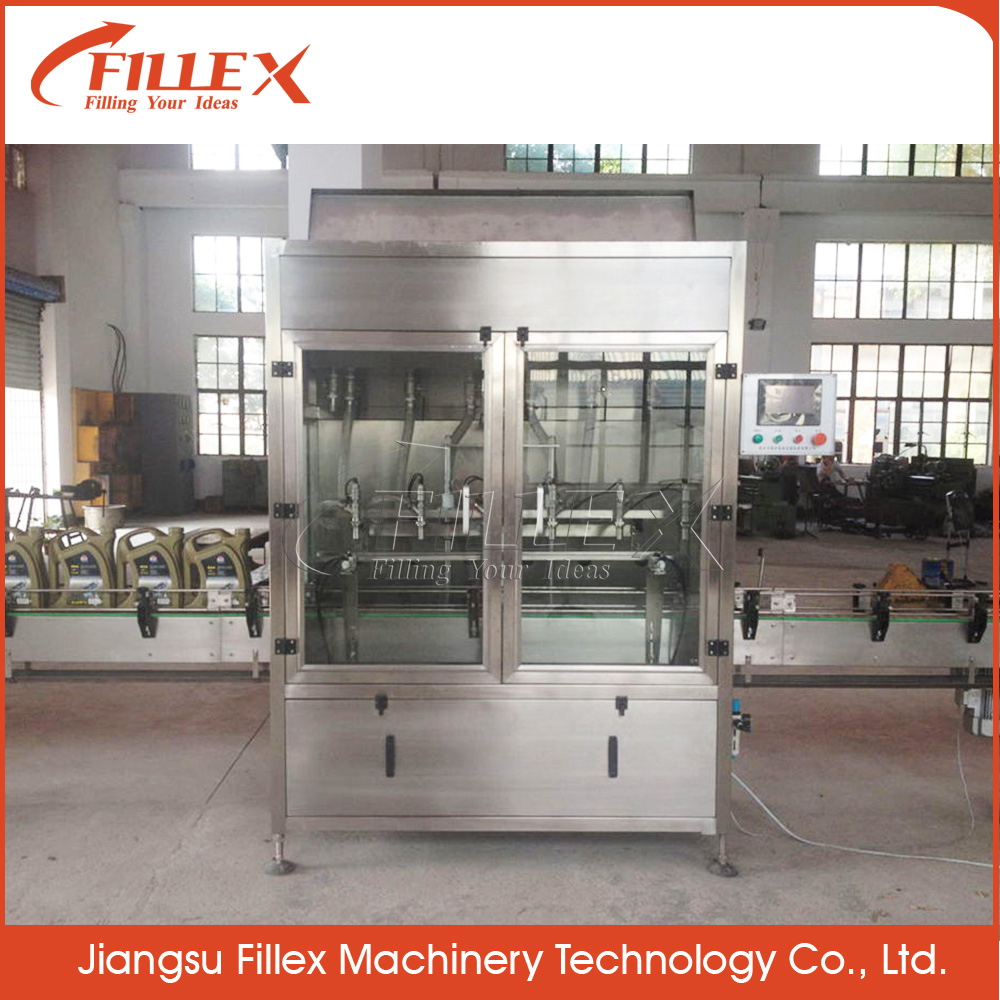

| Model | ZDHY-4 | ZDHY-6 | ZDHY-8 | ZDHY-10 |
|---|---|---|---|---|
| Filling Heads | 4 | 6 | 8 | 10 |
| Filling Capacity | 500-500ml Adjustable | |||
| Production Capacity (b/h) | 400-800 | 800-1200 | 1200-1500 | 1500-2000 |
| Filling Accuracy | ≤0.5 | |||
| Power Supply | 50HZ/60HZ 3N-380V ±10% | |||
| Power | 0.75KW | |||
| Air Pressure | 0.5-0.8MPa | |||
| Work Power(KW) | 0.6-0.7MPa | |||

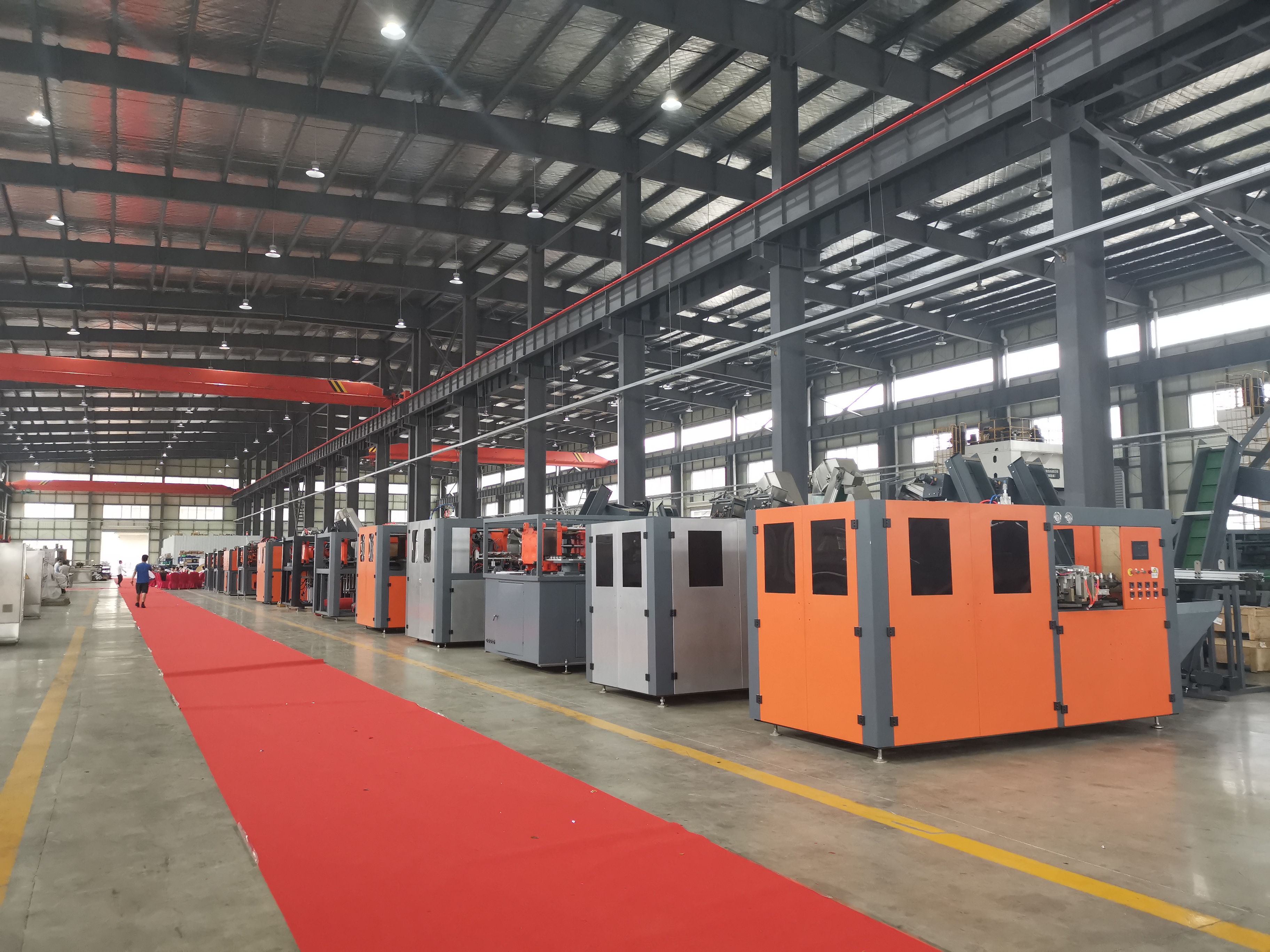

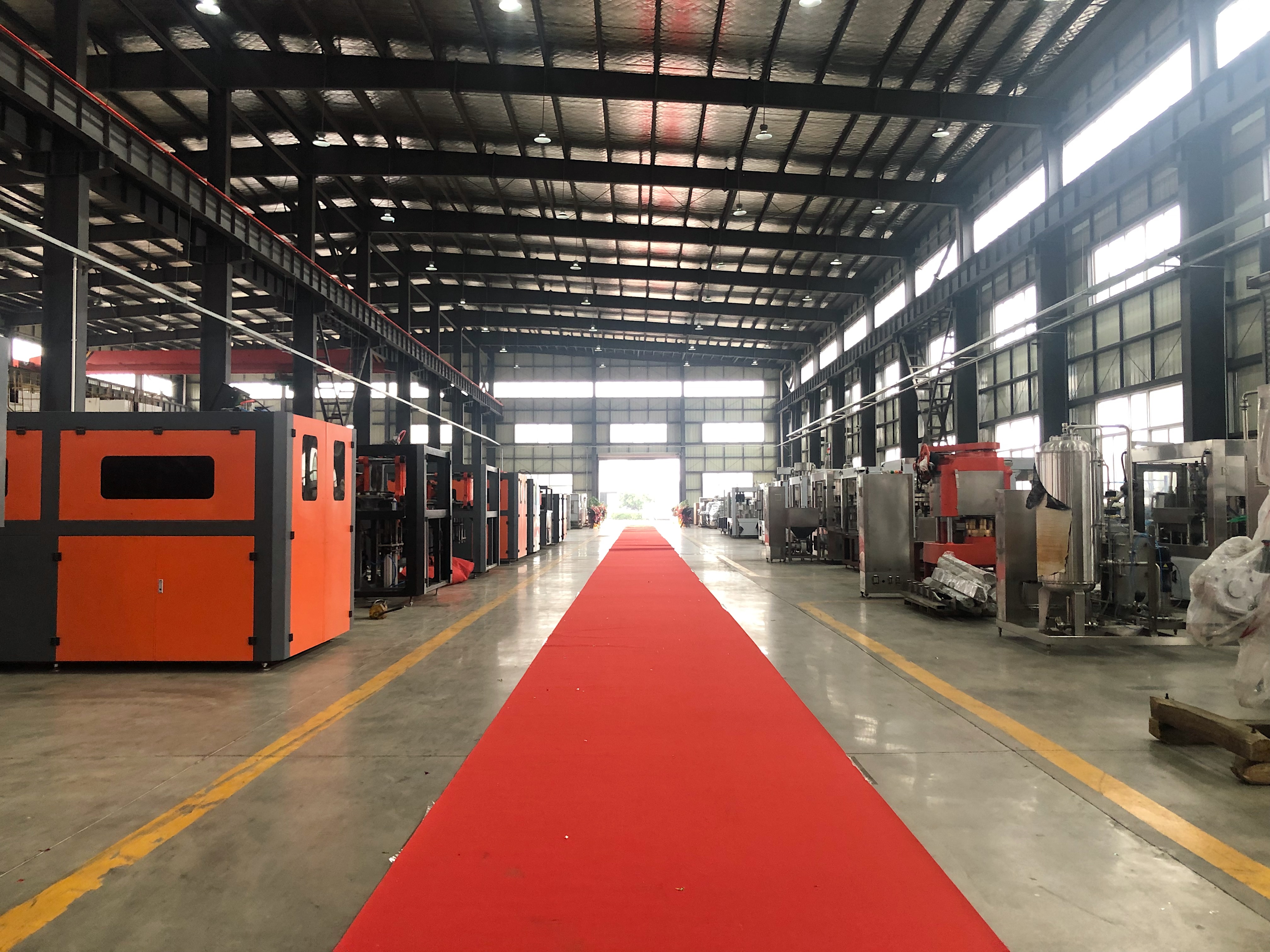

Our company was established in 2006, possessed with 10,000 square meters standard workshop and more than 80 professional workers. We have adhered to our long-term concept of "Filling Your Ideas" & "Packing Your Ideas".
During the 15 years since establishment, our products have been sold to many other countries like the United States, Canada, Ghana, Peru, Argentina, Russia, South Africa, Vietnam, Philippines, Pakistan, Malaysia, Saudi Arabia, Jordan, and so on.
We provide solutions for blow molding, water treatment, beverage processing systems, blowing filling, and packaging solutions. Mainly for liquids such as pure water, fruit drinks, carbonated beverages, beer, condiments, cosmetics, and so on.
