SMBPM-11 High Speed Proximity Card DOD UV Inkjet Printer Automatic Variable Data Coding Machine 600DPI

Send Inquiry

Product Description

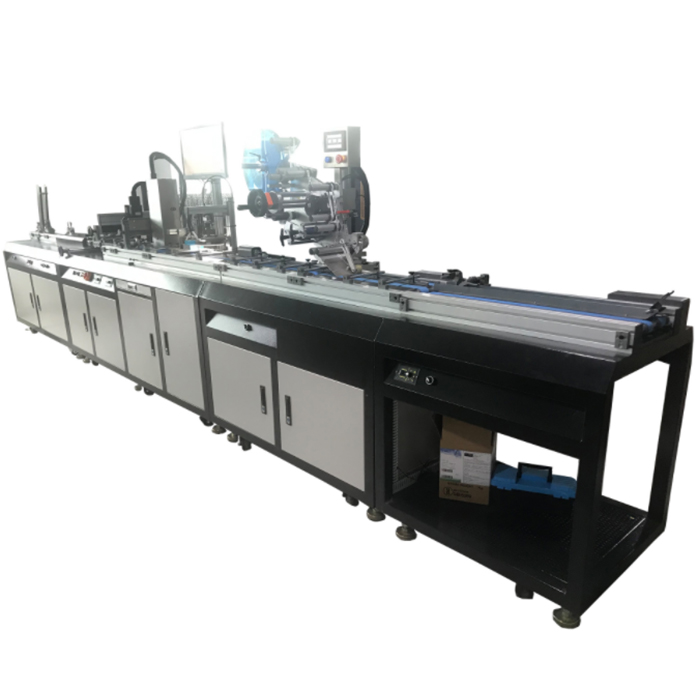

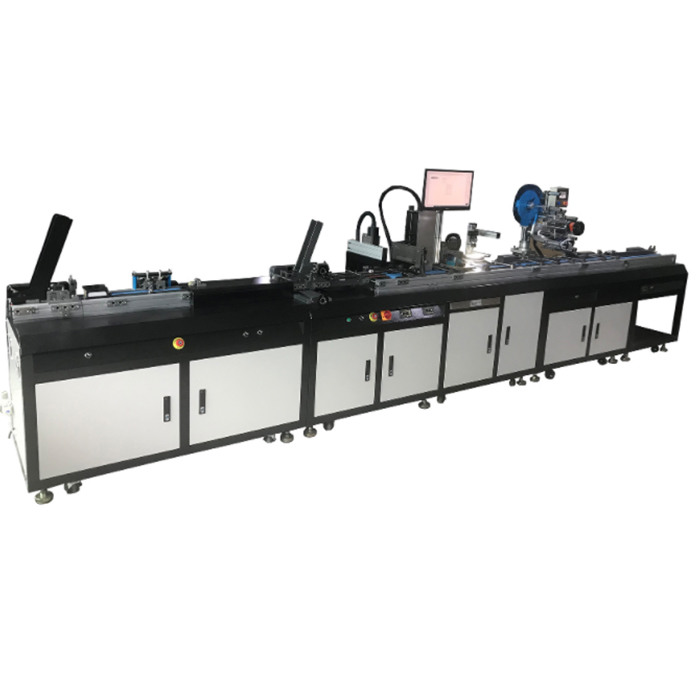

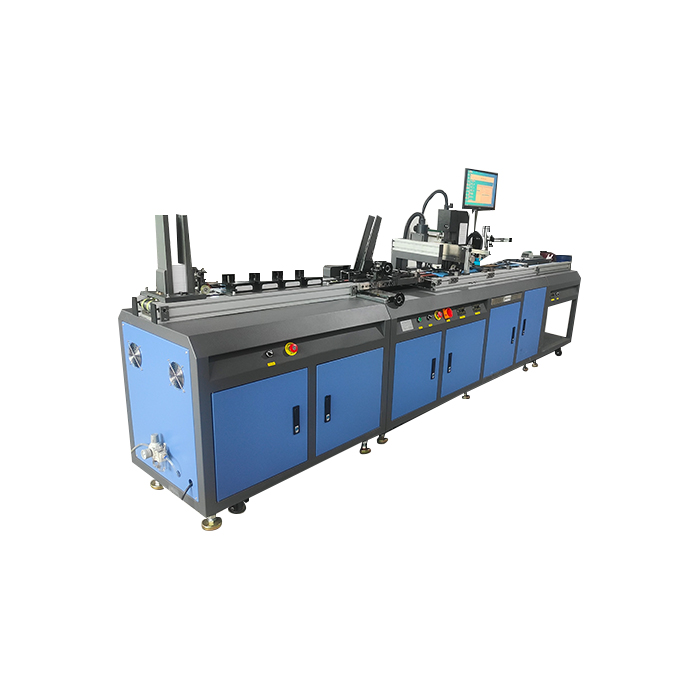

SMBPM-11 DOD UV Multi-Color Printing with Card Personalization Machine is professional machine for Banking card / VISA Card / Master Card / Driver Licence Card / ID card personalization.

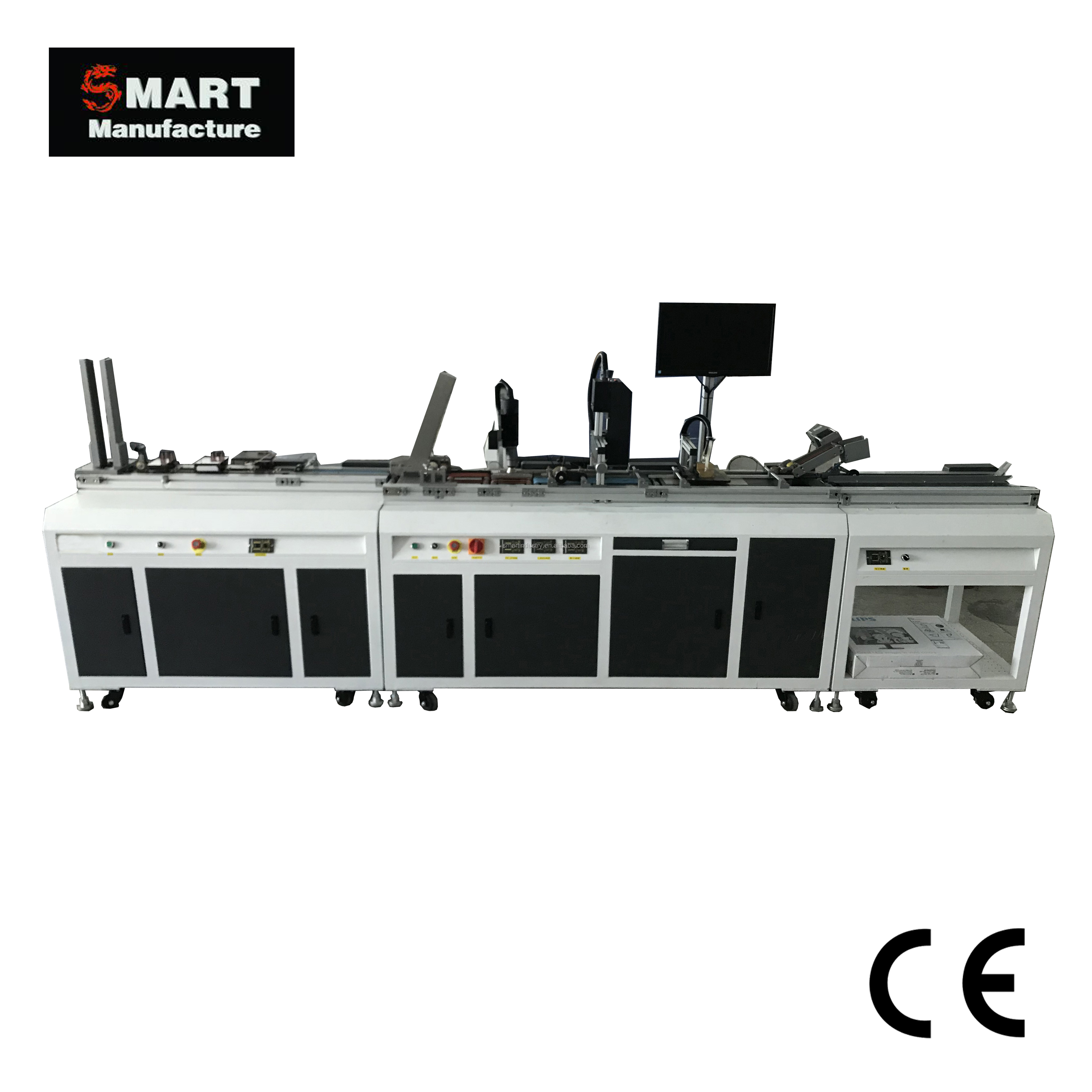

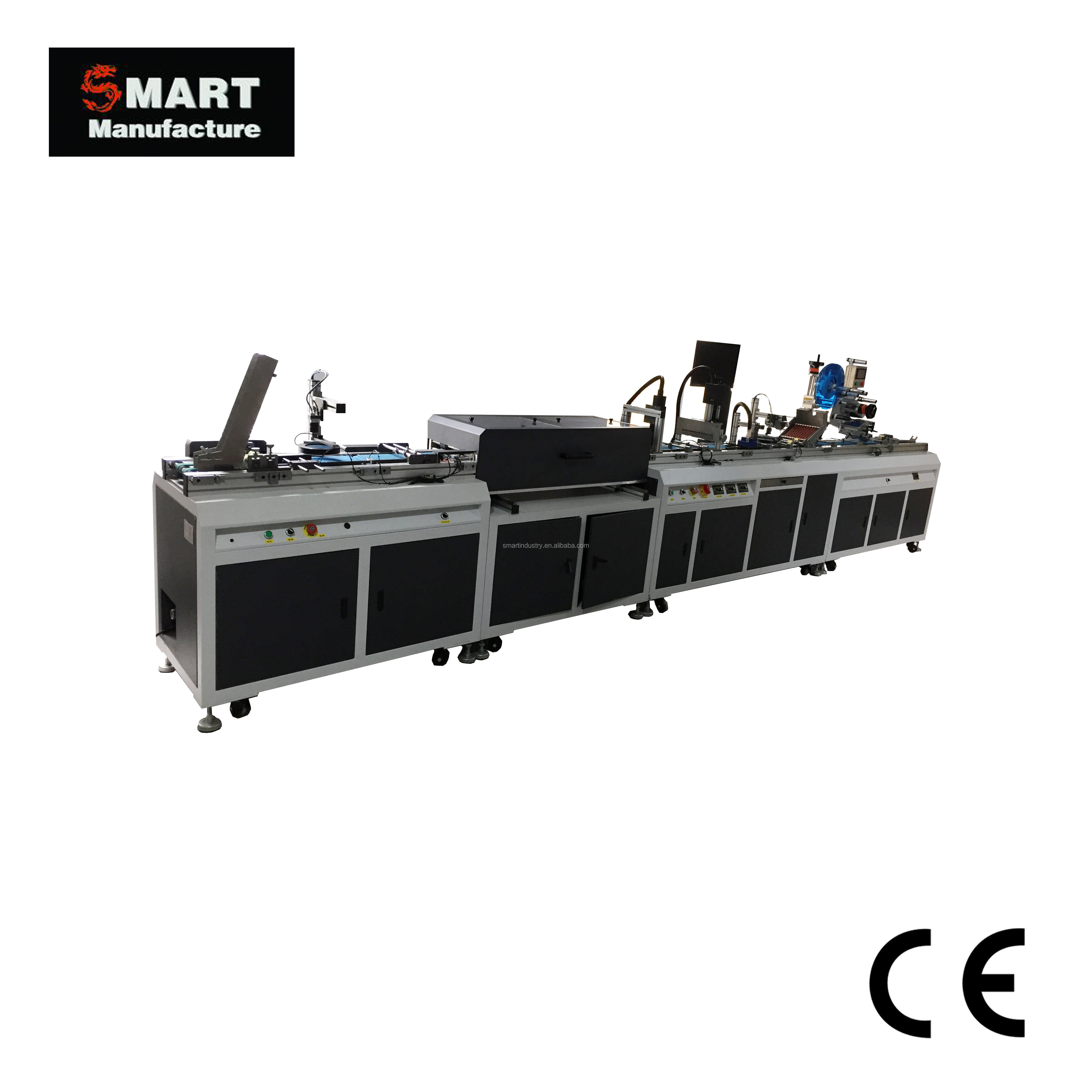

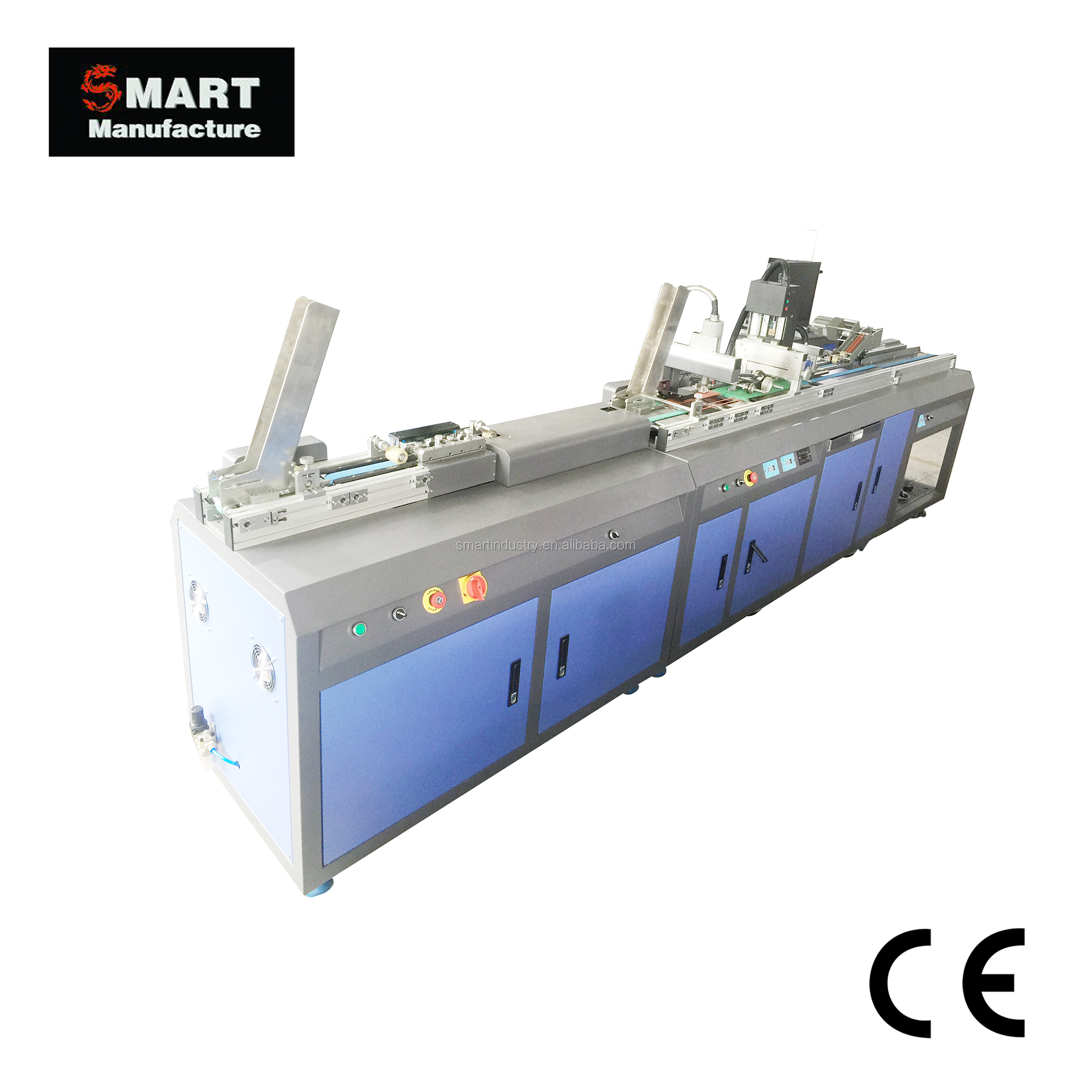

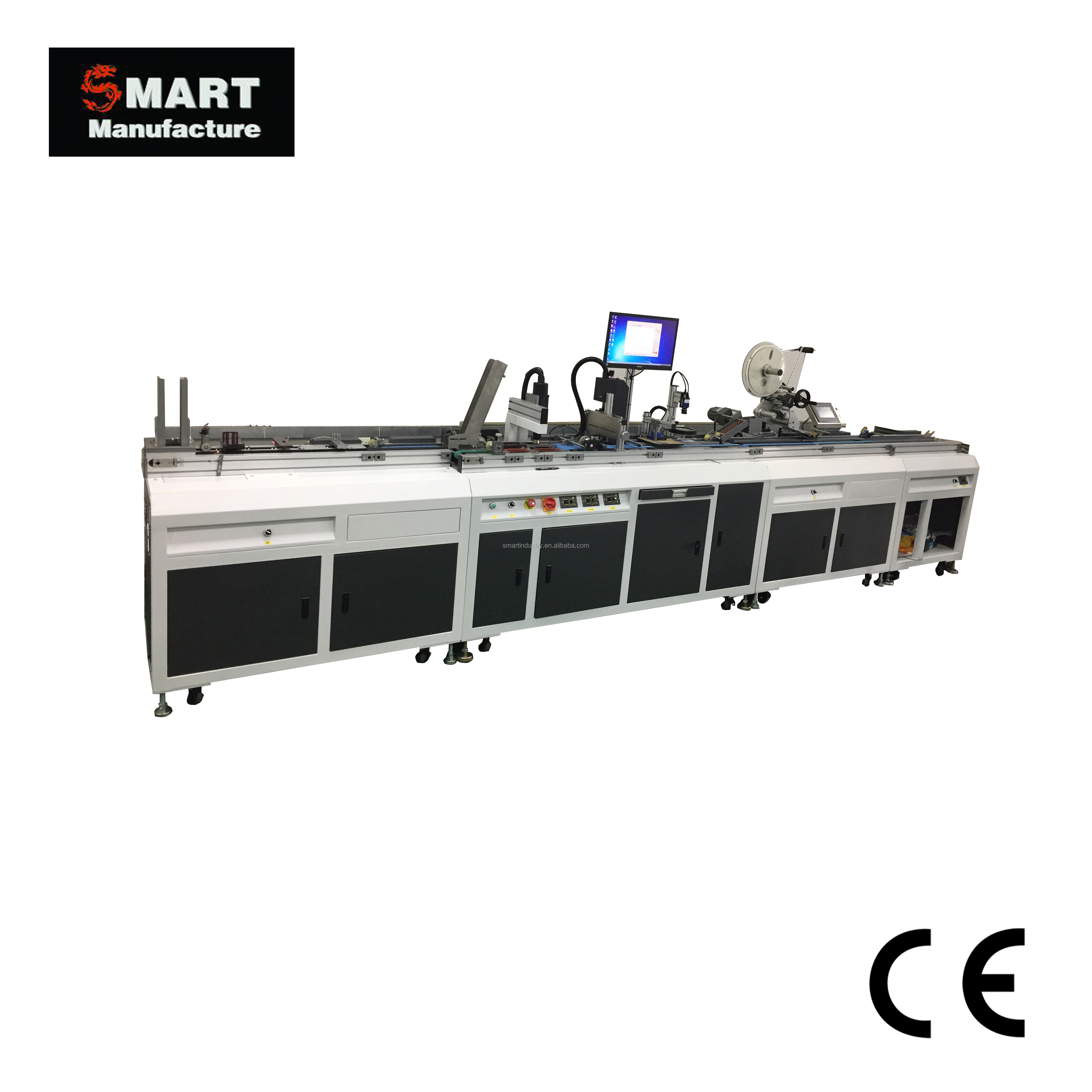

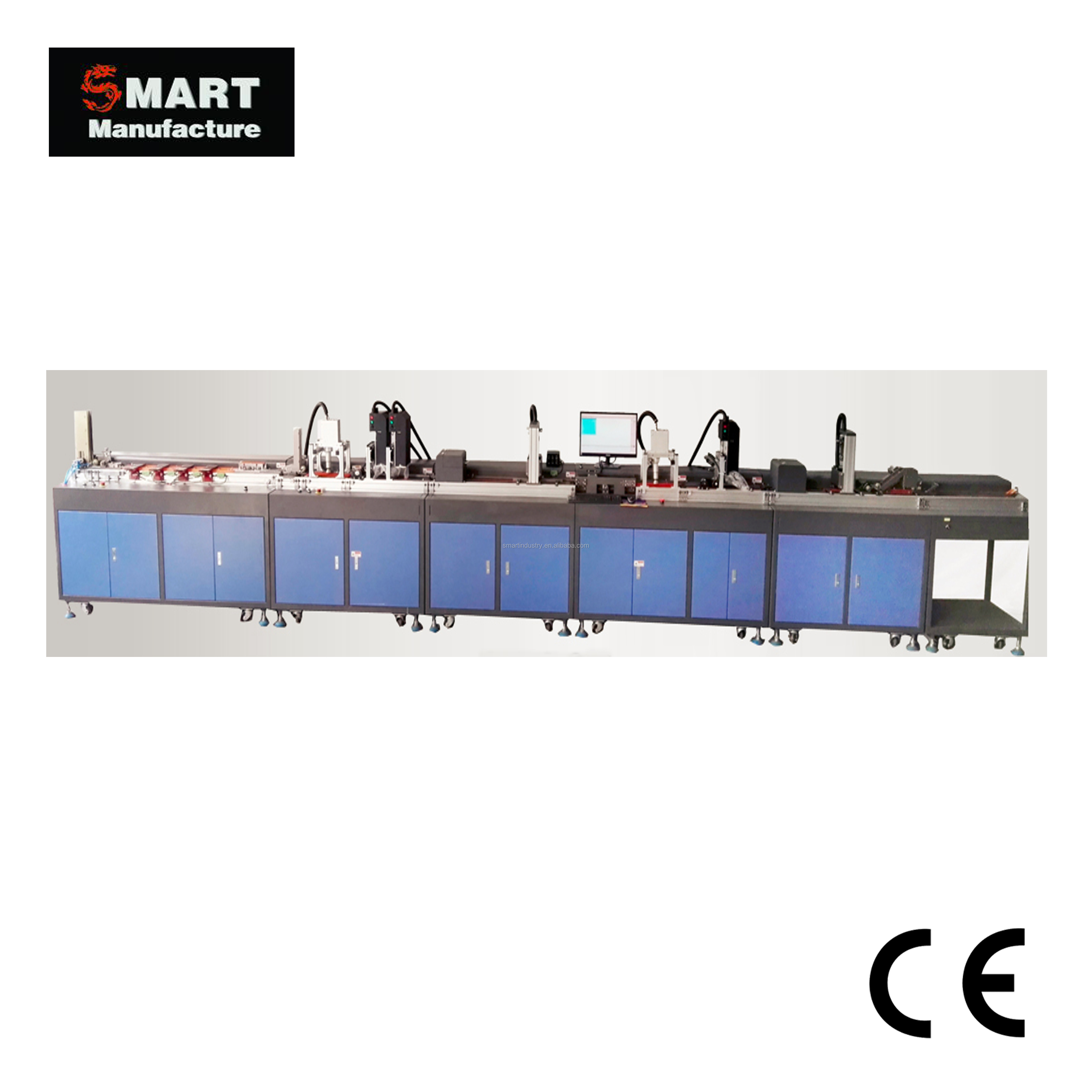

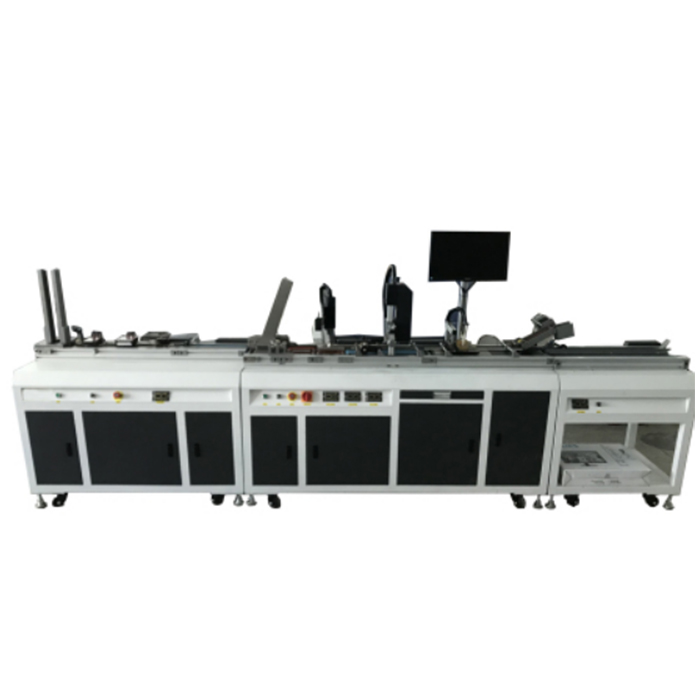

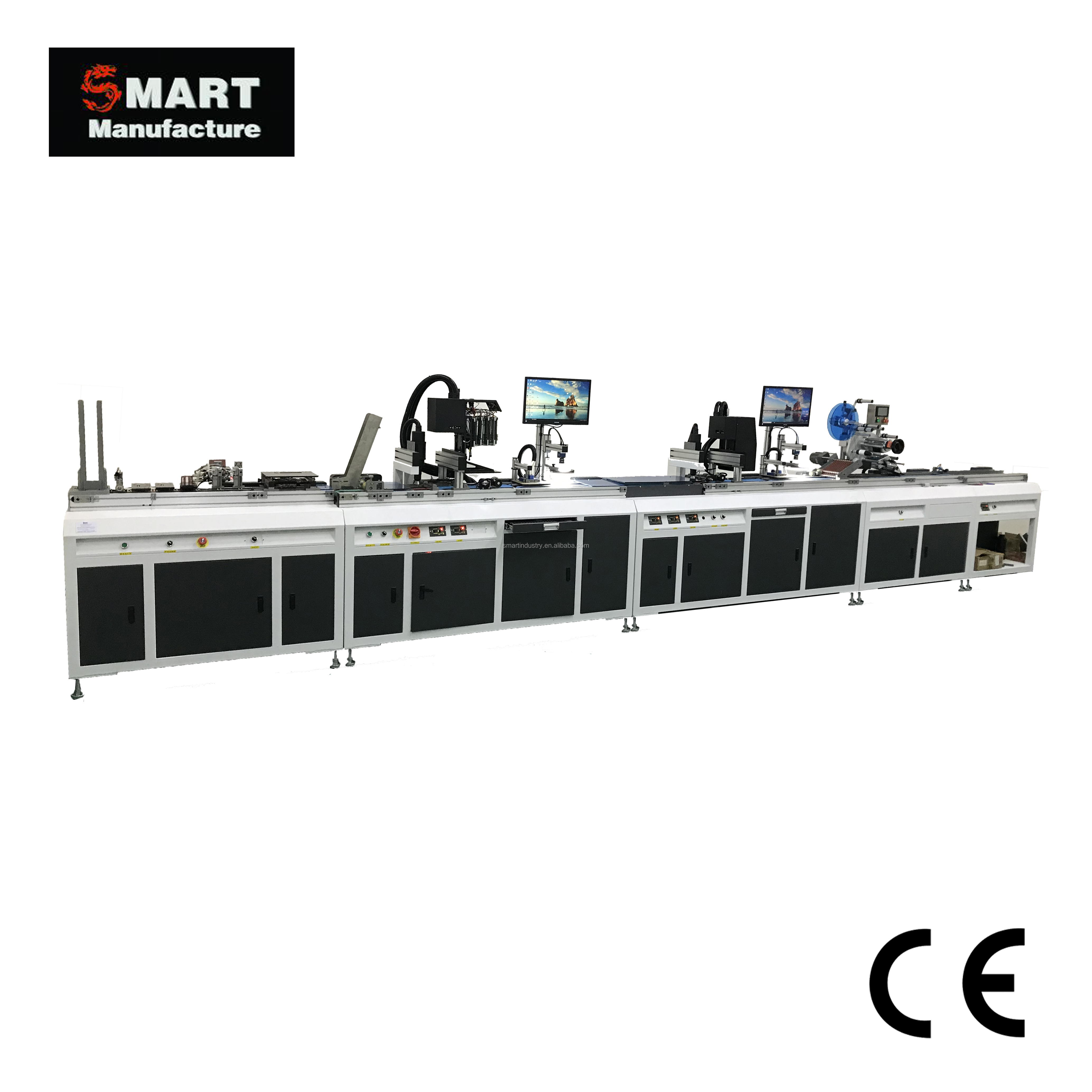

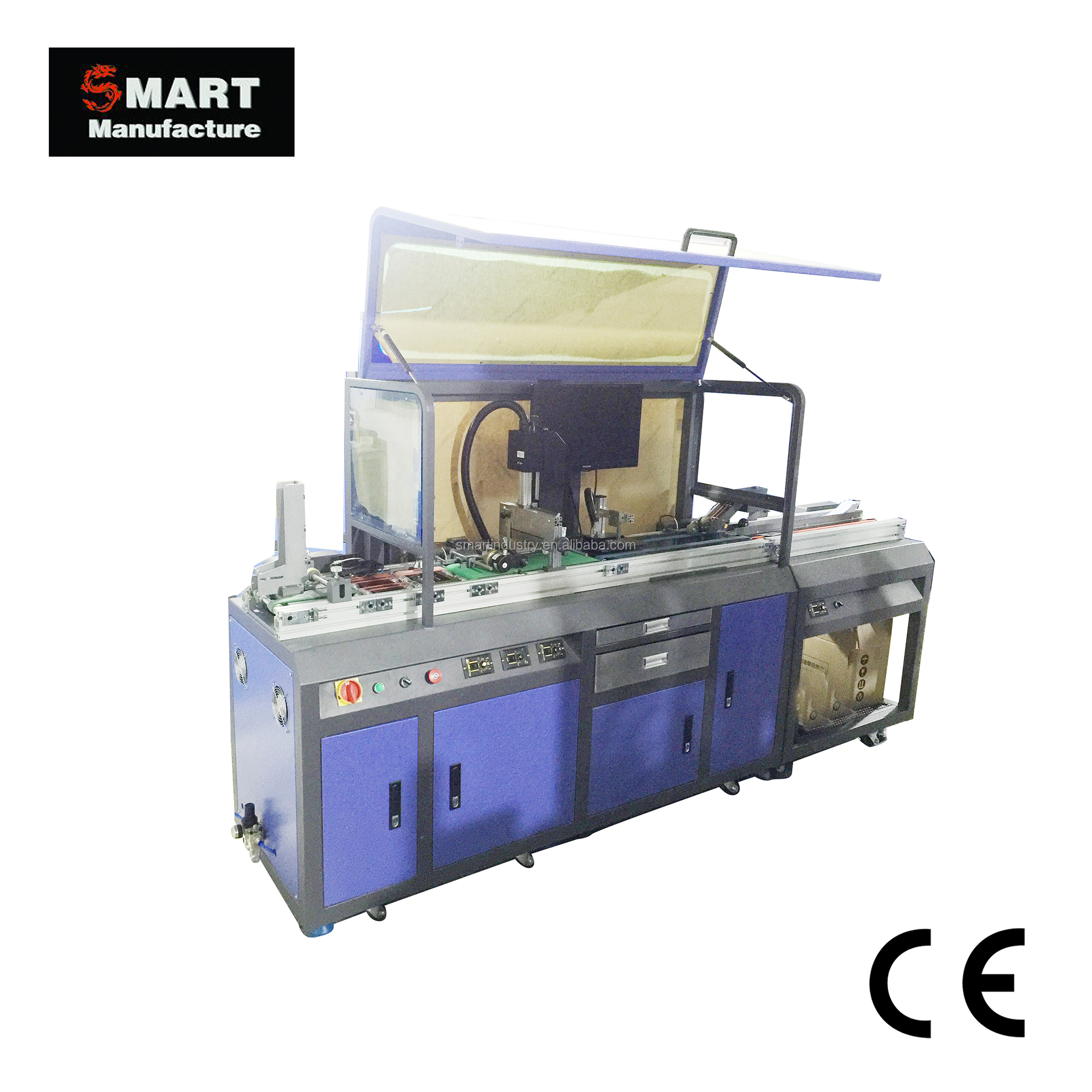

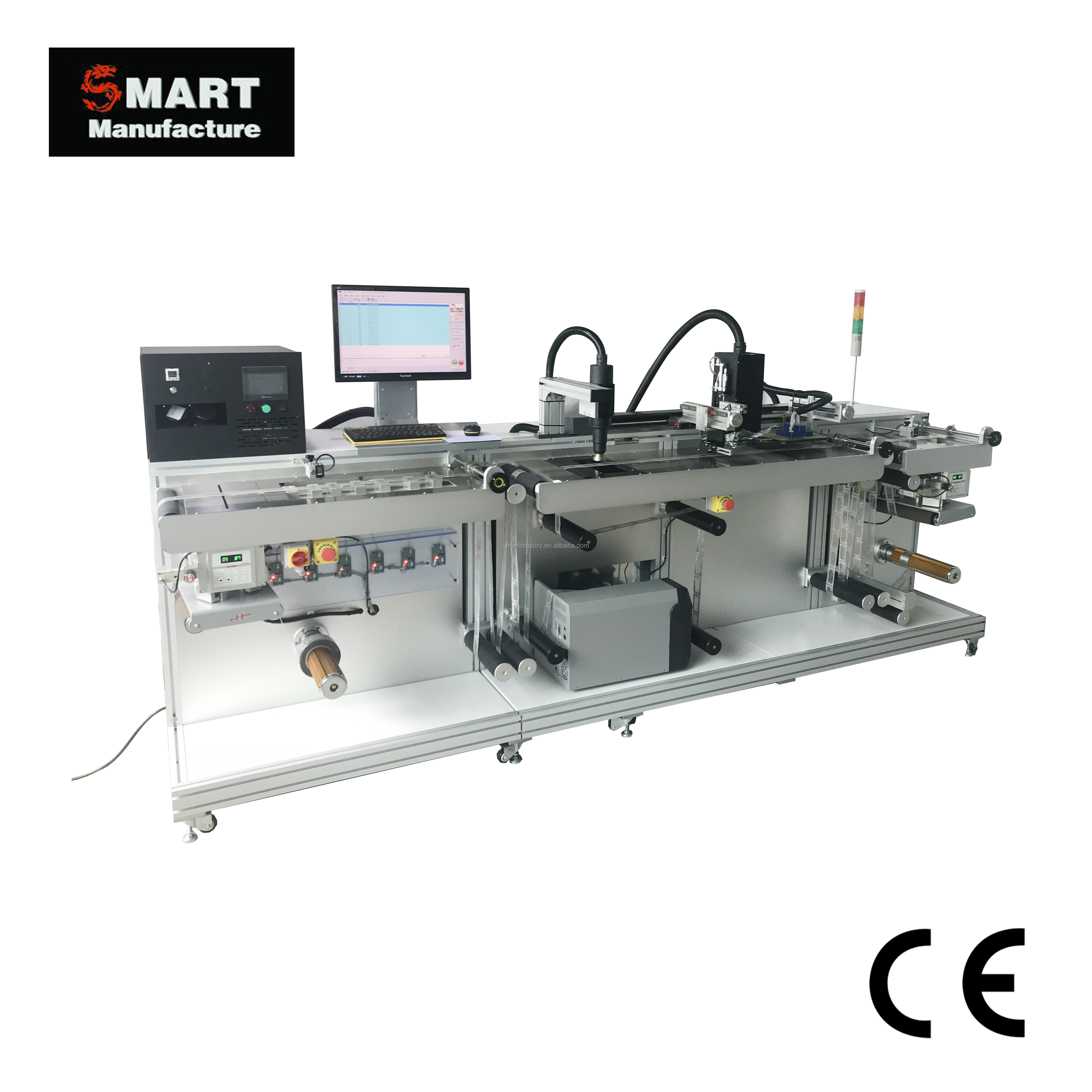

Different configurations of machines as above photos

1 First Feeder: load CR80 cards for contactless LF & HF & UHF smart card personalization, contact chip SIM card & Banking card personalization, magnetic banking card encoding.
2 Double Card Detection: if double card from feeder, automatic stop and alarm.
3 Contactless smart card data personalization modules: read UID from module, load data from database or fixed data by our software setting, write data for 0-15sectors and different blocks and change A key and B key up 7000pcs card per hour.
4 Contact chip card data personalization modules: read UID from chip, load data from database or fixed data by our software setting, write data by location setting, automatic dispatch data.
5 Flipper / Turn-Over: automatic turn card from front side to back side, after contact chip card personalization, turn card side for magstripe encoding.
6 Magnetic card encoding module: load data from database or fixed data by our software setting, write 1/2/3 tracks for Hi-Co / Lo-Co magstripe card, recheck data after encoding. The initial bit / starting position can be adjusted by software and machinery sensor.
7 Adjustable Second Feeder: Load CR80 cards if only printing by second feeder, save time. Adjust the feeding module, load special size cards if only printing, maximum A4 sheet.
8 Plasma Treatment: Make the card surface easier to adhere to UV ink.
9 DOD UV Multi-Color Printing: Print one dimensional code, two-dimension barcode, personalization numbers, drug administration codes, anti-counterfeiting code, security code, database, serial / swift numbers, various patterns and any other languages. Load text & photo data as database, printing speed up to 13000pcs card per hour.
10 LED UV Dryer: Dry the UV ink after printing.
11 OCR(Optical Character Recognition) Verification: Verifies printed numbers, text, bar-code, QR-code and other codes and data from the database and layout.
12 Flipper / Turn-Over: Flipping the product for personalization from one side to another side.
13 DOD UV Multi-Color Printing: Print one dimensional code, two-dimension barcode, personalization numbers, drug administration codes, anti-counterfeiting code, security code, database, serial / swift numbers, various patterns and any other languages. Load text & photo data as database, printing speed up to 13000pcs card per hour.
14 LED UV Dryer: Dry the UV ink after printing.
15 OCR(Optical Character Recognition) Verification System: Verifies printed numbers, text, bar-code, QR code and other codes and data from the database and layout.
16 Fiber Laser Printing Module(location movable) : Print one dimensional code, two-dimension barcode, personalization numbers, drug administration codes, anti-counterfeiting code, security code, database, serial / swift numbers, various patterns and any other languages. Load text & photo data as database, printing speed up to 13000pcs card per hour.
17 Labeling Module(location movable): Apply the scratch-off label & simple label on the product.
18 OCR(Optical Character Recognition) Verification System: Verifies laser printed numbers, text, bar-code, QR-code and other codes and data from the database and layout, Verifies label location on card.
19 Rejection module: Identification system of the defect products on each stage of equipment operation (data of the contactless & contact chips, encoding of magnetic stripes, printing personal data on the card, quality control of the label module application ) and dispatch to the rejection module for the cards.
20 Final conveyor: Collect finished good cards.
21 Controller: Management and control of encoding, printing, verification, rejection and product transfer on the transport system.
22 Monitor: control panel.
23 Software: English.

Technical Specifications

Control mode	Industrial computer and UPS Service
Material size	CR80 standard card or other special size like A4 sheet (maximum width can be made by order)
Suitable Material	Plastic, Polycarbonate, Metal, Paper, Teslin, PVC, PET, PETG, ABS, Glass...
Printing Width	36mm, 72mm, 144mm
Compressed air	6 KG/cm2
Power	2.5 - 8KW depends different configurations of machine
Voltage	220V or 380V 50/60Hz
Capacity	If only printing: maximum 13000 cards per hour, depends different configurations of machine. If contact chip card personalization, contactless smart card personalization, or magnetic card encoding: 5000-8000 cards per hour.
Dimension	L10000 * W700 * H1780mm
Weight	1800KGS
Versions	Revised and developed 17 times

Service & Warranty Highlights

Quality Warranty

2 Years comprehensive quality warranty protection.

Delivery Time

20 days standard delivery from receipt of advance payment.

Installation & Training

Engineers available for on-site installation and training at buyer's facility, or training at the factory.

Export Packaging

Professional vacuum packaging using standard export wooden boxes.

Certifications

Frequently Asked Questions

Q: Are you a trading company or factory?

We are a factory with our own workshop, 23 workers, 6 dedicated installation engineers, and 1 software engineer for custom project configurations. Being a direct manufacturer ensures a strong cost advantage and timely technical support.

Q: How is the quality of the machine controlled?

Quality control is strictly managed through three phases: 1) Strict inspection of incoming raw materials; 2) Continuous monitoring and control during machine assembly; 3) Testing the completed machine for a minimum of 3 days by our installation engineers prior to shipment.

Q: What are the payment terms, payment safety, and delivery times?

We accept advance deposits with the remaining balance due before shipment, as well as Irrevocable L/C at sight. Customers or third-party inspectors are welcome to check the machinery when ready. Delivery time ranges between 20 to 60 days, depending on custom specifications and order volumes.

Q: What after-sales service and warranty terms do you provide?

We provide on-site engineering support for installation and training, typically taking 7 to 10 days. The machine comes with a 1-2 year guarantee. Any replacement parts during the warranty period are sent free of charge via our DHL or FedEx account.

Q: What materials are compatible with this printing machine?

The machine works with a wide variety of card and substrate materials including Plastic, Polycarbonate, Metal, Paper, Teslin, PVC, PET, PETG, ABS, and Glass.

Q: What is the maximum capacity and processing speed of the machine?

For card printing only, the machine can run at a maximum capacity of 13,000 cards per hour. For contact/contactless smart card personalization or magnetic stripe encoding, the system runs reliably at 5,000 to 8,000 cards per hour depending on configuration.
