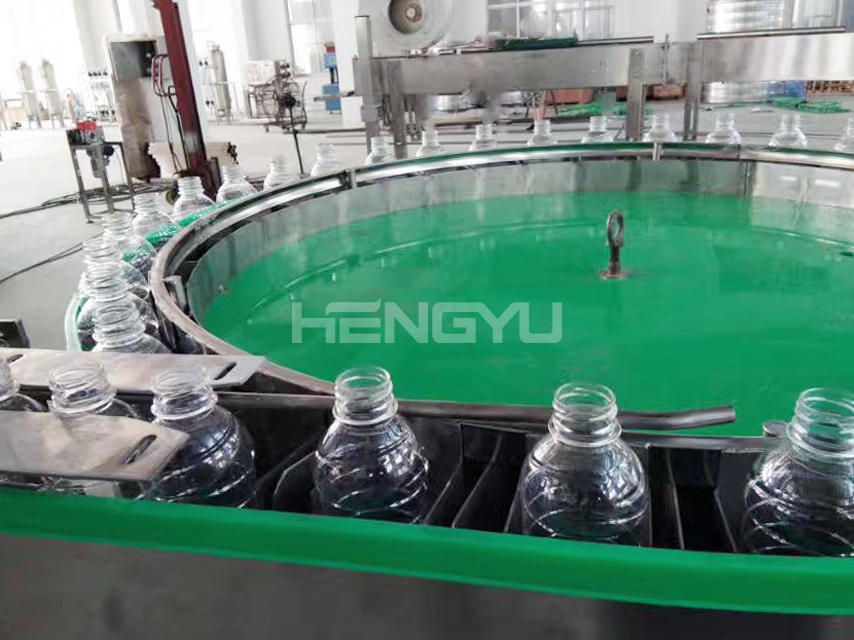

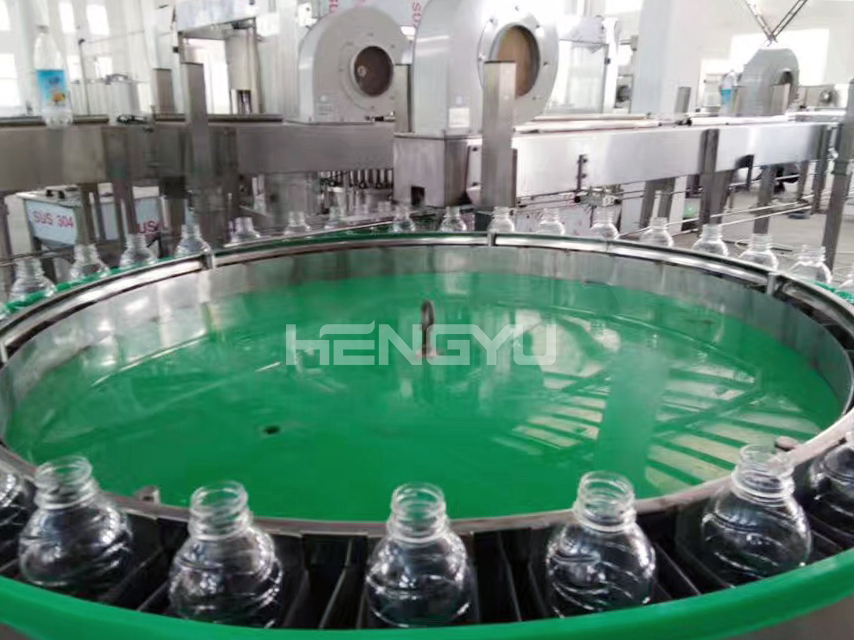

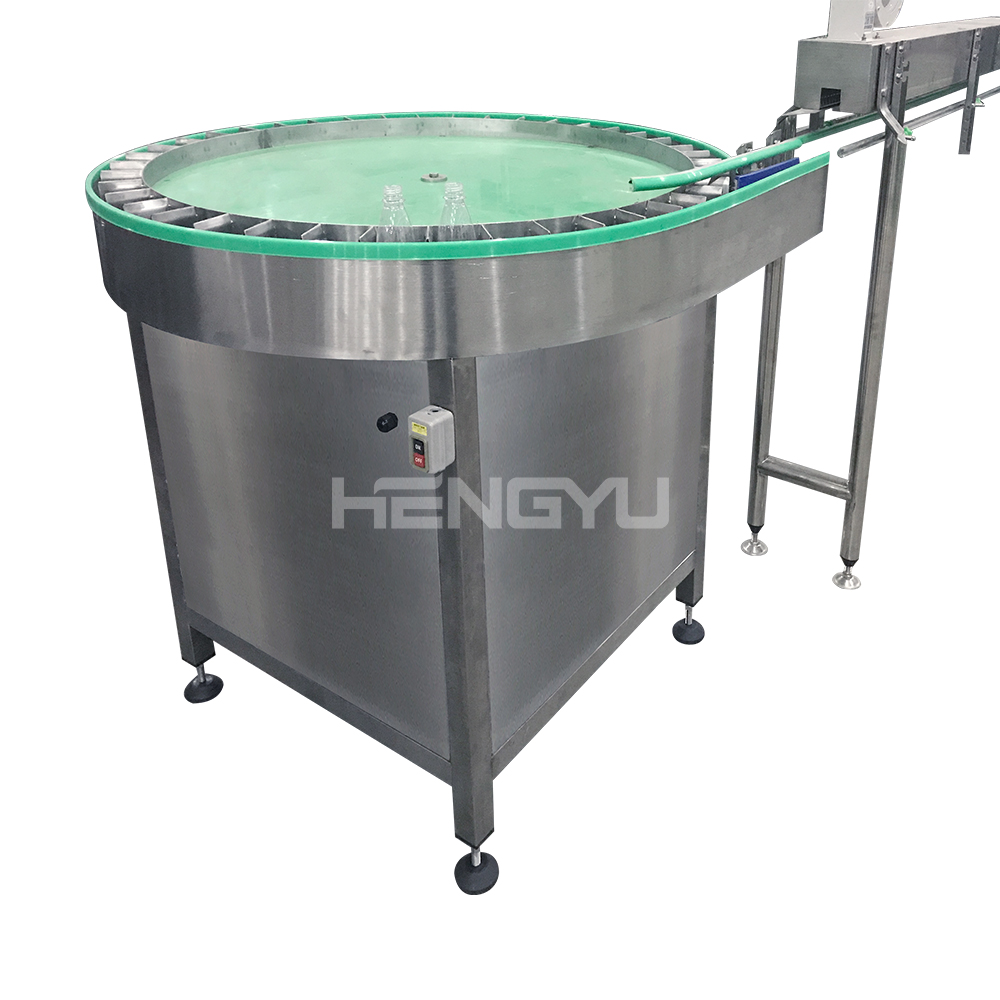

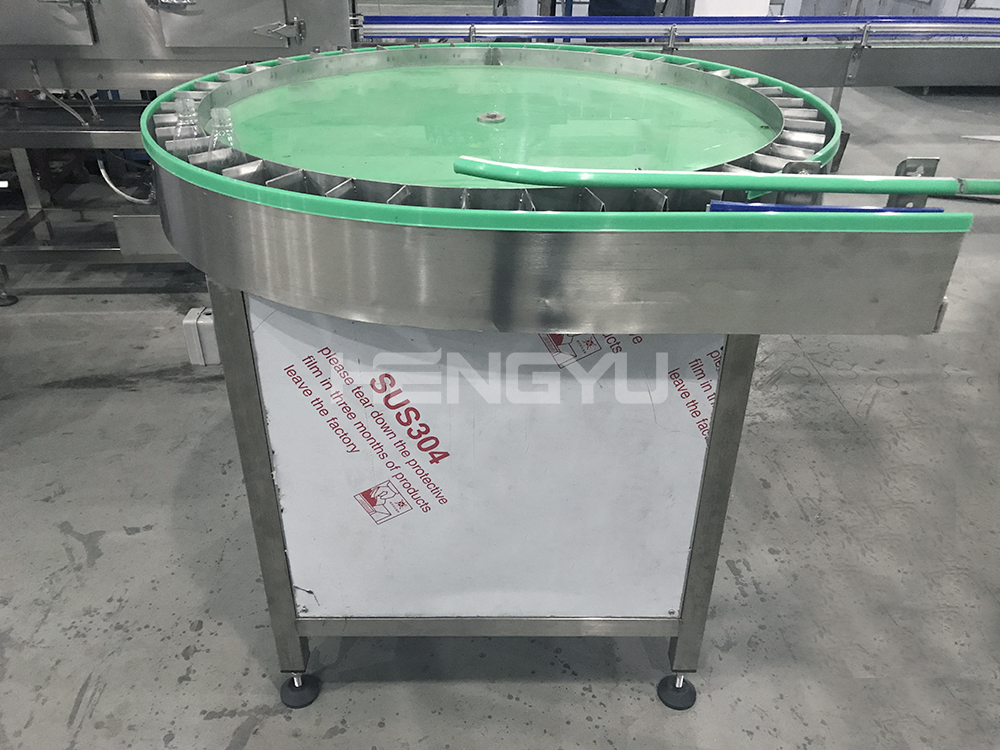

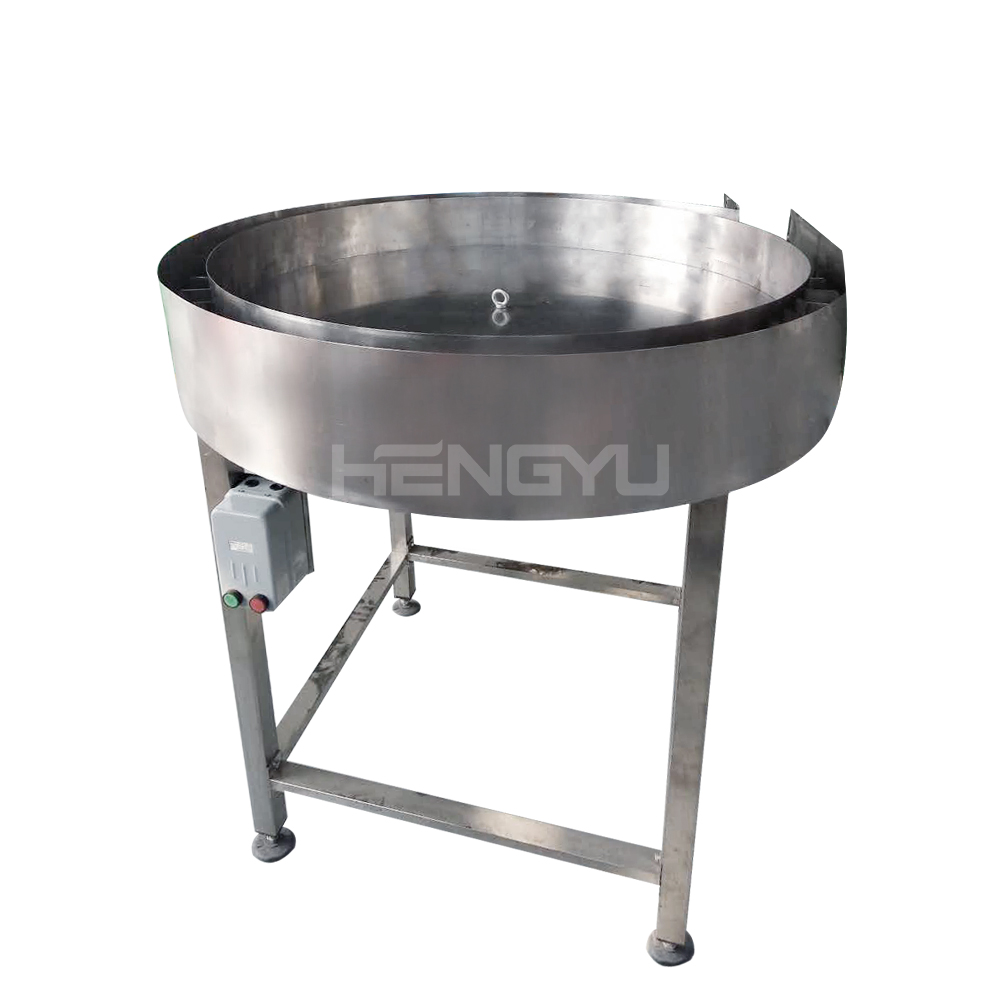

Semi Automatic Unscrambler Bottle Loading Turntable Rotary Feeder System Bottle Sorting Small Glass Pet Round Bottle Machinery

Product Description

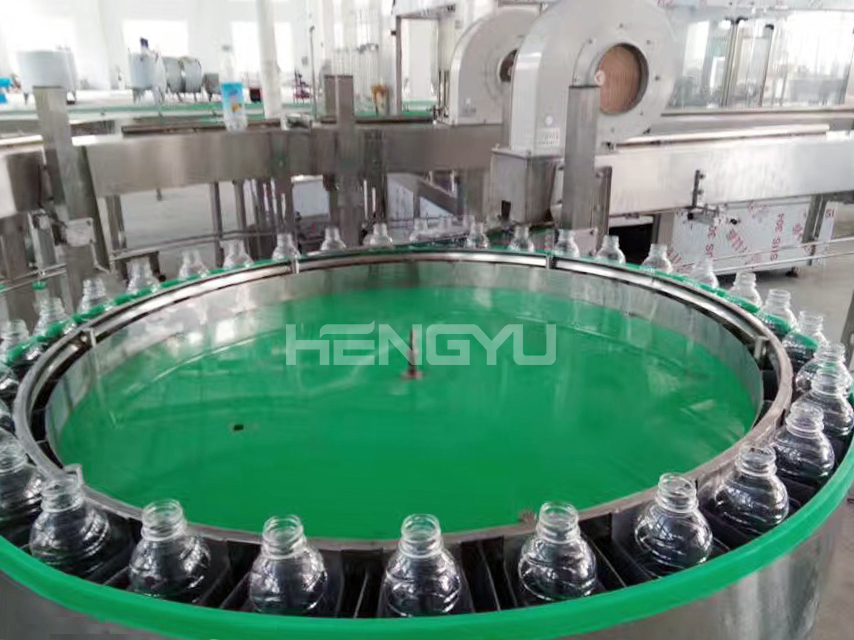

Semi automatically and bottle arranging machine is mainly compatibly used with large-high speed production equipment, with the functions of feeding materials, arranging bottles and arraying out bottles. This machine is an indispensable equipment on high speed production line.

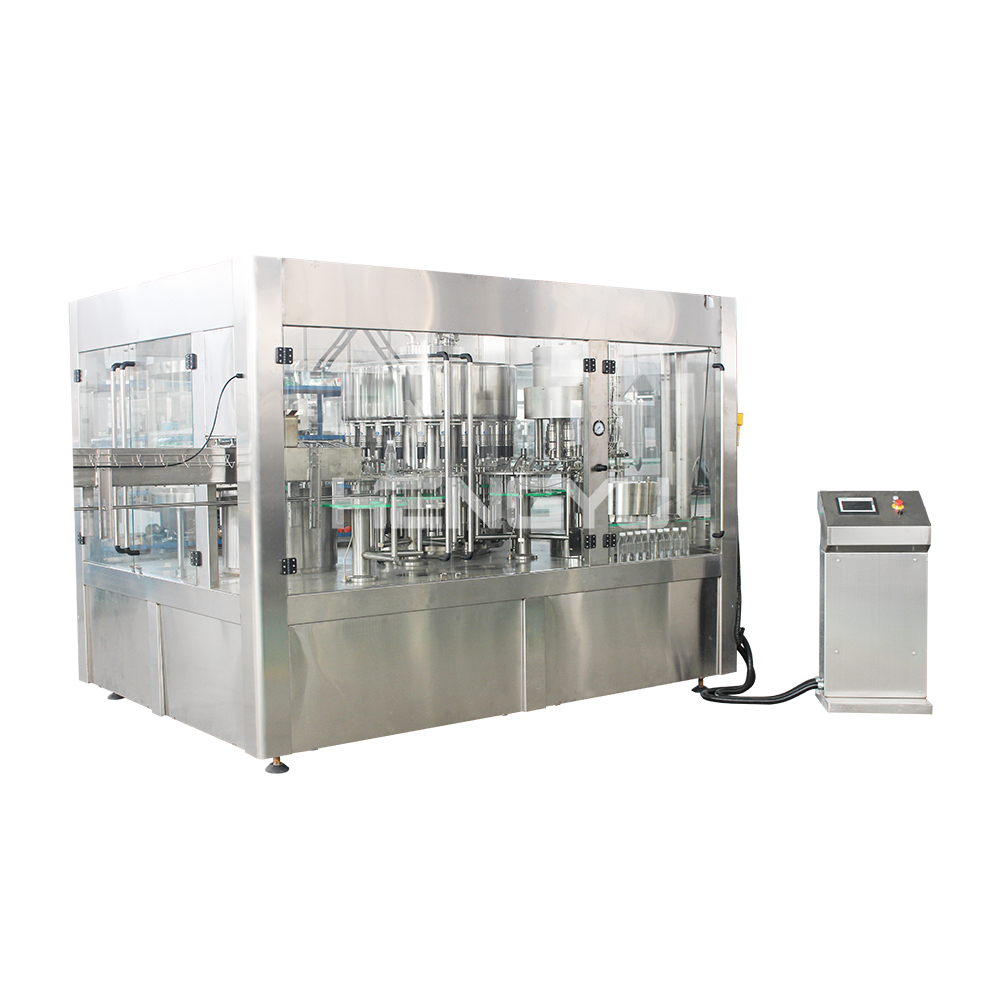

Auxiliary Equipment

Detail Images

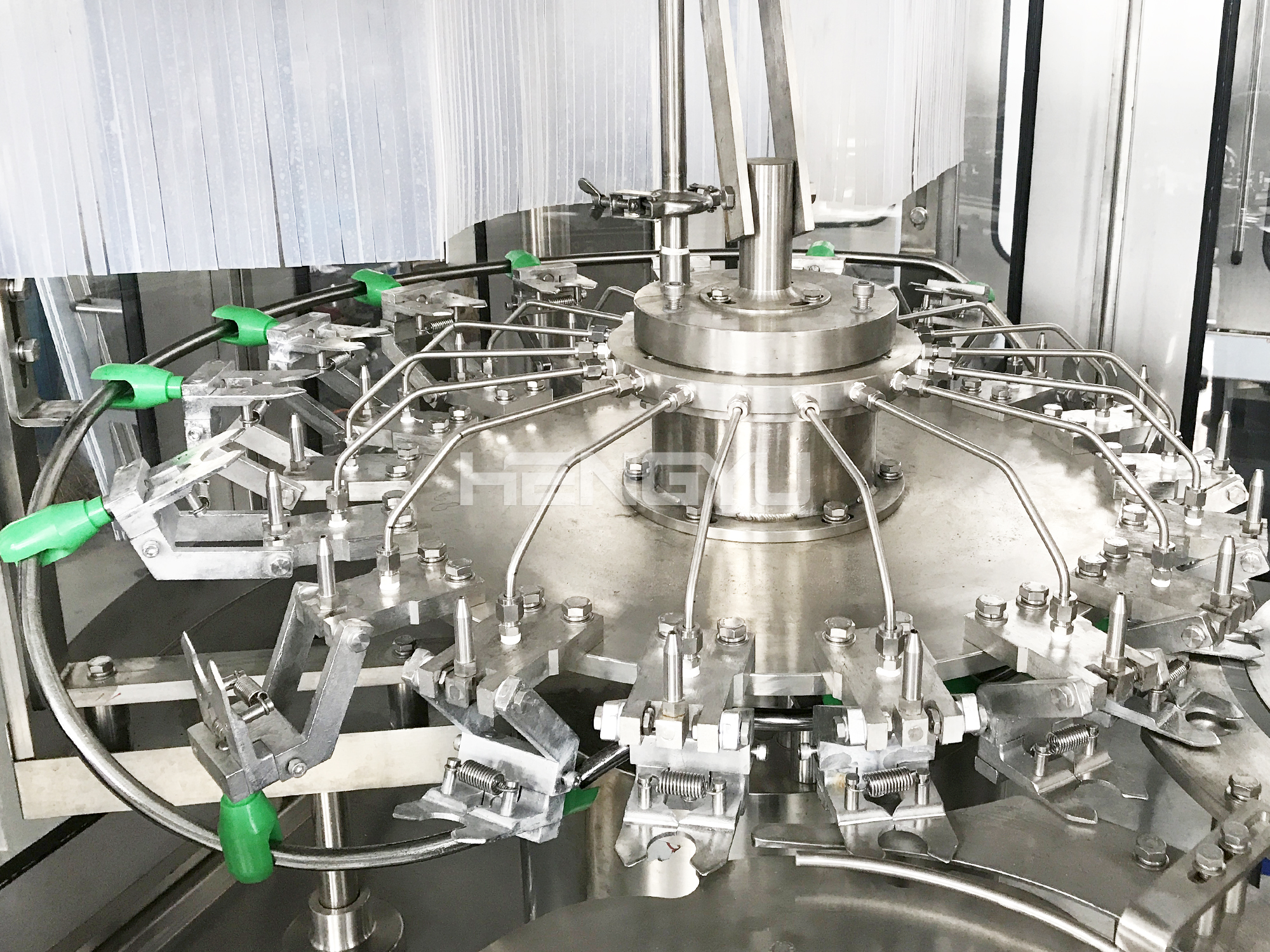

Washing heads

Into bottle way is air conveyor direct connection with Bottle dial.
All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
304/316 stainless steel washing pump make the machine more durable.

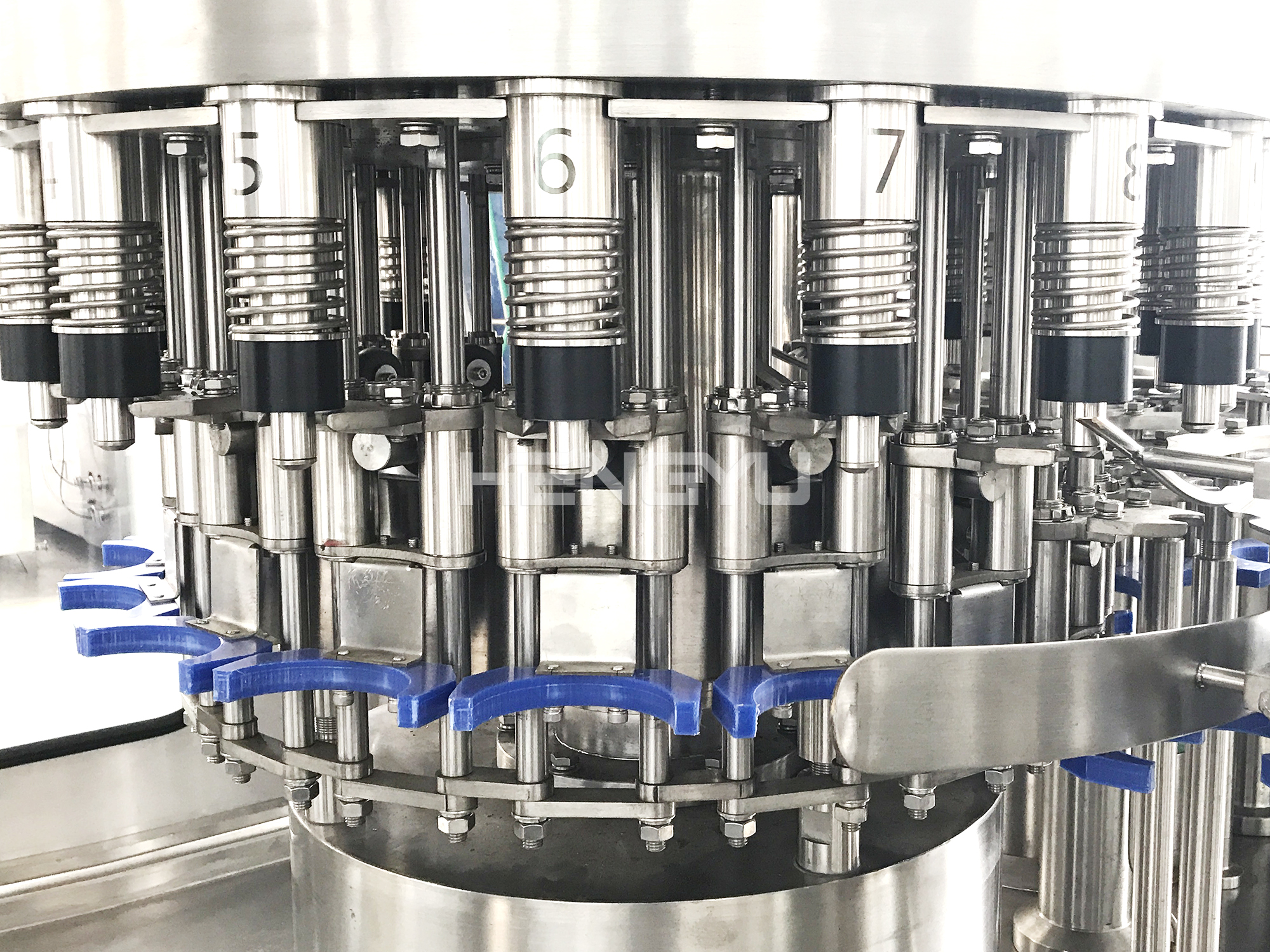

Filling heads

304/316 Stainless steel high precision filling nozzle.
Filling volume adjustable in fine rank, same liquid level after filling.
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
304/316 stainless steel filling pump.
Efficient spray nozzle rinse thoroughly and save water for flushing.

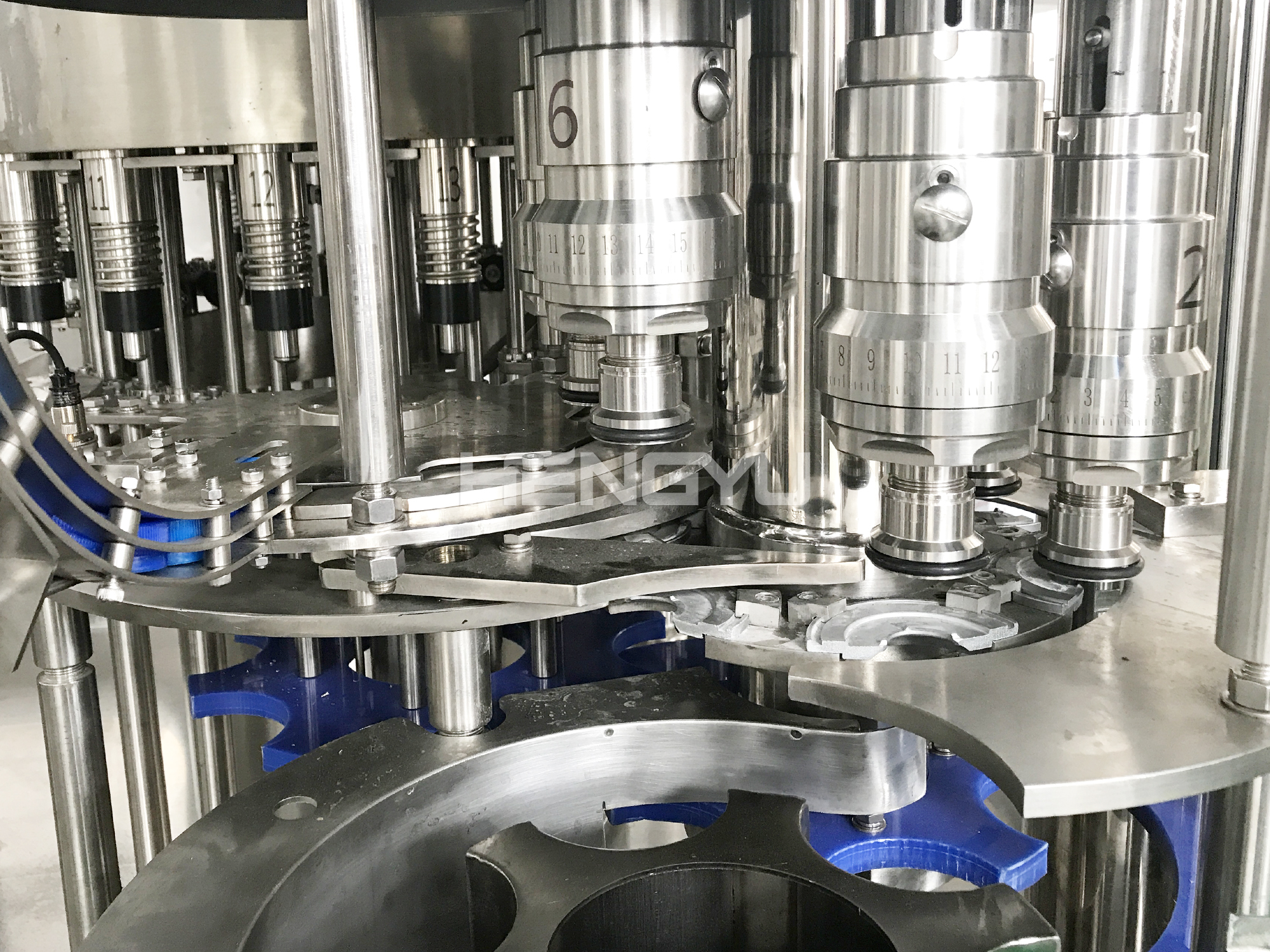

Capping heads

Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
All 304/316 stainless steel construction.
No bottle no capping.
Automatic stop when lack of bottle.
Capping effect is stable and reliable, Defective rate ≤0.2%.

Technical parameters

Model(CGF)	14/12/5	18/18/6	24/24/8	32/32/10	40/40/12	50/50/12	60/60/15
Rinsing heads	14	18	24	32	40	50	60
Filling heads	12	18	24	32	40	50	60
Capping heads	5	6	8	10	12	12	15
Capacity(BPH)	4000	7000	11000	13000	18000	24000	28000
Power(kw)	2.2	3.5	4.5	6	7.5	9.5	11.2
Dimension(mm)	240016502500	260019202550	310021002800	380028002900	460028002900	545033002900	650045002900
Weight(kg)	2500	3500	4500	5600	8500	9800	12800

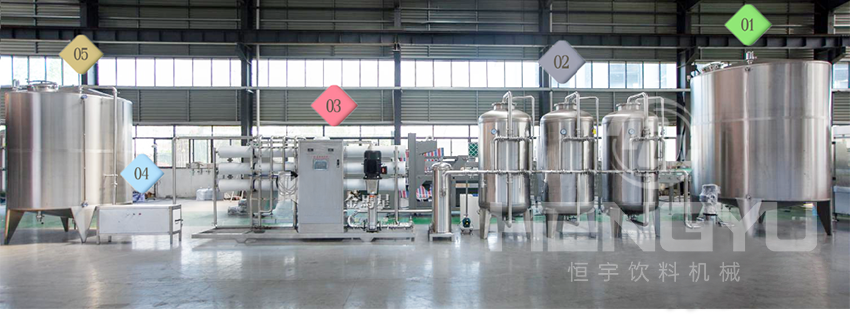

Water Treatment System

Stainless steel high pressure film shell.
All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system.
Online type pressure auto self-protection device.
Online type electricity indicator (with stable compensation).
System safe protecting and alarm system.
System frame.

Reverse Osmosis

The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials, becoming the best first-choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintenance.

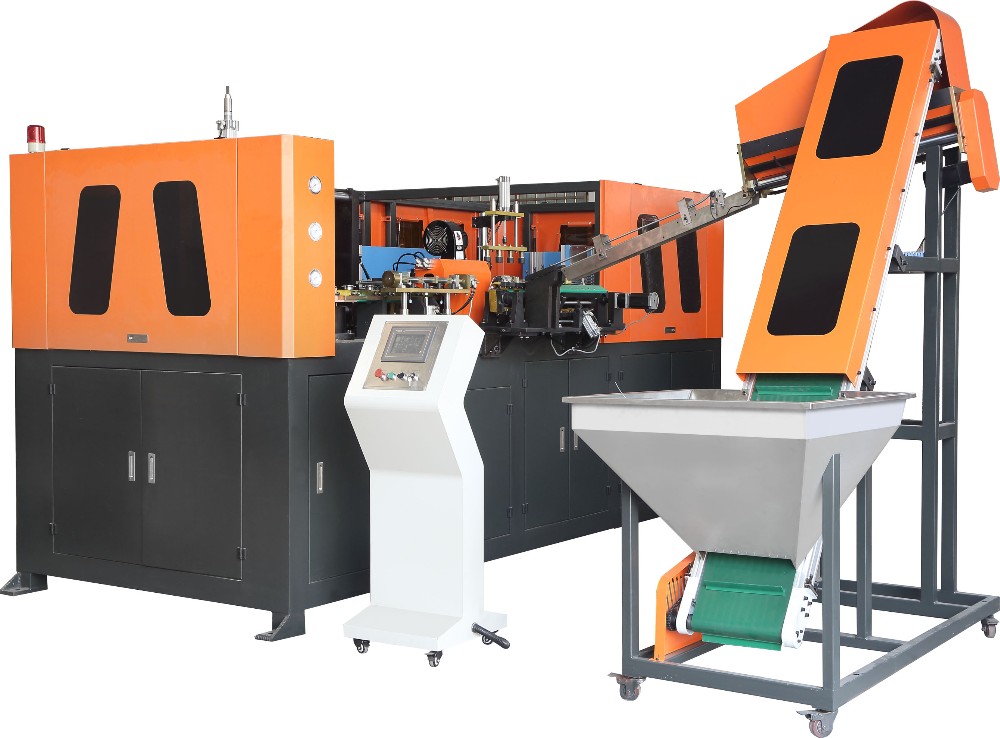

Bottle Blowing Part

Widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle and cosmetics etc.
Suitable for producing PET plastic containers and bottles in all shapes.
With famous electrical components and have various capacities.

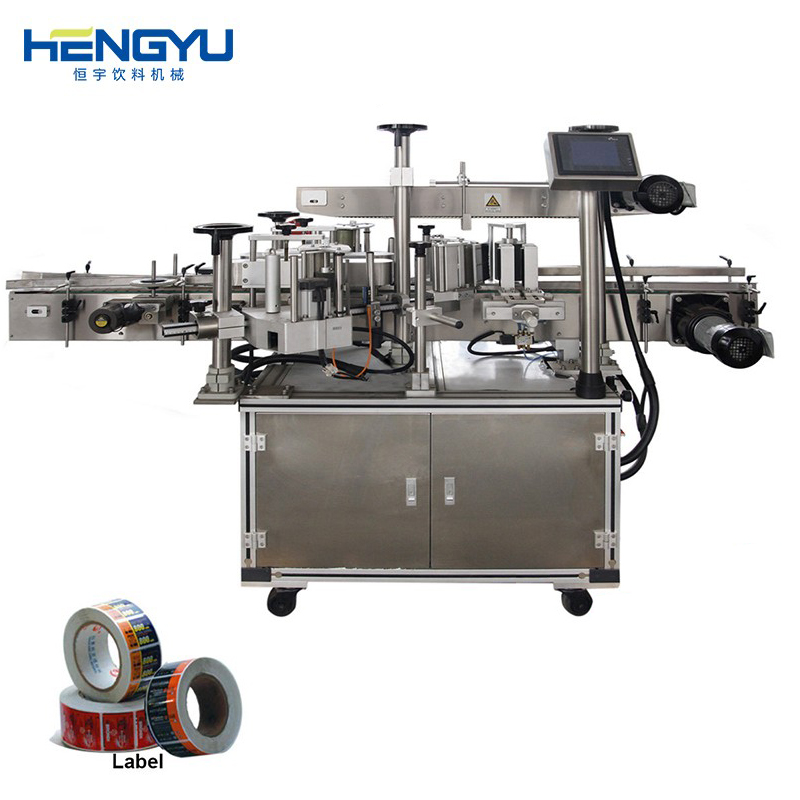

Labeling Part

Heat shrink sleeve labeling machine.
OPP Hot melt labeling machine.
PVC label stick labeling machine.

The running of complete machine is stable and at high speed with the use of imported servo control system. Using of special bottle-distributing mechanism to avoid the materials being scratched and with which the machine can be adjusted and located quickly to label bottles with any diameter without replacing accessories.

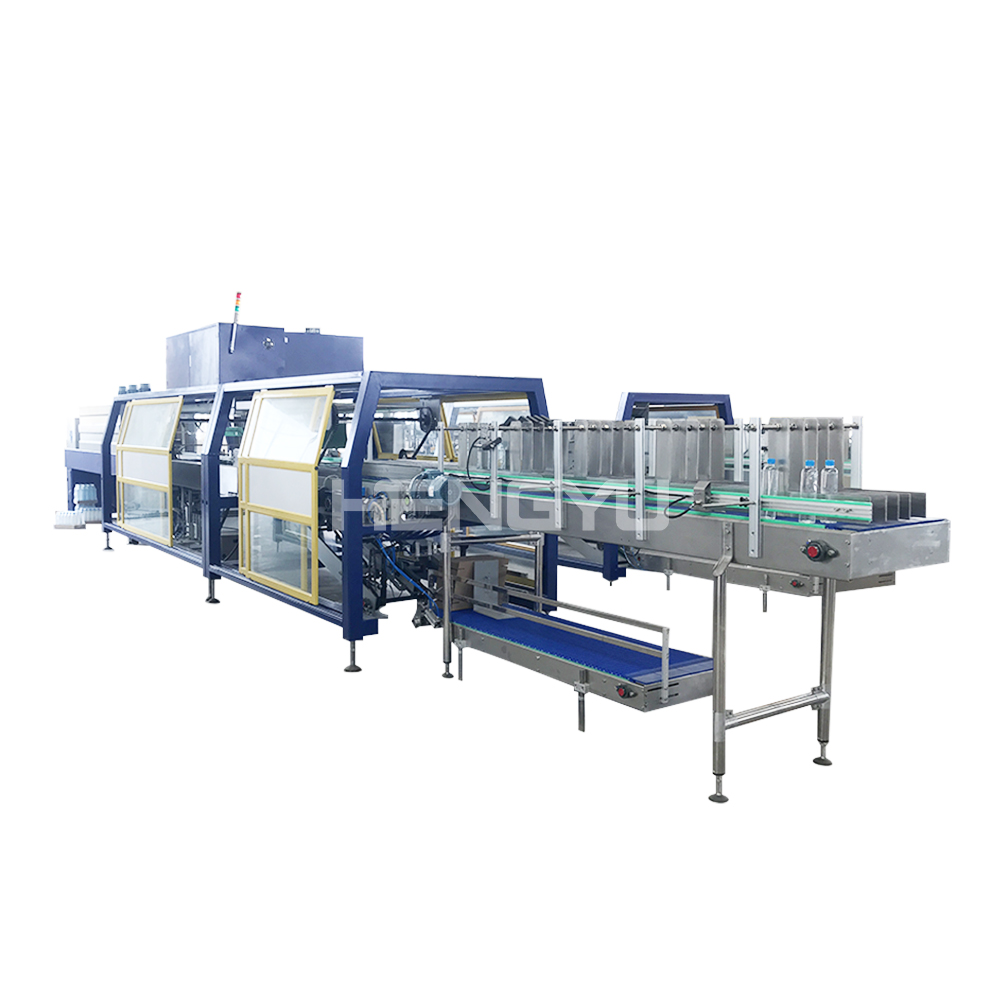

Packaging Part

PE film shrink wrapping machine.
Half-tray shrink wrapping machine.
Carton box packaging machine.

It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat & shrink, cool and finally get the finished product.

Our Company

Certifications

Our Service

Packing & Delivery

FAQ

Q What materials are used for the contact parts of the filling machine?

All contact parts, rinsing heads, and liquid tanks are constructed from high-grade 304 or 316 stainless steel to ensure hygienic operation and long-lasting durability.

Q Can this system handle different types of bottle shapes?

Yes, the bottle blowing, labeling, and filling equipment are highly versatile and compatible with various PET plastic container shapes, including carbonated, mineral water, and cosmetics bottles.

Q How does the capping system prevent bottle damage?

The capping heads utilize an electromagnetic system equipped with a burden discharge function. This configuration guarantees minimal bottle crash and damage during the capping process.

Q What labeling methods does this line support?

The system supports heat shrink sleeve labeling, OPP hot melt labeling, and PVC adhesive sticker labeling, making it adaptable to different packaging demands.

Q Is the reverse osmosis water treatment system energy efficient?

Yes, our reverse osmosis system features low energy consumption, zero pollution, and simple maintenance while effectively removing over 97% of soluble salts and 99% of colloids and microorganisms.

Q How is the packaging process automated?

The packaging system integrates photoelectric sensors and PLC controls to automate the sequence of product conveying, combining, film wrapping, cutting, shrinking, and cooling.
