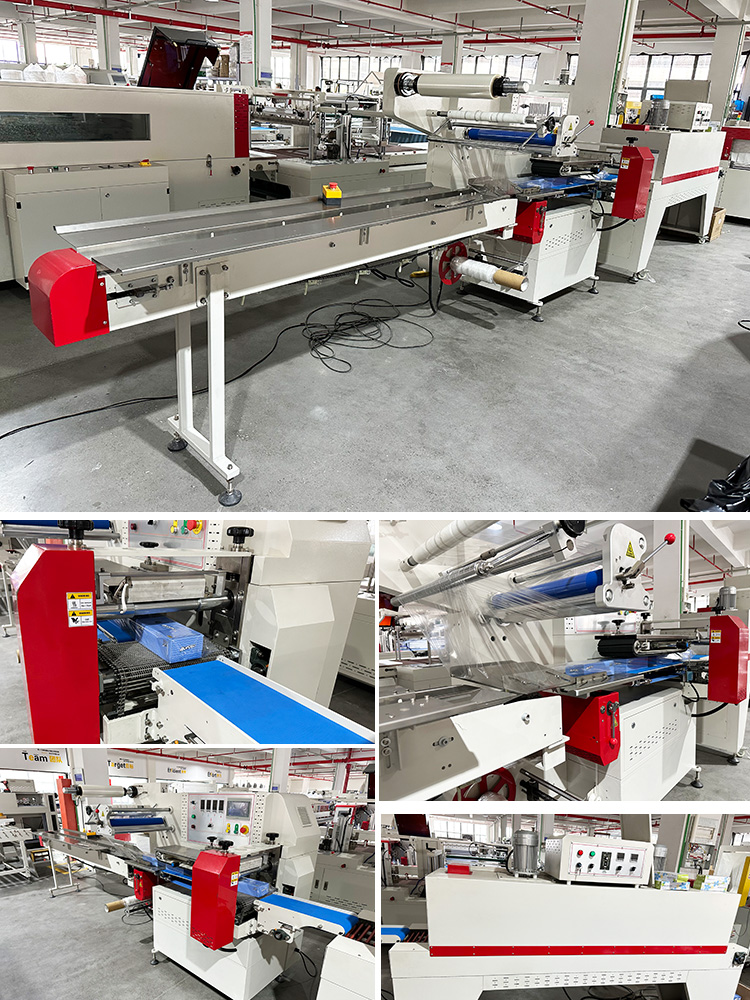

RS-590A Automatic Shrink Film Wrapping Machine Automatic High Speed Flow Wrapper Horizontal Shrink Tunnel
RS-590A Automatic Shrink Film Wrapping Machine Automatic High Speed Flow Wrapper Horizontal Shrink Tunnel
RS-590A Automatic Shrink Film Wrapping Machine Automatic High Speed Flow Wrapper Horizontal Shrink Tunnel
RS-590A Automatic Shrink Film Wrapping Machine Automatic High Speed Flow Wrapper Horizontal Shrink Tunnel
RS-590A Automatic Shrink Film Wrapping Machine Automatic High Speed Flow Wrapper Horizontal Shrink Tunnel
1 / 5
RS-590A Automatic Shrink Film Wrapping Machine Automatic High Speed Flow Wrapper Horizontal Shrink Tunnel
RS-590A Automatic Shrink Film Wrapping Machine Automatic High Speed Flow Wrapper Horizontal Shrink Tunnel
RS-590A Automatic Shrink Film Wrapping Machine Automatic High Speed Flow Wrapper Horizontal Shrink Tunnel
RS-590A Automatic Shrink Film Wrapping Machine Automatic High Speed Flow Wrapper Horizontal Shrink Tunnel
RS-590A Automatic Shrink Film Wrapping Machine Automatic High Speed Flow Wrapper Horizontal Shrink Tunnel

RS-590A Automatic Shrink Film Wrapping Machine Automatic High Speed Flow Wrapper Horizontal Shrink Tunnel

Send Inquiry

Product Description

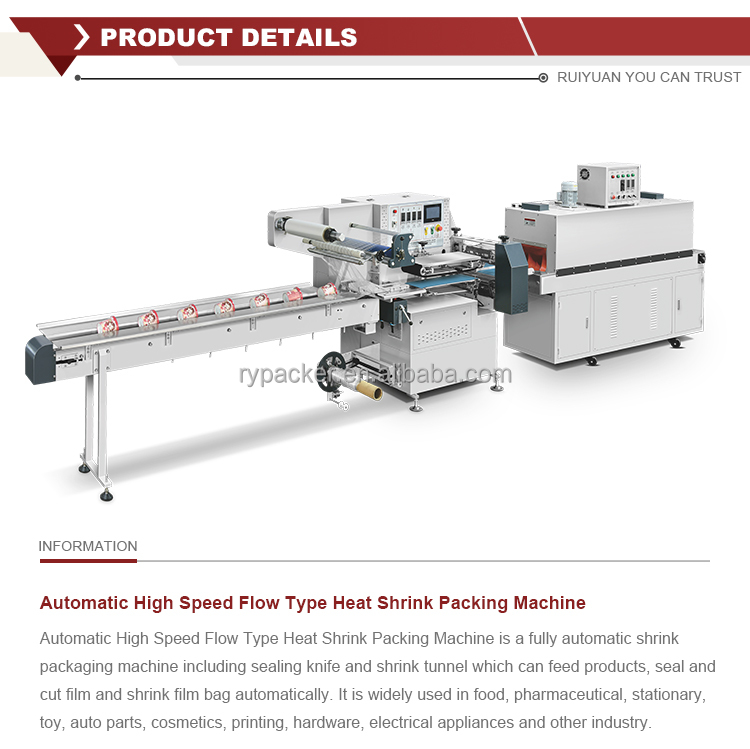

Automatic High Speed Shrink Packing Machine
Application
The RS-590 + RT-3025S automatic high speed shrink packing machine including infeed chain conveyor, automatic sealing machine and shrink tunnel. This machine is suitable for shrink wrapping the products like food/ cosmetic/ medicine boxes, single bottles, garbage roll, paper plate, wallpaper, incense with high packing speed.
Automatic Shrink Packaging System Details
High Speed Sealing Component
Technical Specifications
Automatic Sealing Machine
Power Supply 220V/380V; 1Phase/ 3Phase; 50-60Hz
Sealing Height 10-120mm
Packing Width 20-170mm
Packing Length 20-450mm
Packing Speed 60-150 packs per minute (Depends on product dimensions)
Film Type Single layer POF film
Maximum Film Roll Size Width 590mm * Outer diameter 280mm
Power Consumption 3.5kw
Control System Three servo motors controlled
Shrink Tunnel
Power Supply 220V/380V; 1Phase/ 3Phase; 50-60Hz
Tunnel Conveyor Chains with rotating silicon coated rods
Tunnel Oven Size L*W*H: 2000*450*250mm

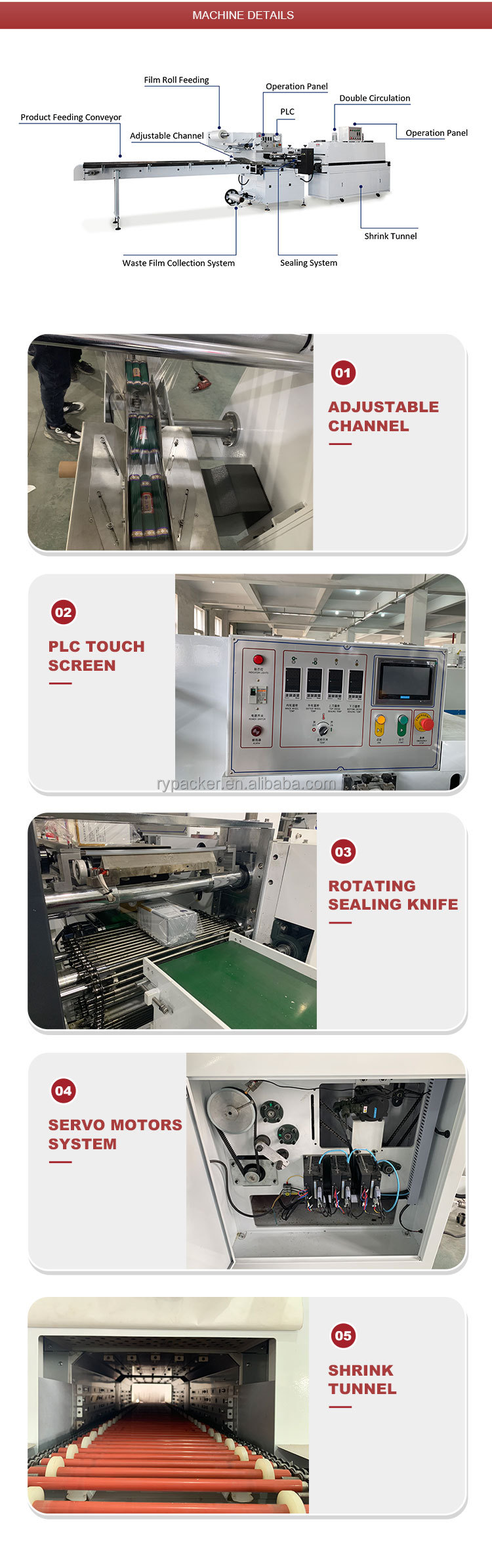

Shrink Packaging Process View
Feed Conveyor System
Finished Shrink Wrapped Box
Sealing Blade Detail
Servo Control Panel Board
Infeed Conveyor Tracking
POF Film Roll Mounting Assembly
Internal Mechanical Drive System
Electrical Control Cabinet interior
Exit Conveyor of Shrink Tunnel
Completed Packaging Unit Setup
Frequently Asked Questions
Q: What products are suitable for wrapping with the RS-590 + RT-3025S packaging machine?
A: This high-speed shrink wrapping system is ideal for packing food, cosmetics, pharmaceuticals, boxed items, single bottles, garbage rolls, paper plates, wallpaper, and incense.
Q: What type of packaging film does this machine support?
A: The system is designed to work with single-layer POF (Polyolefin) film with a maximum film roll width of 590mm and an outer diameter of 280mm.
Q: What is the maximum packing speed achievable?
A: The machine can reach a packing speed of 60 to 150 packs per minute. The exact speed depends on the physical dimensions of the products being processed.
Q: How is the sealing process controlled?
A: The automatic sealing unit is driven and controlled by a high-precision system utilizing three servo motors, ensuring reliable, high-speed, and consistent sealing results.
Q: What are the main specifications of the shrink tunnel conveyor and oven?
A: The shrink tunnel utilizes a chain conveyor with rotating silicon-coated rods. The oven chamber dimensions are 2000mm in length, 450mm in width, and 250mm in height.
Q: Can the machine operate under different power supply configurations?
A: Yes, both the sealing machine and the shrink tunnel support power supply options of 220V/380V, in either 1-Phase or 3-Phase configurations at 50-60Hz.
