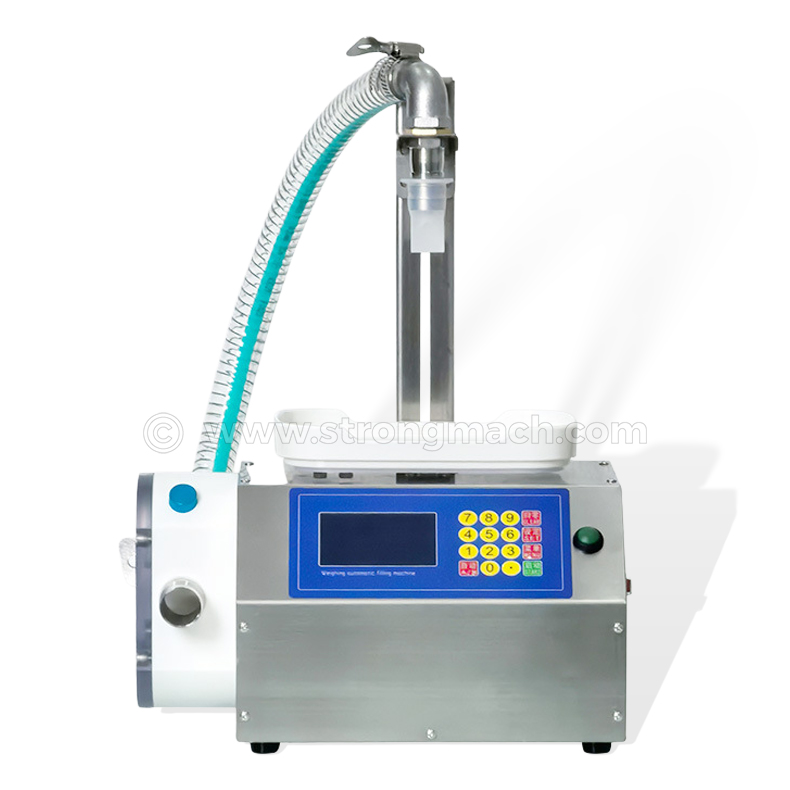

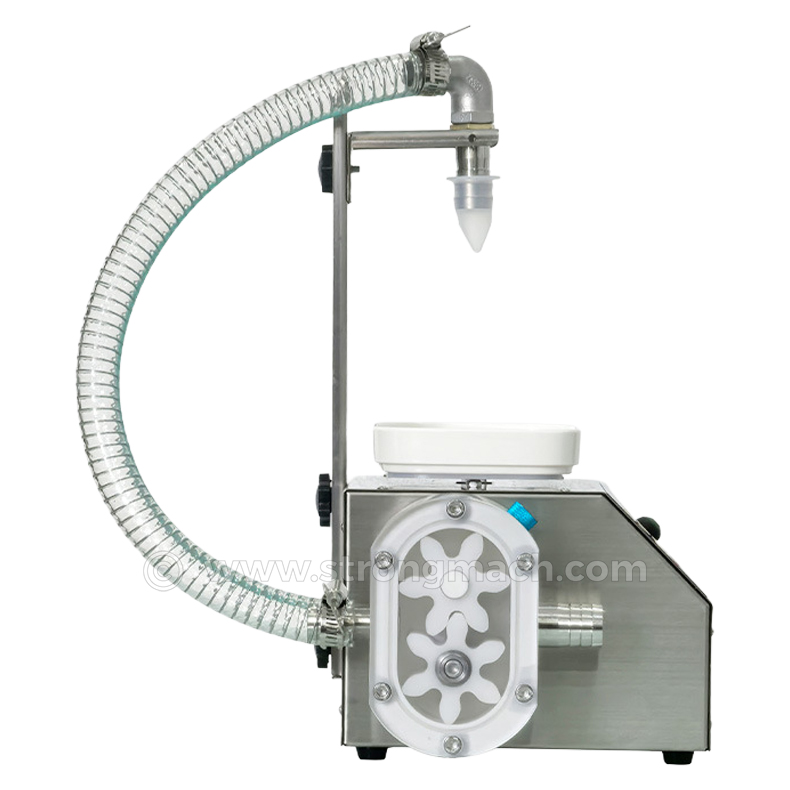

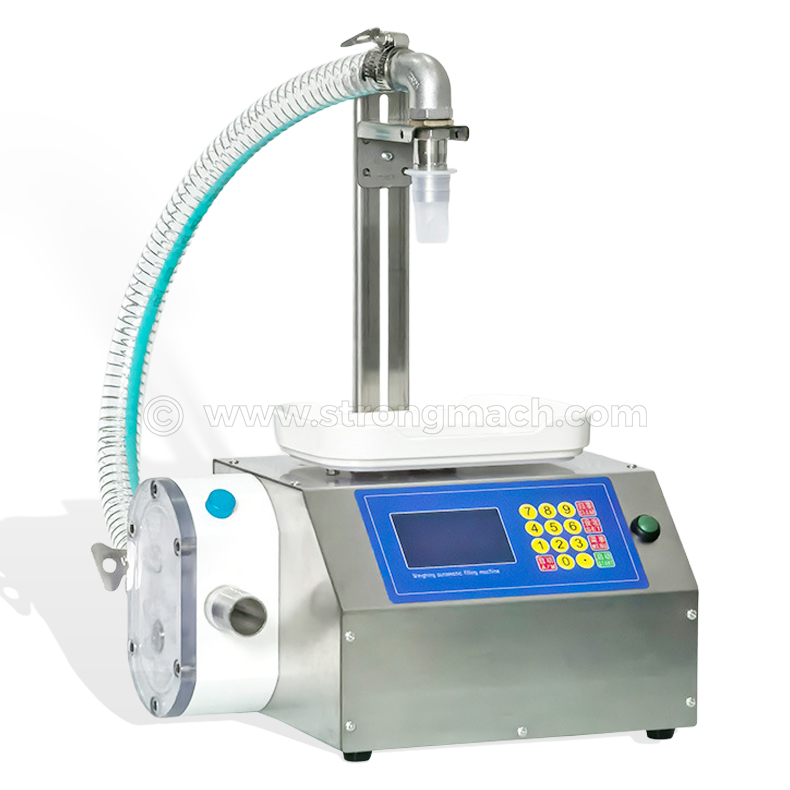

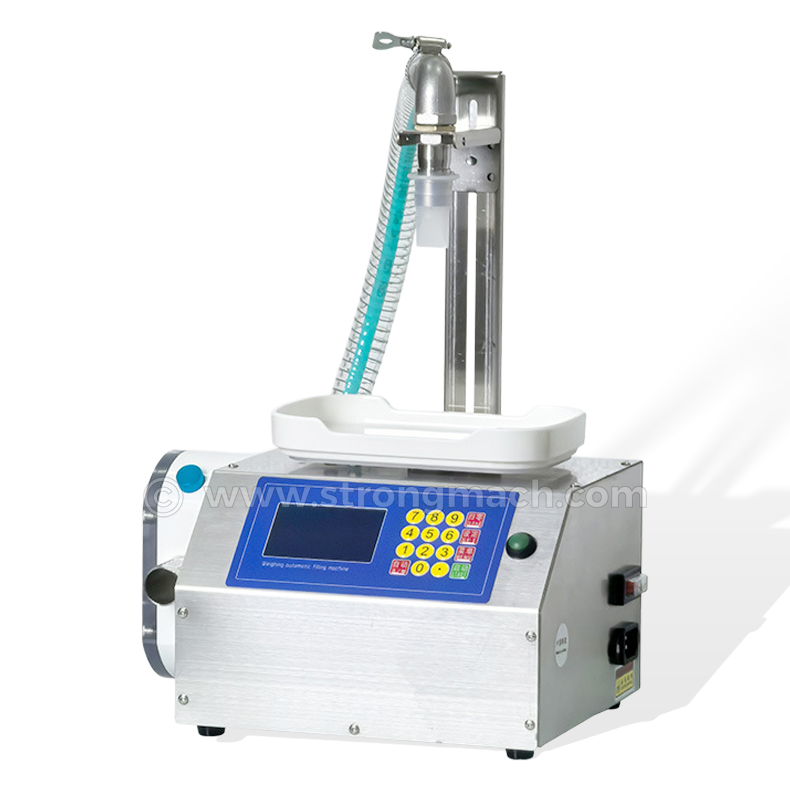

| Weighing Quantitative Series (Wheel Pump) | |||||||
|---|---|---|---|---|---|---|---|
| Model | 4200 | A3 | A7 | L12 | L15 | L15+ | L20 |
| Filling Range | 10~1000g | 10g~3kg | 10g~10kg | 20g~10kg | 20g~8kg | 20g~10kg | 20g~25kg |
| Max Load | 3kg | 5kg | 10kg | 10kg | 10kg | 10kg | 30kg |
| Scale Division | 1g | 2g | 2g | 2g | 2g | 2g | 5g |
| Error Value | ≤1g | ≤2~5g | ≤2~5g | ≤2~5g | ≤2g | ≤2g | ≤5g |
| Pump Material | Plastic | Plastic | Plastic | Brass | Brass | Brass | Carbon Steel |
| Liquid Temperature | ≤60℃ | ≤60℃ | ≤60℃ | ≤100℃ | ≤100℃ | ≤100℃ | ≤100℃ |
| Flow Rate | 4200ml/min | 3500ml/min | 7000ml/min | 12000ml/min | 7000ml/min | 14000ml/min | 20000ml/min |
| Outlet Diameter | Φ8mm | Φ20mm | Φ20mm | Φ12mm | Φ20mm | Φ20mm | Φ14mm |

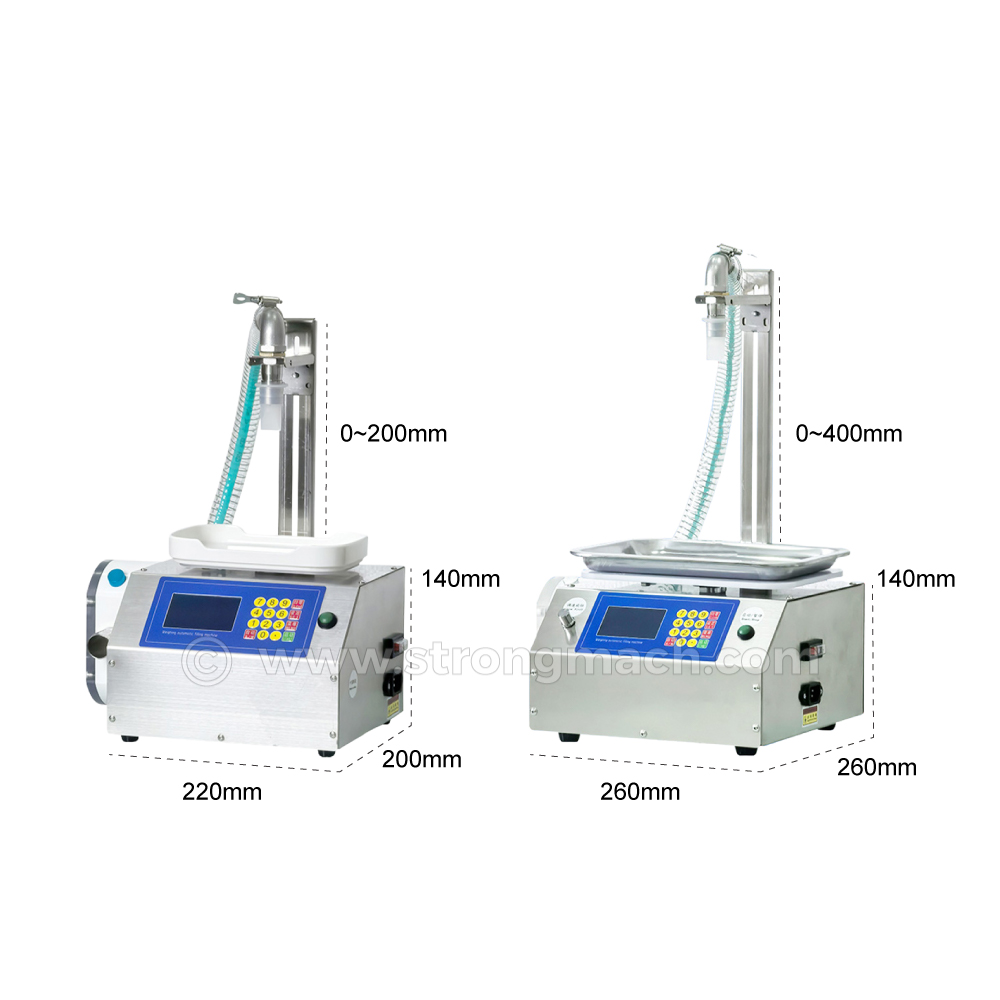

| Bracket Height | 0~32cm | 0~25cm | 0~40cm | 0~40cm | 0~40cm | 0~40cm | 0~70cm |
| Packing Size (mm) | 350*230*190 | 350*230*190 | 350*350*350 | 350*350*350 | 400*350*350 | 450*350*350 | 400*350*350 |
| Package Weight | 3kg | 3kg | 8.8kg | 9kg | 14kg | 16kg | 14kg |
Yes, we are a factory. All machines are made by ourselves, and we can provide customized services according to your requirements.
Of course. We are a manufacturing factory. More importantly, we place a high value on our reputation. Best quality is our principle all the time. You can be assured of our production completely.
An operation manual and video demonstration are sent along with the machine to give instructions. Besides, we have a professional after-sales group to solve any problems.
We will send extra sets of easily broken spares and accessories. Non-artificially damaged spares will be sent freely, with free shipping, during the 1-year warranty period.
Yes, we have a professional technical team and warm after-service. We will solve any problem you meet during the installation and packaging production in time.
We are an onsite checked factory, and quality, delivery time, and payment are all ensured. The machine includes a two-year warranty. During the warranty period, if any parts are broken (non-human damage), we will replace them for free. The warranty begins after the machine is sent out and the B/L is received.
