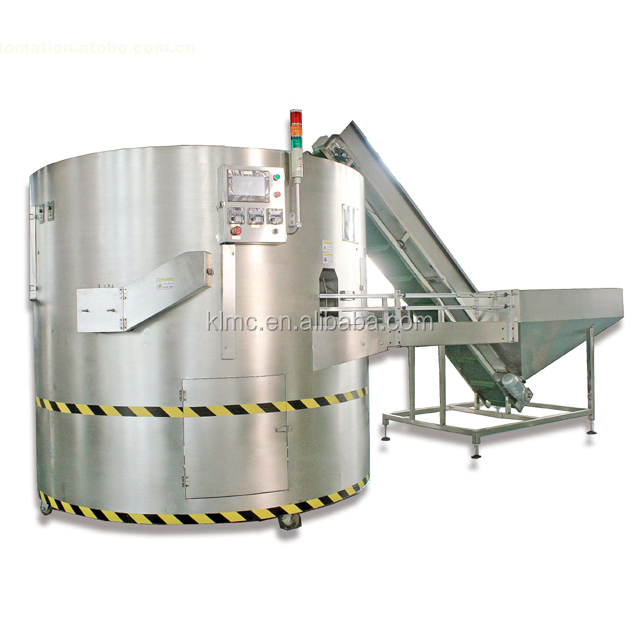

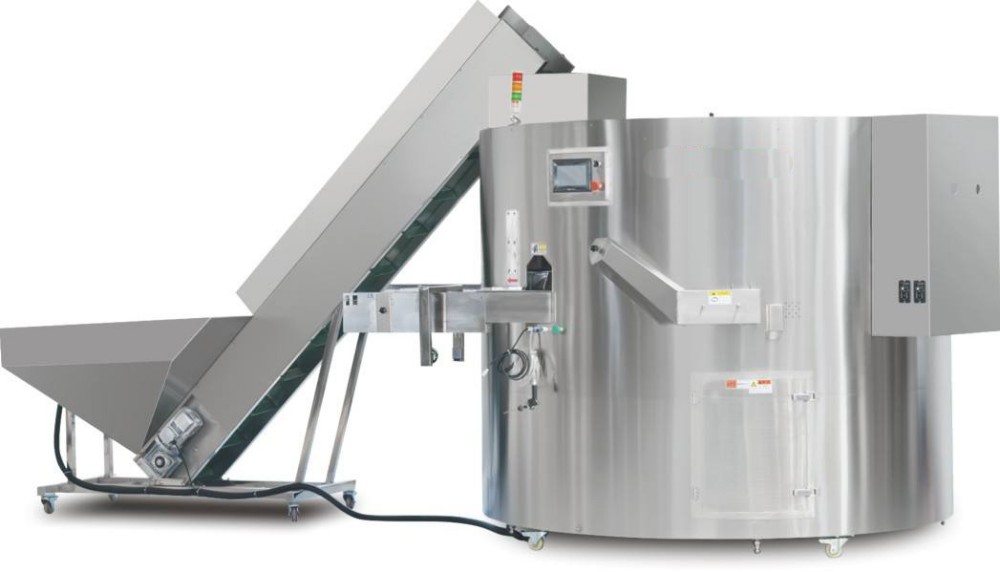

The Automatic Bottle Unscrambler is specially designed as a complete set for rinser/filler/capper monobloc systems with the latest international technology. It satisfies high-speed filling requests and raises production efficiency across the entire line.
Developed to support high-speed beverage filling requirements, this equipment features leading domestic engineering technology:

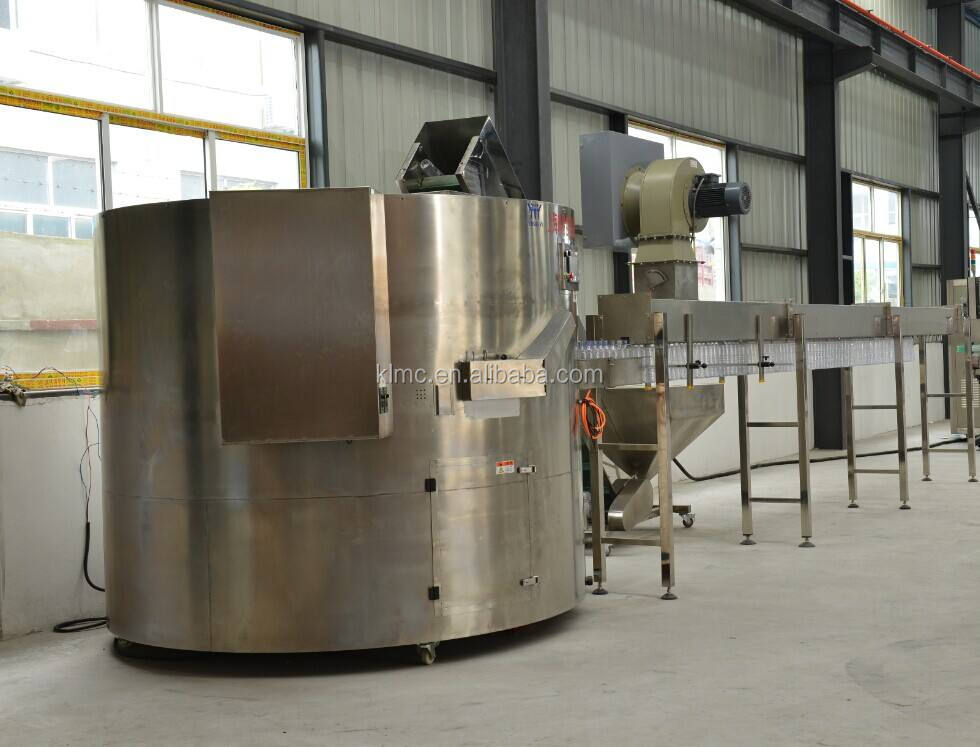

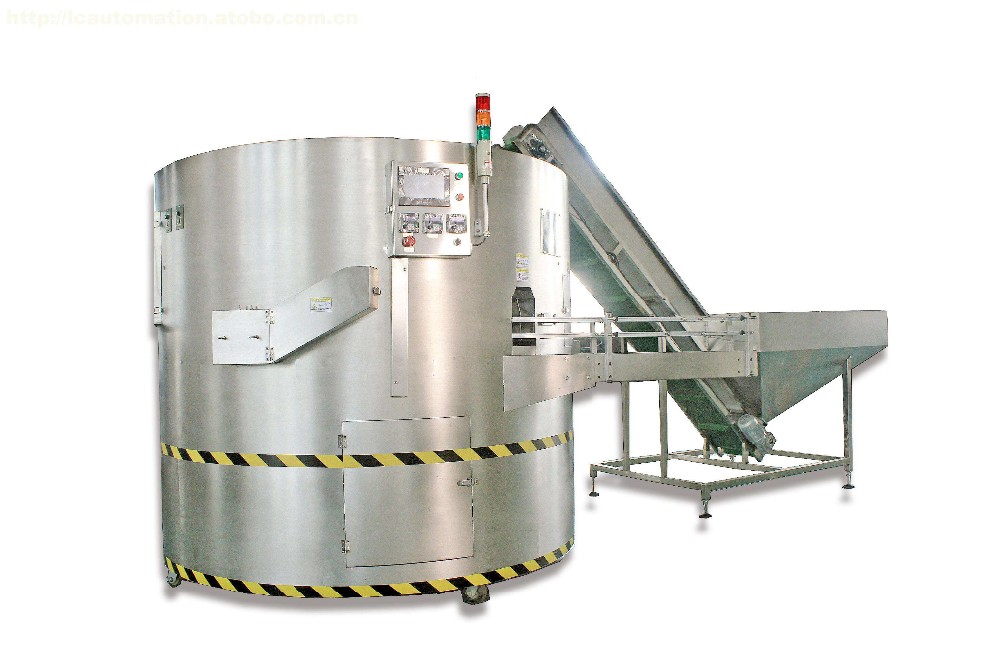

Automatic bottles unscrambler/feeder PET bottle sorting machine for bottling line
| Parameter / Model | LP-12 | LP-14 | LP-16 |
|---|---|---|---|
| Work station | 12 | 14 | 16 |
| Capacity | 12000BPH | 16000BPH | 20000BPH |
| Gas source pressure | 0.7Mpa | 0.7Mpa | 0.7Mpa |
| Gas consuming volume | 0.5m³/min | 0.5m³/min | 0.5m³/min |
| Suitable bottle | Dia. 50--90mm Height 150--290mm Capacity 350--1500ml |
Dia. 50--90mm Height 150--290mm Capacity 350--1500ml |
Dia. 50--90mm Height 150--290mm Capacity 350--1500ml |
| Main motor power | 1.5kw | 2.2kw | 2.5kw |

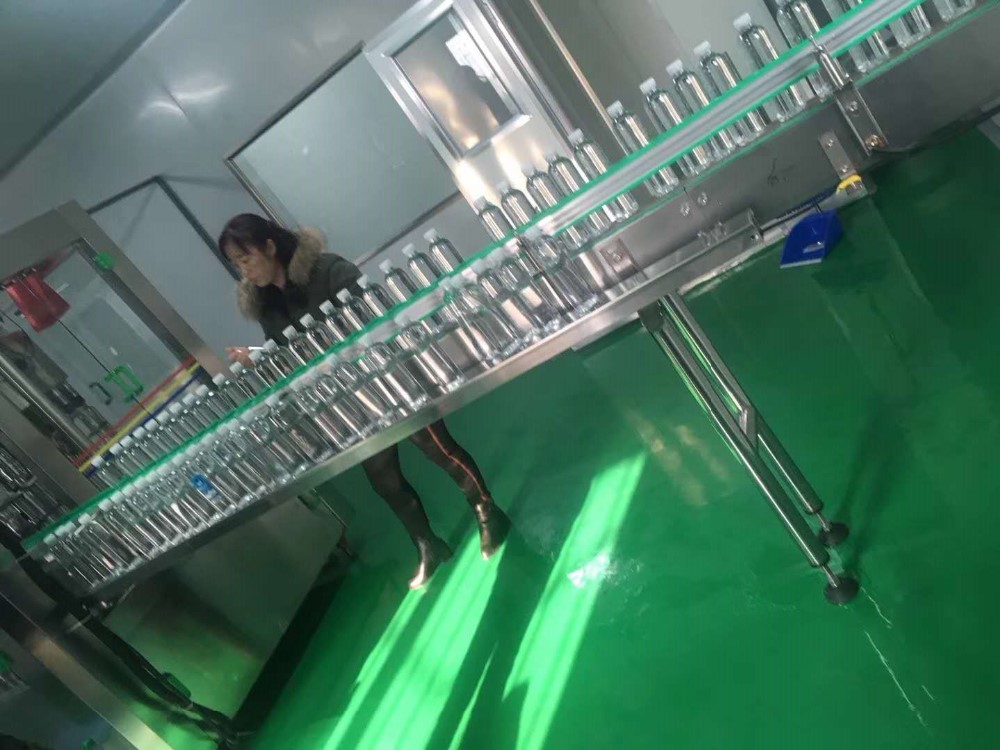

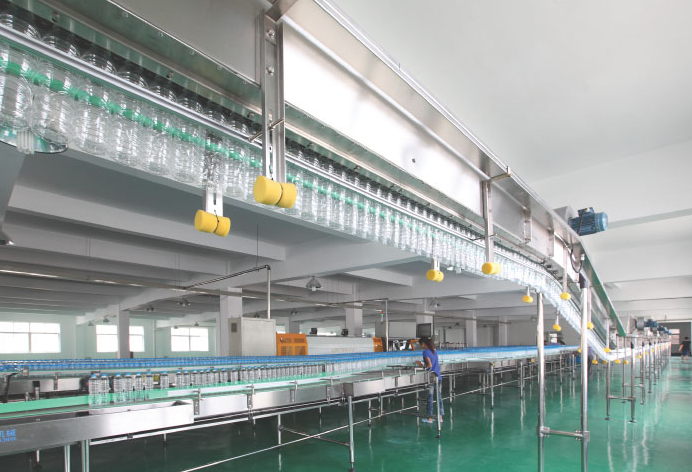

Utilizes clean air flow to transport empty bottles to the washing-filling-capping machine.

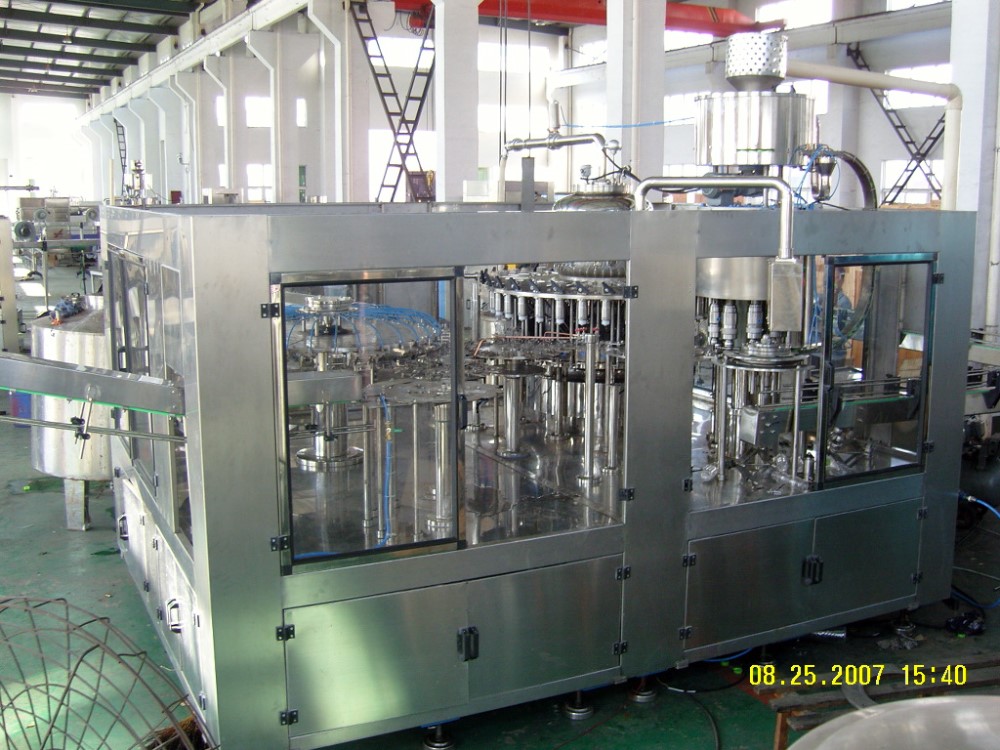

Automatic unit processing drinking water and juice filling. Designed for outputs ranging from 2,000 BPH to 20,000 BPH based on standard 500ml bottles.

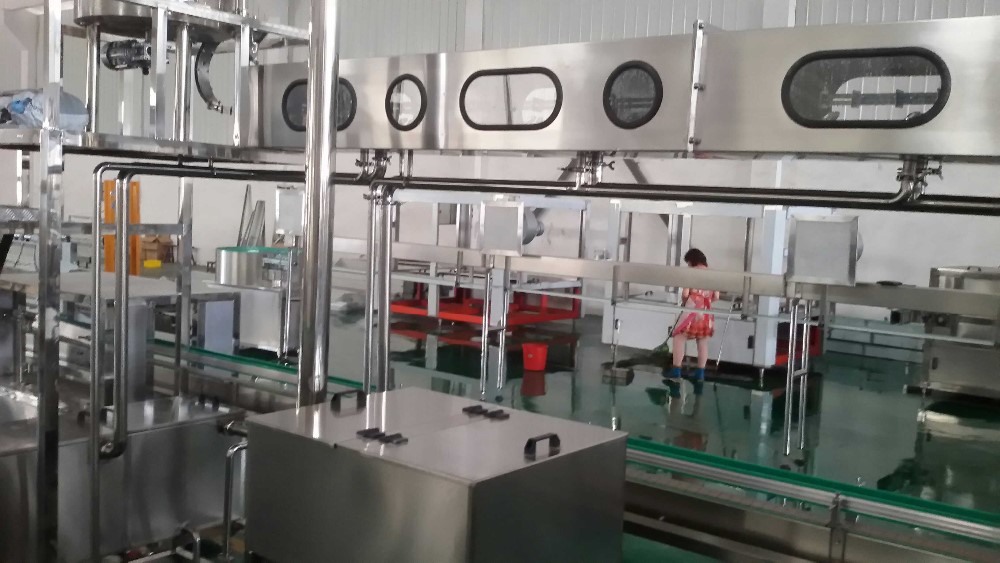

Employs air blowers to transport caps to the unscrambler system and through the sterilization washing tunnel.
Discharges filled bottles smoothly from the production outlet.

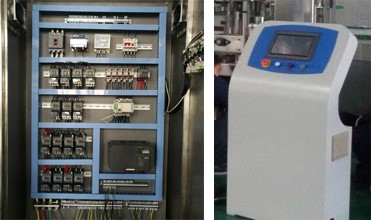

Central control unit regulating machine processes with advanced electronic parts.

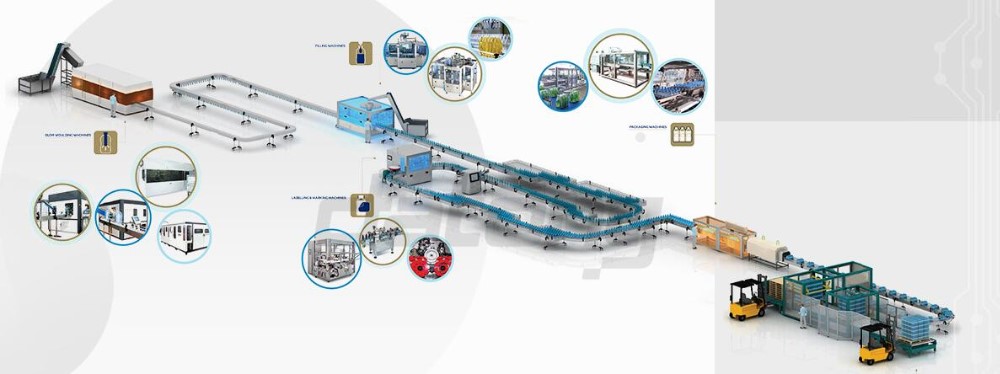

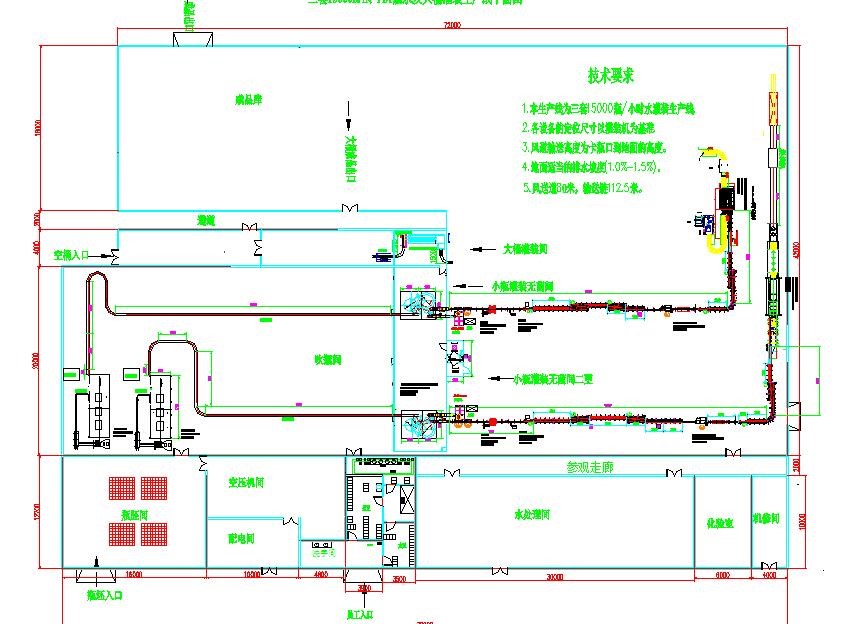

Covering everything from custom design layouts to outputting final end products. Systems included:
| Packaging Details | |
|---|---|
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 2T |
| Details | Standard packaging is a wooden box (Size: L*W*H). Exported wooden boxes destined for European countries undergo standard fumigation treatment. In tight container situations, PE protective film wrap is utilized or packaging is completed per specific request. |
91.8% Response Rate
91.8% Response Rate
91.8% Response Rate
The machine is designed for polyester (PET) bottles with diameters ranging from 50mm to 90mm, heights from 150mm to 290mm, and capacities between 350ml and 1500ml.
The main motor reducer features torque limit mechanisms to prevent damage during failures. Additionally, it has card bottle detectors that automatically trigger system shutdown and sound alarms.
The machine utilizes premium components from top global suppliers, including MITSUBISHI, OMRON, SIEMENS, and Schneider, ensuring high performance for the PLC, touch screen, and frequency converters.

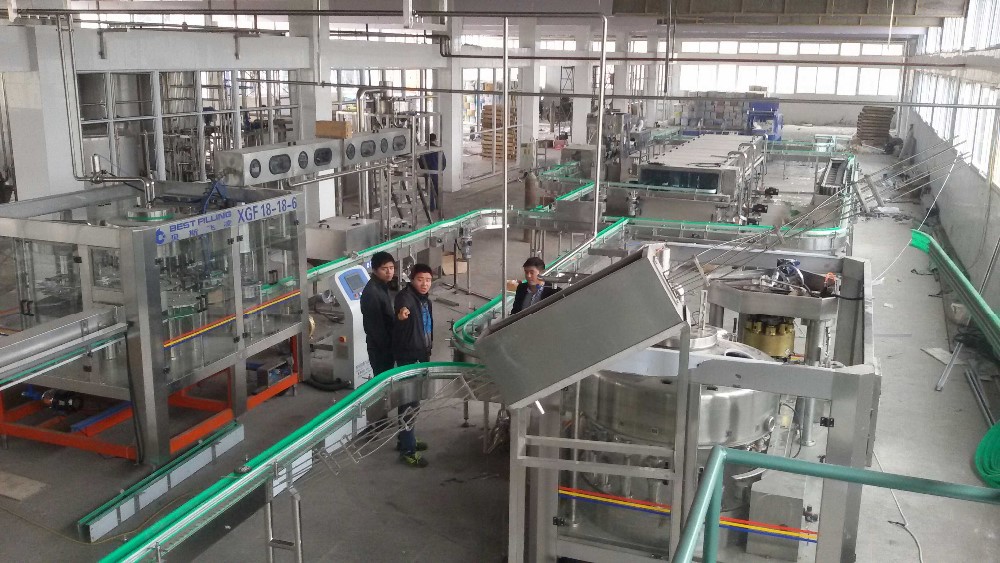

Yes, we provide after-sales services that include training for installation and machine usage, with engineers available to install and test machinery overseas at your production site.
We package our equipment in robust wooden boxes. Export orders destined for Europe use fumigated wooden boxes. In tight spacing situations, protective PE film wrap is applied.
Our automatic washing-filling-capping machines offer processing capacities from 2,000 BPH to 20,000 BPH, calculated on standard 500ml bottles.
