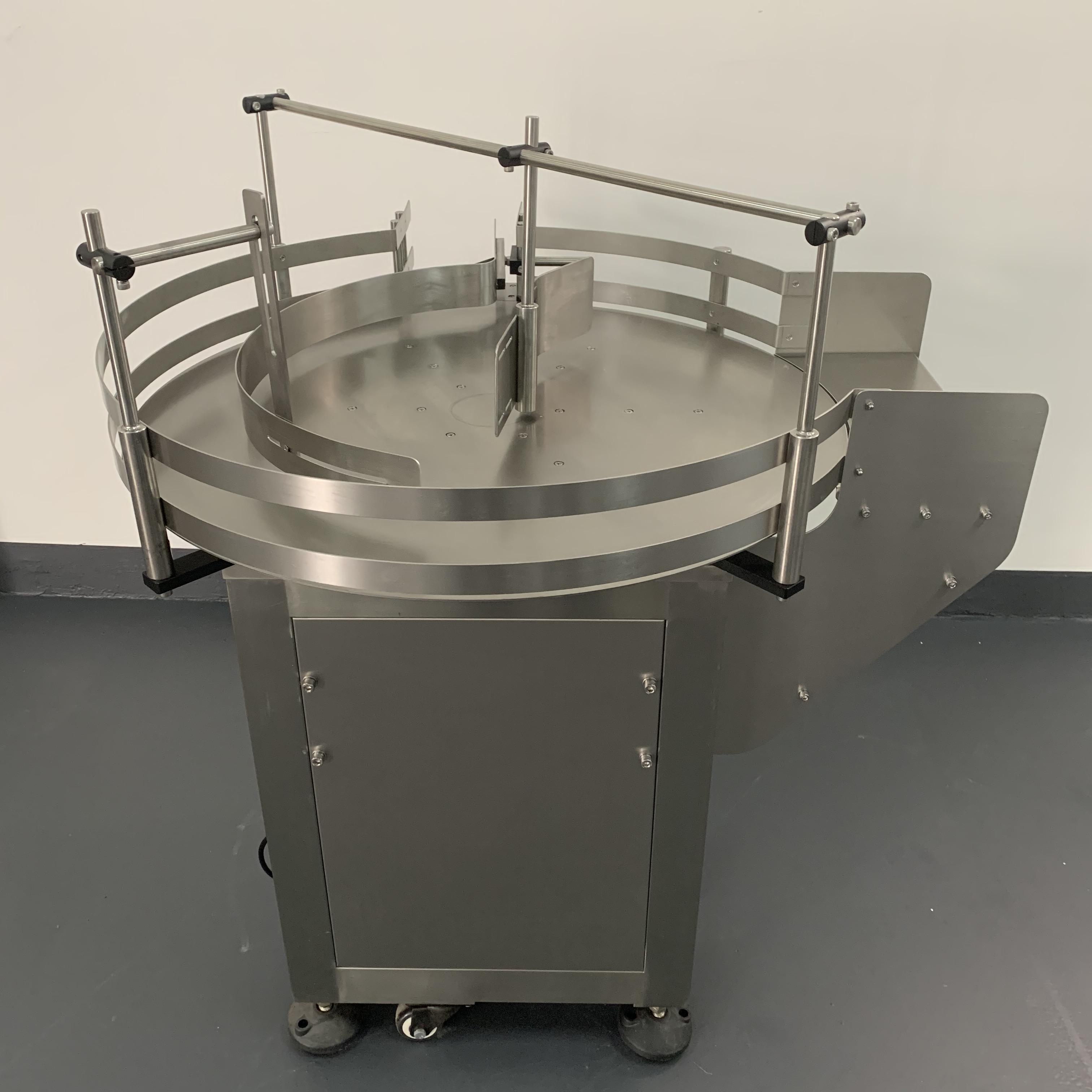

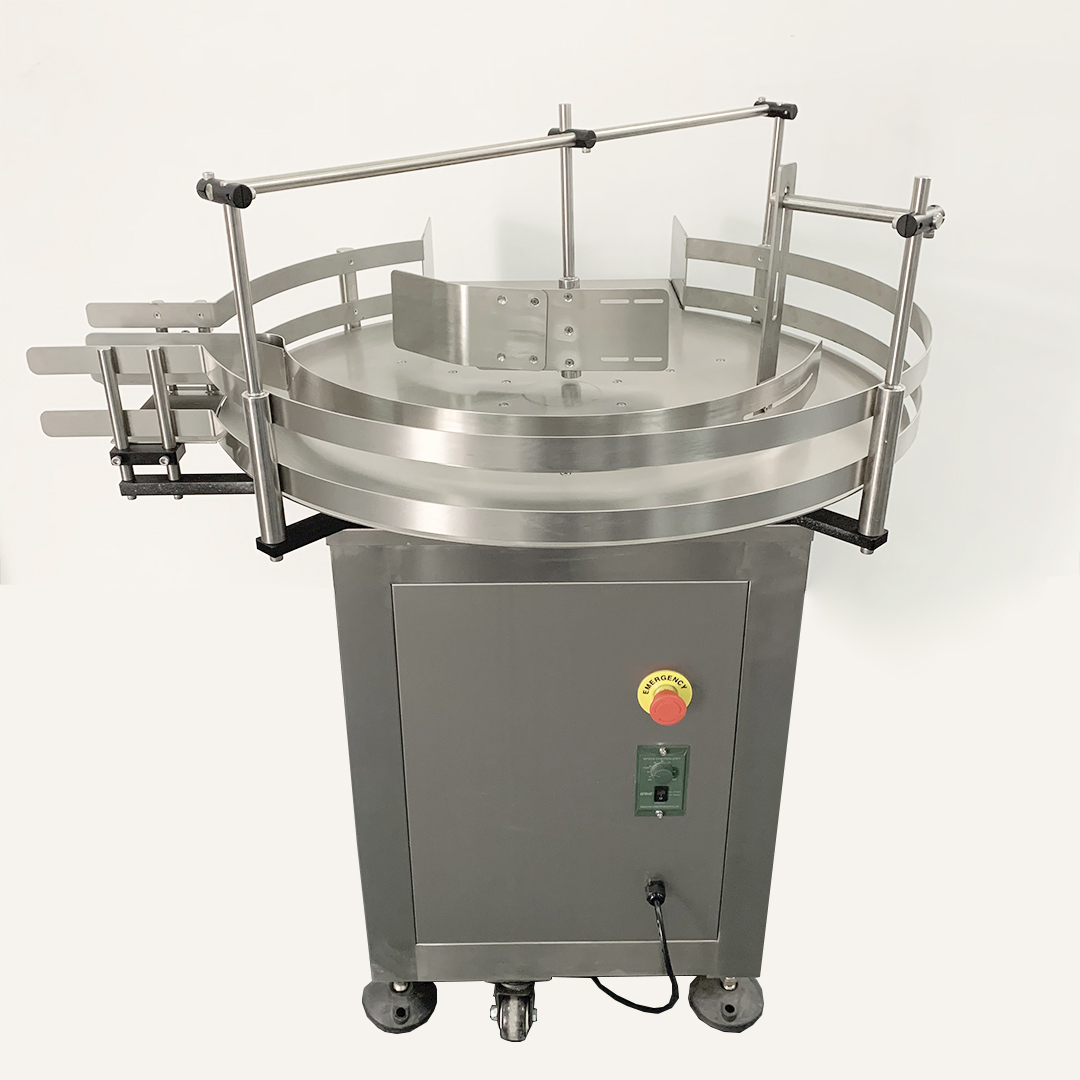

Automatic Production Line Round Bottle Sorting Collection Turntable Machine Bottle Unscrambler Machine
Automatic Production Line Round Bottle Sorting Collection Turntable Machine Bottle Unscrambler Machine
Automatic Production Line Round Bottle Sorting Collection Turntable Machine Bottle Unscrambler Machine
Automatic Production Line Round Bottle Sorting Collection Turntable Machine Bottle Unscrambler Machine
Automatic Production Line Round Bottle Sorting Collection Turntable Machine Bottle Unscrambler Machine
1 / 5
Automatic Production Line Round Bottle Sorting Collection Turntable Machine Bottle Unscrambler Machine
Automatic Production Line Round Bottle Sorting Collection Turntable Machine Bottle Unscrambler Machine
Automatic Production Line Round Bottle Sorting Collection Turntable Machine Bottle Unscrambler Machine
Automatic Production Line Round Bottle Sorting Collection Turntable Machine Bottle Unscrambler Machine
Automatic Production Line Round Bottle Sorting Collection Turntable Machine Bottle Unscrambler Machine

Automatic Production Line Round Bottle Sorting Collection Turntable Machine Bottle Unscrambler Machine

Send Inquiry

Product Description

Automatic Bottle Filling, Capping, Labeling Production Line
Automatic Bottle Filling, Capping, Labeling Production Line

Automatic liquid bottle filling capping & labeling machine controlled by pneumatic and electric. For filling, it through the cylinder's movement of forward and backward to make the piston which is located in the cylinder do reciprocating movement.

  • Mainly use in filling low viscosity or liquid products, like lotion, liquid laundry detergent, fabric softener, shampoo, hand wash liquid soap, bath shower, dish washing liquid, etc.
  • Filling volume from 50ml to 5000ml optional.
  • Filling nozzles can be customized with 4 heads, 6 heads, 8 heads, 10 heads and 12 heads anti-drop type, different size as your request.
Products Description
Machines Item Description

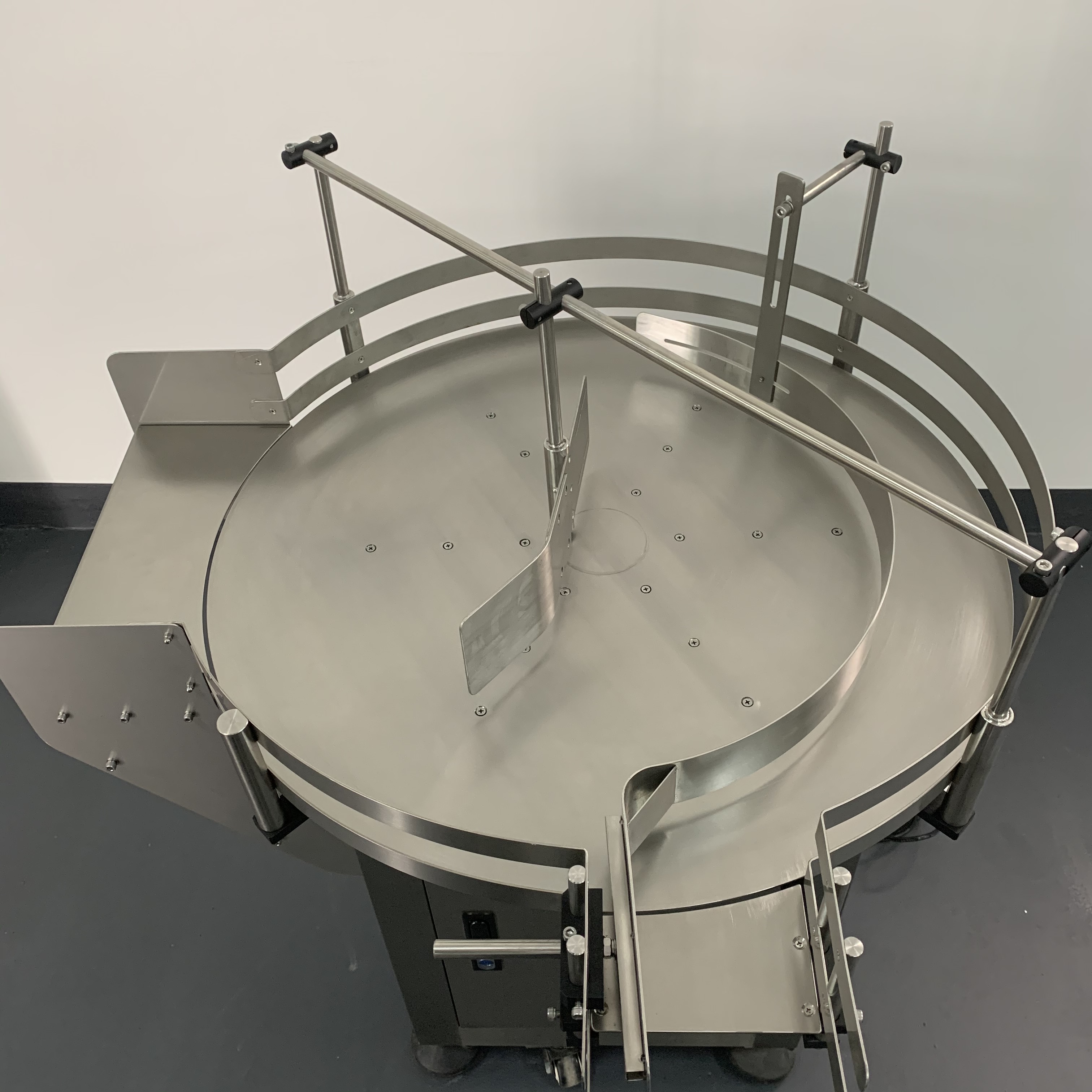

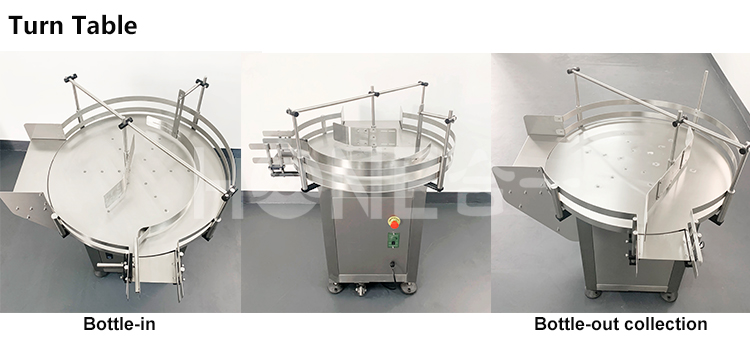

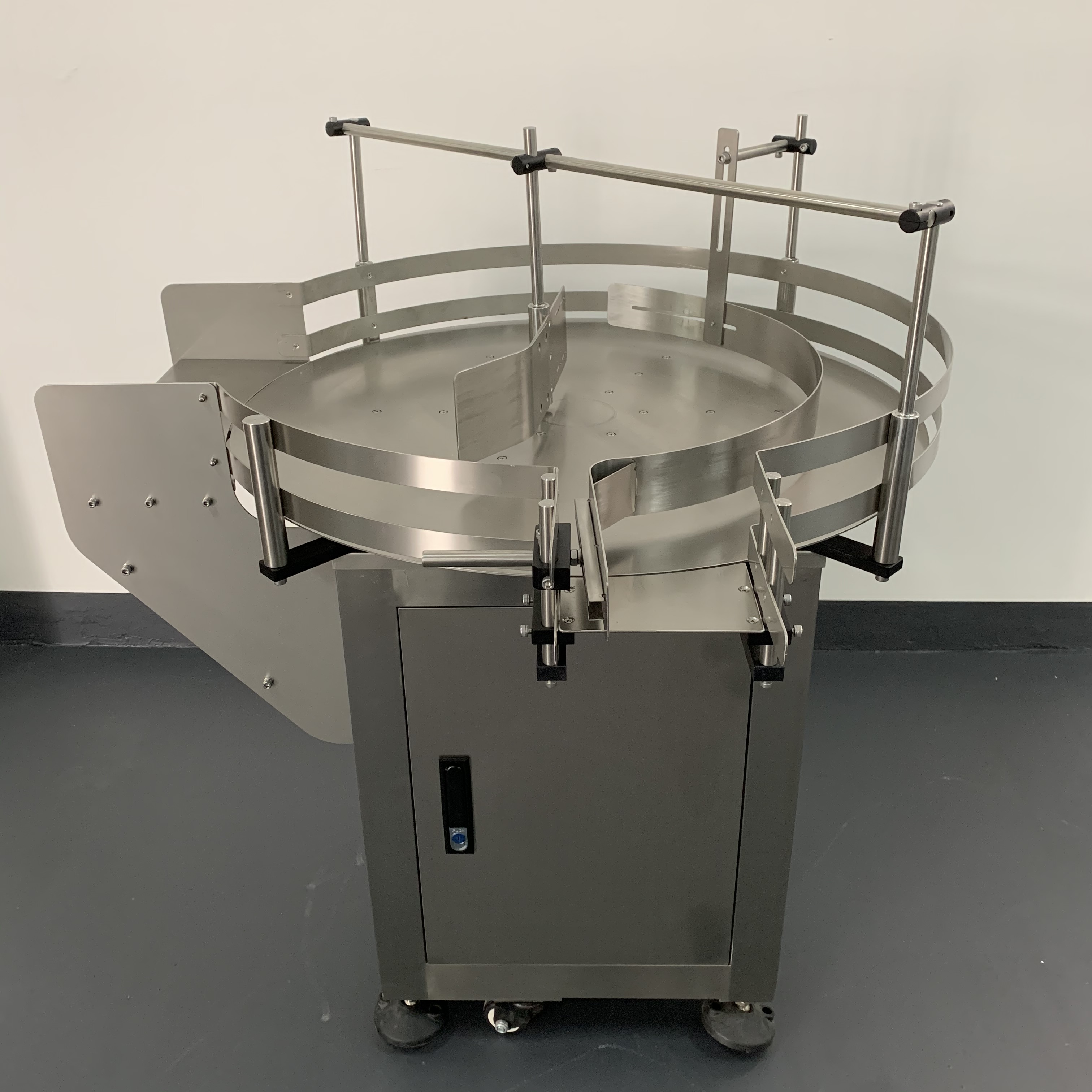

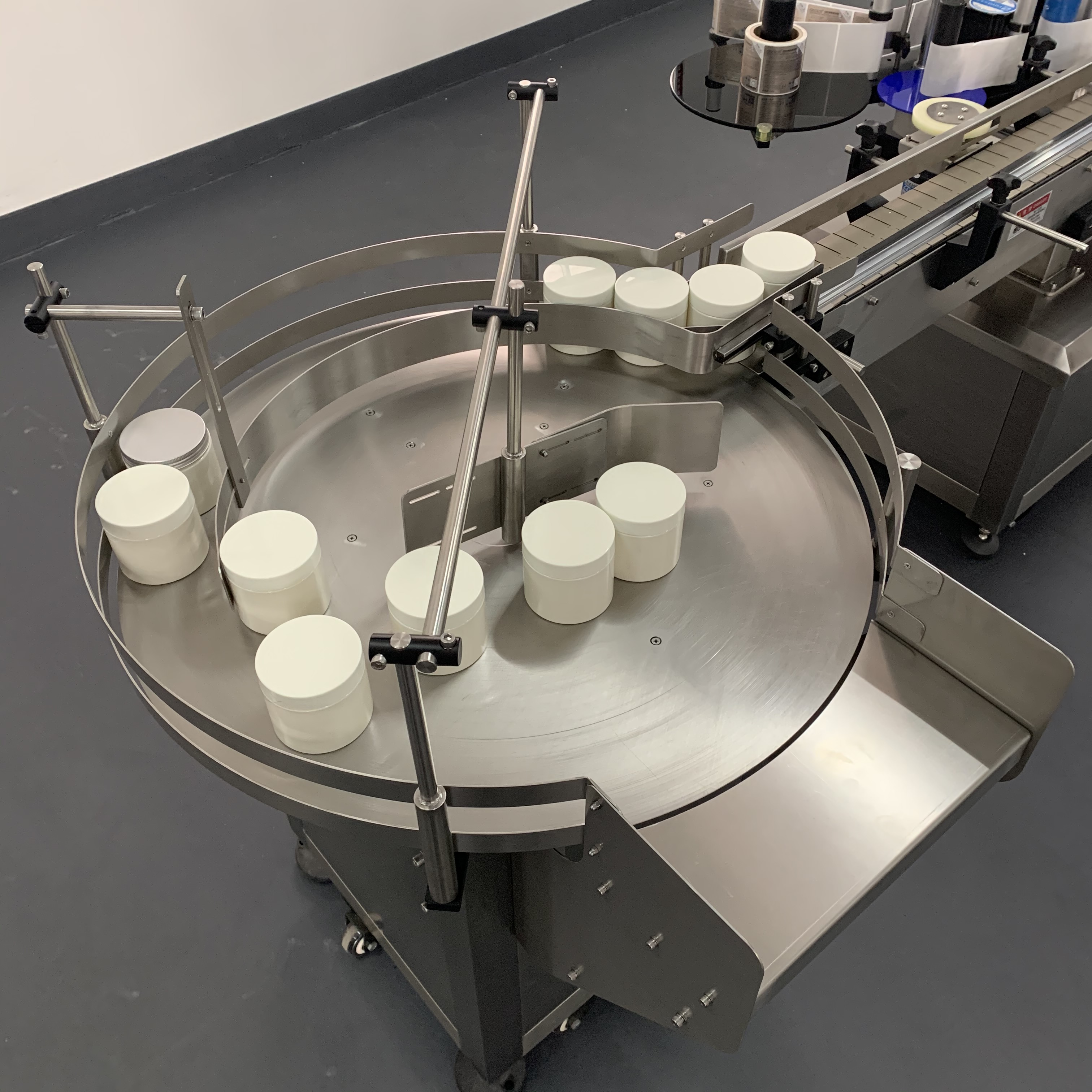

Turn Table Bottles feeding and collection Suitable for round bottles
Filling Machine Liquid piston filling machine 4/6/8 heads optional
Capping Machine Cap screwing machine Normal caps, screw caps, pump/spray head
Labeling Machine Round bottle labeling machine Universal type, positioning labeling

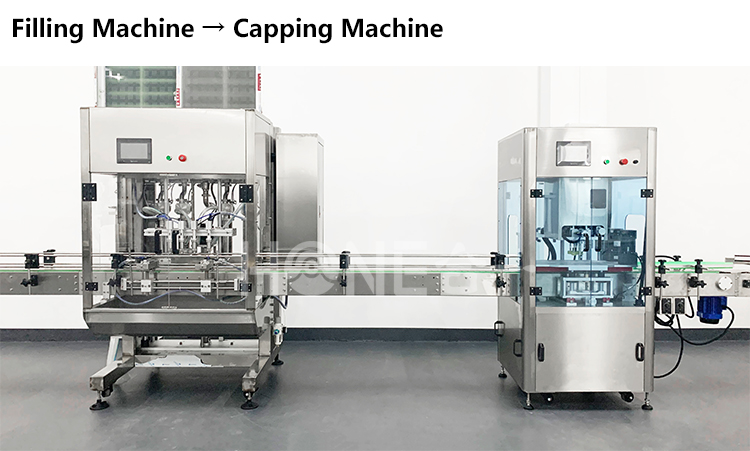

Production Line Layout

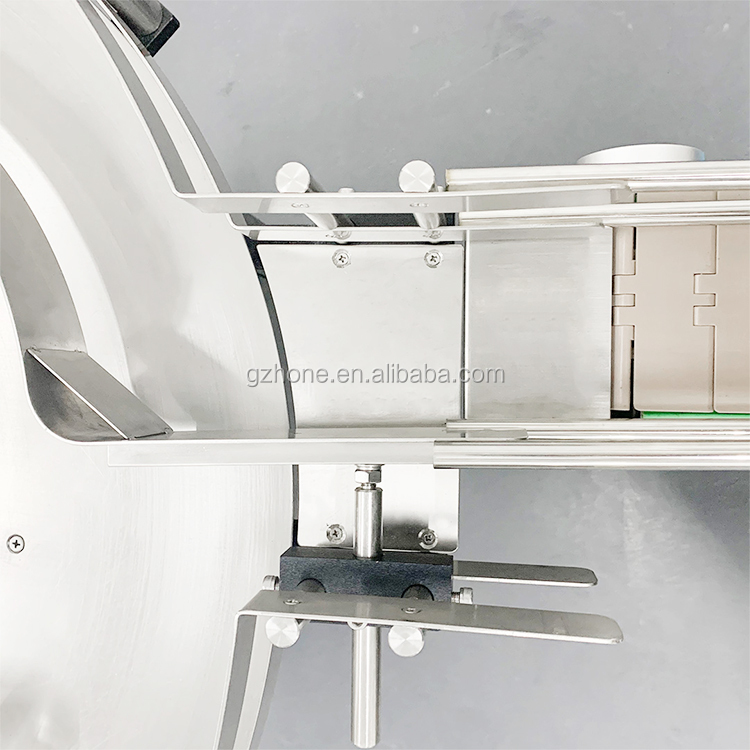

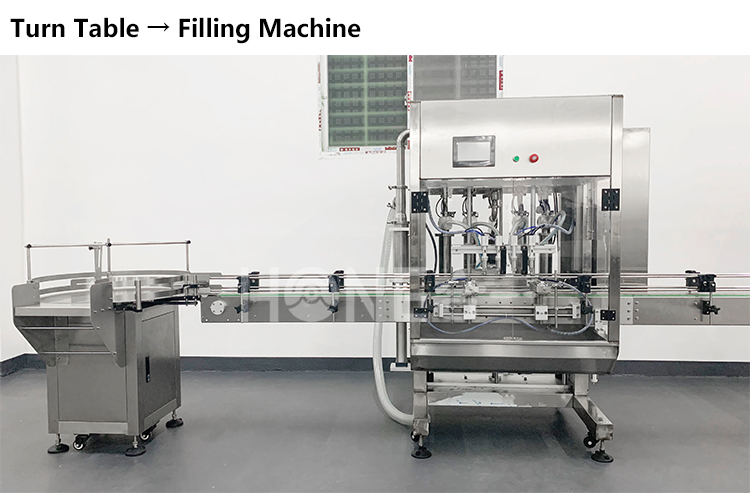

Bottle-In Connection
Bottle-In Connect with Filling Machine

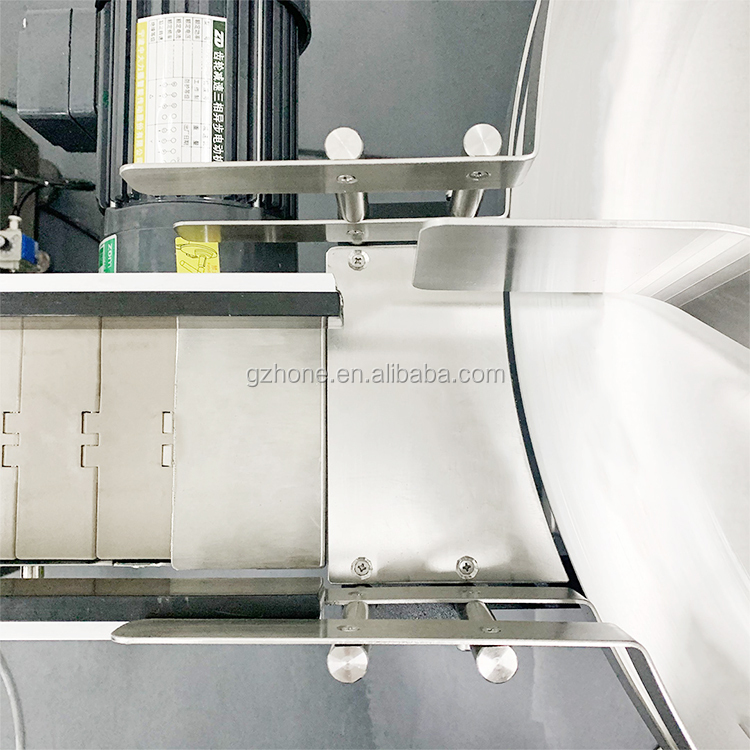

Bottle-Out Connection
Bottle-Out Connect with Labeling Machine

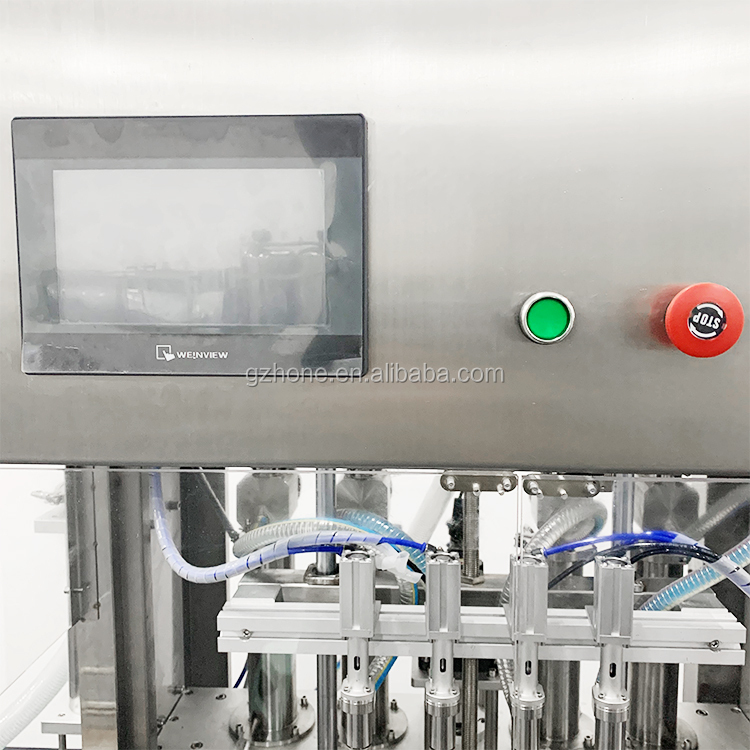

Filling Machine Panel
Operation Panel for Filling Machine

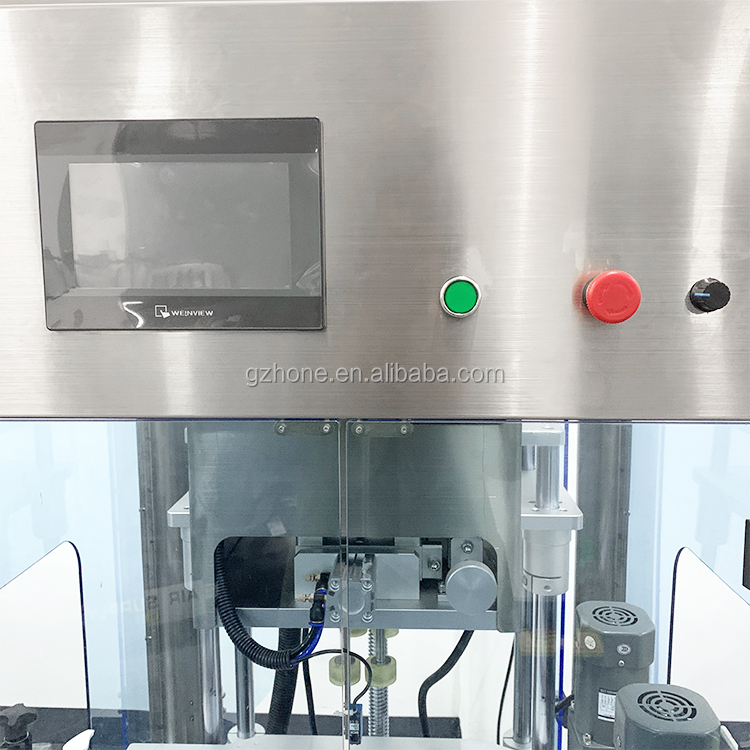

Capping Machine Panel
For Capping Machine

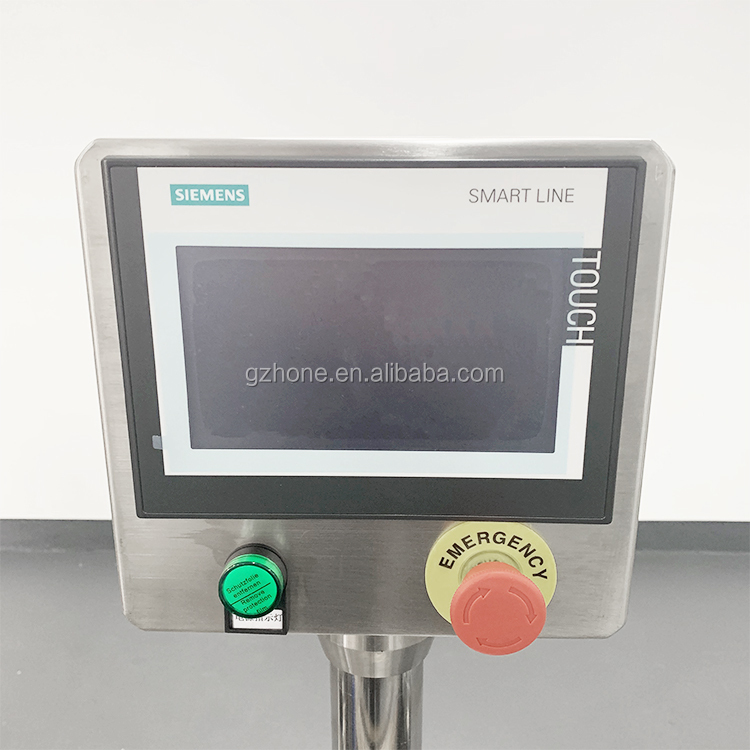

Labeling Machine Panel
For Labeling Machine
Filling Machine Detail
Filling Head Detail

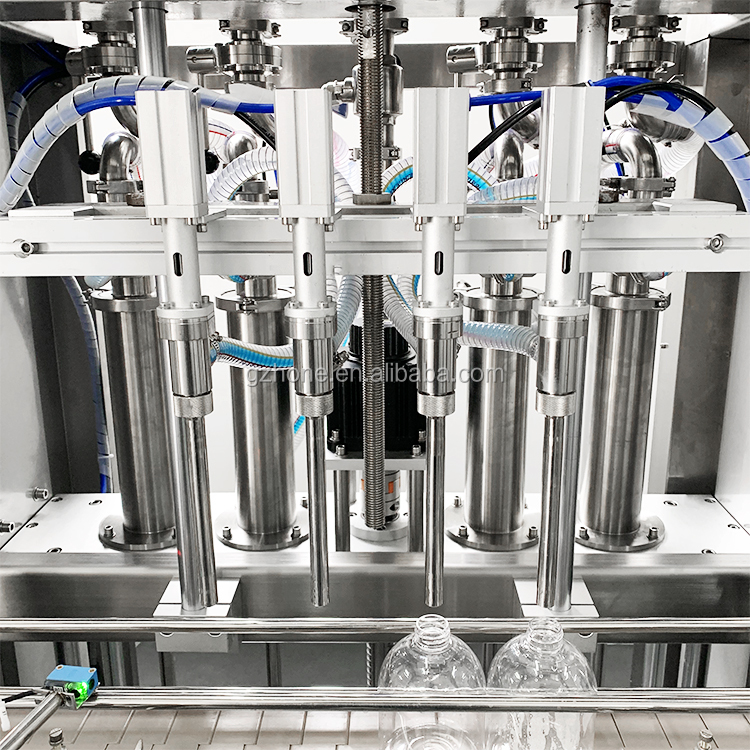

Anti-Drop Nozzles
ANTI-DROP Filling Nozzles: 2/4/6/8/10/12 heads
Equipped with SUS316L long special designed no-drop filling nozzles, which can protect the cylinder on the top being damaged material; Design different size of filling nozzles.

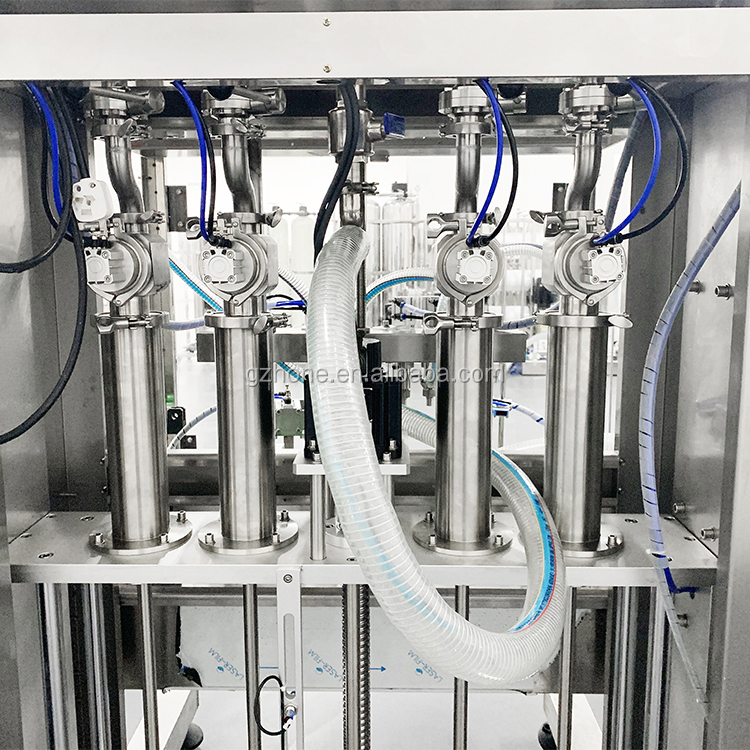

Servo Motor Control
SERVO MOTOR Control Filling Volume
SUS304 frame, Round SUS316L PISTONS, TECO servo motor control, easy to adjust the volume, just need to input the volume needed in touch screen.

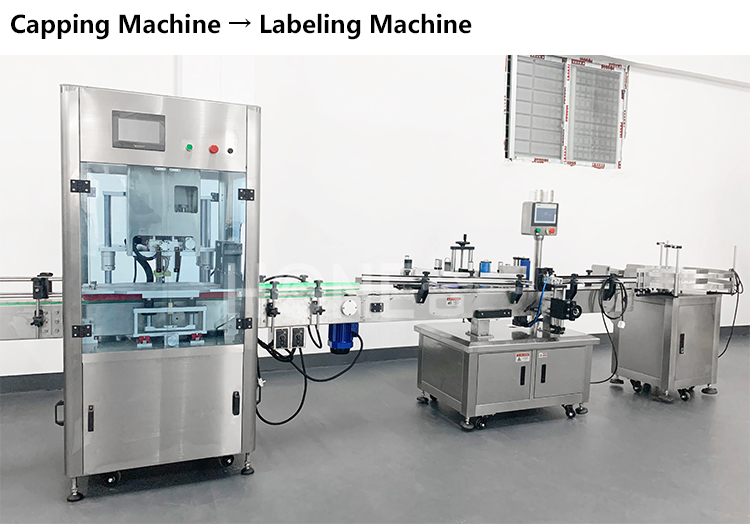

Capping Machine Layout

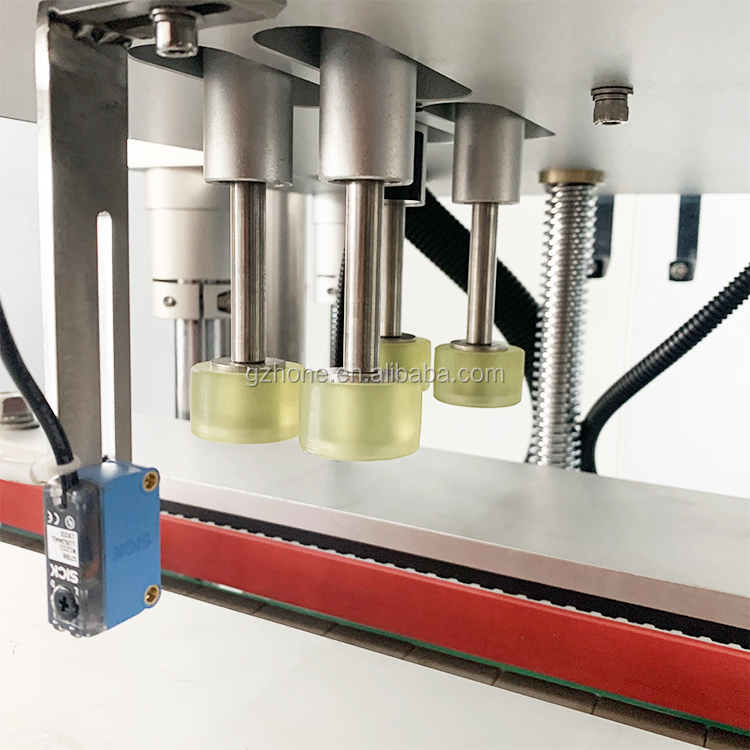

Capping Chuck
Capping Chuck
Suitable for different kinds of bottles caps, like normal screw caps, pump caps.

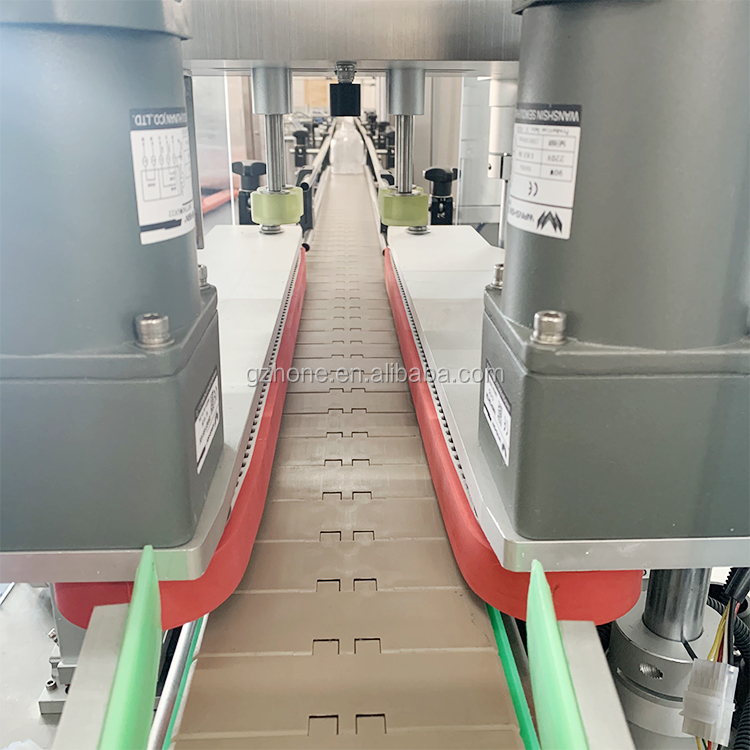

Conveyor belt
Conveyor
The suitable transfer speed is adjustable, two belts make it easier to transport and fixed bottles.

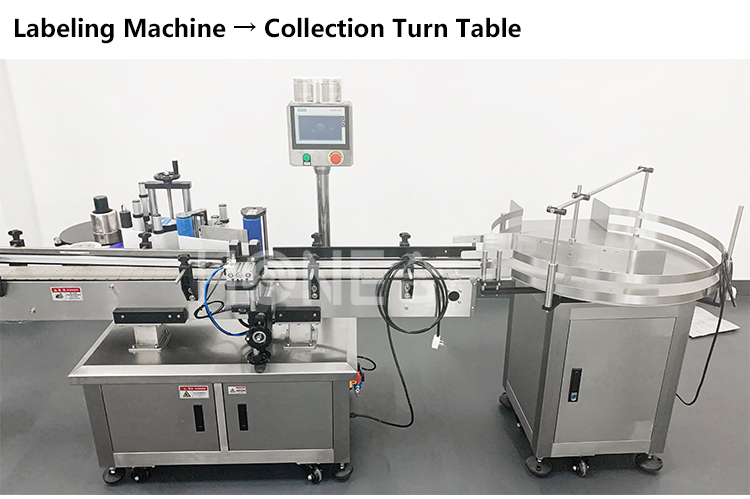

Labeling Machine Overview

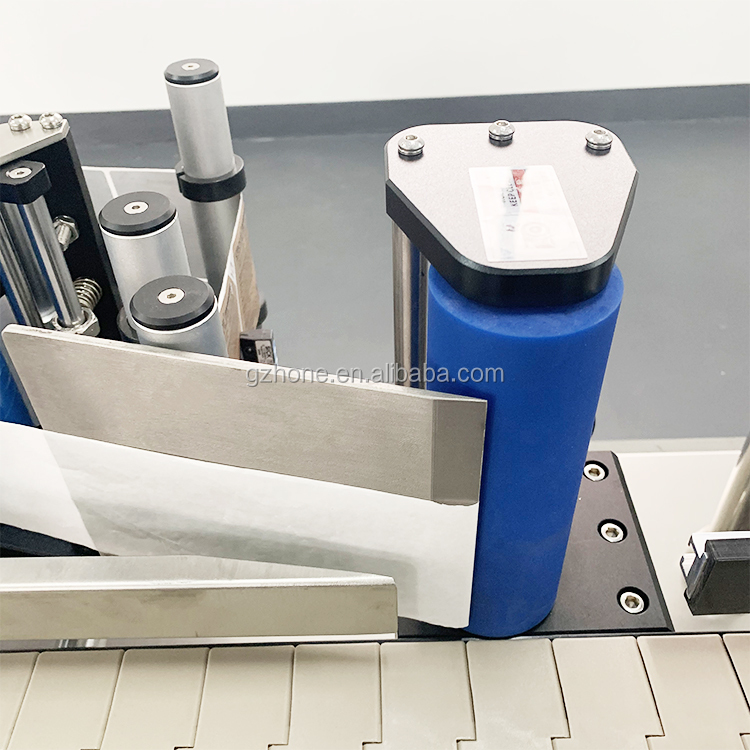

Labeling Part
Labeling Part

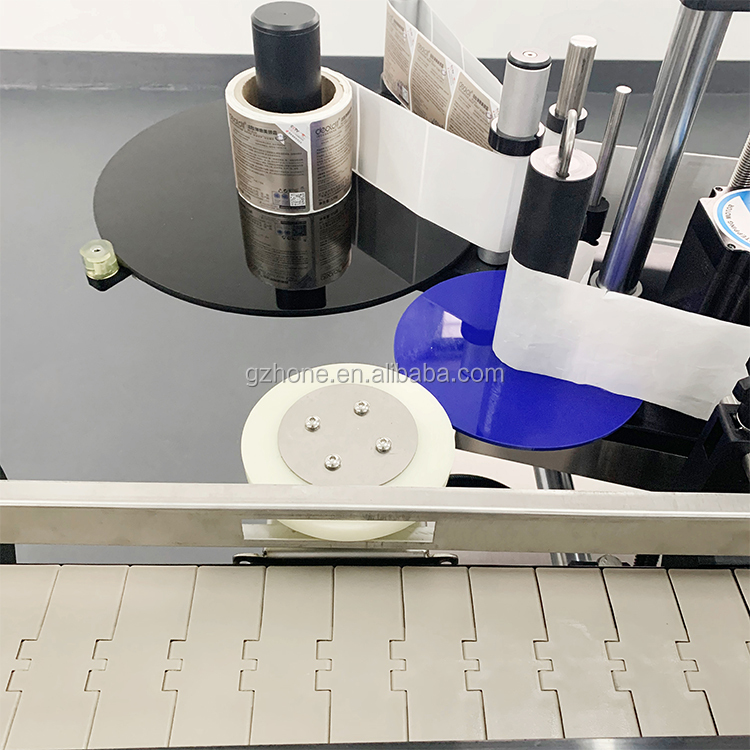

Labels Setting Part + Bottle Clipping Part
Labels Setting Part + Bottle Clipping Part
Detailed Machine Setup
Operational Machine Part
Working Flow Detail
Component Diagram
Main Component Setup
Finished Setup Overview
Frequently Asked Questions (FAQ)
? What types of liquid products can this filling production line handle?
It is mainly designed for filling low viscosity or liquid products, such as lotion, liquid laundry detergent, fabric softener, shampoo, hand wash liquid soap, bath shower, and dish washing liquid.
? What is the available range for the filling volume?
The filling volume on this production line is adjustable and optional from 50ml to 5000ml to accommodate different bottle specifications.
? How are the filling nozzles customized?
The anti-drop filling nozzles can be customized with 4 heads, 6 heads, 8 heads, 10 heads, and 12 heads, and are available in different sizes according to your production capacity needs.
? How is the filling volume controlled and adjusted?
The system features a TECO servo motor to control the filling volume. Adjustments are simple; operators only need to input the desired volume on the integrated touch screen.
? What types of bottle caps are compatible with the capping machine?
The cap screwing machine features a capping chuck that is suitable for various bottle caps, including normal screw caps, pump caps, and spray heads.
? What materials are used in the construction of the filling machine components?
The machine structure uses a robust SUS304 frame, while the round pistons and the long special anti-drop filling nozzles are made from high-grade SUS316L stainless steel to protect the mechanism from material damage.
