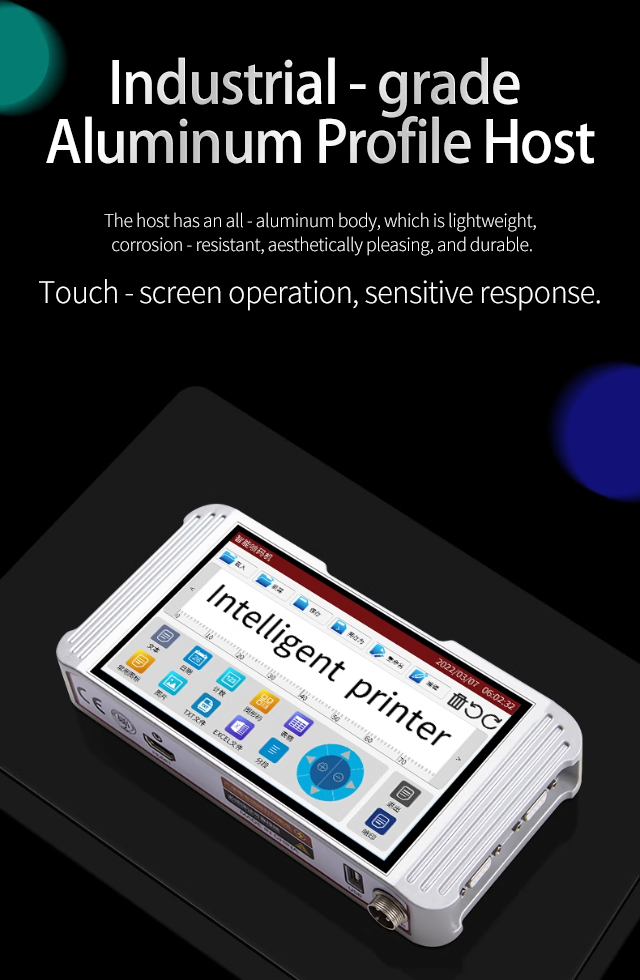

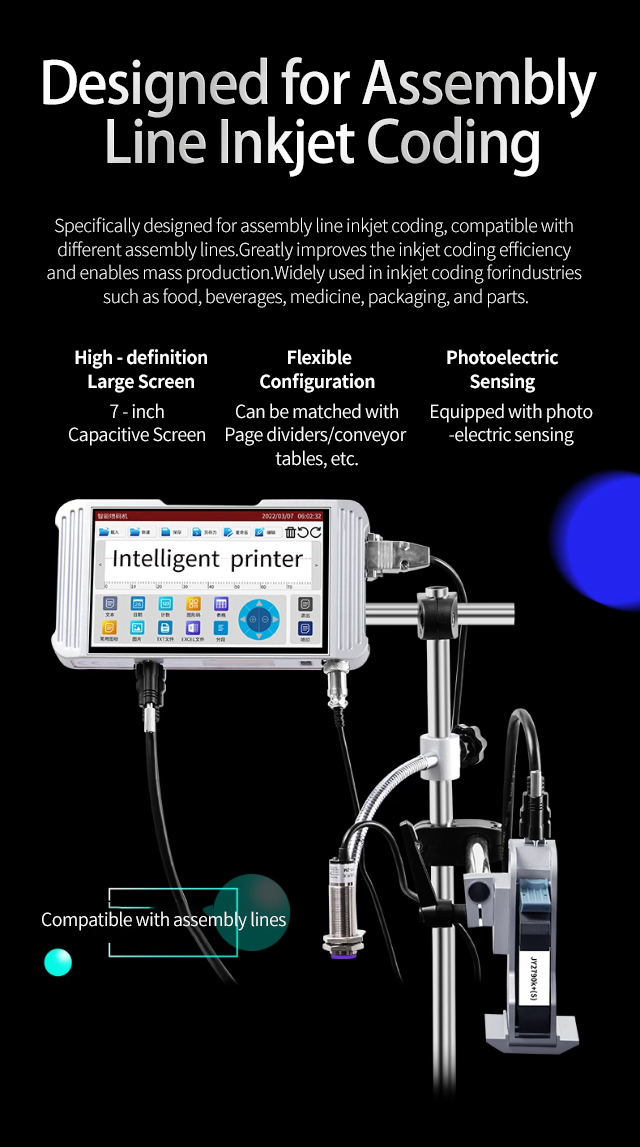

| Shape features | stainless steel casing/black aluminum shell and color touch screen |
| Dimension | 14CMX8CMX235CM |
| Net weight | 1.5 KG |
| Printing direction | adjusted within 360 degree, meet all kinds of production needs |
| Character type | high-definition printing character, dot matrix font, Simplified, Traditional Chinese and English |
| Printing pictures | all kinds of logo, pictures can be uploaded through USB disk |
| Printing accuracy | 300-600DPI |
| Printing line | 1-8 lines (adjustable) |
| Printing height | 12.7mm or 25.4mm online inkjet printer |
| Print code | bar code, QR Code |

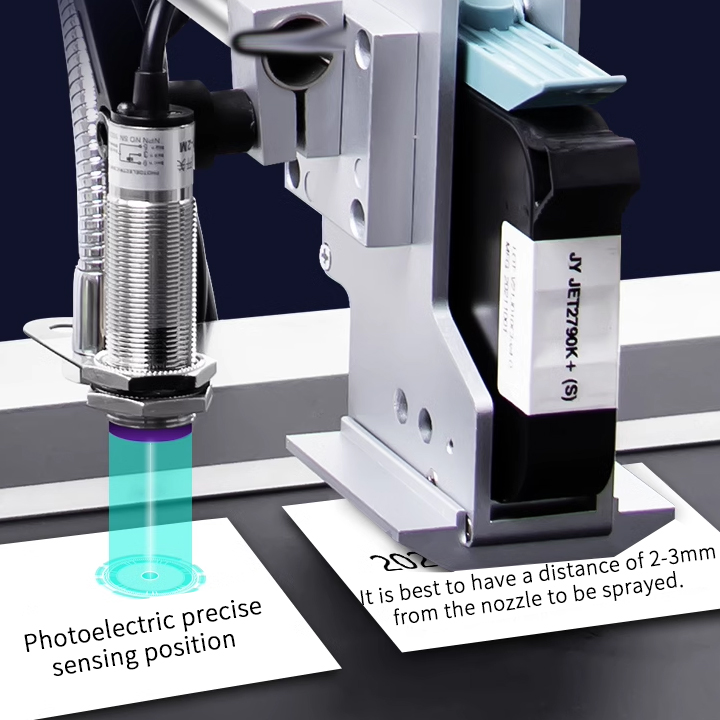

| Printing distance | Best 2~5 mm |
| Print serial number | 1~9 |
| Automatic print | date, time, batch number shift and serial number, etc |
| Storage | the system can store more than 1000 mass (external USB make the information transfer in a free way) |
| Message length | 2000characters for each message, no limitation on length |
| Printing speed | 60m/min |
| Ink type | Quick-dry environmental ink, water-based ink and oily ink |
| Ink color | black, white, red, blue, yellow, green, invisible |
| Ink volume | 42ml(usually can print 800,000 characters) |

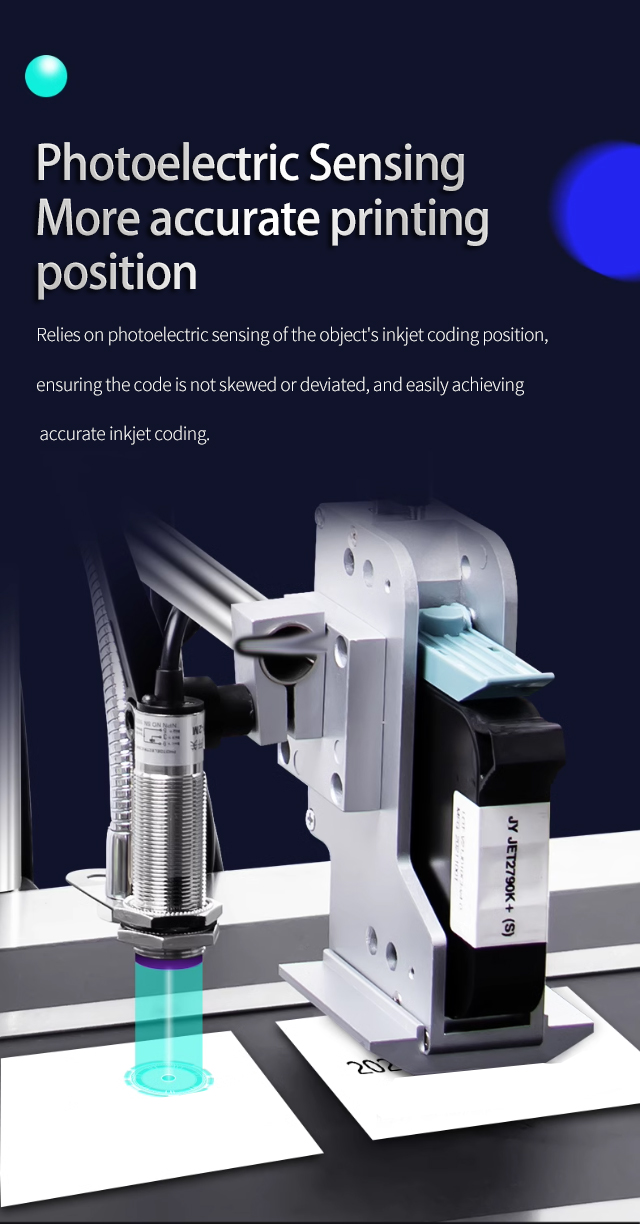

| External interface | USB, DB9, DB15, Photoelectric interface, can directly insert a USB disk to upload information |
| Voltage | DC14.8 lithium battery, print continuously more than 10 hours and 20 hours standby |

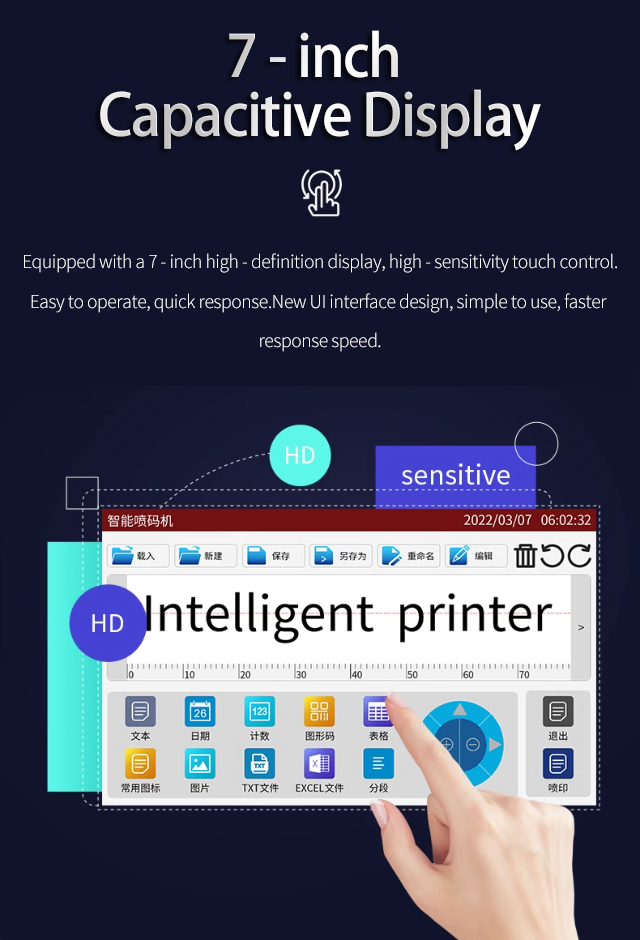

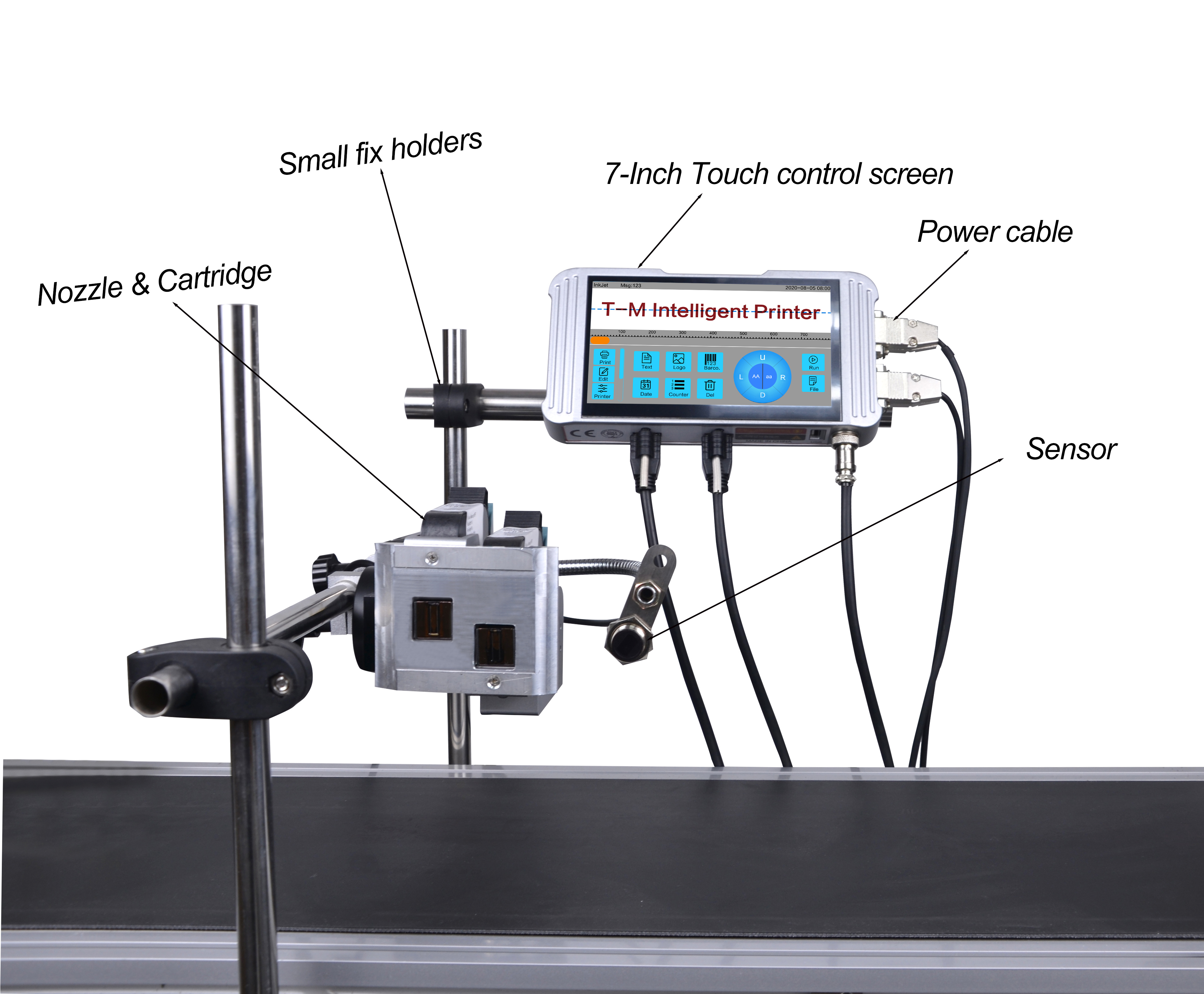

| Control panel | touch-screen (can connect wireless mouse, can also edit information through the computer) |
| Power consumption | the average power consumption is lower than 5W |
| Working environment | Temperature:0 -40 degree; Humidity: 10% - 80% |

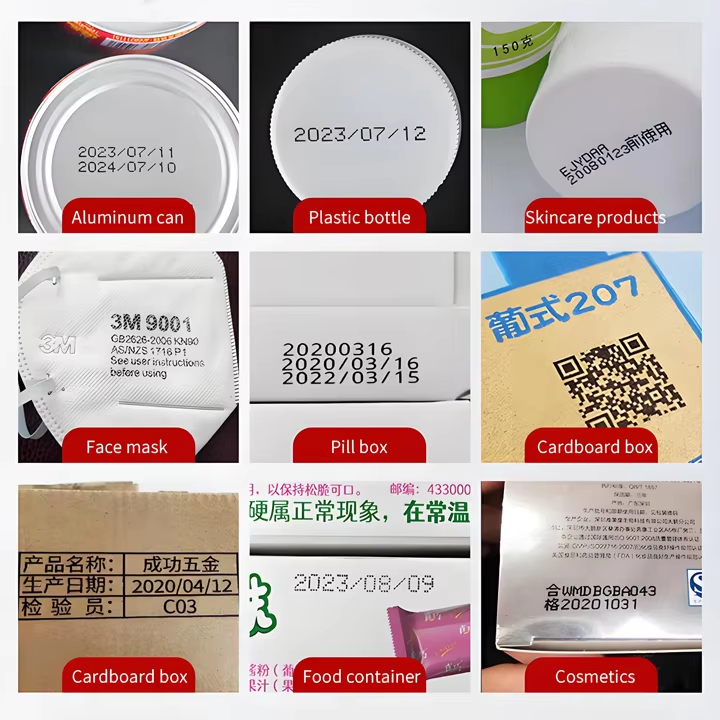

| Printing material | board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil, etc. |
