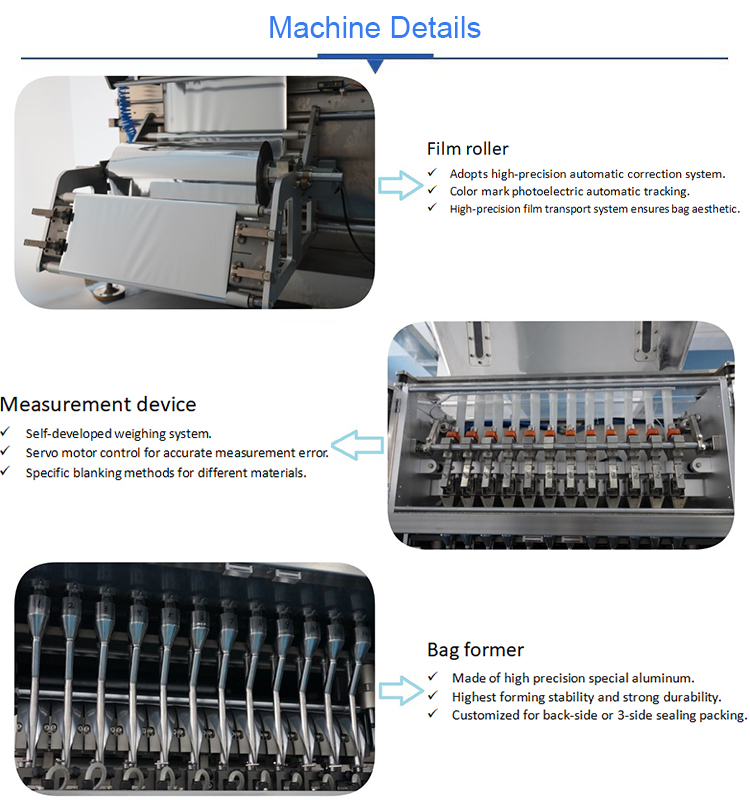

This machine adopts high-precision automatic correction system, PLC program control, advanced touch human-machine interface, full servo system drive, color mark photoelectric automatic tracking, PID digital constant temperature control system, etc., which makes the whole machine operation simpler and more complete.
No need to trim the edges on both sides of the packaging material, so that reduces material usage costs.
| Composition | Classification parameters | |
|---|---|---|
| Scope function | Packaging range | Widely used in packaging loose, non-sticky, fine granular materials in pharmaceutical, food, tea chemical and other industries |

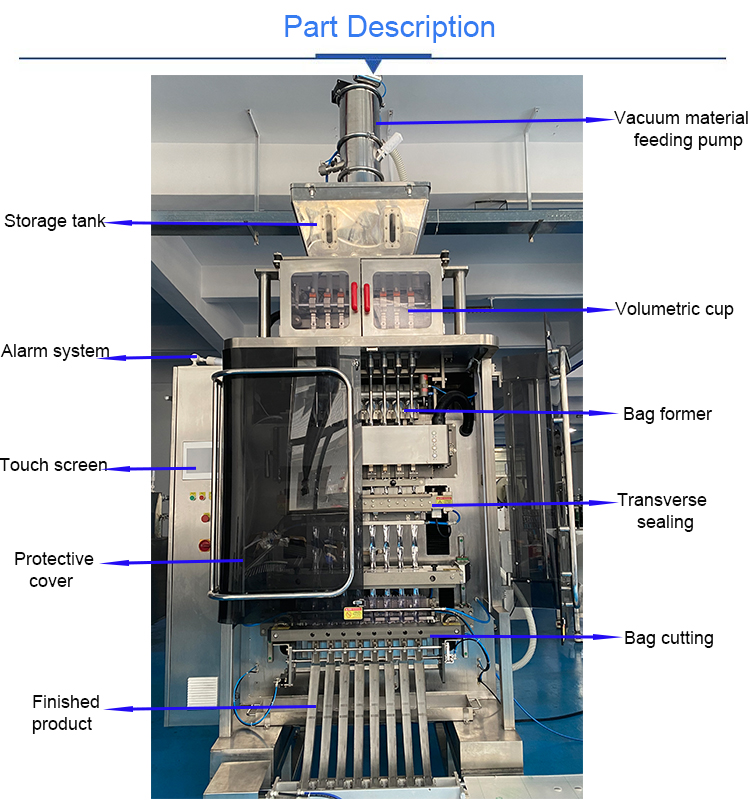

| Basic structure | Dimensions | Width*Depth*Height 1760*2010*3400mm (Including vacuum feeding height) |
| Design weight | 2000KG | |
| Mainframe | Stainless steel body | |

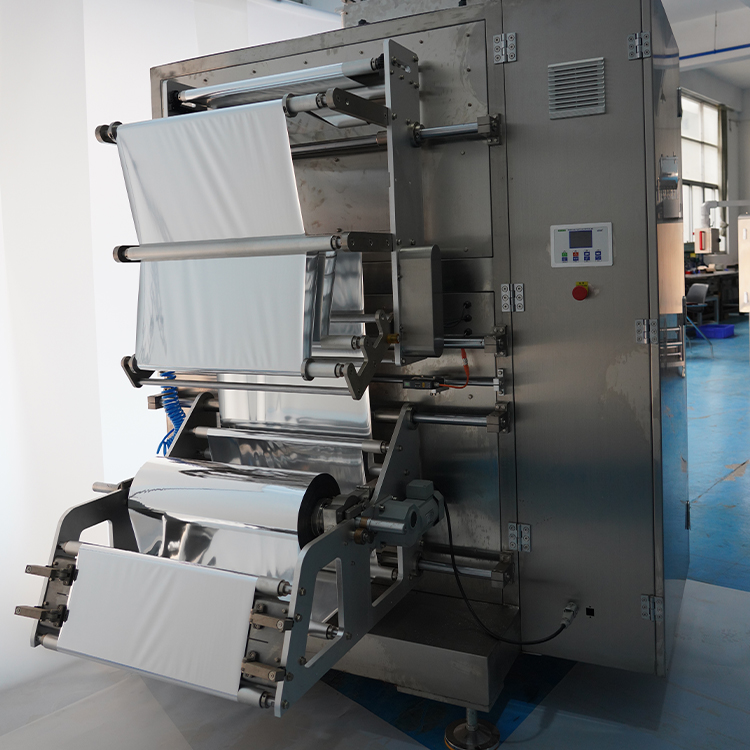

| Packaging material parameters | Packaging Material requirements | Nylon film/polyester film composite, polyester film/polyester composite film, nylon film/pure aluminum foil/polyester film composite, polyester film/pure aluminum foil composite, polyester film and other material composites that can provide heat sealing function. Maximum width of packaging material: 650mm. Maximum outer diameter of packaging material: Φ400mm. Core diameter of packaging material: Φ76mm; Thickness of packaging material: 0.05 — 0.1mm |
| Maximum single film width | 120mm | |
| Maximum bag length | 180mm (double tearing hole MAX 130mm) | |
| Device parameters | Power Specifications | 380V, 50HZ |
| Total electrical power | 10KW-15KW | |
| Compressed air pressure | 0.6~0.8Mpa | |
| Compressed air consumption | 0.6~0.8m³/min | |
| Noise(dBA) | 78dB(A) | |
| Packing speed | 0-70 bag/min/lane | |

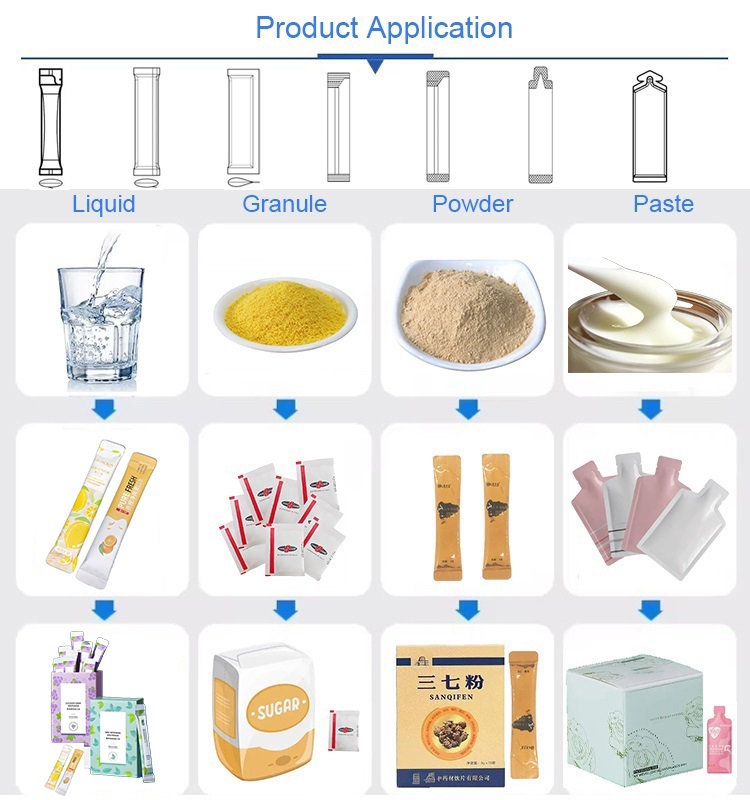

The machine is widely used for packaging loose, non-sticky, and fine granular materials across pharmaceutical, food, tea, chemical, and other related industries.
The machine operates without the need to trim the edges on both sides of the packaging material, which significantly minimizes waste and reduces overall packaging material usage costs.
It supports composites that provide heat sealing, including nylon film/polyester film, polyester film/polyester composite, nylon film/pure aluminum foil/polyester composite, and pure polyester film.

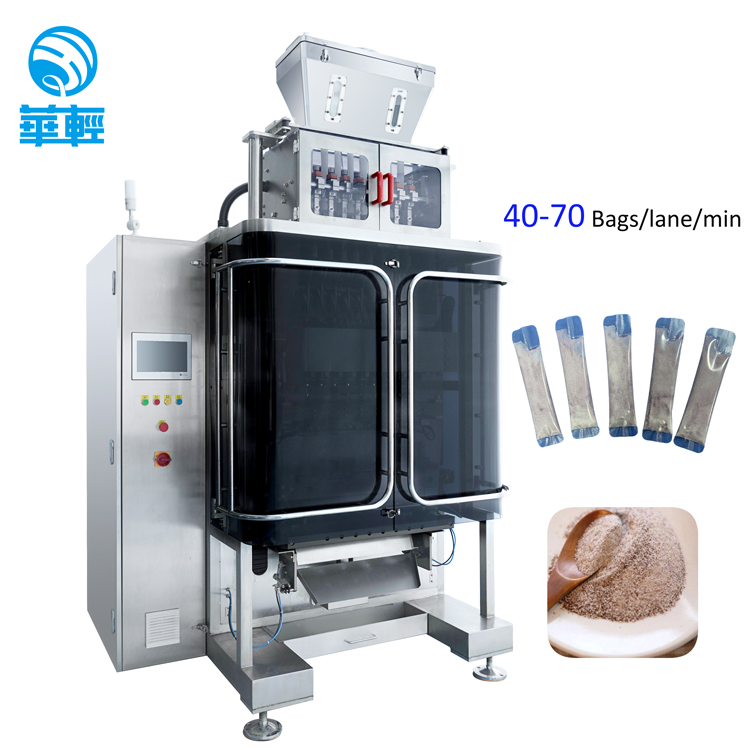

The system features a variable packing speed capability from 0 to 70 bags per minute per lane, depending on product properties and target requirements.

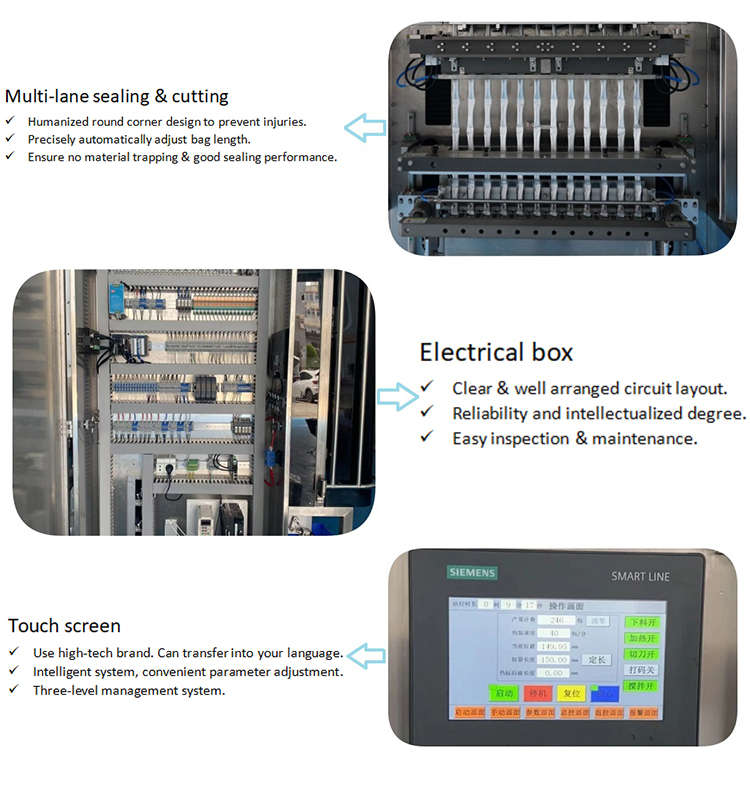

It is integrated with a high-precision automatic correction system, PLC program control, advanced touch human-machine interface, full servo system drive, and a PID digital constant temperature control system.
Support includes guidance on installation, free on-site debugging, a one-year warranty covering the whole machine, and lifetime maintenance support.
