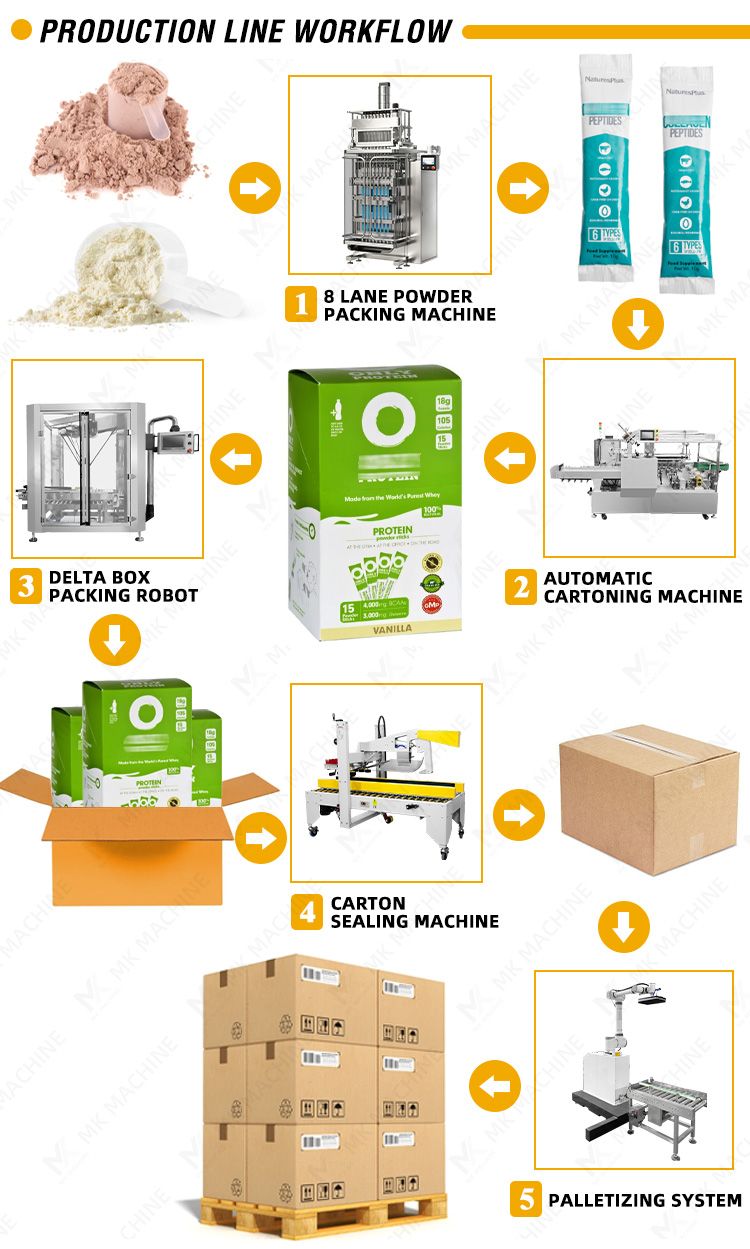

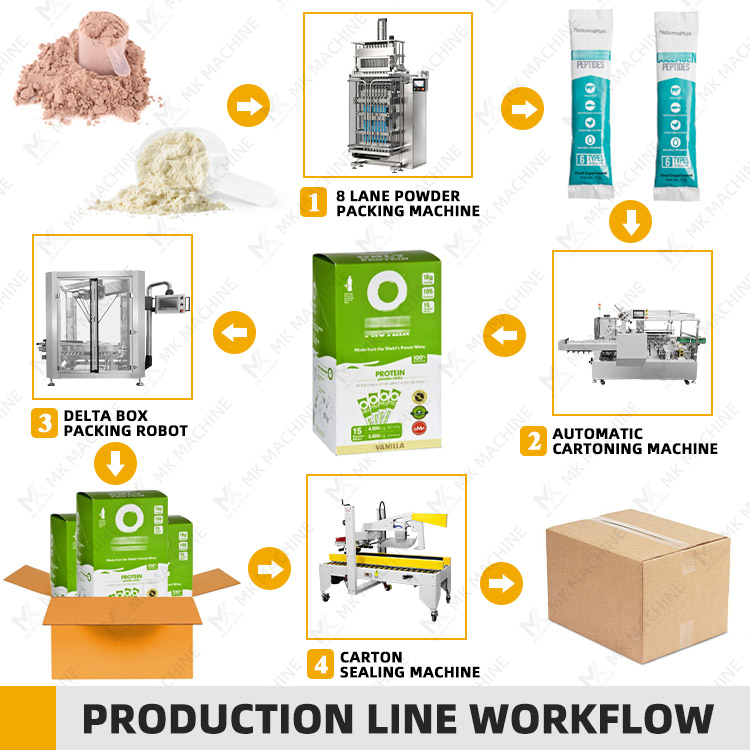

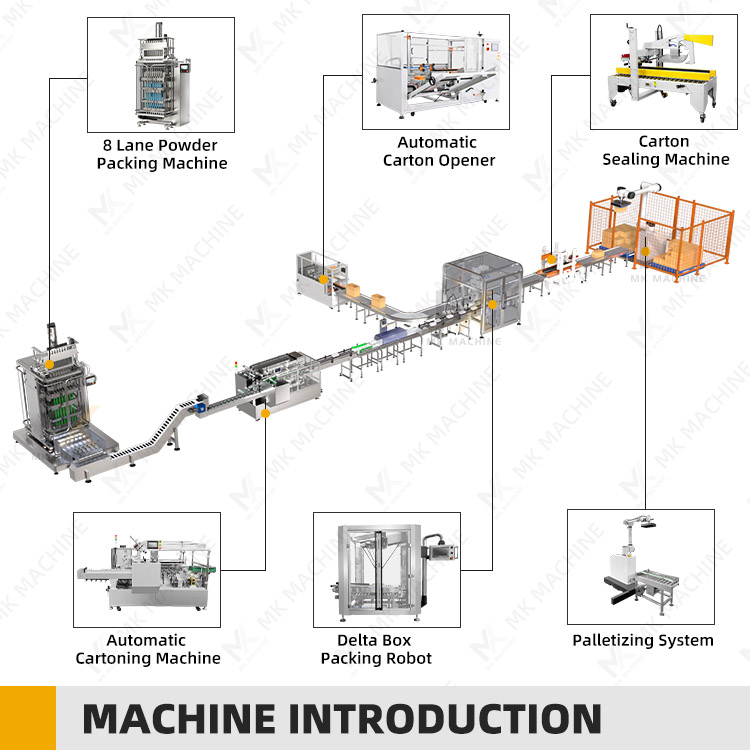

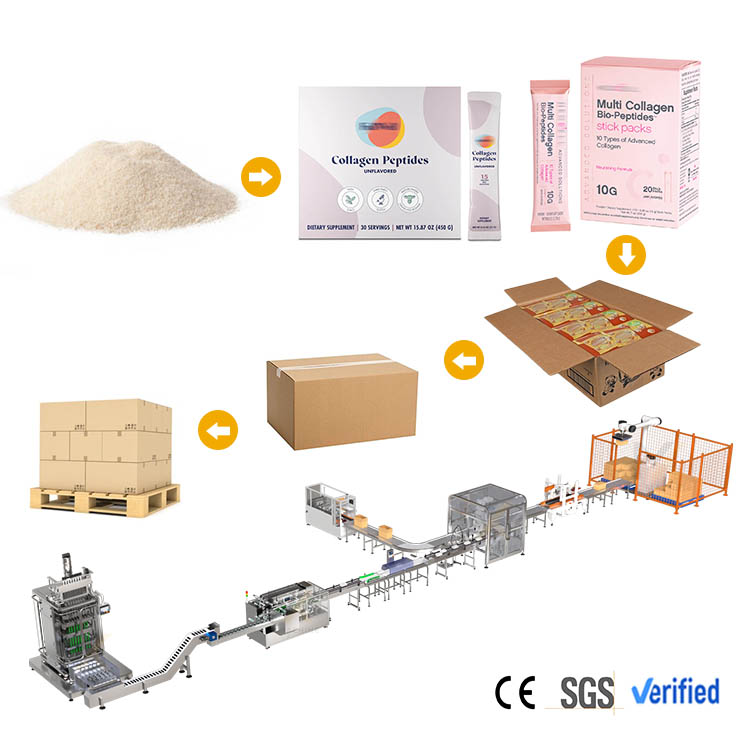

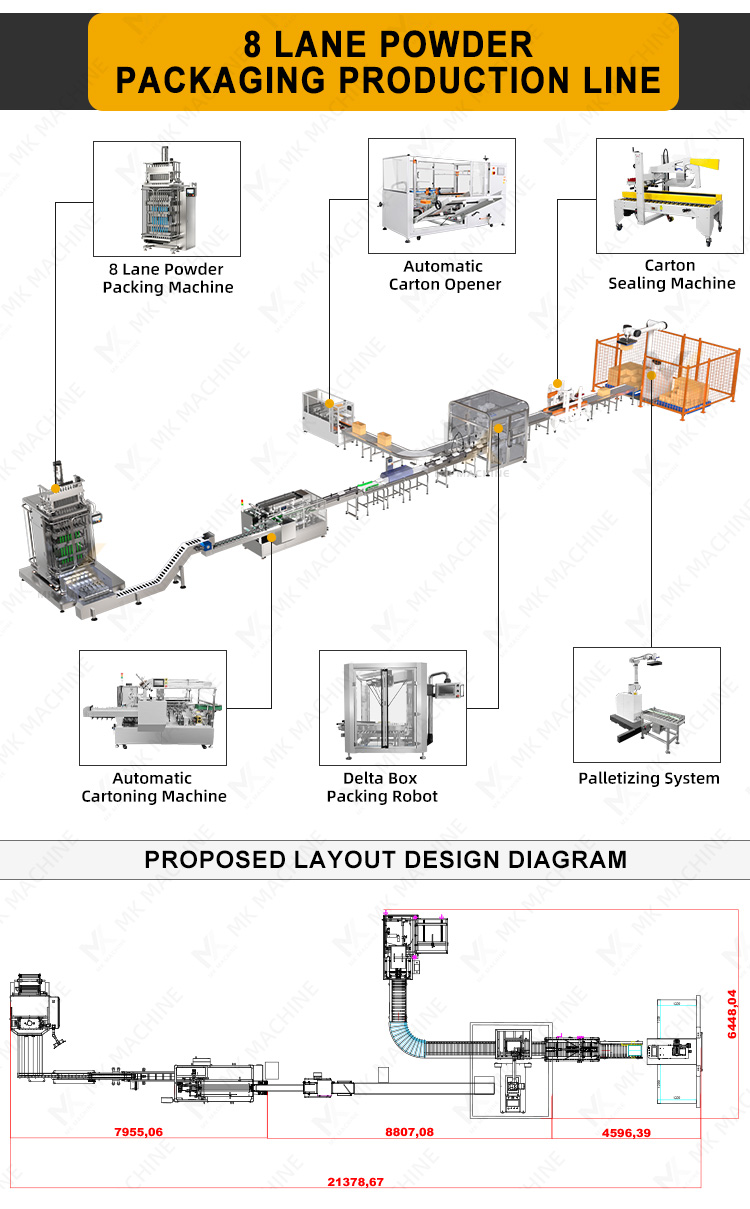

Automatic Multi Lane Stick Sachet Packing Machine Collagen Peptide Powder Small Box Carton Packing Machine Line
Automatic multi lane powder packing machine is suitable for food, daily necessities, agriculture and other industries, such as coffee powder, milk powder, matcha powder, spice powder, seasoning powder, protein powder, electrolyte powder, energy powder, creatine powder, juice powder, collagen powder, probiotic powder, vitamin powder, peptide powder, etc.

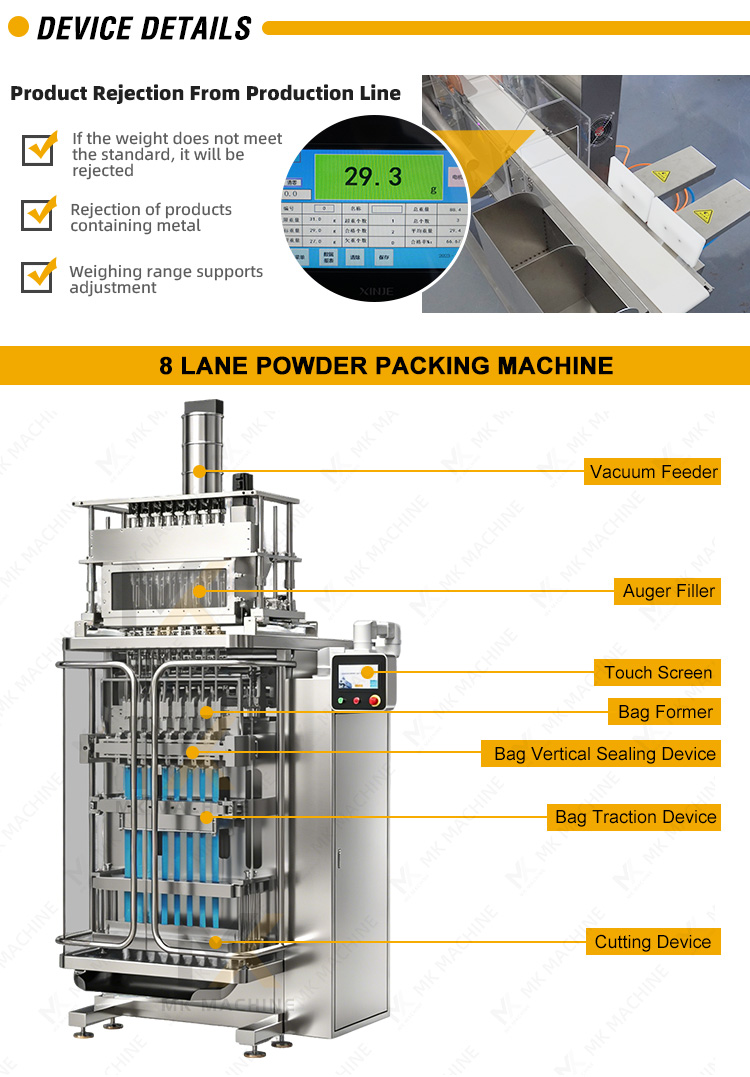

Multi Lane Powder Packing Machine
Main Features
- The production capacity of the whole machine can be customized according to customer needs.
- Automatic slitting packaging film system, smooth cut.
- Adopt brand electrical components, more reliable and durable.
- Servo motor assists in pulling the bag to ensure smooth bag pulling.
- New frame design, the machine operates more smoothly.
| Lane Number |
8 lanes |
| Measuring Range |
2-50g (customizable) |
| Packing Speed |
20-40 cycle/min |
| Film Width |
Max.680mm |
| Bag Length |
50-160mm |
| Bag Width |
20-45mm |
| Power |
220V, 50/60Hz, 7.5KW |
| Machine Size |
Non-standard Customization |
| Machine Weight |
800kg |

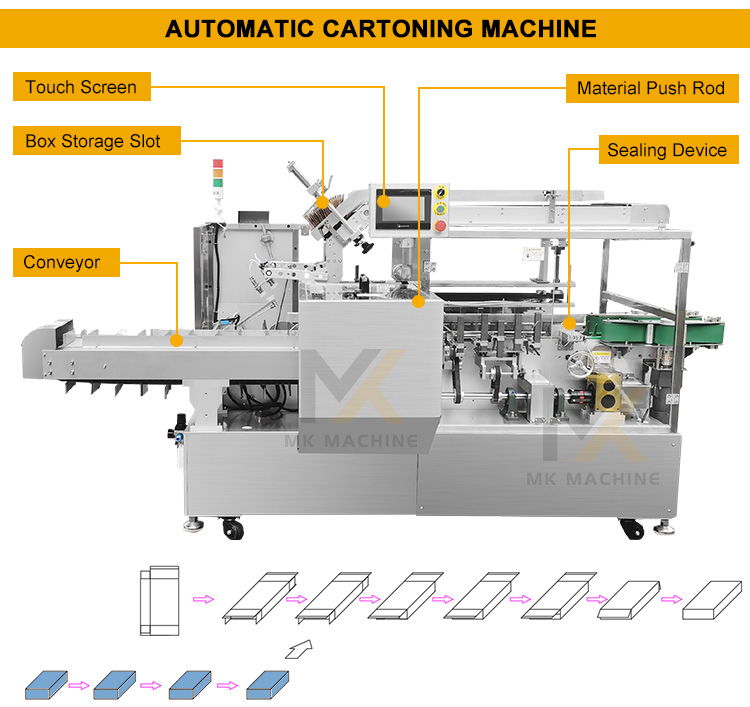

Box Packing Machine
Main Features
- The box packing machine is a set of opening, loading, folding, sealing boxes as one, suitable for a variety of materials box packing machine.
- This equipment can replace the workload of 3-6 workers.
- The frame and the parts that contact the material are all made of high quality stainless steel and aluminum, the surface has been polished, the appearance is beautiful and generous, strong and durable.
- Using intelligent PLC control, the machine movement is more stable and precise, and the maintenance and debugging are more convenient.
- With multiple detection electric eyes, the positioning is accurate, and the empty box is effectively prevented.
| Carton Length |
130-230mm |
| Carton Width |
50-200mm |
| Carton Height |
20-90mm |
| Paper Requirements |
350-450g/m² |
| Packing Speed |
15-30 boxes/min |
| Use Air Supply |
0.5-0.7Mpa |
| Power |
220V, 50Hz, 3KW |
| Machine Size |
3500(L)*3300(W)*1700(H)mm |
| Machine Weight |
2500kg |

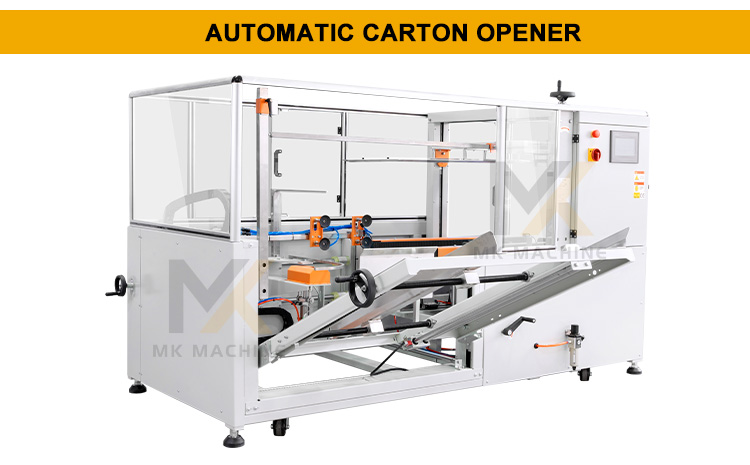

Carton Opening Machine
Main Features
- Vertical storage, cartons can be added at any time without stopping the machine.
- No need to change accessories, the carton size can be changed by adjustment (completed in 2-3 minutes).
- Equipped with multiple sets of detection sensors, it can automatically alarm when there is no carton and when unpacking fails.
| Carton Opening Speed |
16-18 boxs/min |
| Carton Size |
L(200-460)*W(150-400)*H(100-400)mm |
| Adhesive Tape Width |
48/60/75mm |
| Carton Storage Quantity |
80-100pcs (1000mm) |
| Air Consumption |
500NL/min |
| Power |
220V, 50/60Hz, 240W |
| Machine Size |
2450(L)*2150(W)*1450(H)mm |
| Machine Weight |
750kg |

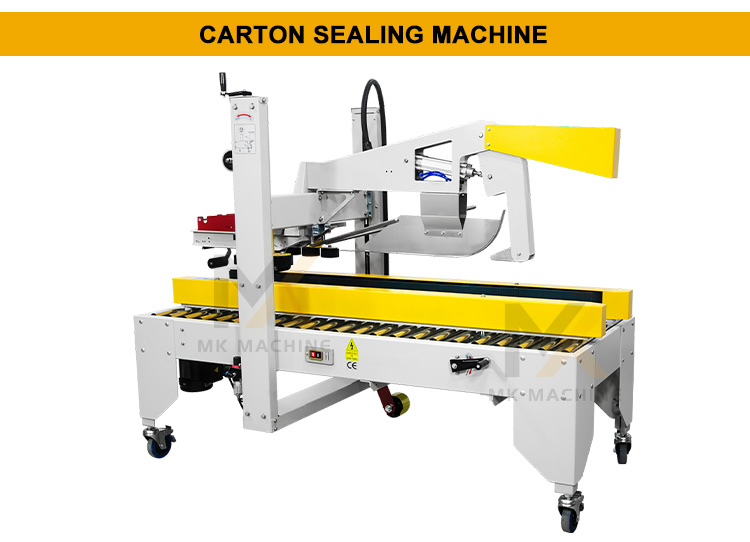

Automatic Sealing Machine
Main Features
- Durable parts: use imported parts and electrical components.
- Easy adjustment: manually adjust the width and height of the machine according to the carton specifications.
- Fast sealing: automatically fold the top cover of the carton, automatically attach the tape up and down, economical, smooth and fast.
- Safety protection: Install blade guards to avoid accidental punctures during operation.
- Applicability: The automatic sealing machine can be used in a single machine or in conjunction with an automated packaging line.
| Working Speed |
18 m/min |
| Carton Size |
L(200-600)*W(150-500)*H(150-500)mm |
| Adhesive Tape Width |
48/60/75mm |
| Table Height |
650-800mm |
| Air Consumption |
50NL/min |
| Power |
220V, 50/60Hz, 420W |
| Machine Size |
1770(L)*920(W)*1520(H)mm |
| Machine Weight |
270kg |

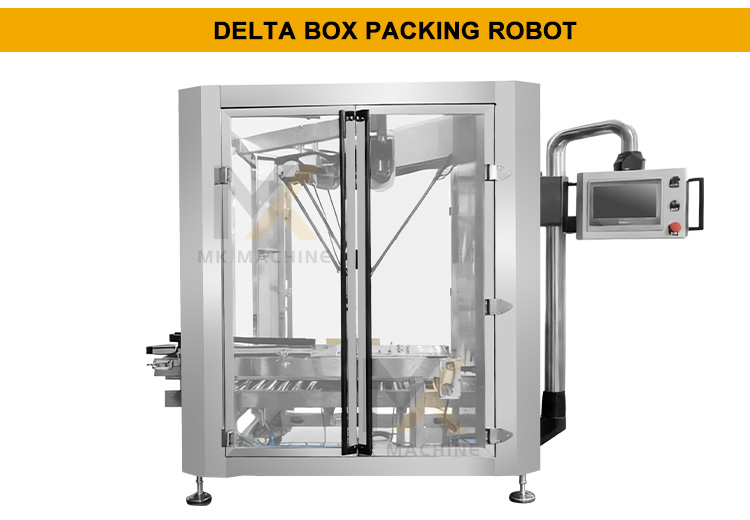

Delta Robot
Main Features
- The Delta robot adopts a three-axis parallel arm structure, which is synchronously driven by a servo motor. It has a small inertia and can quickly grab items and place them in the specified position.
- It can be installed on the top or side of the production line to save ground space and adapt to compact layout.
- It can be used with industrial cameras to achieve dynamic tracking and precise positioning.
| Axes |
3+1 |
| Arm Span |
800mm |
| Maximum Pick-up Height |
300mm |
| Rated Load |
3kg |
| Maximum Load |
5kg |
| Repeat Positioning Accuracy |
R ±0.1 |
| Power |
220V, 50Hz, 6KW |
| Machine Size |
2400(L)*1400(W)*2100(H)mm |
| Machine Weight |
700kg |

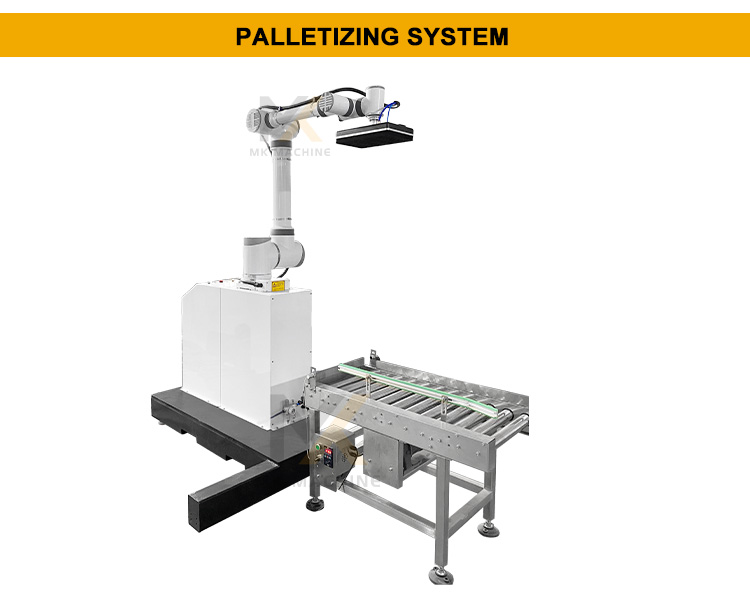

Collaborative Palletizer Robot Specifications
| Body Weight |
82kg |
| Effective Load |
20kg |
| Working Radius |
1525mm |
| Maximum Arm Span |
1730mm |
| Maximum Working Speed |
1.0m/s |
| Maximum Pallet Size |
1100*1100mm |
| Stackable Box Size |
L(200-500)*W(150-450)*H(150-400)mm |
| Power |
220V, 50/60Hz, 2KW |
Why Choose Our Packaging Solutions
Independent R&D Capability
We have a professional technical team that can develop new packaging equipment according to market demand.
Localized Supply Chain
Relying on the localized manufacturing cluster, the procurement cost of raw materials and parts is reduced, and the production cost of machines is lower.

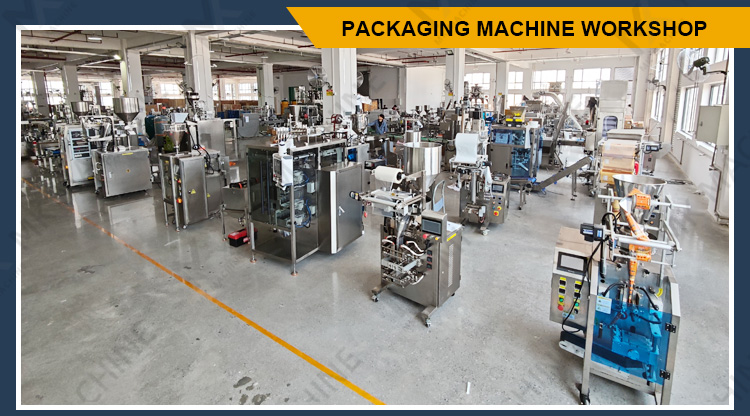

Strict Quality Inspection Process
The equipment undergoes multiple tests before leaving the factory to ensure operational stability and durability.
Brand Electrical Component Supplier
We have established cooperative relationships with brands such as Siemens, Inovance, Omron, Schneider, etc.
Frequently Asked Questions
How to find a solution suitable for my product?
Please provide your product details:
- What kind of product you have.
- The package size of your product.
How easy is it to operate packaging equipment?
As long as your packaging system isn't hyper-customized, the equipment is very easy to use! Most of our standard equipment does not require advanced technical knowledge to operate.
How much does packaging equipment cost?
Packaging machinery is highly customized to specific needs, so standard pricing is usually not practical. Pricing depends upon unique requirements, such as the products you want to package, target speeds, bag sizes, and process complexity.
Which machines are available in-stock?
If your packaging needs are standard and straightforward, you can choose an in-stock machine and get it delivered in just a few weeks. Please inquire to ask about our current inventory.
What is your after-sales service policy?
Our post-sales operations include:
- After finishing production, we debug the line, take photos and videos, and send them to you via email or messaging tools.
- After commissioning, we package the equipment in standard export crates for safe shipping.
- According to request, we can arrange engineers at your factory for installation, testing, and training.
- Engineers, sales managers, and service managers form an offline/online after-sales team to follow your project.
Can the production capacity of the machines be customized?
Yes, the production capacity and machine size of our entire packaging line systems can be customized to match your specific layout and target outputs.
