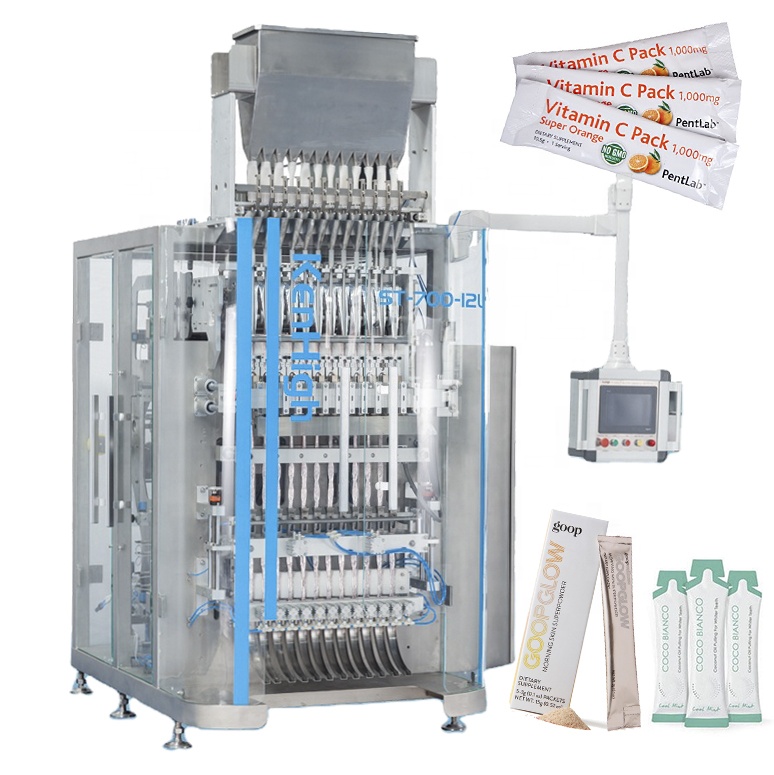

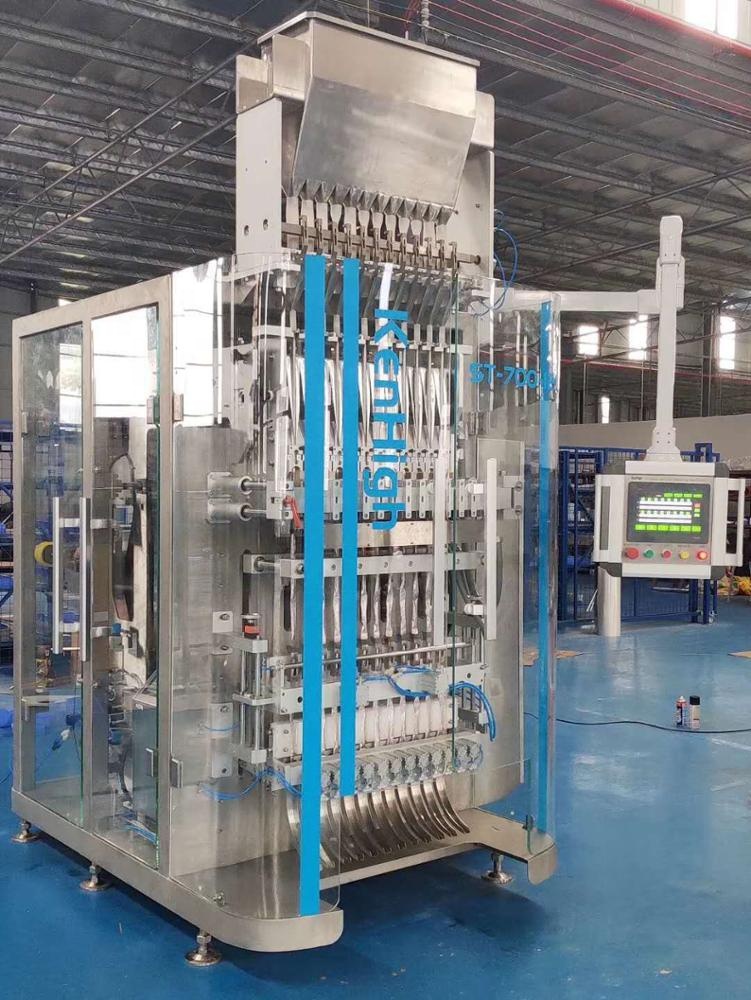

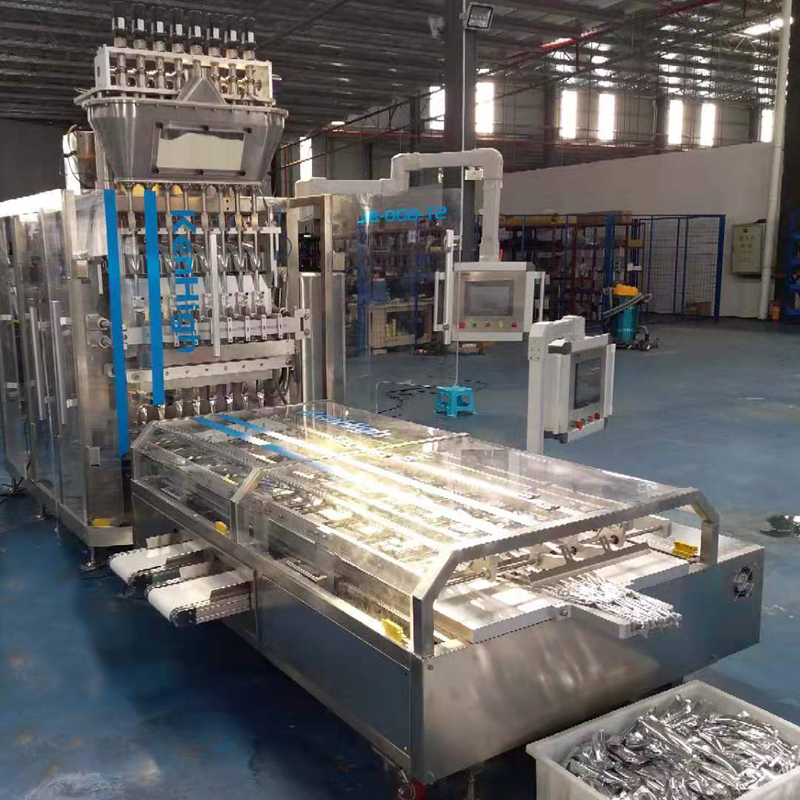

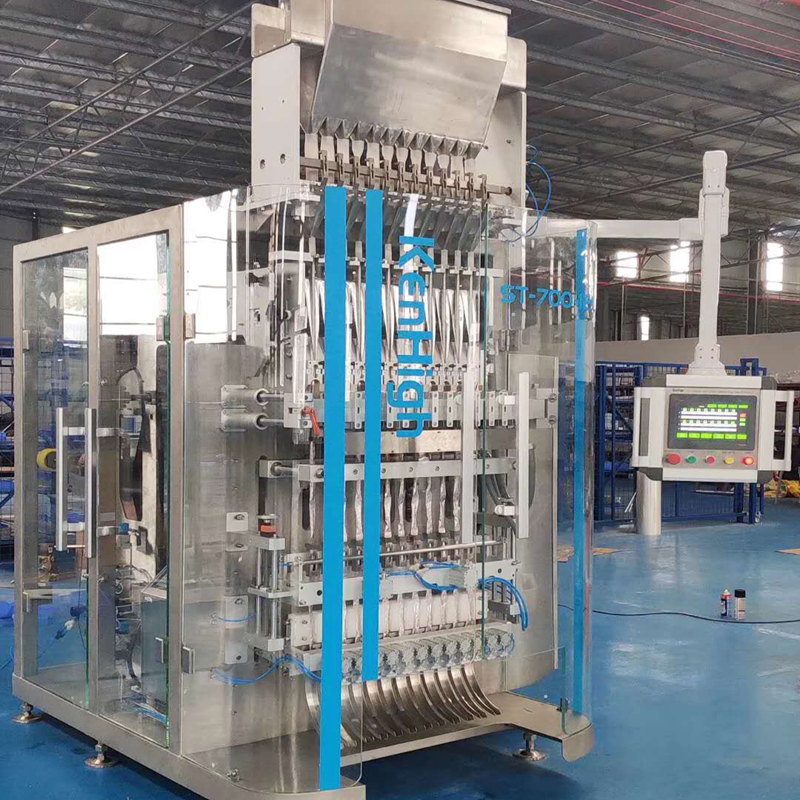

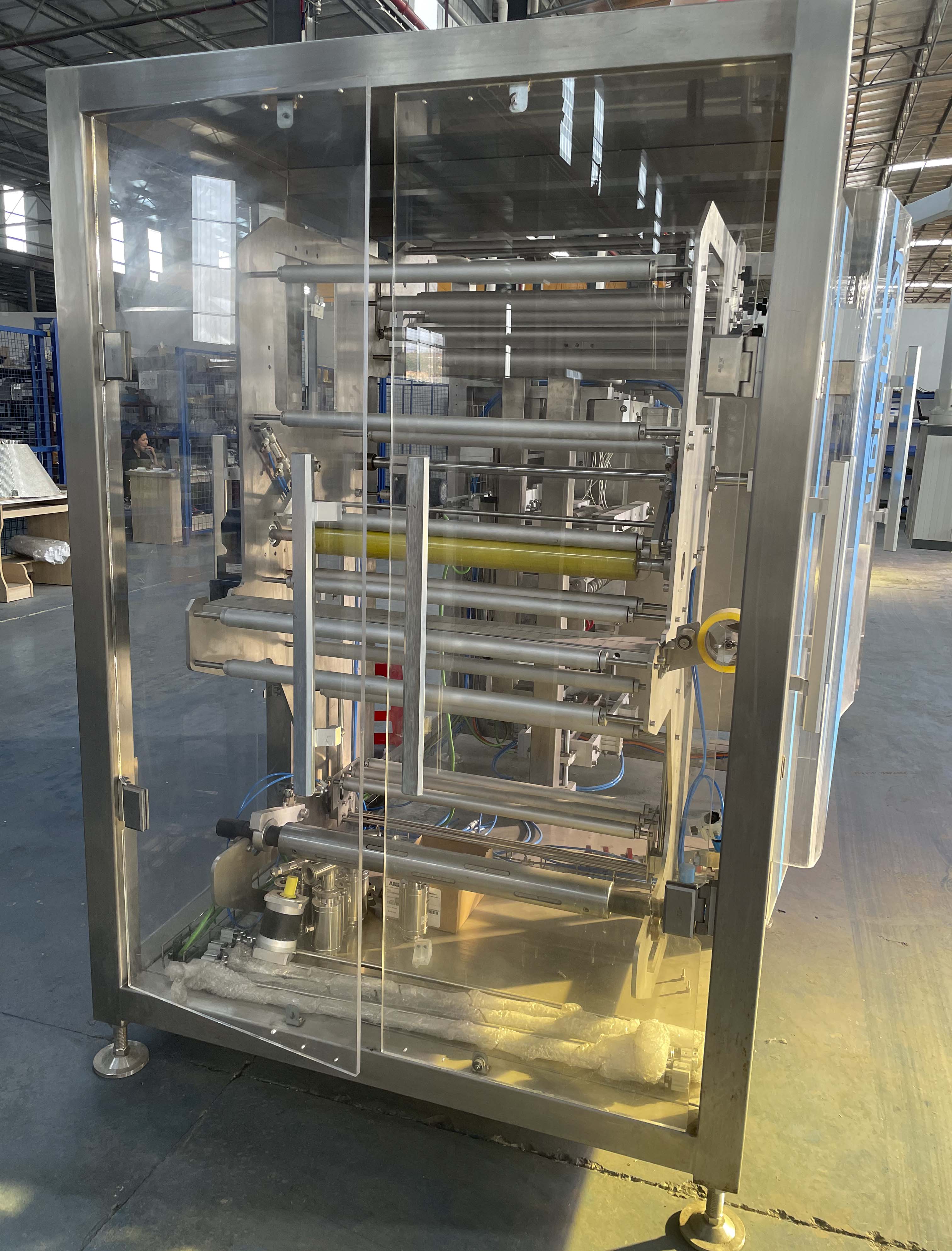

Stickpack multilane packaging machine series are the multiple columns packing machines, widely used in bag packaging with strip shaped bags. With different metering devices, it can package products of different physical states.
Matching with volumetric metering device, it can package small particle products with good fluidity.
Matching with screw metering machine, it can pack powder products.
Matching with complete set of metering pump, it can package liquid products.
Details Images

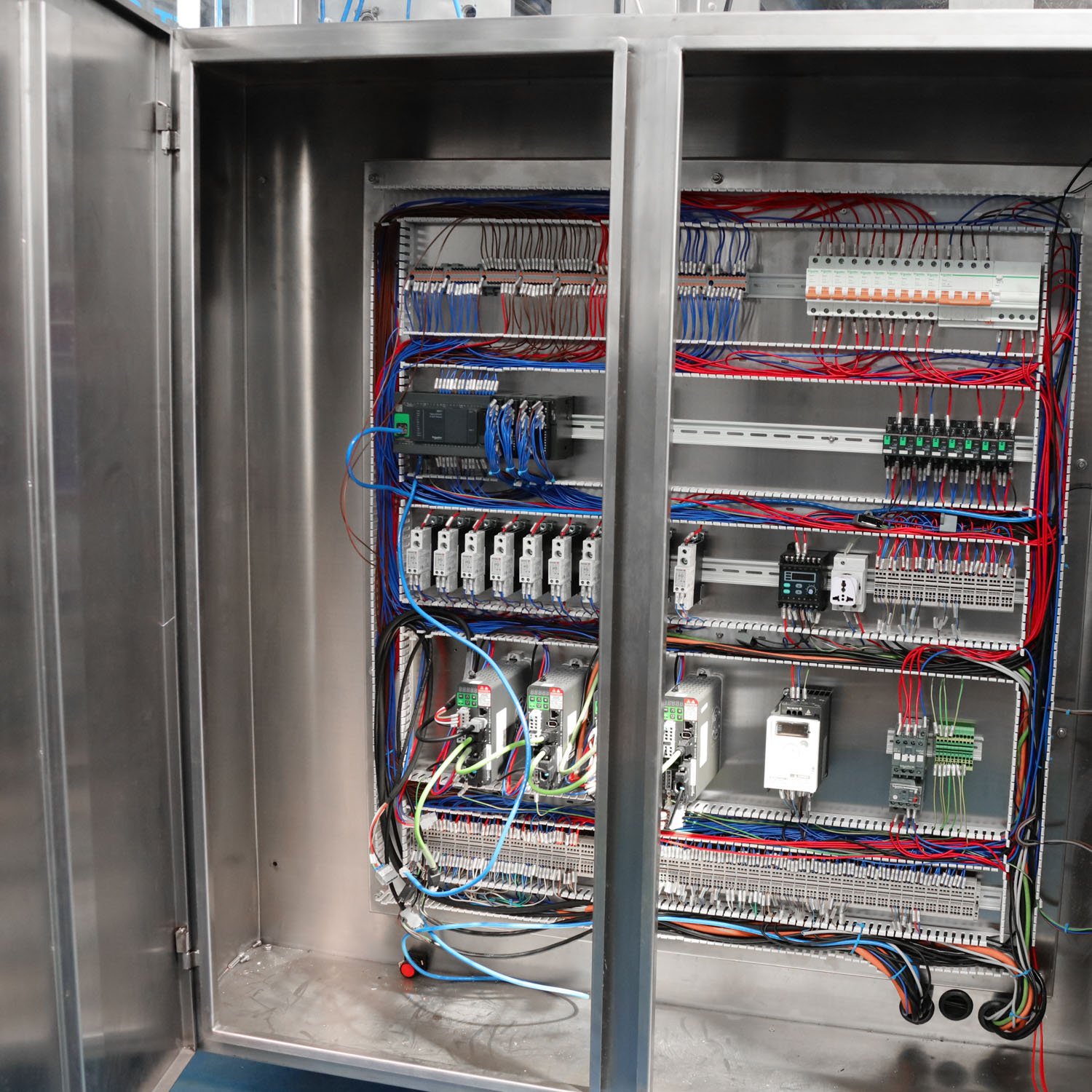

Circuit System Control Box
All the components used in this control box are famous brands, such as Yaskawa, SMC, Schneider, Carlo Gavazzi...etc, which ensure the filling machine runs well and has good performance during production.

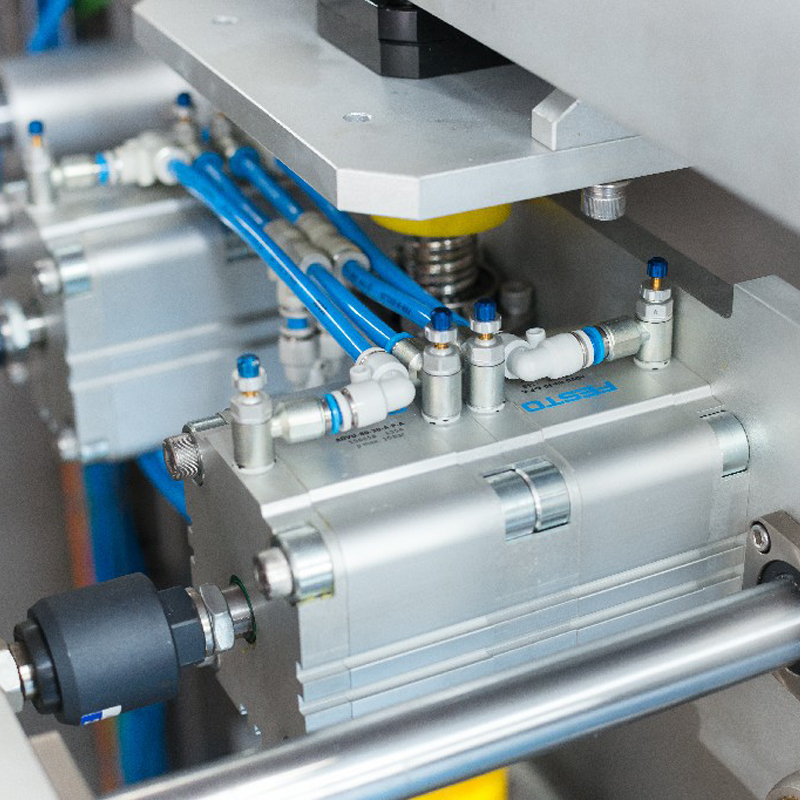

Cylinder & Sensor
The famous Germany imported FESTO Cylinders, solenoid valves, and other pneumatic components, together with SICK sensors, ensure stable performance and high accuracy of this machine.

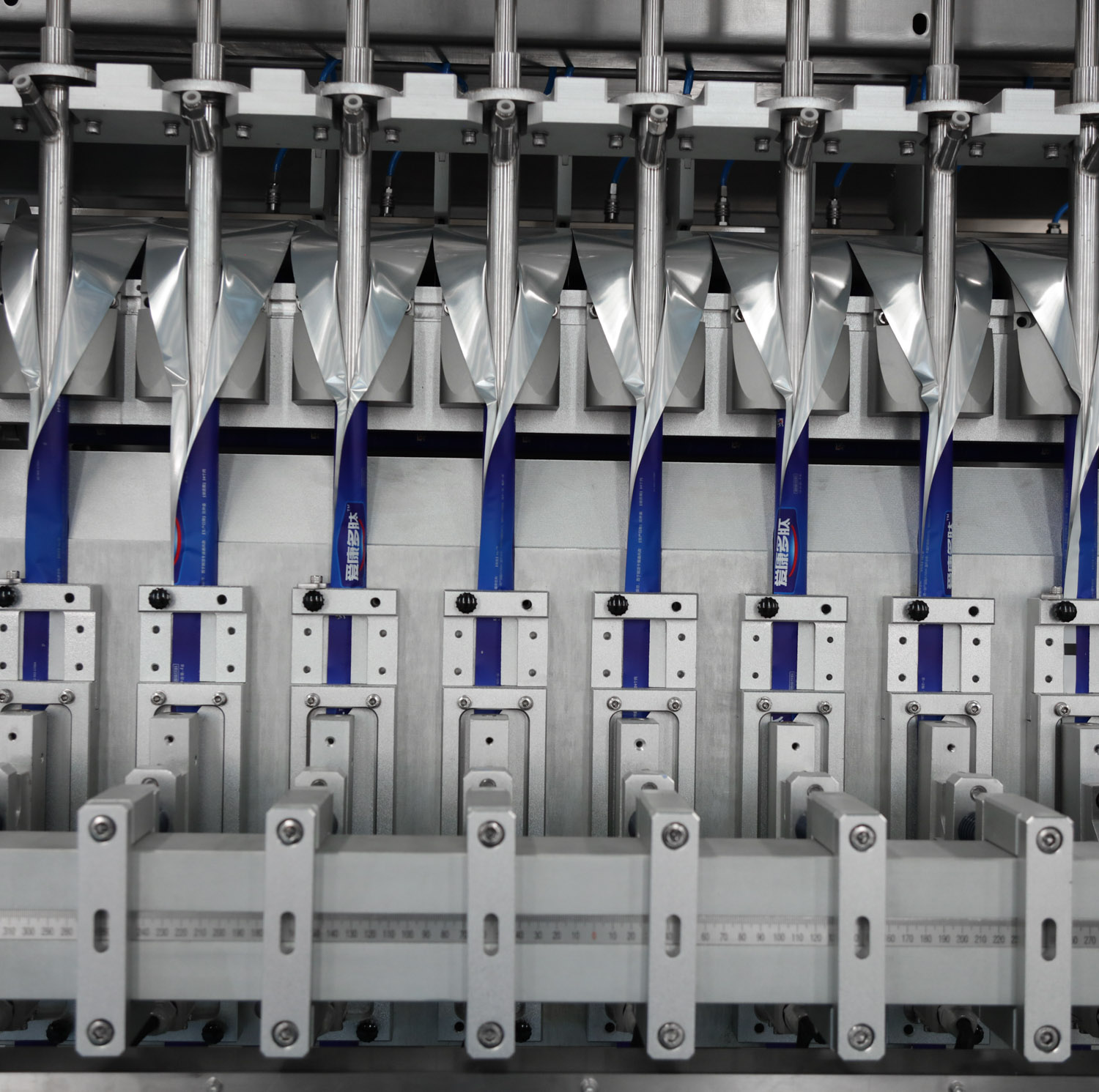

Bag Former
Bag length can be easily set on the touch screen. Packaging material feeding is driven by an Inverter motor, meaning the running speed can be adjusted at will. We can customize the bag former according to specific needs.

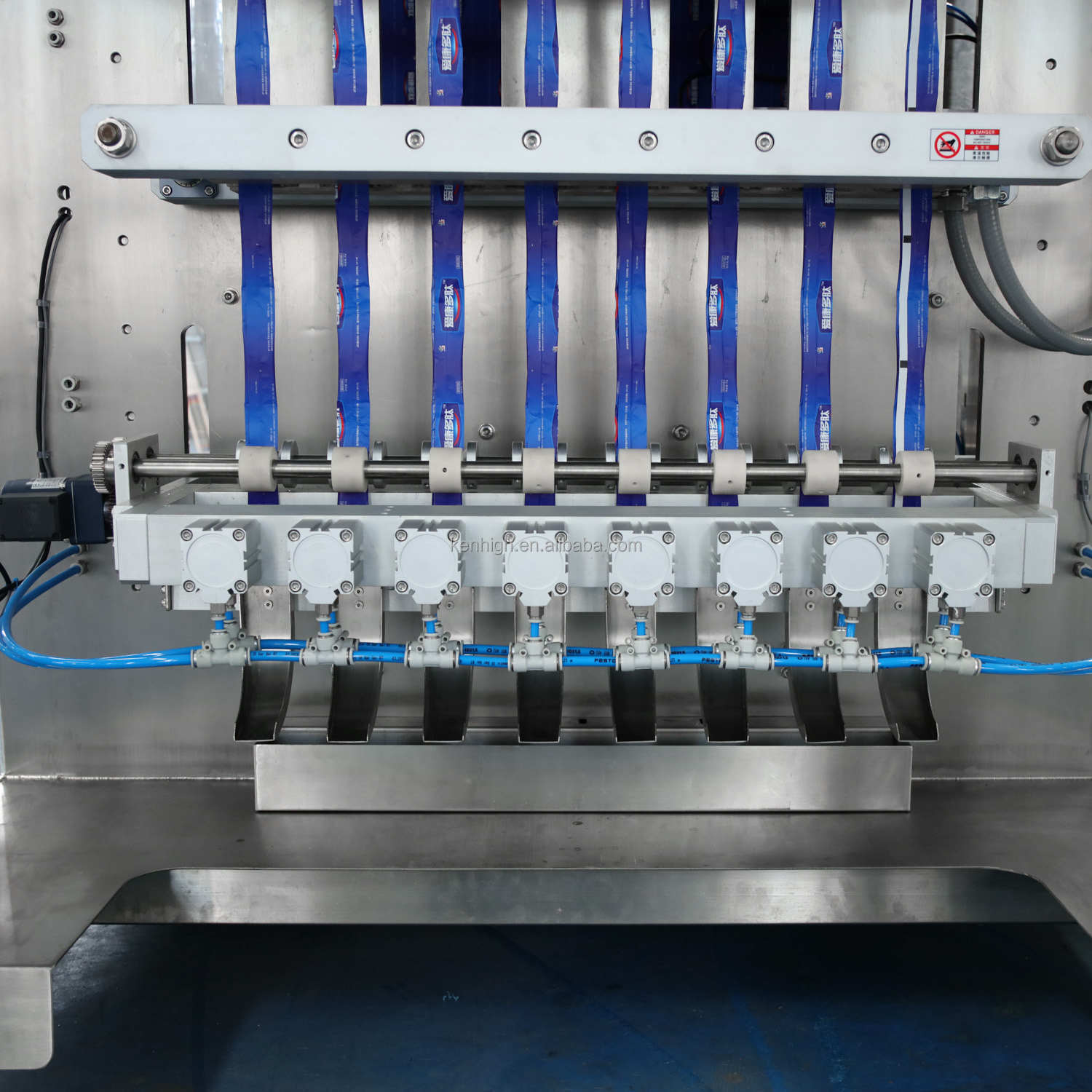

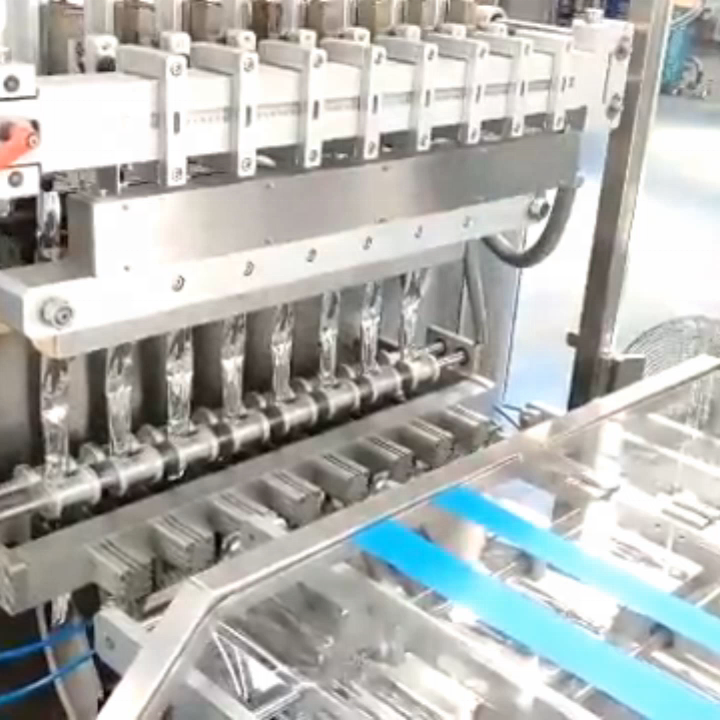

Sealing & Cutting
The servo motor drives the double belt to draw the plastic film, which makes the bag flat and beautiful. The cutting blade can be easily controlled and adjusted, which ensures efficient cutting speeds.

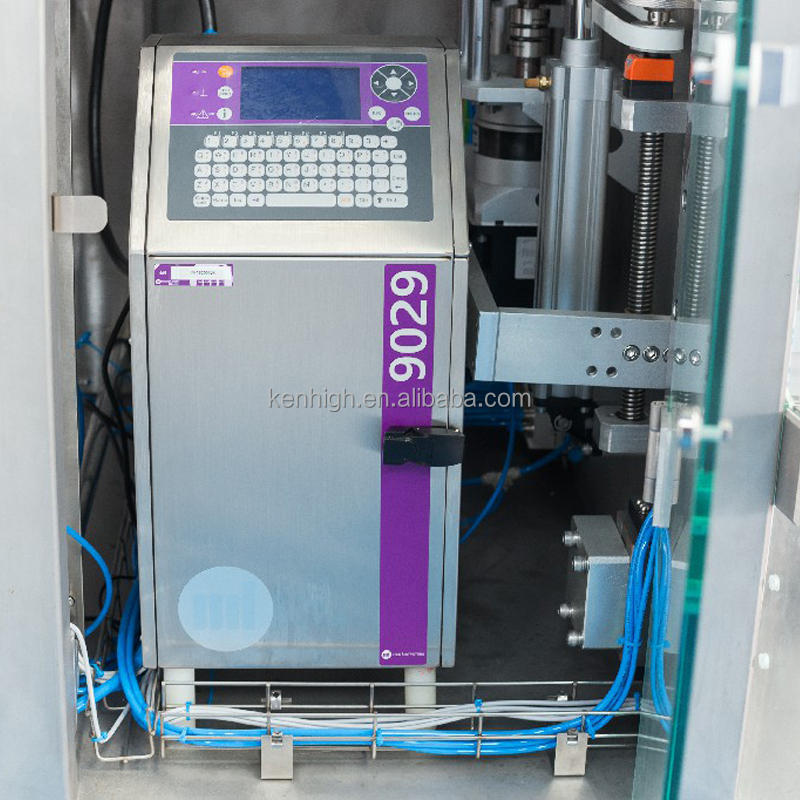

Date Printer
The date printer is available to be equipped on this packaging machine for printing production dates on bags. The famous Markem Imaje Inkjet printer ensures the date labeling is clear and persistent.

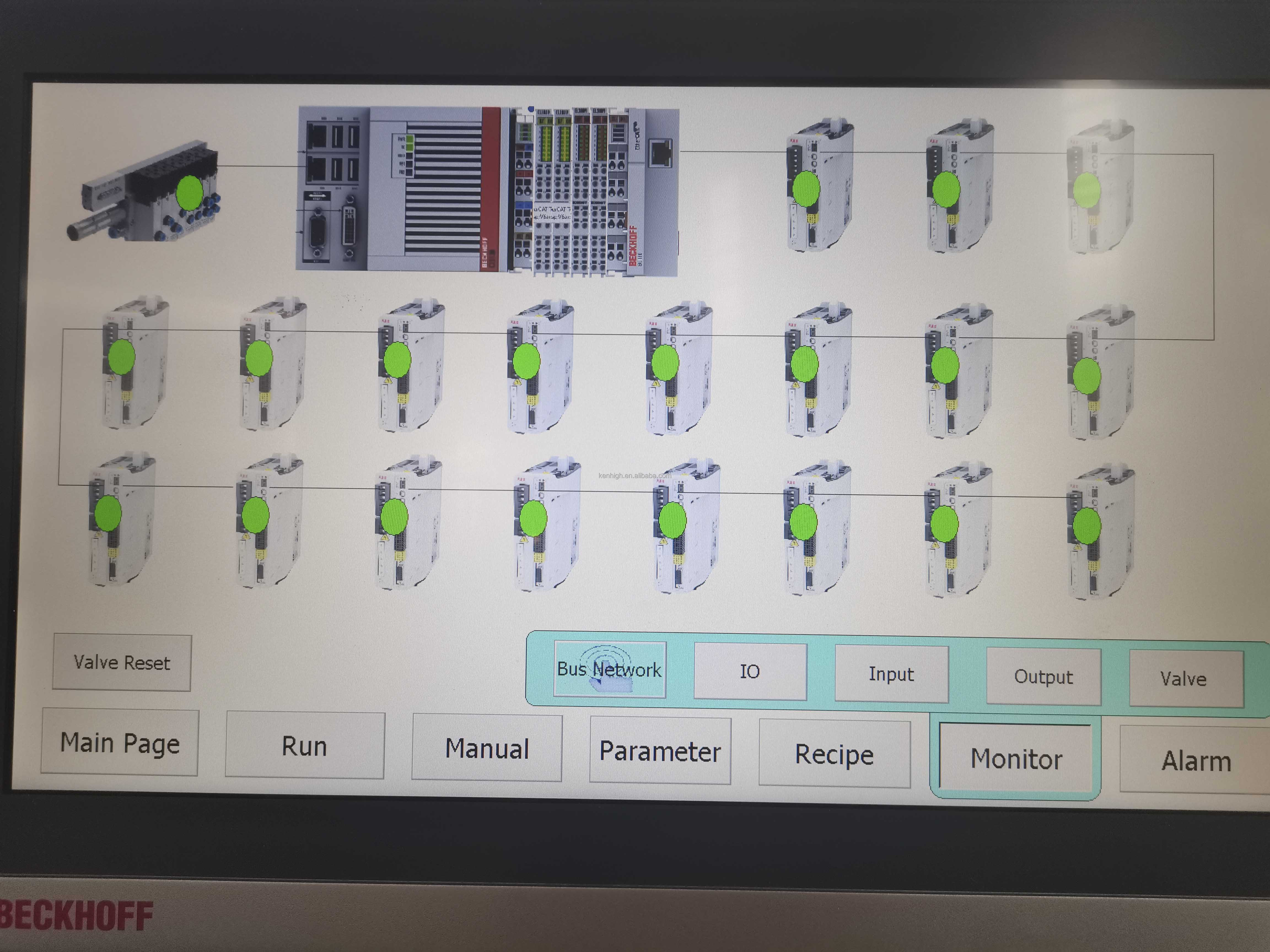

Touch Screen
The 10-inch touch screen (HMI) is connected to the PLC system. It is easy to operate, features high accuracy, and supports multiple languages for customers' choices.
Machine Parts Presentation
Model
Max Roll Film Width
Max Vertical Lanes
Min Bag Width
Max Bag Width
Bag Length
Net Weight
ST-400
400mm
10 lanes
16mm
45mm
180mm
1230KG
ST-500
500mm
12 lanes
16mm
45mm
180mm
1580KG
ST-700
700mm
18 lanes
16mm
45mm
180mm
1900KG
ST-800
800mm
20 lanes
16mm
45mm
180mm
2000KG
ST-1000
1000mm
26 lanes
16mm
45mm
180mm
2200KG
Features
01. European Technology
The stickpack multilane packaging machine originated from European technology. Developed by senior engineers with over 10 years of experience.
02. Premium Control System
Uses French Schneider (low voltage, PLC, touch screen, servo, etc.) with a 10.1-inch large touch screen, CAN bus control, and Ethernet communication.
03. High-End Pneumatics
Cylinders, solenoid valves, and other pneumatic components utilize the world-famous brand FESTO, imported from Germany.
04. Advanced Sensors
Sensors utilize the top brand SICK, imported from Germany, ensuring precise registration and operations.
05. Quality Bearings
Equipped with Japanese NSK rolling bearings, Japanese IKO joint bearings, and Japanese IKO ball linear bearings.
06. Igus Linear Bearings
Linear bearings use imported Igus engineering plastic bearings from Germany: self-lubricating, dust-proof, corrosion-resistant, and super wear-resistant.
07. Blasting Finish
The machine surface is treated using European standard surface blasting technology.
08. Stainless Steel Frame
The frame of the entire machine is built using SUS304 stainless steel, which offers high strength and corrosion resistance.
09. Solid Plates & Doors
The main mounting plate is laser-cut from a solid 20mm SUS304 stainless steel plate, and the machine doors are made of 12mm tempered glass.
10. Certified Quality
Our machines are designed and manufactured according to EU standards and meet the requirements of EU CE certification.
11. Smart Integration
Features solenoid valve island IO integrated communication control for clean wiring and efficient diagnostics.
Application

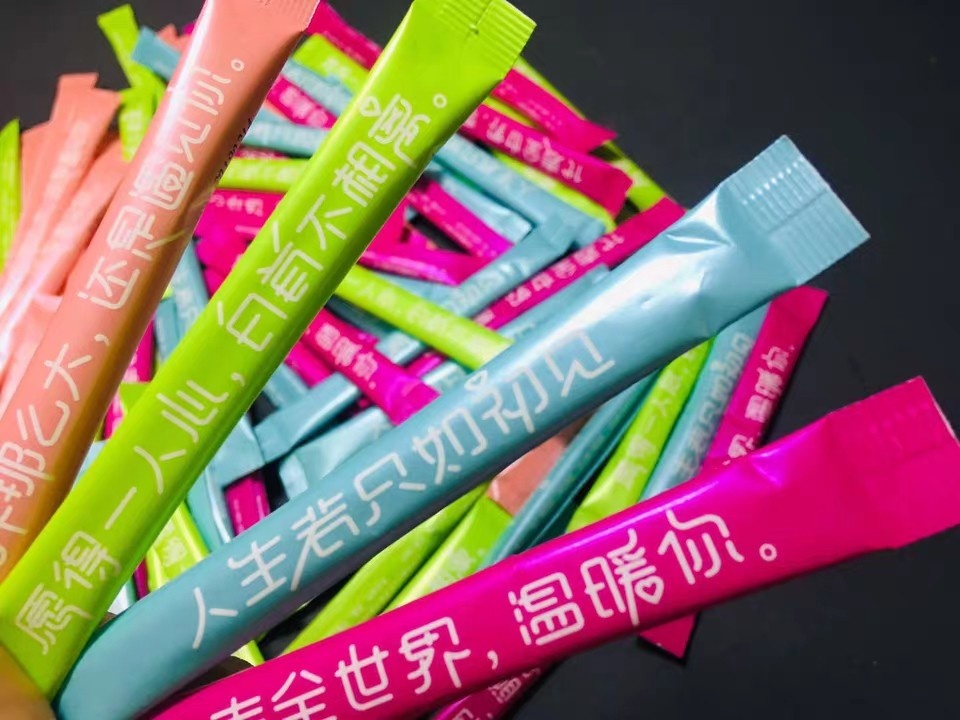

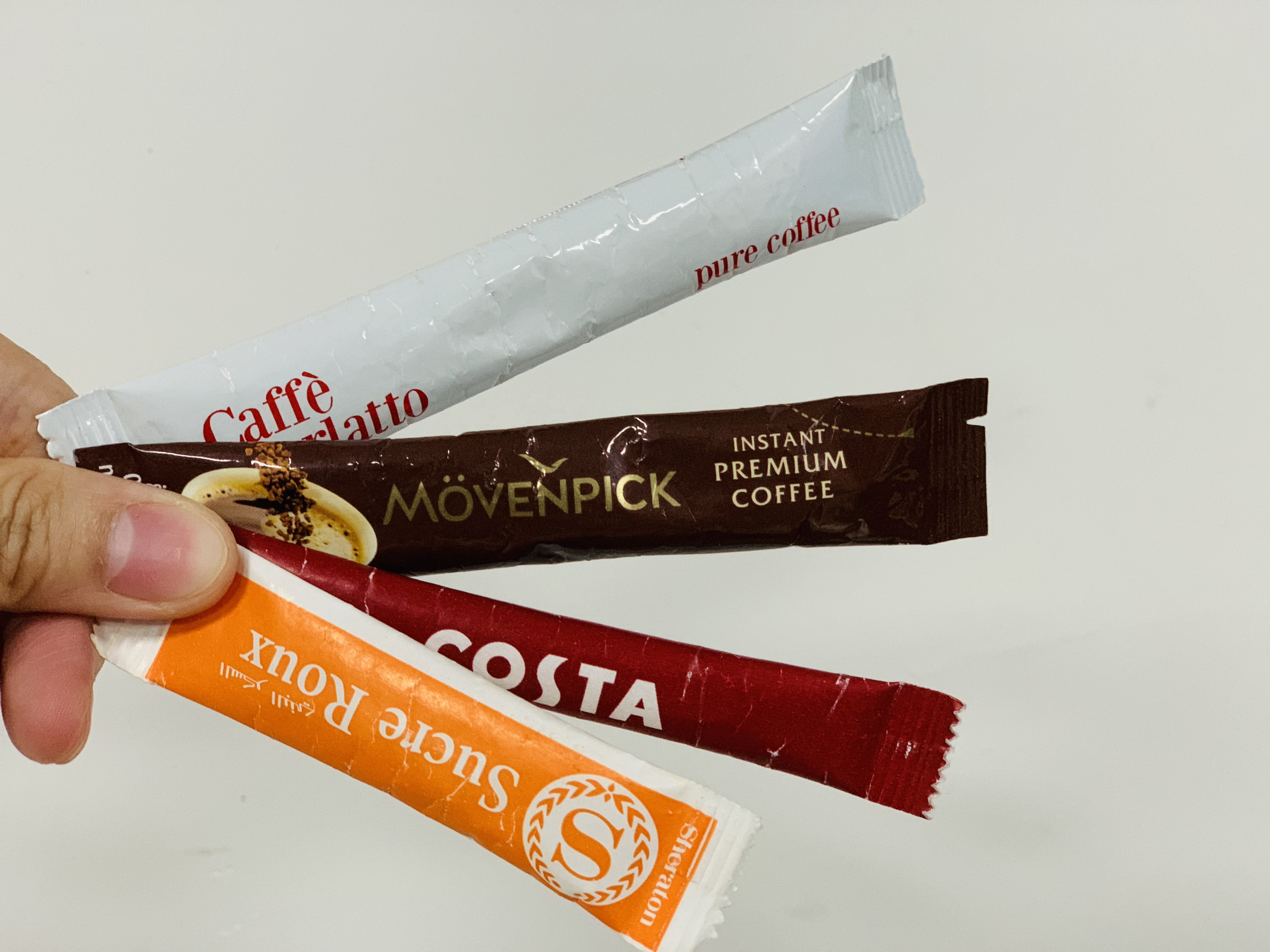

Stick pack machines can easily form, fill, and seal stick bags. They are perfect for single-serving mixes and powders such as coffee, salt, drink flavors, sugar, spices, albumen powder, juice powder, yeast, probiotics, and more.

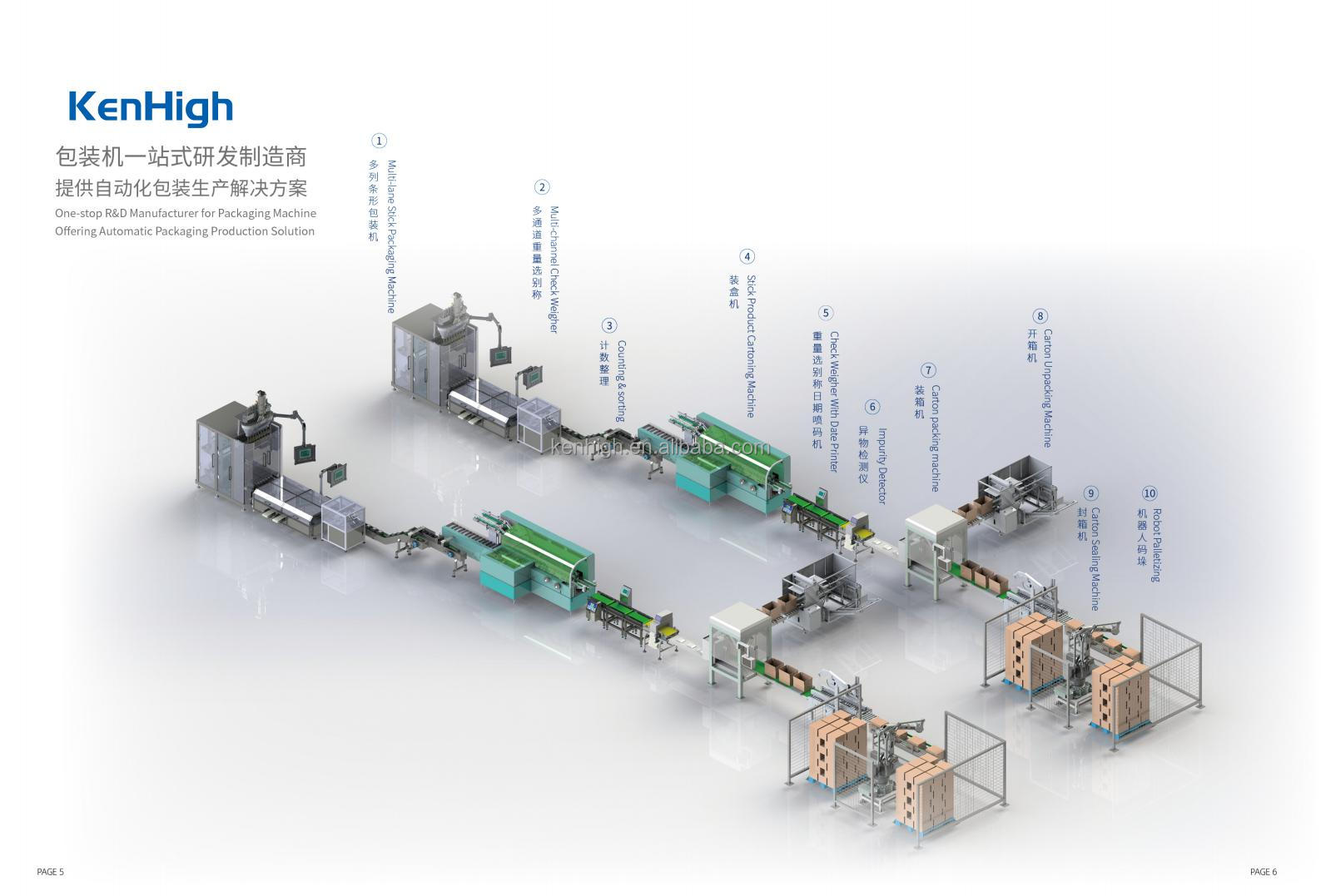

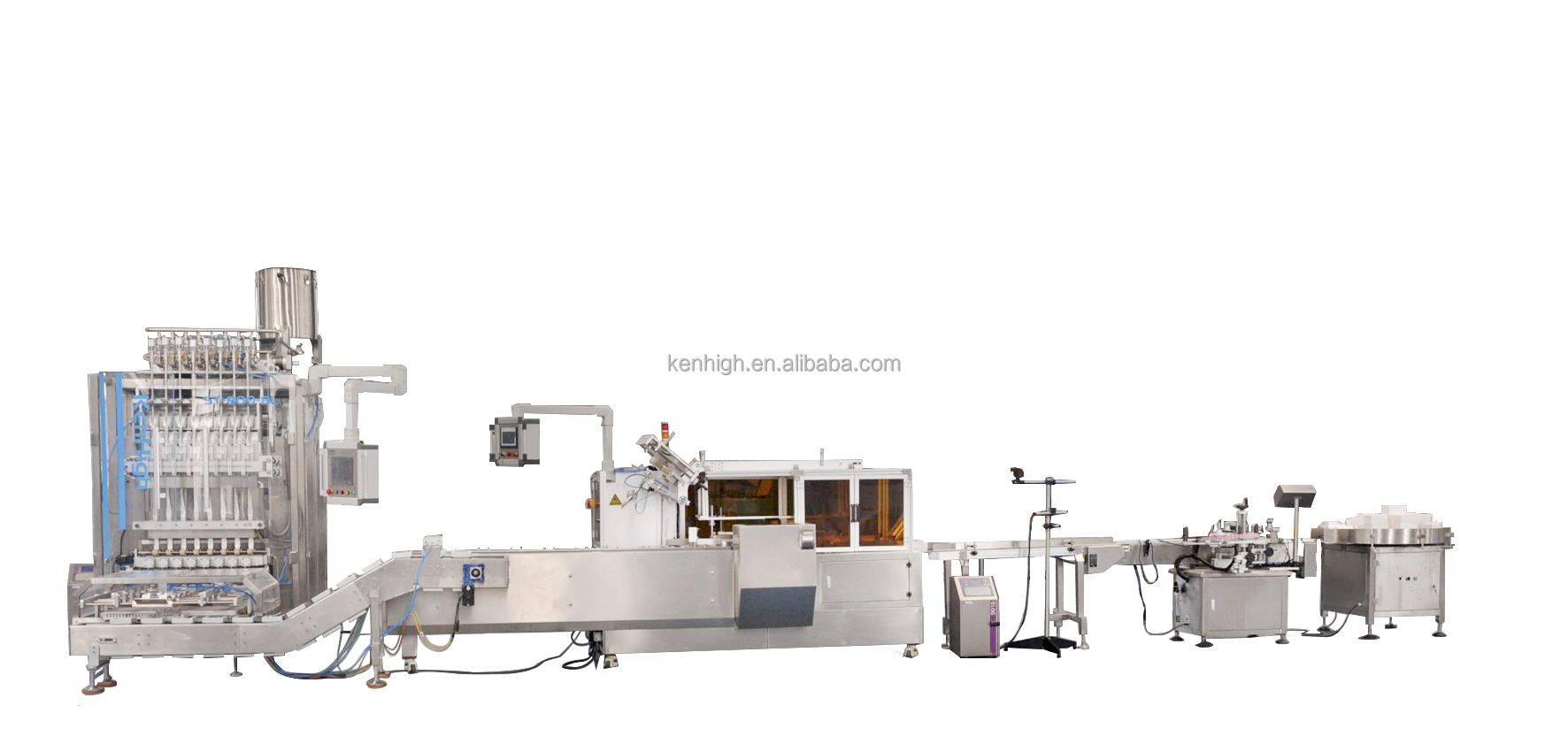

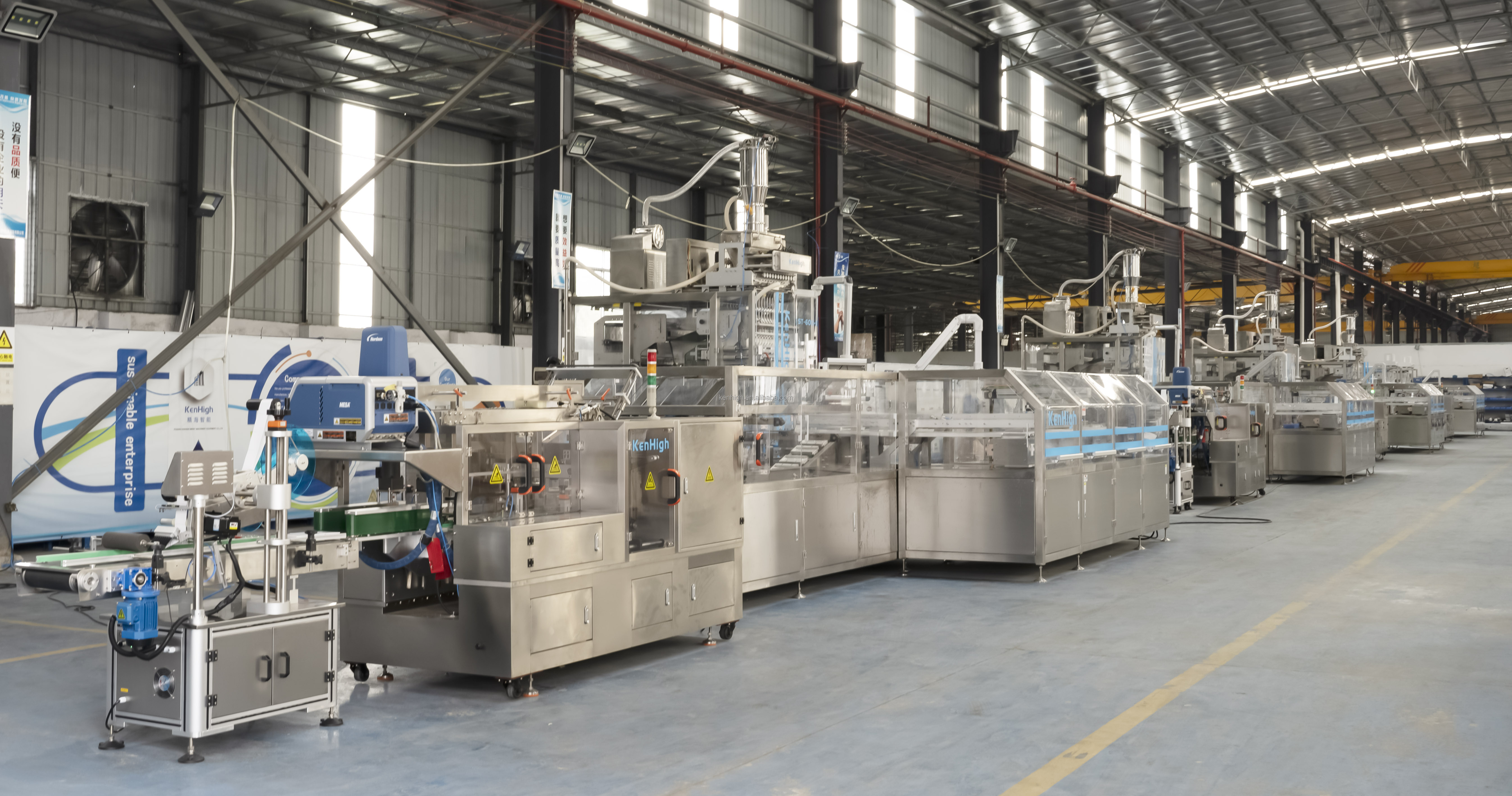

Turnkey Solution
We can supply full turnkey solutions including cartoning, case packing, and flexible packaging for our customers.
Why Choose Us

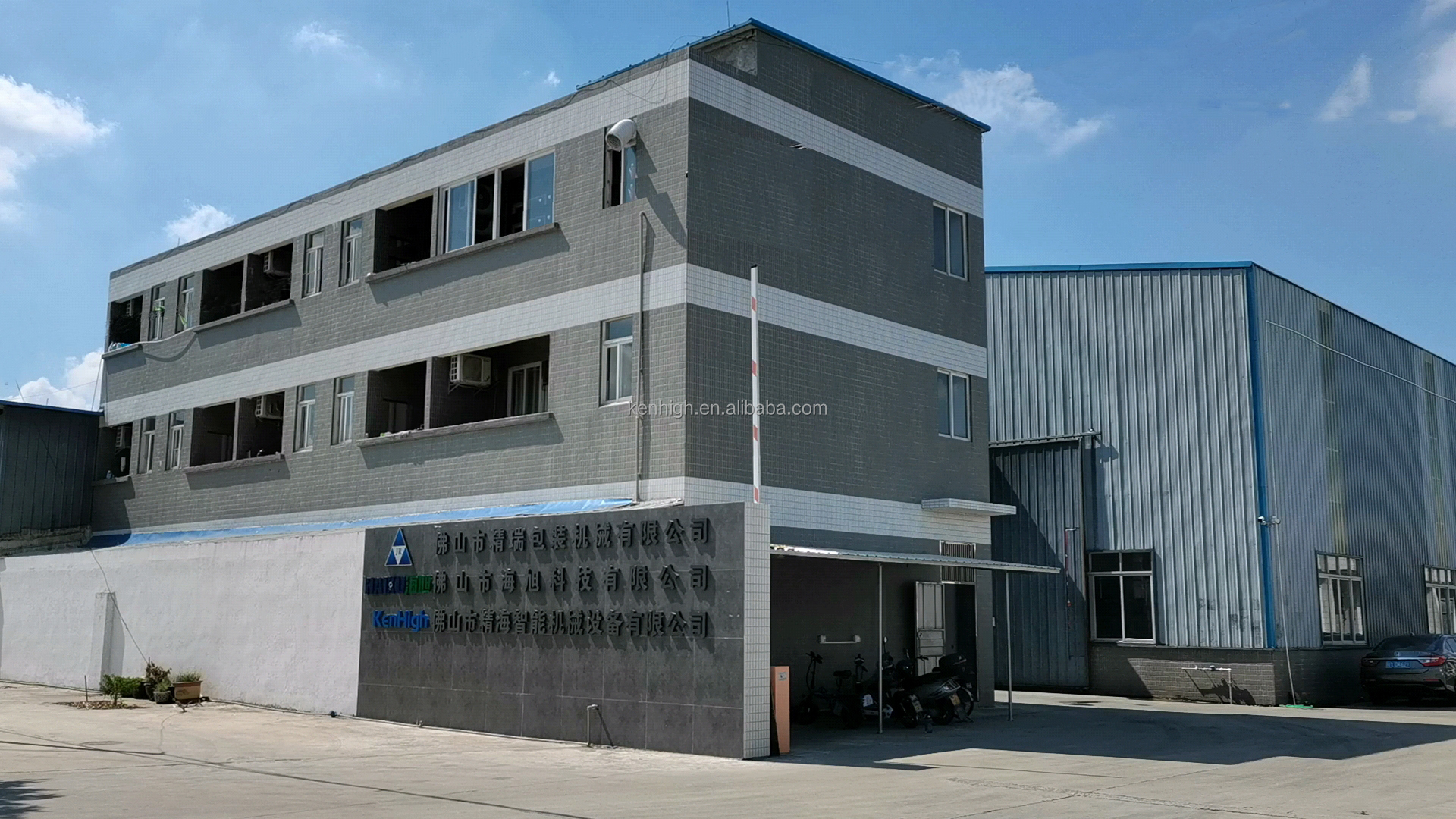

Professional Factory
With rich experience and superior service.

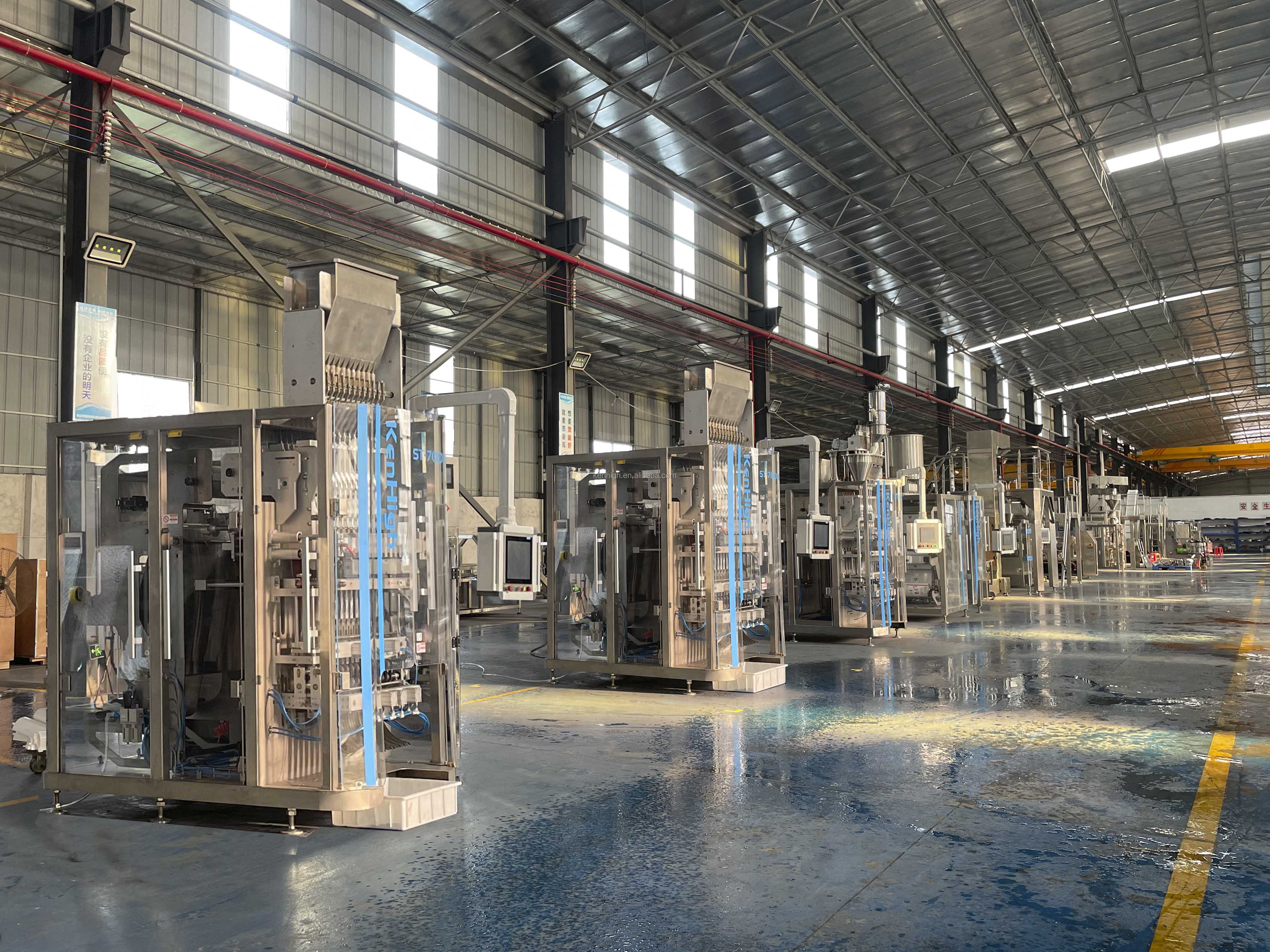

Rich Experience
Over a decade of packaging engineering expertise.
OEM/ODM Support
Quality assurance with competitive prices.
We are a professional packaging equipment manufacturer that combines design, manufacturing, installation, and after-sales services for food, medicine, chemical, hardware, and other industries. We concentrate on R&D, manufacturing, installation, commissioning, and technical services, relying on technology to provide packing equipment solutions for customers. Our daily goal is to create faster and more efficient machines that are tailored to the needs of product packaging.
Our Service
Manual books, videos, and online support for machine installation, adjusting, setting, and maintenance are available for you.
One-year guarantee for the entire machine, and a two-year guarantee for electrical parts. During the warranty period, if any parts break (non-man-made), we will replace them with new ones free of charge.
Telecom, online, or live stream communication is readily available if any problems arise and you cannot find a solution.
Skilled engineers and technicians can be dispatched to your country for on-site services if the necessary expenses are covered.
Certification
Packing & Shipping
FAQ
What does your after-sales service include?
We provide manual installation books, video support, online technical support, and also dispatch engineers overseas for on-site services if needed.
Are you a factory or a trading company?
We are a professional factory established in 2011, located in China. We have specialized in researching and producing high-quality packaging machinery for more than 10 years.
What are your accepted payment methods?
We accept T/T (telegraphic transfer) directly through our bank account, online trade assurance services, Western Union, or cash.
Do you provide customized machinery services?
Yes, we can customize and design the machines according to your specific requirements (such as packaging materials, power specs, filling types, bag styles, and layout constraints), utilizing our professional engineering expertise.
What is your factory's standard delivery time?
Because our packaging machinery is large, highly integrated, and complex, it usually takes approximately 3 months to manufacture, program, test, and ensure a high-quality machine is ready for delivery.
Do you provide installation services?
Yes, we provide detailed written instructions and setup videos. If required, we can arrange for our technical engineers to assist with installation and commissioning locally at your facility, providing pre-sale and after-sales support.
