GH280Y560Y Industrial Equipment New Multi-Lane 3-Side Sealing Sachet Liquid Packing Machine
1 / 1
GH280Y560Y Industrial Equipment New Multi-Lane 3-Side Sealing Sachet Liquid Packing Machine

GH280Y560Y Industrial Equipment New Multi-Lane 3-Side Sealing Sachet Liquid Packing Machine

Send Inquiry

Product Description

Product Description

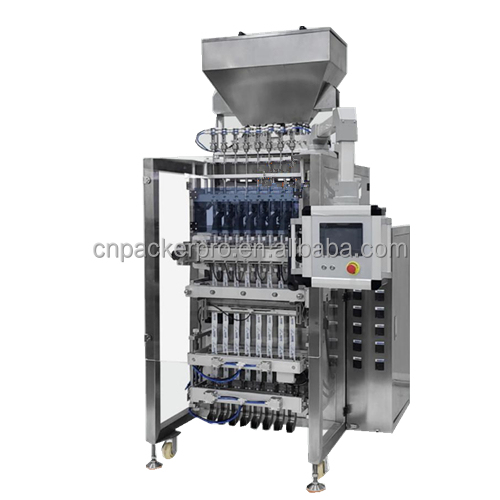

Multi-lane Packaging Machine
  • State-of-art but simple design, easy to operate and maintain.
  • Automatic measurement, bag making, filling, sealing, slitting, batch number printing, slitting, and easy tearing.
  • Hygienic structure where the product contact part is made of stainless steel, ensuring a safe and hygienic packaging process.
  • Unique Self Diagnostics feature results in ease of operation and fewer setting downtimes. Depending on the sachet size, up to 10 lanes can be processed.
  • Close down type mechanism, defending dust into the inside of the machine.
  • The optical tracking system is adopted to ensure the automatic double-sided pattern of the bag and has an automatic counting function.
  • The actuators such as vertical seal, horizontal seal, packing, batch number, dashed line, horizontal seal, etc. can be adjusted through the color touch screen.
Main Features
01. All-in-One Automation Automatically complete all tasks such as measurement, bag making, filling, sealing, batch number printing, cutting, and counting.
02. Multi-Line Slitting Automatic slitting film system, supporting multi-line row and bag sealing at the same time.
03. Servo Running System Servo film running system with pneumatic control for horizontal sealing, accurate positioning, remarkable performance, and beautiful packaging.
04. Photoelectric Detection The dual light source photoelectric detection system is stable and reliable to ensure the integrity of the packaging bag.
05. Intelligent PLC Control Intelligent PLC control system, ensuring stable operation of the machine alongside convenient and fast operation.
06. Safety & Protection A variety of automatic alarm protection functions can effectively reduce the loss of materials and ensure work safety.
07. Multilingual Touch Screen Use a touch screen to set parameters easily, supporting multiple languages for global operators.
Specification
Model KY560Y
Lane number 3-10 lanes
Filling Method 1. Piston pump  2. Peristaltic pump  3. Ceramic pump  4. Rotary pump
Capacity Max. 50 cycle/min
Bag size L: 50-180mm; W: 25-95mm
Film width & thickness Max. 560mm, 0.07-0.10mm
Sealing type 3 side sealing
Cutting type 1. Straight cutting;  2. Zig zag cutting;  3. Round cutting;  4. Die-cut
Air & Power 0.8Mpa, 0.8m³/min; 5.5kw
DIM & WT 1685*1300*2005mm; 550kg
Packing & Delivery
Packing and Delivery
Frequently Asked Questions
How many lanes can the KY560Y packaging machine run simultaneously?
Depending on your specific sachet size, the KY560Y can process anywhere from 3 up to 10 lanes simultaneously to optimize production capacity.
What filling methods are compatible with this machine?
The system is highly versatile and supports four main filling options: piston pumps, peristaltic pumps, ceramic pumps, and rotary pumps to suit different liquid and paste products.
What materials are used in the construction of the machine?
All parts that come into direct contact with the packaging product are made of high-quality stainless steel, ensuring a hygienic and safe packaging process that conforms to food and pharmaceutical safety standards.
What cutting options are available for the sachets?
This machine offers multiple cutting designs including straight cutting, zig-zag cutting, round cutting, and customized die-cut styles to meet your specific packaging aesthetic requirements.
How does the optical tracking system improve packaging quality?
The optical tracking system automatically aligns the double-sided pattern on the bags. This ensures precise positioning, clean cuts, and accurate bag dimensions, while the integrated counting system tracks total outputs automatically.
