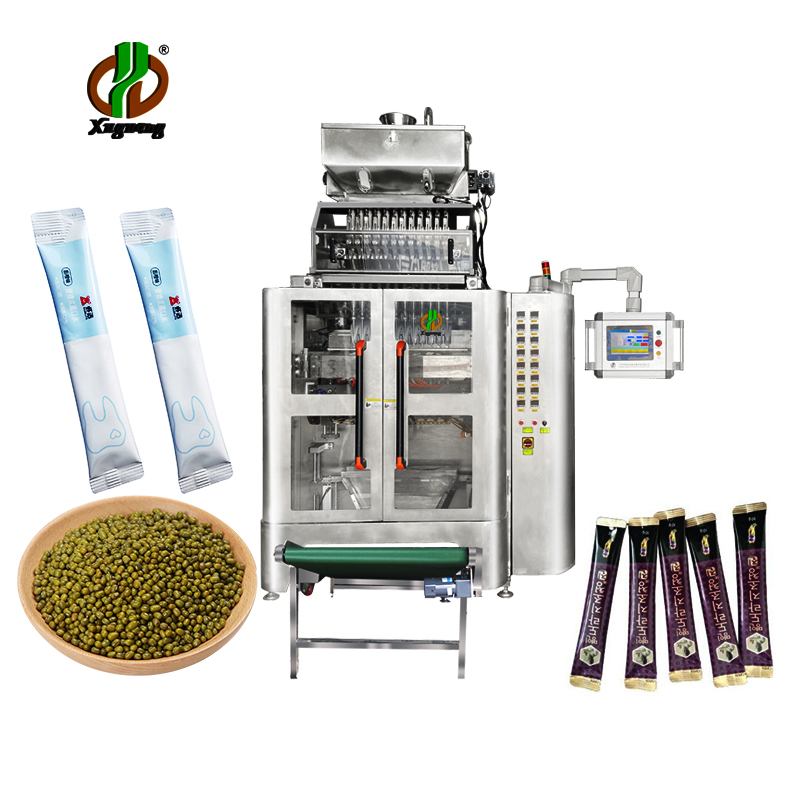

Xuguang Automatic Multi Lanes Granular Back Seal 1-30g 4/6/8/10/12 Lanes Sachet Packing Stick Filling Sealing Packaging Machine

Product Description

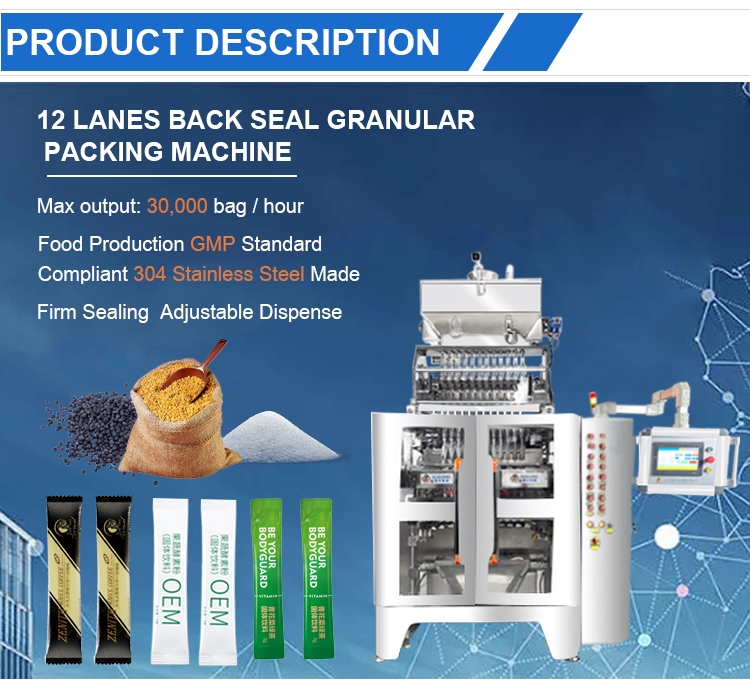

Multi Lanes Granule Packing Machine
Machine Name Multi Lanes 4/6/8/10/12 Lanes Granule Packing Machine
Model DXD-KB-4/6/8/10/12
Application Food, Medicines, Daily necessities, Healthcare, Cosmetic, Hardware, Chemical etc. industries. Packaging for any granules like Salt, Sugar, Pepper, Grain, Corn, Seeds, Bean, Silica Gel, Dessicant, Cereal, Oat, Flakes, Nuts, Almond, Medicines, Solid Instant Drink Granules, Herbal Extract, 3 in 1 Coffee, Instant Coffee, Chinese Herbs Granules etc.
Measuring Range 0.5-30g
Machine Functions Automatically weighs products, makes pouch bag, fills bags with weighed products, heat-seals bag edges, cuts off, prints dates, and counts etc.
Bag Type Back Seal Pouch / Stick Bag
Notch Zigzag notch (Flat notch, Round notch available)
Bag Size Width: 20-40mm, Length: 20-160mm
Total Film Width 750mm
Film Application Aluminum Film, PE Composite Film, Non-woven Film, Paper-plastic Film etc.
Measuring Mode (Micro) Volume cup
Packing Speed 4 Lanes: 120-180bpm, 6 Lanes: 180-270bpm, 8 lanes: 240-360bpm, 10 lanes: 300-450bpm, 12 lanes: 360-500bpm
Machine Material Food Grade Stainless Steel 304
Control System PLC Control System

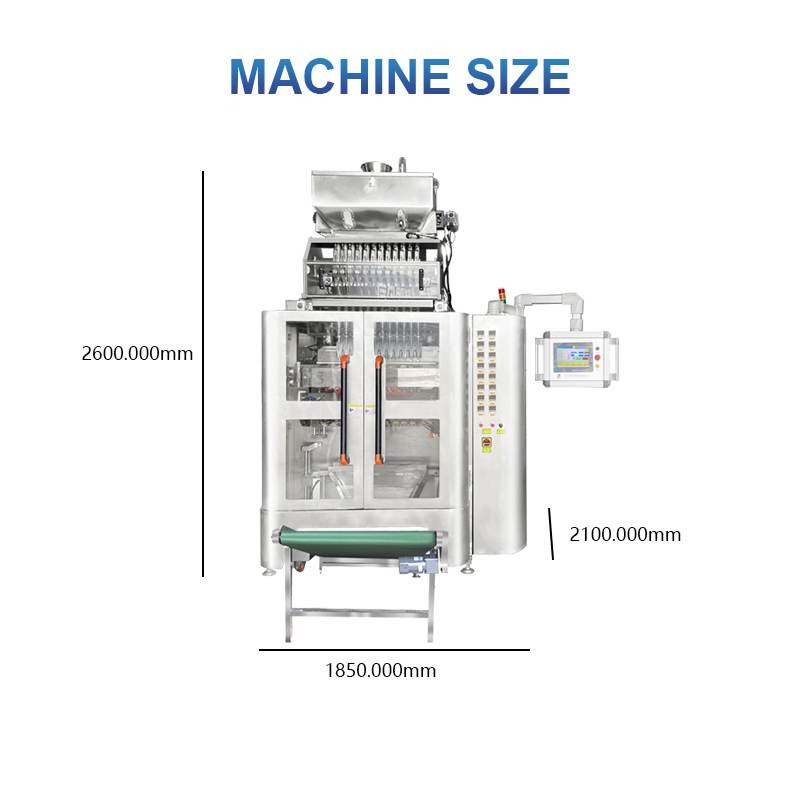

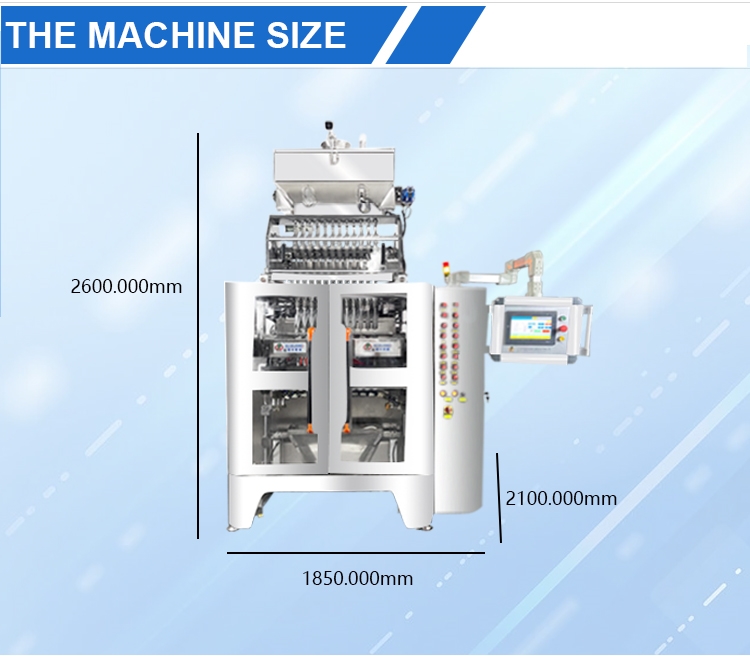

Machine Dimension 1850 (L) x 2100 (W) x 2600 (H) mm
Net / Gross Weight 800 / 900KGS
Total Power 4.5KW
Voltage 380V / 50HZ
Air Source 0.6Mpa, 0.25m3 / min
Motor Servo Motor and Drive
Certificate CE

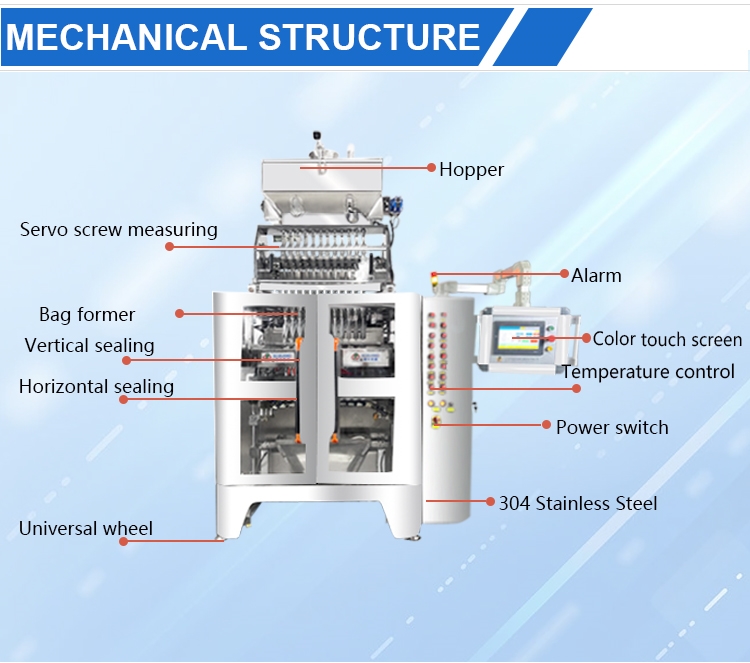

Granule Packing Machine Detail 1 Granule Packing Machine Detail 2 Granule Packing Machine Detail 3 Granule Packing Machine Detail 4 Granule Packing Machine Detail 5 Granule Packing Machine Detail 6 Granule Packing Machine Detail 7 Granule Packing Machine Detail 8

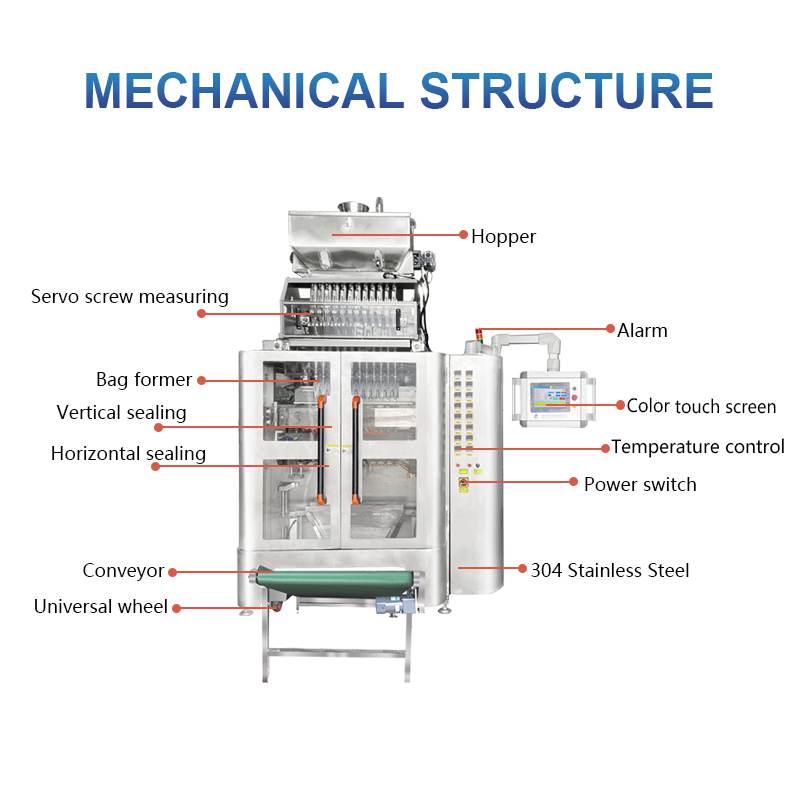

Packing Machine Structure 1 Packing Machine Structure 2 Packing Machine Structure 3 Packing Machine Structure 4 Packing Machine Structure 5

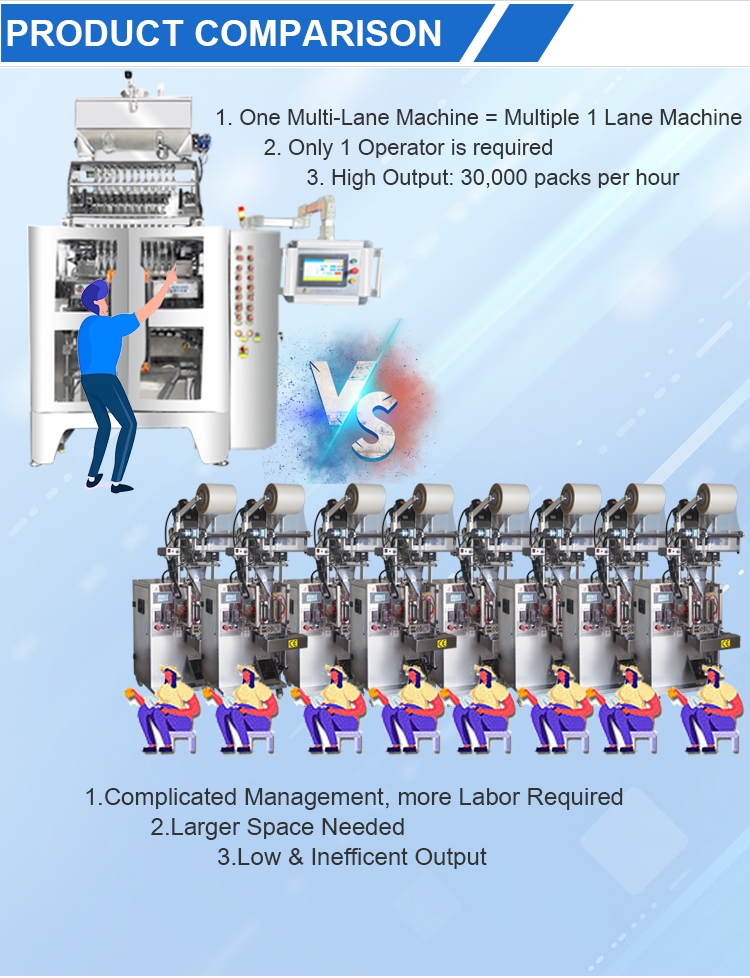

Product Machine Comparison
Our Machine Advantages

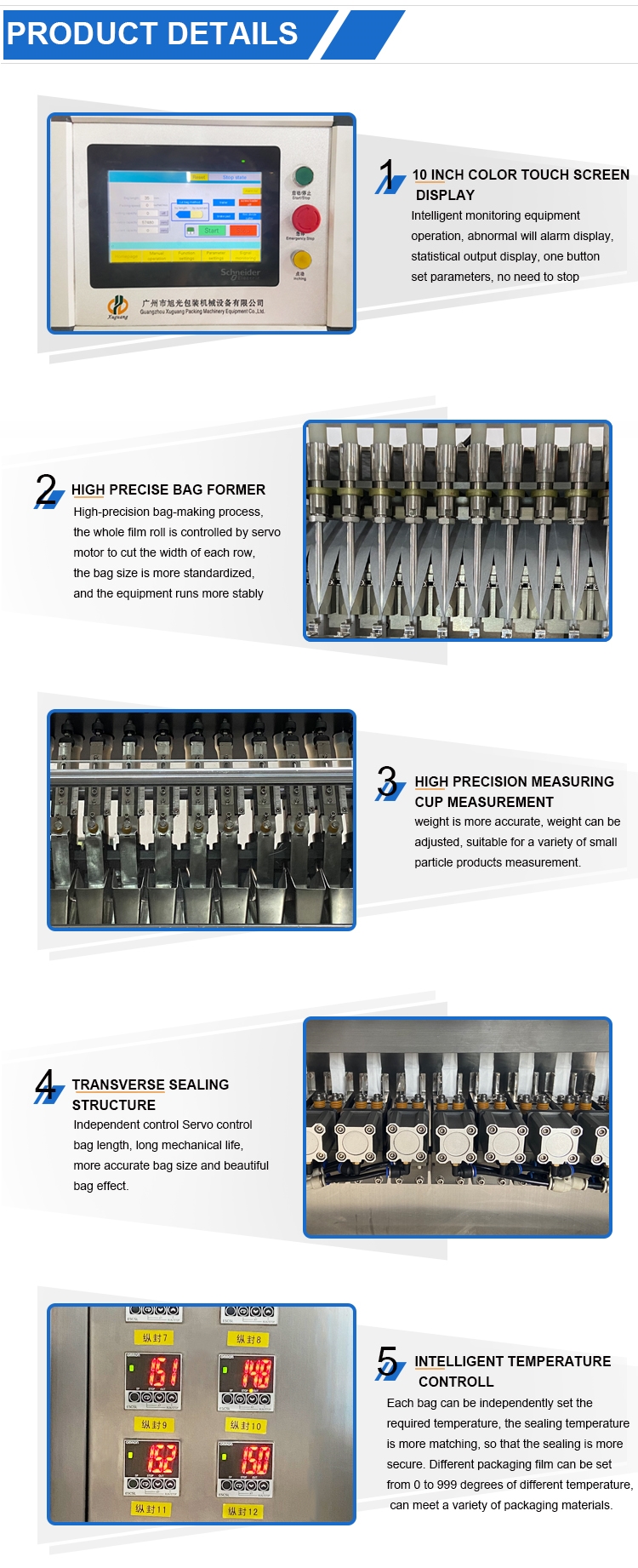

  • Imported PLC touch type 10 inch large screen.
  • Specially designed bag maker, stable bag pulling, without tilting or deviation.
  • Use precise measurement tools, up to ± 0.2.
  • The overall use of 304 stainless steel and the installation and composition of imported components, with a service life of 8-10 years.
  • The intelligent film loading device adopts multiple film rolling shafts, ensuring stable film feeding, smooth film pulling, and no wrinkles.
  • Intelligent alarm system, if a malfunction occurs, the screen will display, making troubleshooting easier.
  • Adopting a temperature control meter imported from Japan, with extremely high stability.
  • Use a precision edge cutting punch to cut bags without burrs or wire drawing.
  • Before shipment, use similar products to test the machine to ensure it is 100% normal and meets the customer's product requirements.
Other Suppliers
  • The equipment material is simple and unstable, and the stretching of the roll film is prone to problems.
  • The assembly of parts is simple, easy to scrap, and the usage time is not long.
  • No intelligent temperature control display.
  • Machine testing is not conducted before delivery.
  • Old version of button display screen.
Operation Process 1 Operation Process 2 Operation Process 3 Operation Process 4 Operation Process 5 Operation Process 6 Operation Process 7 Operation Process 8 Operation Process 9 Operation Process 10 Operation Process 11 Operation Process 12
Frequently Asked Questions
How to find the packing machine suitable for my product?
Tell us about your product details and weighing requirements. Such as:
  • What kind of product you would like to pack? Granular, Powder, Liquid, Tablet or other type of products (product picture will be great!).
  • The output you need (bag/hour).
  • The weight of each pack you need.
  • If you also need packing film, please provide the bag size and style.
  • Dimension of the bag (if you don't have, send us a sample or draft drawing).
  • If you need to do printing on the packaging, our machine can print (that is optional).
Can you explain the whole transaction process?
1. Sign the Contract
2. Arrange 50% deposit to our factory
3. Factory arrange production
4. Testing & detecting the machine before shipping
5. Inspected by customer or third agency through online or site test
6. Arrange the balance payment before shipment.
Are you a trading company or manufacturer?
We are a manufacturer of packing machines in China with more than 13 years of experience.
How can we check your machine quality after we place an order?
We will send the photo and video of the machine to the customer to check the machine running situation before delivery. Besides, we welcome customers to come to our factory to check the machine by themselves.
What is your term of payment?
T/T or L/C at sight. We would like full payment before delivery for spare parts. For the machine order, 50% T/T in advance, and the rest of the balance before shipping.
Why choose us?
1. We have faster after-sales service: reply to the customer within 24 hours, problem handling in less than 48 hours.
2. One year warranty for the machine and spare parts.
3. Overseas technician sending service can be provided, but the customer needs to pay. To save costs, we will send you a video of the machine installation.
4. We have EU CE certificate and ISO9001 Quality System Authentication.
5. Our core components' suppliers are all Fortune 500 brand companies.
6. We have our own independent R&D team, which can customize the machine according to the actual requirements of users, and we hold 56 technical patents and 3 industry No.1 patents.
