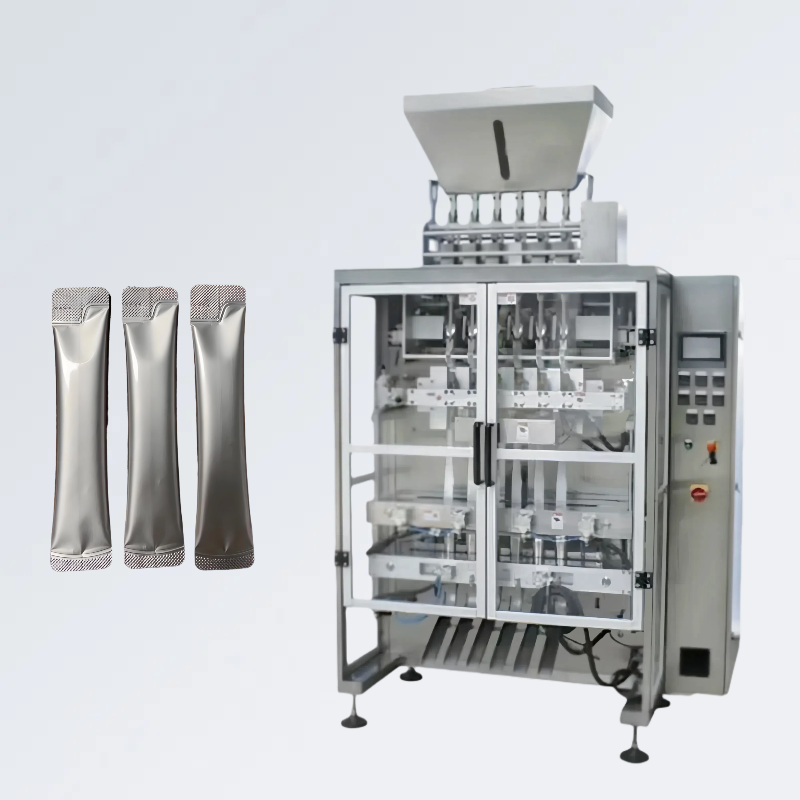

Automatic Multi-Lane Powder Packaging Machine for Coffee Sachets and Spices for Food Filling Applications
Automatic Multi-Lane Powder Packaging Machine for Coffee Sachets and Spices for Food Filling Applications
Automatic Multi-Lane Powder Packaging Machine for Coffee Sachets and Spices for Food Filling Applications
Automatic Multi-Lane Powder Packaging Machine for Coffee Sachets and Spices for Food Filling Applications
Automatic Multi-Lane Powder Packaging Machine for Coffee Sachets and Spices for Food Filling Applications
1 / 5
Automatic Multi-Lane Powder Packaging Machine for Coffee Sachets and Spices for Food Filling Applications
Automatic Multi-Lane Powder Packaging Machine for Coffee Sachets and Spices for Food Filling Applications
Automatic Multi-Lane Powder Packaging Machine for Coffee Sachets and Spices for Food Filling Applications
Automatic Multi-Lane Powder Packaging Machine for Coffee Sachets and Spices for Food Filling Applications
Automatic Multi-Lane Powder Packaging Machine for Coffee Sachets and Spices for Food Filling Applications

Automatic Multi-Lane Powder Packaging Machine for Coffee Sachets and Spices for Food Filling Applications

Send Inquiry

Product Description

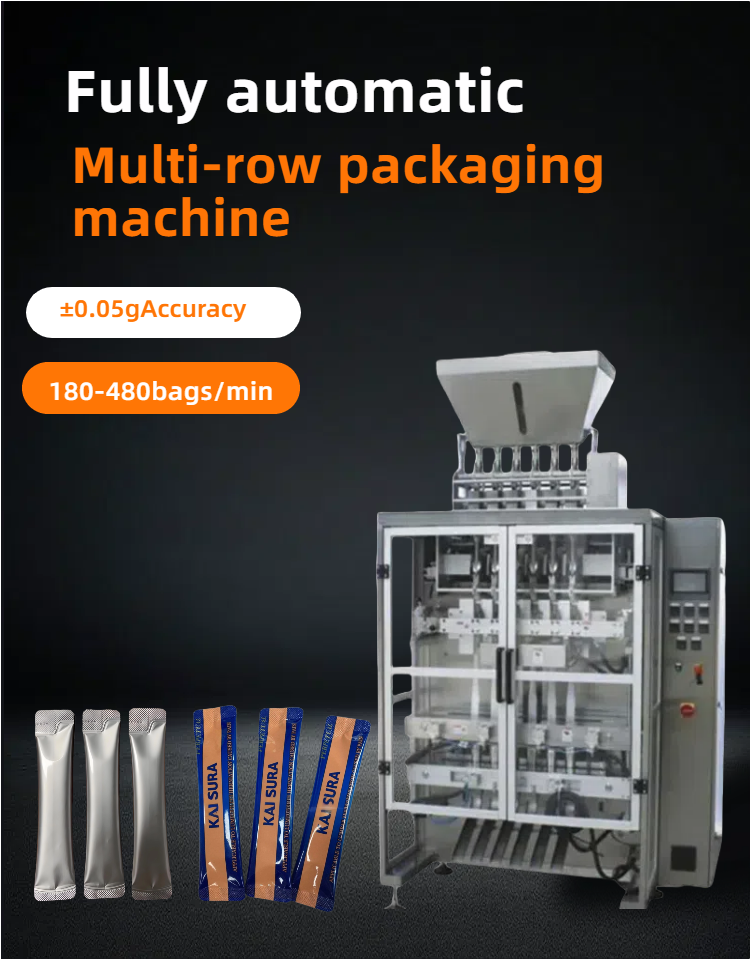

Multi-lane Packaging Machine

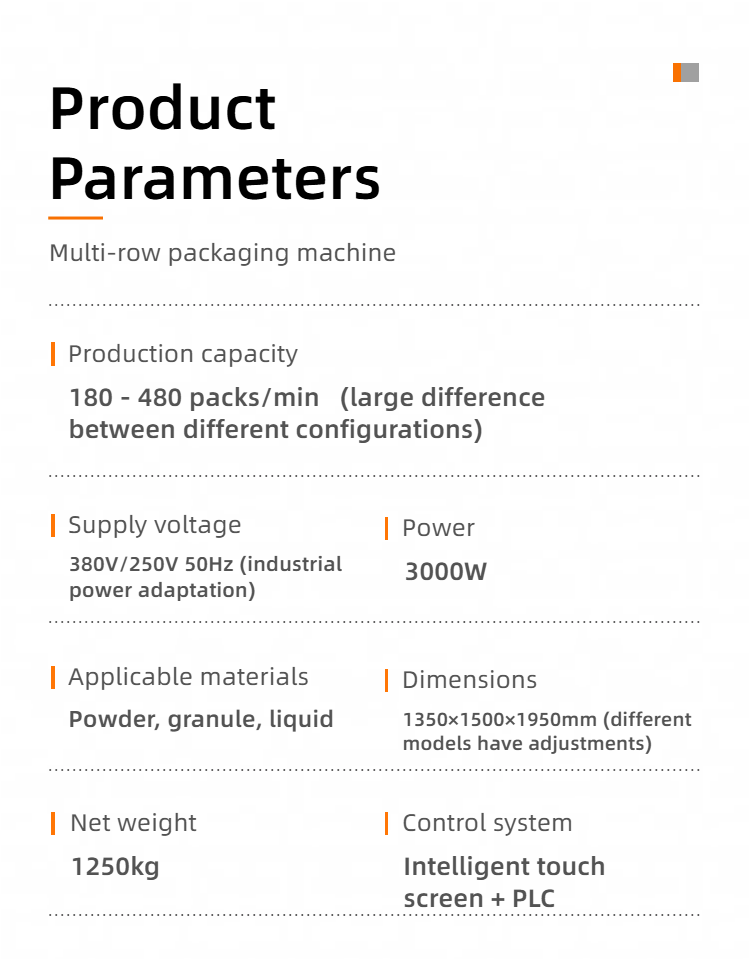

Technical Specifications
Parameter CS-420 CS-420-1
Type CS-420 CS-420-1
Bag length 30-140mm(L) 30-140mm(L)
Bag width 10-50mm(W) 10-50mm(W)
Max width of roll film 440mm 440mm
Packing speed 30-50bag/min/lane 30-50bag/min/lane
Air consumption 0.65mpa 0.65mpa
Gas consumption 0.2m³/min 0.2m³/min
Power voltage 220VAC/50HZ 220VAC/50HZ
Power 2.0KW 2.0KW
Dimension 1100MM(L)*990MM(W)*2100MM(H) 1100MM(L)*990MM(W)*2100MM(H)
Weight 400KG 450KG
Product Details & Configurations

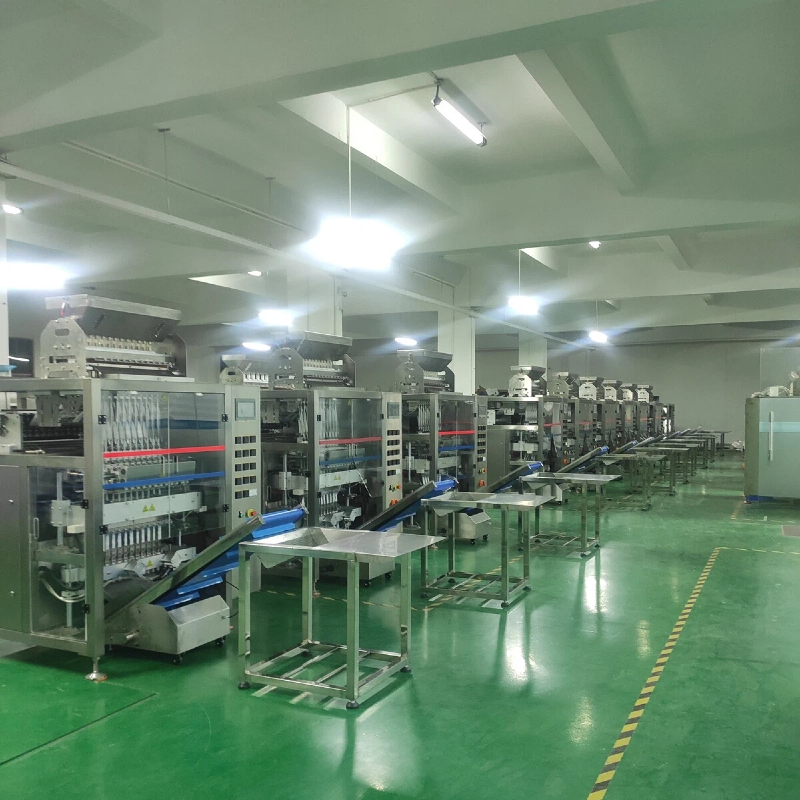

Packaging Machine Structure 1

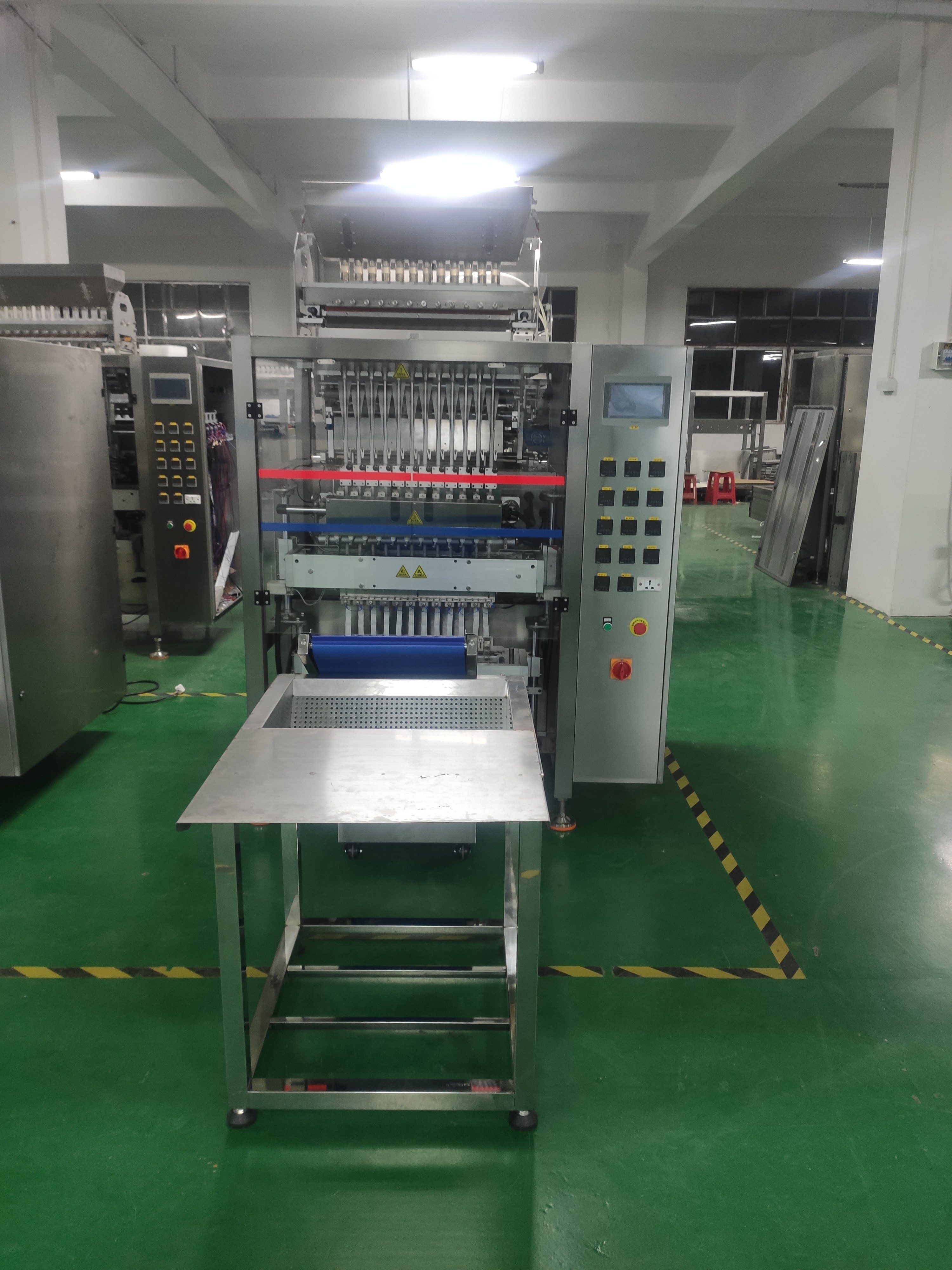

Packaging Machine Structure 2
Packaging Machine Structure 3

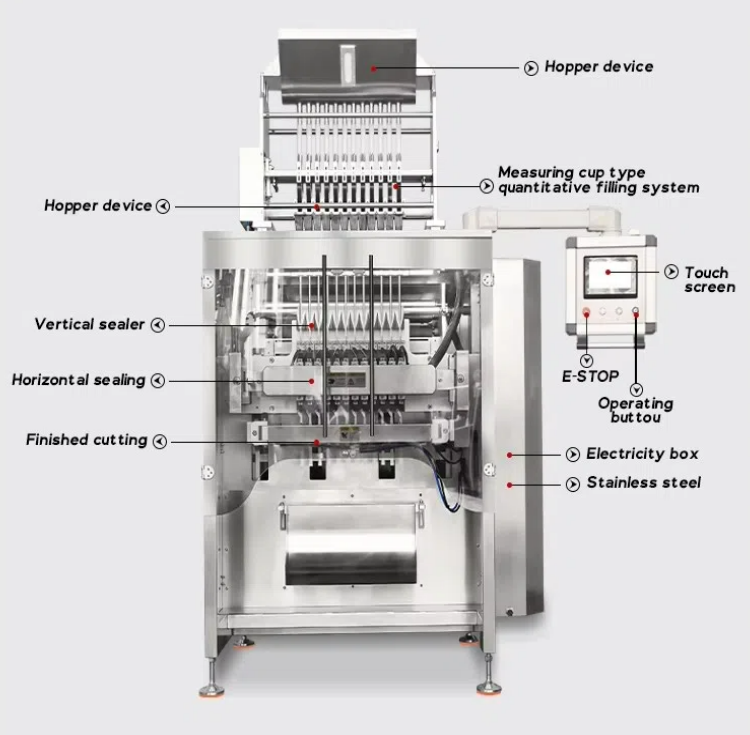

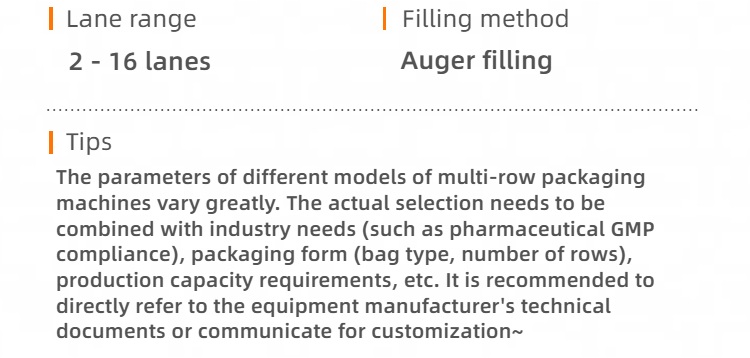

Multi-lane Packaging System Overview Detail View 1 Detail View 2 Detail View 3 Detail View 4 Detail View 5 Detail View 6 Detail View 7 Detail View 8 Detail View 9 Detail View 10 Detail View 11
Frequently Asked Questions
Q What are the main differences between CS-420 and CS-420-1 models?
Both models share identical physical dimensions, packaging speed, and power configurations. The main difference lies in their structural build and net weight, with the CS-420 weighing 400KG and the CS-420-1 weighing 450KG due to additional reinforced internal mechanisms.
Q What range of bag sizes can this machine accommodate?
The CS-420 series supports bag lengths ranging from 30mm to 140mm, and bag widths from 10mm to 50mm. The maximum compatible width of the roll film is up to 440mm.
Q What is the average production output speed of the CS-420?
This system is designed for high-efficiency multi-lane operations, delivering a stable packaging speed of 30 to 50 bags per minute per individual lane, depending on the film material and product characteristics.
Q What electrical power and air supply requirements are needed?
The machine runs on a 220VAC / 50HZ power supply with a power rating of 2.0KW. For pneumatic functions, it requires an air pressure of 0.65mpa and has a gas consumption rate of 0.2m³/min.
Q Can this machine handle different packaging materials?
Yes, the CS-420 series is highly versatile and compatible with various heat-sealable laminated roll films to package powders, granules, or liquids depending on the chosen feeding configuration.
