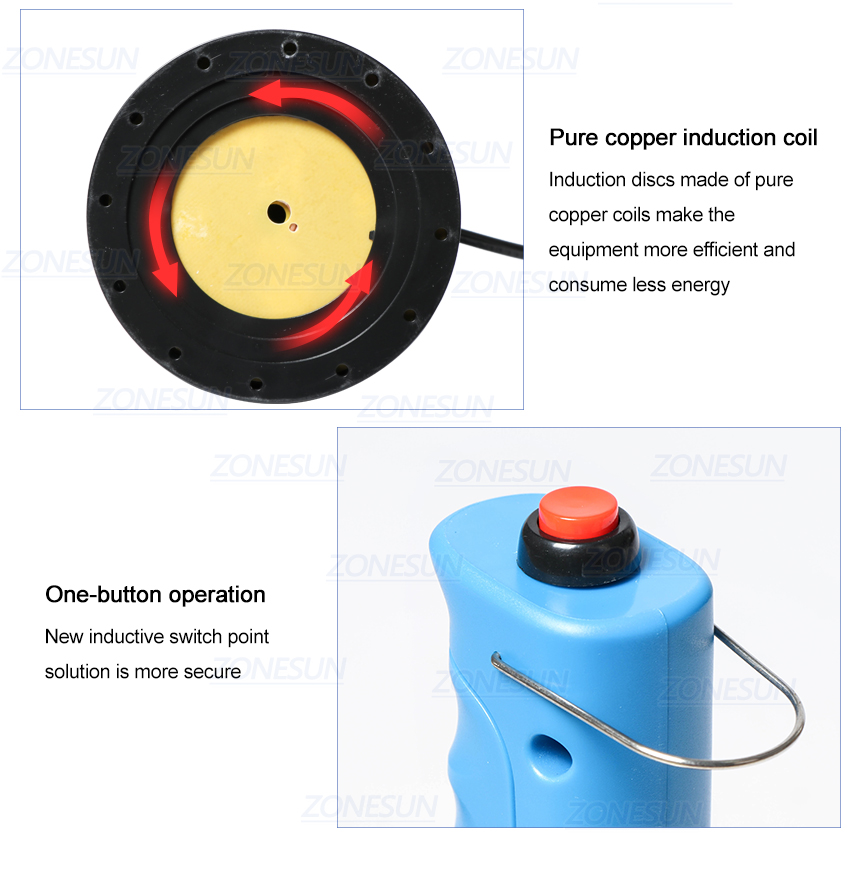

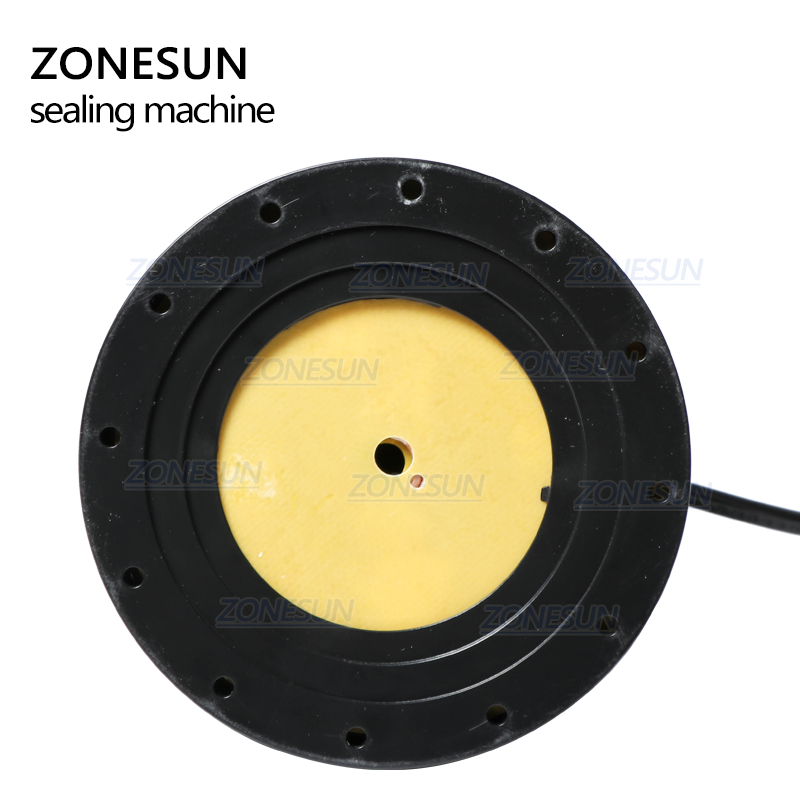

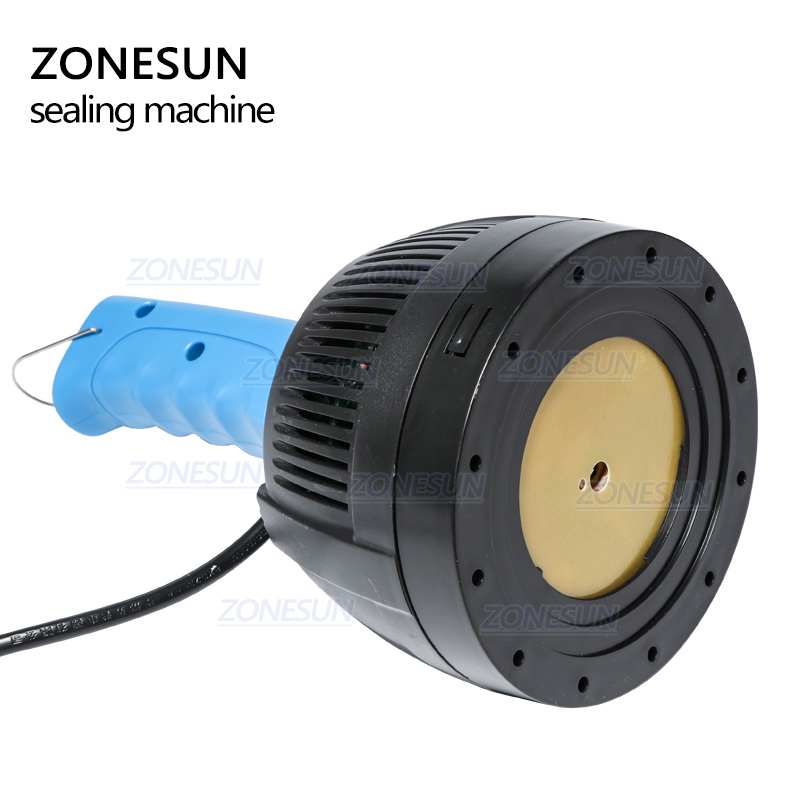

The principle of electromagnetic induction heating is that the high-frequency current go through the inductor coil and create a magnetic field, when the magnetic field lines passing through the foil material, instantly generate a large number of small eddy current, so that high-speed self-heating will make the aluminum foil on the aluminum foil composite sol melt, then achieve the purpose of sealing.

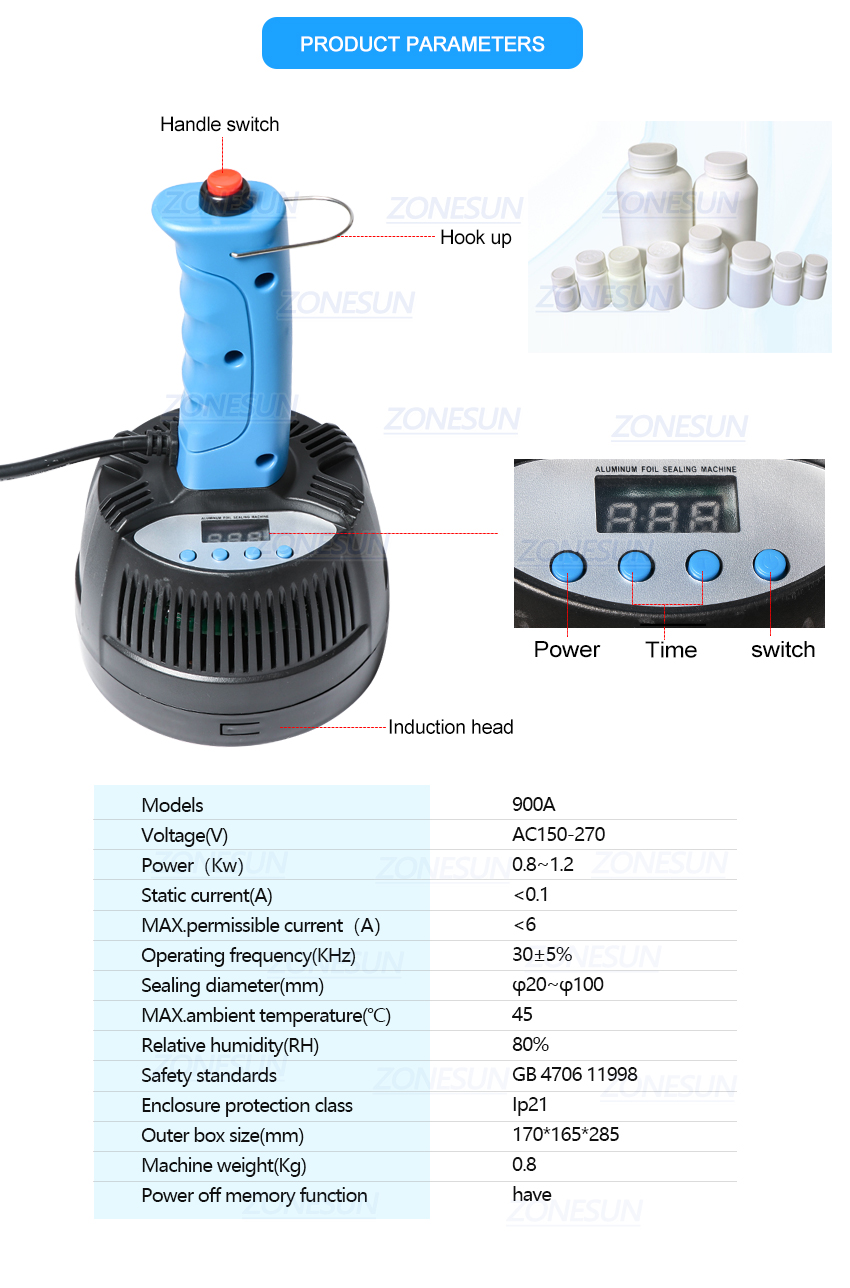

| Models | 900A |
| Voltage(V) | AC150-270 |
| Power (Kw) | 0.8-1.2 |
| Static current(A) | < 0.1 |
| MAX. permissible current (A) | < 6 |
| Operating frequency(KHz) | 30±5% |

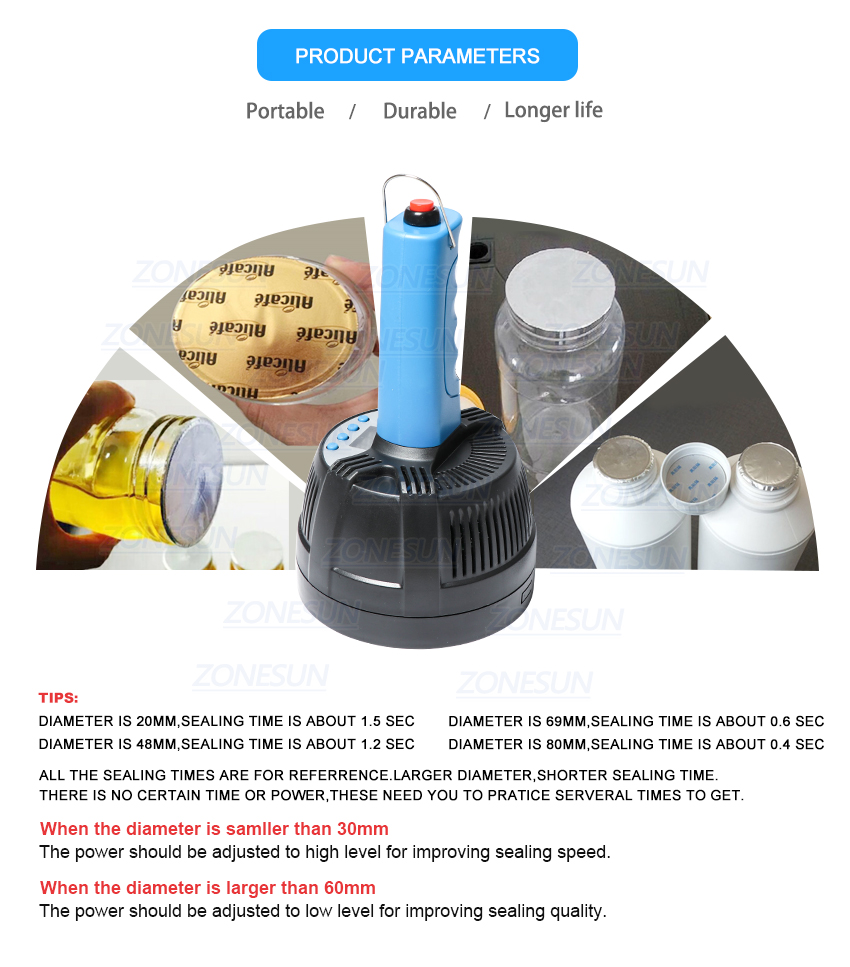

| Sealing diameter(MM) | Φ20-Φ100 |
| MAX. ambient temperature(°C) | 45 |
| Relative humidity(RH) | 80% |
| Safety standards | GB 4706 11998 |
| Enclosure protection class | lp21 |
| Outer box size(MM) | About 170*165*285 |
| Machine weight(Kg) | About 0.8 |
| Power off memory function | Have |
We are factory or manufacturer. you not only buy the machine.
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
We will send extra sets of easy broken spares and accessories. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection. Our factory already highest stars of the grade.
Payment terms: T/T, L/C, D/P, O/A, Western Union etc.
