Product Description
1. Application / aplicacion
It is mainly applied in food, metal and plastic industries, suitable for all solid granular products automatic weighing and packing, such as Rice, Pulses, Tea, Coffee beans, Candies / Toffees, Tablets, Cashews, Potato / Banana wafers, Snack foods, Fresh & frozen foods, Dried fruits, Pasta pieces, Detergents, Hardware items, Spices, Soup mixes, Sugar, nail, plastic ball, etc.
- Applicable Sample / muestra de productos

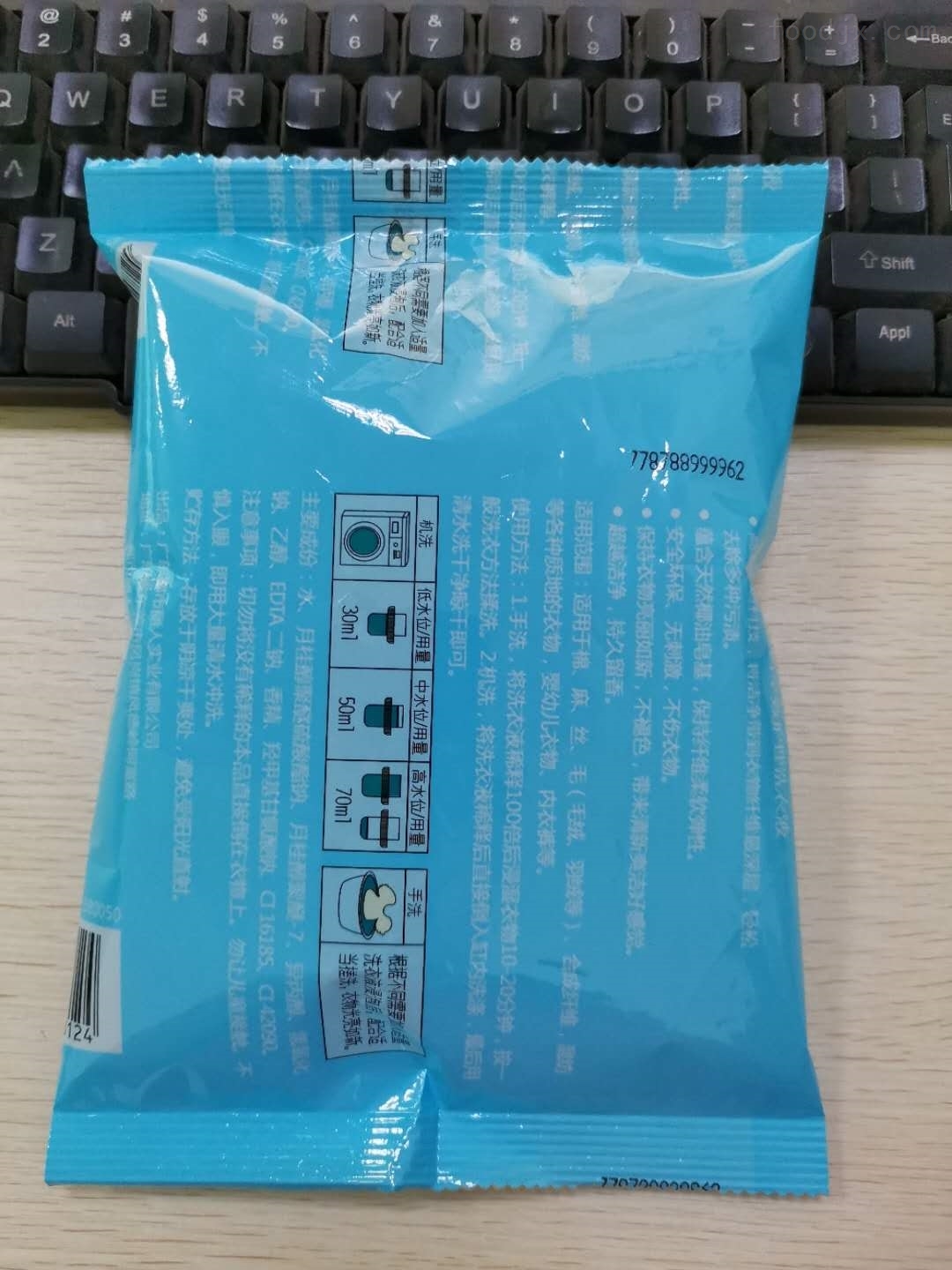

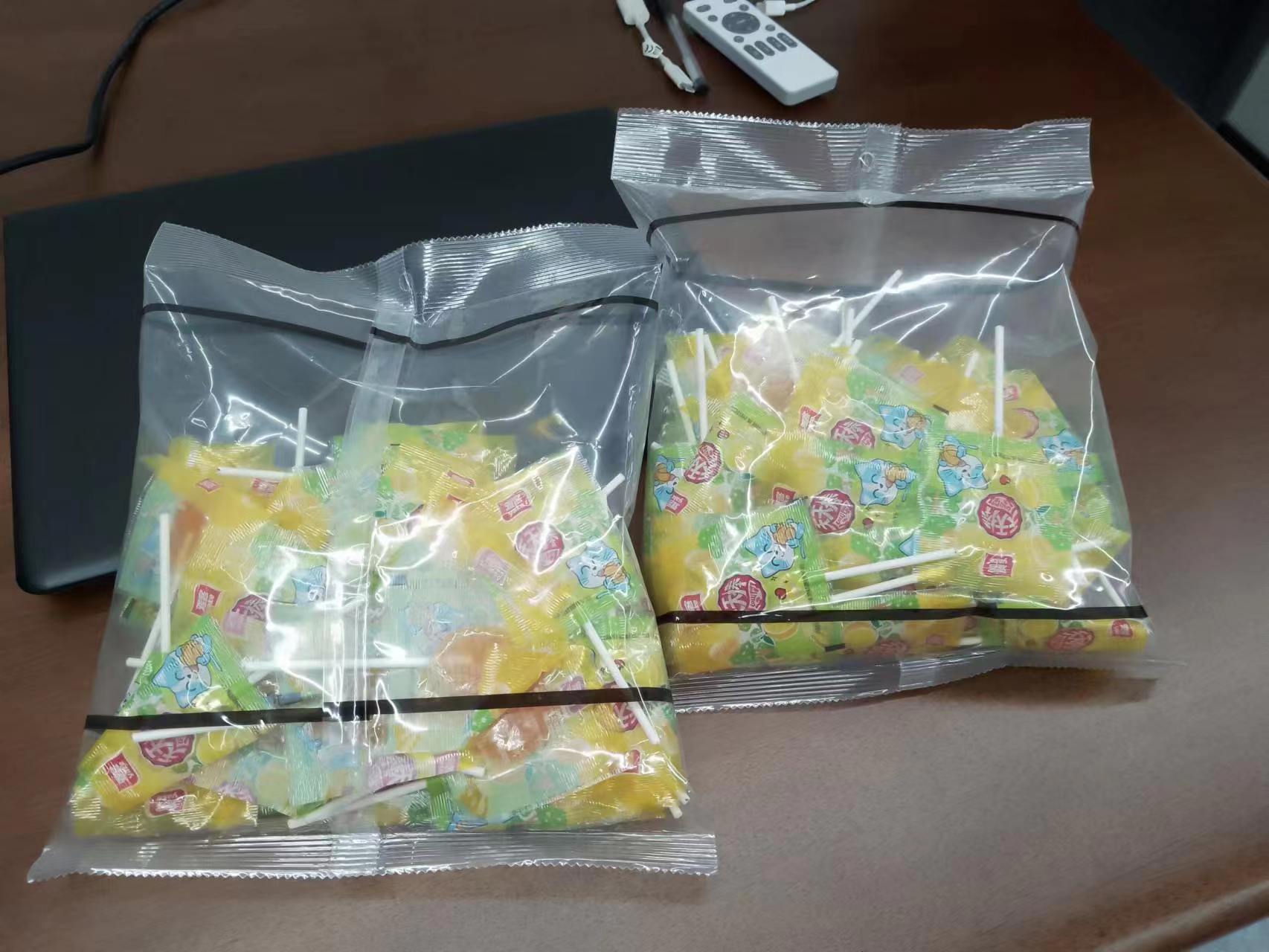

- Bagging Style / manera de tipo de bolsa
* please consult for specific available bag pattern and bagging details.
2. Features / caracteristicas

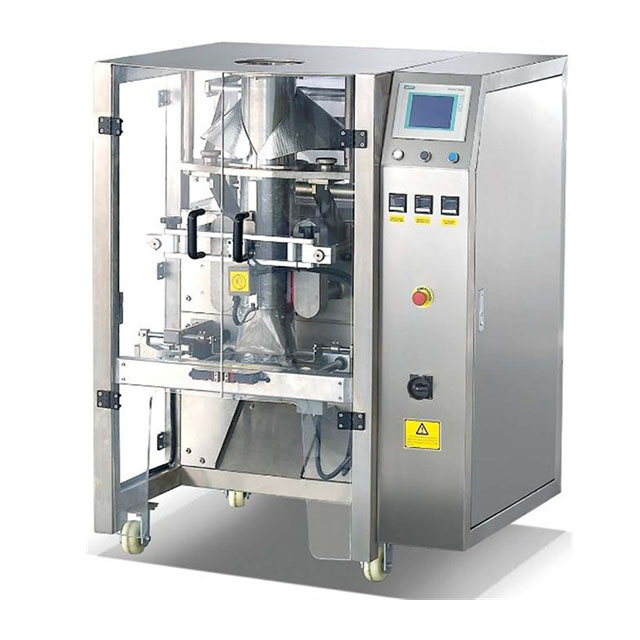

- Mitsubishi/Siemens PLC control system, more stable and accuracy output signal, bag-making, measuring, filling, printing, cutting, finished in one operation;
- Separate circuit boxes for pneumatic and power control. Low noise, and more stable;
- Film-pulling with servo motor for precision, pulling belt with cover to protect moisture;
- Open door alarm and stop machine running in any condition for safety regulation;
- Film centering automatically is available (Optional);
- Only control touch screen to adjust bag deviation. Simple operation;
- Film in roller can be locked and unlocked by air, convenient while change film
3. Specifications / especificacion
| Type |
tipo |
PG-P320 |
PG-P420 |
PG-P520 |
PG-P620 |
| Bagging Length |
bolsa alto |
50-200mm |
60-300mm |
60-350mm |
60-400mm |
| Bagging Width |
bolsa anchor |
50-150mm |
60-200mm |
60-250mm |
80-300mm |
| Max film width |
Pelicula anchor max |
320mm |
420mm |
520mm |
620mm |
| Packing speed |
Velocidad |
5-80bpm |
5-80bpm |
5-75bpm |
5-50bpm |
| Film thickness |
Pelicuda grueso |
0.04-0.09mm |
0.04-0.09mm |
| Air pressure |
Presion de aire |
0.8Mpa |
0.8Mpa |
| Air consumption |
Consumo de aire |
0.25m3/min |
0.3m3/min |
0.4m3/min |
| Power supply |
Poder alimentar |
220V/50/60Hz/1P |
220V/50/60Hz/1P |
| Packing size |
Tamana de maqina |
110x80x110cm |
150x100x130cm |
150x115x155cm |
130x160x170cm |
| G.W. |
Peso de maquina |
350kg |
500kg |
600kg |
700kg |
* kinds of functional features available, like punching, strip bag, air outlet, double servo, etc.
* Above is general information, please consult for final recommendation by your actual packing request.

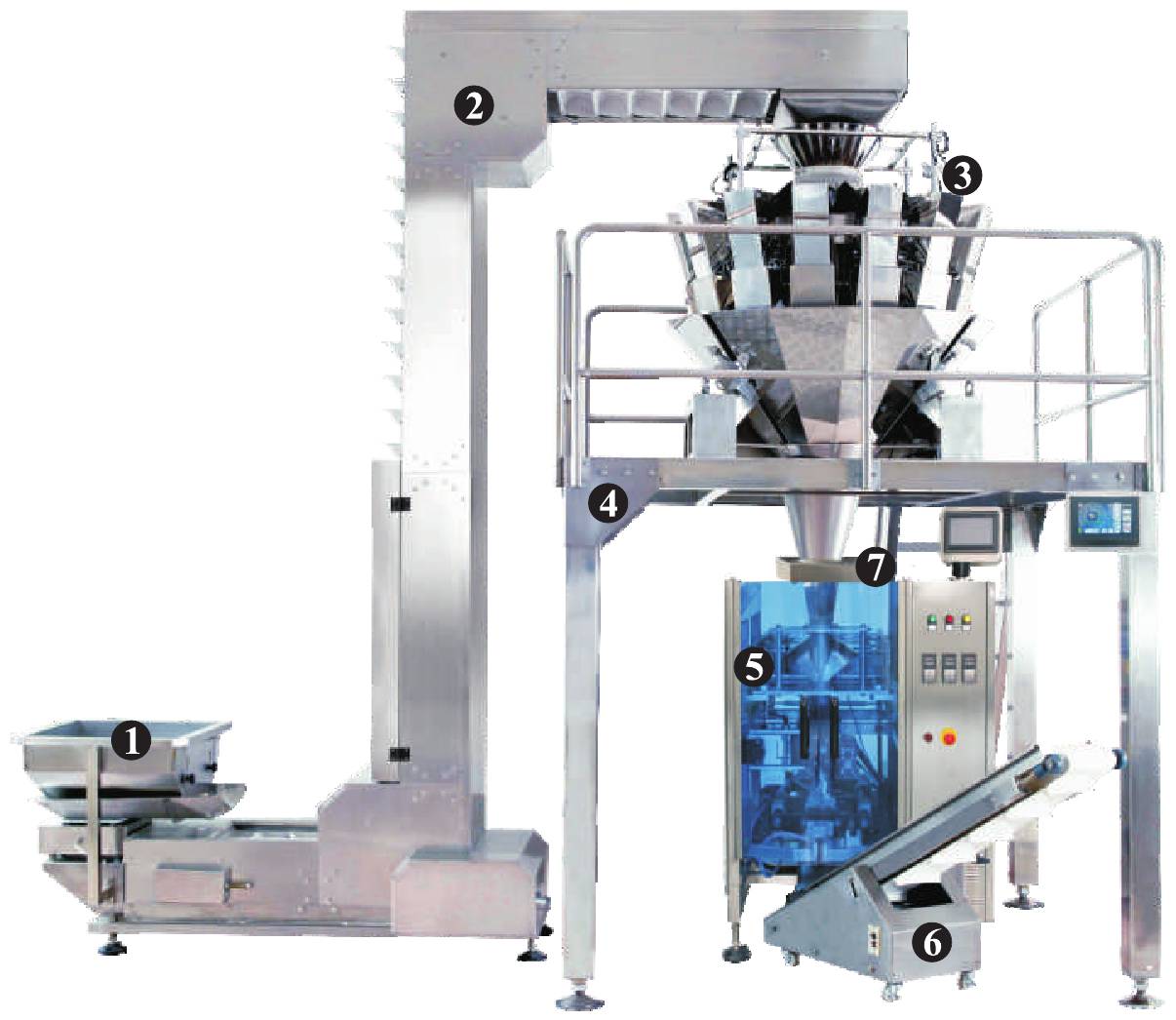

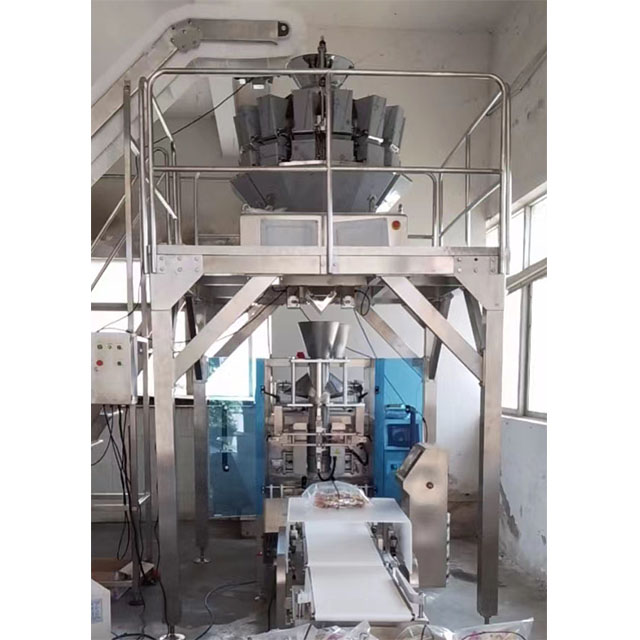

6. Whole packing line presentation / presentacion de linea de vertical
Frequently Asked Questions (FAQ)
What materials can these vertical packaging machines handle?
They are designed for solid granular products including rice, pulses, tea, coffee beans, candies, cashews, potato chips, snack foods, frozen foods, dried fruits, pasta, detergents, hardware items, and plastic balls.
What control systems are integrated into the machinery?
The machines utilize highly stable Mitsubishi or Siemens PLC control systems to ensure precision during bag-making, measuring, filling, printing, and cutting operations.
What are the maximum film width capacities for the PG-P series?
The maximum film width varies by model: PG-P320 supports up to 320mm, PG-P420 supports up to 420mm, PG-P520 supports up to 520mm, and PG-P620 supports up to 620mm.
What safety features are standard on these machines?
For operator safety, the machines are equipped with an open-door alarm system that immediately stops machine operations under any condition.
Can these packaging machines support custom functions?
Yes, multiple functional options are available, such as punching, strip bag creation, air outlets, double servo pulling, and automatic film centering.
Is it easy to adjust the bag alignment and parameters?
Yes, bag deviation can be quickly adjusted directly via the touch screen control panel, allowing for simple and user-friendly operation.
