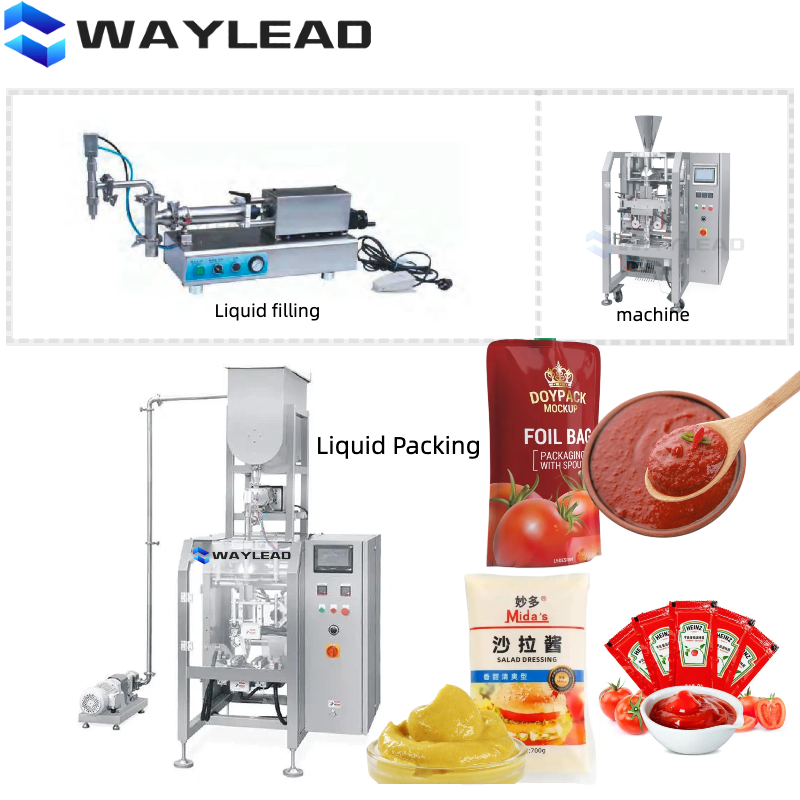

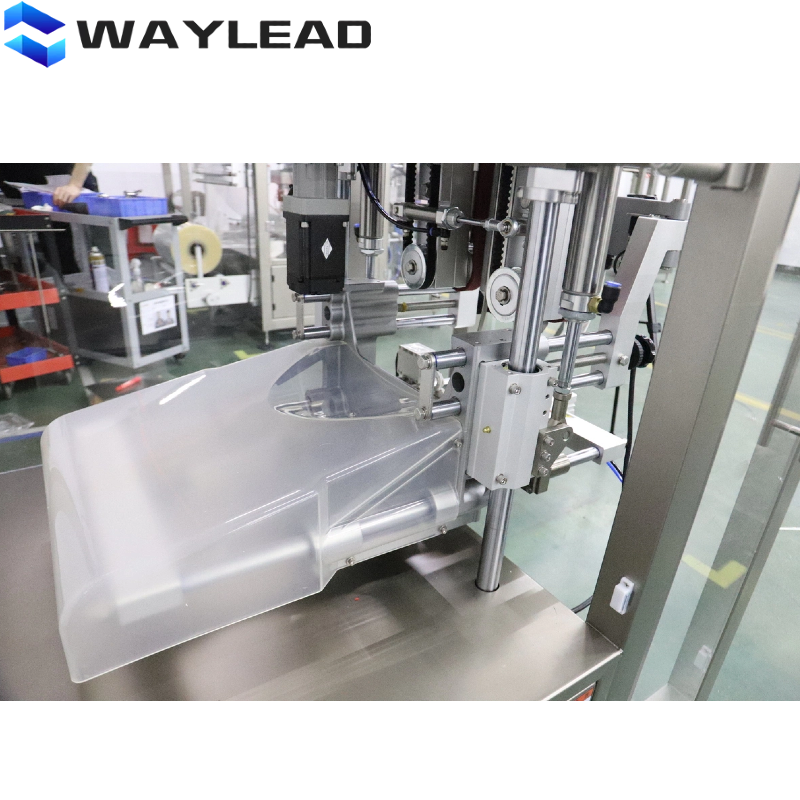

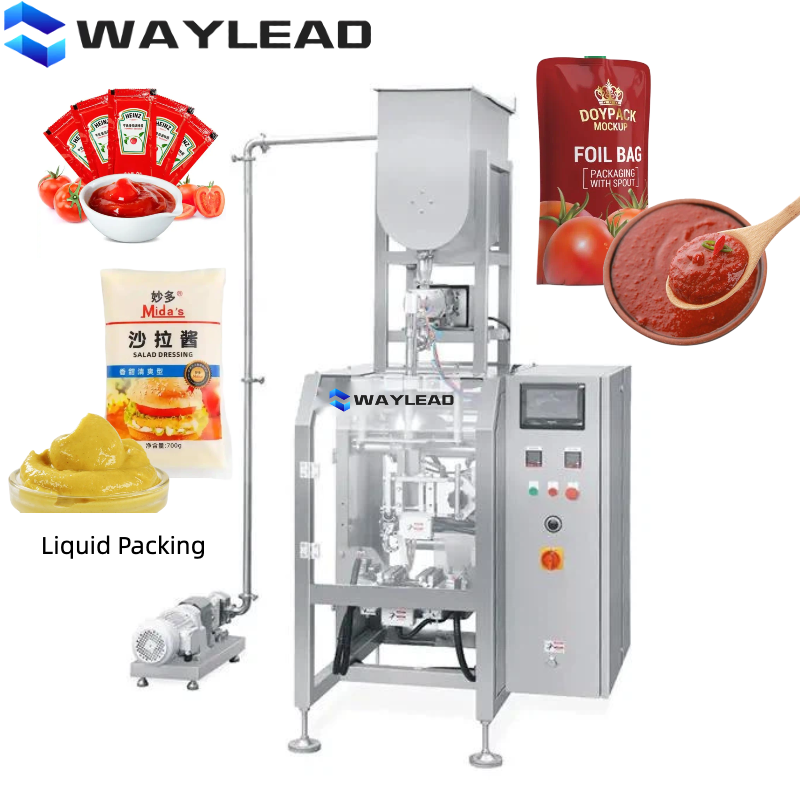

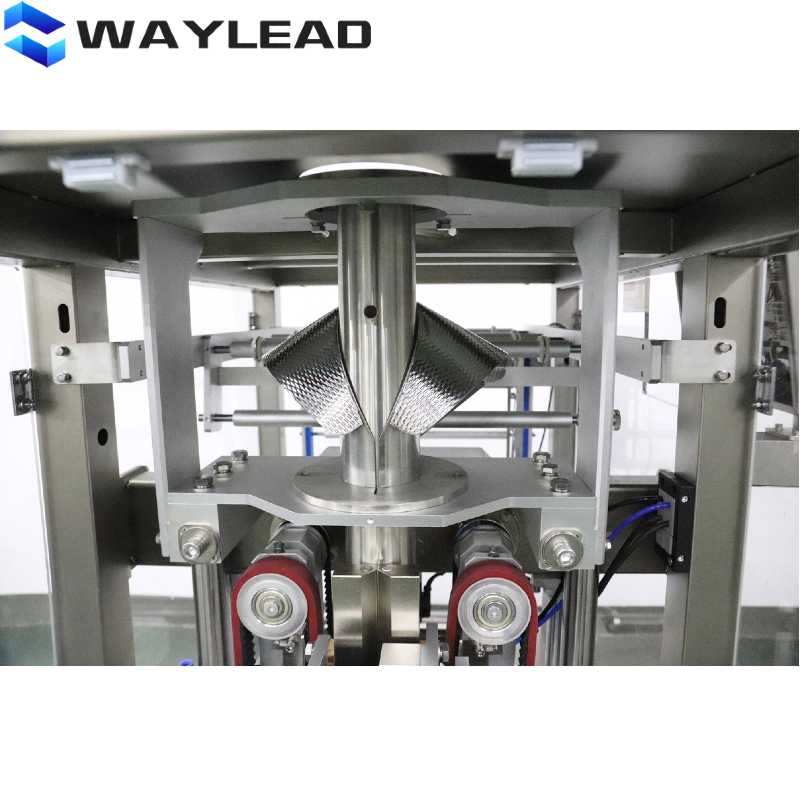

VFFS Vertical Form Fill Seal Packaging Machine Stick Oil Jam Ketchup Liquid Automatic 4 Sides Sealing Sachet Packing Machine

Product Description

Vertical Form-Fill-Seal Machine

Products Description

VFFS Machine Details VFFS Applications Packaging Features Bag Types

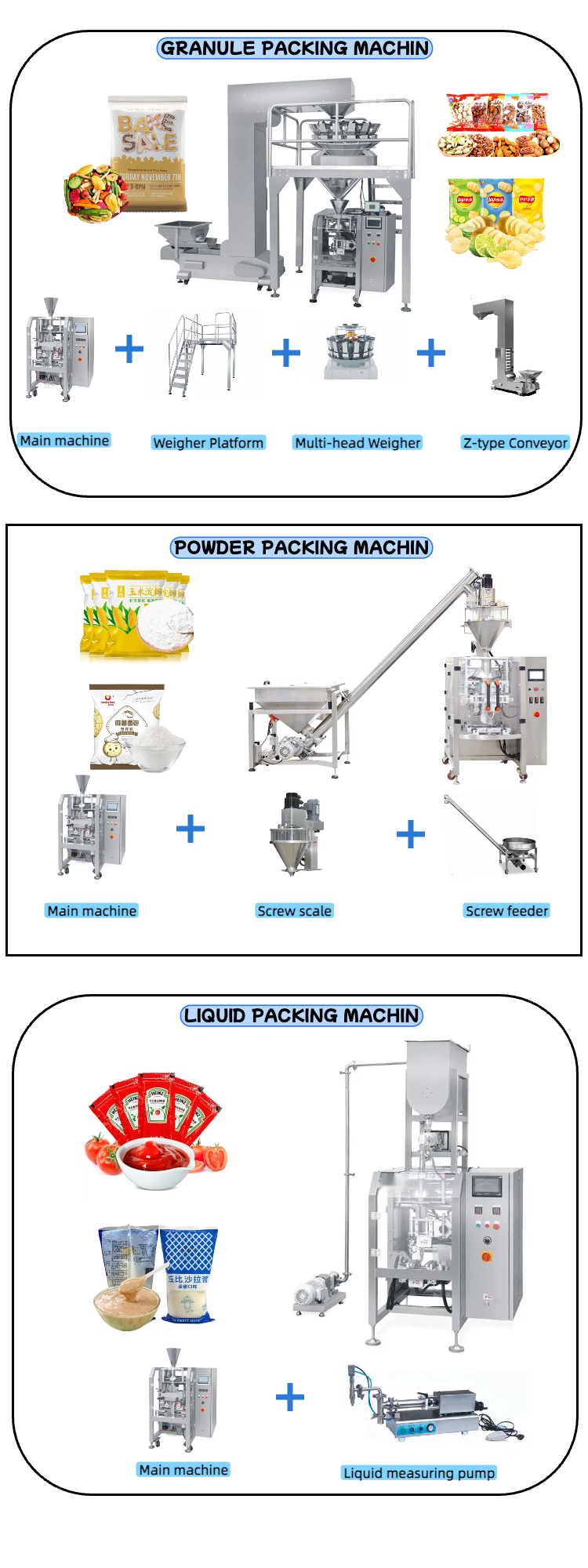

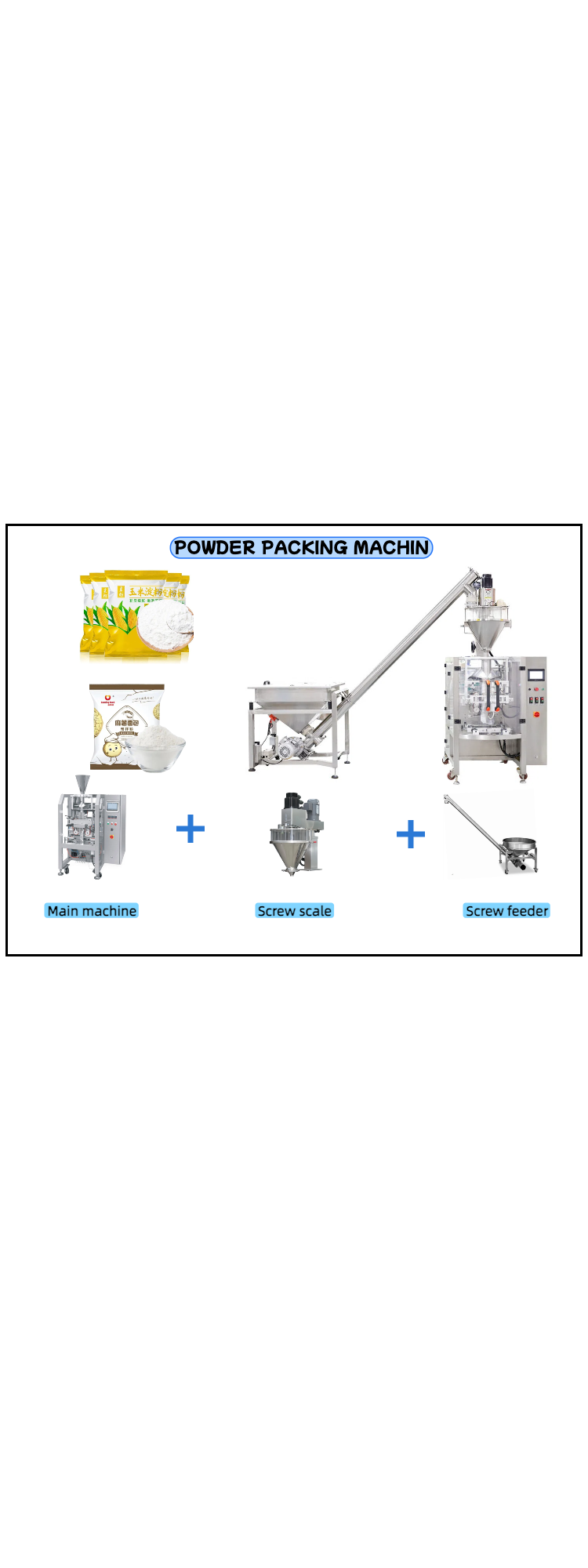

Packaging Roll Film Support Machine Configuration Structure
VFFS Automation System

VERTICAL FORM-FILL-SEAL MACHINE(VFFS)

Our VFFS systems are engineered for automated packaging of granular, block, sheet, powders, liquids, sauces, and semi-viscous materials across industries including:

  • Food & Beverage: Snacks, frozen goods, confectionery, seasonings
  • Agricultural: Grains, seeds, fertilizers
  • Industrial: Hardware components, chemical pellets
  • Pharmaceuticals: Tablets, medical devices, nutraceuticals

Advantages

  • Speed Optimization: Mid-range to high-speed models (15-120 bags/min)
  • Bag Dimension Flexibility: 50mm to 420mm width capacity
  • Advanced Film Compatibility: Multi-layer laminates, recyclable materials, barrier films

VFFS Operational Workflow

1
Film Feeding: Unreels flat film from cylindrical roll
2
Forming Phase: Shapes film into tube via forming collar
3
Vertical Sealing: Creates airtight back seal with thermal bars
4
Product Dosage: Metered filling via integrated load cells
5
Horizontal Sealing: Simultaneous top seal and bottom cut
6
Output Delivery: Finished pouch with quad-seal integrity

Advantage Features

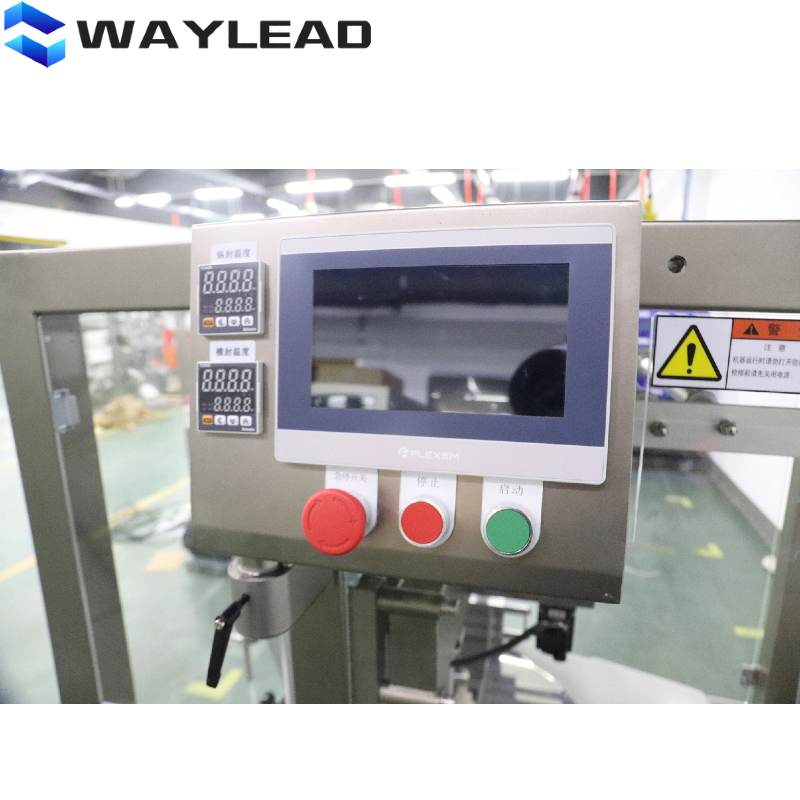

1. Imported PLC Controller

Set the length of the bag arbitrarily, set the total number of packages, show the quantity of packaged, and set the total bags package quantity with automatically stop function.

2. Intelligent Temperature Control

Intelligent temperature control instrument behaves dual control of the horizontal and vertical sealing temperatures.

3. Photoelectric Positioning

Intelligent photoelectric positioning, strong anti-interference, stop and alarm for two bags with abnormal alarm.

4. Stainless Steel Structure

Stable and reliable performance, nice appearance, full stainless steel structure, conforming to the hygienic requirements of food and medicine packaging.

5. Accurate Measuring

Measuring by measuring cup. The measuring accuracy of granular materials is in line with national standards.

6. Servo Motor Technology

The system of bagging system using the servo motor subdivision technology. The bag forming precision is high, the error is less than 1 mm.

7. Efficient Layout

Lower power consumption and little space occupation.

Recommend Products

Exhibition

Exhibition Presence
Exhibition Showcase 1 Exhibition Showcase 2
Exhibition Showcase 3 Exhibition Showcase 4
Exhibition Group Display

Company Profile

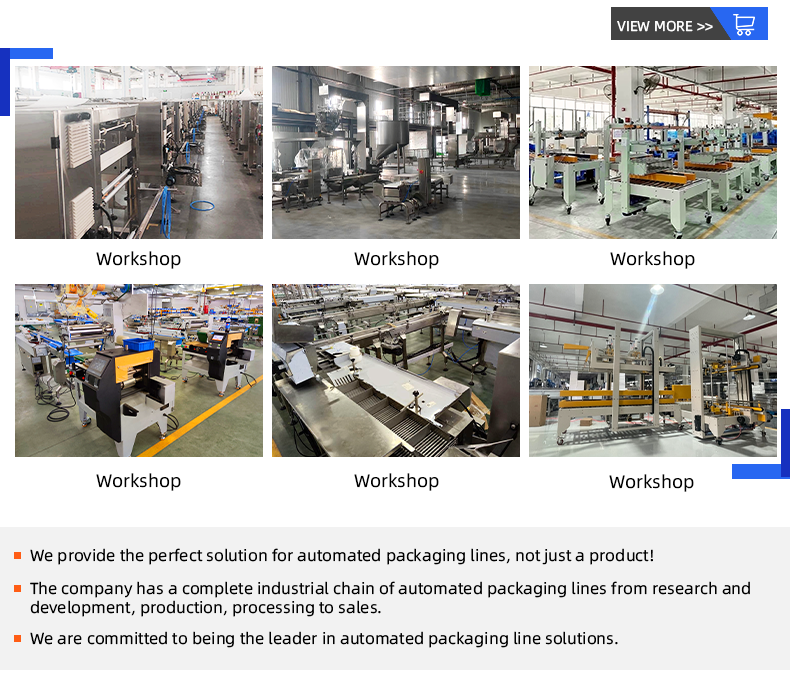

Company Plant Profile Manufacturing Area

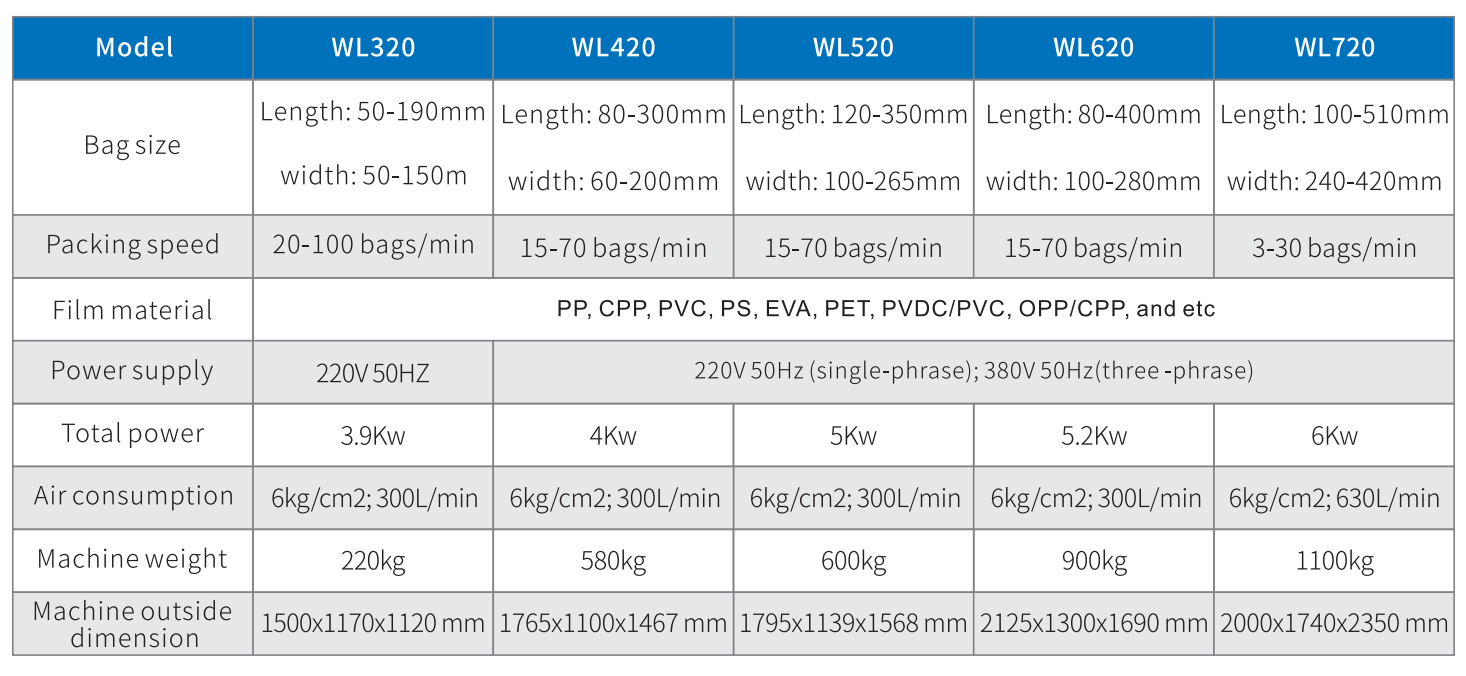

Specification

Product Technical Specifications 1 Product Technical Specifications 2 Product Technical Specifications 3

Product packaging

Packing Cases Packaging Standard

FAQ

FAQ banner
Q1: Are you a trading company or a manufacturer?

A1: We are a manufacturer, we provide quality products at factory price, welcome to visit us!

Q2: If we buy your machine, what quality guarantee or warranty do you provide?

A2: We provide you with high-quality machines with a 3-year warranty and provide lifetime technical support.

Q3: When can I get the machine after payment?

A3: The delivery time is subject to the exact machine you confirmed.

Q4: How do you provide technical support?

A4: 1. Provide technical support via online channels 24/7.
2. Provide you with instructions/videos for machine installation, adjustment, setting, maintenance.
3. Engineers are available to provide services for overseas machinery.

Q5: How does your after-sales service work?

A5: Ordinary machines will be properly adjusted before shipment. You can use the machine immediately. You can also get free training advice on our machines in our factory. You can also get free advice and consultation, technical support, and lifetime technical support.

Q6: How about spare parts?

A6: After we handle everything, we will provide you with a spare parts list for your reference.
