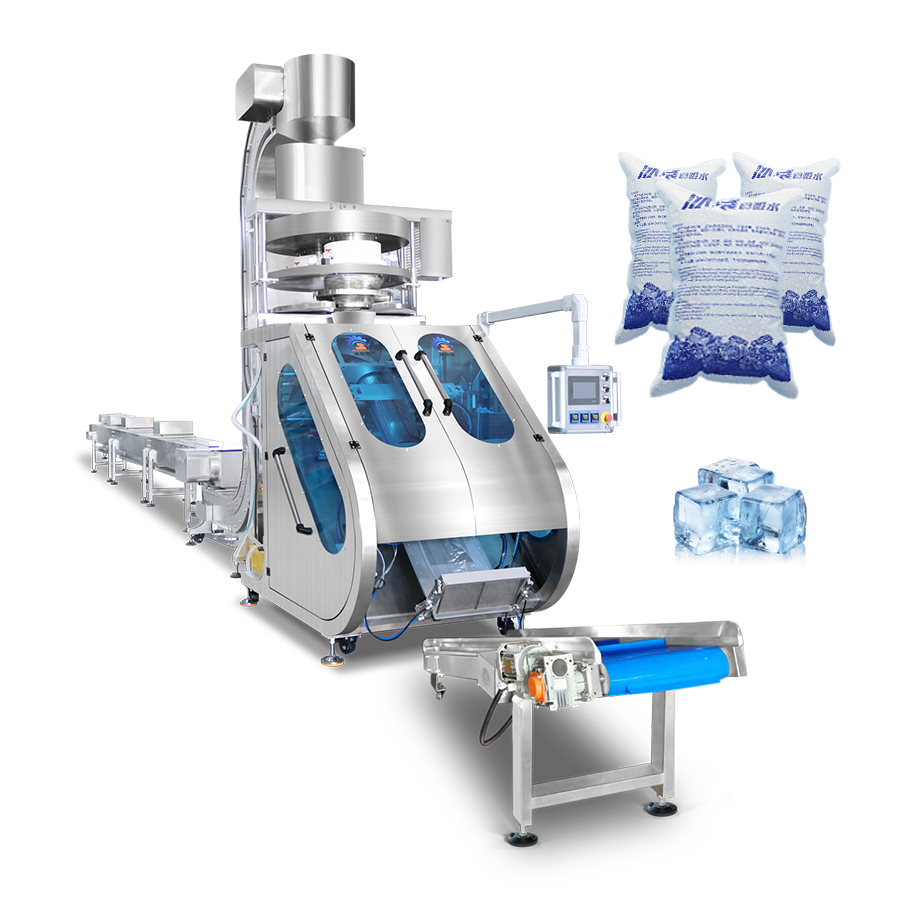

1kg 2kg 5kg Ice Cube Automatic Vertical Bag Forming Filling Sealing Packing Machine China
1kg 2kg 5kg Ice Cube Automatic Vertical Bag Forming Filling Sealing Packing Machine China
1kg 2kg 5kg Ice Cube Automatic Vertical Bag Forming Filling Sealing Packing Machine China
1kg 2kg 5kg Ice Cube Automatic Vertical Bag Forming Filling Sealing Packing Machine China
1kg 2kg 5kg Ice Cube Automatic Vertical Bag Forming Filling Sealing Packing Machine China
1 / 5
1kg 2kg 5kg Ice Cube Automatic Vertical Bag Forming Filling Sealing Packing Machine China
1kg 2kg 5kg Ice Cube Automatic Vertical Bag Forming Filling Sealing Packing Machine China
1kg 2kg 5kg Ice Cube Automatic Vertical Bag Forming Filling Sealing Packing Machine China
1kg 2kg 5kg Ice Cube Automatic Vertical Bag Forming Filling Sealing Packing Machine China
1kg 2kg 5kg Ice Cube Automatic Vertical Bag Forming Filling Sealing Packing Machine China

1kg 2kg 5kg Ice Cube Automatic Vertical Bag Forming Filling Sealing Packing Machine China

Send Inquiry

Product Description

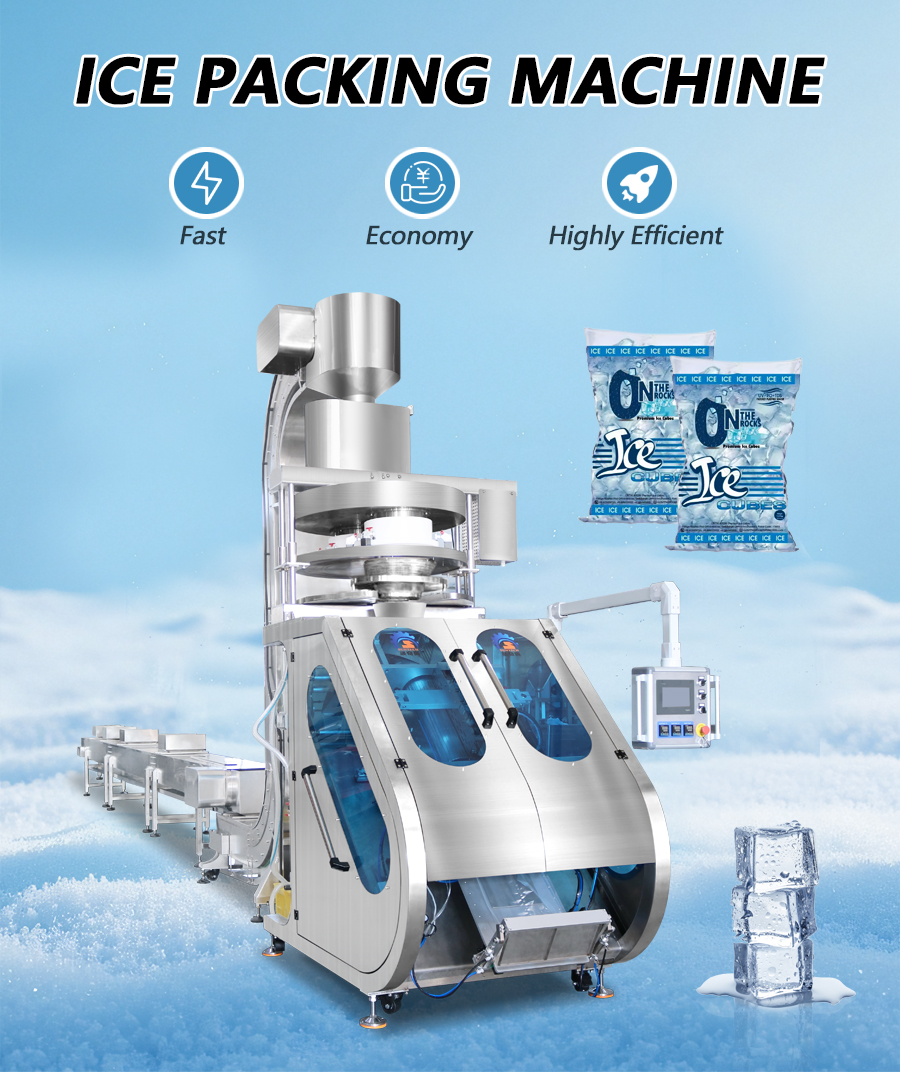

Packaging Machine Overview 1
Packaging Machine Overview 2
Packaging Machine Detail 1

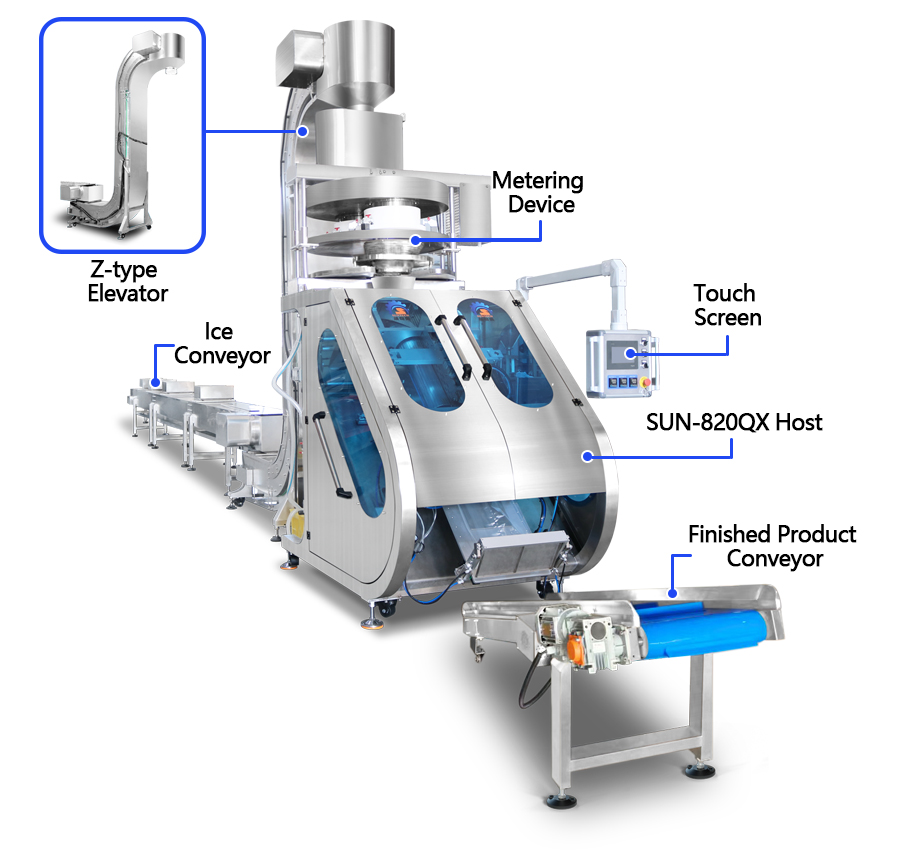

Packaging Machine Detail 2
Technical Specifications
Item SUN-520QX SUN-720QX SUN-820QX
Bag Length 80-400mm(L) 80-450mm(L) 60-700mm(L)
Bag Width 150-250mm(L) 200-350mm(L) 80-400mm(W)
Film Width 520mm 720mm 820mm
Packing Speed 15-55bags/min 5-30bags/min 5-15bags/min
Air Pressure 0.6mpa 0.6mpa 0.6mpa
Air Consumption 0.4m³/min 0.4m³/min 0.4m³/min
Voltage 2.2 kw 220V 50Hz 3 kw 220V 50Hz 5 kw 220V 50Hz
VFFS Dimension (L)1500mm×(W)1140mm×(H)1540mm (L)1800mm×(W)1250mm×(H)1780mm (L)1420mm×(W)2200mm×(H)1950mm
Weight 550KG 700KG 800KG

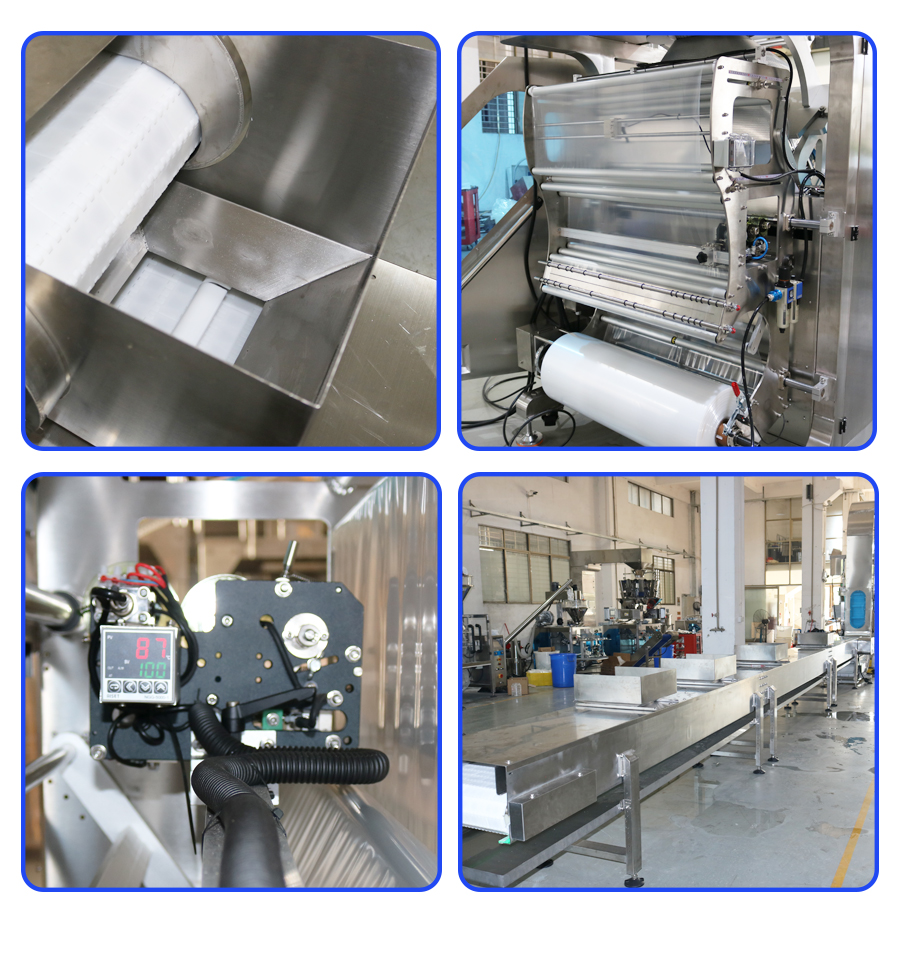

Production Process 1

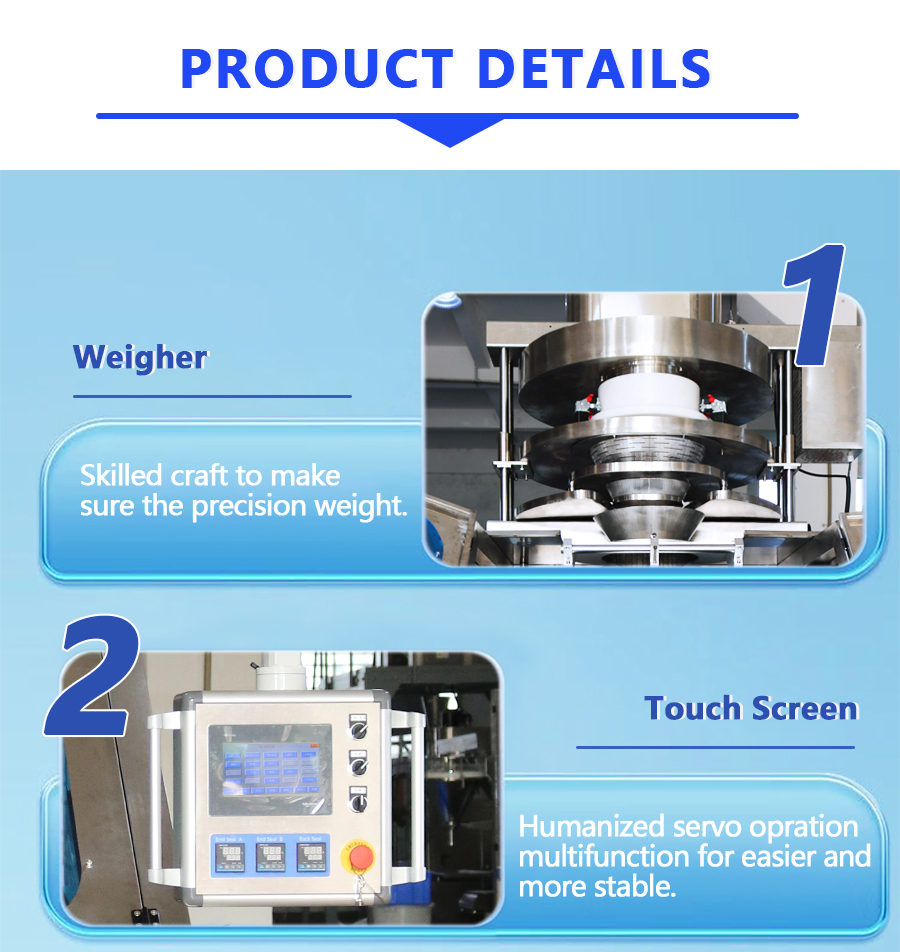

Production Process 2

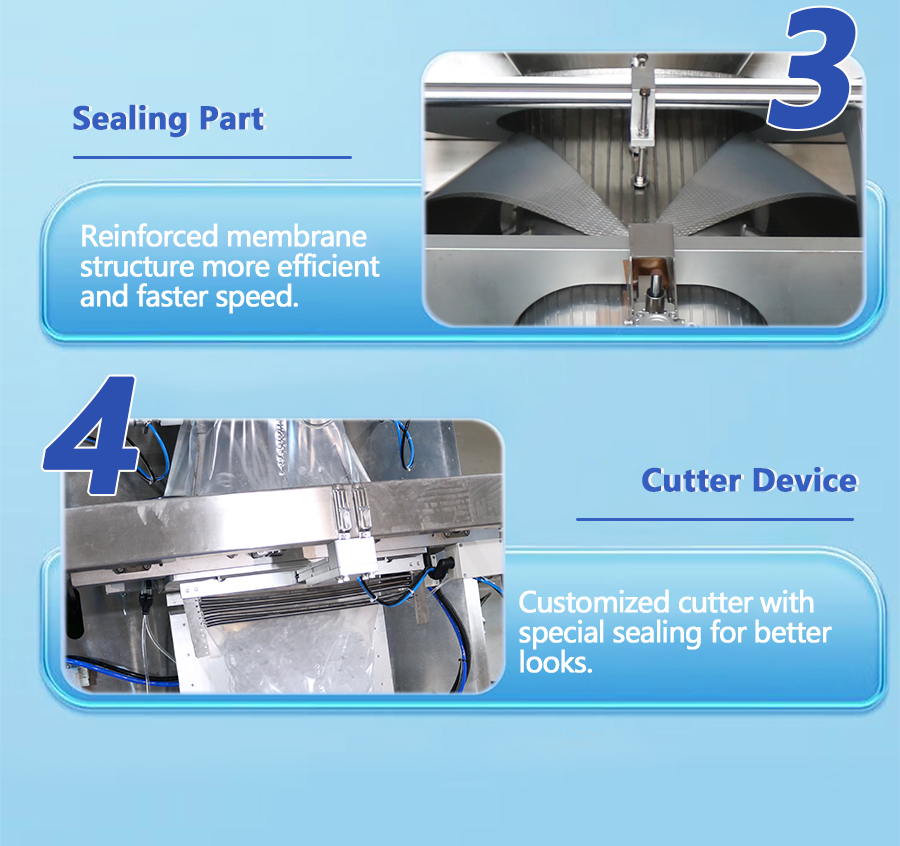

Production Process 3
Product Application 1
Product Application 2

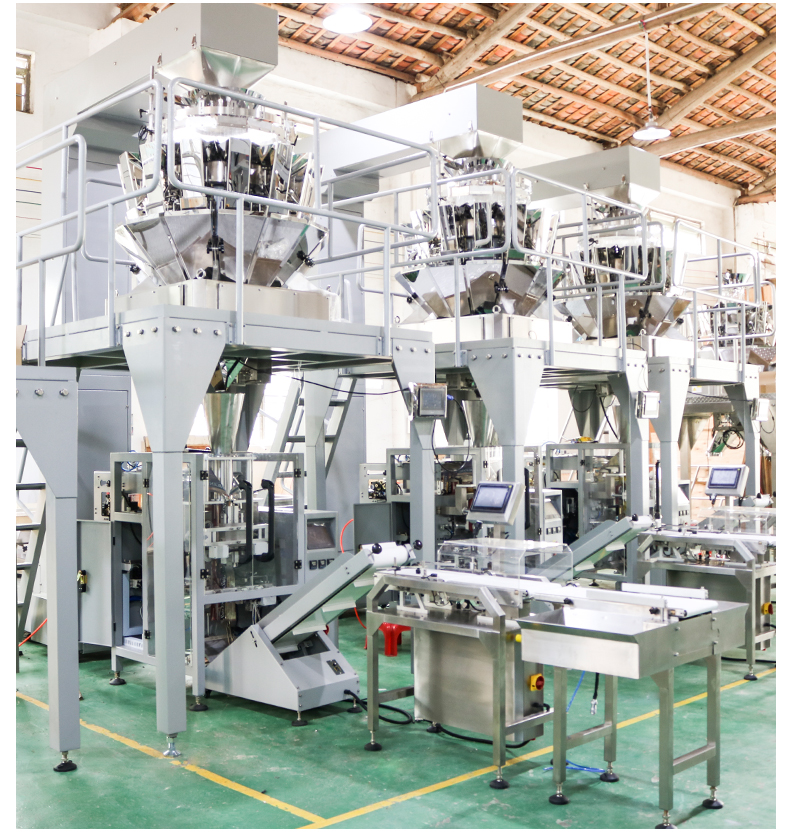

Component Close-up 1

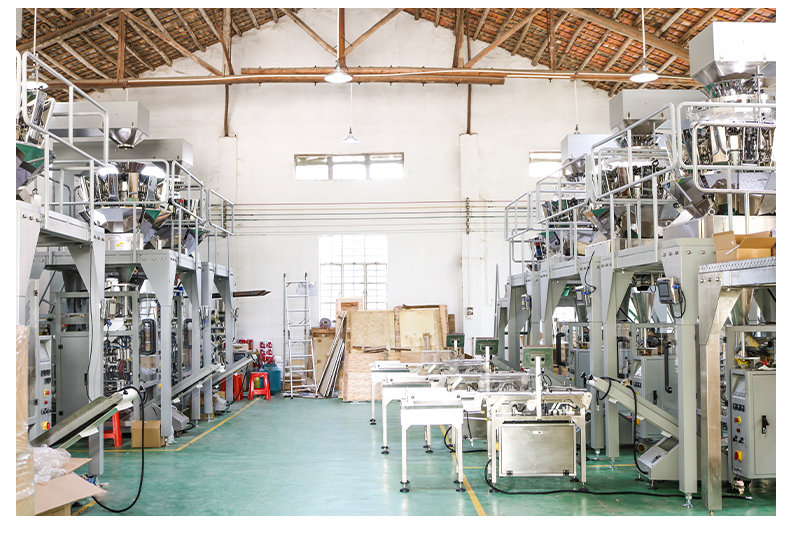

Component Close-up 2
Product Processing 1
Product Processing 2

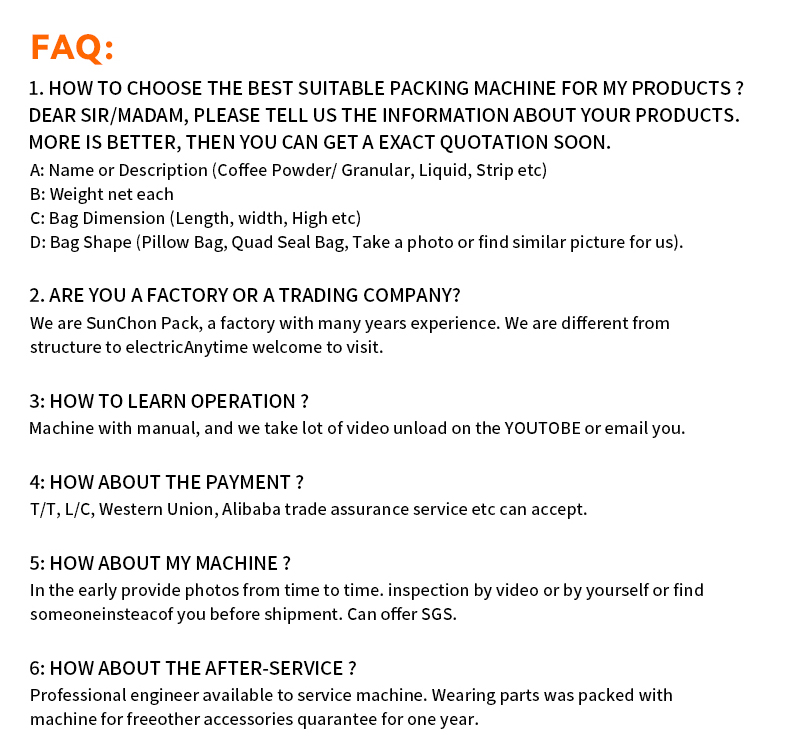

Quality Inspection
Frequently Asked Questions
Q1 How do I choose between SUN-520QX, SUN-720QX, and SUN-820QX?
Selection is primarily based on your desired film width and package size. The SUN-520QX supports film widths up to 520mm, the SUN-720QX supports up to 720mm, and the SUN-820QX is designed for large-scale packaging, supporting film widths up to 820mm.
Q2 What type of packaging materials can be used with these machines?
These VFFS (Vertical Form Fill Seal) packaging machines are designed to work with various heat-sealable composite films, such as PET/PE, Paper/PE, PET/AL/PE, OPP/PE, and other laminated packaging materials.
Q3 What are the standard electrical and air supply requirements?
All three models require a standard 220V 50Hz power supply and a stable air pressure source of 0.6mpa with a minimum air consumption rate of 0.4m³/min to ensure normal operations of the pneumatic components.
Q4 Can the bag length and width be adjusted?
Yes, bag lengths and widths can be adjusted within the technical ranges of each machine via the control screen. For instance, the SUN-520QX allows bag lengths from 80-400mm and widths from 150-250mm.
Q5 How does packing speed vary across the different models?
Packing speed depends on the bag size and film width. The SUN-520QX offers the fastest packaging cycle at 15-55 bags/min. The mid-sized SUN-720QX operates at 5-30 bags/min, while the large-format SUN-820QX processes 5-15 bags/min.
