Products Description
Features and Characteristics
-
⚙
Advanced Control Interface: Using high technology such as micro computer display and graphic touch panel, the machine can be easily operated and maintained.
-
⚙
Optimized System Motion: Being high-performance and high-durability, the filling machine rotates intermittently to fill the product easily while the vacuum machine rotates continuously to enable smooth running.
-
⚙

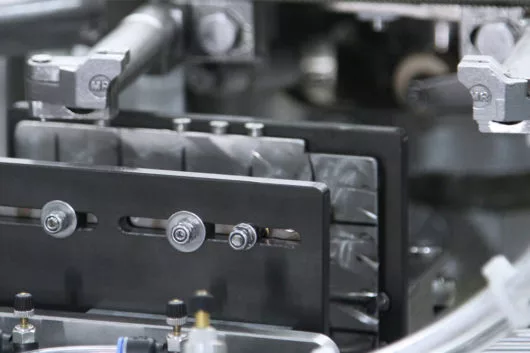

Automated Gripper Adjustments: The width of grippers in the filling machine can be adjusted simultaneously by a motor, while those in the vacuum chambers do not need manual adjustments. The main section of the machine is constructed from stainless steel for excellent durability and hygiene.
-
⚙
Washable Construction: All filling zones and vacuum chambers are designed to be washable.
-
⚙
Flexible Doser Combinations: Weighing machines and liquid & paste dosers can be combined with this machine. The status inside the vacuum chamber can be easily monitored through the transparent plastic vacuum shell lids.
We can customize the packaging solution for you according to your requirements. Simply specify your target Weight or Bag Size.
Model Comparison Matrix
| Model |
MRZK-100A |
MR10-120ZK |
MR10-160ZK |
MR8-200ZK |
| Bags Size |
W: 55-100 mm
L: 80-190 mm |
W: 55-100 mm
L: 80-190 mm |
W: 80-160 mm
L: 100-240 mm |
W: 100-210 mm
L: 120-300 mm |
| Max. Filling |
500g |
1000g |
1000g |
2000g |
| Speed |
55-85 bags/min |
40-60 bags/min |
30-50 bags/min |
10-40 bags/min |
| Power |
6KW |
6KW |
6KW |
6KW |
| Dimension (mm) |
2750 * 1480 * 1600 |
2500 * 1600 * 1650 |
2900 * 2050 * 1650 |
2600 * 2400 * 1650 |
| Weight |
2500kg |
2100kg |
2500kg |
3000kg |
💡 Note: We offer multiple configurations to meet diverse production needs. We will recommend the optimal model based on your specific requirements. Just tell us your target Capacity, Doser Type, and Bag/Capsule Size.
Frequently Asked Questions
How do I choose the correct machine model for my requirements?
We recommend the best model based on your packaging needs. Simply share the key parameters such as your target packing weight, bag dimensions, and desired capacity. Our engineering team will suggest the most suitable configuration.
How can I verify if the machine is compatible with my product?
You can send us product samples, and we will conduct testing runs on the packaging machines. We will record high-quality videos and clear pictures of the entire process for your review, or arrange a live video session to demonstrate the results.
What security options do you offer for first-time business transactions?
We operate with verified business licenses and certified credentials. To ensure maximum transaction security, we also support professional trade assurance services which secure your payment throughout every stage of the order.
What are the warranty details and after-sales support options?
We provide a comprehensive 12-month warranty starting from the date the machine arrives at your facility. We maintain an experienced team of technicians capable of offering overseas support and technical troubleshooting to ensure reliable machinery operation.

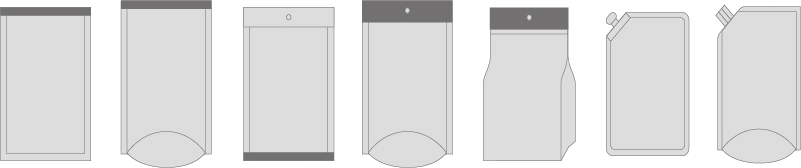

Can this machine handle zip-lock bags and multiple material types?
Yes, our packaging system is designed for high versatility. The machines can pack zipper bags at speeds of up to 40 packs per minute, and overall speeds can vary between 30 to 100 bags per minute depending on the specific product and film materials utilized.
How can we submit a detailed inquiry for a customized quotation?
You can submit your detailed requirements through our contact form. Please provide your bag size, product type, filling weight, and hourly production requirements so that our system specialists can draft a custom proposal.
